Hyundai Getz 2004 Owner's Manual

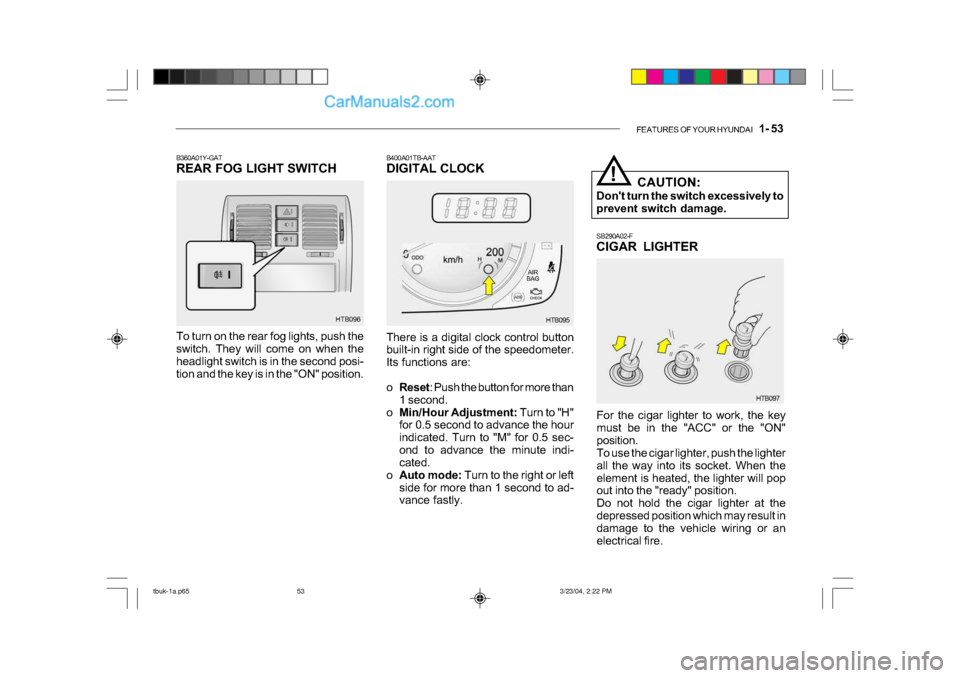

FEATURES OF YOUR HYUNDAI 1- 53
SB290A02-F
CIGAR LIGHTER
For the cigar lighter to work, the key
must be in the "ACC" or the "ON"
position.
To use the cigar lighter, push the lighter
all the way into its socket. When the
element is heated, the lighter will pop
out into the "ready" position.
Do not hold the cigar lighter at the
depressed position which may result in
damage to the vehicle wiring or an
electrical fire.
HTB097
B400A01TB-AAT
DIGITAL CLOCK HTB095
There is a digital clock control button
built-in right side of the speedometer.
Its functions are:
o Reset : Push the button for more than
1 second.
o Min/Hour Adjustment: Turn to "H"
for 0.5 second to advance the hour
indicated. Turn to "M" for 0.5 sec-
ond to advance the minute indi-
cated.
o Auto mode: Turn to the right or left
side for more than 1 second to ad-
vance fastly. CAUTION:
Don't turn the switch excessively to
prevent switch damage.
!
B360A01Y-GAT
REAR FOG LIGHT SWITCH
To turn on the rear fog lights, push the
switch. They will come on when the
headlight switch is in the second posi-
tion and the key is in the "ON" position. HTB096
tbuk-1a.p65
3/23/04, 2:22 PM
53

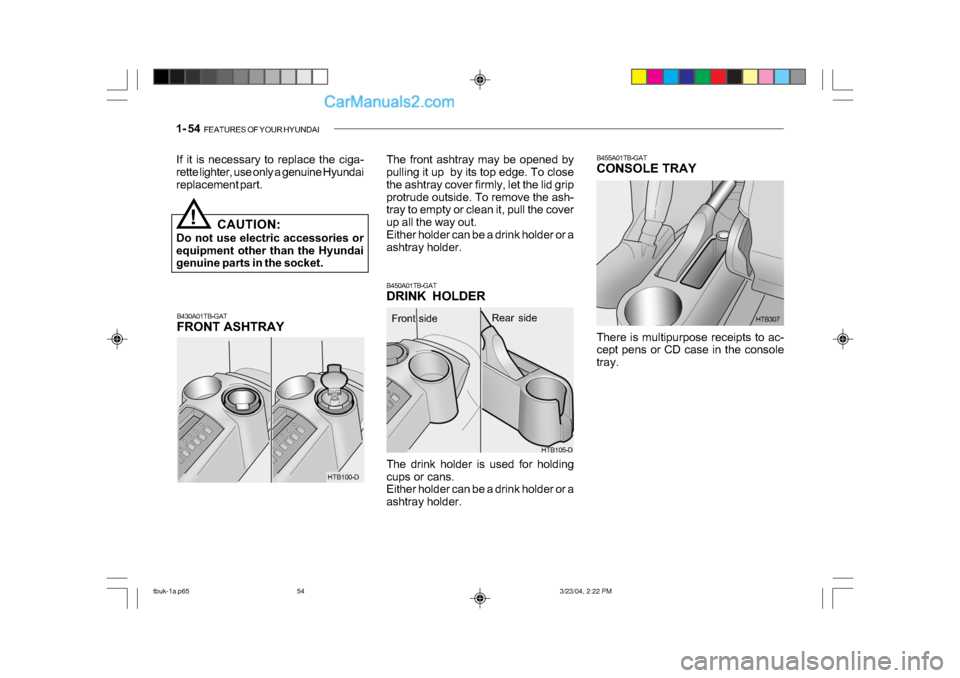

1- 54 FEATURES OF YOUR HYUNDAI
B430A01TB-GAT
FRONT ASHTRAY
!
If it is necessary to replace the ciga-
rette lighter, use only a genuine Hyundai
replacement part.
CAUTION:
Do not use electric accessories or
equipment other than the Hyundai
genuine parts in the socket.
HTB100-D The front ashtray may be opened by
pulling it up by its top edge. To close
the ashtray cover firmly, let the lid grip
protrude outside. To remove the ash-
tray to empty or clean it, pull the cover
up all the way out.
Either holder can be a drink holder or a
ashtray holder.
Front side
B450A01TB-GAT
DRINK HOLDER
The drink holder is used for holding
cups or cans.
Either holder can be a drink holder or a
ashtray holder. HTB105-D
Rear side B455A01TB-GAT
CONSOLE TRAY
There is multipurpose receipts to ac-
cept pens or CD case in the console
tray.
HTB307
tbuk-1a.p65
3/23/04, 2:22 PM
54

FEATURES OF YOUR HYUNDAI 1- 55
!
B460A01Y-AAT
SUNROOF (Not all models)
Sun Shade
Your HYUNDAI is equipped with a
sliding sunshade which you can manu-
ally adjust to let in light with the sunroof
closed, or to block sunlight.
Loading condition Switch
position
Driver only
Driver + front passenger
Full passengers
(including driver)
Full passengers
(including driver) + full trunk
loading (or light trailer loading)
Driver + full trunk loading
(or maximum trailer loading) 0
1
2
3 0
B470A01FC
WARNING:
Never adjust the sunshade while
driving.
B340G01S-EAT
HEADLIGHT LEVELING DEVICE
SYSTEM
To adjust the headlight beam level ac-
cording to the number of the passen-
gers and the loading weight in the lug-
gage area, turn the beam leveling switch.
The higher the number of the switch
position, the lower the headlight beam
level. Always keep the headlight beam
at the proper leveling position, or head-
lights may dazzle other road users.
Listed below are the examples of rec-
ommended switch settings. For loading
conditions other than those listed be-
low, adjust the switch position so that
the beam level may be the nearest as
the condition obtained according to the
list.
HTB181-D
tbuk-1a.p65
3/23/04, 2:22 PM
55

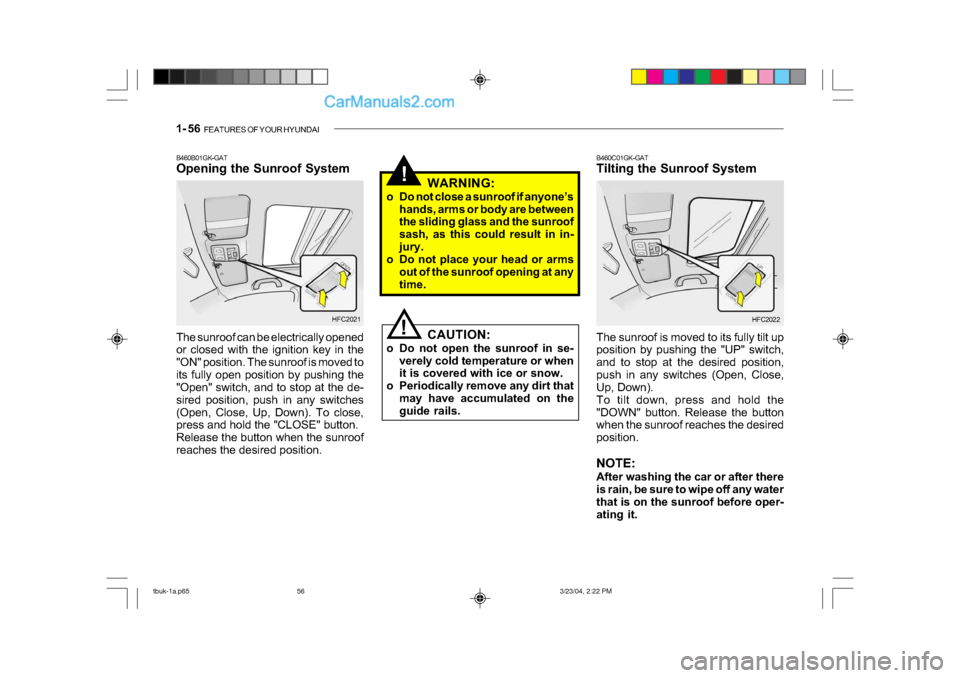

1- 56 FEATURES OF YOUR HYUNDAI
!
B460B01GK-GAT
Opening the Sunroof System
The sunroof can be electrically opened
or closed with the ignition key in the
"ON" position. The sunroof is moved to
its fully open position by pushing the
"Open" switch, and to stop at the de-
sired position, push in any switches
(Open, Close, Up, Down). To close,
press and hold the "CLOSE" button.
Release the button when the sunroof
reaches the desired position. HFC2021
HFC2022
B460C01GK-GAT
Tilting the Sunroof System
The sunroof is moved to its fully tilt up
position by pushing the "UP" switch,
and to stop at the desired position,
push in any switches (Open, Close,
Up, Down).
To tilt down, press and hold the
"DOWN" button. Release the button
when the sunroof reaches the desired
position.
NOTE:
After washing the car or after there
is rain, be sure to wipe off any water
that is on the sunroof before oper-
ating it.
WARNING:
o Do not close a sunroof if anyone’s hands, arms or body are between
the sliding glass and the sunroof
sash, as this could result in in-
jury.
o Do not place your head or arms
out of the sunroof opening at any
time.
CAUTION:
o Do not open the sunroof in se- verely cold temperature or when
it is covered with ice or snow.
o Periodically remove any dirt that may have accumulated on the
guide rails.
!
tbuk-1a.p65 3/23/04, 2:22 PM
56

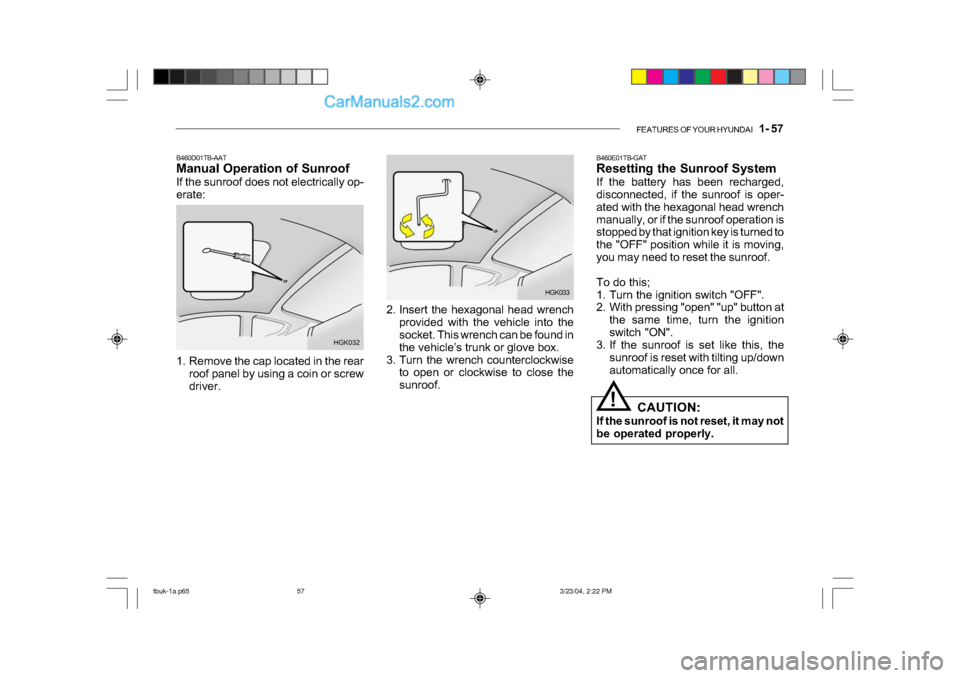

FEATURES OF YOUR HYUNDAI 1- 57
2. Insert the hexagonal head wrench
provided with the vehicle into the
socket. This wrench can be found in
the vehicle’s trunk or glove box.
3. Turn the wrench counterclockwise to open or clockwise to close the
sunroof. HGK033B460E01TB-GAT
Resetting the Sunroof System
If the battery has been recharged,
disconnected, if the sunroof is oper-
ated with the hexagonal head wrench
manually, or if the sunroof operation is
stopped by that ignition key is turned to
the "OFF" position while it is moving,
you may need to reset the sunroof.
To do this;
1. Turn the ignition switch "OFF".
2. With pressing "open" "up" button at
the same time, turn the ignition
switch "ON".
3. If the sunroof is set like this, the
sunroof is reset with tilting up/down
automatically once for all.
! CAUTION:
If the sunroof is not reset, it may not
be operated properly.
B460D01TB-AAT
Manual Operation of Sunroof
If the sunroof does not electrically op-
erate:
HGK032
1. Remove the cap located in the rear roof panel by using a coin or screw
driver.
tbuk-1a.p65 3/23/04, 2:22 PM
57

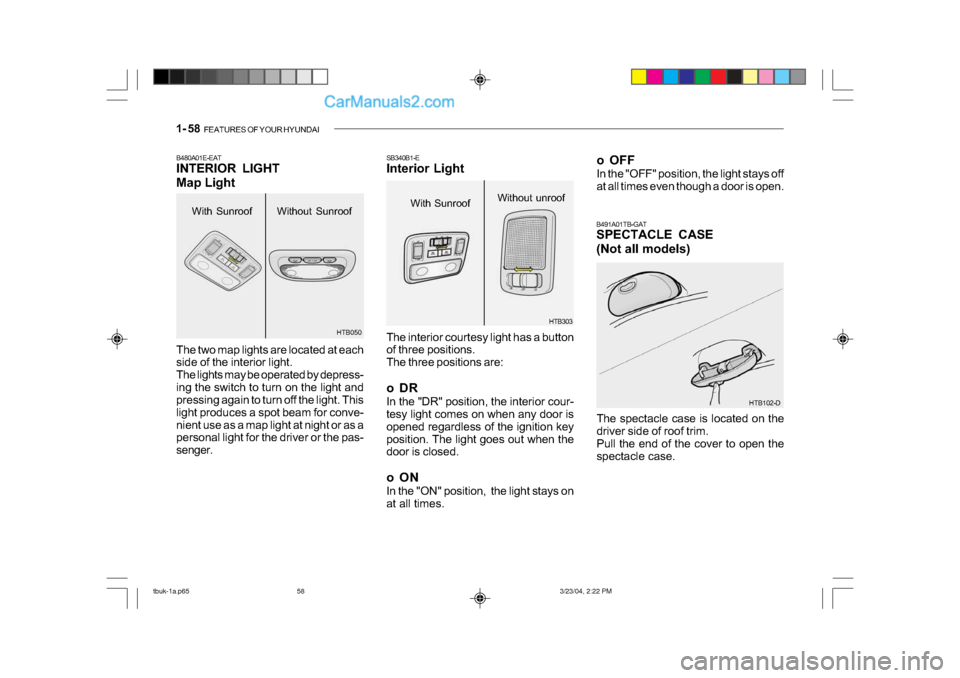

1- 58 FEATURES OF YOUR HYUNDAI
With Sunroof
B480A01E-EAT
INTERIOR LIGHT
Map Light
The two map lights are located at each
side of the interior light.
The lights may be operated by depress-
ing the switch to turn on the light and
pressing again to turn off the light. This
light produces a spot beam for conve-
nient use as a map light at night or as a
personal light for the driver or the pas-
senger.Without Sunroof
HTB050
HTB102-D
B491A01TB-GAT
SPECTACLE CASE
(Not all models)
The spectacle case is located on the
driver side of roof trim.
Pull the end of the cover to open the
spectacle case.
HTB303
With Sunroof
Without unroof
SB340B1-E
Interior Light
The interior courtesy light has a button
of three positions.
The three positions are:
oDR
In the "DR" position, the interior cour-
tesy light comes on when any door is
opened regardless of the ignition key
position. The light goes out when the
door is closed.
oON
In the "ON" position, the light stays on
at all times. o OFF
In the "OFF" position, the light stays off
at all times even though a door is open.
tbuk-1a.p65
3/23/04, 2:22 PM
58

FEATURES OF YOUR HYUNDAI 1- 59

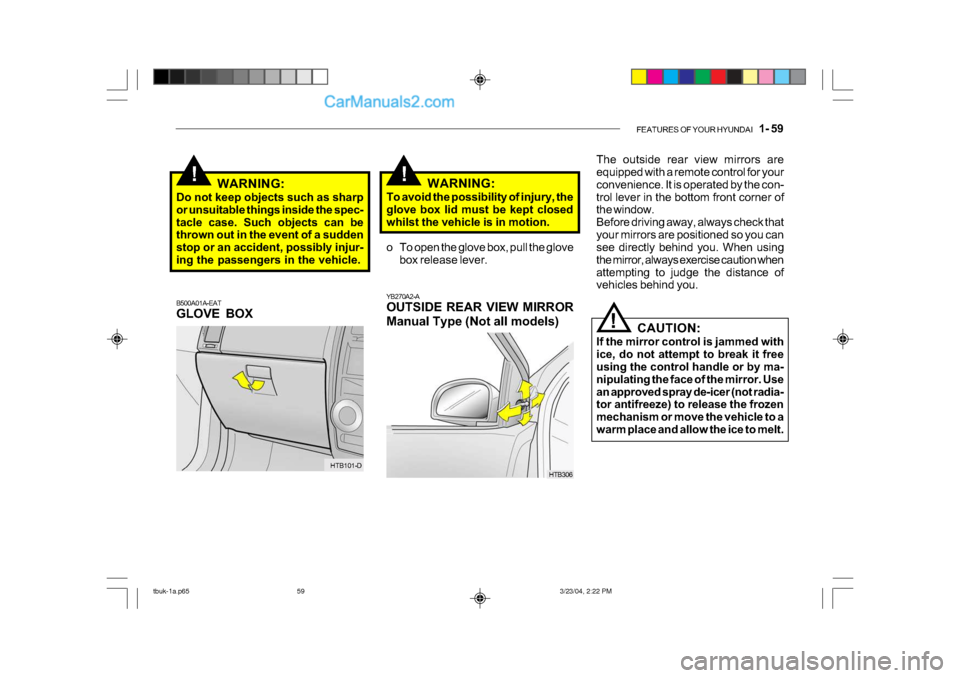

!!WARNING:
To avoid the possibility of injury, the
glove box lid must be kept closed
whilst the vehicle is in motion.
o To open the glove box, pull the glove box release lever.
YB270A2-A
OUTSIDE REAR VIEW MIRROR
Manual Type (Not all models) The outside rear view mirrors are
equipped with a remote control for your
convenience. It is operated by the con-
trol lever in the bottom front corner of
the window.
Before driving away, always check that
your mirrors are positioned so you can
see directly behind you. When using
the mirror, always exercise caution when
attempting to judge the distance of
vehicles behind you.
HTB306
B500A01A-EAT
GLOVE BOX
HTB101-D
WARNING:
Do not keep objects such as sharp
or unsuitable things inside the spec-
tacle case. Such objects can be
thrown out in the event of a sudden
stop or an accident, possibly injur-
ing the passengers in the vehicle.
CAUTION:
If the mirror control is jammed with
ice, do not attempt to break it free
using the control handle or by ma-
nipulating the face of the mirror. Use
an approved spray de-icer (not radia-
tor antifreeze) to release the frozen
mechanism or move the vehicle to a
warm place and allow the ice to melt.
!
tbuk-1a.p65 3/23/04, 2:22 PM
59

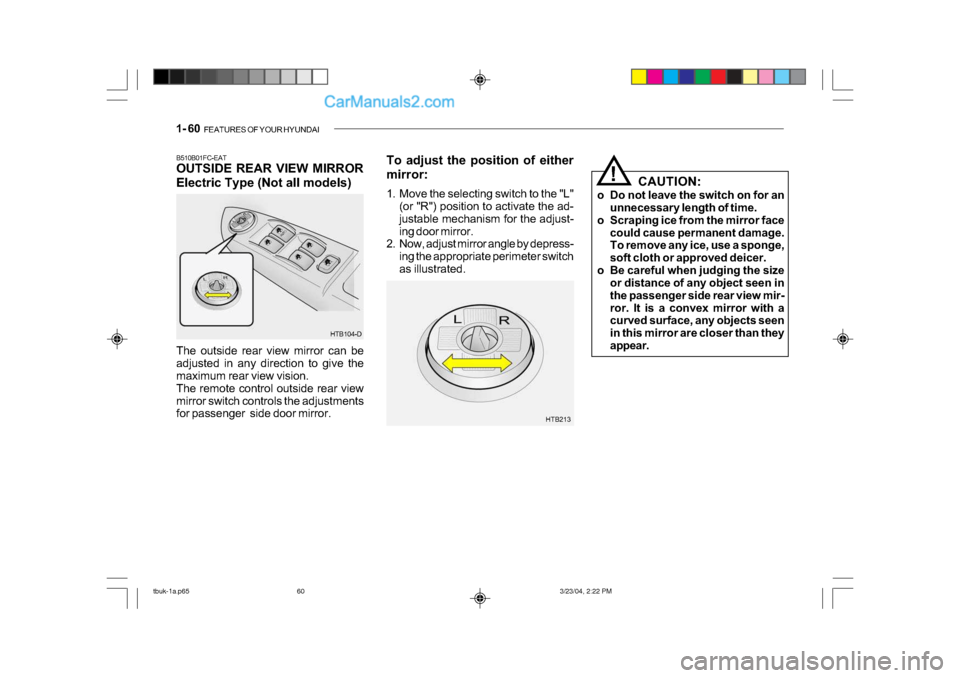

1- 60 FEATURES OF YOUR HYUNDAI
To adjust the position of either
mirror:
1. Move the selecting switch to the "L"
(or "R") position to activate the ad-
justable mechanism for the adjust-
ing door mirror.
2. Now, adjust mirror angle by depress-
ing the appropriate perimeter switch
as illustrated.
HTB213CAUTION:
o Do not leave the switch on for an unnecessary length of time.
o Scraping ice from the mirror face could cause permanent damage.
To remove any ice, use a sponge,
soft cloth or approved deicer.
o Be careful when judging the size or distance of any object seen in
the passenger side rear view mir-
ror. It is a convex mirror with a
curved surface, any objects seen
in this mirror are closer than they
appear.
!
B510B01FC-EAT
OUTSIDE REAR VIEW MIRROR
Electric Type (Not all models)
The outside rear view mirror can be
adjusted in any direction to give the
maximum rear view vision.
The remote control outside rear view
mirror switch controls the adjustments
for passenger side door mirror. HTB104-D
tbuk-1a.p65
3/23/04, 2:22 PM
60

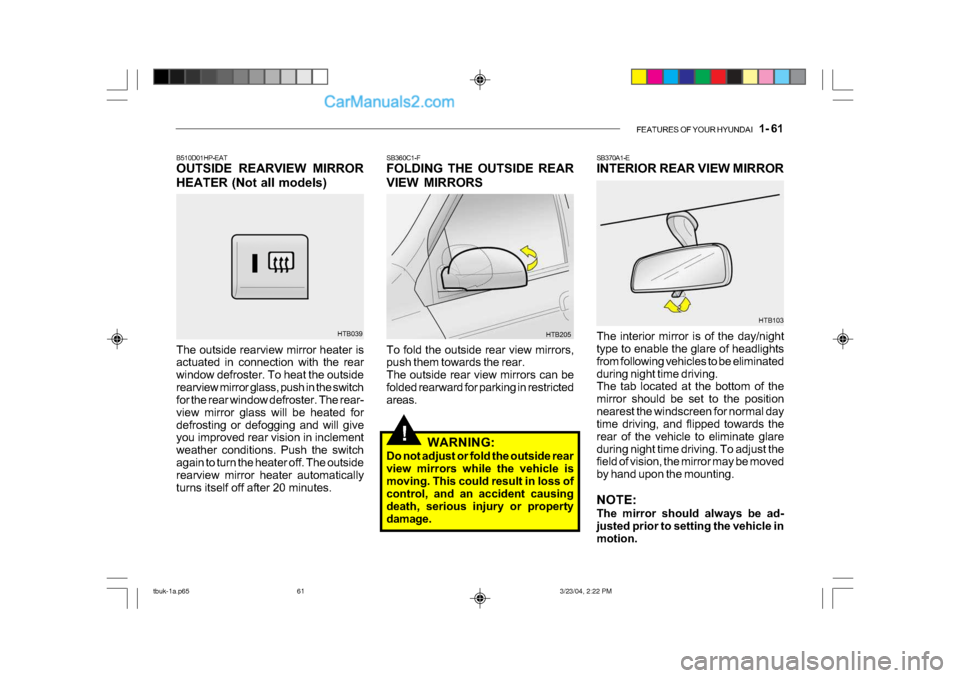

FEATURES OF YOUR HYUNDAI 1- 61
!
SB370A1-E
INTERIOR REAR VIEW MIRROR
The interior mirror is of the day/night
type to enable the glare of headlights
from following vehicles to be eliminated
during night time driving.
The tab located at the bottom of the
mirror should be set to the position
nearest the windscreen for normal day
time driving, and flipped towards the
rear of the vehicle to eliminate glare
during night time driving. To adjust the
field of vision, the mirror may be moved
by hand upon the mounting.
NOTE:
The mirror should always be ad-
justed prior to setting the vehicle in
motion. HTB103B510D01HP-EAT
OUTSIDE REARVIEW MIRROR
HEATER (Not all models)
The outside rearview mirror heater is
actuated in connection with the rear
window defroster. To heat the outside
rearview mirror glass, push in the switch
for the rear window defroster. The rear-
view mirror glass will be heated for
defrosting or defogging and will give
you improved rear vision in inclement
weather conditions. Push the switch
again to turn the heater off. The outside
rearview mirror heater automatically
turns itself off after 20 minutes. SB360C1-F
FOLDING THE OUTSIDE REAR
VIEW MIRRORS
To fold the outside rear view mirrors,
push them towards the rear.
The outside rear view mirrors can be
folded rearward for parking in restricted
areas.
HTB039
HTB205
WARNING:
Do not adjust or fold the outside rear
view mirrors while the vehicle is
moving. This could result in loss of
control, and an accident causing
death, serious injury or property
damage.
tbuk-1a.p65 3/23/04, 2:22 PM
61

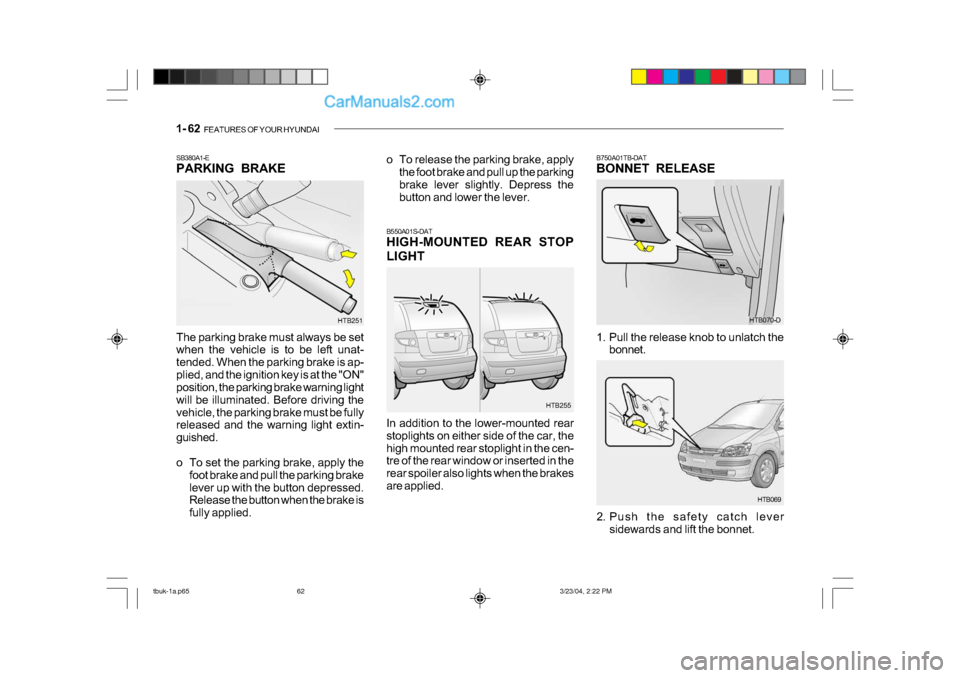

1- 62 FEATURES OF YOUR HYUNDAI
The parking brake must always be set
when the vehicle is to be left unat-
tended. When the parking brake is ap-
plied, and the ignition key is at the "ON"
position, the parking brake warning light
will be illuminated. Before driving the
vehicle, the parking brake must be fully
released and the warning light extin-
guished.
o To set the parking brake, apply the
foot brake and pull the parking brake
lever up with the button depressed.
Release the button when the brake is
fully applied.
SB380A1-E
PARKING BRAKE
B550A01S-DAT
HIGH-MOUNTED REAR STOP
LIGHT
In addition to the lower-mounted rear
stoplights on either side of the car, the
high mounted rear stoplight in the cen-
tre of the rear window or inserted in the
rear spoiler also lights when the brakes
are applied.
HTB251
HTB255
o To release the parking brake, apply
the foot brake and pull up the parking
brake lever slightly. Depress the
button and lower the lever.
B750A01TB-DAT
BONNET RELEASE
HTB070-D
1. Pull the release knob to unlatch the bonnet.
HTB069
2. Push the safety catch lever sidewards and lift the bonnet.
tbuk-1a.p65 3/23/04, 2:22 PM
62
