DO-IT-YOURSELF MAINTENANCE 6- 13
SG060A1-E
SPARKING PLUG REPLACE-
MENT
G060A01L
0.039 ~ 0.043 in.
(1.0 ~ 1.1 mm )
This operation should only be performed
when the engine is cold.
1. Remove the centre cover from the engine rocker cover.
2. Remove plug lead from the sparking plug to be replaced, pulling the lead
by the rubber cap. (Pulling the lead
may damage the carbon conductor).
3. Clean around the base of the plug to be removed, and install the plug
socket ensuring that the ceramic
insulator does not become damaged.
Turn the socket counterclockwise to
remove the plug. CAUTION:
Sparking plugs must only be cleaned
using purpose designed equipment.
Wire brushing may damage the cen-
tre electrodein-sulator causing mis-
firing to occur. Only the correct grade
of sparking plug should be used.
Use of an incorrect grade may result
in serious engine damage.
Prior to installing a sparking plug, the
gap between the centre and outer elec-
trodes must be checked and adjusted
as necessary.
Adjustment is facilitated by bending the
outer electrode towards or away from
the centre electrode. Under no circum-
stances should attempts be made to
adjust the position of the centre elec-
trode.
4. Insert the sparking plug into the cyl- inder head and screw by the wrench
and until the plug contacts the seat-
ing area. Tighten the plug with the
socket by a further 1/2 to 3/4 of a turn
only. 5. Replace the plug lead ensuring that
the cap is pushed firmly into place.
Confirm that the cap is correctly
seated by lightly pulling upon it.
NOTE:
When replacing the spark plug, al-
ways use the genuine parts recom-
mended.
Recommended Spark Plugs
CHAMPION
NGK RC10YC
BKR5ES
Unleaded
engine Leaded
engine
RC10YC4
BKR5ES-11
!
tbuk-6.p65 3/23/04, 4:26 PM
13

DO-IT-YOURSELF MAINTENANCE 6- 15
!
SG100A1-E
MANUAL TRANSAXLE
LUBRICANT
SG090A2-E
WINDSCREEN WASHER RES-
ERVOIR REPLENISHMENT

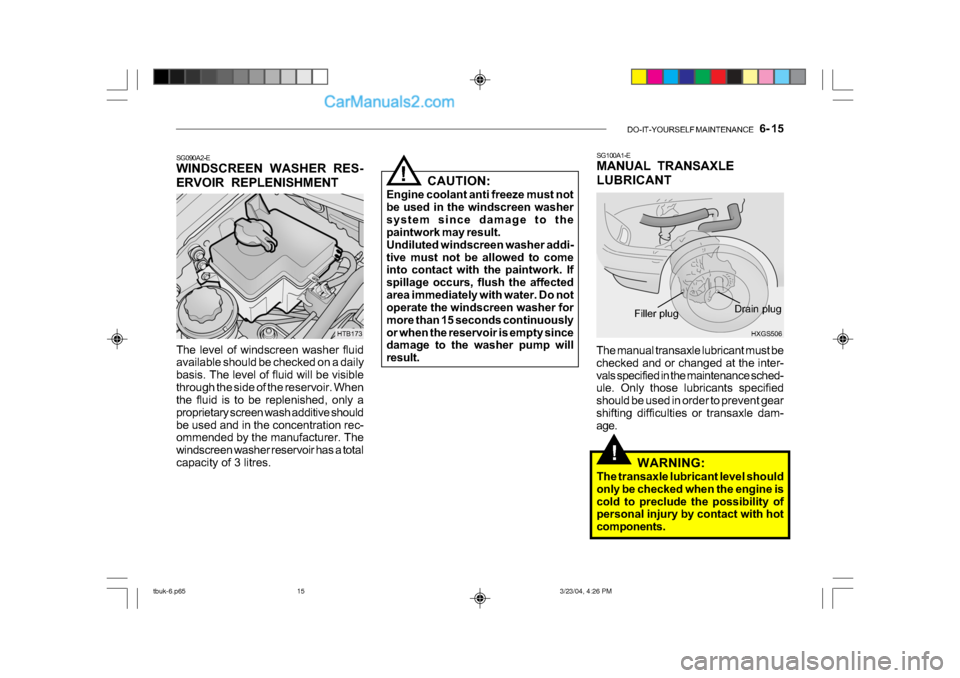

The level of windscreen washer fluid
available should be checked on a daily
basis. The level of fluid will be visible
through the side of the reservoir. When
the fluid is to be replenished, only a
proprietary screen wash additive should
be used and in the concentration rec-
ommended by the manufacturer. The
windscreen washer reservoir has a total
capacity of 3 litres. CAUTION:
Engine coolant anti freeze must not
be used in the windscreen washer
system since damage to the
paintwork may result.
Undiluted windscreen washer addi-
tive must not be allowed to come
into contact with the paintwork. If
spillage occurs, flush the affected
area immediately with water. Do not
operate the windscreen washer for
more than 15 seconds continuously
or when the reservoir is empty since
damage to the washer pump will
result.
!
HTB173
HXGS506
Drain plug
Filler plug
The manual transaxle lubricant must be
checked and or changed at the inter-
vals specified in the maintenance sched-
ule. Only those lubricants specified
should be used in order to prevent gear
shifting difficulties or transaxle dam-
age.
WARNING:
The transaxle lubricant level should
only be checked when the engine is
cold to preclude the possibility of
personal injury by contact with hot
components.
tbuk-6.p65 3/23/04, 4:26 PM
15

6- 16 DO-IT-YOURSELF MAINTENANCE
G100B01L
Recommended Oil

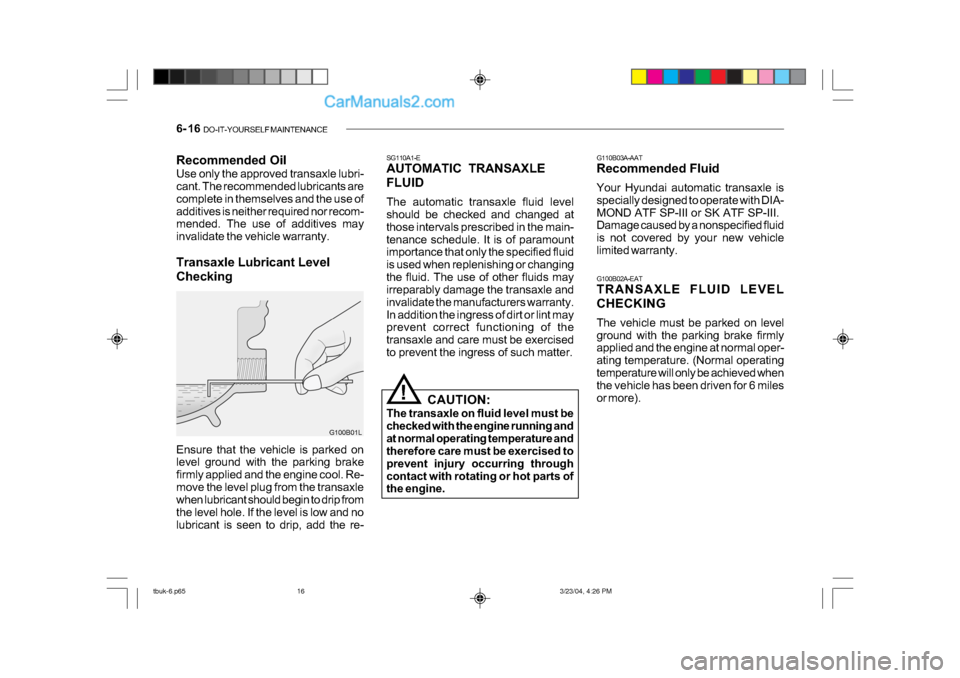

Use only the approved transaxle lubri-
cant. The recommended lubricants are
complete in themselves and the use of
additives is neither required nor recom-
mended. The use of additives may
invalidate the vehicle warranty.
Transaxle Lubricant Level
Checking
Ensure that the vehicle is parked on
level ground with the parking brake
firmly applied and the engine cool. Re-
move the level plug from the transaxle
when lubricant should begin to drip from
the level hole. If the level is low and no
lubricant is seen to drip, add the re-
G100B02A-EAT
TRANSAXLE FLUID LEVEL
CHECKING
The vehicle must be parked on level
ground with the parking brake firmly
applied and the engine at normal oper-
ating temperature. (Normal operating
temperature will only be achieved when
the vehicle has been driven for 6 miles
or more).
SG110A1-E
AUTOMATIC TRANSAXLE
FLUID
The automatic transaxle fluid level
should be checked and changed at
those intervals prescribed in the main-
tenance schedule. It is of paramount
importance that only the specified fluid
is used when replenishing or changing
the fluid. The use of other fluids may
irreparably damage the transaxle and
invalidate the manufacturers warranty.
In addition the ingress of dirt or lint may
prevent correct functioning of the
transaxle and care must be exercised
to prevent the ingress of such matter.
CAUTION:
The transaxle on fluid level must be
checked with the engine running and
at normal operating temperature and
therefore care must be exercised to
prevent injury occurring through
contact with rotating or hot parts of
the engine.
! G110B03A-AAT
Recommended Fluid
Your Hyundai automatic transaxle is
specially designed to operate with DIA-
MOND ATF SP-III or SK ATF SP-III.
Damage caused by a nonspecified fluid
is not covered by your new vehicle
limited warranty.
tbuk-6.p65
3/23/04, 4:26 PM
16

6- 18 DO-IT-YOURSELF MAINTENANCE
G120E01TB-EAT
Brake Fluid Level
SG120A1-E
BRAKE SYSTEM CHECKINGcurrents in the Common Rail system
produce considerable magnetic
fields.
!
CAUTION:
The automatic transaxle unit is a
precision engineered assembly and
correct operation is dependant upon
the exclusion of dirt and lint from the
unit. Therefore, it is imperative that
only lint free cloth (eg nylon) is used
for wiping the dipstick and that the
area around the dipstick is thor-
oughly clean prior to level checking
or adding fluid.
Fluid Capacity
Fluid Capacity
The total fluid capacity of the transaxle
unit is 6.1 litres. SG120C2-E

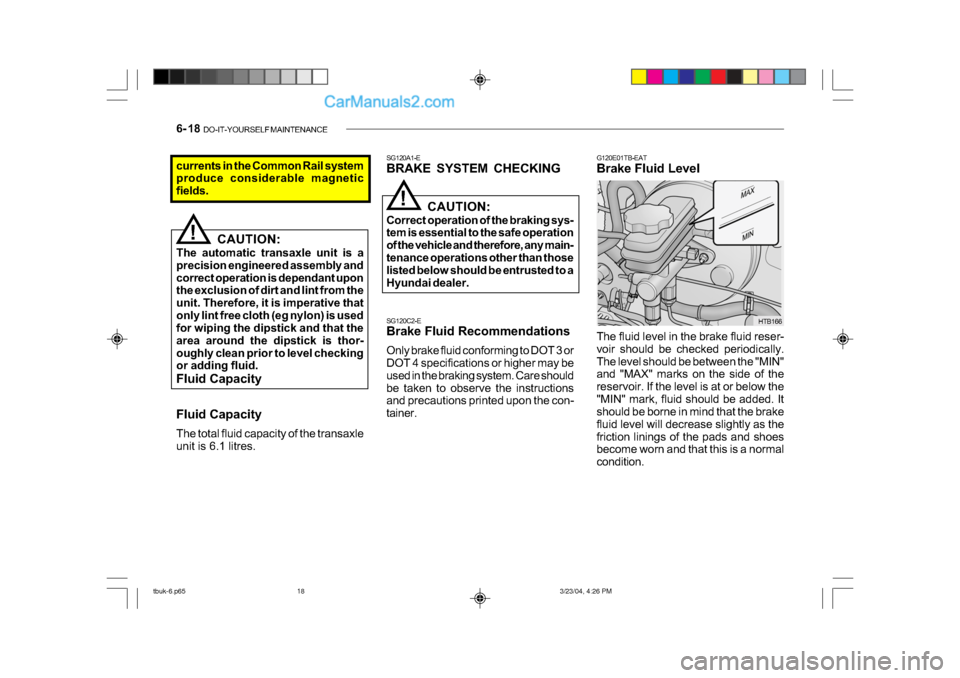

Brake Fluid Recommendations
Only brake fluid conforming to DOT 3 or
DOT 4 specifications or higher may be
used in the braking system. Care should
be taken to observe the instructions
and precautions printed upon the con-
tainer.
!
CAUTION:
Correct operation of the braking sys-
tem is essential to the safe operation
of the vehicle and therefore, any main-
tenance operations other than those
listed below should be entrusted to a
Hyundai dealer.
The fluid level in the brake fluid reser-
voir should be checked periodically.
The level should be between the "MIN"
and "MAX" marks on the side of the
reservoir. If the level is at or below the
"MIN" mark, fluid should be added. It
should be borne in mind that the brake
fluid level will decrease slightly as the
friction linings of the pads and shoes
become worn and that this is a normal
condition.
HTB166
tbuk-6.p65 3/23/04, 4:26 PM
18

6- 20 DO-IT-YOURSELF MAINTENANCE
B145A01TB-EAT
CHANGING THE POLLEN FIL-
TER (In Front of evaporator unit)
(Not all models)
The pollen filter is located in front of the
evaporator unit behind the glove box.
It operates to decrease pollutants from
entering the car and to filter the air.
1. Remove the adjusting pins on both
sides of the glove box to open half
the glove box.
HTB290-D
SG140D1-E
Off Season Maintenance
The air conditioning must be run for ten
minutes or so weekly during periods
when the system would not normally be
used to ensure that the compressor and
seals are lubricated. If this precaution
is not observed the compressor seals
may become stuck to the compressor
shaft and damaged when the system is
next used resulting in a loss of refriger-
ant and damage to the compressor.
SG140C1-E
Checking the Refrigerant
1. Start the engine and run at idle for
several minutes with the refrigera-
tion system running at the coldest
setting.
2. Open the bonnet and inspect the sight glass on the top of the receiver
dryer.
3. If the refrigerant charge is insuffi- cient, a flow of bubbles will be ob-
served through the sight glass.
4. If the refrigerant charge is satisfac- tory, no bubbles will be observed
through the sight glass. CAUTION:
Running the air conditioning system
with a low refrigerant level may dam-
age the compressor.
!
The air conditioning compressor drive
belt should be checked to ensure free-
dom from damage or excessive wear
and correct tension. The belt tension is
correct when the belt deflects by about
0.3 inches (8 mm) (1.1L: 5 ~ 5.5 mm)
when a force of 98 N is applied to the
belt halfway between the compressor
and crankshaft pulleys. Adjustment of
the belt should be entrusted to a Hyundai
dealer.
tbuk-6.p65
3/23/04, 4:26 PM
20

6- 22 DO-IT-YOURSELF MAINTENANCE
G180A01A-GAT
CHECKING BRAKE PEDAL
CLEARANCE
G180A01L
1.78 in. (45.1 mm)
You need a helper to check the brake
pedal clearance. With the engine run-
ning, have your helper press down on
the brake pedal several times and then
hold it down with a force of about 490
N (50 Kg, 110 lbs). The brake pedal
clearance is the distance from the top
surface of the brake pedal to the as-
phalt sheeting under the floor mat.
If the brake pedal clearance is not
within the limits specified in the illustra-
tion, have it inspected by your Hyundai
dealer and adjusted or repaired if nec-
essary.SG170A1-E
BRAKE PEDAL FREEPLAY
HXGS508
0.12 ~ 0.31 in.
(3 ~ 8 mm)
The brake pedal freeplay should be
checked with the engine turned off. The
pedal to floor clearance should be
checked with the engine running and a
load of 490 N applied to the pedal. If
either value is incorrect, the necessary
adjustment should be performed by a
Hyundai dealer. Pedal to floor clear-
ance: 1.97 in. (50 mm)SG160A1-E

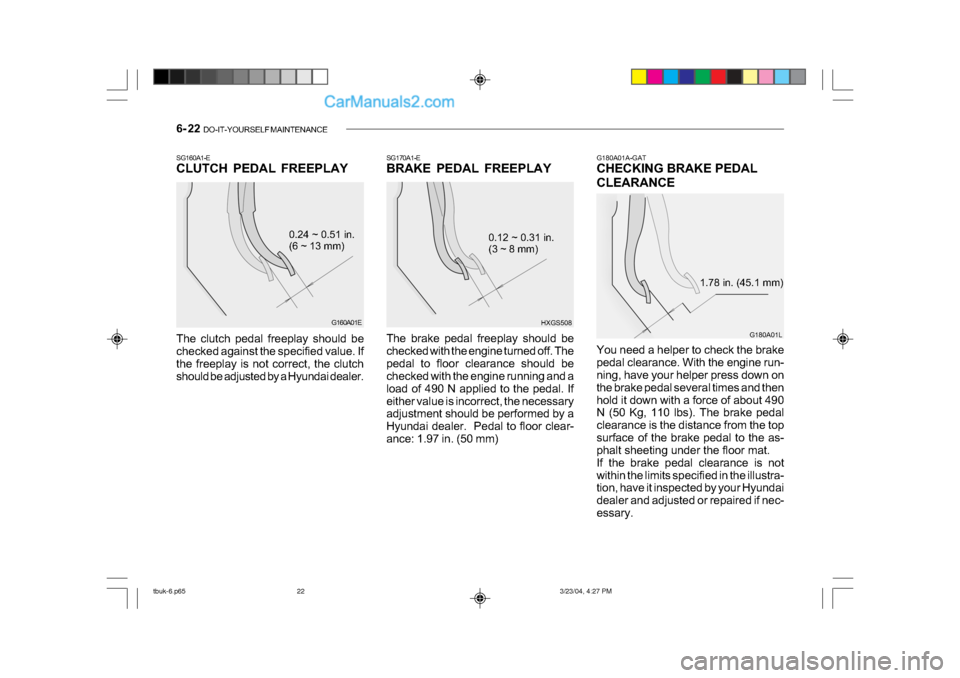

CLUTCH PEDAL FREEPLAY
G160A01E
0.24 ~ 0.51 in.
(6 ~ 13 mm)
The clutch pedal freeplay should be
checked against the specified value. If
the freeplay is not correct, the clutch
should be adjusted by a Hyundai dealer.
tbuk-6.p65 3/23/04, 4:27 PM
22

DO-IT-YOURSELF MAINTENANCE 6- 23

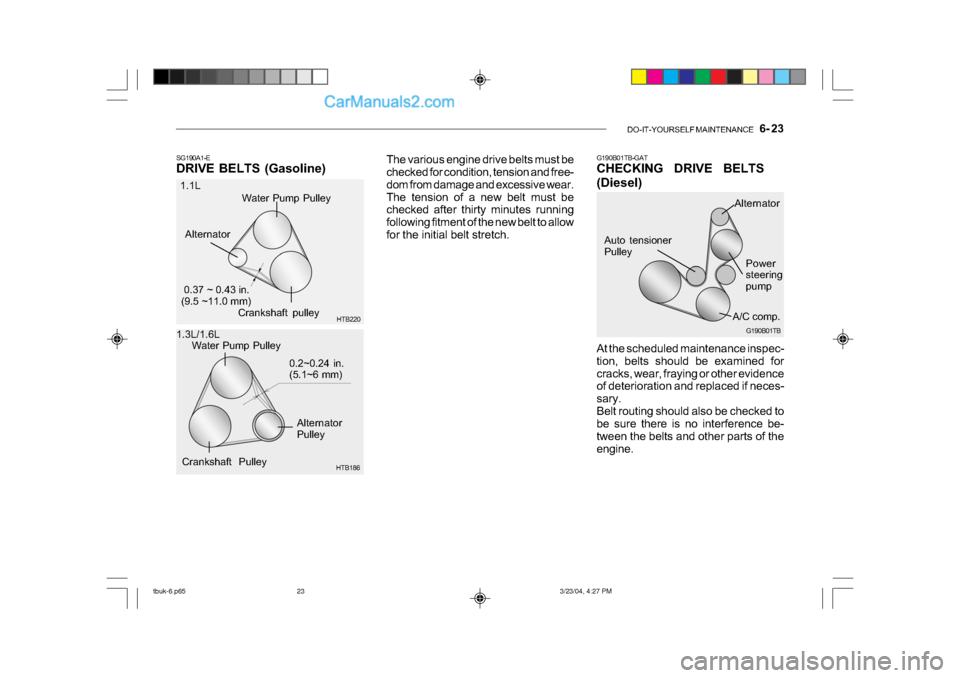

The various engine drive belts must be
checked for condition, tension and free-
dom from damage and excessive wear.
The tension of a new belt must be
checked after thirty minutes running
following fitment of the new belt to allow
for the initial belt stretch. G190B01TB-GAT
CHECKING DRIVE BELTS
(Diesel)
A/C comp.
Auto tensioner
Pulley
G190B01TB
AlternatorPower
steering
pump
At the scheduled maintenance inspec-
tion, belts should be examined for
cracks, wear, fraying or other evidence
of deterioration and replaced if neces-
sary.
Belt routing should also be checked to
be sure there is no interference be-
tween the belts and other parts of the
engine.
Crankshaft Pulley
SG190A1-E
DRIVE BELTS (Gasoline)
1.1L
1.3L/1.6L Alternator
0.37 ~ 0.43 in.
(9.5 ~11.0 mm)
Water Pump Pulley
Alternator
Pulley
0.2~0.24 in.
(5.1~6 mm)
HTB186
Crankshaft pulley
HTB220
Water Pump Pulley
tbuk-6.p65 3/23/04, 4:27 PM
23

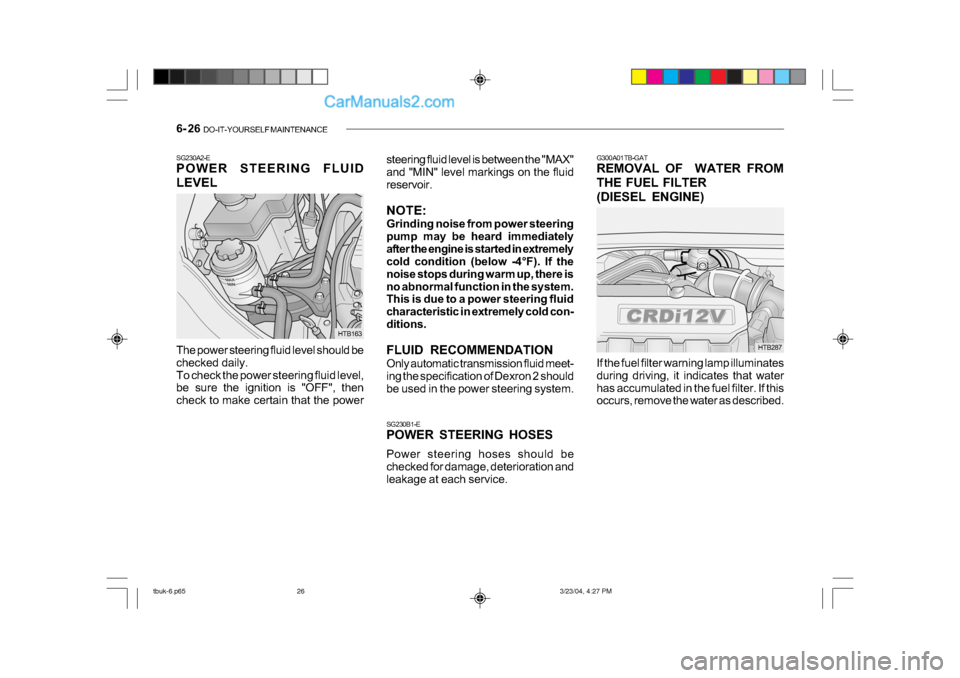

6- 26 DO-IT-YOURSELF MAINTENANCE
HTB287
SG230B1-E
POWER STEERING HOSES
Power steering hoses should be
checked for damage, deterioration and
leakage at each service.
steering fluid level is between the "MAX"
and "MIN" level markings on the fluid
reservoir.
NOTE:
Grinding noise from power steering
pump may be heard immediately
after the engine is started in extremely
cold condition (below -4

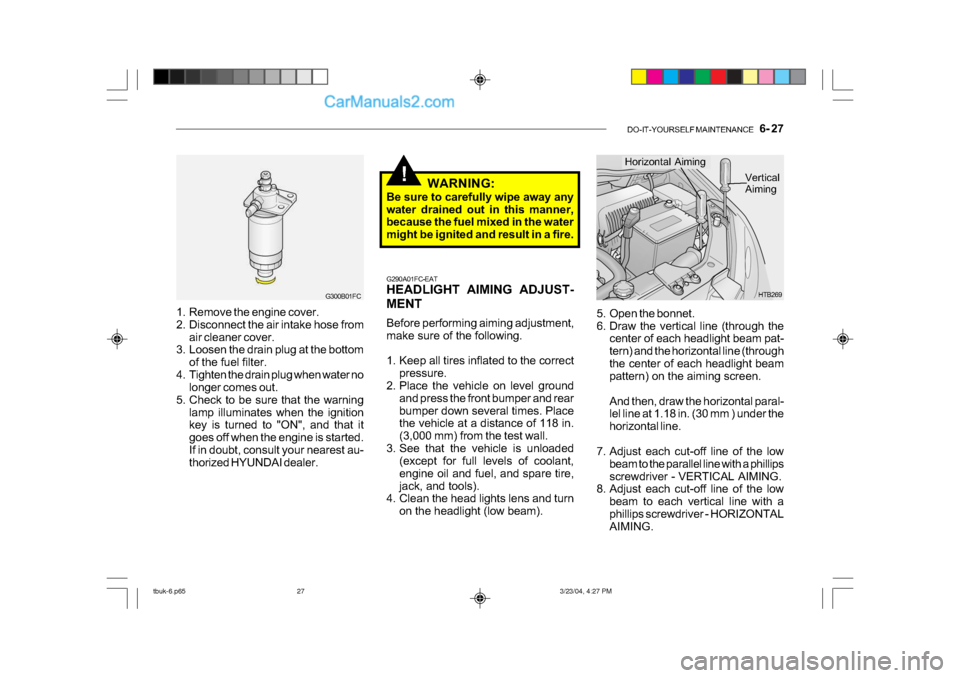

DO-IT-YOURSELF MAINTENANCE 6- 27
!
5. Open the bonnet.
6. Draw the vertical line (through the
center of each headlight beam pat-
tern) and the horizontal line (through
the center of each headlight beam
pattern) on the aiming screen.
And then, draw the horizontal paral-
lel line at 1.18 in. (30 mm ) under the
horizontal line.
7. Adjust each cut-off line of the low beam to the parallel line with a phillips
screwdriver - VERTICAL AIMING.
8. Adjust each cut-off line of the low
beam to each vertical line with a
phillips screwdriver - HORIZONTAL
AIMING. HTB269
Horizontal Aiming
Vertical
Aiming
G290A01FC-EAT
HEADLIGHT AIMING ADJUST-
MENT
Before performing aiming adjustment,
make sure of the following.
1. Keep all tires inflated to the correct pressure.
2. Place the vehicle on level ground
and press the front bumper and rear
bumper down several times. Place
the vehicle at a distance of 118 in.
(3,000 mm) from the test wall.
3. See that the vehicle is unloaded (except for full levels of coolant,
engine oil and fuel, and spare tire,
jack, and tools).
4. Clean the head lights lens and turn
on the headlight (low beam). WARNING:
Be sure to carefully wipe away any
water drained out in this manner,
because the fuel mixed in the water
might be ignited and result in a fire.
1. Remove the engine cover.
2. Disconnect the air intake hose from air cleaner cover.
3. Loosen the drain plug at the bottom
of the fuel filter.
4. Tighten the drain plug when water no longer comes out.
5. Check to be sure that the warning lamp illuminates when the ignition
key is turned to "ON", and that it
goes off when the engine is started.
If in doubt, consult your nearest au-
thorized HYUNDAI dealer.
G300B01FC
tbuk-6.p65 3/23/04, 4:27 PM
27

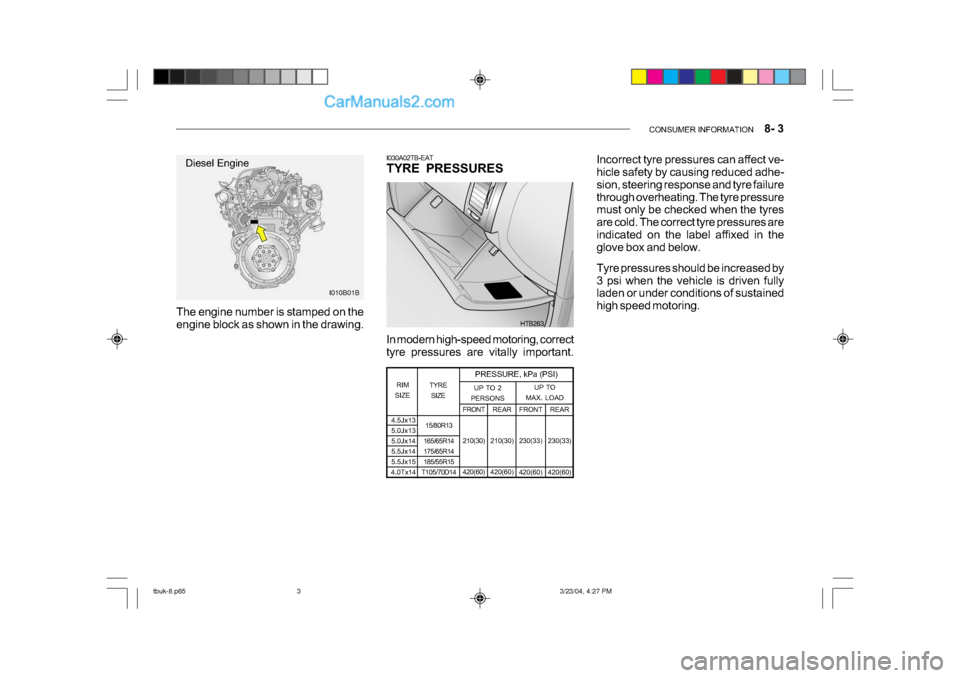

CONSUMER INFORMATION 8- 3
4.5Jx13
5.0Jx13
5.0Jx14
5.5Jx14
5.5Jx15
4.0Tx14 TYRE
SIZE
RIM
SIZE PRESSURE, kPa (PSI)
15/80R13
165/65R14
175/65R14
185/55R15
T105/70D14 REAR
210(30)
420(60) FRONT
230(33)
420(60)
UP TO 2
PERSONS UP TO
MAX. LOAD
REAR
230(33)
420(60)
FRONT
210(30)
420(60)
The engine number is stamped on the
engine block as shown in the drawing. I030A02TB-EAT
TYRE PRESSURES
In modern high-speed motoring, correct
tyre pressures are vitally important.
I010B01B
HTB263
Diesel EngineIncorrect tyre pressures can affect ve-
hicle safety by causing reduced adhe-
sion, steering response and tyre failure
through overheating. The tyre pressure
must only be checked when the tyres
are cold. The correct tyre pressures are
indicated on the label affixed in the
glove box and below.
Tyre pressures should be increased by
3 psi when the vehicle is driven fully
laden or under conditions of sustained
high speed motoring.
tbuk-8.p65 3/23/04, 4:27 PM
3
