Hyundai Getz 2006 Owner's Manual

1- 98 FEATURES OF YOUR HYUNDAI
5. TUNE Press the button not more than 1 second then frequency is increased.Likewise press the button not more than 1 second to decrease the fre- quency.
o SEEK Press the button for over 1 second, then it will tune to the next receivablehigher frequency station. Likewise, press the button for over 1 second then it will tune to the next receivablelower frequency station.If the selected station is in the preset memory, memo- rized channel will be on the display too. 6. FM/AM Button FM/AM band button, which is used to change the band repeatedly in follow- ing manner. FM1 FM2 AM FM1
(FM1 FM2 M L FM1 : Europe)
K210B01TB-GAT 1. POWER ON/OFF, VOLUME Rotate the Power switch clockwise to turn on the audio when the ignitionswitch is at ACC or ON position. Once the system is on, you can increase or decrease the volume by rotating theknob clockwise or counter-clockwise.
o BALANCE Further pull the volume button and rotate clockwise to emphasize right sound speaker. Or rotate counter-clockwise to empha-size left sound speaker.
o SCAN Button When this button is pressed, the fre- quency will be increased to be tuned to the next receivable station one afteranother, receiving each station for 5 seconds. if the desirable station is tuned, press this button (scan) againto cancel scan function.
2. BASS/TREBLE-pull Press this button to pop up. Rotate the knob clockwise to increase the Bassand rotate to counter-clockwise to de- crease the Bass. Further pull the button and rotate clock-wise to increase the Treble. Or rotate counter-clockwise to de- crease the Treble. After adjustmentpress the button. 3. PRESET ( 1 ~ 6 ) Press any of these buttons not more than 2 seconds to listen to the station in memory. Press the preset button for 2 seconds or more, then the currentstation will be stored into the memory of the preset button. 4. LCD LCD shows the following information; band of FM1/FM2/AM/(L)/(M) fre-quency, preset channel number, ST in case of FM Stereo.

FEATURES OF YOUR HYUNDAI 1- 99
7. Fader (If installed) This button is located top side of the volume switch. Rotate clockwise toattenuate front speaker sound. Rotate counter-clockwise to attenuate rear speaker sound.
!
CAUTION:
o Do not place beverages close to the audio system. The playback mechanism may be damaged ifyou spill them.
o Do not impact on the audio sys-
tem, or the playback mechanismcould be damaged.

1- 100 FEATURES OF YOUR HYUNDAI
K220A01TB-GAT CASSETTE TAPE PLAYER OPERATION (K220) (If installed)
K220A01TB-1
1.EJECT Button
2.FF/REW Button
3.Tape Slot
4.LCD

FEATURES OF YOUR HYUNDAI 1- 101
K220B01TB-GAT 1. Tape Eject Button ( ) Press this button to eject the cassette tape. 2. Cassette tape loading slot Insert the tape into the loading slot as the open side faces the right. 3. FF/REW, tape side selection
Button
Press "REW " button to fast backward the tape, Press "FF" button to fast forward the tape.While the cassette is in operation, press these button altogether to play reverse side. 4. LCD LCD shows the tape direction ( or ) of the cassette in play.
! CAUTION:
o Do not insert anything like coins into the player slot as damage to the unit may occur.
o Do not place beverages close to the audio system. The playbackmechanism may be damaged ifyou spill them.
o Do not impact on the audio sys-
tem, or the playback mechanismcould be damaged.

1- 102 FEATURES OF YOUR HYUNDAI
K240A01TB
123 456
7
8
K240A01TB-GAT STEREO RADIO OPERATION (K240) (If installed)
1. Power ON/OFF, VOLUME
2. TUNE/SEEK Button
3. PRESET Buttons
4. SCAN Button
5. BASS/BAL pull Button
6. TREB/pull FAD Button
7. FM/AM Button
8. LCD

FEATURES OF YOUR HYUNDAI 1- 103
K240B01TB-GAT 1. POWER ON/OFF, VOLUME Press this button to turn on/off the audio when the ignition switch is atACC or ON position. Once the system is on, you can increase or decrease the volume by rotating the knob clock-wise or counter-clockwise. Press this
button again to turn it off. 2. TUNE Press the button not more than 0.5 second then frequency is increased. Likewise press the button not morethan 0.5 second to decrease the fre- quency. With the button held down for 0.5 secor more, the beep sound will be heard and frequency will increase or decrease rapidly. if you release the button afterthe beep sound, seek function is in operation. o SEEK Press the button for over 0.5 second and release the button after beep sound,then it will tune to the next receivable higher frequency station. Likewise, press the button for over 0.5 secondand release the button after the beep sound, then it will tune to the next receivable lower frequency station. ifthe selected station is in the preset memory, memorized channel will be on the display too. 3. PRESET Press any of these buttons not more than 2 seconds to listen to the stationin memory. Press the preset button for 2 seconds or more, then the current station will be stored into the memoryof the preset button with the sound.
4. SCAN Button When this button is pressed, the fre- quency will be increased to be tuned tothe next receivable station one after another, receiving each station for 5 seconds. if the desirable station istuned, press this button (scan) again to cancel scan function. 5. BASS/BAL- pull Press to pop the knob out, To increase the bass, rotate the knob clockwise, while to decrease the Bass, rotate theknob counterclockwise. Further pull the popped-ed knob for the balance control. Rotate the knob clockwise toemphasize right speaker sound. (Left speaker sound will be attenuated) When the control knob is turnedcounter-clockwise, left speaker sound will be emphasized. (Right speaker will be attenuated)

1- 104 FEATURES OF YOUR HYUNDAI
6. TREB/pull-FAD Press the pop the knob out and turn clockwise to increase the treble or coun-terclockwise to decrease the treble. Further pull the popped-up knob for the Fader control. Turn the control knobcounter clockwise to emphasize front speaker sound. (Rear speaker sound will be attenu-ated) When the control knob is turned clockwise, rear speaker sound will be emphasized. (Front speaker sound willbe attenuated) 7. FM/AM Button FM/AM band button, which is used to change the band repeatedly in the following manner . FM1 FM2 AM FM1
(FM1 FM2 M L FM1 : Europe) 8. LCD LCD shows the following information; band of FM1/FM2/AM frequency, pre-set channel number, ST in case of FM Stereo.
!
CAUTION:
o Do not place beverages close to the audio system. The playback mechanism may be damaged ifyou spill them.
o Do not impact on the audio sys-
tem, or the playback mechanism could be damaged.

FEATURES OF YOUR HYUNDAI 1- 105
K240C01TB-GAT CASSETTE TAPE PLAYER OPERATION (K240) (If installed)
K240A01TB
1
1. Tape mode and side selection Button
2. Tape slot
3. Tape Eject Button
4. LCD 5. DOLBY Button
6. AMS-REW Button
7. Rewind (REW) Button
8. AMS-FF Button
9. Fast Forward (FF) Button
23
4
56 78 9

1- 106 FEATURES OF YOUR HYUNDAI
K240D01TB-GAT 1. Tape mode and side selection Button Press this button to play the tape when it is in the cassette deck. Once the tape mode is selected, you can play thereverse side of the tape by merely depressing the button again. 2. Cassette tape loading slot Insert the tape into the loading slot as the open side faces the right. Theplayer will pull the tape in and auto- matically begin playback even when the audio power is off and the ignitionswitch is either in the position of "ACC"or "ON". 3. Tape Eject Button ( ) Press this button to eject the cassette tape. Tape will be ejected even when the ignition switch is in the position of"OFF". 4. LCD LCD shows the operating conditions of the cassette in play. It informs the driver of playing status, tape direction, FF or REW, MTL in metallic tape use, and Dolby etc. 5. Dolby Button When you play the Dolby recorded tape, press this button to reduce thebackground noise. If you press this button is displayed. One more press will let the disappear from the dis-play. 6. AMS-REW Button ( ) Press button to rewind the tape quickly and start replay at the beginning of the current music. During the AMS-RE- WINDING. "REW" sign blinks on thedisplay. Press the button once more to stop REWINDING and start play again. 7. Rewind button ( ) You can rewind the tape to the begin- ning of the tape by pressing the " "
button during the play ("REW" is shown on the display). Tape play starts whenthe " " button is pressed again during the REW mode.
8. AMS-FF Button ( ) Press button to fast forward the tape and start play at the beginning of nextmusic segment. During the AMS-FF, "FF"sign blinks on the display. Press the button again to stop FFaction and start play. 9. Fast Forward Button ( ) You can fast forward the tape to the end of the tape by pressing the " "button during the play. (Then "FF" is shown on the display). Tape play starts when the button is pressed againduring the FF mode.
!
CAUTION:
o Do not insert anything like coins into the player slot as damage to the unit may occur.
o Do not place beverages close to the audio system. The playbackmechanism may be damaged if you spill them.
o Do not impact on the audio sys- tem, or the playback mechanismcould be damaged.

FEATURES OF YOUR HYUNDAI 1- 107

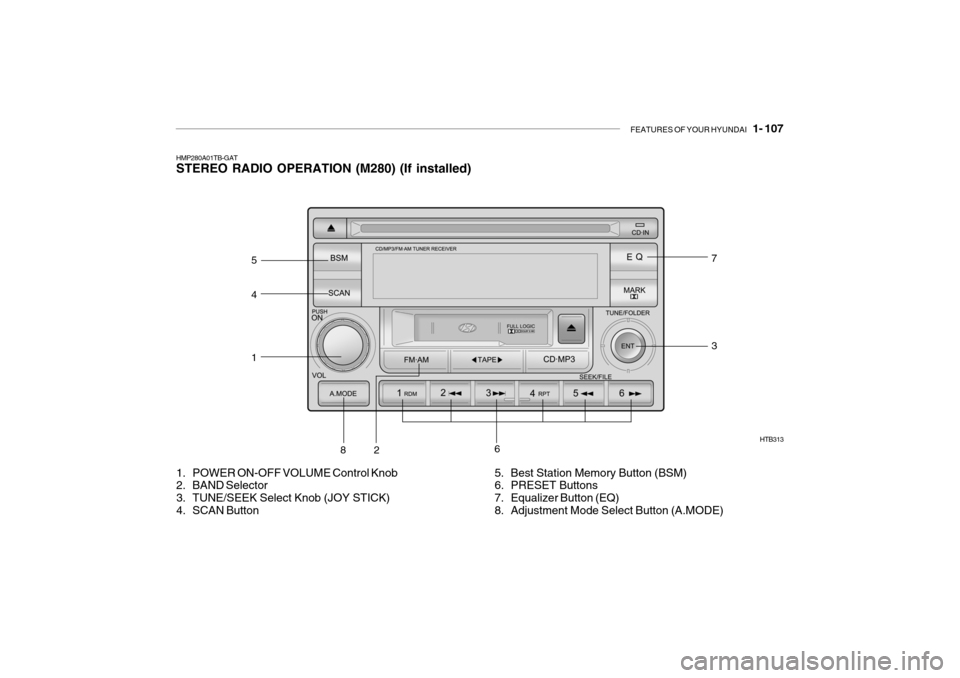

HMP280A01TB-GAT STEREO RADIO OPERATION (M280) (If installed)
1
2
5
3
4
67
8
1. POWER ON-OFF VOLUME Control Knob
2. BAND Selector
3. TUNE/SEEK Select Knob (JOY STICK)
4. SCAN Button 5. Best Station Memory Button (BSM)
6. PRESET Buttons
7. Equalizer Button (EQ)
8. Adjustment Mode Select Button (A.MODE)HTB313
