Hyundai Grand i10 2015 Owner's Manual

Maintenance
84
7

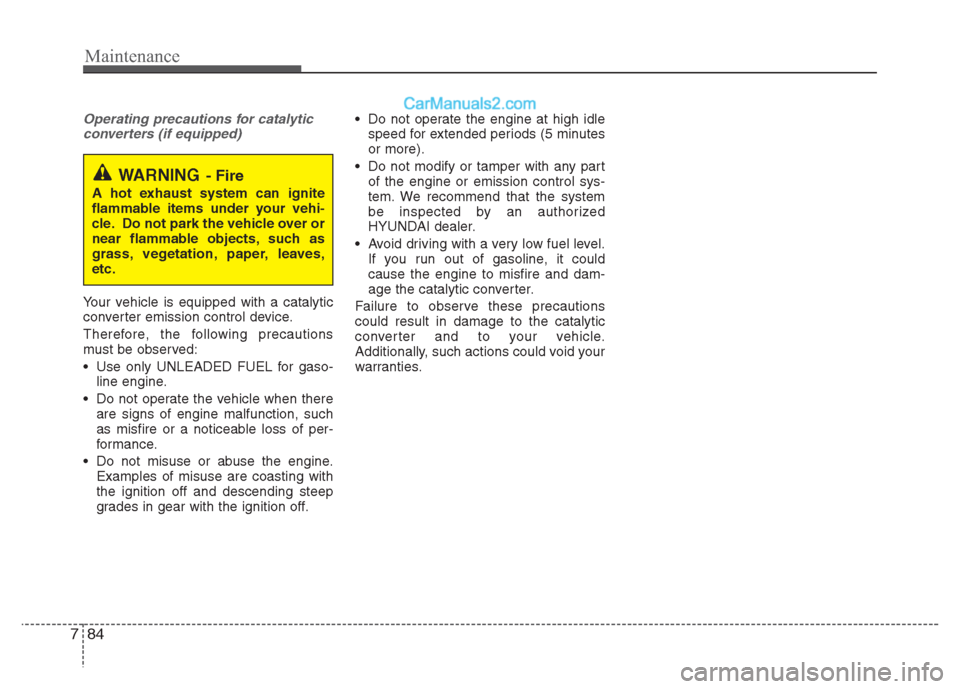

Operating precautions for catalytic
converters (if equipped)
Your vehicle is equipped with a catalytic
converter emission control device.
Therefore, the following precautions
must be observed:
Use only UNLEADED FUEL for gaso- line engine.
Do not operate the vehicle when there are signs of engine malfunction, such
as misfire or a noticeable loss of per-
formance.
Do not misuse or abuse the engine. Examples of misuse are coasting withthe ignition off and descending steep
grades in gear with the ignition off. Do not operate the engine at high idle
speed for extended periods (5 minutesor more).
Do not modify or tamper with any part of the engine or emission control sys-
tem. We recommend that the system
be inspected by an authorized
HYUNDAI dealer.
Avoid driving with a very low fuel level. If you run out of gasoline, it couldcause the engine to misfire and dam-
age the catalytic converter.
Failure to observe these precautionscould result in damage to the catalytic
converter and to your vehicle.
Additionally, such actions could void your
warranties.
WARNING - Fire
A hot exhaust system can ignite
flammable items under your vehi-
cle. Do not park the vehicle over or
near flammable objects, such as
grass, vegetation, paper, leaves,etc.

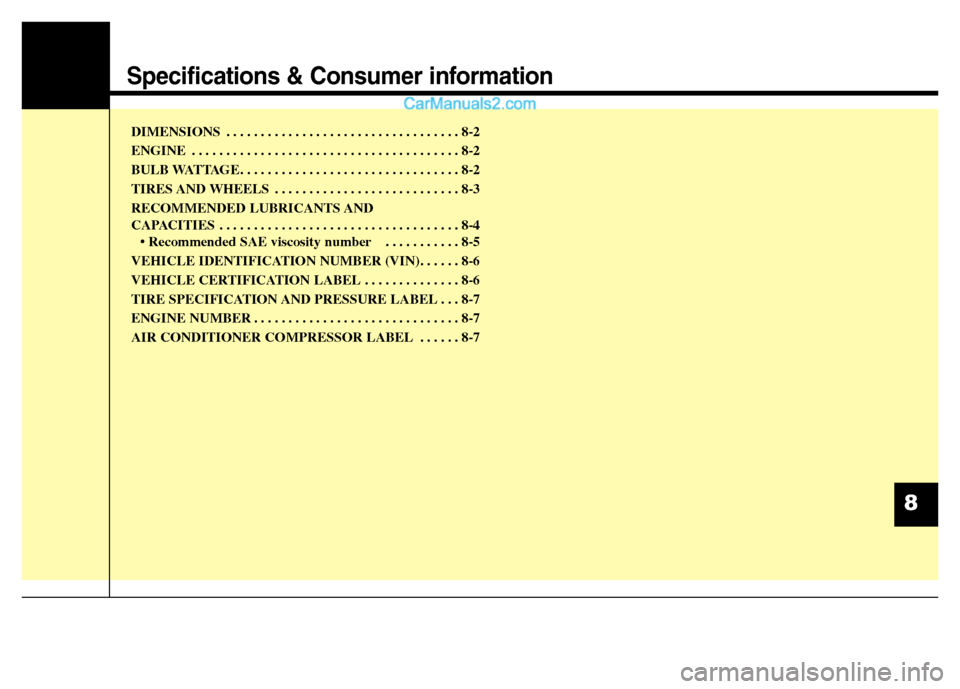

Specifications & Consumer information
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
BULB WATTAGE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
TIRES AND WHEELS . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
RECOMMENDED LUBRICANTS AND
CAPACITIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4• Recommended SAE viscosity number . . . . . . . . . . . 8-5
VEHICLE IDENTIFICATION NUMBER (VIN). . . . . . 8-6
VEHICLE CERTIFICATION LABEL . . . . . . . . . . . . . . 8-6
TIRE SPECIFICATION AND PRESSURE LABEL . . . 8-7
ENGINE NUMBER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7
AIR CONDITIONER COMPRESSOR LABEL . . . . . . 8-7
8

BULB WATTAGE
Specifications & Consumer information
2
8
DIMENSIONS
* : If equipped
*
1
: 4 Door
* 2
: 5 Door Light Bulb Wattage
Front Headlights (High/Low) 60/55
Front turn signal light 21
Parking(Position) light 5
Front fog light* 35
Side repeater light* 5
Daytime running light* 21
Rear Stop and tail light 21/5
Back-up light 16
Rear turn signal light 21
Rear fog light* 21
High mounted stop light* 5
Interior License plate light 5
Room lamp 8
Luggage room lamp* 8
Glove box lamp* 5
ENGINE
Item 1.0 Kappa 1.2 Kappa
Displacement cc (cu. in) 997 (60.8) 1,248 (76.2)
Bore x Stroke mm (in.)71.0x84.0
(2.8x3.3) 71.0x78.8
(2.8x3.1)
Firing order 1-2-3 1-3-2-4
No. of cylinders 3 4
Item mm (in)
Overall length 3995 (157.3)* 1
/3765 (148.2)* 2
Overall width 1660 (65.4)* 1
*2
Overall height 1520 (59.8)* 1
*2
Front tread 1479 (58.2) Rear tread 1493 (58.8)
Wheelbase 2425 (95.5)* 1
*2

83
Specifications & Consumer information
TIRES AND WHEELSItem Tire size Wheel size Inflation pressure kPa (psi)
Wheel lug nut torque
kg•m (lb N
Normal load Maximum load
Front Rear Front Rear
Full size tire 165/65R14 5.0J×14 230
(33) 230
(33) 250
(36) 250
(36) 9~11
(65~79, 88~107)

Specifications & Consumer information
4
8

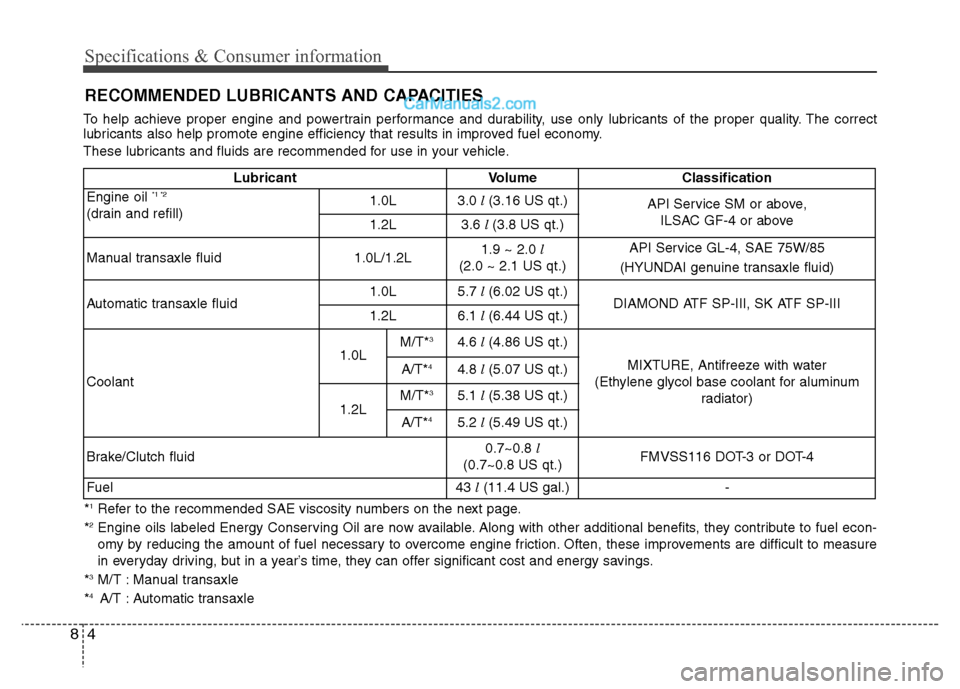

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *1 *2
(drain and refill)
1.0L 3.0
l (3.16 US qt.)
API Service SM or above,
ILSAC GF-4 or above
1.2L 3.6
l (3.8 US qt.)
Manual transaxle fluid
1.0L/1.2L 1.9 ~ 2.0
l
(2.0 ~ 2.1 US qt.) API Service GL-4, SAE 75W/85
(HYUNDAI genuine transaxle fluid)
Automatic transaxle fluid
1.0L 5.7
l (6.02 US qt.)
DIAMOND ATF SP-III, SK ATF SP-III
1.2L6.1
l (6.44 US qt.)
Coolant
1.0LM/T* 34.6
l (4.86 US qt.)
MIXTURE, Antifreeze with water
(Ethylene glycol base coolant for aluminum radiator)A/T*44.8
l (5.07 US qt.)
1.2LM/T* 35.1
l (5.38 US qt.)
A/T* 45.2
l (5.49 US qt.)
Brake/Clutch fluid0.7~0.8 l
(0.7~0.8 US qt.)FMVSS116 DOT-3 or DOT-4
Fuel43 l(11.4 US gal.)-
*1
Refer to the recommended SAE viscosity numbers on the next page.
* 2
Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
* 3
M/T : Manual transaxle
* 4
A/T : Automatic transaxle

85
Specifications & Consumer information

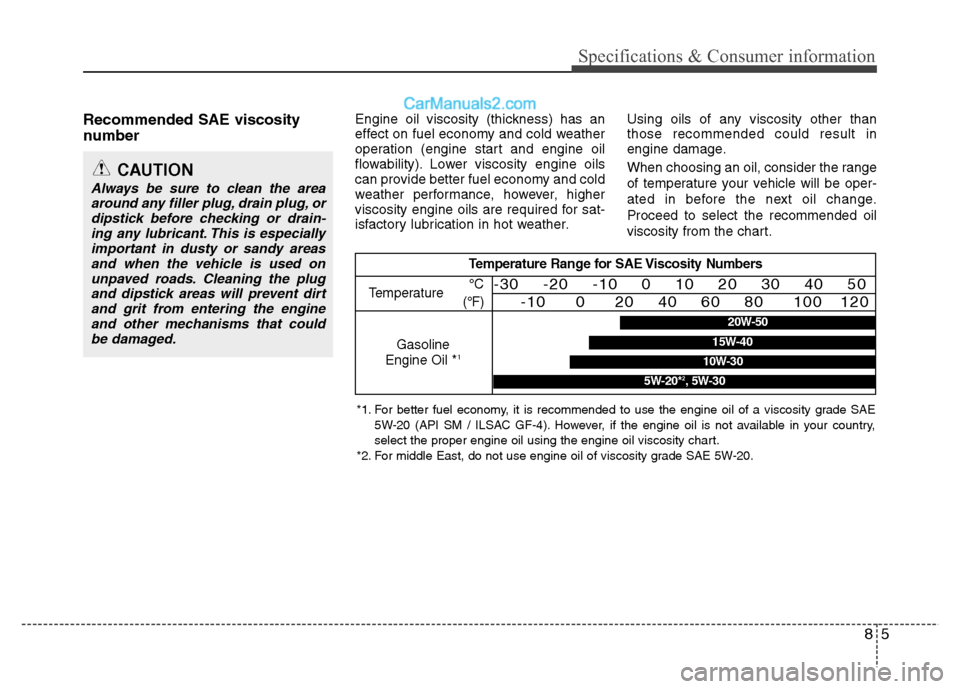

Recommended SAE viscosity
number Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operation (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather.Using oils of any viscosity other thanthose recommended could result in
engine damage.
When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, ordipstick before checking or drain-
ing any lubricant. This is especiallyimportant in dusty or sandy areasand when the vehicle is used on
unpaved roads. Cleaning the plugand dipstick areas will prevent dirt and grit from entering the engine and other mechanisms that could
be damaged.
Temperature Range for SAE Viscosity Numbers
Temperature °C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
*1. For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE5W-20 (API SM / ILSAC GF-4). However, if the engine oil is not available in your country,
select the proper engine oil using the engine oil viscosity chart.
*2. For middle East, do not use engine oil of viscosity grade SAE 5W-20.
Gasoline
Engine Oil * 1
20W-50
10W-30
15W-40
5W-20*
2
, 5W-30

Specifications & Consumer information
6
8

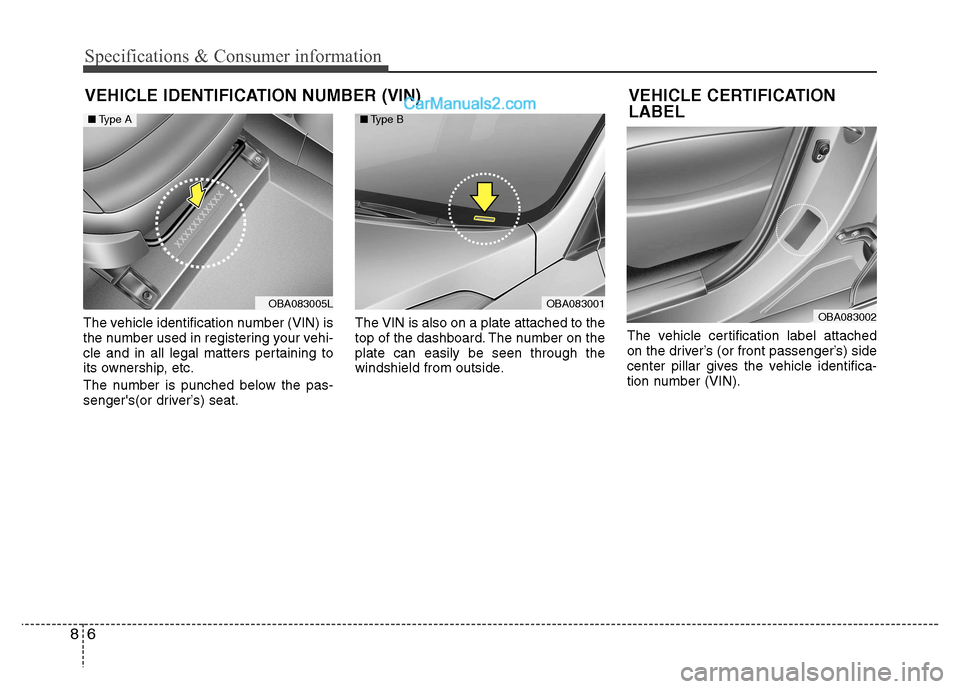

VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number (VIN) is
the number used in registering your vehi-
cle and in all legal matters pertaining to
its ownership, etc.
The number is punched below the pas-
senger's(or driver’s) seat. The VIN is also on a plate attached to the
top of the dashboard. The number on theplate can easily be seen through the
windshield from outside.
The vehicle certification label attached
on the driver’s (or front passenger’s) side
center pillar gives the vehicle identifica-
tion number (VIN).VEHICLE CERTIFICATION LABEL
OBA083005L
■
Type A
OBA083001
■
Type BOBA083002

87
Specifications & Consumer information

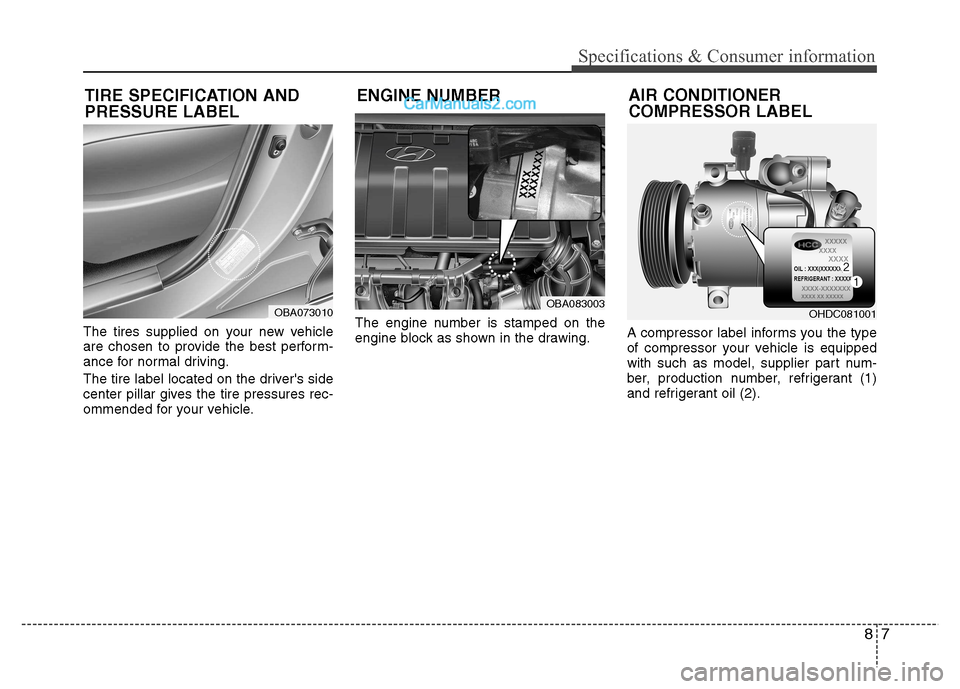

The tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your vehicle.The engine number is stamped on the
engine block as shown in the drawing.
A compressor label informs you the type
of compressor your vehicle is equipped
with such as model, supplier part num-
ber, production number, refrigerant (1)
and refrigerant oil (2).
OBA073010
TIRE SPECIFICATION AND PRESSURE LABEL
OHDC081001
AIR CONDITIONER COMPRESSOR LABEL
ENGINE NUMBEROBA083003

OWNER'S MANUAL Operation MaintenanceSpecifications
All information in this Owner's Manual is current at the time of publication.
However, Hyundai reserves the right to make changes at any time so that
our policy of continual product improvement may be carried out.
This manual applies to all Hyundai models and includes descriptions and
explanations of optional as well as standard equipment. As a result, you
may find material in this manual that does not apply to your specific vehi-
cle.

F2Your Hyundai should not be modified in any way. Such modifications may adversely affect the per-
formance, safety or durability of your Hyundai and may, in addition, violate conditions of the limited
warranties covering the vehicle. Certain modifications may also be in violation of regulations estab-
lished by the Department of Transportation and other government agencies in your country.
Your vehicle is equipped with electronic fuel injection and other electronic components. It is possible
for an improperly installed/adjusted two-way radio or cellular telephone to adversely affect electronic
systems. For this reason, we recommend that you carefully follow the radio manufacturer's instruc-
tions or consult your Hyundai dealer for precautionary measures or special instructions if you choose
to install one of these devices.

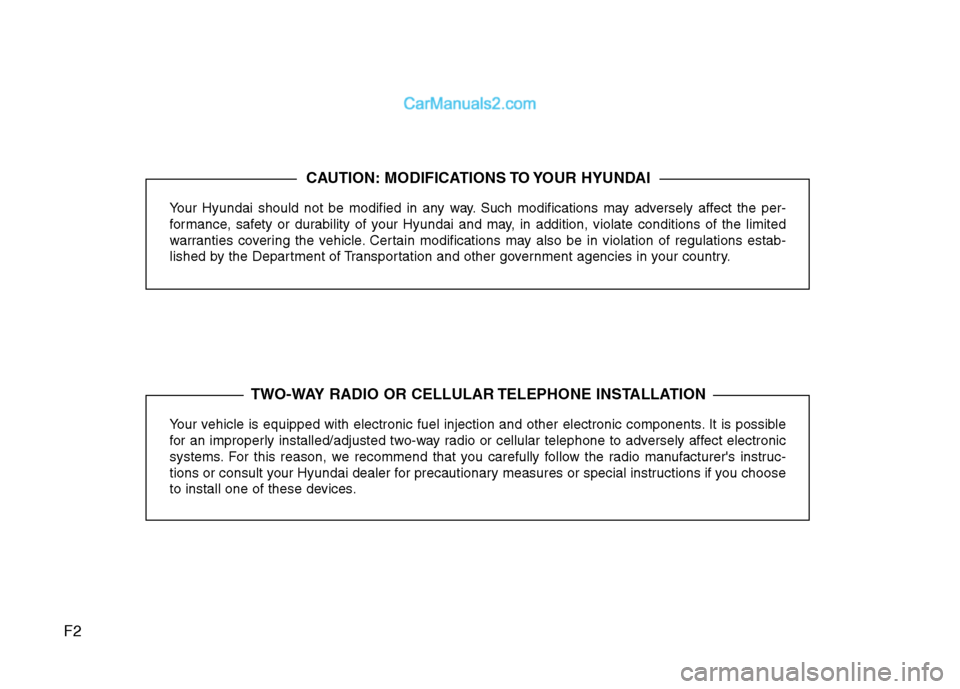

CAUTION: MODIFICATIONS TO YOUR HYUNDAI
TWO-WAY RADIO OR CELLULAR TELEPHONE INSTALLATION
