Maintenance

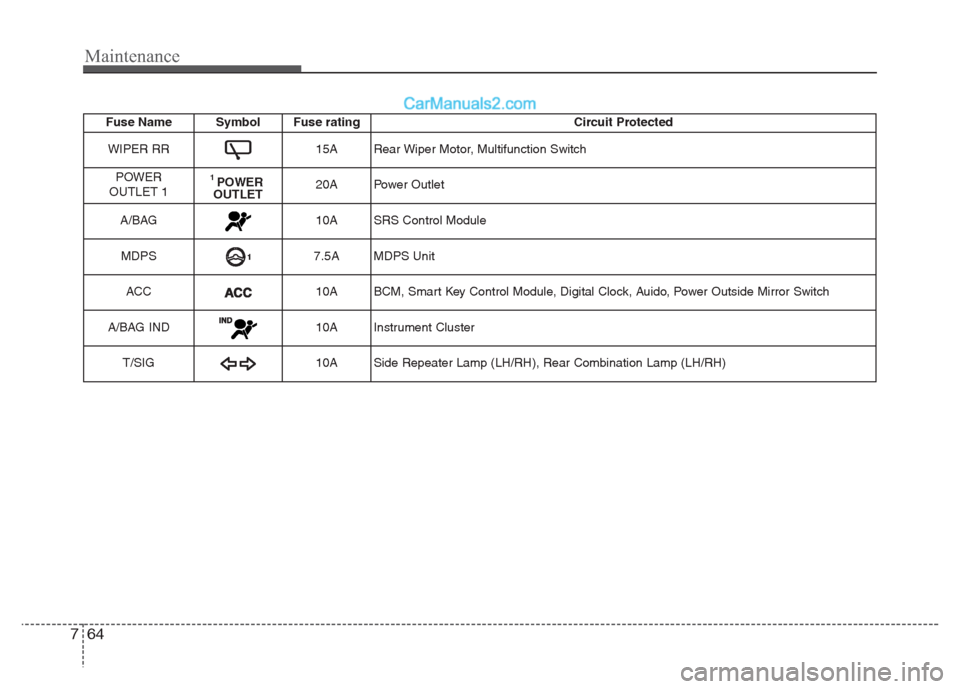

64
7
Fuse Name Symbol Fuse rating Circuit Protected
WIPER RR
15A Rear Wiper Motor, Multifunction Switch
POWER
OUTLET 1
1 POWER
OUTLET20A Power Outlet
A/BAG
10A SRS Control Module
MDPS
7.5A MDPS Unit
ACC
10A BCM, Smart Key Control Module, Digital Clock, Auido, Power Outside Mirror Switch
A/BAG IND
10A Instrument Cluster
T/SIG
10A Side Repeater Lamp (LH/RH), Rear Combination Lamp (LH/RH)

765
Maintenance

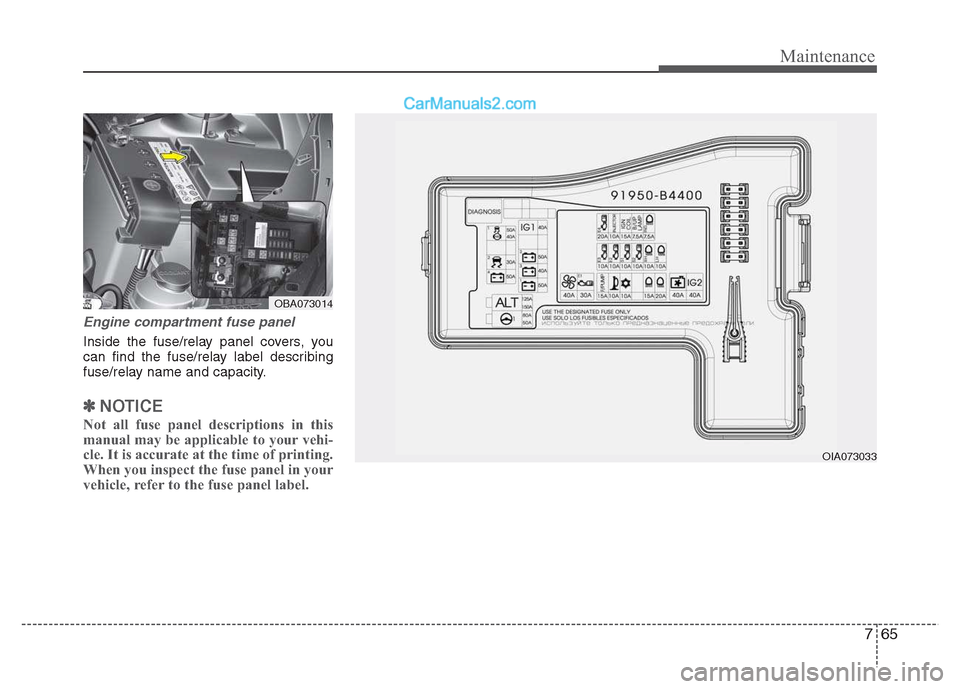

Engine compartment fuse panel
Inside the fuse/relay panel covers, you
can find the fuse/relay label describing
fuse/relay name and capacity.
✽✽NOTICE
Not all fuse panel descriptions in this
manual may be applicable to your vehi-
cle. It is accurate at the time of printing.
When you inspect the fuse panel in your
vehicle, refer to the fuse panel label.
OBA073014
OIA073033

Maintenance
66
7
Engine compartment main fuse panel
Fuse Name Symbol Fuse rating Circuit Protected
MULTI FUSE
MDPS80A MDPS Unit
ALT125A (150A) Alternator, Fuse - F3 / F4 / F6, PCB Fuse & Relay Box
FUSE
B+4450A Smart Junction Box (Fuse : F1 / F2)
ESP 2230A ESP Control Module, Multipurpose Check Connector
ESP 1150A ESP Control Module
B+1150A Smart Junction Box (T/Sig Sound Relay, Fuse : F10, ARISU-LT1, IPS 3)
B+3340A Smart Junction Box (Power Window Relay, Fuse : F4, ARISU-LT2, IPS 5)
B+2250A Smart Junction Box (Fuse : F5 / F9 / F13 / F14 / F17, Leak Current Autocut Device
Fuse : F23 / F24 / F29)
IG140AW/O Button Start : Ignition Switch
With Button Start : PDM Relay Box (IG1 / ACC Relay)
FRT WIPER7.5A PCM, Front Wiper Motor, Multifunction Switch
BLOWER40A Blower Relay
ECU1E130A Engine Control Relay, Fuse : F25 / F26

767
Maintenance
Fuse Name Symbol Fuse rating Circuit Protected
FUSE
F/PUMP15A F/Pump 1 Relay
HORN10A Horn Relay, B/Alarm Horn Relay
A/CON10A A/CON Relay
VACUUM PUMPVACUUM
PUMP20A Vacuum Pump Relay
HEADLAMP DIPPEDBEAM15A Headlamp High Beam
HEADLAMP
HIGH BEAM20A Headlamp Low Beam
C/FAN40A C/FAN LO Relay, C/FAN HI Relay
IG240A Start Relay, Ignition Switch (W/O Button Start), PDM Relay Box (IG2 Relay) (With
Button Start)
ECU3E310A PCM
ECU2E210A B3LA : PCM, Shut Off Valve #1/#2
SENSORS110AC/FAN LO Relay, C/FAN HI Relay, A/CON Relay, Start Relay (G3LA, With ISG),
PCM, Oil Control Valve #1/#2 (IN/EX), Purge Control Solenoid Valve, Camshaft
Position Sensor #1/#2 (IN/EX)
SENSOR2S210A G3LA/G4LA : PCM

Maintenance

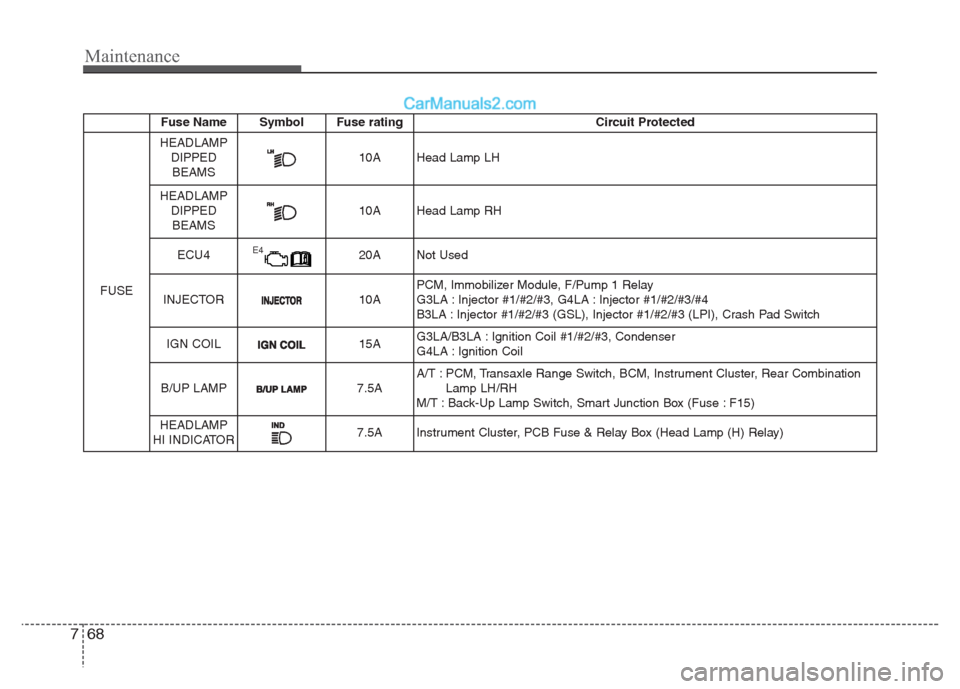

68
7
Fuse Name Symbol Fuse rating Circuit Protected
FUSE
HEADLAMP DIPPEDBEAMS10A Head Lamp LH
HEADLAMP DIPPEDBEAMS10A Head Lamp RH
ECU4E420A Not Used
INJECTOR10A PCM, Immobilizer Module, F/Pump 1 Relay
G3LA : Injector #1/#2/#3, G4LA : Injector #1/#2/#3/#4
B3LA : Injector #1/#2/#3 (GSL), Injector #1/#2/#3 (LPI), Crash Pad Switch
IGN COIL15A
G3LA/B3LA : Ignition Coil #1/#2/#3, Condenser
G4LA : Ignition Coil
B/UP LAMP7.5A A/T : PCM, Transaxle Range Switch, BCM, Instrument Cluster, Rear Combination
Lamp LH/RH
M/T : Back-Up Lamp Switch, Smart Junction Box (Fuse : F15)
HEADLAMP
HI INDICATOR7.5A Instrument Cluster, PCB Fuse & Relay Box (Head Lamp (H) Relay)

769
Maintenance
LIGHT BULBS
Consult an authorized HYUNDAI dealer
to replace most vehicle light bulbs. It is
difficult to replace vehicle light bulbs
because other parts of the vehicle must
be removed before you can get to the
bulb. This is especially true for removing
the headlight assembly to get to the
bulb(s). Removing/installing the head-
light assembly can result in damage to
the vehicle.
✽✽ NOTICE
After heavy driving, rain or washing
headlight and taillight lenses could
appear frosty. This condition is caused
by the temperature difference between
the lamp inside and outside. This is sim-
ilar to the condensation on your win-
dows inside your vehicle during the rain
and doesn’t indicate a problem with
your vehicle. If the water leaks into the
lamp bulb circuitry, we recommend that
the system be checked by an authorized
HYUNDAI dealer.
WARNING
Prior to replacing a light, depress the foot brake, move the shift
lever into the P (Park, for auto-
matic transaxle vehicle) or neu-
tral (for manual transaxle vehi-
cle), apply the parking brake,place the ignition
switch in the LOCK/OFF position,
and take the key with you when
leaving the vehicle to avoid sud-
den movement of the vehicle and
to prevent possible electric
shock.
Be aware the bulbs may be hot and may burn your fingers.CAUTION
Be sure to replace the burned-out
bulb with one of the same wattage
rating. Otherwise, it may cause damage to the fuse or electricwiring system.

Maintenance
70
7
Headlight, position light, turn sig-
nal light, and front fog light bulbreplacement
(1) Headlight (Low/High)
(2) Parking(Position) light
(3) Front turn signal light
(4) Front fog light / Daytime running light
(if equipped)
✽✽NOTICE
If the headlight aiming adjustment is
necessary after the headlight assembly is
reinstalled, consult an authorized
HYUNDAI dealer.
OBA073018OHD076046
WARNING - Halogen bulbs
Halogen bulbs contain pressur-
ized gas that will produce flying
pieces of glass if broken.
Always handle them carefully, and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never touchthe glass with bare hands.
Residual oil may cause the bulb
to overheat and burst when lit. A
bulb should be operated onlywhen installed in a headlight.
(Continued)
(Continued)
If a bulb becomes damaged orcracked, replace it immediately
and carefully dispose of it.
Wear eye protection when chang- ing a bulb. Allow the bulb to cool
down before handling it.

771
Maintenance
Headlight (Low/High)
1. Open the hood.
2. Remove the headlight bulb cover byturning it counterclockwise.
3. Disconnect the headlight bulb socket- connector.
4. Unsnap the headlight bulb retaining wire by depressing the end and push-
ing it upward.
5. Remove the bulb from the headlight assembly.
6. Install a new headlight bulb and snap the headlight bulb retaining wire into
position by aligning the wire with the
groove on the bulb.
7. Connect the headlight bulb socket con- nector.
8. Install the headlight bulb cover by turn- ing it clockwise.
Turn signal light
1. Remove the turn signal light bulb coverby turning it counterclockwise.
2. Remove the socket from the assembly by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
3. Insert a new bulb by inserting it into the socket and rotating it until it locks into
place.
4. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
5. Install the turn signal light bulb cover by turning it clockwise.
Parking(Position) light
1. Remove the socket from the assemblyby pulling it straight out.
2. Remove the bulb from the socket by pulling it out.
3. Insert a new bulb by inserting it into the socket.
4. Install the socket in the assembly by pushing it in.
OBA073047R
Headlight
Parking(Position) light
Turn signal light

Maintenance
72
7
Front fog light bulb replacement
1. Reach your hand into the back of the
front bumper.
2. Disconnect the power connector from the socket.
3. Remove the bulb-socket from the housing by turning the socket counter-
clockwise until the tabs on the socketalign with the slots on the housing.
4. Install the new bulb-socket into the housing by aligning the tabs on the
socket with the slots in the housing.
Push the socket into the housing and
turn the socket clockwise.
5. Connect the power connector to the socket.
6. Reinstall the front bumper under cover. Side repeater light bulb replace- ment
If the light bulb does not operate, we rec-
ommend that the vehicle be checked by
an authorized HYUNDAI dealer.
Rear combination light bulb replacement (1) Stop and tail light
(2) Back up light
(3) Rear turn signal light
OBA073019R
OBA073020
OBA074049
■5 Door
■4 Door

773
Maintenance
1. Open the tailgate/trunk.
2. Loosen the light assembly retainingscrews with a cross-tip screwdriver.
3. Remove the rear combination light assembly from the body of the vehicle.
4. Remove the socket from the assemblyby turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly. 5. Remove the bulb from the socket by
pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
6. Insert a new bulb by inserting it into the socket and rotating it until it locks into
place.
7. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
8. Reinstall the light assembly to the body of the vehicle.
OBA073045R
OBA073046R
OBA074046
■
5 Door
■4 Door
Back up light
Turn signal light
Stop and tail light
Turn signal light Back up light
Stop and tail light
