Hyundai Grand i10 2015 Owner's Manual

Maintenance
54
7
In an emergency, if you do not have a
spare, use a fuse of the same rating from
a circuit you may not need for operating
the vehicle, such as the cigarette lighter
fuse.
If the headlights or other electrical com-
ponents do not work and the fuses are
OK, check the fuse block in the engine
compartment. If a fuse is blown, it mustbe replaced.
Fuse switch (for Type A)
Always, put the fuse switch at the ON position.
If you move the switch to the OFF posi-
tion, some items must be reset and
remote key or smart key may not work
properly.
CAUTION
Always place the fuse switch in
the ON position while driving the
vehicle. If the switch is in the OFF position, a warning will appear onthe instrument cluster. (Refer to“Instrument Cluster” in chapter 4.)
The theft alarm system will not activate with the fuse switch in theOFF position.
OBA073012
OBA073012IN
■ Left-hand drive
■Right-hand drive

755
Maintenance
Memory fuse (for Type B)
Your vehicle is equipped with the memo-
ry fuse to prevent battery discharge if
your vehicle is parked without being
operated for prolonged periods. Use the
following procedures before parking the
vehicle for prolonged periods.1. Turn off the engine.
2. Turn off the headlights and tail lights.
3. Open the driver’s side panel cover and
pull up the memory fuse.
✽✽ NOTICE
 If the memory fuse is pulled up from the fuse panel, the warning chime,
audio, clock and interior lamps, etc.,
will not operate. Some items must be
reset after replacement. Refer to
“Battery” in this chapter.
 Even though the memory fuse is
pulled up, the battery can still be dis-
charged by operation of the head-
lights or other electrical devices.
Engine compartment panel fuse replacement
1. Turn the ignition switch and all otherswitches off.
2. Remove the fuse box cover by press- ing the tap and pulling the cover up.
3. Remove and check the suspected fuse; replace it if it is blown. To remove
or insert the fuse, use the fuse puller in
the engine compartment fuse panel.
4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.
If it fits loosely, we recommend that you
consult an authorized HYUNDAI dealer.
OBA073012L
OBA073012R
■ Left-hand drive
■Right-hand driveOBA073014

Maintenance
56
7
Main fuse (multi fuse)
If the main fuse is blown, it must be
removed as follows:
1. Disconnect the negative battery cable.
2. Remove the nuts shown in the picture
above.
3. Replace the fuse with a new one of the same rating.
4. Reinstall in the reverse order of removal.
✽✽ NOTICE
If the main fuse is blown, we recom-
mend that you consult an authorized
HYUNDAI dealer.
CAUTION
After checking the fuse box in the engine compartment, securely
install the fuse box cover. If not,electrical failures may occur fromwater leaking in.
OBA073015

757
Maintenance

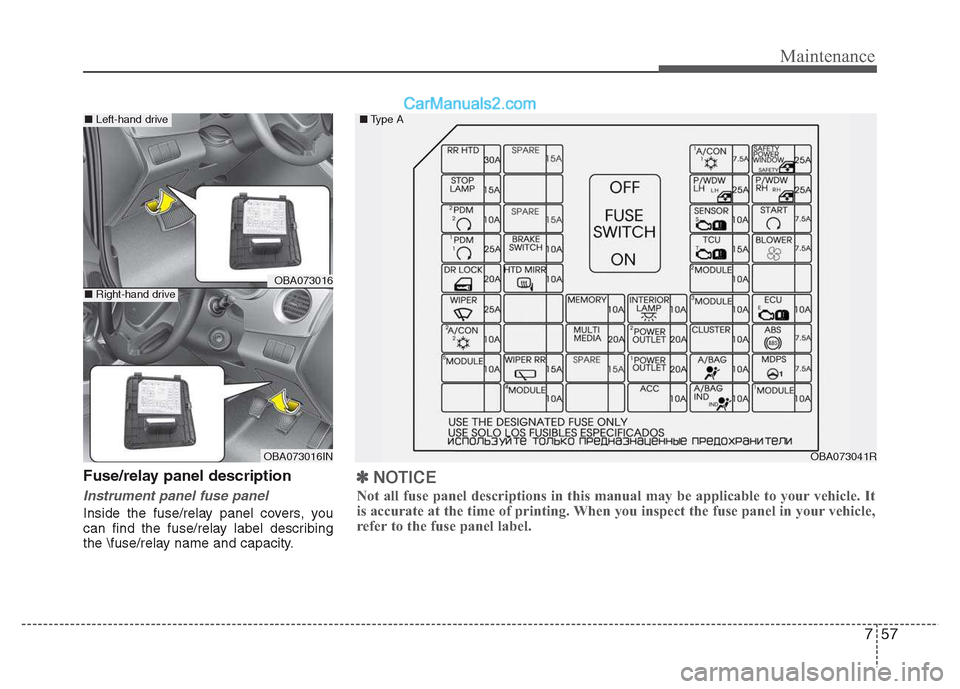

Fuse/relay panel description
Instrument panel fuse panel
Inside the fuse/relay panel covers, you
can find the fuse/relay label describing
the \fuse/relay name and capacity.
OBA073016
OBA073016INOBA073041R
■
Type A
■ Left-hand drive
■Right-hand drive
✽✽
NOTICE
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It
is accurate at the time of printing. When you inspect the fuse panel in your vehicle,
refer to the fuse panel label.

Maintenance
58
7
Fuse Name Symbol Fuse rating Circuit Protected
RR HTD
30A RR HTD Relay
A/CON 1
7.5A A/C Control Module (Auto)
SAFETY POWER WINDOW
25A Driver Safety Power Window Module
STOP LAMP
STOP
LAMP15A Stop Signal Electronic Module, Data Link Connector
P/WDW LH
25A Power Window Main Switch, Driver Safety Power Window Module (LHD), Passenger Power
Window Switch (RHD)
P/WDW RH
25A Power Window Main Switch, Driver Safety Power Window Module (RHD), Passenger
Power Window Switch (LHD)
PDM 2
210A Smart Key Control Module, Start/Stop Button Switch
SENSOR
S10A PCB Fuse & Relay Box (Vacuum Pump Relay)
START
7.5A B/Alarm Relay, PCB Fuse & Relay Box (Start Relay), PCM, Smart Key Control Module,
Transaxle Range Switch
PDM 1
125A Smart Key Control Module
BRAKE SWITCH
10A Smart Key Control Module, Stop Lamp Switch
TCU
T15A A/T : Transaxle Range Switch, Pulse Generator 'A'/'B'
M/T : Vehicle Speed Sensor, PCB Fuse & Relay Box (F34)
Instrument panel fuse panel

759
Maintenance
Fuse Name Symbol Fuse ratingCircuit Protected
BLOWER
7.5A PCM, A/C Control Module, Electronic A/C Compressor, Blower Switch, Blower Resistor
DR LOCK
20A Door Lock/Unlock Relay, T/Gate Unlock Relay, Crash Door Unlock Unit
HTD MIRR
10A PCM, A/C Control Module, Driver/Passenger Power Outside Mirror
MODULE 2
2 MODULE10A Stop Lamp Switch, Crash Pad Switch, Rear Parking Assist, Rear Parking Assist Sensor (Center) LH/RHSensor LH/RH
WIPER
25A Front Wiper Motor, Multifunction Switch
MEMORY
MEMORY10A Data Link Connector, Digital Clock, Instrument Cluster, BCM, Tire Pressure Motoring
Module, A/C Control Module, Crash Door Unlock Unit, Audio
INTERIOR LAMP
10A Luggage Lamp, Room Lamp
MODULE 3
3 MODULE10A E/R Junction Box (Multipurpose Check Connector), A/C Control Module
ECU
E10A PCM, Smart Key Control Module, Alternator (G3LA/G4LA)
A/CON 2
10A PCB Fuse & Relay Box (Blower Relay), A/C Control Module
MULTI MEDIA
MULTI
MEDIA20A Auido
POWER
OUTLET 2
2 POWER
OUTLET20A Rear Power Outlet

Maintenance
60
7

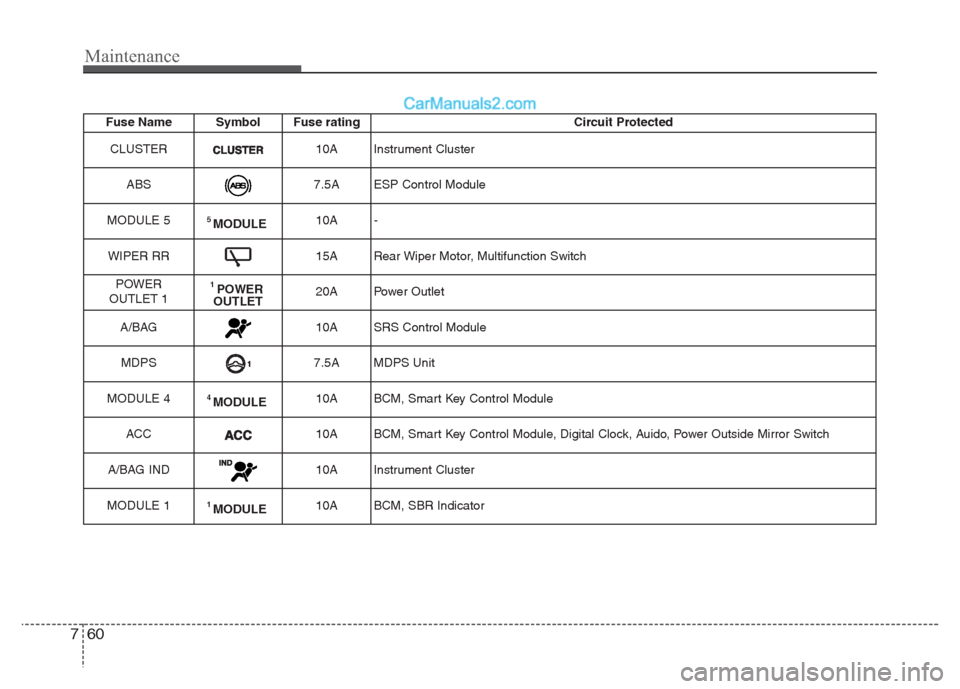

Fuse Name Symbol Fuse rating Circuit Protected
CLUSTER
10A Instrument Cluster
ABS
7.5A ESP Control Module
MODULE 5
5 MODULE10A -
WIPER RR
15A Rear Wiper Motor, Multifunction Switch
POWER
OUTLET 1
1 POWER
OUTLET20A Power Outlet
A/BAG
10A SRS Control Module
MDPS
7.5A MDPS Unit
MODULE 4
4 MODULE10A BCM, Smart Key Control Module
ACC
10A BCM, Smart Key Control Module, Digital Clock, Auido, Power Outside Mirror Switch
A/BAG IND
10A Instrument Cluster
MODULE 1
1 MODULE10A BCM, SBR Indicator

761
Maintenance

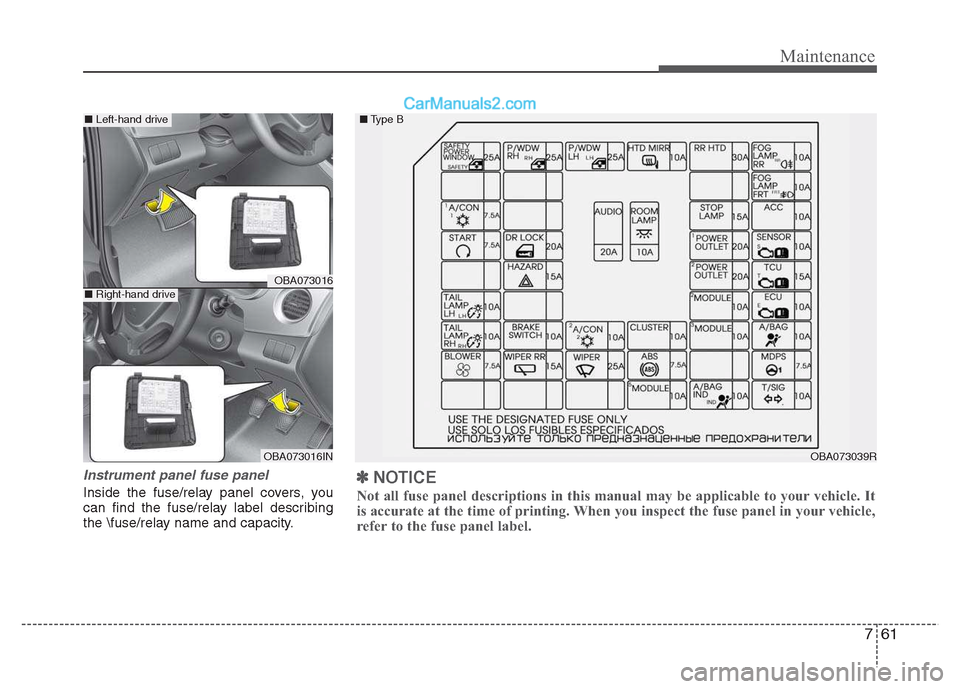

Instrument panel fuse panel
Inside the fuse/relay panel covers, you
can find the fuse/relay label describing
the \fuse/relay name and capacity.
OBA073039R
■
Type B
OBA073016
OBA073016IN
■ Left-hand drive
■Right-hand drive
✽✽
NOTICE
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It
is accurate at the time of printing. When you inspect the fuse panel in your vehicle,
refer to the fuse panel label.

Maintenance
62
7
Fuse Name Symbol Fuse rating Circuit Protected
ROOM LAMP
10A Luggage Lamp, Room Lamp
AUDIO
20A Auido
RR HTD
30A RR HTD Relay
A/CON 1
7.5A A/C Control Module (Auto)
SAFETY POWER WINDOW
25A Driver Safety Power Window Module
STOP LAMP
STOP
LAMP15A Stop Signal Electronic Module, Data Link Connector
P/WDW LH
25A Power Window Main Switch, Driver Safety Power Window Module (LHD), Passenger Power
Window Switch (RHD)
P/WDW RH
25A Power Window Main Switch, Driver Safety Power Window Module (RHD), Passenger
Power Window Switch (LHD)
SENSOR
S10A PCB Fuse & Relay Box (Vacuum Pump Relay)
START
7.5A B/Alarm Relay, PCB Fuse & Relay Box (Start Relay), PCM, Smart Key Control Module,
Transaxle Range Switch
BRAKE SWITCH
10A Smart Key Control Module, Stop Lamp Switch
TCU
T15A A/T : Transaxle Range Switch, Pulse Generator 'A'/'B'
M/T : Vehicle Speed Sensor, PCB Fuse & Relay Box (F34)
Instrument panel fuse panel

763
Maintenance
Fuse Name Symbol Fuse ratingCircuit Protected
BLOWER
7.5A PCM, A/C Control Module, Electronic A/C Compressor, Blower Switch, Blower Resistor
DR LOCK
20A Door Lock/Unlock Relay, T/Gate Unlock Relay, Crash Door Unlock Unit
HTD MIRR
10A PCM, A/C Control Module, Driver/Passenger Power Outside Mirror
MODULE 2
2 MODULE10A Stop Lamp Switch, Crash Pad Switch, Rear Parking Assist, Rear Parking Assist Sensor (Center) LH/RHSensor LH/RH
WIPER
25A Front Wiper Motor, Multifunction Switch
MODULE 3
3 MODULE10A E/R Junction Box (Multipurpose Check Connector), A/C Control Module
ECU
E10A PCM, Smart Key Control Module, Alternator (G3LA/G4LA)
A/CON 2
10A PCB Fuse & Relay Box (Blower Relay), A/C Control Module
POWER
OUTLET 2
2 POWER
OUTLET20A Rear Power Outlet
CLUSTER
10A Instrument Cluster
ABS
7.5A ESP Control Module
MODULE 5
5 MODULE10A -
