Features of your vehicle
48
4
ECO ON/OFF mode (if equipped)
You can turn the ECO indicator on/off on
the instrument cluster in this mode.
If you press the RESET button for more
than 1 second in the ECO ON mode,
ECO OFF is displayed in the screen and
the ECO indicator turns off while driving.
If you want to display the ECO indicator
again, press the RESET button for morethan 1 second in the ECO OFF mode
and then ECO ON mode is displayed inthe screen.
“FUSE ON” warning light
(if equipped)
This warning light illuminates if the fuse
switch in the fuse box is OFF.
Turn the fuse switch on, when the “FUSE
ON” warning light illuminates.
For more details, refer to “Fuses” in chap- ter 7. Warnings and indicators
All warning lights are checked by turning
the ignition switch ON (do not start the
engine). If any light that does not illumi-
nate, we recommend that the system be
checked by an authorized HYUNDAI
dealer. After starting the engine, check to
make sure that all warning lights are off.
If any warning lights are still on, this indi-cates a situation that needs attention.OBA043116

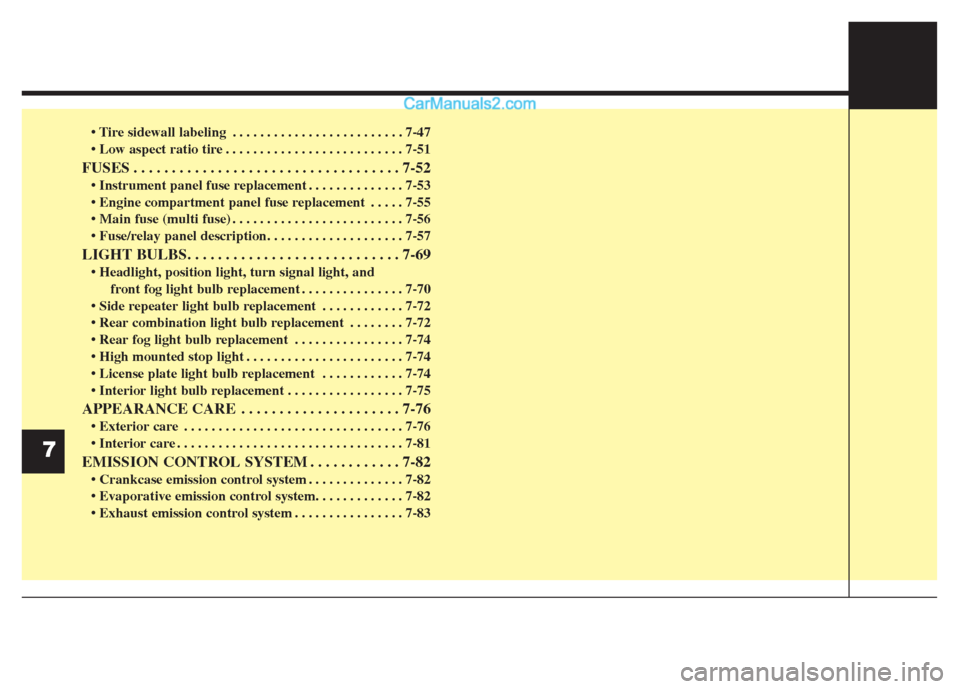

. . . . . . . . . . . . . . . . . . . . . . . . . 7-47
. . . . . . . . . . . . . . . . . . . . . . . . . . 7-51
FUSES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-52 . . . . . . . . . . . . . . 7-53
. . . . . 7-55
. . . . . . . . . . . . . . . . . . . . . . . . . 7-56

LIGHT BULBS. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-69 position light, turn signal light, and front fog light bulb replacement . . . . . . . . . . . . . . . 7-70
. . . . . . . . . . . . 7-72
. . . . . . . . 7-72
. . . . . . . . . . . . . . . . 7-74
. . . . . . . . . . . . . . . . . . . . . . . 7-74
. . . . . . . . . . . . 7-74
. . . . . . . . . . . . . . . . . 7-75
APPEARANCE CARE . . . . . . . . . . . . . . . . . . . . . 7-76 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-81
EMISSION CONTROL SYSTEM . . . . . . . . . . . . 7-82 . . . . . . . . . . . . . . 7-82

. . . . . . . . . . . . . . . . 7-83
7

Maintenance
52
7
FUSES
A vehicle’s electrical system is protected
from electrical overload damage by
fuses.
This vehicle has 2 fuse panels, one locat-
ed in the driver’s side panel bolster, the
other in the engine compartment near
the battery.
If any of your vehicle’s lights, acces-
sories, or controls do not work, check the
appropriate circuit fuse. If a fuse has
blown, the element inside the fuse willmelt.
If the electrical system does not work,
first check the driver’s side fuse panel.
Always replace a blown fuse with one of
the same rating.
If the replacement fuse blows, this indi-
cates an electrical problem. Avoid using
the system involved and we recommend
that you consult an authorized HYUNDAI
dealer.
✽✽NOTICE
Three kinds of fuses are used: blade
type for lower amperage rating, car-
tridge type, and fusible link for higher
amperage ratings.
OJC070046D
Normal
Normal
■
Blade type
■ Cartridge type
■ Multi fuse Blown
Blown
Normal Blown
WARNING - Fuse replace-
ment
Never replace a fuse with any- thing but another fuse of the same rating.
A higher capacity fuse could cause damage and possibly a
fire.
Never install a wire or aluminum foil instead of the proper fuse -
even as a temporary repair. It may
cause extensive wiring damage
and a possible fire.
CAUTION
Do not use a screwdriver or any
other metal object to remove fuses
because it may cause a short circuit and damage the system.

Maintenance
54
7
In an emergency, if you do not have a
spare, use a fuse of the same rating from
a circuit you may not need for operating
the vehicle, such as the cigarette lighter
fuse.
If the headlights or other electrical com-
ponents do not work and the fuses are
OK, check the fuse block in the engine
compartment. If a fuse is blown, it mustbe replaced.
Fuse switch (for Type A)
Always, put the fuse switch at the ON position.
If you move the switch to the OFF posi-
tion, some items must be reset and
remote key or smart key may not work
properly.
CAUTION
Always place the fuse switch in
the ON position while driving the
vehicle. If the switch is in the OFF position, a warning will appear onthe instrument cluster. (Refer to“Instrument Cluster” in chapter 4.)
The theft alarm system will not activate with the fuse switch in theOFF position.
OBA073012
OBA073012IN
■ Left-hand drive
■Right-hand drive
