Page 63 of 343
47
Features of your vehicle

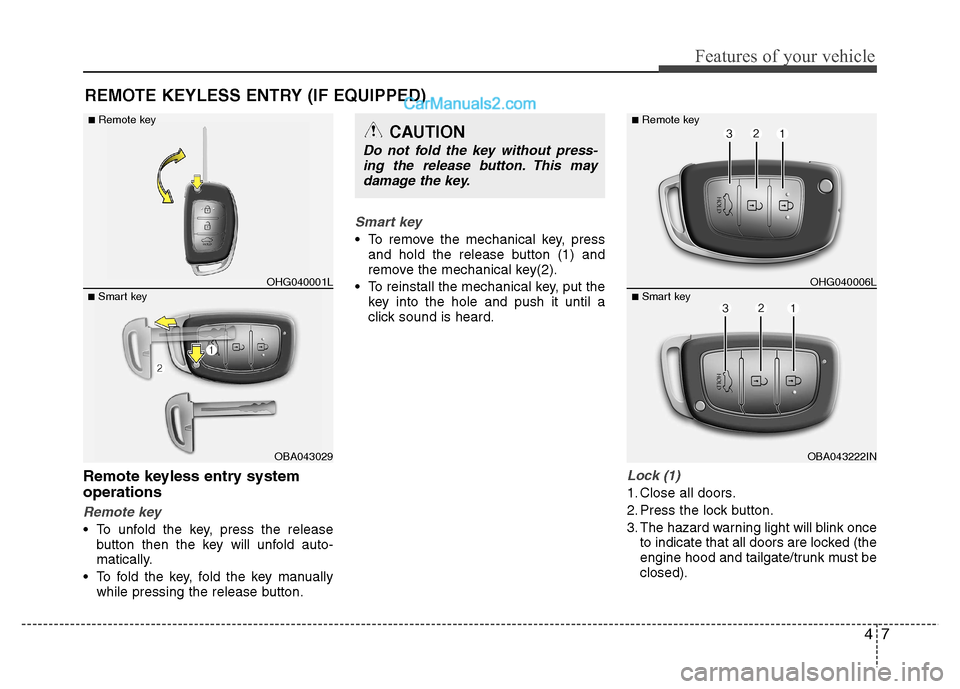

Remote keyless entry system operations
Remote key
To unfold the key, press the releasebutton then the key will unfold auto-
matically.
To fold the key, fold the key manually while pressing the release button.
Smart key
To remove the mechanical key, pressand hold the release button (1) and
remove the mechanical key(2).
To reinstall the mechanical key, put the key into the hole and push it until a
click sound is heard.
Lock (1)
1. Close all doors.
2. Press the lock button.
3. The hazard warning light will blink onceto indicate that all doors are locked (the
engine hood and tailgate/trunk must beclosed).
REMOTE KEYLESS ENTRY (IF EQUIPPED)
OBA043029
■
Smart key OHG040001L
■
Remote key
CAUTION
Do not fold the key without press-
ing the release button. This may
damage the key.
OBA043222IN
■
Smart key OHG040006L
■
Remote key
Page 77 of 343
421
Features of your vehicle

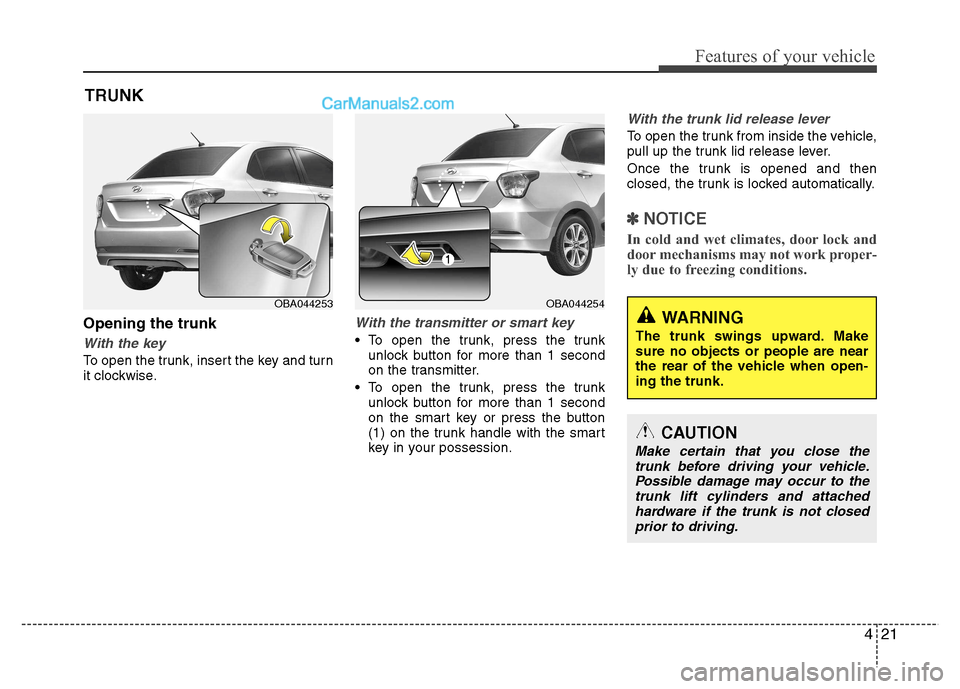

TRUNK
Opening the trunk
With the key
To open the trunk, insert the key and turn
it clockwise.
With the transmitter or smart key
To open the trunk, press the trunk unlock button for more than 1 second
on the transmitter.
To open the trunk, press the trunk unlock button for more than 1 second
on the smart key or press the button
(1) on the trunk handle with the smart
key in your possession.
With the trunk lid release lever
To open the trunk from inside the vehicle,
pull up the trunk lid release lever.
Once the trunk is opened and then
closed, the trunk is locked automatically.
✽✽ NOTICE
In cold and wet climates, door lock and
door mechanisms may not work proper-
ly due to freezing conditions.
CAUTION
Make certain that you close the trunk before driving your vehicle. Possible damage may occur to thetrunk lift cylinders and attached
hardware if the trunk is not closedprior to driving.
WARNING
The trunk swings upward. Make sure no objects or people are near
the rear of the vehicle when open-ing the trunk.
OBA044254OBA044253
