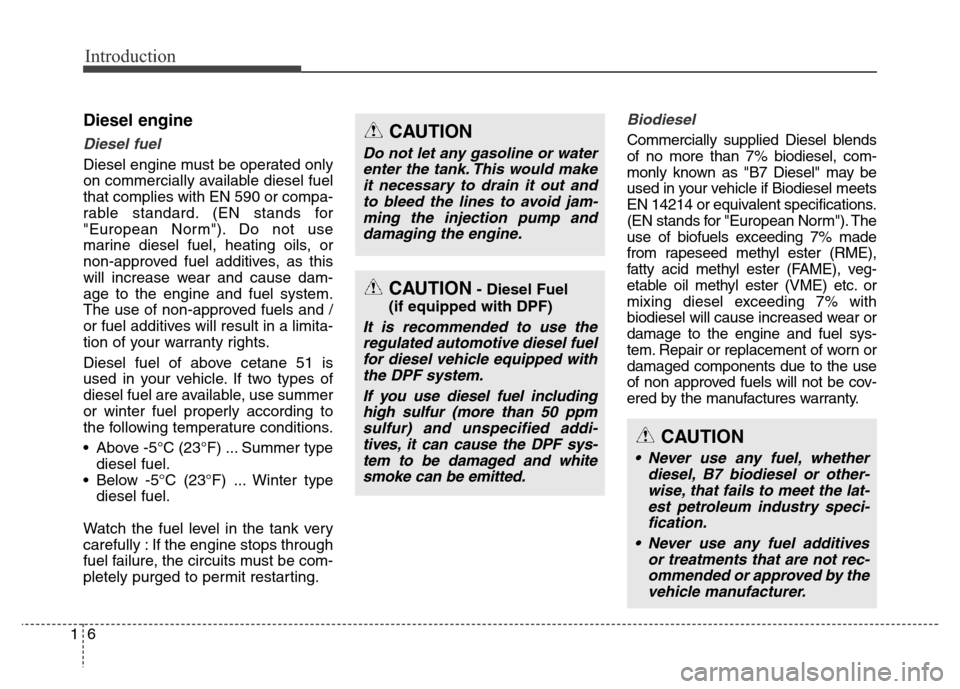

Diesel engine
Diesel fuel
Diesel engine must be operated only
on commercially available diesel fuel
that complies with EN 590 or compa-
rable standard. (EN stands for
"European Norm"). Do not use
marine diesel fuel, heating oils, or
non-approved fuel additives, as this
will increase wear and cause dam-
age to the engine and fuel system.
The use of non-approved fuels and /
or fuel additives will result in a limita-
tion of your warranty rights.
Diesel fuel of above cetane 51 is
used in your vehicle. If two types of
diesel fuel are available, use summer
or winter fuel properly according to
the following temperature conditions.
• Above -5°C (23°F) ... Summer type
diesel fuel.
• Below -5°C (23°F) ... Winter type
diesel fuel.
Watch the fuel level in the tank very
carefully : If the engine stops through
fuel failure, the circuits must be com-
pletely purged to permit restarting.
Biodiesel
Commercially supplied Diesel blends
of no more than 7% biodiesel, com-
monly known as "B7 Diesel" may be
used in your vehicle if Biodiesel meets
EN 14214 or equivalent specifications.
(EN stands for "European Norm"). The
use of biofuels exceeding 7% made
from rapeseed methyl ester (RME),
fatty acid methyl ester (FAME), veg-
etable oil methyl ester (VME) etc. or
mixing diesel exceeding 7% with
biodiesel will cause increased wear or
damage to the engine and fuel sys-
tem. Repair or replacement of worn or
damaged components due to the use
of non approved fuels will not be cov-
ered by the manufactures warranty.CAUTION
Do not let any gasoline or water
enter the tank. This would make
it necessary to drain it out and
to bleed the lines to avoid jam-
ming the injection pump and
damaging the engine.
CAUTION- Diesel Fuel
(if equipped with DPF)
It is recommended to use the
regulated automotive diesel fuel
for diesel vehicle equipped with
the DPF system.
If you use diesel fuel including
high sulfur (more than 50 ppm
sulfur) and unspecified addi-
tives, it can cause the DPF sys-
tem to be damaged and white
smoke can be emitted.
CAUTION
• Never use any fuel, whether
diesel, B7 biodiesel or other-
wise, that fails to meet the lat-
est petroleum industry speci-
fication.
• Never use any fuel additives
or treatments that are not rec-
ommended or approved by the
vehicle manufacturer.

17
Introduction

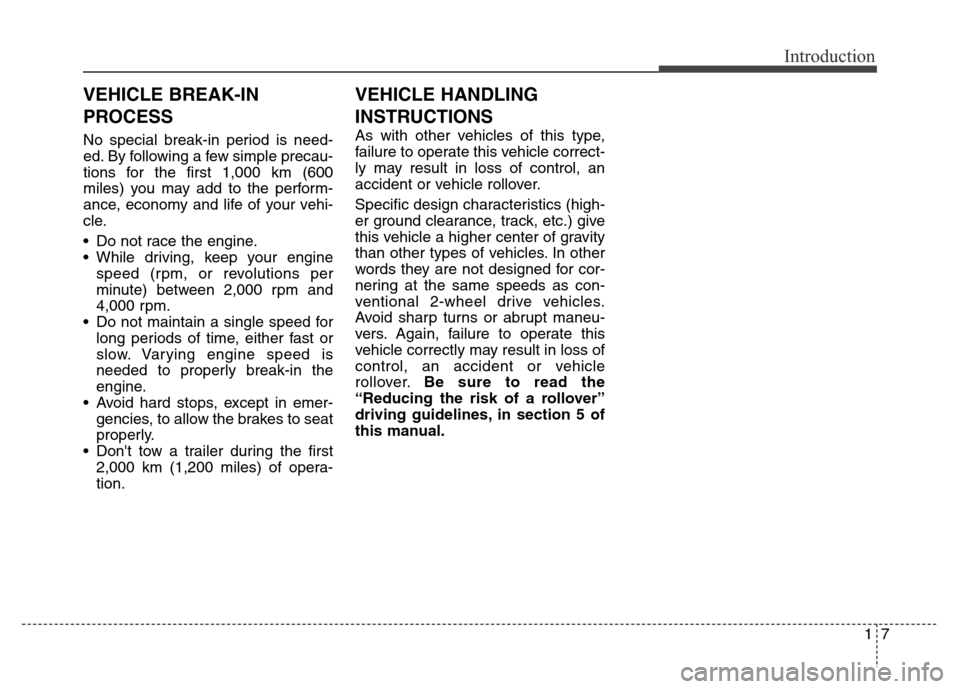

No special break-in period is need-
ed. By following a few simple precau-
tions for the first 1,000 km (600
miles) you may add to the perform-
ance, economy and life of your vehi-
cle.
• Do not race the engine.
• While driving, keep your engine
speed (rpm, or revolutions per
minute) between 2,000 rpm and
4,000 rpm.
• Do not maintain a single speed for
long periods of time, either fast or
slow. Varying engine speed is
needed to properly break-in the
engine.
• Avoid hard stops, except in emer-
gencies, to allow the brakes to seat
properly.
• Don't tow a trailer during the first
2,000 km (1,200 miles) of opera-
tion.As with other vehicles of this type,
failure to operate this vehicle correct-
ly may result in loss of control, an
accident or vehicle rollover.
Specific design characteristics (high-
er ground clearance, track, etc.) give
this vehicle a higher center of gravity
than other types of vehicles. In other
words they are not designed for cor-
nering at the same speeds as con-
ventional 2-wheel drive vehicles.
Avoid sharp turns or abrupt maneu-
vers. Again, failure to operate this
vehicle correctly may result in loss of
control, an accident or vehicle
rollover.Be sure to read the
“Reducing the risk of a rollover”
driving guidelines, in section 5 of
this manual.
VEHICLE HANDLING
INSTRUCTIONS VEHICLE BREAK-IN
PROCESS

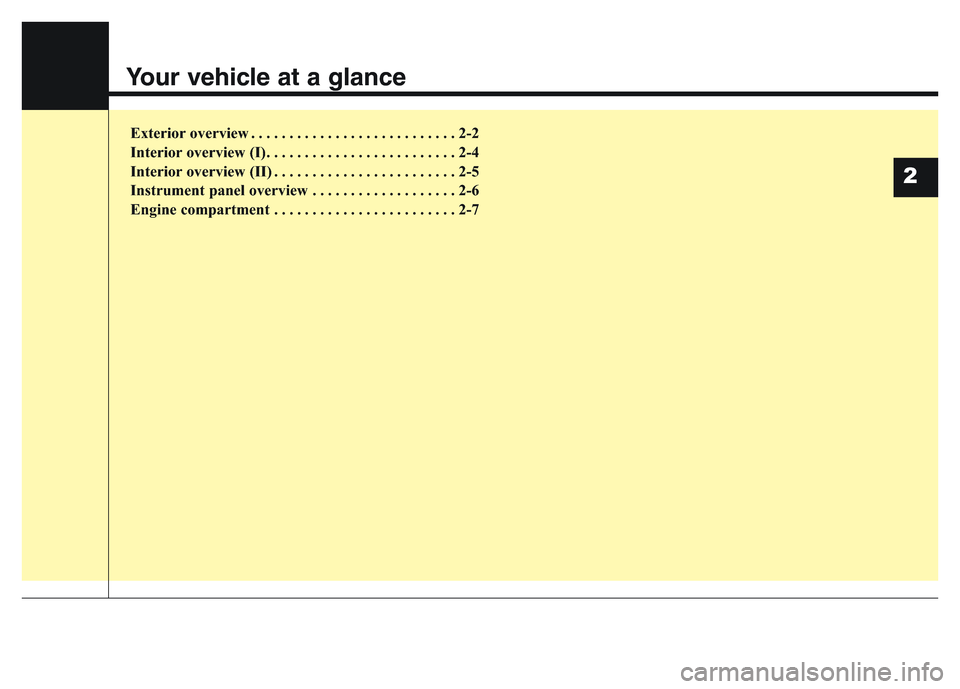

Your vehicle at a glance
Exterior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Interior overview (I). . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Interior overview (II) . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Instrument panel overview . . . . . . . . . . . . . . . . . . . 2-6
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-7
2

Your vehicle at a glance
2 2
EXTERIOR OVERVIEW
1. Panoramic sunroof . . . . . . . . . . . . . . . 4-44
2. Front windshield wiper blades . . . . . . 7-46
3. Outside rearview mirror . . . . . . . . . . . 4-59
4. Door locks . . . . . . . . . . . . . . . . . . . . . 4-18
5. Headlight . . . . . . . . . . . . . . . . . . . . . . 7-81
6. Front fog light . . . . . . . . . . . . . . . . . . 4-132
7. Hood . . . . . . . . . . . . . . . . . . . . . . . . . . 4-39
8. Tires and wheels . . . . . . . . . . . . . 7-51, 8-4
ONCEIN2001❈The actual shape may differ from the illustration.
■ Front view

23
Your vehicle at a glance

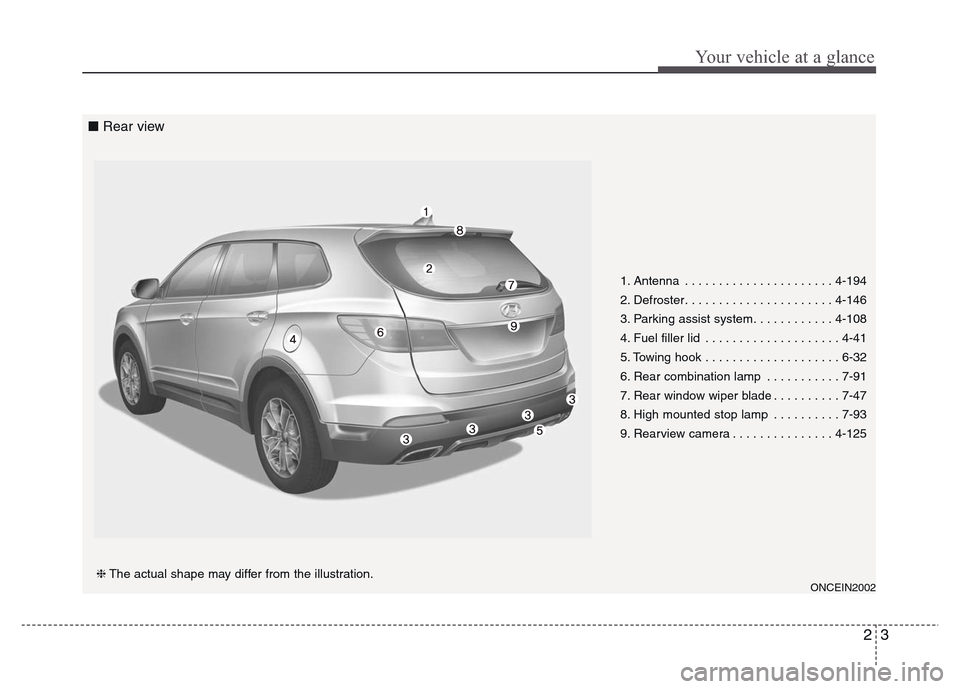

1. Antenna . . . . . . . . . . . . . . . . . . . . . . 4-194
2. Defroster. . . . . . . . . . . . . . . . . . . . . . 4-146
3. Parking assist system. . . . . . . . . . . . 4-108
4. Fuel filler lid . . . . . . . . . . . . . . . . . . . . 4-41
5. Towing hook . . . . . . . . . . . . . . . . . . . . 6-32
6. Rear combination lamp . . . . . . . . . . . 7-91
7. Rear window wiper blade . . . . . . . . . . 7-47
8. High mounted stop lamp . . . . . . . . . . 7-93
9. Rearview camera . . . . . . . . . . . . . . . 4-125
ONCEIN2002❈The actual shape may differ from the illustration.
■ Rear view

Your vehicle at a glance
4 2
INTERIOR OVERVIEW (I)
1. Driver position memory system
button ..................................................3-9
2. Inside door handle ............................4-19
3. Outside rearview mirror folding ........4-61
4. Outside rearview mirror control ........4-60
5. Power window lock button ................4-37
6. Central door lock switch ....................4-20
7. Power window switch ........................4-36
8. Fuel-filler lid opener ..........................4-41
9. Instrument panel illumination
control knob ......................................4-65
10. DBC button ......................................5-55
11. ESC OFF button ..............................5-49
12. Headlight leveling device ..............4-134
13. Active ECO button ..........................5-72
14. LDWS button ..................................5-68
15. AC inverter button..........................4-185
16. 4WD LOCK button ..........................5-26
17. Steering wheel ................................4-49
18. Tilt and telescopic steering
control lever ....................................4-50
19. Inner panel fuse panel.................... 7-67
20. Hood release lever ..........................4-39
21. Seat ..................................................3-2
ODMEIN2900❈The actual shape may differ from the illustration.

25
Your vehicle at a glance
INTERIOR OVERVIEW (II)
1. Cigarette lighter ..............................4-181
2. Power outlet ....................................4-184
3. Seat warmer (front) ..........................3-14
4. SPAS button ....................................4-117
5. Parking assist system button ..........4-109
6. Shift lever ..........................................5-17
7. Cup holder ......................................4-182
8. AUTO HOLD button ..........................5-43
9. EPB switch ........................................5-37
10. Aux, USB and iPod
®......................4-187
ONCEIN3004❈The actual shape may differ from the illustration.

Your vehicle at a glance
6 2
INSTRUMENT PANEL OVERVIEW
1. Lighting control lever ......................4-123
2. Audio remote control buttons ..........4-191
3. Bluetooth hands-free buttons ..........4-241
4. Cruise control button ........................5-60
5. LCD display control buttons ..............4-62
6. Horn ..................................................4-48
7. Driver’s front air bag ..........................3-62
8. Wiper and washer control lever ......4-132
9. Ignition switch or Engine start/stop
button ........................................5-6, 5-10
10. Audio ............................................4-190
11. Hazard warning flasher ................4-122
12. Climate control system ......4-144, 4-155
13. Passenger’s front air bag ................3-63
14. Glove box ......................................4-173
ODM012004❈The actual shape may differ from the illustration.

27
Your vehicle at a glance
ENGINE COMPARTMENT

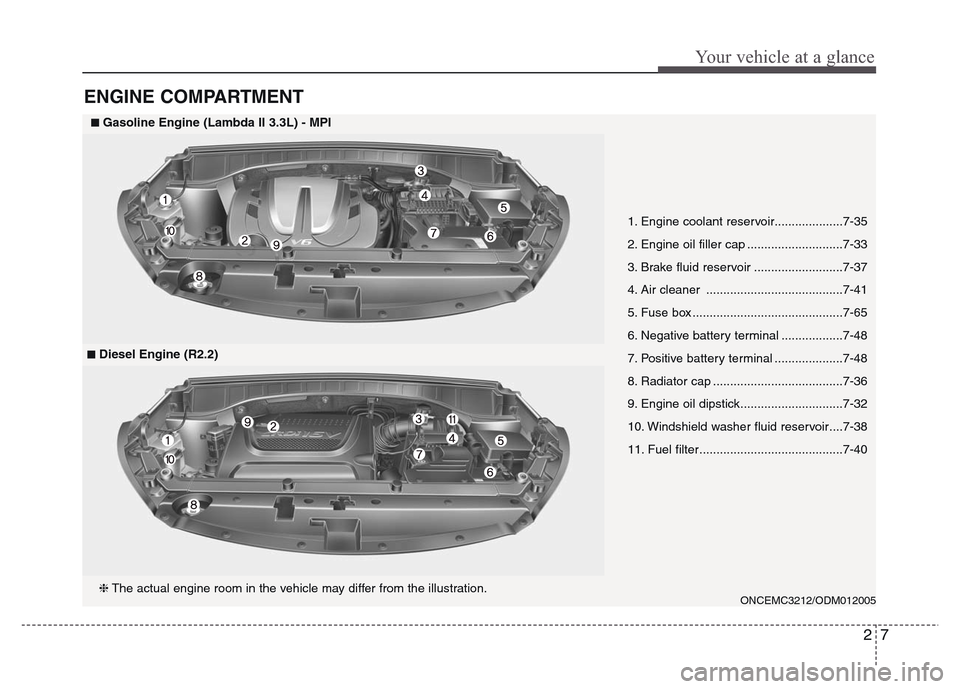

1. Engine coolant reservoir....................7-35
2. Engine oil filler cap ............................7-33
3. Brake fluid reservoir ..........................7-37
4. Air cleaner ........................................7-41
5. Fuse box ............................................7-65
6. Negative battery terminal ..................7-48
7. Positive battery terminal ....................7-48
8. Radiator cap ......................................7-36
9. Engine oil dipstick..............................7-32
10. Windshield washer fluid reservoir....7-38
11. Fuel filter..........................................7-40
ONCEMC3212/ODM012005
■Diesel Engine (R2.2)
❈The actual engine room in the vehicle may differ from the illustration.
■■Gasoline Engine (Lambda II 3.3L) - MPI

Safety features of your vehicle
Seat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
• Front seat adjustment - Manual . . . . . . . . . . . . . . . . . 3-6
• Front seat adjustment - Power . . . . . . . . . . . . . . . . . . . 3-7
• Driver position memory system . . . . . . . . . . . . . . . . . 3-9
• Headrest (for front seat) . . . . . . . . . . . . . . . . . . . . . . . 3-11
• Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
• Seat cooler (Air ventilation seat) . . . . . . . . . . . . . . . . 3-15
• Seatback pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
• Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
• Headrest (for rear seat). . . . . . . . . . . . . . . . . . . . . . . . 3-24
• Armrest (2nd row seat) . . . . . . . . . . . . . . . . . . . . . . . . 3-26
• Seat warmer (for 2nd row seat) . . . . . . . . . . . . . . . . . 3-26
Seat belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-28
• Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . . 3-28
• Seat belt warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-29
• Lap/shoulder belt. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30
• Pre-tensioner seat belt. . . . . . . . . . . . . . . . . . . . . . . . . 3-34
• Seat belt precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 3-37
• Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-39
Child restraint system . . . . . . . . . . . . . . . . . . . . . . 3-41
• Using a child restraint system . . . . . . . . . . . . . . . . . . 3-43
• Tether Anchor system . . . . . . . . . . . . . . . . . . . . . . . . . 3-46
• ISOFIX and Tether Anchorage system . . . . . . . . . . . 3-48
Air bag-supplemental restraint system . . . . . . . . 3-54
• Do not install a child restraint on a
front passenger's seat . . . . . . . . . . . . . . . . . . . . . . . . 3-56
• Air bag warning and indicator. . . . . . . . . . . . . . . . . . 3-57
• SRS components and functions . . . . . . . . . . . . . . . . . 3-59
• Driver's and passenger's front air bag . . . . . . . . . . . 3-62
• Side impact air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-68
• Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-69
• SRS Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-76
• Additional safety precautions . . . . . . . . . . . . . . . . . . . 3-77
• Air bag warning label . . . . . . . . . . . . . . . . . . . . . . . . . 3-78
3
