Hyundai Grandeur 2004 User Guide

YOUR VEHICLE AT A GLANCE
6HXG501J
B250B01L-GAT INSTRUMENTS AND CONTROLS (RIGHT-HAND DRIVE)
1
2345
89
10 11
127 13
14 15 16 17 18
19 20 21

YOUR VEHICLE AT A GLANCE

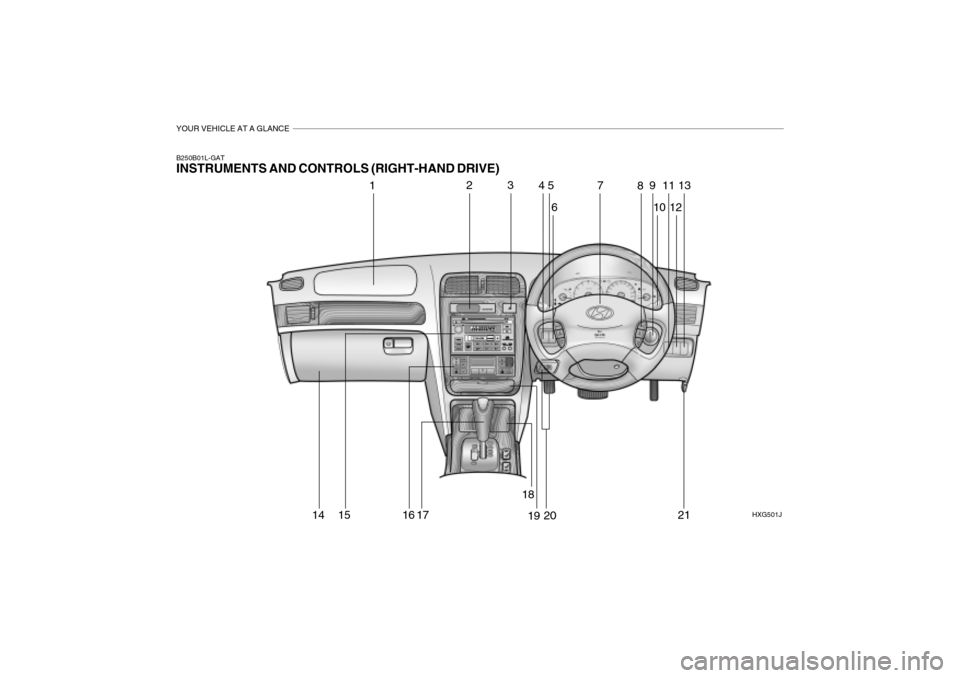

1. Passenger's Airbag (If installed)
2. Digital Clock
3. Hazard Warning Switch
4. Cruise Control Main Switch (If installed)
5. Multi-Function Light Switch
6. Traction Control Switch (If installed)
7. Horn and Driver's Airbag
8. Cruise Control Switch/ Audio Remote Control Switch(If installed)
9. Ignition Switch
10. Windshield Wiper/Washer Switch 11. Panel Brightness Control Knob
(Rheostat Switch)
12. Rear Fog Light Switch (If installed)
13. Headlight Leveling Switch (If installed)
14. Glove Box
15. Audio System (If installed)
16. Heater/Air Conditioning Control Panel
17. Shift Lever (If installed)
18. Ashtray
19. Accessory Box
20. Parking Brake Release Lever/Parking Brake (Foot type)
21. Hood Release Lever
CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near theinstrument cluster nor on the instrument panel pad surface. If there is any leakage from theair freshener onto these areas (Instrument cluster, instrument panel pad or air ventilator), it may damage these parts. If the liquid from air freshener does leak onto these areas, wash them with water immediately.
!

YOUR VEHICLE AT A GLANCE
Turn Signal Indicator Lights ABS Service Reminder Indicator Traction Control Indicator Light Seat Belt Warning LightHigh Beam Indicator Light Trunk Lid Open Warning Light Front Fog Indicator LightLow Oil Pressure Warning LightParking Brake/Low Brake Fluid Level Warning Light Charging System Warning Light Door Ajar Warning Light and Chime Low Fuel Level Warning Light SRS (Airbag) Service Reminder Indicator Cruise Indicator Light Stop/Tail Light Failure Warning Light Malfunction Indicator Light
B255A01L-GAT INDICATOR SYMBOLS ON THE INSTRUMENT PANEL * More detailed explanations of these items will be found beginning on page 1-43

1. FEATURES OF YOUR HYUNDAI
Fuel Recommendations .................................................................. 1-2
Breaking In Your New Hyundai ...................................................... 1-3
Keys (Immobilizer System) ...................................................... 1-3, 1-4
Door Locks (Theft-Alarm System) ........................................... 1-6, 1-8
Power Windows ............................................................................1-10
Seat (Power Seat) ............................................................... 1-11, 1-14
I.M.S (Integrated Memory System) ............................................... 1-16
Seat Belt ....................................................................................... 1-19
Child Restraint System ................................................................. 1-24
Supplemental Restraint (AIRBAG) System .................................. 1-32
Instrument Cluster and Indicator Lights ........................................ 1-41
Warning Light and Indicator ......................................................... 1-43
Multi-function Light Switch ............................................................ 1-50
Windshield Wiper/Washer Switch ................................................. 1-52
Trip Computer ............................................................................... 1-55
Sunroof ......................................................................................... 1-59
Mirror ............................................................................................. 1-64
Hood Release ............................................................................... 1-70
Cruise Control ............................................................................... 1-76
Audio Remote Control Switch ....................................................... 1-78
Heating and Cooling Control ........................................................ 1-80
Stereo Sound System ................................................................... 1-95
Audio System ................................................................................ 1-97
Antenna ...................................................................................... 1-119
1

1- 2 FEATURES OF YOUR HYUNDAI
B010B01A-AAT What About Gasohol? Gasohol (a mixture of 90% unleaded gasoline and 10% ethanol or grain alcohol) may be used in your Hyundai. However, if your engine developsdriveability problems, the use of 100% unleaded gasoline is recommended. Fuels with unspecified quantities ofalcohol, or alcohols other than ethanol, should not be used. B010D01S-AAT Do not Use Methanol Fuels containing methanol (wood al- cohol) should not be used in yourHyundai. This type of fuel can reduce vehicle performance and damage com- ponents of the fuel system. B010E01A-AAT Gasolines for Cleaner Air To help contribute to cleaner air, Hyundai recommends that you use gasolines treated with detergent addi- tives, which help prevent deposit for-mation in the engine. These gasolines will help the engine run cleaner and enhance performance of the EmissionControl System.
B010A02A-GAT FUEL RECOMMENDATIONS Use Unleaded Gasoline Unleaded gasoline with a Pump Oc- tane Rating of 87 (Research Octane Number 91) or higher must be used in Hyundai vehicle. If leaded gasoline isused, it will cause the catalytic con- verter to become ineffective and the emission control system to malfunc-tion. This can also result in increased main- tenance expense. To avoid accidentaluse of leaded fuel, the large nozzle used with leaded gasoline at service stations can not be inserted into fueltank opening of Hyundai vehicle.
NOTE:
o For some countries, Hyundai ve-
hicles are designed to use leaded gasoline. When you are going to use leaded gasoline, ask to Hyundai dealer whether leadedgasoline in your vehicle is avail- able or not.
o Octane Rating of leaded gaso- line is same with unleaded one.
B010A02L-1
! CAUTION:
Your Hyundai's New Vehicle Lim- ited Warranty may not cover dam- age to the fuel system and perfor-mance problems that are caused by the use of methanol or fuels con- taining methanol.

FEATURES OF YOUR HYUNDAI 1- 3
B010F01A-AAT Operation in Foreign Countries If you are going to drive your Hyundai in another country, be sure to:
o Observe all regulations regarding
registration and insurance.
o Determine that acceptable fuel is available.
B020A01S-GAT BREAKING IN YOUR NEW HYUNDAI During the First 2,000 Km (1,200 Miles) No formal "break-in" procedure is re- quired with your new Hyundai. How- ever, you can contribute to the eco- nomical operation and durability of yourHyundai by observing the following recommendations during the first 2,000 km (1,200 miles). B030A01Y-AAT KEYS For greater convenience, your Hyundai has two master keys and a sub key. The master keys will open all locks on your vehicle. The sub key will onlyfunction in the ignition and the door locks. Leaving your sub key with a parkingattendant will ensure that your vehicle's trunk, trunk lid release, glove box com- partment and rear trunk access maynot be unlocked in your absence. NOTE: Before leaving your sub key with a parking attendant, make sure thatthe lock levers of the rear seat back
HXG116
Master key Sub key
o Don't drive faster than 88 km/h (55
mph).
o While driving, keep your engine speed (rpm, or revolutions per minute) between 2,000 rpm and 4,000 rpm.
o Use moderate acceleration. Don't start, depress the accelerator pedalfully.
o For the first 300 km (200 miles), try to avoid hard stops.
o Don't lug the engine (in other words, don't drive so slowly in too high a gear that the engine "bucks": shift to a lower gear).
o Whether going fast or slow, vary your speed from time to time.
o Don't let the engine idle longer than 3 minutes for a catalytic converter equipped engine.
o Don't tow a trailer during the first 2,000 km (1,200 miles) of opera-tion.

1- 4 FEATURES OF YOUR HYUNDAI
B030B01L B880A01A-GAT IMMOBILIZER SYSTEM (If installed) The immobilizer system is an anti-theft device, designed to deter automobile theft.
B030B01A-AAT Record Your Key Number A code number is stamped on the number plate that came with the keys to your Hyundai. This key number plate should not be left with the keysbut kept in a safe place, not in the vehicle. The key number should also be recorded in a place where it can befound in an emergency. If you need additional keys, or if you should lose your keys, your authorizedHyundai dealer can make new keys if you can supply the key number. B880B04Y-GAT Three Types of Keys
1) ID key
This key must be used first to regis- ter a unique ID code in the ICM.
2) Master key This key is for general use. It willopen all locks on your vehicle. Oneside of the key has the Hyundai logo and the other side has the "M" sym- bol.
3) Sub key Similar to the master key, this keywill only function in the ignition andthe door locks, but it will not operate the trunk and the glove box. One side of the key has the Hyundai logoand the other side has a "S" symbol.
4) Leaving your sub key with a parking
attendant will ensure that yourvehicle's trunk, trunk lid release, glove box compartment and rear trunk access may not be unlockedin your absence.
NOTE: Before leaving your sub key with a parking attendant, make sure that the lock levers of the seat back lock and the trunk lid lock are switchedto the "LOCK" position.

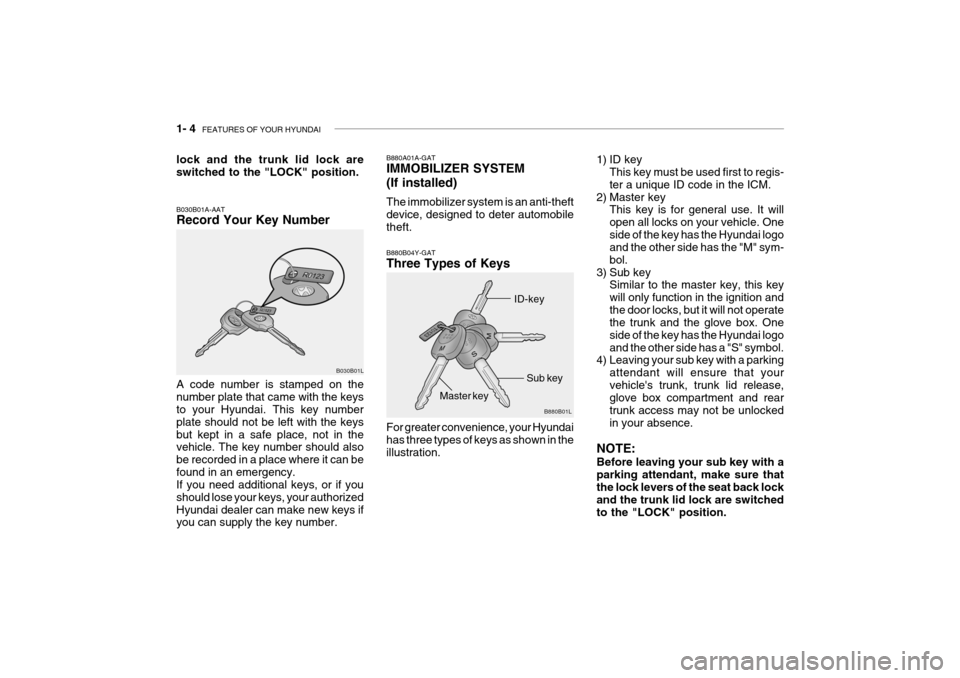

For greater convenience, your Hyundaihas three types of keys as shown in theillustration. ID-key
Master key Sub key
B880B01L
lock and the trunk lid lock are switched to the "LOCK" position.

FEATURES OF YOUR HYUNDAI 1- 5
!

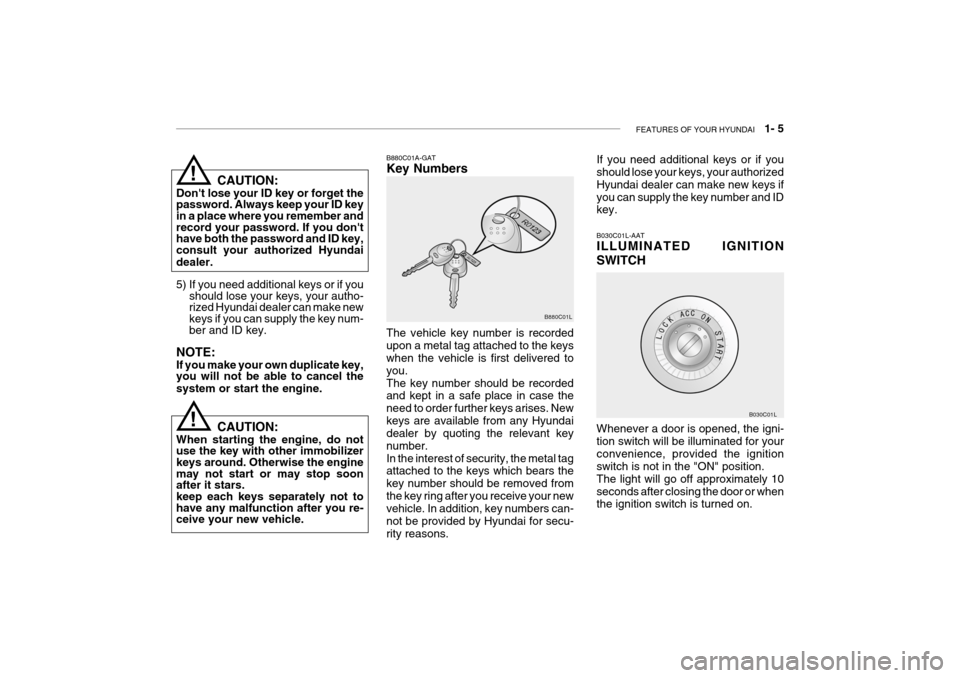

B880C01A-GAT Key Numbers The vehicle key number is recorded upon a metal tag attached to the keys when the vehicle is first delivered to you.The key number should be recorded and kept in a safe place in case the need to order further keys arises. Newkeys are available from any Hyundai dealer by quoting the relevant key number.In the interest of security, the metal tag attached to the keys which bears the key number should be removed fromthe key ring after you receive your new vehicle. In addition, key numbers can- not be provided by Hyundai for secu-rity reasons. B880C01L
CAUTION:
Don't lose your ID key or forget the password. Always keep your ID keyin a place where you remember and record your password. If you don't have both the password and ID key,consult your authorized Hyundai dealer.
!
5) If you need additional keys or if you should lose your keys, your autho- rized Hyundai dealer can make newkeys if you can supply the key num- ber and ID key.
NOTE: If you make your own duplicate key, you will not be able to cancel the system or start the engine. If you need additional keys or if you should lose your keys, your authorized Hyundai dealer can make new keys ifyou can supply the key number and ID key.
B030C01L-AAT ILLUMINATED IGNITION SWITCH Whenever a door is opened, the igni- tion switch will be illuminated for yourconvenience, provided the ignition switch is not in the "ON" position. The light will go off approximately 10seconds after closing the door or when the ignition switch is turned on.
B030C01L
CAUTION:
When starting the engine, do not use the key with other immobilizer keys around. Otherwise the engine may not start or may stop soonafter it stars. keep each keys separately not to have any malfunction after you re-ceive your new vehicle.

1- 6 FEATURES OF YOUR HYUNDAI
UNLOCK
LOCK
HXG018
B040A02Y-AAT DOOR LOCKS

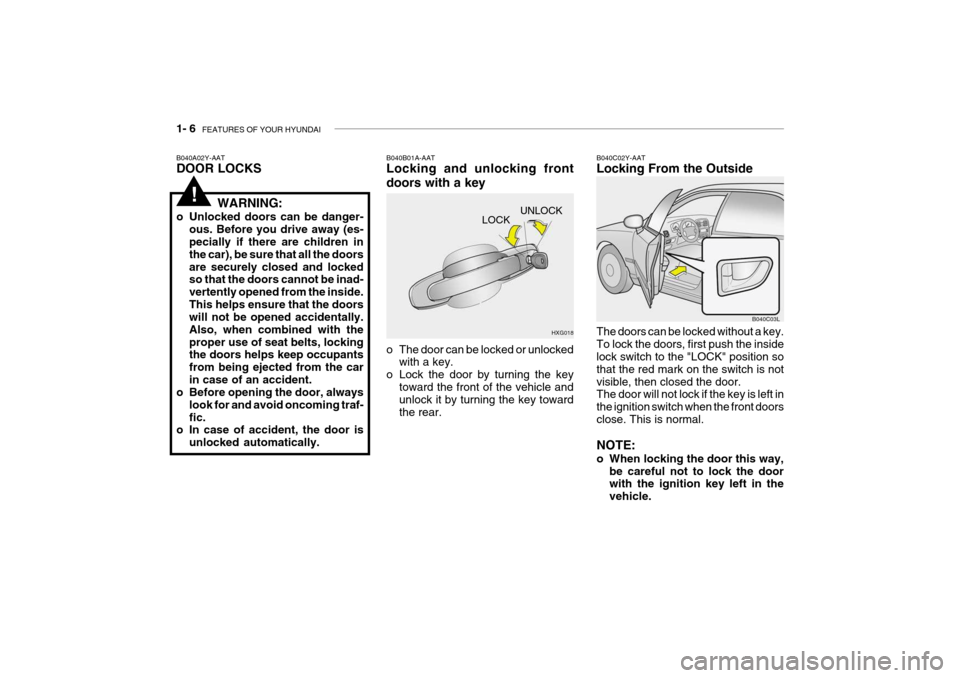

B040B01A-AATLocking and unlocking front doors with a key
o The door can be locked or unlocked
with a key.
o Lock the door by turning the key
toward the front of the vehicle and unlock it by turning the key toward the rear.
!
B040C03L
B040C02Y-AAT Locking From the Outside The doors can be locked without a key. To lock the doors, first push the inside lock switch to the "LOCK" position so that the red mark on the switch is notvisible, then closed the door. The door will not lock if the key is left in the ignition switch when the front doorsclose. This is normal. NOTE:
o When locking the door this way,
be careful not to lock the door with the ignition key left in the vehicle.
WARNING:
o Unlocked doors can be danger- ous. Before you drive away (es- pecially if there are children in the car), be sure that all the doorsare securely closed and locked so that the doors cannot be inad- vertently opened from the inside.This helps ensure that the doors will not be opened accidentally. Also, when combined with theproper use of seat belts, locking the doors helps keep occupants from being ejected from the carin case of an accident.
o Before opening the door, always
look for and avoid oncoming traf-fic.
o In case of accident, the door is
unlocked automatically.

FEATURES OF YOUR HYUNDAI 1- 7
o To protect against theft, always
remove the ignition key, close all windows, and lock all doors andthe trunk lid when leaving your vehicle unattended.
Your Hyundai is equipped with a "child- protector" rear door lock assembly. When the lock mechanism is engaged, the rear door cannot be opened fromthe inside. Its use is recommended whenever there are small children in the rear seat. To engage the child-protector feature so the door cannot be opened from theinside, move the child-protector lever to the " " position and close the door. Move the lever to the " " positionwhen normal door operation is de- sired.

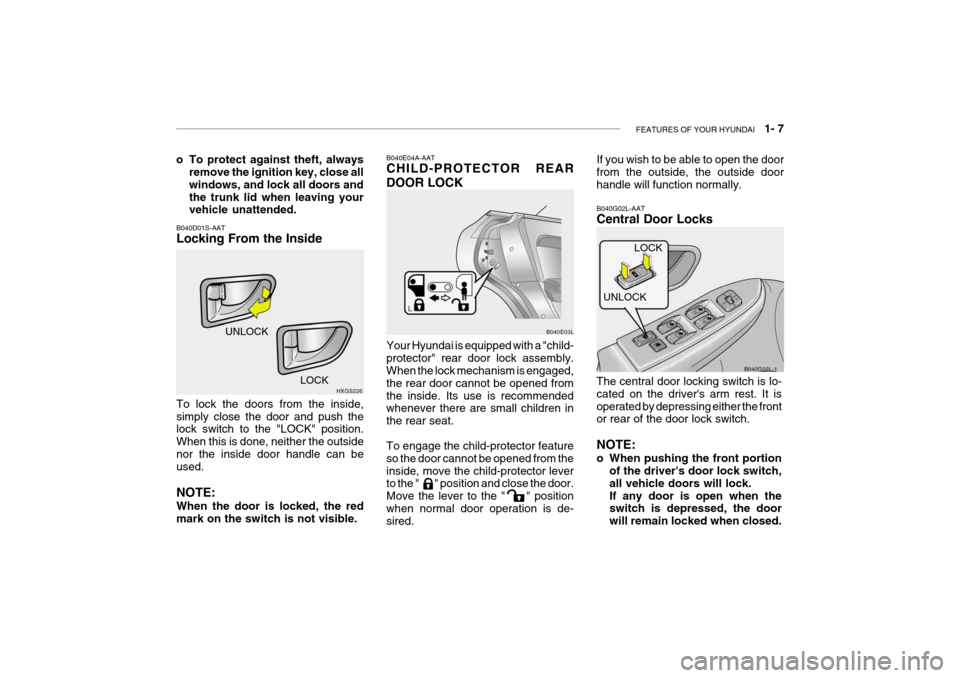

B040D01S-AAT Locking From the Inside To lock the doors from the inside, simply close the door and push the lock switch to the "LOCK" position. When this is done, neither the outsidenor the inside door handle can be used. NOTE: When the door is locked, the red mark on the switch is not visible.
HXGS226
LOCK
UNLOCK
B040E03L
B040E04A-AAT CHILD-PROTECTOR REAR DOOR LOCKIf you wish to be able to open the door from the outside, the outside door handle will function normally.
B040G02L-AAT Central Door Locks The central door locking switch is lo- cated on the driver's arm rest. It isoperated by depressing either the front or rear of the door lock switch. NOTE:
o When pushing the front portion
of the driver's door lock switch, all vehicle doors will lock.If any door is open when the switch is depressed, the door will remain locked when closed. B040G02L-1
LOCK
UNLOCK
