Hyundai H-1 (Grand Starex) 2004 User Guide
Manufacturer: HYUNDAI, Model Year: 2004, Model line: H-1 (Grand Starex), Model: Hyundai H-1 (Grand Starex) 2004Pages: 273, PDF Size: 11.26 MB
Page 11 of 273

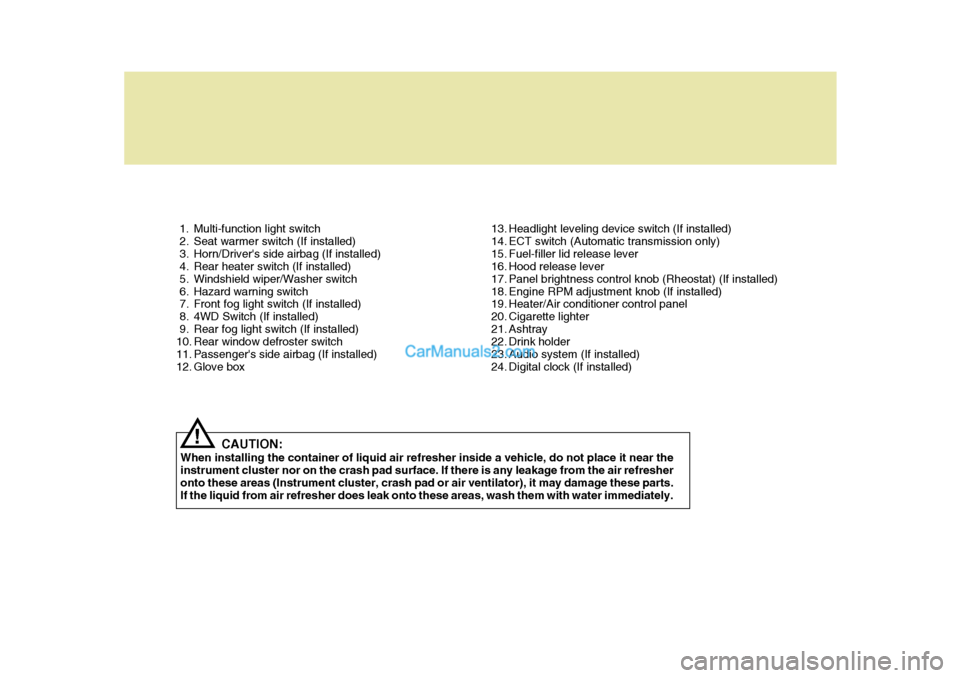

1. Multi-function light switch
2. Seat warmer switch (If installed)
3. Horn/Driver's side airbag (If installed)
4. Rear heater switch (If installed)
5. Windshield wiper/Washer switch
6. Hazard warning switch
7. Front fog light switch (If installed)
8. 4WD Switch (If installed)
9. Rear fog light switch (If installed)
10. Rear window defroster switch
11. Passenger's side airbag (If installed)
12. Glove box13. Headlight leveling device switch (If installed)
14. ECT switch (Automatic transmission only)
15. Fuel-filler lid release lever
16. Hood release lever
17. Panel brightness control knob (Rheostat) (If installed)
18. Engine RPM adjustment knob (If installed)
19. Heater/Air conditioner control panel
20. Cigarette lighter
21. Ashtray
22. Drink holder
23. Audio system (If installed)
24. Digital clock (If installed)
CAUTION:
When installing the container of liquid air refresher inside a vehicle, do not place it near theinstrument cluster nor on the crash pad surface. If there is any leakage from the air refresher onto these areas (Instrument cluster, crash pad or air ventilator), it may damage these parts. If the liquid from air refresher does leak onto these areas, wash them with water immediately.
!
Page 12 of 273
C020A02P-2
B250B01P-GAT

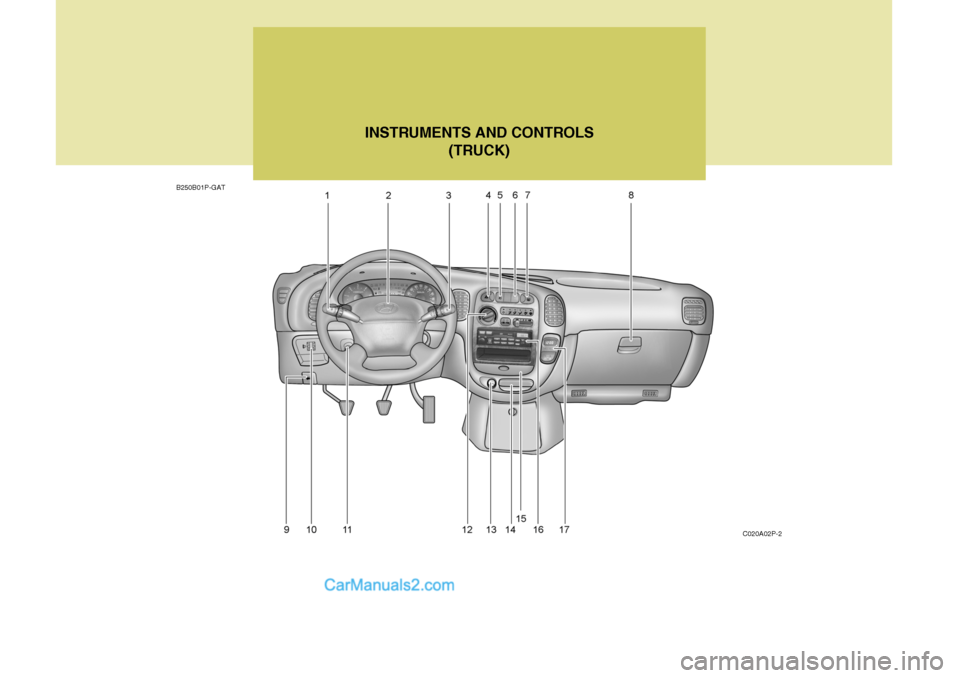

INSTRUMENTS AND CONTROLS
(TRUCK)
Page 13 of 273

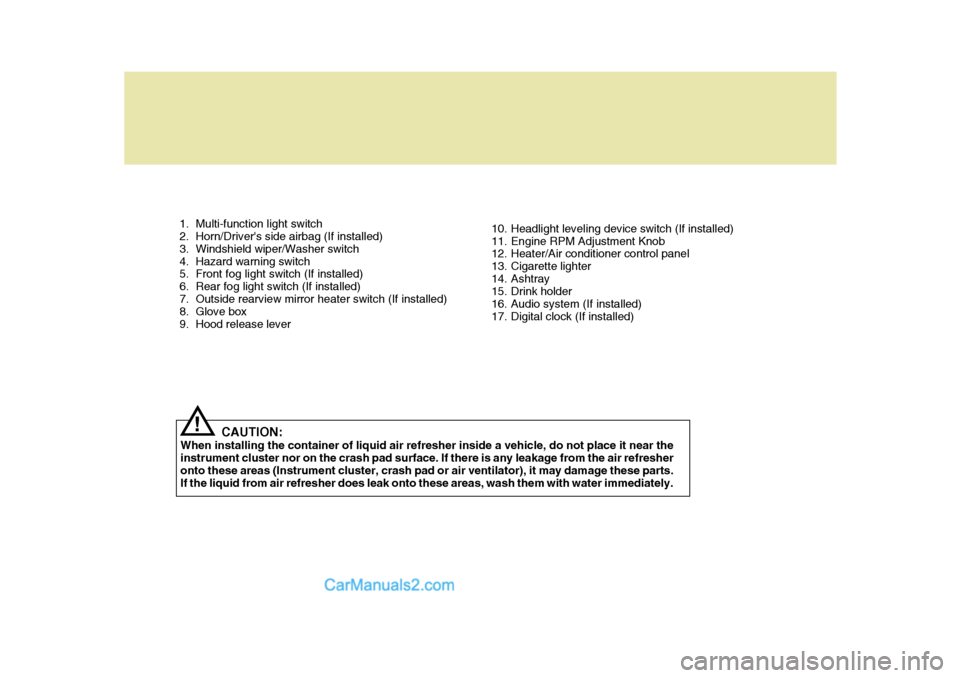

1. Multi-function light switch
2. Horn/Driver's side airbag (If installed)
3. Windshield wiper/Washer switch
4. Hazard warning switch
5. Front fog light switch (If installed)
6. Rear fog light switch (If installed)
7. Outside rearview mirror heater switch (If installed)
8. Glove box
9. Hood release lever10. Headlight leveling device switch (If installed)
11. Engine RPM Adjustment Knob
12. Heater/Air conditioner control panel
13. Cigarette lighter
14. Ashtray
15. Drink holder
16. Audio system (If installed)
17. Digital clock (If installed)
CAUTION:
When installing the container of liquid air refresher inside a vehicle, do not place it near theinstrument cluster nor on the crash pad surface. If there is any leakage from the air refresheronto these areas (Instrument cluster, crash pad or air ventilator), it may damage these parts. If the liquid from air refresher does leak onto these areas, wash them with water immediately.
!
Page 14 of 273
YOUR VEHICLE AT A GLANCE
B255A01P-GAT INDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER * More detailed explanations of these items will be found beginning on page 2-8.
O/D OFF Indicator Light (Automatic Transmission Only)
Fuel Filter Warning Light (Diesel only)
Diesel Pre-heat Indicator Light (Diesel only)
Immobilizer Warning Light (If installed)
SRS (Airbag) Service Reminder Indicator Light (If installed)
ABS Service Reminder Indicator Light(If installed)
Turn Signal Indicator Lights High Beam Indicator LightLow Oil Pressure Warning Light Parking Brake/Low Brake Fluid Level Warning Light Charging System Warning Light Seat Belt Warning Light (If installed) Door Ajar Warning Light Low Fuel Level Warning Light
POWER/HOLD Indicator Light (If installed) Malfunction Indicator Light (If installed)
4WD HIGH/LOW Indicator Light (If installed)
Page 15 of 273

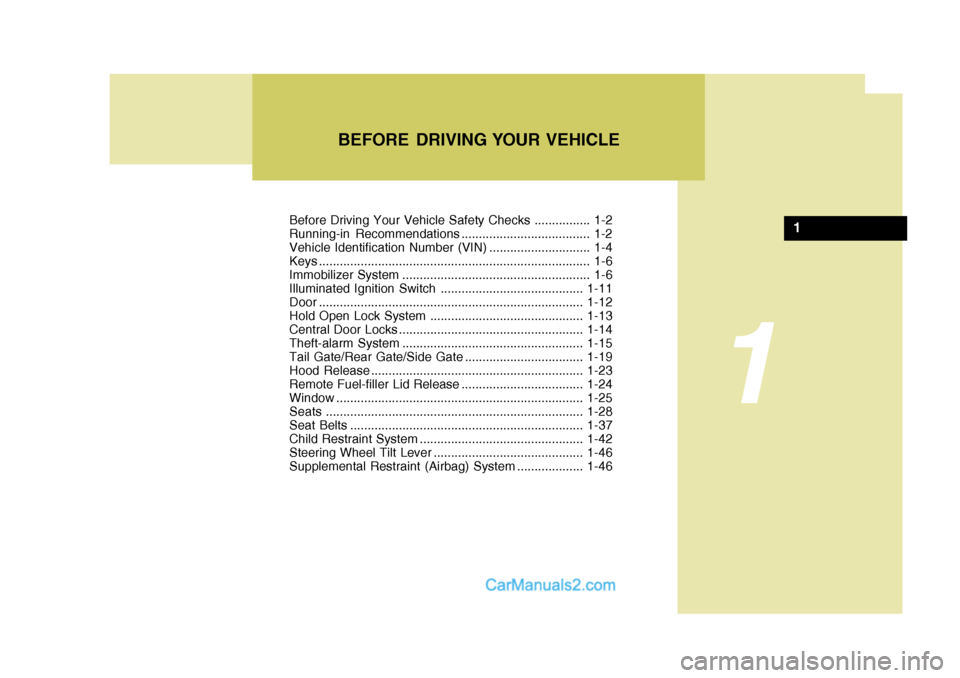

Before Driving Your Vehicle Safety Checks ................ 1-2
Running-in Recommendations ..................................... 1-2
Vehicle Identification Number (VIN) ............................. 1-4Keys.............................................................................. 1-6
Immobilizer System ...................................................... 1-6
Illuminated Ignition Switch ......................................... 1-11
Door ............................................................................ 1-12
Hold Open Lock System ............................................ 1-13
Central Door Locks ..................................................... 1-14
Theft-alarm System .................................................... 1-15
Tail Gate/Rear Gate/Side Gate .................................. 1-19
Hood Release ............................................................. 1-23
Remote Fuel-filler Lid Release ................................... 1-24
Window ....................................................................... 1-25
Seats .......................................................................... 1-28
Seat Belts ................................................................... 1-37
Child Restraint System............................................... 1-42
Steering Wheel Tilt Lever ........................................... 1-46
Supplemental Restraint (Airbag) System ................... 1-46
BEFORE DRIVING YOUR VEHICLE
1
1
Page 16 of 273

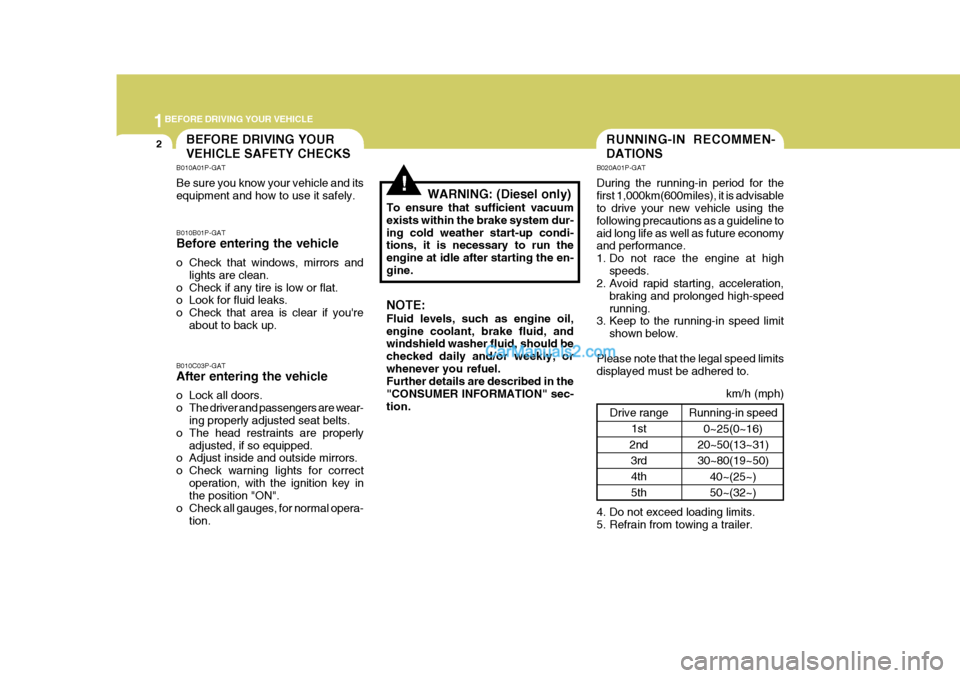

1BEFORE DRIVING YOUR VEHICLE
2RUNNING-IN RECOMMEN- DATIONSBEFORE DRIVING YOUR VEHICLE SAFETY CHECKS
Drive range1st
2nd 3rd
4th 5th
!
B010A01P-GAT Be sure you know your vehicle and its equipment and how to use it safely. B010B01P-GAT Before entering the vehicle
o Check that windows, mirrors and lights are clean.
o Check if any tire is low or flat.
o Look for fluid leaks.
o Check that area is clear if you're about to back up.
B010C03P-GAT After entering the vehicle
o Lock all doors.
o The driver and passengers are wear- ing properly adjusted seat belts.
o The head restraints are properly adjusted, if so equipped.
o Adjust inside and outside mirrors.
o Check warning lights for correct
operation, with the ignition key in the position "ON".
o Check all gauges, for normal opera- tion. WARNING: (Diesel only)
To ensure that sufficient vacuum exists within the brake system dur-ing cold weather start-up condi- tions, it is necessary to run the engine at idle after starting the en-gine. NOTE: Fluid levels, such as engine oil, engine coolant, brake fluid, and windshield washer fluid, should be checked daily and/or weekly, orwhenever you refuel. Further details are described in the "CONSUMER INFORMATION" sec-tion. B020A01P-GAT During the running-in period for the first 1,000km(600miles), it is advisable to drive your new vehicle using the following precautions as a guideline toaid long life as well as future economy and performance.
1. Do not race the engine at high
speeds.
2. Avoid rapid starting, acceleration,
braking and prolonged high-speedrunning.
3. Keep to the running-in speed limit
shown below.
Please note that the legal speed limitsdisplayed must be adhered to.
4. Do not exceed loading limits.
5. Refrain from towing a trailer.
km/h (mph)
Running-in speed 0~25(0~16)
20~50(13~31) 30~80(19~50)
40~(25~) 50~(32~)
Page 17 of 273
1
BEFORE DRIVING YOUR VEHICLE
3
B030A01P-GAT BEFORE OPERATION PRECAUTIONS FOR NEWVEHICLE The performance and life of a vehicle depend largely on how the vehicle is handled when new.To maintain the parts smoothly and sustain high performance for a long time to come, be sure to observe thefollowing points. Make sure that your vehicle does not miss the first 5,000 km inspec- tions. After the first 5,000 km of driving, take your vehicle to your nearest service shop for inspection. B040A01P-GAT OPERATION IN FOREIGN COUN- TRIES If you are going to drive your Hyundai in another country, be sure to:
o Observe all regulations regarding
registration and insurance.
o Determine that acceptable fuel is available.
!
B055A02P-GAT LOADING YOUR VEHICLE Never load the luggage and people to exceed GVWR(MLW) and GAWR ofyour vehicle. You can find the GVWR(MLW) and GAWR -maximum loading capacities-on the VIN plate. The GVWR(Gross Vehicle Weight Rating) or MLW(Maximum LoadedWeight) means total weight of the ve- hicle, all occupants, fuel and cargo. And GAWR means the maximumweights that the front and rear axles can endure the weights including ve- hicle itself weight.
WARNING:
Improperly loading your car canseriously affect its steering and braking performance causing a crash in which you may be seri-ously injured or killed. NOTE: Your warranty does not cover parts or components that fail because of overloading.
Page 18 of 273
1BEFORE DRIVING YOUR VEHICLE
4

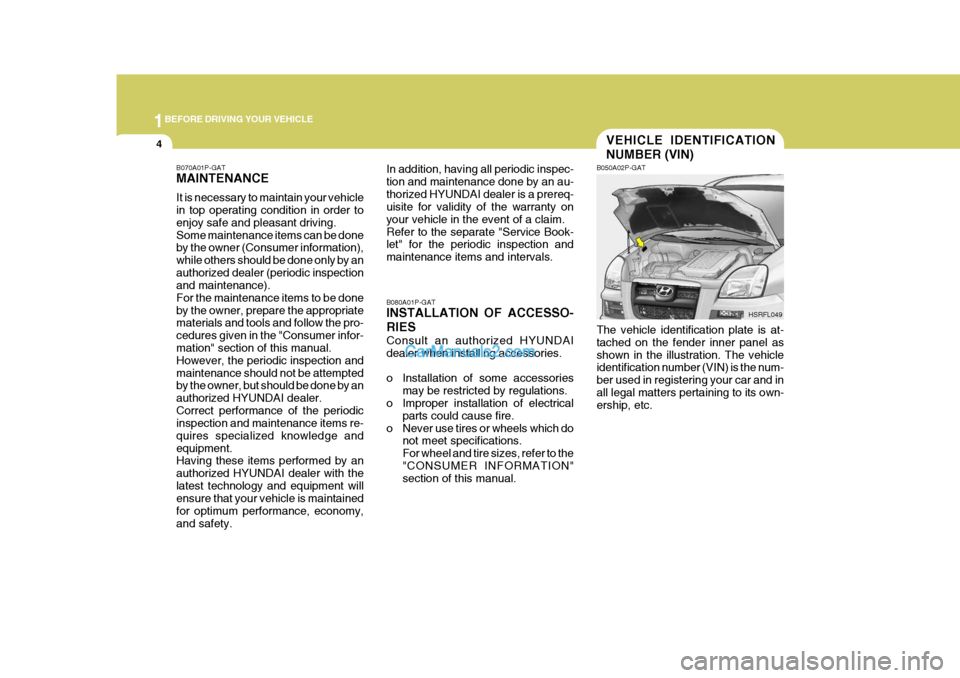

B070A01P-GAT MAINTENANCE It is necessary to maintain your vehicle in top operating condition in order to enjoy safe and pleasant driving.Some maintenance items can be done by the owner (Consumer information), while others should be done only by anauthorized dealer (periodic inspection and maintenance). For the maintenance items to be doneby the owner, prepare the appropriate materials and tools and follow the pro- cedures given in the "Consumer infor- mation" section of this manual. However, the periodic inspection andmaintenance should not be attempted by the owner, but should be done by an authorized HYUNDAI dealer.Correct performance of the periodic inspection and maintenance items re- quires specialized knowledge andequipment. Having these items performed by an authorized HYUNDAI dealer with thelatest technology and equipment will ensure that your vehicle is maintained for optimum performance, economy,and safety. In addition, having all periodic inspec-tion and maintenance done by an au-thorized HYUNDAI dealer is a prereq- uisite for validity of the warranty on your vehicle in the event of a claim.Refer to the separate "Service Book- let" for the periodic inspection and maintenance items and intervals. B080A01P-GAT INSTALLATION OF ACCESSO- RIES Consult an authorized HYUNDAI dealer when installing accessories.
o Installation of some accessories
may be restricted by regulations.
o Improper installation of electrical
parts could cause fire.
o Never use tires or wheels which do not meet specifications. For wheel and tire sizes, refer to the"CONSUMER INFORMATION" section of this manual.
VEHICLE IDENTIFICATION NUMBER (VIN)
B050A02P-GAT The vehicle identification plate is at- tached on the fender inner panel asshown in the illustration. The vehicle identification number (VIN) is the num- ber used in registering your car and inall legal matters pertaining to its own- ership, etc. HSRFL049
Page 19 of 273
1
BEFORE DRIVING YOUR VEHICLE
5
HSRFL051
HSR008

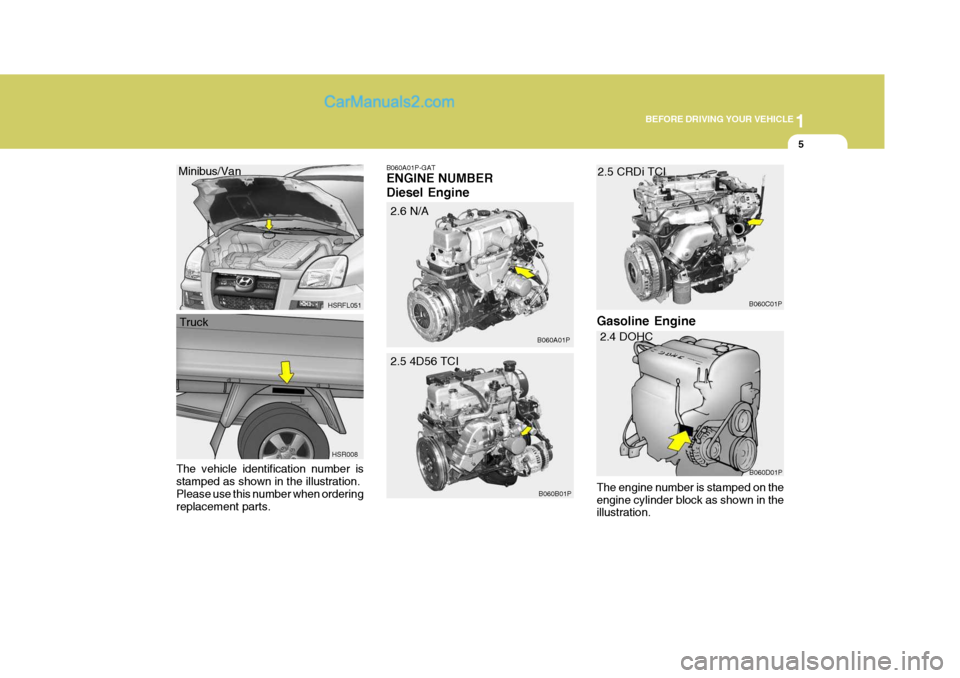

The vehicle identification number is stamped as shown in the illustration.Please use this number when ordering replacement parts. Minibus/Van
Truck B060A01P-GAT ENGINE NUMBER Diesel Engine
The engine number is stamped on the engine cylinder block as shown in the illustration.
B060A01P
B060B01P
2.5 4D56 TCI
B060C01P
2.5 CRDi TCI
2.6 N/A
Gasoline Engine
B060D01P
2.4 DOHC
Page 20 of 273
1BEFORE DRIVING YOUR VEHICLE
6
B880B01HP-1
IMMOBILIZER SYSTEMKEYS

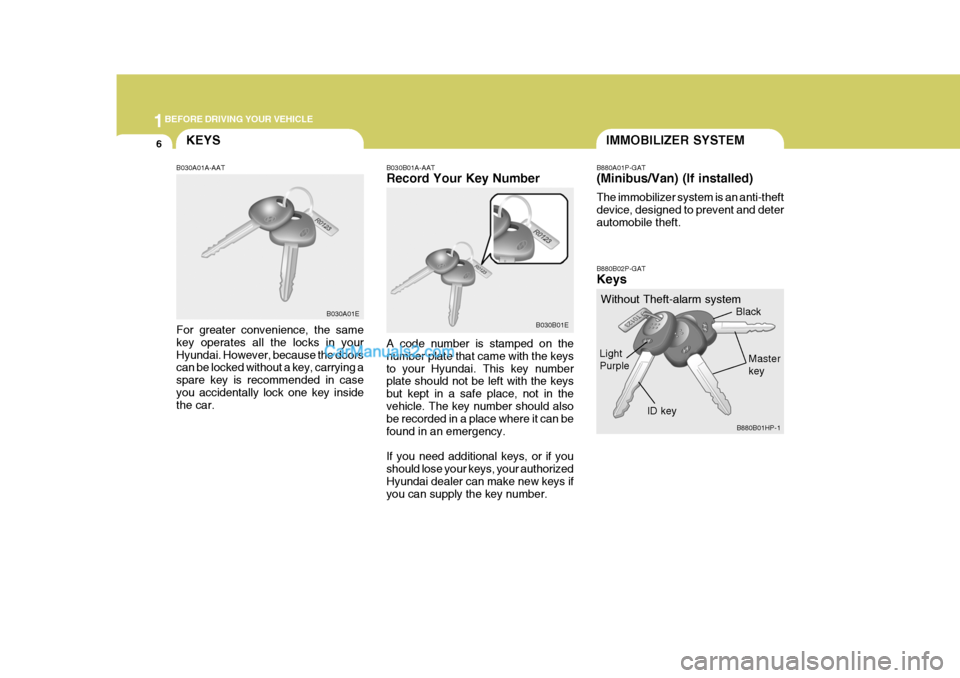

B030A01A-AAT For greater convenience, the same key operates all the locks in yourHyundai. However, because the doors can be locked without a key, carrying a spare key is recommended in caseyou accidentally lock one key inside the car. B030B01A-AAT Record Your Key Number A code number is stamped on the number plate that came with the keysto your Hyundai. This key number plate should not be left with the keys but kept in a safe place, not in thevehicle. The key number should also be recorded in a place where it can be found in an emergency. If you need additional keys, or if you should lose your keys, your authorizedHyundai dealer can make new keys if you can supply the key number.
B030A01E
B030B01EB880A01P-GAT (Minibus/Van) (If installed) The immobilizer system is an anti-theft device, designed to prevent and deterautomobile theft. B880B02P-GAT Keys
Without Theft-alarm system
LightPurple
Black Master key
ID key
