Page 41 of 273
1
BEFORE DRIVING YOUR VEHICLE
27
B220A01P-GAT Sliding window glass (Van) To open Slide the window glass while pressing the lock knob. To close Slide the window glass all the way and it will automatically lock. CLOSE
GT10250A
OPEN
Page 42 of 273
1BEFORE DRIVING YOUR VEHICLE
28SEATS
HSRFL859
1. FRONT SEAT (See page 1-29)
2. SECOND SEAT (See page 1-31)
3. THIRD SEAT (See page 1-32)
4. FOURTH SEAT (See page 1-33)
5. AUXILIARY SEAT (See page 1-33) 1
2
3
4
5 5
For 12 passengers
Page 43 of 273
1
BEFORE DRIVING YOUR VEHICLE
29
!
!
B080A01A-AAT ADJUSTABLE FRONT SEATS
WARNING:
Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control, and an accident causing death, seriousinjury, or property damage. B080B02FC-AAT Adjusting Seat Forward and Rearward To move the seat toward the front or rear, pull the lock release lever up- ward. This will release the seat on itstrack so you can move it forward or rearward to the desired position. When you find the position you want, releasethe lever and slide the seat forward or rearward on its track until it locks into the desired position and cannot bemoved further.B080C01A-AAT Adjusting Seatback Angle To recline the seatback, lean forward to take your weight off it, then pull up on the recliner control lever at the outside edge of the seat. Now leanback until the desired seatback angle is achieved. To lock the seatback into position, release the recliner controllever.
HSRFL080
HSRFL081
WARNING:
To ensure the seat is locked se-curely, attempt to move the seatforward or rearward without using the lock release lever.
Page 44 of 273
1BEFORE DRIVING YOUR VEHICLE
30
!WARNING:
To minimize risk of personal injury in the event of a collision or a sud-den stop, both the driver and pas- senger seatbacks should always be in an upright position while thevehicle is in motion. The protection provided by the seat belts and airbags may be reduced signifi-cantly when the seatbacks are re- clined. There is greater risk that the driver and passenger will slide un- der the belt resulting in serious injury if a crash occurs when theseatbacks are reclined. The seat belt cannot provide full protection to an occupant if the seat back isreclined. B260A01P-GAT Lumbar Support Control (Driver's Seat Only) (If installed)
Minibus/Van
1HSRFL082 B080F01S-AAT Seat Cushion Height Adjustment (Driver's Seat Only) (If installed) To raise or lower the front part of the seat cushion, turn the front knob for- ward or rearward. To raise or lower therear part of the seat cushion, turn the rear knob forward or rearward.
Truck To increase the amount of lumbar sup- port, turn the handle forward. To de-crease it turn the handle toward the rear.
1. Maximum support
2. Minimum support
B260B01P HSRFL083
2
1 2

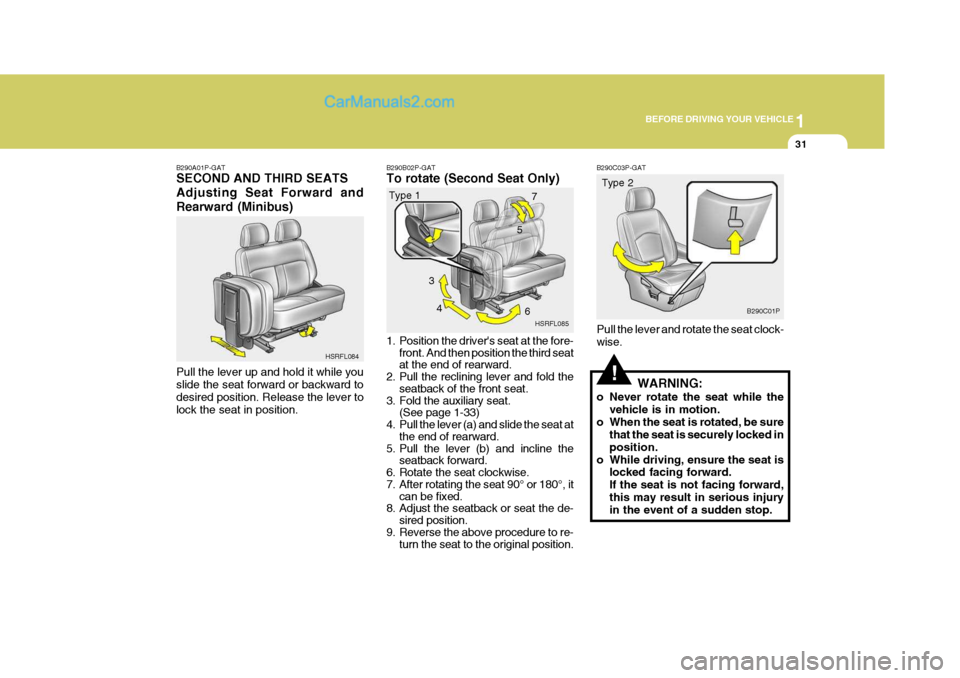

Page 45 of 273
1
BEFORE DRIVING YOUR VEHICLE
31
5
!
B290C03P-GAT Pull the lever and rotate the seat clock- wise.
WARNING:
o Never rotate the seat while the vehicle is in motion.
o When the seat is rotated, be sure that the seat is securely locked inposition.
o While driving, ensure the seat is locked facing forward.If the seat is not facing forward,this may result in serious injury in the event of a sudden stop.
B290A01P-GAT SECOND AND THIRD SEATS Adjusting Seat Forward andRearward (Minibus) Pull the lever up and hold it while you slide the seat forward or backward to desired position. Release the lever tolock the seat in position.
B290B02P-GAT To rotate (Second Seat Only)
1. Position the driver's seat at the fore-
front. And then position the third seat at the end of rearward.
2. Pull the reclining lever and fold the seatback of the front seat.
3. Fold the auxiliary seat. (See page 1-33)
4. Pull the lever (a) and slide the seat at the end of rearward.
5. Pull the lever (b) and incline the seatback forward.
6. Rotate the seat clockwise.
7. After rotating the seat 90° or 180°, it can be fixed.
8. Adjust the seatback or seat the de-
sired position.
9. Reverse the above procedure to re-
turn the seat to the original position.
HSRFL084
Type 1
HSRFL085Type 2
B290C01P
3
4 67

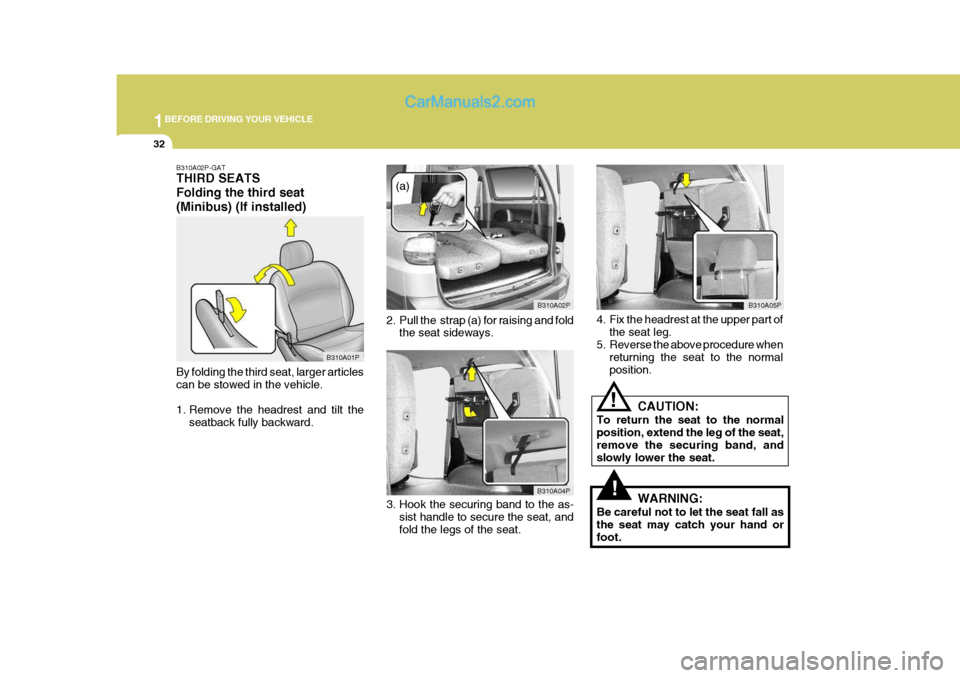

Page 46 of 273
1BEFORE DRIVING YOUR VEHICLE
32
B310A02P-GAT THIRD SEATS Folding the third seat(Minibus) (If installed) By folding the third seat, larger articles can be stowed in the vehicle.
1. Remove the headrest and tilt the
seatback fully backward. 2. Pull the strap (a) for raising and fold
the seat sideways.
3. Hook the securing band to the as- sist handle to secure the seat, and fold the legs of the seat.
B310A01P
B310A02P
B310A04P B310A05P
(a)
4. Fix the headrest at the upper part ofthe seat leg.
5. Reverse the above procedure when returning the seat to the normalposition.
WARNING:
Be careful not to let the seat fall asthe seat may catch your hand orfoot.
!
! CAUTION:
To return the seat to the normal position, extend the leg of the seat, remove the securing band, andslowly lower the seat.

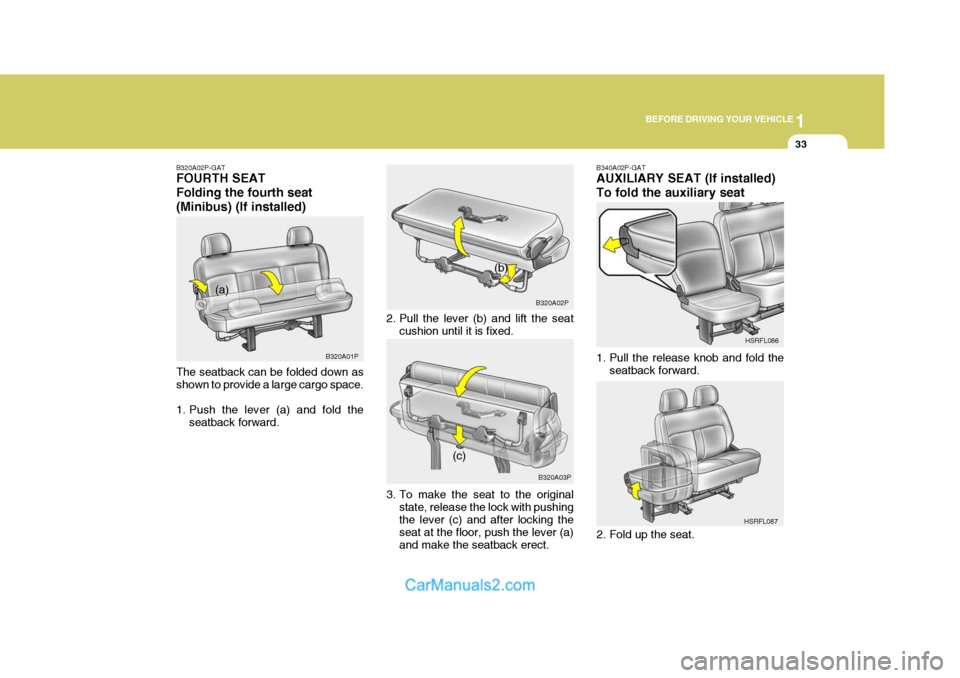

Page 47 of 273
1
BEFORE DRIVING YOUR VEHICLE
33
B340A02P-GAT AUXILIARY SEAT (If installed) To fold the auxiliary seat
1. Pull the release knob and fold the
seatback forward. HSRFL086
HSRFL087
2. Fold up the seat.
2. Pull the lever (b) and lift the seat
cushion until it is fixed.
B320A02P-GAT FOURTH SEAT Folding the fourth seat(Minibus) (If installed) The seatback can be folded down as shown to provide a large cargo space.
1. Push the lever (a) and fold the
seatback forward. B320A01P
B320A02P
B320A03P
(c) (b)
(a)
3. To make the seat to the originalstate, release the lock with pushing the lever (c) and after locking the seat at the floor, push the lever (a) and make the seatback erect.

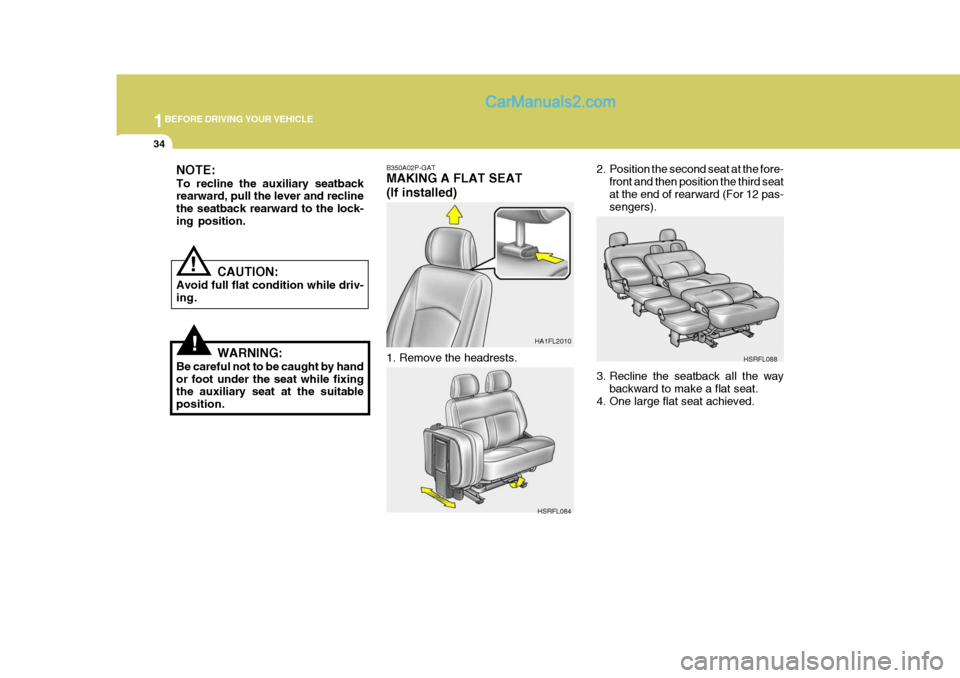

Page 48 of 273
1BEFORE DRIVING YOUR VEHICLE
34
B350A02P-GAT MAKING A FLAT SEAT (If installed)
1. Remove the headrests. HA1FL2010
!
NOTE: To recline the auxiliary seatback rearward, pull the lever and recline the seatback rearward to the lock-ing position.
CAUTION:
Avoid full flat condition while driv-ing.
!
WARNING:
Be careful not to be caught by hand or foot under the seat while fixing the auxiliary seat at the suitable position.
HSRFL084HSRFL088
2. Position the second seat at the fore-
front and then position the third seatat the end of rearward (For 12 pas- sengers).
3. Recline the seatback all the way backward to make a flat seat.
4. One large flat seat achieved.

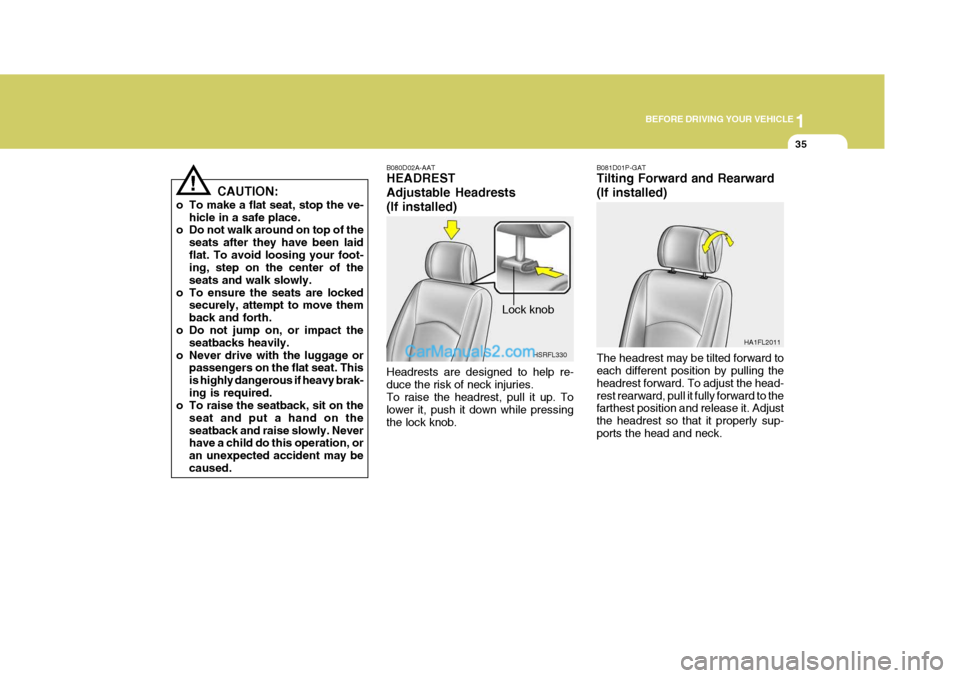

Page 49 of 273
1
BEFORE DRIVING YOUR VEHICLE
35
CAUTION:
o To make a flat seat, stop the ve- hicle in a safe place.
o Do not walk around on top of the
seats after they have been laid flat. To avoid loosing your foot- ing, step on the center of the seats and walk slowly.
o To ensure the seats are locked securely, attempt to move themback and forth.
o Do not jump on, or impact the seatbacks heavily.
o Never drive with the luggage or passengers on the flat seat. Thisis highly dangerous if heavy brak-ing is required.
o To raise the seatback, sit on the
seat and put a hand on theseatback and raise slowly. Never have a child do this operation, or an unexpected accident may becaused. B080D02A-AAT HEADREST Adjustable Headrests(If installed) Headrests are designed to help re- duce the risk of neck injuries. To raise the headrest, pull it up. To lower it, push it down while pressingthe lock knob.
Lock knob
HSRFL330! B081D01P-GAT Tilting Forward and Rearward (If installed) The headrest may be tilted forward to each different position by pulling the headrest forward. To adjust the head-rest rearward, pull it fully forward to the farthest position and release it. Adjust the headrest so that it properly sup-ports the head and neck.HA1FL2011
Page 50 of 273
1BEFORE DRIVING YOUR VEHICLE
36
!
B270A01P-GAT SEAT WARMER (Driver's seat only) (Minibus)(If installed) The seat warmer is provided to warm the front seats during cold weather. With the ignition key in the "ON" posi-tion, push the switch to warm the driver's seat. During mild weather or under condi-tions where the operation of the seat warmer is not needed, keep the switch in the "OFF" position.
!
B330B01P-GAT Removal of the headrest To remove the headrest, pull it out while pressing the lock knob in thedirection of the arrow. When installing the headrest, first check to be sure that it is facing in the correctdirection, and then insert it into the seatback and press downward until it locks in place.Check to be sure that the lock knob is in the correct position, as shown in the figure, and then try to pull the headrestup to be sure it doesn't come out.
WARNING:
It is dangerous to drive without installing the head restraints.
WARNING:
o For maximum effectiveness in case of an accident, the headrest should be adjusted so the top of the headrest is at the same height as the top of the occupant's ears.The use of a cushion that holds the body away from the seatback is not recommended.
o Do not operate the vehicle with the headrests removed as severeinjury to an occupant may occur in the event of an accident. Head- rests may provide protectionagainst severe neck injuries when properly adjusted.
B270A01P
