Features of your vehicle
50
4
D190800AUN

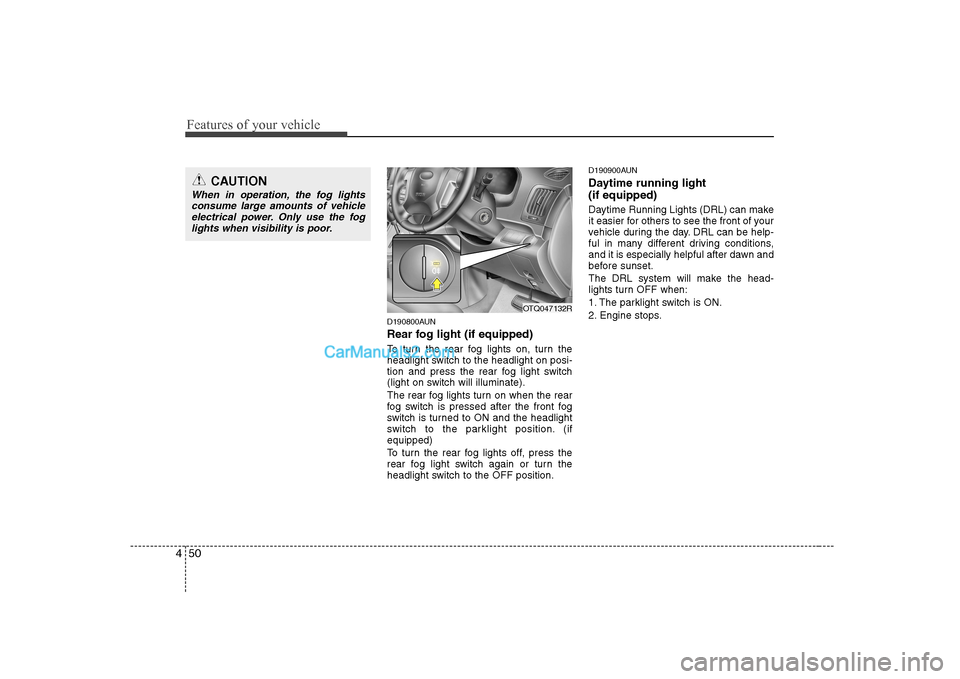

Rear fog light (if equipped)
To turn the rear fog lights on, turn the
headlight switch to the headlight on posi-
tion and press the rear fog light switch
(light on switch will illuminate).
The rear fog lights turn on when the rear
fog switch is pressed after the front fog
switch is turned to ON and the headlight
switch to the parklight position. (ifequipped)
To turn the rear fog lights off, press the
rear fog light switch again or turn the
headlight switch to the OFF position. D190900AUN
Daytime running light (if equipped)
Daytime Running Lights (DRL) can make
it easier for others to see the front of your
vehicle during the day. DRL can be help-
ful in many different driving conditions,
and it is especially helpful after dawn and
before sunset.
The DRL system will make the head-
lights turn OFF when:
1. The parklight switch is ON.
2. Engine stops.
CAUTION
When in operation, the fog lights
consume large amounts of vehicleelectrical power. Only use the fog lights when visibility is poor.
OTQ047132R

451
Features of your vehicle

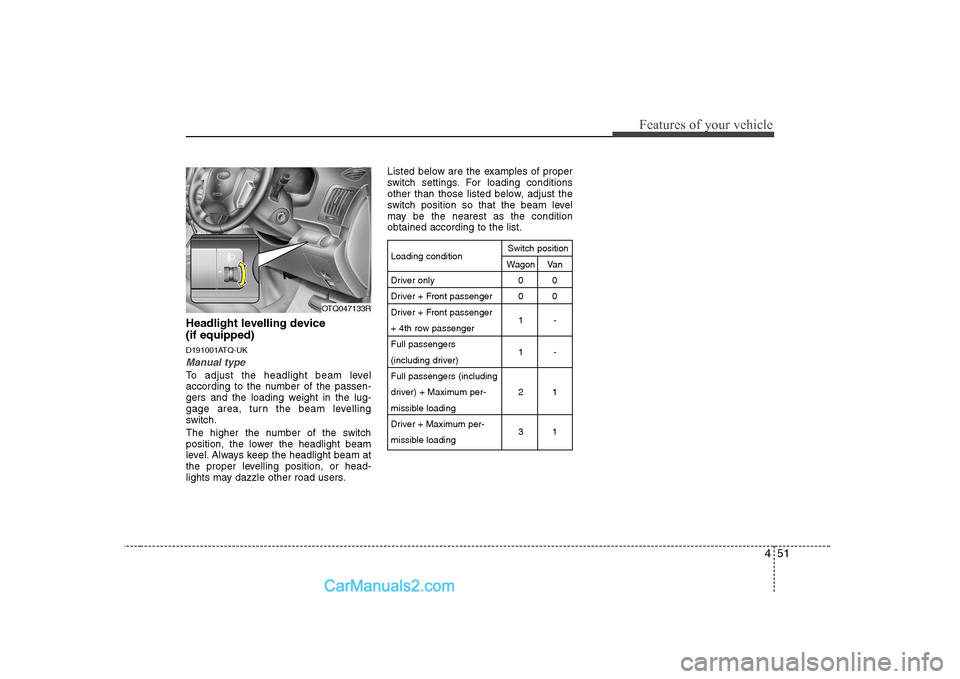

Headlight levelling device (if equipped)
D191001ATQ-UK
Manual type
To adjust the headlight beam level
according to the number of the passen-
gers and the loading weight in the lug-
gage area, turn the beam levelling
switch.
The higher the number of the switch
position, the lower the headlight beam
level. Always keep the headlight beam at
the proper levelling position, or head-
lights may dazzle other road users.Listed below are the examples of proper
switch settings. For loading conditions
other than those listed below, adjust the
switch position so that the beam level
may be the nearest as the conditionobtained according to the list.
Loading condition
Driver only
Driver + Front passenger
Driver + Front passenger
+ 4th row passengerFull passengers
(including driver)Full passengers (including
driver) + Maximum per-
missible loading
Driver + Maximum per-
missible loading
Switch position
Wagon Van 0000 1- 1- 21 31
OTQ047133R

Features of your vehicle
52
4
A : Wiper speed control
· – Single wipe · 0 – Off
· --- – Intermittent wipe (if equipped)
· 1 – Low wiper speed· 2 – High wiper speed
B : Intermittent wipe time adjustment
C : Wash with brief wipes
D : Rear wiper/washer control · – Spraying washer fluid
· – Continuous wipe· 0 – Off
· – Wash with brief wipes D200100ATQ-UK
Windscreen wipers
Operates as follows when the ignition
switch is turned ON.
: For a single wiping cycle, push thelever upward and release it with the
lever in the 0 position. The wipers
will operate continuously if the lever
is pushed upward and held.
0 : Wiper is not in operation.
--- : Wiper operates intermittently at the same wiping intervals. Use this
mode in a light rain or mist. To vary
the speed setting, turn the speed
control knob(1). In this position, the
wiping intervals are also varied auto-
matically depending on your vehicle
speed. (if equipped)

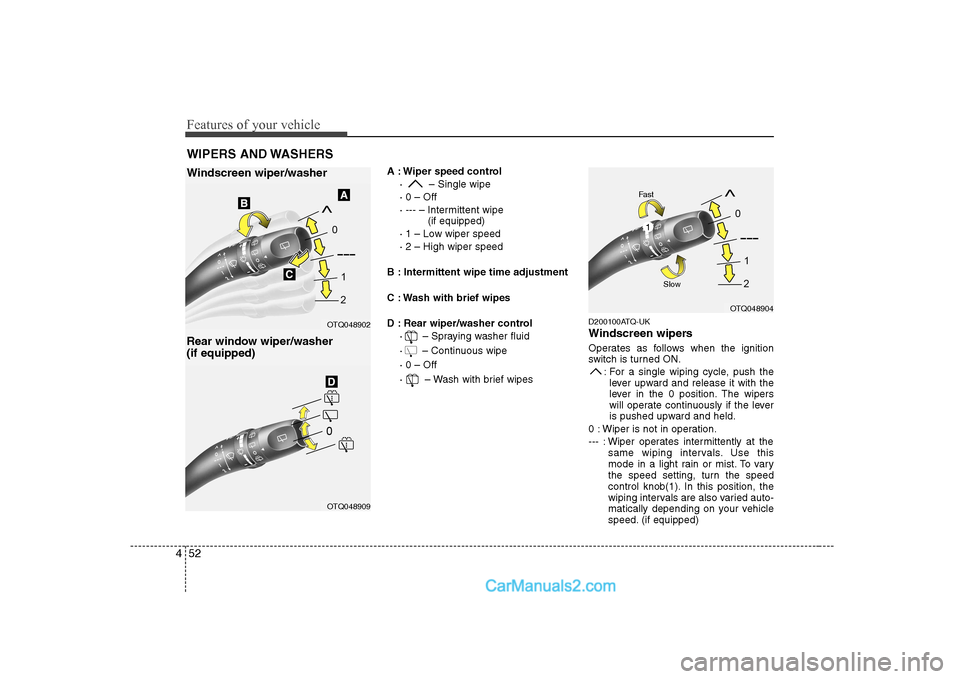

WIPERS AND WASHERS
Windscreen wiper/washer
Rear window wiper/washer (if equipped)
OTQ048902
OTQ048904
OTQ048909
1
Fast
Slow

453
Features of your vehicle

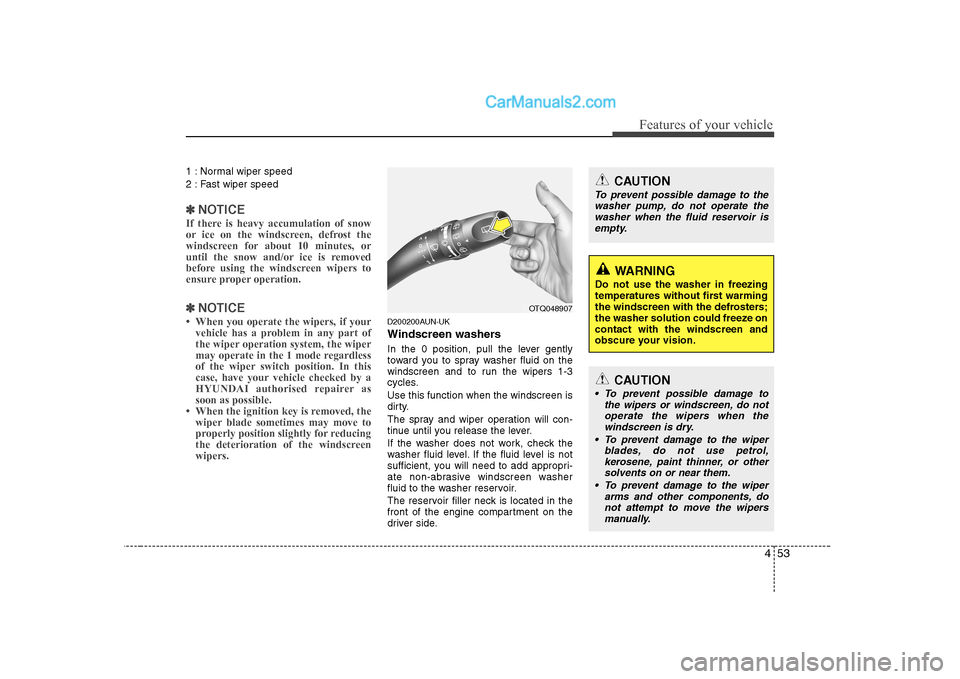

1 : Normal wiper speed
2 : Fast wiper speed
✽✽NOTICE
If there is heavy accumulation of snow
or ice on the windscreen, defrost the
windscreen for about 10 minutes, or
until the snow and/or ice is removed
before using the windscreen wipers to
ensure proper operation.
✽
✽ NOTICE

Features of your vehicle
54
4

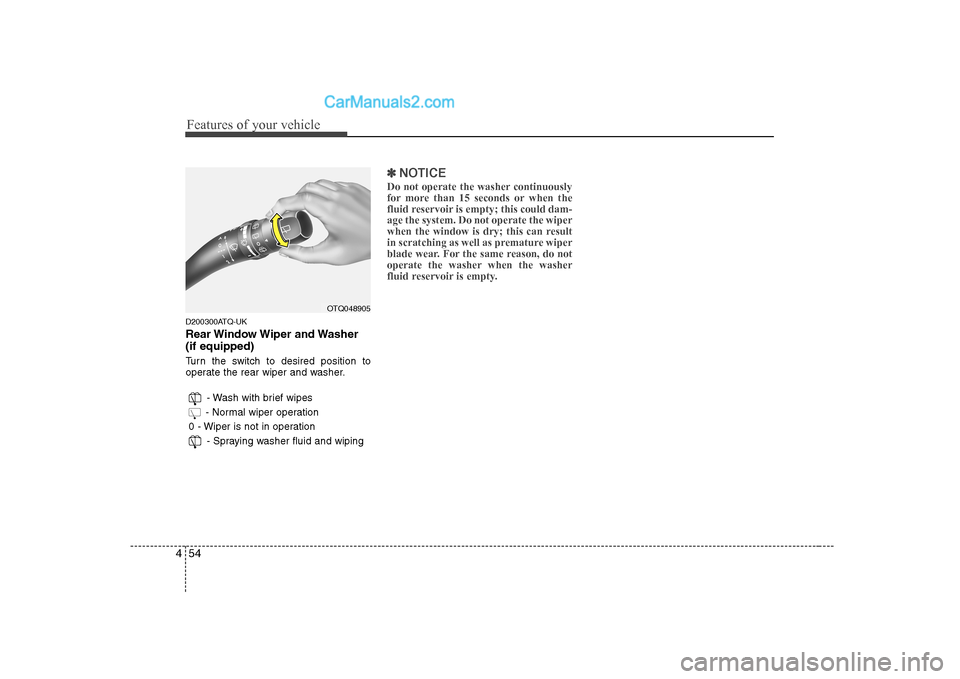

D200300ATQ-UK
Rear Window Wiper and Washer (if equipped)
Turn the switch to desired position to
operate the rear wiper and washer.
- Wash with brief wipes
- Normal wiper operation
0 - Wiper is not in operation
- Spraying washer fluid and wiping
✽✽NOTICE
Do not operate the washer continuously
for more than 15 seconds or when the
fluid reservoir is empty; this could dam-age the system. Do not operate the wiper
when the window is dry; this can result
in scratching as well as premature wiper
blade wear. For the same reason, do not
operate the washer when the washer
fluid reservoir is empty.
OTQ048905

455
Features of your vehicle
D210000AEND210100ATQ Map lamp (if equipped)
: Push the switch to turn the map lamp on or off. This light
produces a spot beam for con-
venient use as a map lamp at
night or as a personal lamp for
the driver and the front pas-
senger. In the DOOR position, the light
comes on when any door isopened regardless of the igni-
tion switch position. When
doors are unlocked by the
transmitter, the light comes on
for approximately 30 seconds
as long as any door is not
open. The light goes out grad-
ually after approximately 30seconds if the door is closed.
However, if the ignition switch
is ON or all doors are locked,
the light will turn off immedi-
ately.
If a door is opened with the
ignition switch in the ACC or
LOCK position, the light stays
on for about 20 minutes.
However, if a door is opened
with the ignition switch in the
ON position, the light stays on
continuously.
ROOM : In the ROOM position, the light stays on at all times.

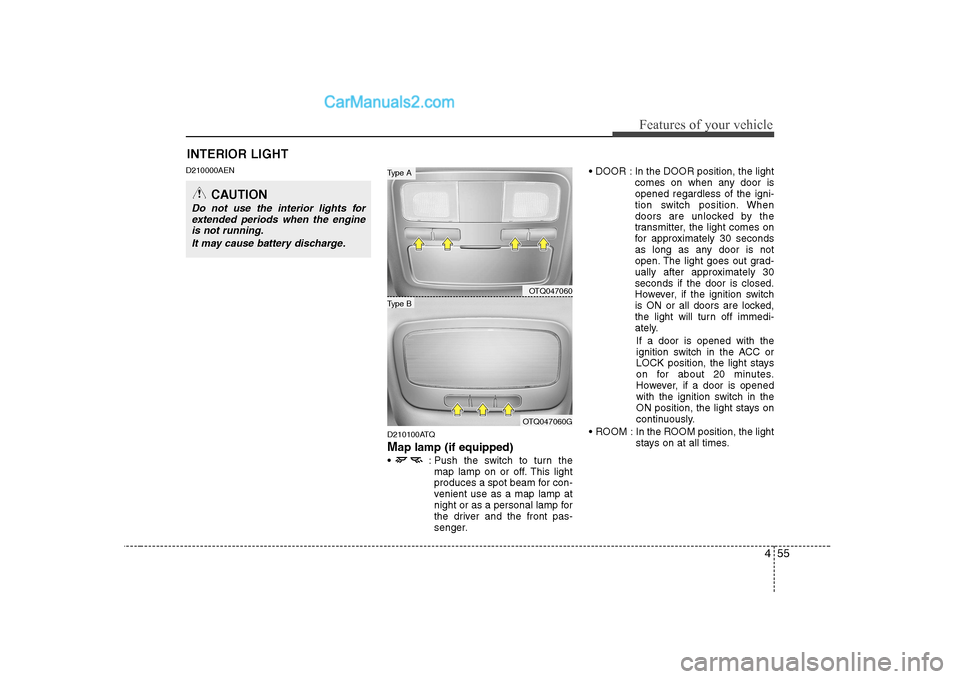

INTERIOR LIGHT
CAUTION
Do not use the interior lights for
extended periods when the engine is not running.
It may cause battery discharge.
OTQ047060
OTQ047060G
Type B
Type A

Features of your vehicle
56
4

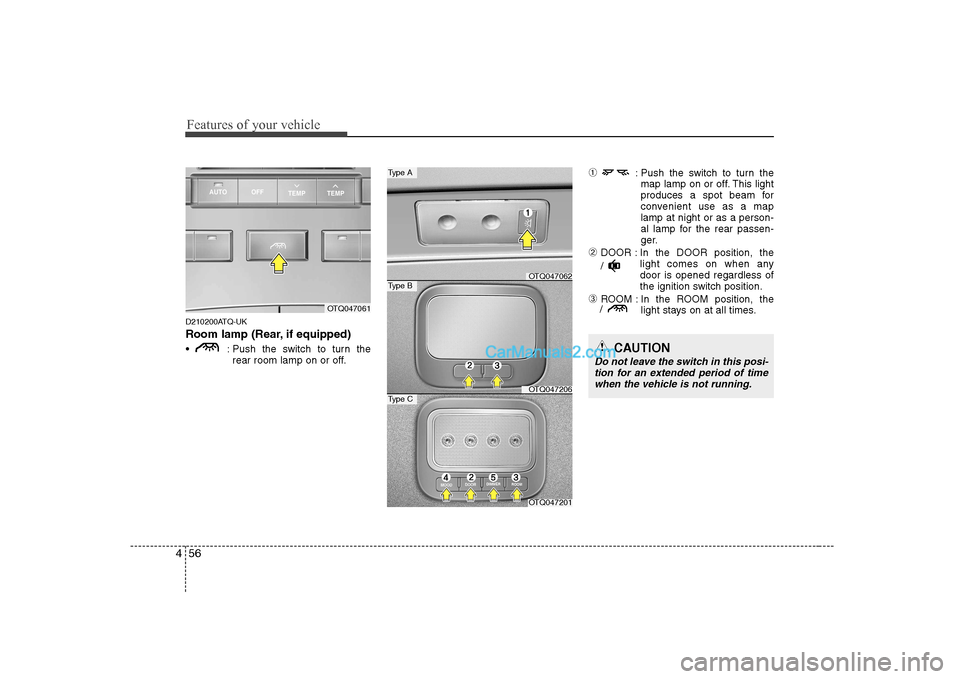

D210200ATQ-UK
Room lamp (Rear, if equipped)
: Push the switch to turn the
rear room lamp on or off. ➀
: Push the switch to turn the
map lamp on or off. This light
produces a spot beam for
convenient use as a maplamp at night or as a person-
al lamp for the rear passen-
ger.
➁ DOOR : In the DOOR position, the
light comes on when anydoor is opened regardless of
the ignition switch position.
➂ ROOM : In the ROOM position, the
light stays on at all times.
OTQ047061
OTQ047201
Type C
OTQ047062
Type A
Type B
OTQ047206
/
/
CAUTION
Do not leave the switch in this posi-
tion for an extended period of time
when the vehicle is not running.

457
Features of your vehicle

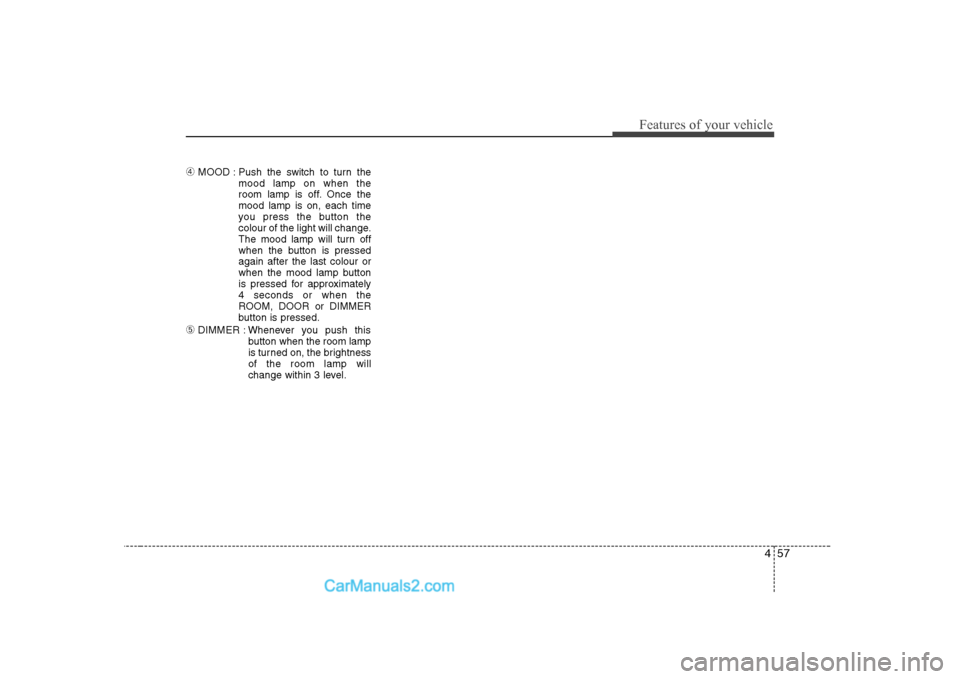

➃MOOD : Push the switch to turn the
mood lamp on when the
room lamp is off. Once themood lamp is on, each time
you press the button the
colour of the light will change.
The mood lamp will turn off
when the button is pressedagain after the last colour or
when the mood lamp button
is pressed for approximately4 seconds or when the
ROOM, DOOR or DIMMER
button is pressed.
➄ DIMMER : Whenever you push this
button when the room lamp
is turned on, the brightnessof the room lamp will
change within 3 level.

Features of your vehicle
58
4
D220000AUN-UK
✽✽
NOTICE
If you want to defrost and defog on the
front windscreen, refer to “Windscreen
Defrosting and Defogging” in this sec-tion.
D220100AUN-UK
Rear window defroster
The defroster heats the window to
remove frost, fog and thin ice from the
rear window, whilst engine is running.
To activate the rear window defroster,
press the rear window defroster button
located in the centre facia switch panel.
The indicator on the rear window
defroster button illuminates when thedefroster is ON.
If there is heavy accumulation of snow on
the rear window, brush it off before oper-
ating the rear defroster.
The rear window defroster automatically
turns off after approximately 20 minutes
or when the ignition switch is turned off (if
equipped). To turn off the defroster, press
the rear window defroster button again.

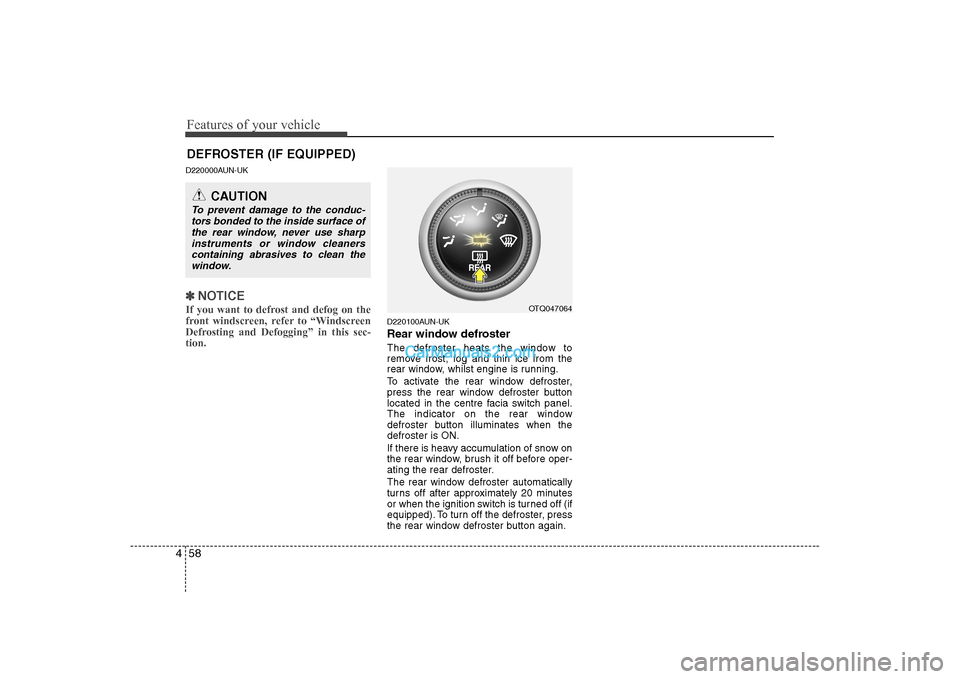

DEFROSTER (IF EQUIPPED)
OTQ047064
CAUTION
To prevent damage to the conduc- tors bonded to the inside surface of
the rear window, never use sharp instruments or window cleanerscontaining abrasives to clean the
window.

459
Features of your vehicle

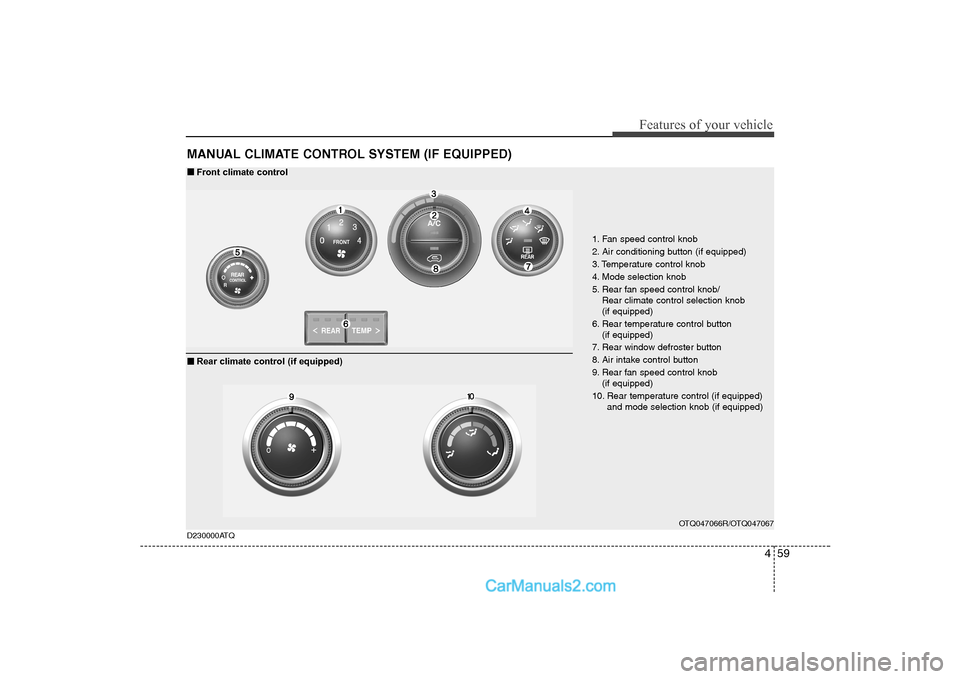

MANUAL CLIMATE CONTROL SYSTEM (IF EQUIPPED)
OTQ047066R/OTQ047067
1. Fan speed control knob
2. Air conditioning button (if equipped)
3. Temperature control knob
4. Mode selection knob
5. Rear fan speed control knob/Rear climate control selection knob (if equipped)
6. Rear temperature control button (if equipped)
7. Rear window defroster button
8. Air intake control button
9. Rear fan speed control knob (if equipped)
10. Rear temperature control (if equipped) and mode selection knob (if equipped)
D230000ATQ
■■ Front climate control
■
■ Rear climate control (if equipped)
