Page 291 of 338

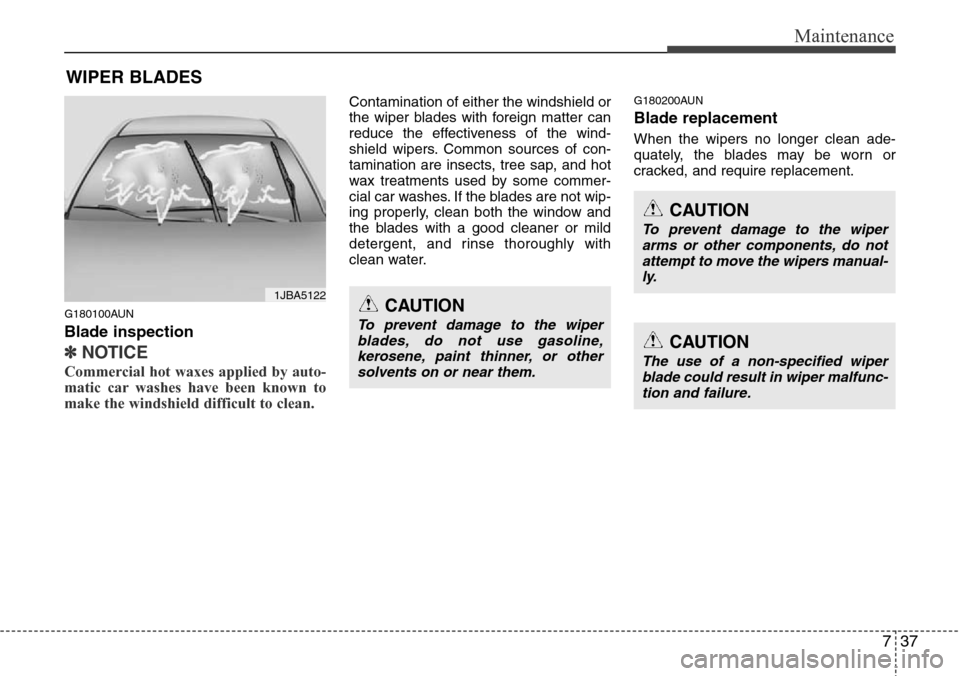

Hyundai H-1 (Grand Starex) 2011  Owners Manual 737
Maintenance
WIPER BLADES
G180100AUN
Blade inspection
✽NOTICE
Commercial hot waxes applied by auto-
matic car washes have been known to
make the windshield difficult to clean.
Contamination of

Page 292 of 338

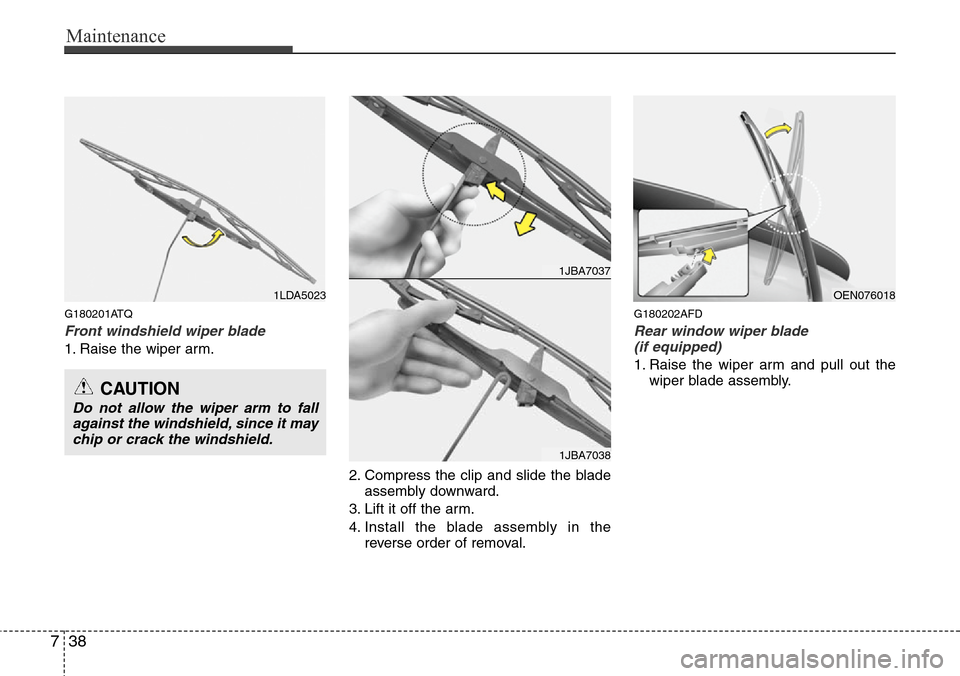

Hyundai H-1 (Grand Starex) 2011  Owners Manual Maintenance
38 7
G180201ATQ
Front windshield wiper blade
1. Raise the wiper arm.
2. Compress the clip and slide the blade
assembly downward.
3. Lift it off the arm.
4. Install the blade assembly in th

Page 293 of 338

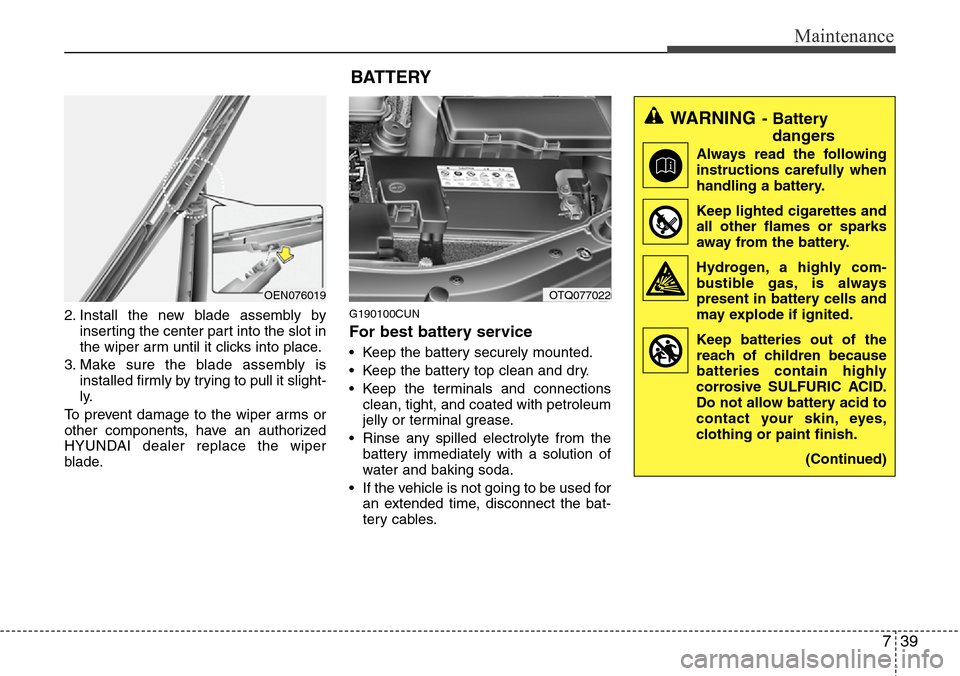

Hyundai H-1 (Grand Starex) 2011  Owners Manual 739
Maintenance
2. Install the new blade assembly by
inserting the center part into the slot in
the wiper arm until it clicks into place.
3. Make sure the blade assembly is
installed firmly by trying

Page 294 of 338

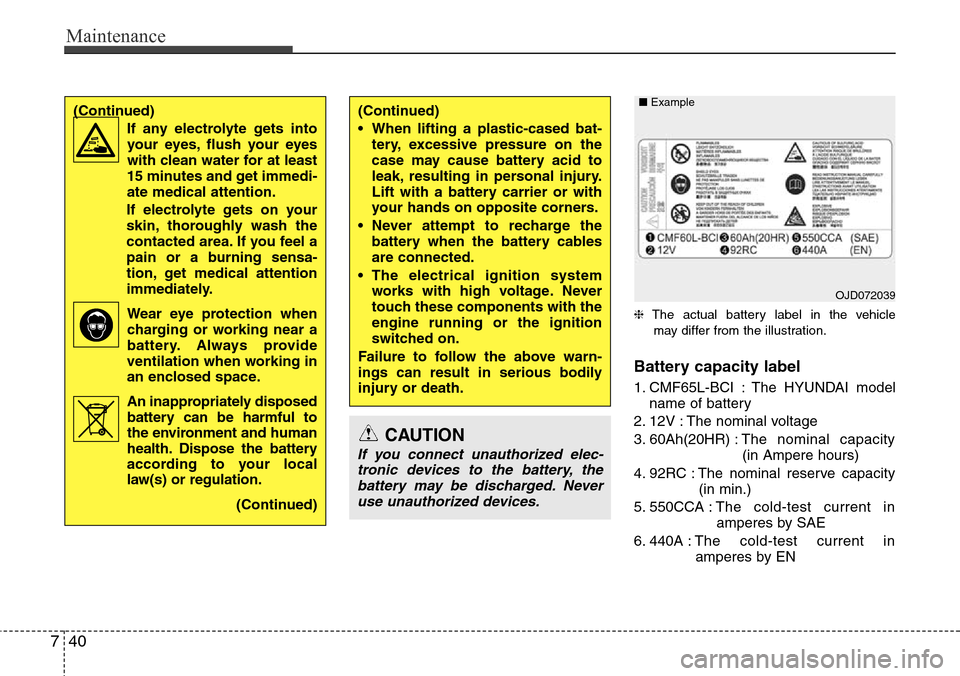

Hyundai H-1 (Grand Starex) 2011  Owners Manual Maintenance
40 7
❈The actual battery label in the vehicle
may differ from the illustration.
Battery capacity label
1. CMF65L-BCI : The HYUNDAI model
name of battery
2. 12V : The nominal voltage
3.

Page 295 of 338

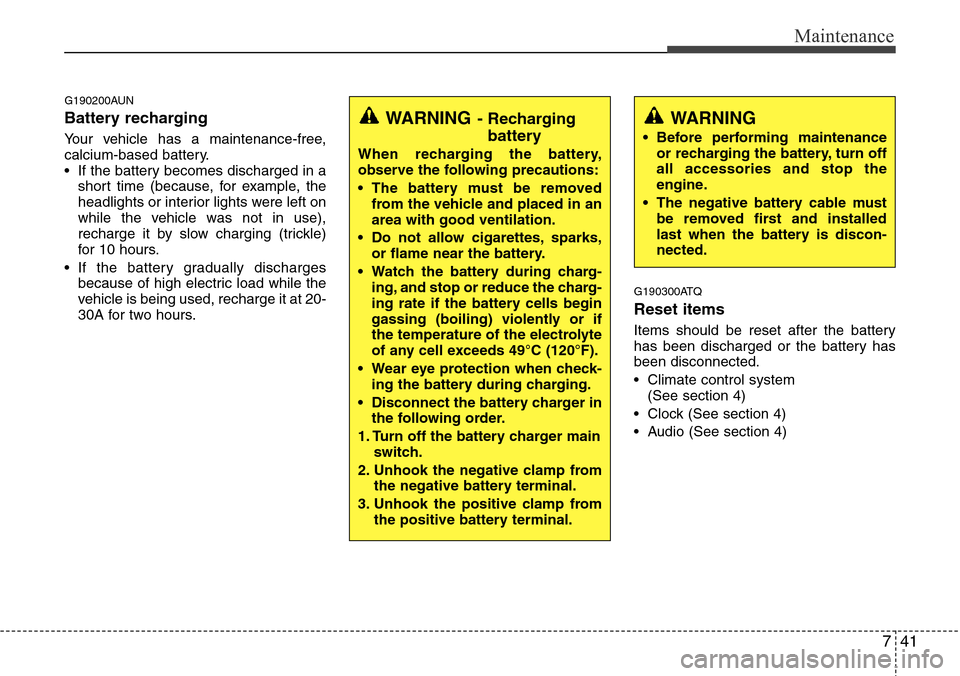

Hyundai H-1 (Grand Starex) 2011  Owners Manual 741
Maintenance
G190200AUN
Battery recharging
Your vehicle has a maintenance-free,
calcium-based battery.
• If the battery becomes discharged in a
short time (because, for example, the
headlights

Page 296 of 338

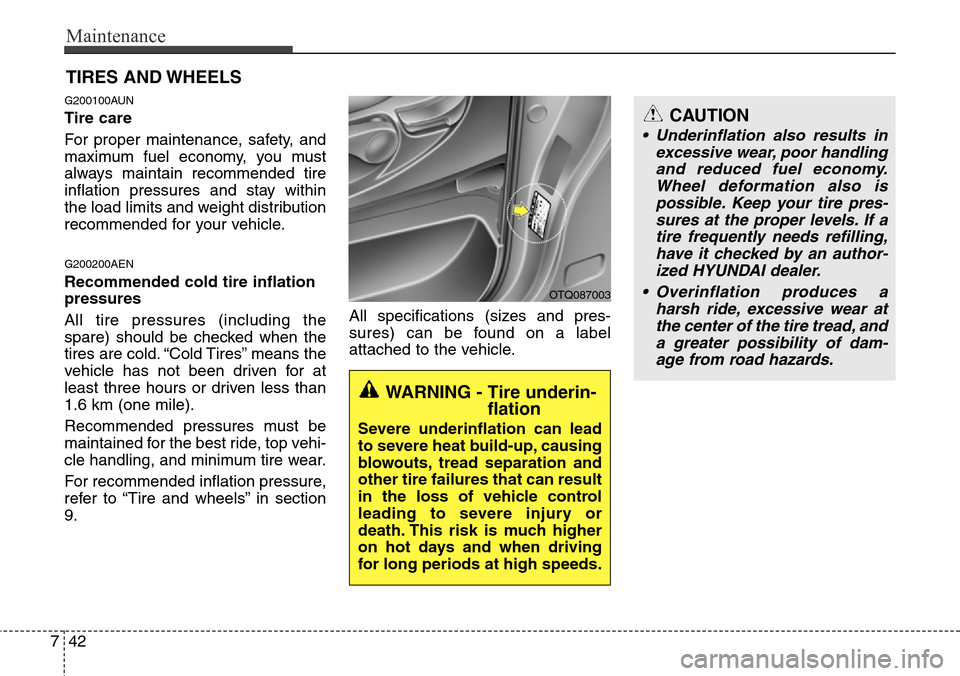

Hyundai H-1 (Grand Starex) 2011  Owners Manual Maintenance
42 7
TIRES AND WHEELS
G200100AUN
Tire care
For proper maintenance, safety, and
maximum fuel economy, you must
always maintain recommended tire
inflation pressures and stay within
the lo

Page 297 of 338

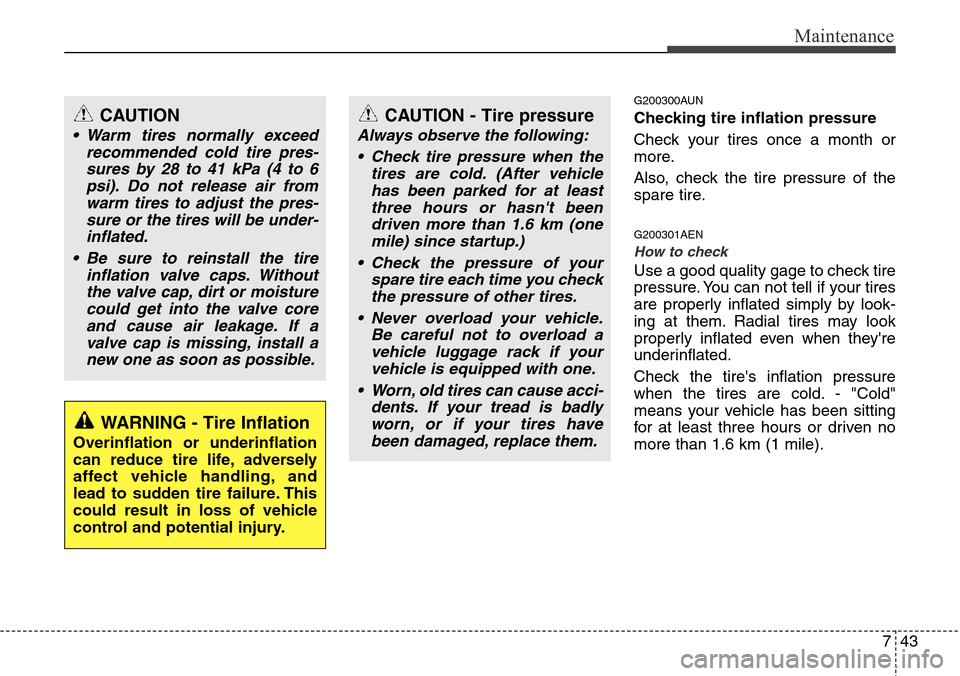

Hyundai H-1 (Grand Starex) 2011  Owners Manual 743
Maintenance
G200300AUN
Checking tire inflation pressure
Check your tires once a month or
more.
Also, check the tire pressure of the
spare tire.
G200301AEN
How to check
Use a good quality gage to c

Page 298 of 338

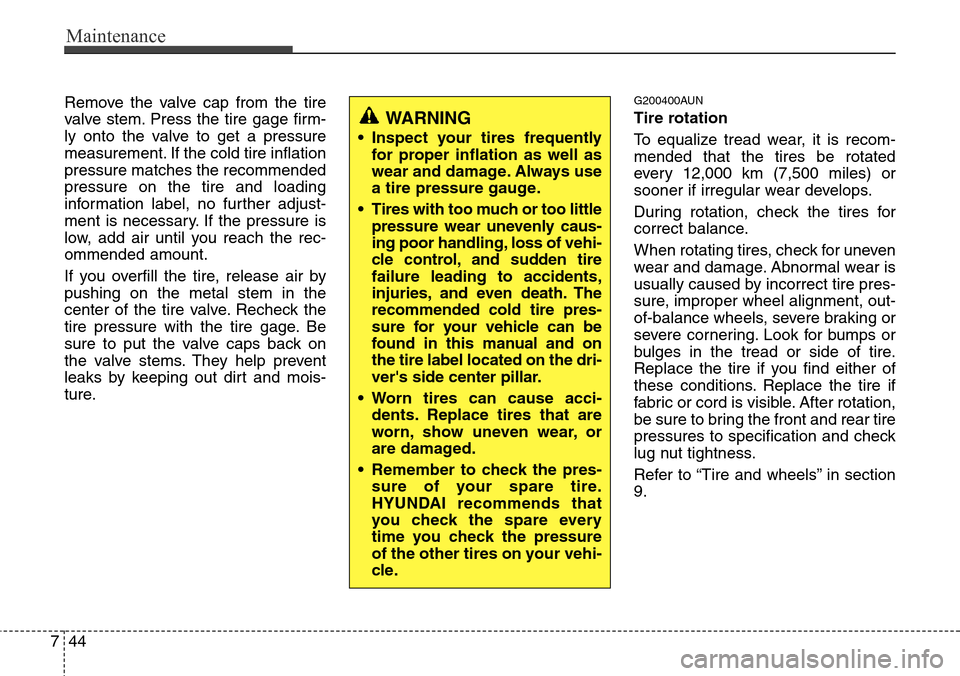

Hyundai H-1 (Grand Starex) 2011  Owners Manual Maintenance
44 7
Remove the valve cap from the tire
valve stem. Press the tire gage firm-
ly onto the valve to get a pressure
measurement. If the cold tire inflation
pressure matches the recommended
p

Page 299 of 338

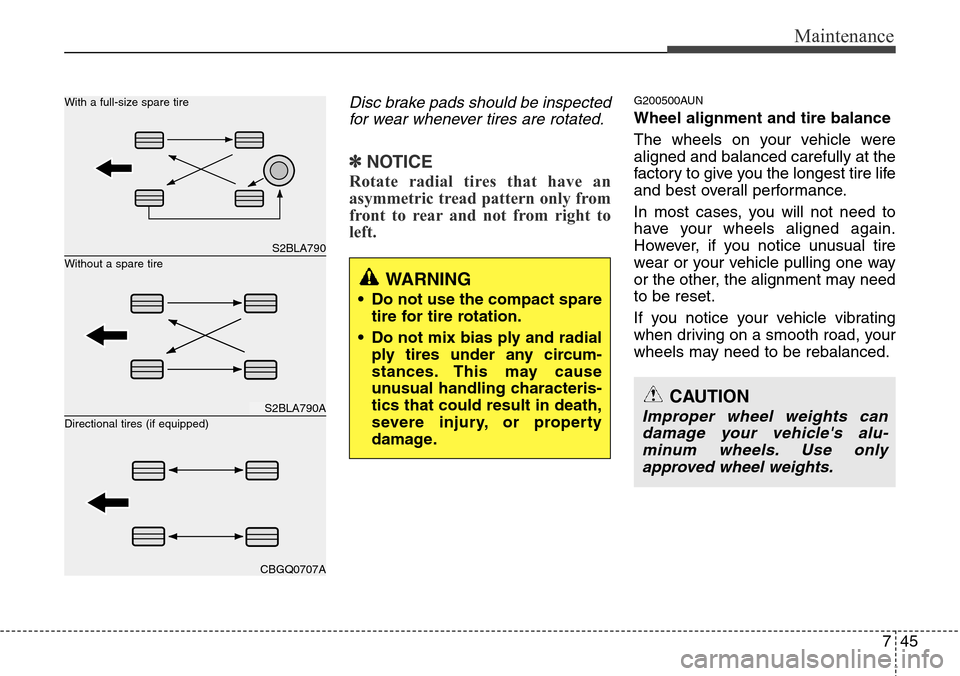

Hyundai H-1 (Grand Starex) 2011  Owners Manual 745
Maintenance
Disc brake pads should be inspected
for wear whenever tires are rotated.
✽NOTICE
Rotate radial tires that have an
asymmetric tread pattern only from
front to rear and not from right

Page 300 of 338

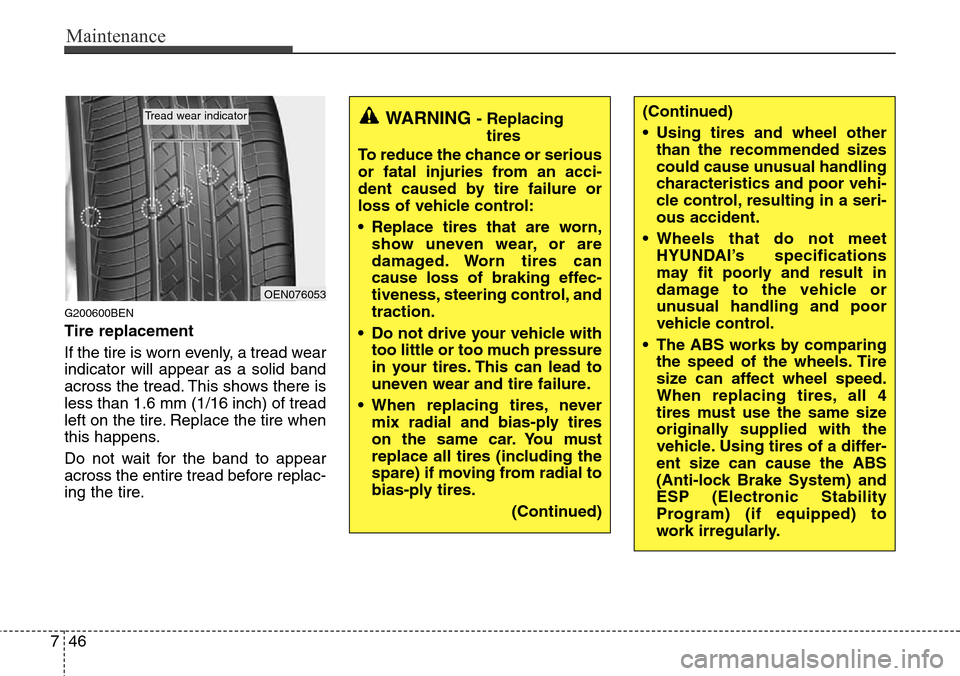

Hyundai H-1 (Grand Starex) 2011  Owners Manual Maintenance
46 7
G200600BEN
Tire replacement
If the tire is worn evenly, a tread wear
indicator will appear as a solid band
across the tread. This shows there is
less than 1.6 mm (1/16 inch) of tread
