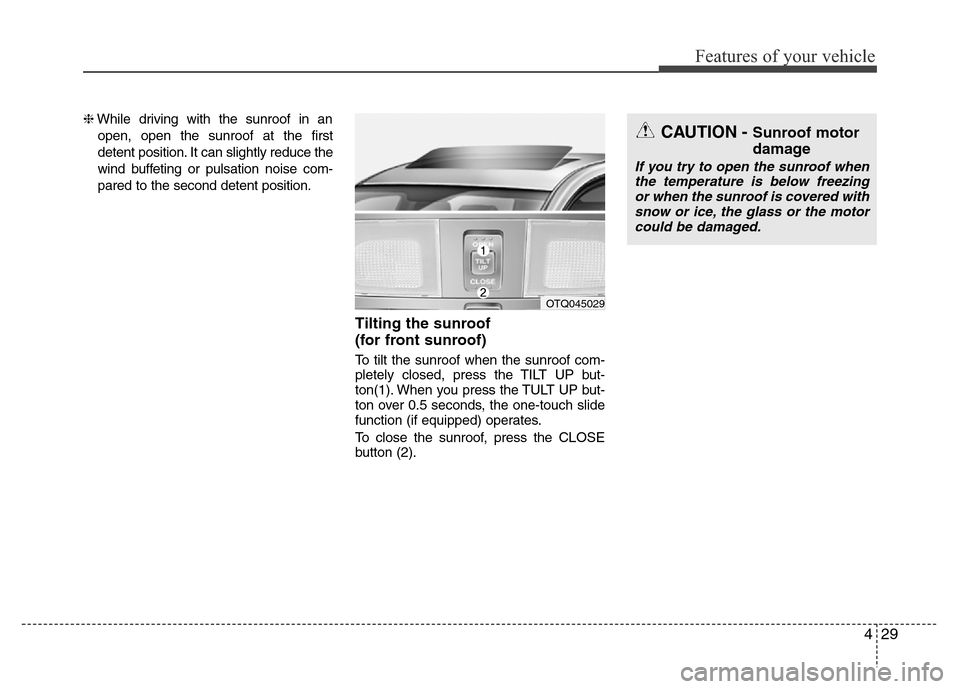

Hyundai H-1 (Grand Starex) 2016 Owner's Manual

429
Features of your vehicle
❈While driving with the sunroof in an
open, open the sunroof at the first
detent position. It can slightly reduce the
wind buffeting or pulsation noise com-
pared to the second detent position.
Tilting the sunroof
(for front sunroof)
To tilt the sunroof when the sunroof com-
pletely closed, press the TILT UP but-
ton(1). When you press the TULT UP but-
ton over 0.5 seconds, the one-touch slide
function (if equipped) operates.
To close the sunroof, press the CLOSE
button (2).
OTQ045029
CAUTION - Sunroof motor
damage
If you try to open the sunroof when
the temperature is below freezing
or when the sunroof is covered with
snow or ice, the glass or the motor
could be damaged.

Features of your vehicle
30 4

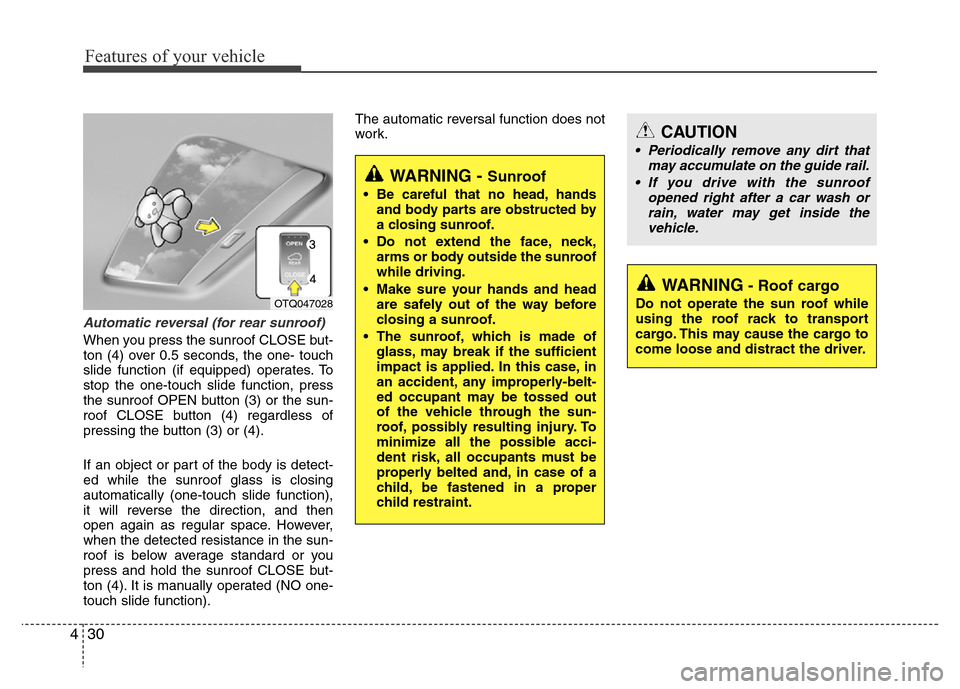

Automatic reversal (for rear sunroof)
When you press the sunroof CLOSE but-
ton (4) over 0.5 seconds, the one- touch
slide function (if equipped) operates. To
stop the one-touch slide function, press
the sunroof OPEN button (3) or the sun-
roof CLOSE button (4) regardless of
pressing the button (3) or (4).
If an object or part of the body is detect-
ed while the sunroof glass is closing
automatically (one-touch slide function),
it will reverse the direction, and then
open again as regular space. However,
when the detected resistance in the sun-
roof is below average standard or you
press and hold the sunroof CLOSE but-
ton (4). It is manually operated (NO one-
touch slide function).The automatic reversal function does not
work.
OTQ047028
WARNING - Sunroof
• Be careful that no head, hands
and body parts are obstructed by
a closing sunroof.
• Do not extend the face, neck,
arms or body outside the sunroof
while driving.
• Make sure your hands and head
are safely out of the way before
closing a sunroof.
• The sunroof, which is made of
glass, may break if the sufficient
impact is applied. In this case, in
an accident, any improperly-belt-
ed occupant may be tossed out
of the vehicle through the sun-
roof, possibly resulting injury. To
minimize all the possible acci-
dent risk, all occupants must be
properly belted and, in case of a
child, be fastened in a proper
child restraint.
CAUTION
• Periodically remove any dirt that
may accumulate on the guide rail.
• If you drive with the sunroof
opened right after a car wash or
rain, water may get inside the
vehicle.
WARNING- Roof cargo
Do not operate the sun roof while
using the roof rack to transport
cargo. This may cause the cargo to
come loose and distract the driver.

431
Features of your vehicle

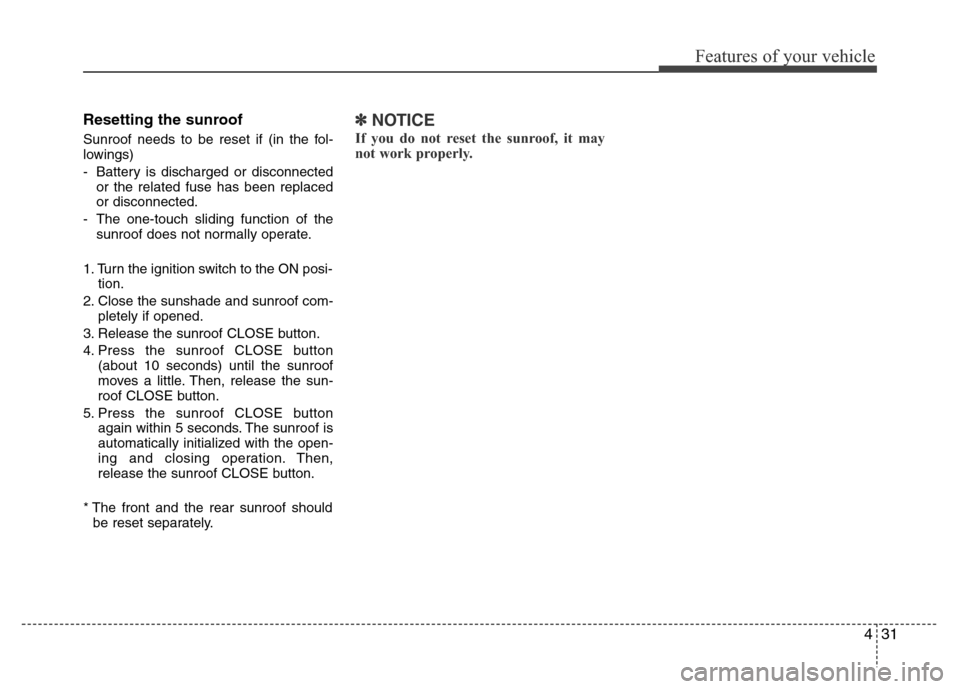

Resetting the sunroof
Sunroof needs to be reset if (in the fol-
lowings)
- Battery is discharged or disconnected
or the related fuse has been replaced
or disconnected.
- The one-touch sliding function of the
sunroof does not normally operate.
1. Turn the ignition switch to the ON posi-
tion.
2. Close the sunshade and sunroof com-
pletely if opened.
3. Release the sunroof CLOSE button.
4. Press the sunroof CLOSE button
(about 10 seconds) until the sunroof
moves a little. Then, release the sun-
roof CLOSE button.
5. Press the sunroof CLOSE button
again within 5 seconds. The sunroof is
automatically initialized with the open-
ing and closing operation. Then,
release the sunroof CLOSE button.
* The front and the rear sunroof should
be reset separately.
✽NOTICE
If you do not reset the sunroof, it may
not work properly.

Features of your vehicle
32 4
D130100AEN
Power steering
Power steering uses energy from the
engine to assist you in steering the vehi-
cle. If the engine is off or if the power
steering system becomes inoperative,
the vehicle may still be steered, but it will
require increased steering effort.
Should you notice any change in the
effort required to steer during normal
vehicle operation, we recommend that
the system be checked by an authorized
HYUNDAI dealer.
✽NOTICE
If the power steering drive belt breaks
or if the power steering pump malfunc-
tions, the steering effort will greatly
increase.
✽NOTICE
If the vehicle is parked for extended
periods outside in cold weather (below -
10°C/14°F), the power steering may
require increased effort when the engine
is first started. This is caused by
increased fluid viscosity due to the cold
weather and does not indicate a mal-
function.
When this happens, increase the engine
RPM by depressing accelerator until the
RPM reaches 1,500 rpm then release or
let the engine idle for two or three min-
utes to warm up the fluid.
D130300AUN
Tilt steering (if equipped)
Tilt steering allows you to adjust the
steering wheel before you drive. You can
also raise it to give your legs more room
when you exit and enter the vehicle.
The steering wheel should be positioned
so that it is comfortable for you to drive,
while permitting you to see the instru-
ment panel warning lights and gauges.
STEERING WHEEL
CAUTION
Never hold the steering wheel
against a stop (extreme right or left
turn) for more than 5 seconds with
the engine running. Holding the
steering wheel for more than 5 sec-
onds in either position may cause
damage to the power steering pump.
WARNING
• Never adjust the angle of the
steering wheel while driving. You
may lose steering control and
cause severe personal injury,
death or accidents.
• After adjusting, push the steering
wheel both up and down to be
certain it is locked in position.

433
Features of your vehicle

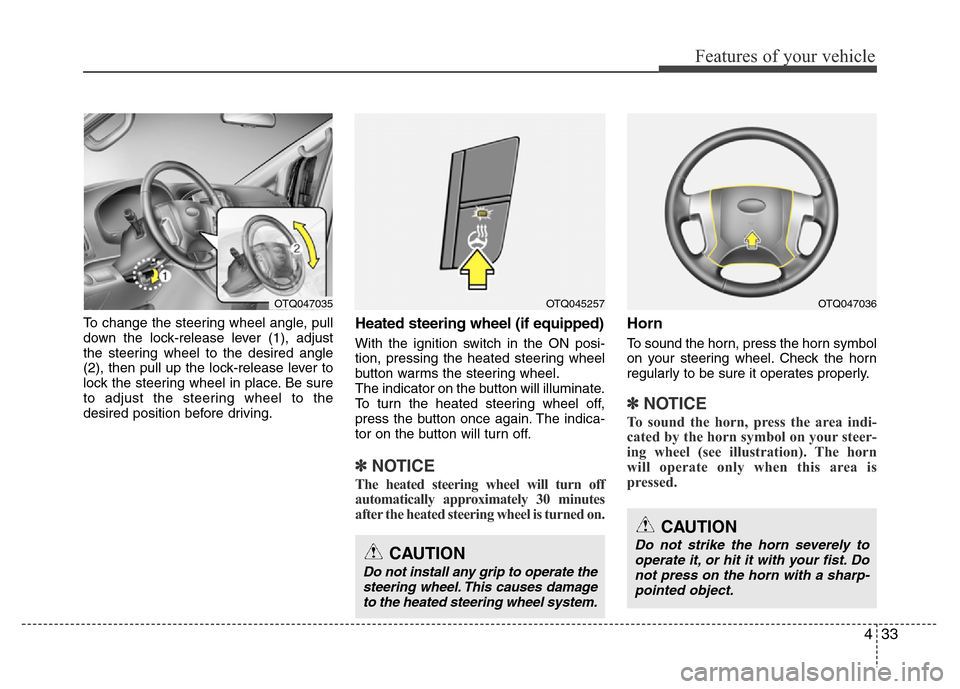

To change the steering wheel angle, pull
down the lock-release lever (1), adjust
the steering wheel to the desired angle
(2), then pull up the lock-release lever to
lock the steering wheel in place. Be sure
to adjust the steering wheel to the
desired position before driving.Heated steering wheel (if equipped)
With the ignition switch in the ON posi-
tion, pressing the heated steering wheel
button warms the steering wheel.
The indicator on the button will illuminate.
To turn the heated steering wheel off,
press the button once again. The indica-
tor on the button will turn off.
✽NOTICE
The heated steering wheel will turn off
automatically approximately 30 minutes
after the heated steering wheel is turned on.
Horn
To sound the horn, press the horn symbol
on your steering wheel. Check the horn
regularly to be sure it operates properly.
✽NOTICE
To sound the horn, press the area indi-
cated by the horn symbol on your steer-
ing wheel (see illustration). The horn
will operate only when this area is
pressed.
OTQ047035OTQ045257
CAUTION
Do not strike the horn severely to
operate it, or hit it with your fist. Do
not press on the horn with a sharp-
pointed object.
OTQ047036
CAUTION
Do not install any grip to operate the
steering wheel. This causes damage
to the heated steering wheel system.

Features of your vehicle
34 4
D140100BUN

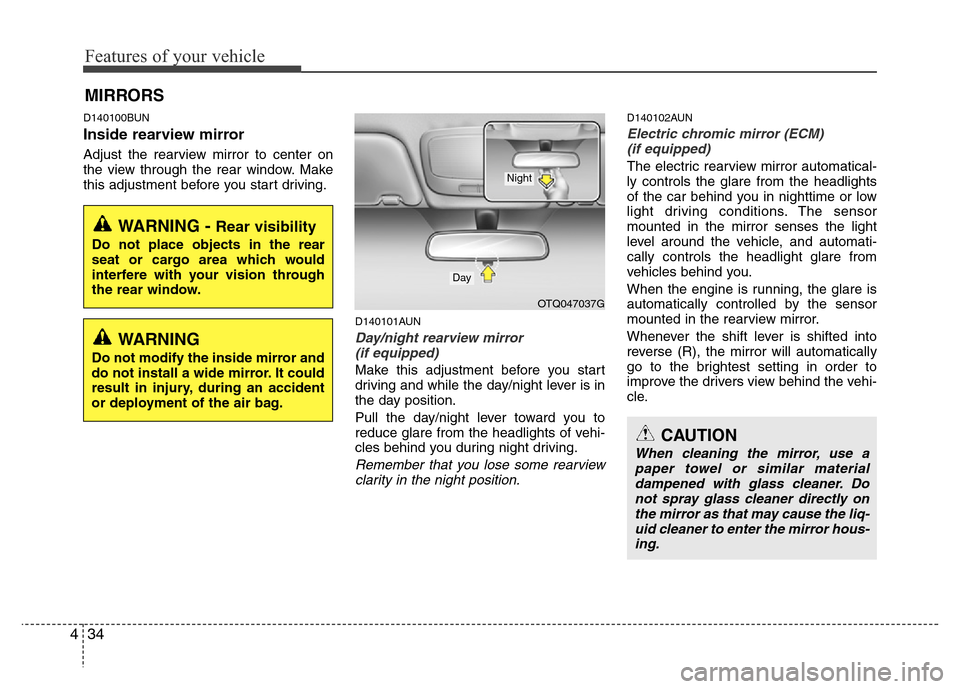

Inside rearview mirror
Adjust the rearview mirror to center on
the view through the rear window. Make
this adjustment before you start driving.
D140101AUN
Day/night rearview mirror
(if equipped)
Make this adjustment before you start
driving and while the day/night lever is in
the day position.
Pull the day/night lever toward you to
reduce glare from the headlights of vehi-
cles behind you during night driving.
Remember that you lose some rearview
clarity in the night position.
D140102AUN
Electric chromic mirror (ECM)
(if equipped)
The electric rearview mirror automatical-
ly controls the glare from the headlights
of the car behind you in nighttime or low
light driving conditions. The sensor
mounted in the mirror senses the light
level around the vehicle, and automati-
cally controls the headlight glare from
vehicles behind you.
When the engine is running, the glare is
automatically controlled by the sensor
mounted in the rearview mirror.
Whenever the shift lever is shifted into
reverse (R), the mirror will automatically
go to the brightest setting in order to
improve the drivers view behind the vehi-
cle.
MIRRORS
WARNING - Rear visibility
Do not place objects in the rear
seat or cargo area which would
interfere with your vision through
the rear window.
OTQ047037G
CAUTION
When cleaning the mirror, use a
paper towel or similar material
dampened with glass cleaner. Do
not spray glass cleaner directly on
the mirror as that may cause the liq-
uid cleaner to enter the mirror hous-
ing.
Day
Night
WARNING
Do not modify the inside mirror and
do not install a wide mirror. It could
result in injury, during an accident
or deployment of the air bag.

435
Features of your vehicle

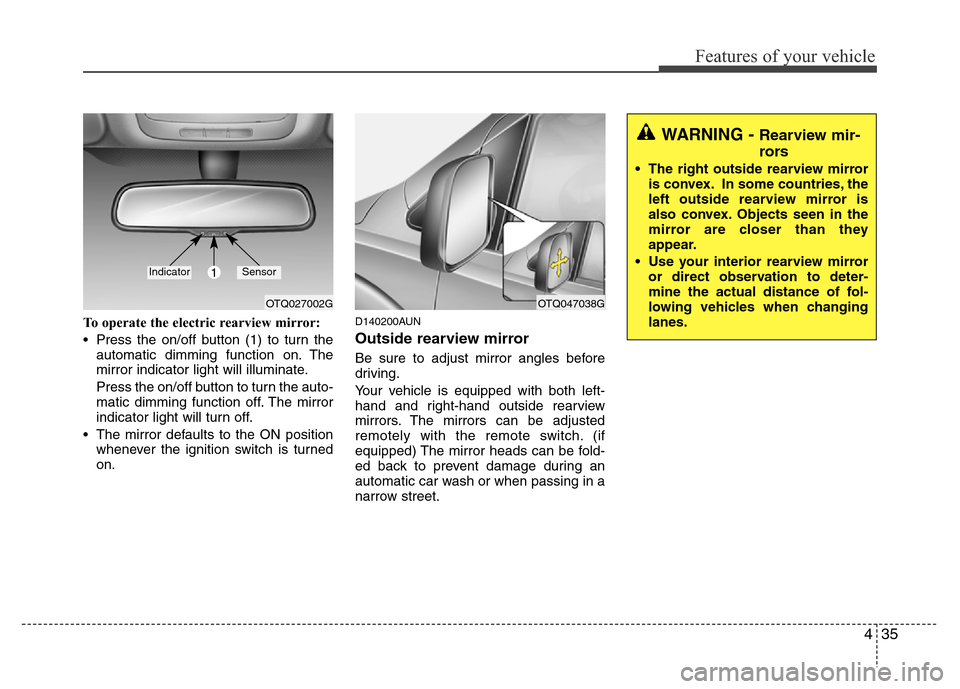

To operate the electric rearview mirror:
• Press the on/off button (1) to turn the
automatic dimming function on. The
mirror indicator light will illuminate.
Press the on/off button to turn the auto-
matic dimming function off. The mirror
indicator light will turn off.
• The mirror defaults to the ON position
whenever the ignition switch is turned
on.D140200AUN
Outside rearview mirror
Be sure to adjust mirror angles before
driving.
Your vehicle is equipped with both left-
hand and right-hand outside rearview
mirrors. The mirrors can be adjusted
remotely with the remote switch. (if
equipped) The mirror heads can be fold-
ed back to prevent damage during an
automatic car wash or when passing in a
narrow street.
OTQ027002GOTQ047038G
1IndicatorSensor
WARNING - Rearview mir-
rors
• The right outside rearview mirror
is convex. In some countries, the
left outside rearview mirror is
also convex. Objects seen in the
mirror are closer than they
appear.
• Use your interior rearview mirror
or direct observation to deter-
mine the actual distance of fol-
lowing vehicles when changing
lanes.

Features of your vehicle
36 4
D140201AEN

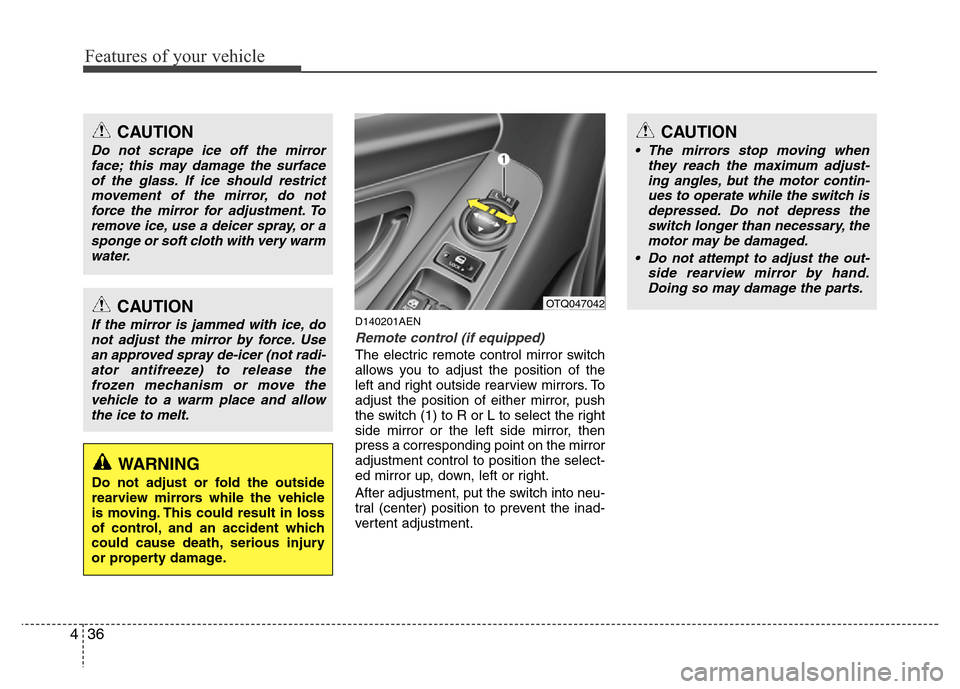

Remote control (if equipped)
The electric remote control mirror switch
allows you to adjust the position of the
left and right outside rearview mirrors. To
adjust the position of either mirror, push
the switch (1) to R or L to select the right
side mirror or the left side mirror, then
press a corresponding point on the mirror
adjustment control to position the select-
ed mirror up, down, left or right.
After adjustment, put the switch into neu-
tral (center) position to prevent the inad-
vertent adjustment.
CAUTION
Do not scrape ice off the mirror
face; this may damage the surface
of the glass. If ice should restrict
movement of the mirror, do not
force the mirror for adjustment. To
remove ice, use a deicer spray, or a
sponge or soft cloth with very warm
water.
CAUTION
If the mirror is jammed with ice, do
not adjust the mirror by force. Use
an approved spray de-icer (not radi-
ator antifreeze) to release the
frozen mechanism or move the
vehicle to a warm place and allow
the ice to melt.
WARNING
Do not adjust or fold the outside
rearview mirrors while the vehicle
is moving. This could result in loss
of control, and an accident which
could cause death, serious injury
or property damage.
OTQ047042
CAUTION
• The mirrors stop moving when
they reach the maximum adjust-
ing angles, but the motor contin-
ues to operate while the switch is
depressed. Do not depress the
switch longer than necessary, the
motor may be damaged.
• Do not attempt to adjust the out-
side rearview mirror by hand.
Doing so may damage the parts.

437
Features of your vehicle
D140202ATQ

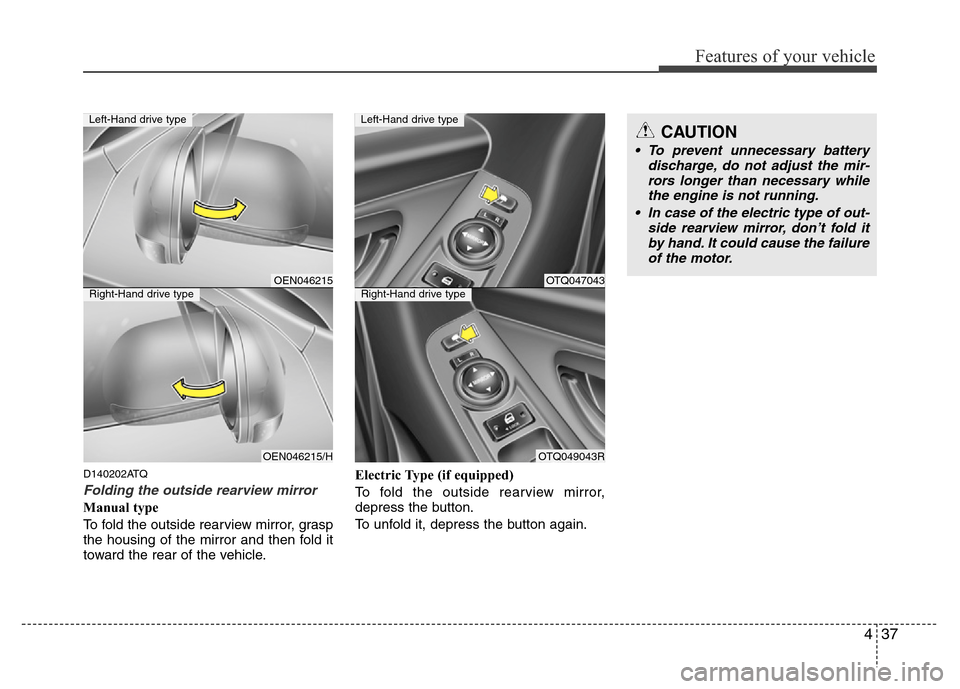

Folding the outside rearview mirror
Manual type
To fold the outside rearview mirror, grasp
the housing of the mirror and then fold it
toward the rear of the vehicle.Electric Type (if equipped)
To fold the outside rearview mirror,
depress the button.
To unfold it, depress the button again.
CAUTION
• To prevent unnecessary battery
discharge, do not adjust the mir-
rors longer than necessary while
the engine is not running.
• In case of the electric type of out-
side rearview mirror, don’t fold it
by hand. It could cause the failure
of the motor.
OEN046215
OEN046215/H
Right-Hand drive type
Left-Hand drive type
OTQ047043
OTQ049043R
Right-Hand drive type
Left-Hand drive type

Features of your vehicle
38 4

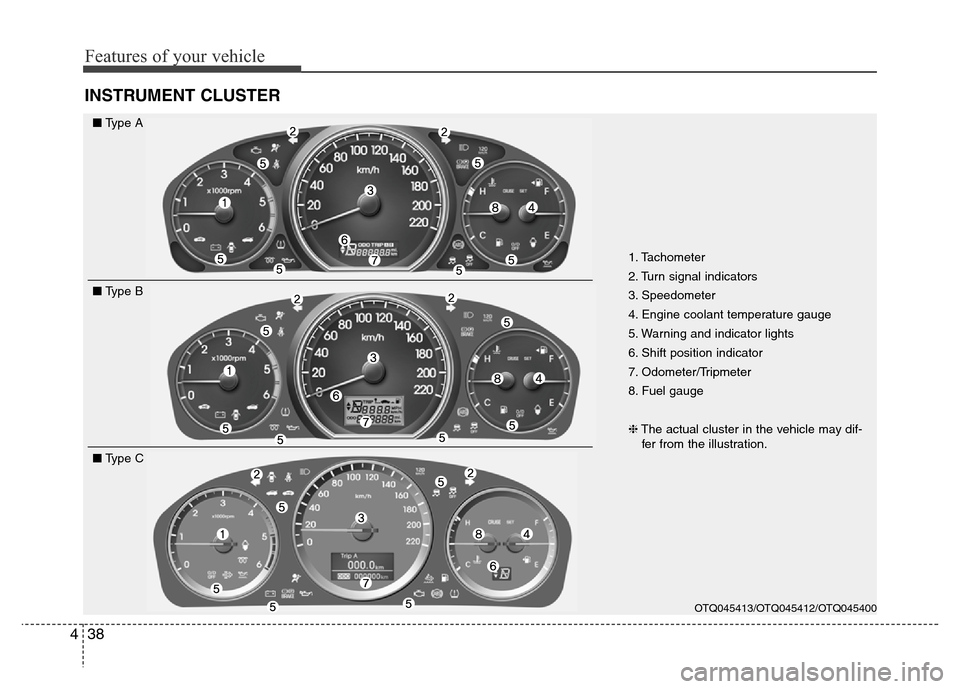

INSTRUMENT CLUSTER
1. Tachometer
2. Turn signal indicators
3. Speedometer
4. Engine coolant temperature gauge
5. Warning and indicator lights
6. Shift position indicator
7. Odometer/Tripmeter
8. Fuel gauge
❈The actual cluster in the vehicle may dif-
fer from the illustration.
OTQ045413/OTQ045412/OTQ045400
■Type A
■Type B
■Type C
