1FEATURES OF YOUR HYUNDAI
50
OHR028119

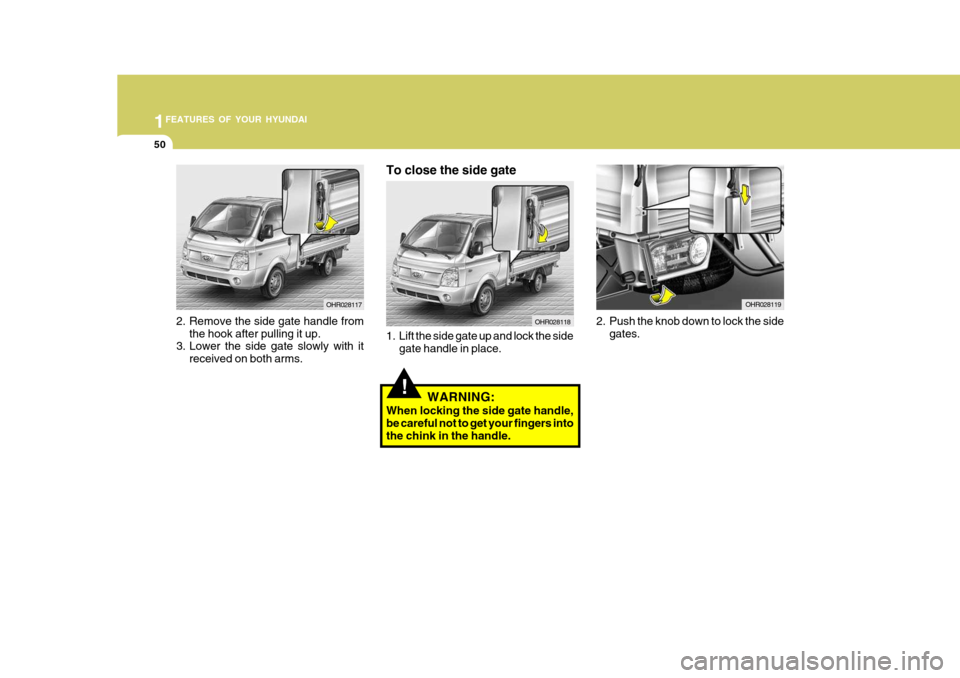

2. Push the knob down to lock the side gates.
2. Remove the side gate handle from
the hook after pulling it up.
3. Lower the side gate slowly with it
received on both arms. OHR028117
OHR028118
To close the side gate
1. Lift the side gate up and lock the side
gate handle in place.
!WARNING:
When locking the side gate handle, be careful not to get your fingers intothe chink in the handle.

1
FEATURES OF YOUR HYUNDAI
51EXTERIOR TOOL BOX
B650A02HR-GAT (If Installed)

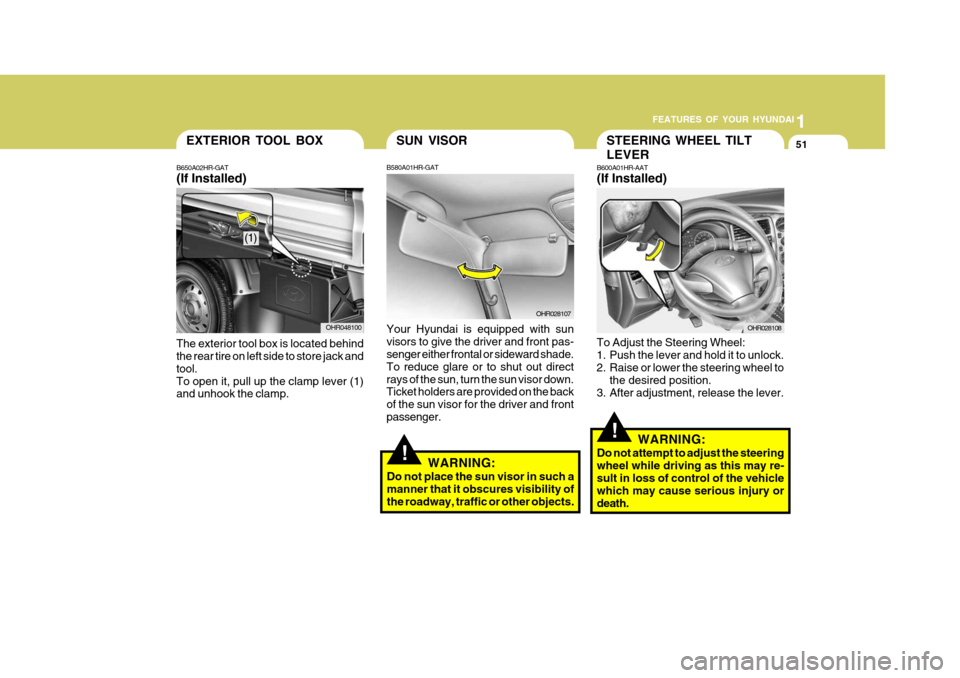

The exterior tool box is located behind the rear tire on left side to store jack and tool.To open it, pull up the clamp lever (1) and unhook the clamp. OHR048100
(1)
!
STEERING WHEEL TILT LEVER
B600A01HR-AAT (If Installed)
To Adjust the Steering Wheel:
1. Push the lever and hold it to unlock.
2. Raise or lower the steering wheel to the desired position.
3. After adjustment, release the lever.
WARNING:
Do not attempt to adjust the steering wheel while driving as this may re-sult in loss of control of the vehicle which may cause serious injury or death. OHR028108
!
SUN VISOR
Your Hyundai is equipped with sun visors to give the driver and front pas- senger either frontal or sideward shade. To reduce glare or to shut out directrays of the sun, turn the sun visor down. Ticket holders are provided on the back of the sun visor for the driver and frontpassenger.
B580A01HR-GAT
OHR028107
WARNING:
Do not place the sun visor in such amanner that it obscures visibility of the roadway, traffic or other objects.

1FEATURES OF YOUR HYUNDAI
52HORN
B610B01A-GAT

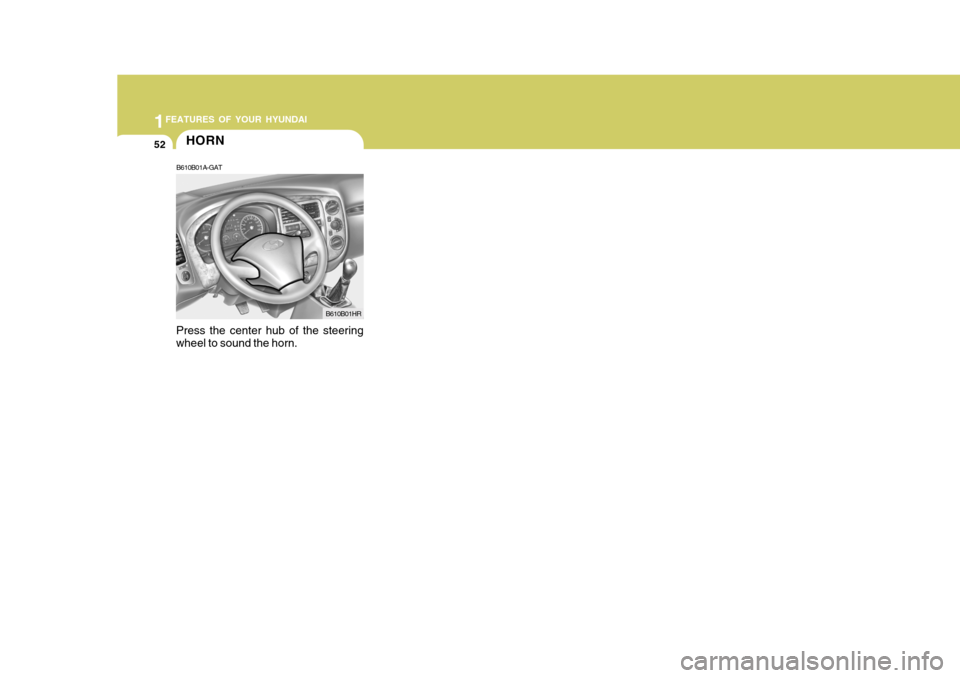

Press the center hub of the steering wheel to sound the horn. B610B01HR

1
FEATURES OF YOUR HYUNDAI
53HEATING AND COOLING CONTROL
B710A01TB-GAT (If Installed)

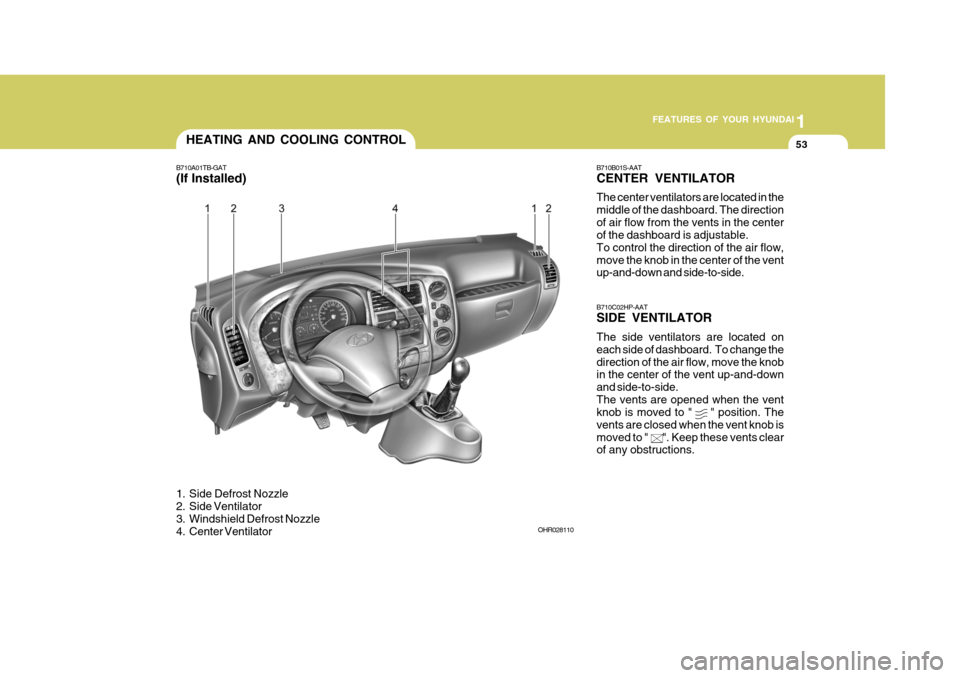

1. Side Defrost Nozzle
2. Side Ventilator
3. Windshield Defrost Nozzle
4. Center Ventilator B710B01S-AAT CENTER VENTILATOR The center ventilators are located in the middle of the dashboard. The directionof air flow from the vents in the center of the dashboard is adjustable. To control the direction of the air flow,move the knob in the center of the vent up-and-down and side-to-side. B710C02HP-AAT SIDE VENTILATOR The side ventilators are located on each side of dashboard. To change thedirection of the air flow, move the knob in the center of the vent up-and-down and side-to-side.The vents are opened when the vent knob is moved to " " position. The vents are closed when the vent knob ismoved to " ". Keep these vents clear of any obstructions.
OHR028110

1FEATURES OF YOUR HYUNDAI
54
Face-Level
Selecting the "Face" mode will cause air to be discharged through the face level vents.
B670D01HR-GAT Air Flow Control This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, or windshield. Five symbolsare used to represent Face, Bi-Level, Floor, Floor-Defrost and Defrost air position. OHR028111
HHR2080
HEATING AND VENTILATION
B670A01HR-GAT
(If Installed)
1. Air flow control switch
2. Fan speed control switch
3. Temperature control switch
4. Air intake control switch
5. Air conditioning switch HHR2017
1
2
3
4
5

1
FEATURES OF YOUR HYUNDAI
55
Bi-Level

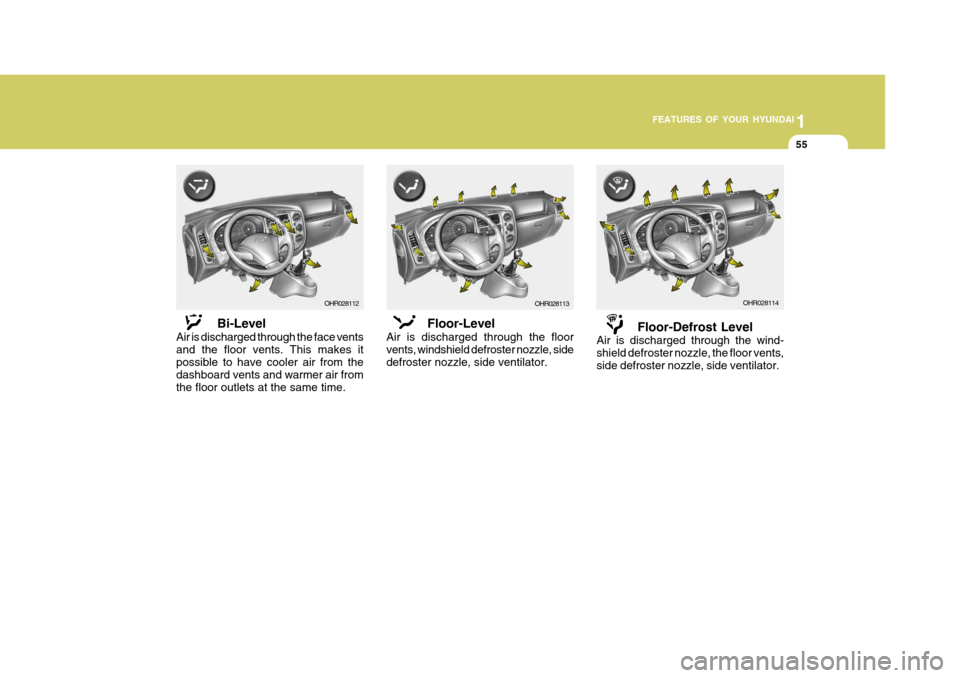

Air is discharged through the face vents and the floor vents. This makes it possible to have cooler air from the dashboard vents and warmer air fromthe floor outlets at the same time. Floor-Level
Air is discharged through the floorvents, windshield defroster nozzle, side defroster nozzle, side ventilator.Floor-Defrost Level
Air is discharged through the wind- shield defroster nozzle, the floor vents,side defroster nozzle, side ventilator.
OHR028112 OHR028113OHR028114

1FEATURES OF YOUR HYUNDAI
56

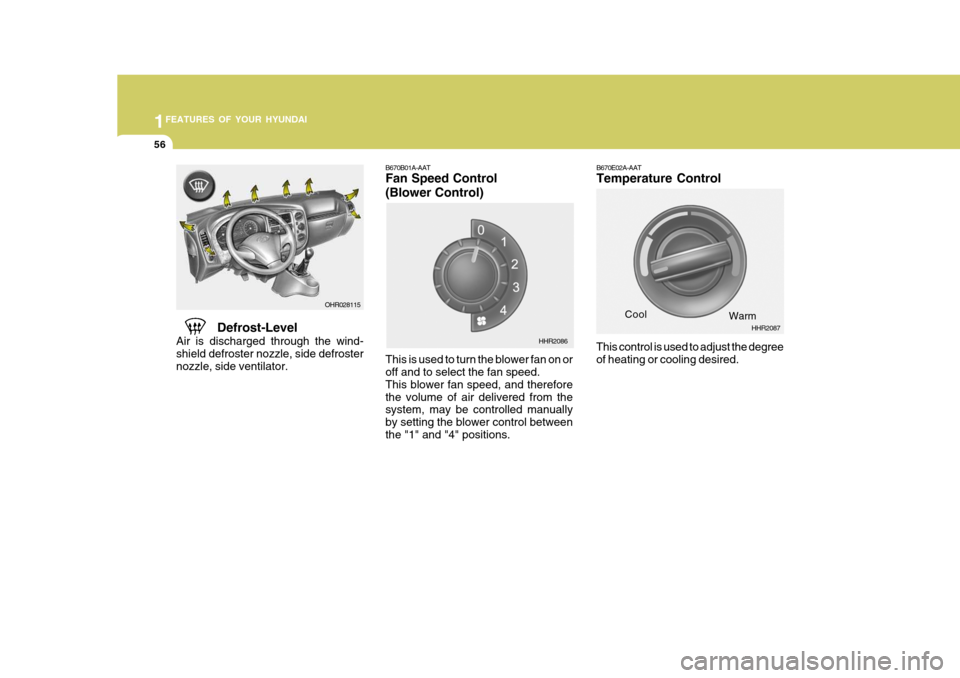

B670E02A-AAT Temperature Control
Defrost-Level
Air is discharged through the wind- shield defroster nozzle, side defroster nozzle, side ventilator.
This control is used to adjust the degree of heating or cooling desired.
OHR028115
CoolWarm
HHR2087
B670B01A-AAT Fan Speed Control (Blower Control) This is used to turn the blower fan on or off and to select the fan speed. This blower fan speed, and thereforethe volume of air delivered from the system, may be controlled manually by setting the blower control betweenthe "1" and "4" positions. HHR2086

1
FEATURES OF YOUR HYUNDAI
57
With the "Fresh" mode selected, air enters the vehicle from the outside andis heated or cooled according to the function selected. With the "Recirculation" mode selected, air from within the passenger compart- ment will be drawn through the heatingsystem and heated or cooled according to the function selected. NOTE: It should be noted that prolonged operation of the heating in "Recircu- lation" mode ( ) will give rise to fogging of the windshield and sidewindows and the air within the pas- senger compartment will become stale. In addition, prolonged use ofthe air conditioning with the "Recir- culation" mode ( ) selected may result in the air within the passengercompartment becoming excessively dry.
B670C01E-AAT Air Intake Control
This is used to select fresh outside air or recirculating inside air. To change the air intake control mode(Fresh mode, Recirculation mode), push the control button. FRESH MODE ( ) : The indicator
light on the button goes off when the air intake control is fresh mode. RECIRCULATION MODE ( ): The
indicator light on the button is illumi- nated when the air intake control is recirculation mode. OHR028116B690A01HR-GAT For normal heating operation, set the air intake control to the fresh air ( ) position and the air flow control to thefloor ( ) position.
HHR2091
HEATING CONTROLS

1FEATURES OF YOUR HYUNDAI
58BI-LEVEL HEATING
B700A01A-AAT
Your Hyundai is equipped with bi-level heating controls. This makes it pos- sible to have cooler air from the dash-board vents and warmer air from the floor outlets at the same time. To use this feature:
o Set the air intake control to the fresh air ( ) position.
o Set the air flow control at the bi-level
( ) position.
o Set the temperature control between
"Cool" and "Warm".
HHR2092
For faster heating, the air intake control should be set in the recirculate ( )position. If the windows fog up, set the air flow control to the defrost ( ) position and the air intake control to the fresh air ( ) position. For maximum heat, move the tempera- ture control to "Warm".

1
FEATURES OF YOUR HYUNDAI
59DEFROSTING/DEFOGGINGVENTILATION
B720A01HR-GAT
B710A01S-AAT

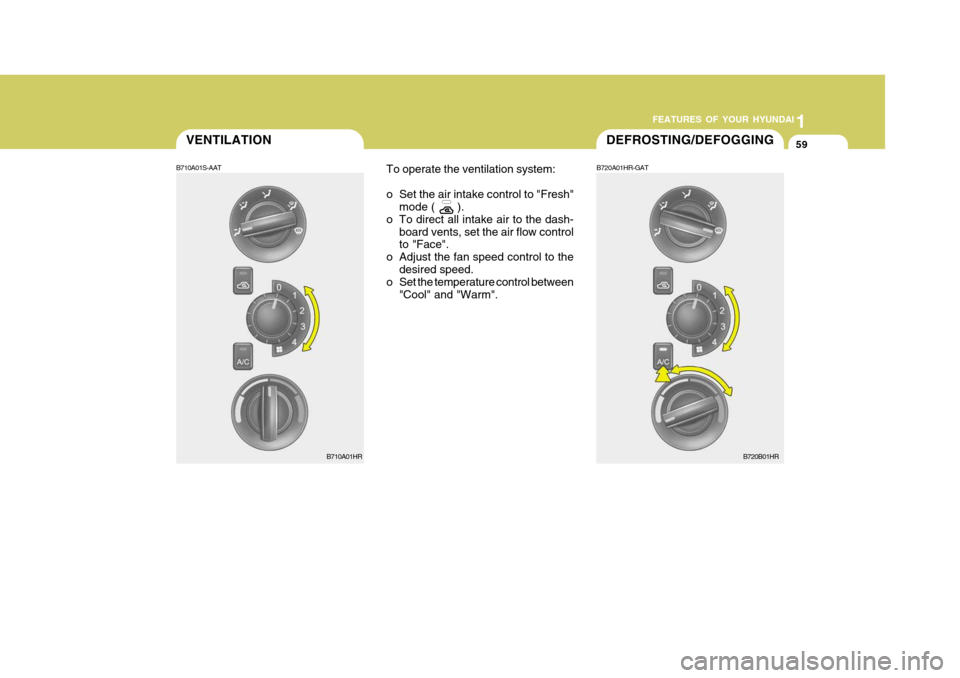

To operate the ventilation system:
o Set the air intake control to "Fresh"
mode ( ).
o To direct all intake air to the dash-
board vents, set the air flow control to "Face".
o Adjust the fan speed control to the
desired speed.
o Set the temperature control between
"Cool" and "Warm".
B710A01HR B720B01HR
