Hyundai H-100 Truck 2012 Owner's Manual

6
DO-IT-YOURSELF MAINTENANCE
39
BATT
GLOW IGN
ECU
BATT
LAMP
COND ABS2
PTC1 ABS1
PTC2
BLWR PTC3
FFHS
GLOW ALT_SSTOP
HORN
A/CON TCU
ECU1 ECU2
DESCRIPTION

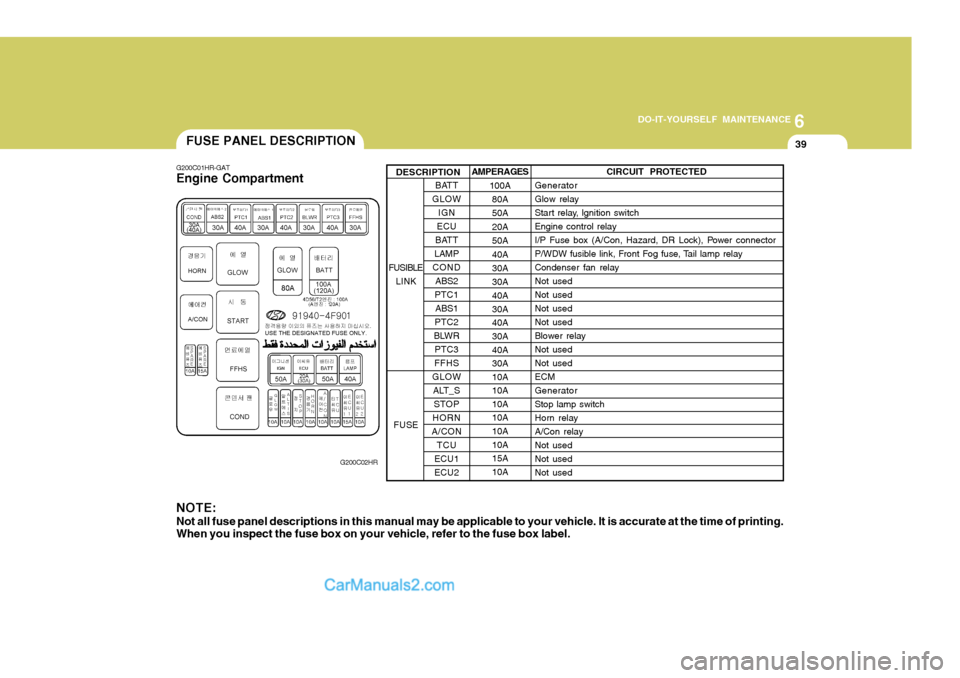

G200C01HR-GAT Engine Compartment
G200C02HR
NOTE:
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing.
When you inspect the fuse box on your vehicle, refer to the fuse box label. AMPERAGES
100A80A 50A20A50A40A30A 30A40A 30A40A30A 40A 30A10A10A10A10A 10A 10A15A10A CIRCUIT PROTECTED
Generator Glow relay
Start relay, lgnition switchEngine control relay
I/P Fuse box (A/Con, Hazard, DR Lock), Power connector
P/WDW fusible link, Front Fog fuse, Tail lamp relayCondenser fan relayNot usedNot usedNot usedNot usedBlower relayNot usedNot usedECMGeneratorStop lamp switchHorn relayA/Con relayNot usedNot usedNot used
FUSIBLE LINK
FUSE
FUSE PANEL DESCRIPTION

6 DO-IT-YOURSELF MAINTENANCE
40

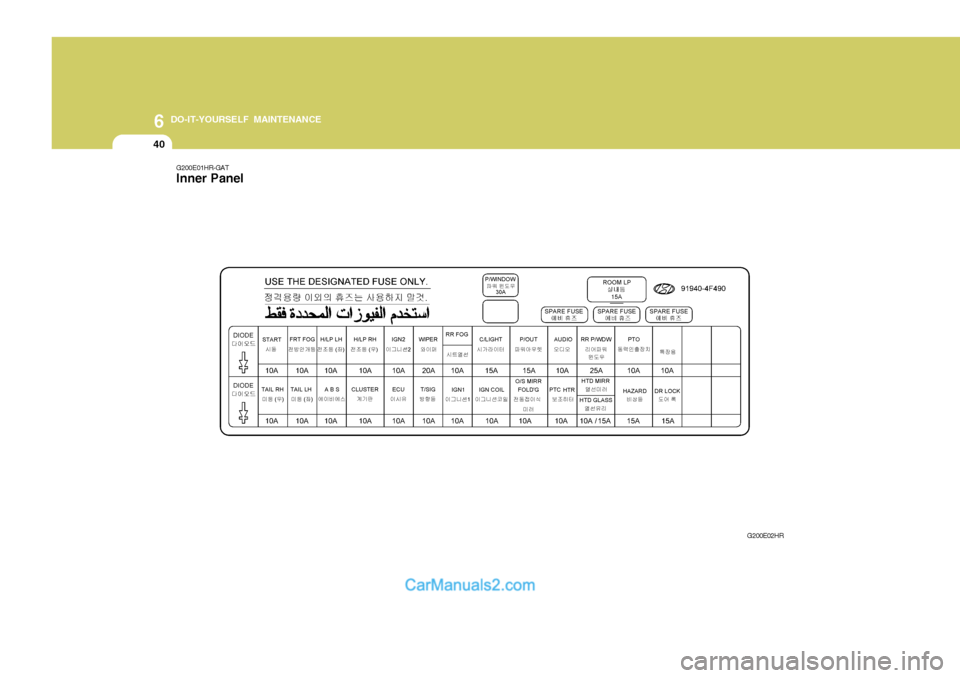

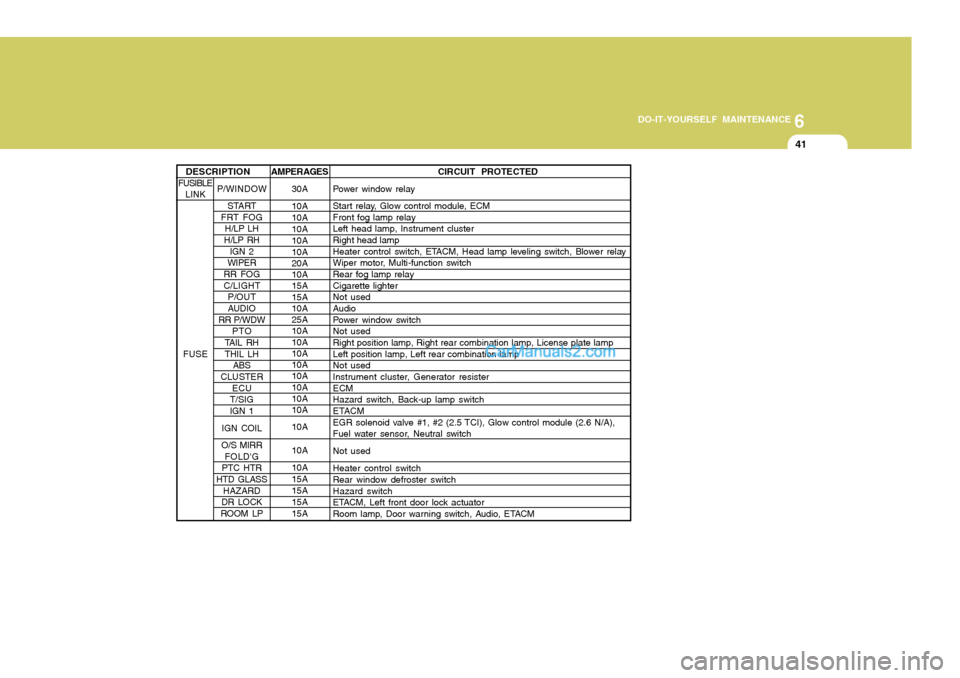

G200E01HR-GAT Inner Panel
G200E02HR

6
DO-IT-YOURSELF MAINTENANCE
41
AMPERAGES 30A 10A 10A10A 10A 10A 20A 10A 15A 15A 10A 25A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 15A15A15A15A CIRCUIT PROTECTED
Power window relay
Start relay, Glow control module, ECM Front fog lamp relayLeft head lamp, Instrument cluster Right head lamp
Heater control switch, ETACM, Head lamp leveling switch, Blower relay
Wiper motor, Multi-function switch Rear fog lamp relay Cigarette lighterNot used Audio
Power window switchNot used Right position lamp, Right rear combination lamp, License plate lamp Left position lamp, Left rear combination lampNot used
Instrument cluster, Generator resister ECMHazard switch, Back-up lamp switch
ETACM
EGR solenoid valve #1, #2 (2.5 TCI), Glow control module (2.6 N/A),
Fuel water sensor, Neutral switch Not usedHeater control switch Rear window defroster switch Hazard switch
ETACM, Left front door lock actuator
Room lamp, Door warning switch, Audio, ETACM
P/WINDOW START
FRT FOG
H/LP LH
H/LP RH IGN 2
WIPER
RR FOG C/LIGHT P/OUT
AUDIO
RR P/WDW
PTO
TAIL RH THIL LH ABS
CLUSTER ECU
T/SIG IGN 1
IGN COIL
O/S MIRR FOLD'G
PTC HTR
HTD GLASS HAZARD
DR LOCK
ROOM LP
DESCRIPTION
FUSIBLE LINK
FUSE

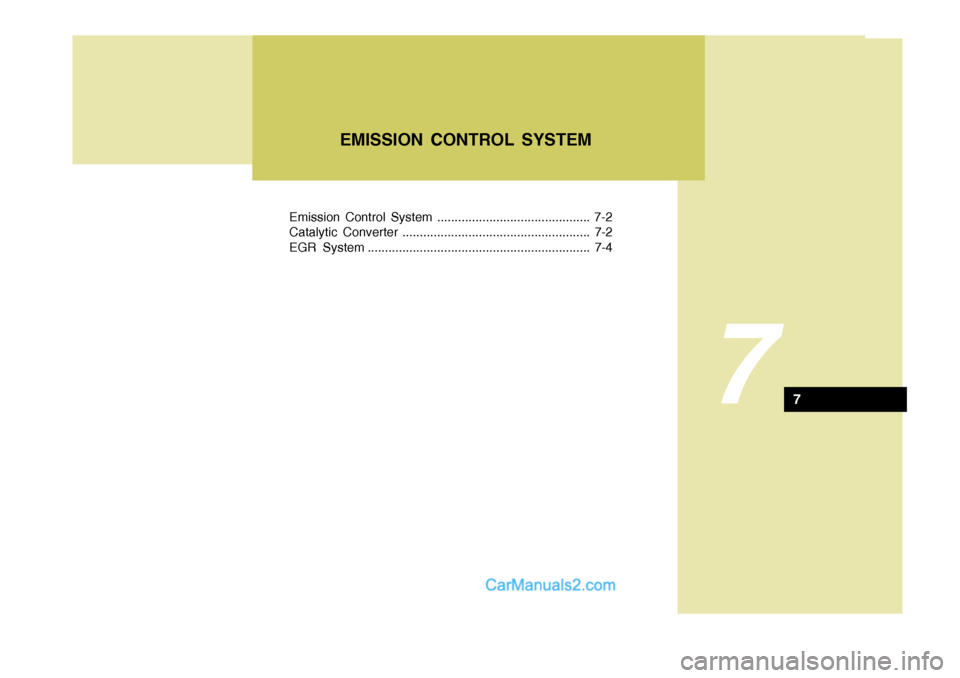

Emission Control System ............................................ 7-2
Catalytic Converter ...................................................... 7-2
EGR System ................................................................ 7-4
7
EMISSION CONTROL SYSTEM
7

7EMISSION CONTROL SYSTEMS
2
H020D03HR-GAT
(If Installed)

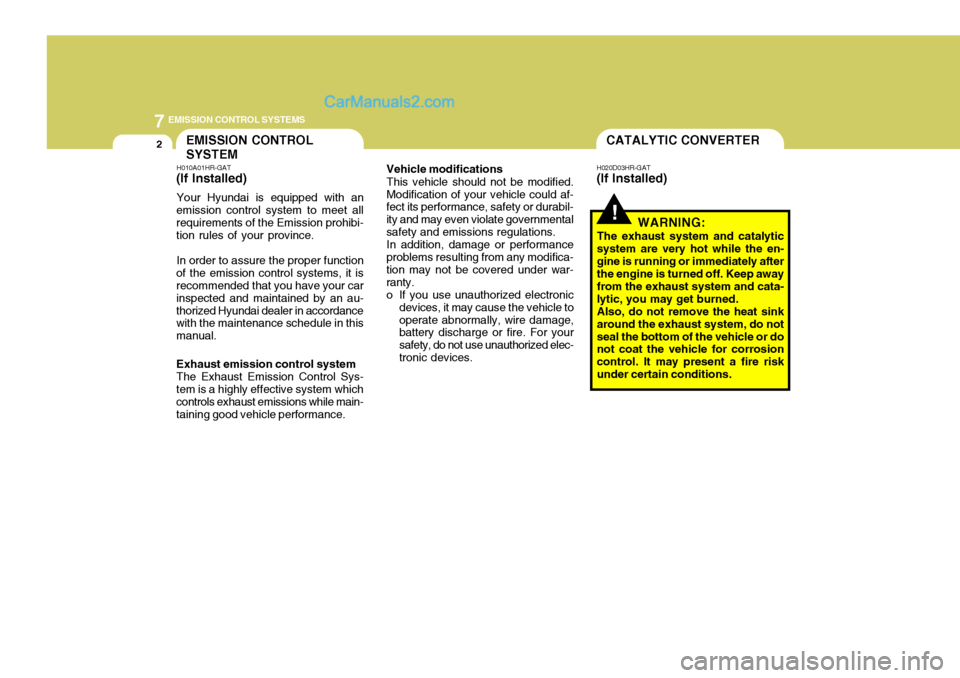

EMISSION CONTROL SYSTEM
H010A01HR-GAT
(If Installed)
Your Hyundai is equipped with an
emission control system to meet all requirements of the Emission prohibi- tion rules of your province.
In order to assure the proper function
of the emission control systems, it is recommended that you have your car inspected and maintained by an au-thorized Hyundai dealer in accordance with the maintenance schedule in this manual. CATALYTIC CONVERTER
!WARNING:
The exhaust system and catalytic system are very hot while the en-gine is running or immediately after the engine is turned off. Keep away from the exhaust system and cata-lytic, you may get burned.Also, do not remove the heat sinkaround the exhaust system, do notseal the bottom of the vehicle or do not coat the vehicle for corrosion control. It may present a fire riskunder certain conditions.
Exhaust emission control systemThe Exhaust Emission Control Sys-tem is a highly effective system whichcontrols exhaust emissions while main- taining good vehicle performance. Vehicle modifications This vehicle should not be modified.
Modification of your vehicle could af- fect its performance, safety or durabil- ity and may even violate governmentalsafety and emissions regulations.
In addition, damage or performance
problems resulting from any modifica- tion may not be covered under war- ranty.
o If you use unauthorized electronic
devices, it may cause the vehicle tooperate abnormally, wire damage, battery discharge or fire. For your safety, do not use unauthorized elec- tronic devices.

7
EMISSION CONTROL SYSTEMS
3

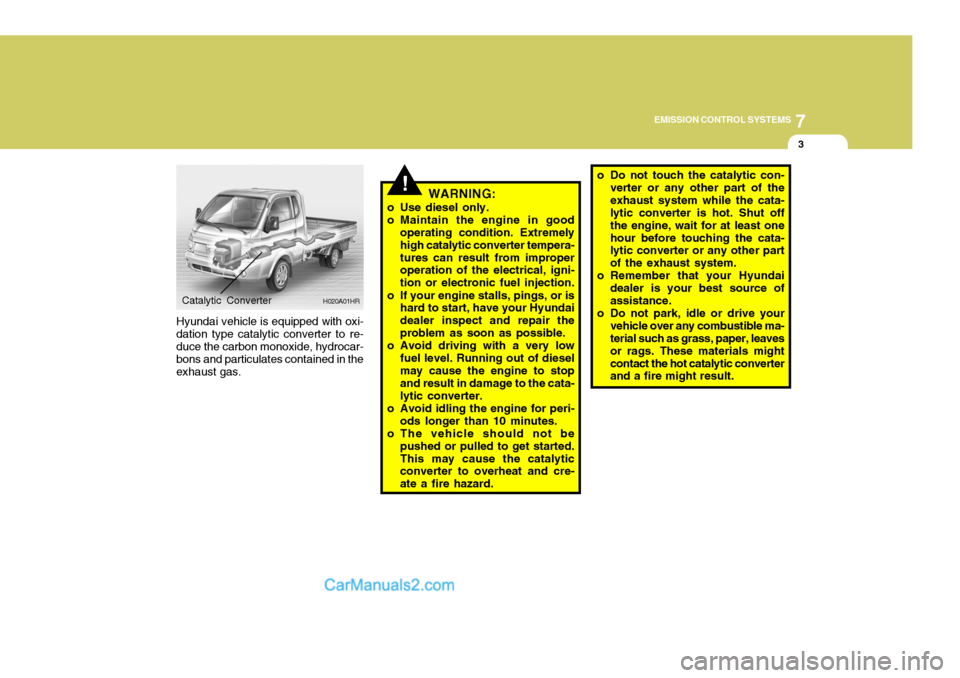

Hyundai vehicle is equipped with oxi- dation type catalytic converter to re- duce the carbon monoxide, hydrocar- bons and particulates contained in theexhaust gas. H020A01HR
Catalytic Converter
!WARNING:
o Use diesel only.
o Maintain the engine in good operating condition. Extremely high catalytic converter tempera-tures can result from improper operation of the electrical, igni- tion or electronic fuel injection.
o If your engine stalls, pings, or is hard to start, have your Hyundaidealer inspect and repair theproblem as soon as possible.
o Avoid driving with a very low
fuel level. Running out of diesel may cause the engine to stop and result in damage to the cata-lytic converter.
o Avoid idling the engine for peri- ods longer than 10 minutes.
o The vehicle should not be pushed or pulled to get started.This may cause the catalytic converter to overheat and cre- ate a fire hazard. o Do not touch the catalytic con-
verter or any other part of theexhaust system while the cata- lytic converter is hot. Shut off the engine, wait for at least onehour before touching the cata- lytic converter or any other part of the exhaust system.
o Remember that your Hyundai dealer is your best source ofassistance.
o Do not park, idle or drive your
vehicle over any combustible ma- terial such as grass, paper, leaves or rags. These materials mightcontact the hot catalytic converter and a fire might result.

7EMISSION CONTROL SYSTEMS

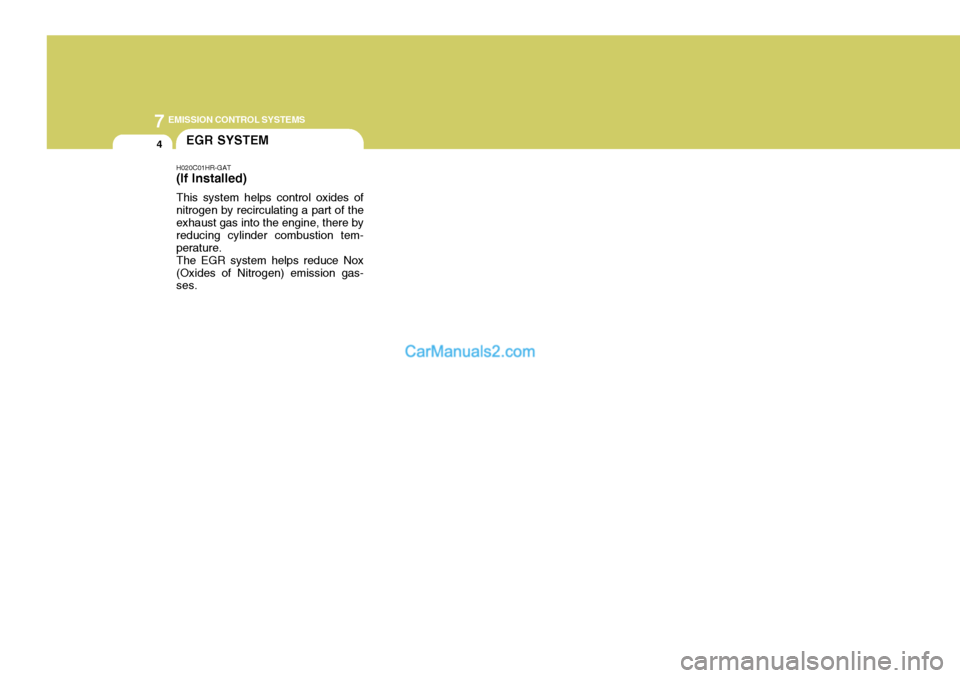

4EGR SYSTEM
H020C01HR-GAT
(If Installed)
This system helps control oxides of nitrogen by recirculating a part of the exhaust gas into the engine, there by reducing cylinder combustion tem-perature.The EGR system helps reduce Nox(Oxides of Nitrogen) emission gas- ses.

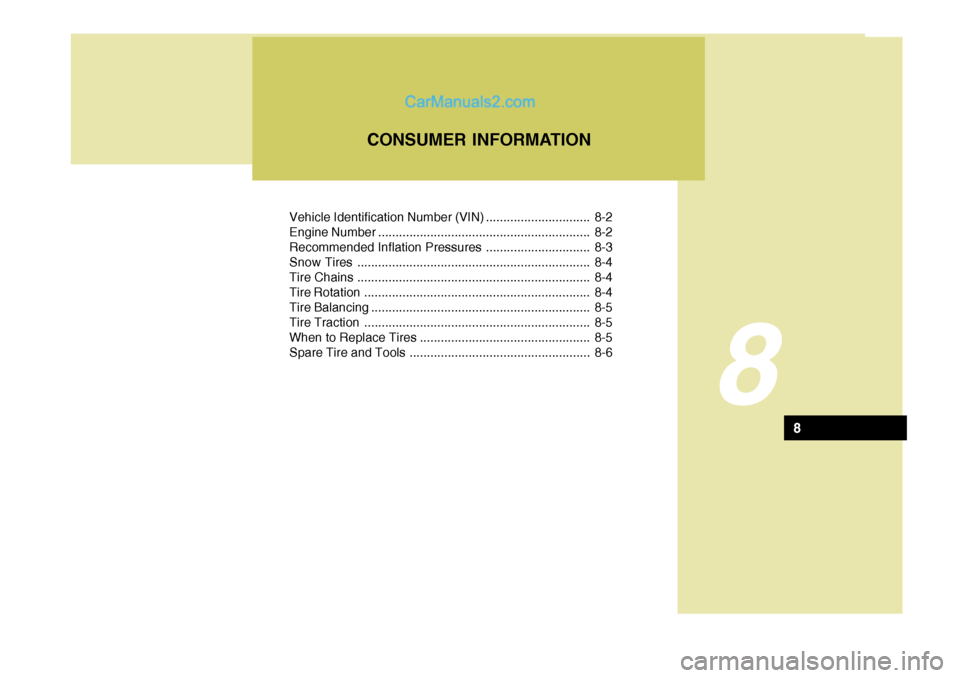

Vehicle Identification Number (VIN) .............................. 8-2
Engine Number ............................................................. 8-2
Recommended Inflation Pressures .............................. 8-3
Snow Tires ................................................................... 8-4
Tire Chains ................................................................... 8-4
Tire Rotation ................................................................. 8-4
Tire Balancing ............................................................... 8-5
Tire Traction ................................................................. 8-5
When to Replace Tires ................................................. 8-5
Spare Tire and Tools .................................................... 8-6
8
CONSUMER INFORMATION
8

8CONSUMER INFORMATION

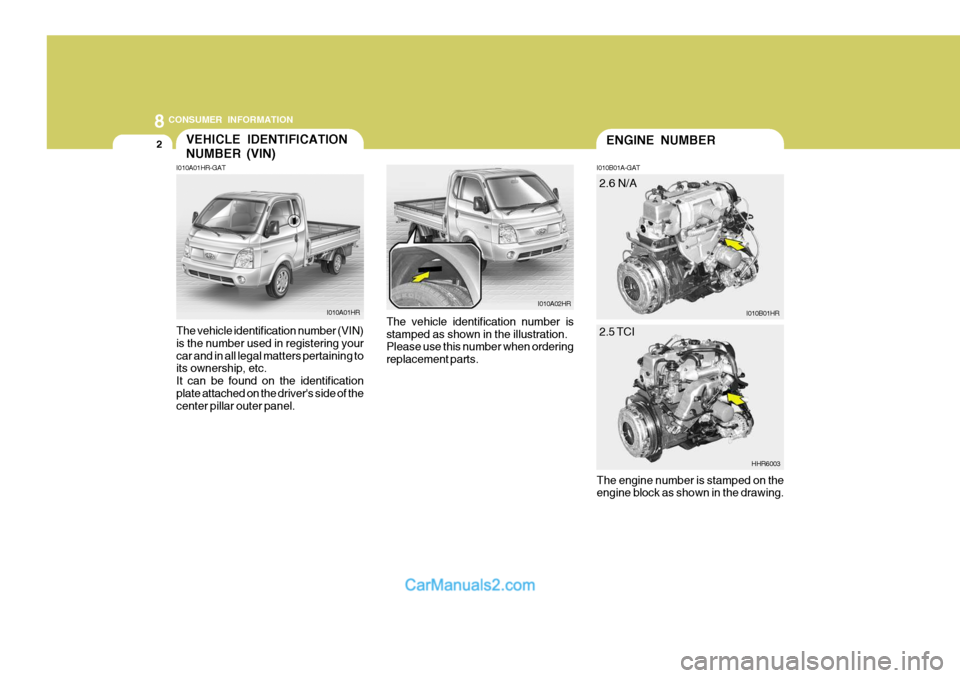

2VEHICLE IDENTIFICATION NUMBER (VIN)ENGINE NUMBER
I010A01HR I010B01HR
I010A01HR-GAT The vehicle identification number (VIN) is the number used in registering yourcar and in all legal matters pertaining to its ownership, etc. It can be found on the identificationplate attached on the driver's side of the center pillar outer panel. I010B01A-GAT The engine number is stamped on the engine block as shown in the drawing.2.6 N/A
HHR6003
I010A02HR
The vehicle identification number is stamped as shown in the illustration. Please use this number when ordering replacement parts. 2.5 TCI

8
CONSUMER INFORMATION

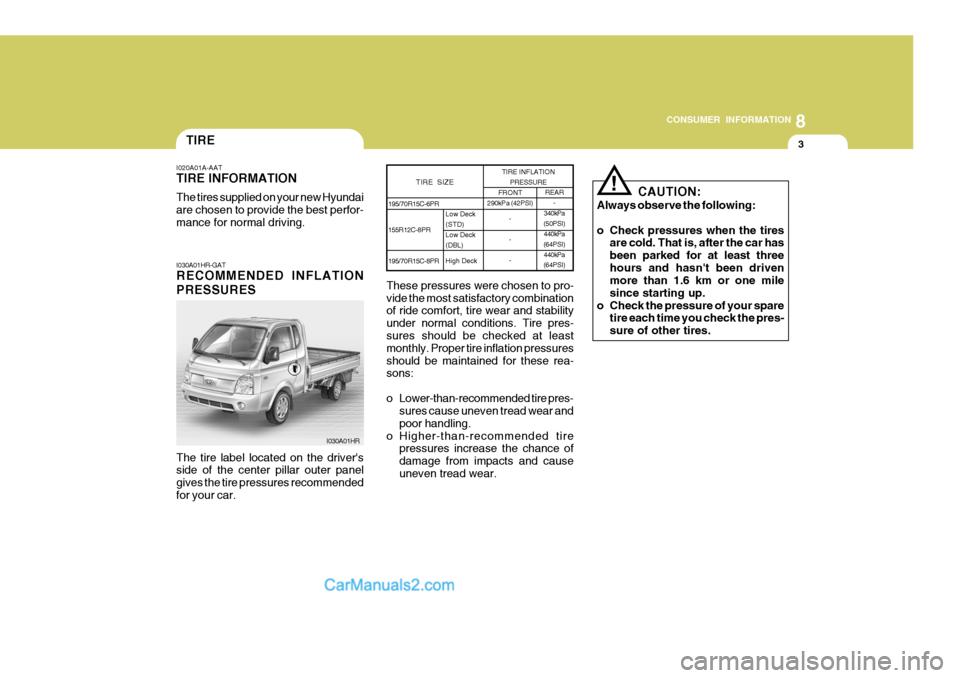

3TIRE
I020A01A-AAT TIRE INFORMATION The tires supplied on your new Hyundai are chosen to provide the best perfor-mance for normal driving. I030A01HR-GAT RECOMMENDED INFLATION PRESSURES The tire label located on the driver's side of the center pillar outer panel gives the tire pressures recommendedfor your car. These pressures were chosen to pro-vide the most satisfactory combination of ride comfort, tire wear and stability under normal conditions. Tire pres- sures should be checked at least monthly. Proper tire inflation pressuresshould be maintained for these rea- sons:
o Lower-than-recommended tire pres-
sures cause uneven tread wear and poor handling.
o Higher-than-recommended tire pressures increase the chance ofdamage from impacts and causeuneven tread wear.
I030A01HR CAUTION:
Always observe the following:
o Check pressures when the tires are cold. That is, after the car has been parked for at least threehours and hasn't been driven more than 1.6 km or one mile since starting up.
o Check the pressure of your spare tire each time you check the pres-sure of other tires.
!
195/70R15C-6PR 155R12C-8PR 195/70R15C-8PR FRONT
290kPa (42PSI)
- --TIRE SIZE TIRE INFLATION
PRESSURE REAR
-
340kPa
(50PSI) 440kPa
(64PSI) 440kPa
(64PSI)
Low Deck (STD)Low Deck(DBL) High Deck
