Hyundai H350 2015 Owner's Manual

7-48
Maintenance

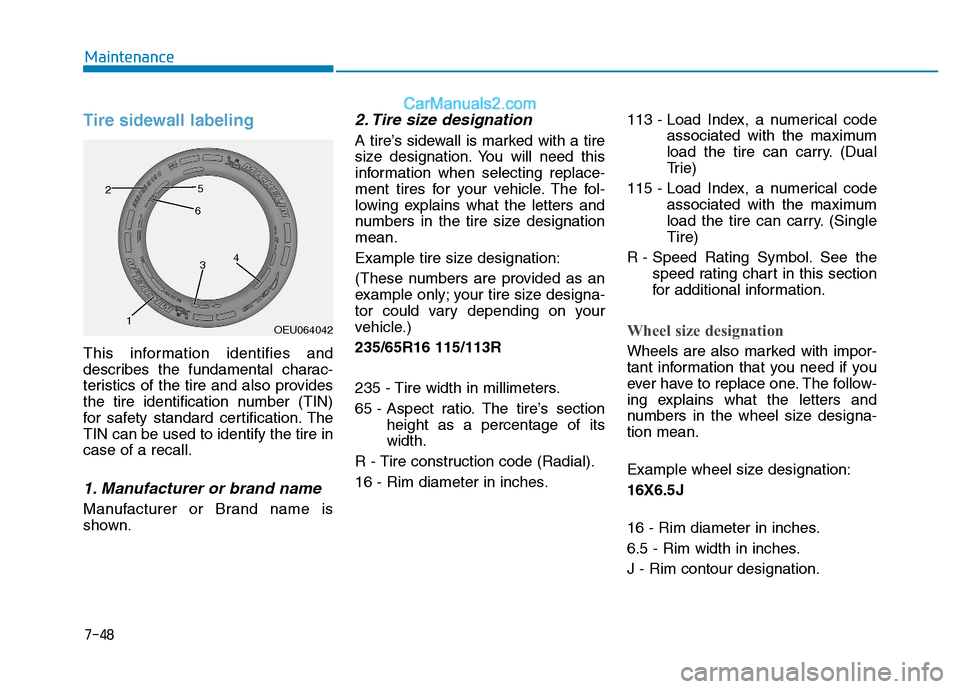

Tire sidewall labeling
This information identifies and
describes the fundamental charac-
teristics of the tire and also provides
the tire identification number (TIN)
for safety standard certification. TheTIN can be used to identify the tire incase of a recall.
1. Manufacturer or brand name
Manufacturer or Brand name is
shown.
2. Tire size designation
A tire’s sidewall is marked with a tire
size designation. You will need this
information when selecting replace-
ment tires for your vehicle. The fol-
lowing explains what the letters and
numbers in the tire size designationmean.
Example tire size designation:
(These numbers are provided as an
example only; your tire size designa-
tor could vary depending on your
vehicle.) 235/65R16 115/113R
235 - Tire width in millimeters.
65 - Aspect ratio. The tire’s sectionheight as a percentage of its width.
R - Tire construction code (Radial).
16 - Rim diameter in inches. 113 - Load Index, a numerical code
associated with the maximum
load the tire can carry. (Dual
Trie)
115 - Load Index, a numerical code associated with the maximum
load the tire can carry. (SingleTire)
R - Speed Rating Symbol. See the speed rating chart in this section
for additional information.
Wheel size designation
Wheels are also marked with impor-
tant information that you need if you
ever have to replace one. The follow-
ing explains what the letters and
numbers in the wheel size designa-tion mean.
Example wheel size designation: 16X6.5J
16 - Rim diameter in inches.
6.5 - Rim width in inches.J - Rim contour designation.
OEU064042
1
2
34
6
5

7-49
7
Maintenance

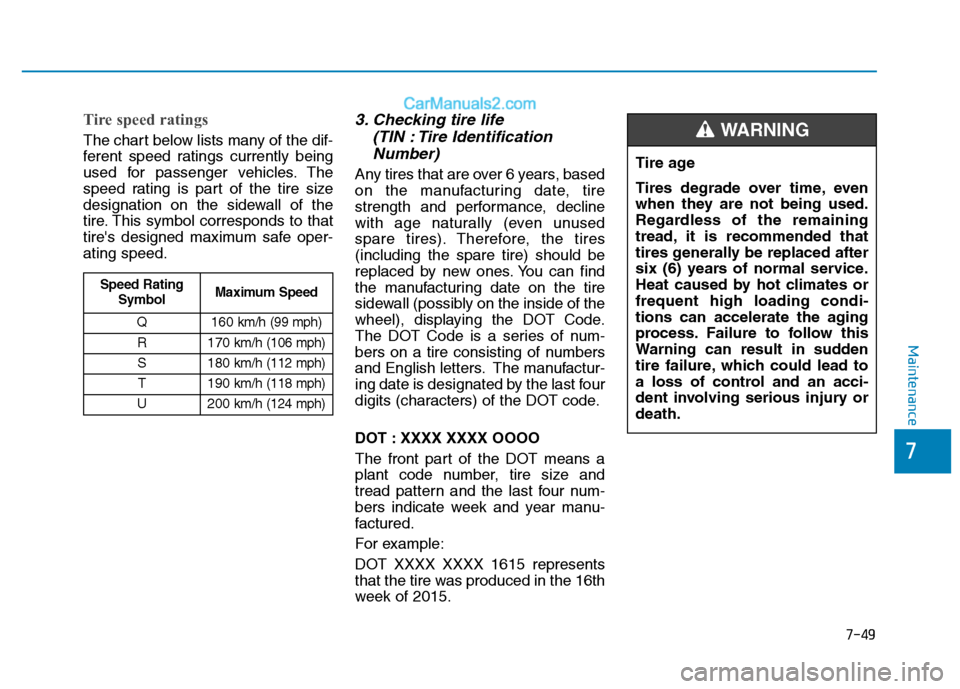

Tire speed ratings
The chart below lists many of the dif-
ferent speed ratings currently being
used for passenger vehicles. The
speed rating is part of the tire size
designation on the sidewall of the
tire. This symbol corresponds to that
tire's designed maximum safe oper-ating speed.
3. Checking tire life (TIN : Tire Identification
Number)
Any tires that are over 6 years, based
on the manufacturing date, tire
strength and performance, decline
with age naturally (even unused
spare tires). Therefore, the tires(including the spare tire) should be
replaced by new ones. You can find
the manufacturing date on the tire
sidewall (possibly on the inside of the
wheel), displaying the DOT Code.
The DOT Code is a series of num-
bers on a tire consisting of numbers
and English letters. The manufactur-
ing date is designated by the last four
digits (characters) of the DOT code.
DOT : XXXX XXXX OOOO
The front part of the DOT means a
plant code number, tire size and
tread pattern and the last four num-
bers indicate week and year manu-
factured.
For example:
DOT XXXX XXXX 1615 represents
that the tire was produced in the 16th
week of 2015. Tire age
Tires degrade over time, even
when they are not being used.
Regardless of the remaining
tread, it is recommended that
tires generally be replaced after
six (6) years of normal service.
Heat caused by hot climates orfrequent high loading condi-
tions can accelerate the aging
process. Failure to follow this
Warning can result in sudden
tire failure, which could lead to
a loss of control and an acci-
dent involving serious injury ordeath.
WARNING
Speed Rating
SymbolMaximum Speed
Q160km/h (99 mph)
R170km/h (106 mph)
S180km/h (112 mph)
T190km/h (118 mph)
U200km/h (124 mph)

7-50
Maintenance

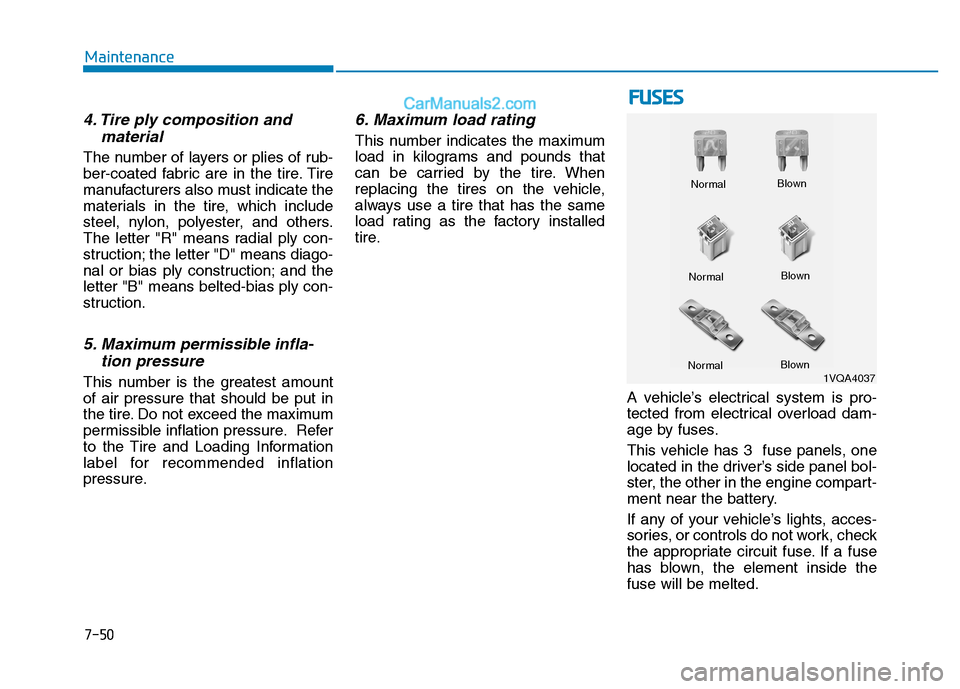

4. Tire ply composition andmaterial
The number of layers or plies of rub-
ber-coated fabric are in the tire. Tire
manufacturers also must indicate the
materials in the tire, which include
steel, nylon, polyester, and others.
The letter "R" means radial ply con-
struction; the letter "D" means diago-
nal or bias ply construction; and theletter "B" means belted-bias ply con-
struction.
5. Maximum permissible infla-tion pressure
This number is the greatest amountof air pressure that should be put in
the tire. Do not exceed the maximum
permissible inflation pressure. Refer
to the Tire and Loading Information
label for recommended inflation
pressure.
6. Maximum load rating
This number indicates the maximum
load in kilograms and pounds that
can be carried by the tire. When
replacing the tires on the vehicle,
always use a tire that has the same
load rating as the factory installed
tire.
A vehicle’s electrical system is pro-
tected from electrical overload dam-
age by fuses.
This vehicle has 3 fuse panels, one
located in the driver’s side panel bol-
ster, the other in the engine compart-
ment near the battery.
If any of your vehicle’s lights, acces-
sories, or controls do not work, check
the appropriate circuit fuse. If a fuse
has blown, the element inside thefuse will be melted.
FFUU SSEE SS
1VQA4037
Normal
Normal Normal
Blown
Blown
Blown

7-51
7
Maintenance
If the electrical system does not
work, first check the driver’s sidefuse panel.

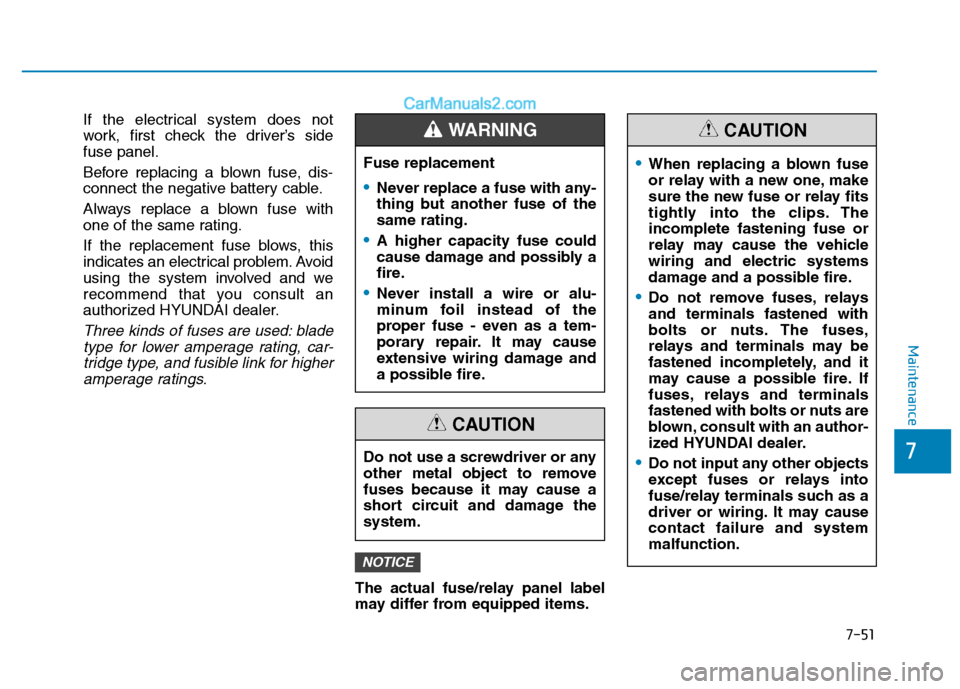

Before replacing a blown fuse, dis-
connect the negative battery cable.
Always replace a blown fuse with
one of the same rating.
If the replacement fuse blows, this
indicates an electrical problem. Avoid
using the system involved and we
recommend that you consult an
authorized HYUNDAI dealer.
Three kinds of fuses are used: bladetype for lower amperage rating, car-tridge type, and fusible link for higher amperage ratings.
The actual fuse/relay panel label
may differ from equipped items.
NOTICE
Fuse replacement
Never replace a fuse with any-
thing but another fuse of thesame rating.
A higher capacity fuse could
cause damage and possibly a
fire.
Never install a wire or alu-
minum foil instead of the
proper fuse - even as a tem-
porary repair. It may cause
extensive wiring damage and
a possible fire.
WARNING
Do not use a screwdriver or any
other metal object to remove
fuses because it may cause a
short circuit and damage thesystem.
CAUTION
When replacing a blown fuse
or relay with a new one, make
sure the new fuse or relay fits
tightly into the clips. Theincomplete fastening fuse or
relay may cause the vehiclewiring and electric systems
damage and a possible fire.
Do not remove fuses, relays and terminals fastened with
bolts or nuts. The fuses,
relays and terminals may be
fastened incompletely, and it
may cause a possible fire. If
fuses, relays and terminals
fastened with bolts or nuts are
blown, consult with an author-
ized HYUNDAI dealer.
Do not input any other objects
except fuses or relays into
fuse/relay terminals such as a
driver or wiring. It may causecontact failure and systemmalfunction.
CAUTION

7-52
Maintenance
Inner panel fuse replacement1.Turn the ignition switch and allother switches off.
2.Open the fuse panel cover.
3.Pull the suspected fuse straightout. Use the removal tool provided
in the engine compartment fusepanel.
4.Check the removed fuse; replace it if it is blown.
5.Push in a new fuse of the same rat- ing, and make sure it fits tightly in
the clips.
If it fits loosely, we recommend that
you consult an authorized HYUNDAI
dealer.
If you do not have a spare, use a
fuse of the same rating from a circuit
you may not need for operating the
vehicle, such as the cigar lighter
fuse.
OEU074027
OEU074026
OEU074028
■ Driver’s seat side
■Driver’s side panel
■Main battery
OEU074029

7-53
7
Maintenance

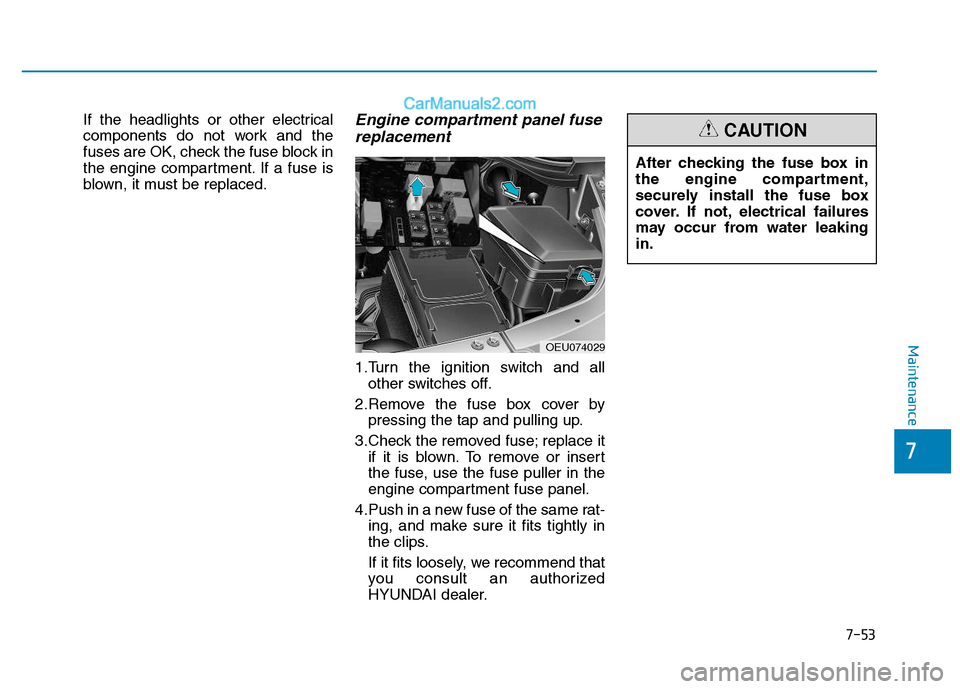

If the headlights or other electrical
components do not work and the
fuses are OK, check the fuse block in
the engine compartment. If a fuse is
blown, it must be replaced.Engine compartment panel fusereplacement
1.Turn the ignition switch and all other switches off.
2.Remove the fuse box cover by pressing the tap and pulling up.
3.Check the removed fuse; replace it if it is blown. To remove or insert
the fuse, use the fuse puller in the
engine compartment fuse panel.
4.Push in a new fuse of the same rat- ing, and make sure it fits tightly in
the clips.
If it fits loosely, we recommend that
you consult an authorized
HYUNDAI dealer.
OEU074029 After checking the fuse box in
the engine compartment,
securely install the fuse box
cover. If not, electrical failures
may occur from water leakingin.
CAUTION

7-54
Maintenance

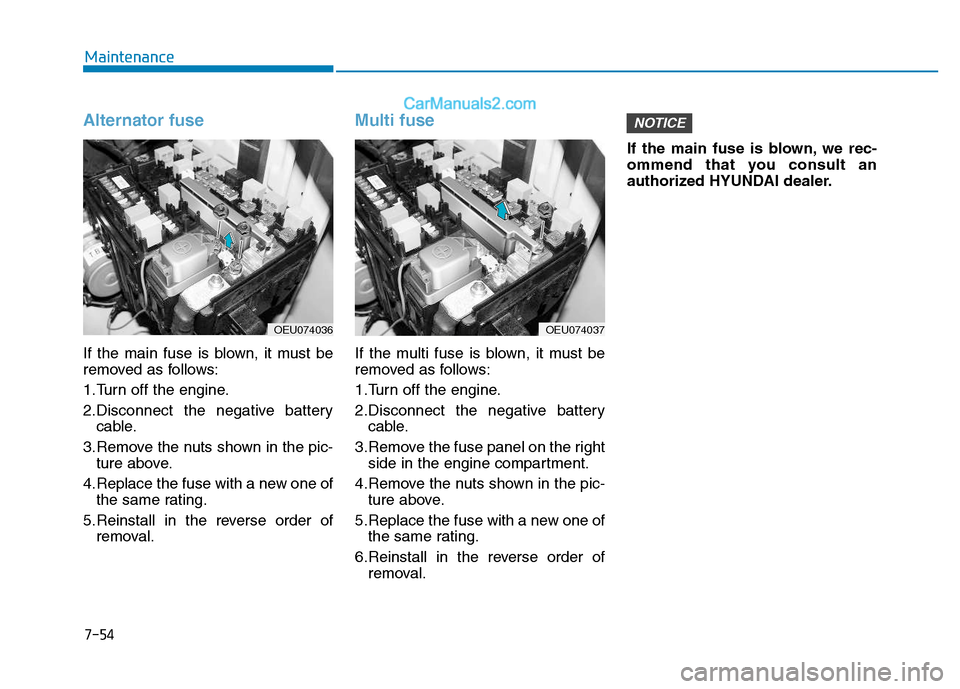

Alternator fuse
If the main fuse is blown, it must be
removed as follows:
1.Turn off the engine.
2.Disconnect the negative batterycable.
3.Remove the nuts shown in the pic- ture above.
4.Replace the fuse with a new one of the same rating.
5.Reinstall in the reverse order of removal.
Multi fuse
If the multi fuse is blown, it must be
removed as follows:
1.Turn off the engine.
2.Disconnect the negative batterycable.
3.Remove the fuse panel on the right side in the engine compartment.
4.Remove the nuts shown in the pic- ture above.
5.Replace the fuse with a new one of the same rating.
6.Reinstall in the reverse order of removal. If the main fuse is blown, we rec-
ommend that you consult an
authorized HYUNDAI dealer.
NOTICE
OEU074036OEU074037

7-55
7
Maintenance
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at thetime of printing.
When you inspect the fuse box on
your vehicle, refer to the fuse boxlabel.
NOTICE
■Inner fuse box (Driver’s seat side)
OEU074059/OEU074060/OEU074058/OEU074039
■
Inner fuse box (Instrument panel)
■Main fuse box
■Battery fuse box

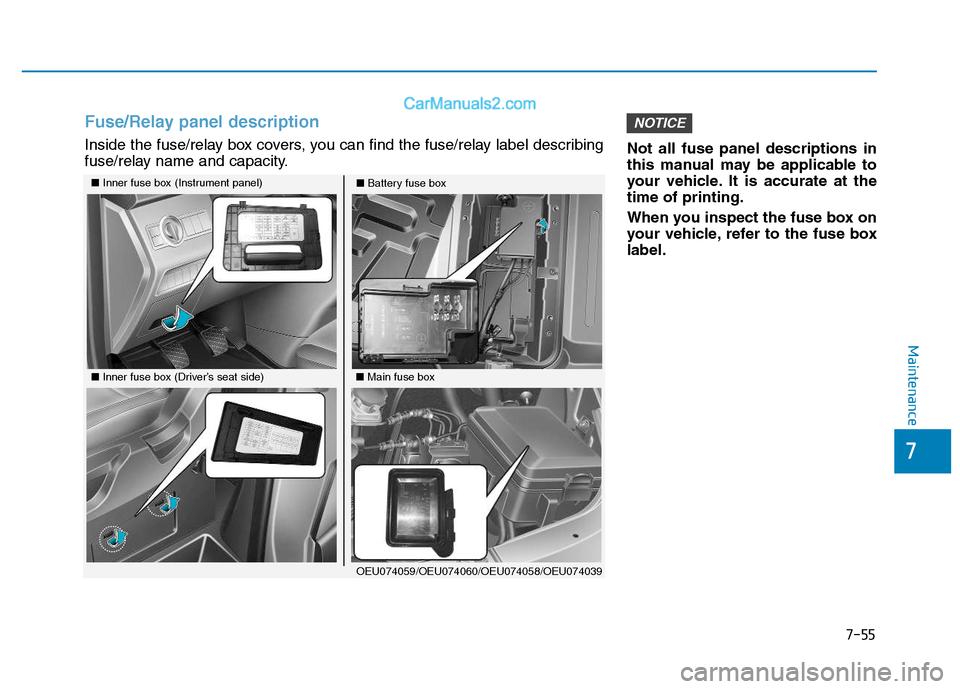

Fuse/Relay panel description
Inside the fuse/relay box covers, you can find the fuse/relay label describing
fuse/relay name and capacity.

7-56
Maintenance

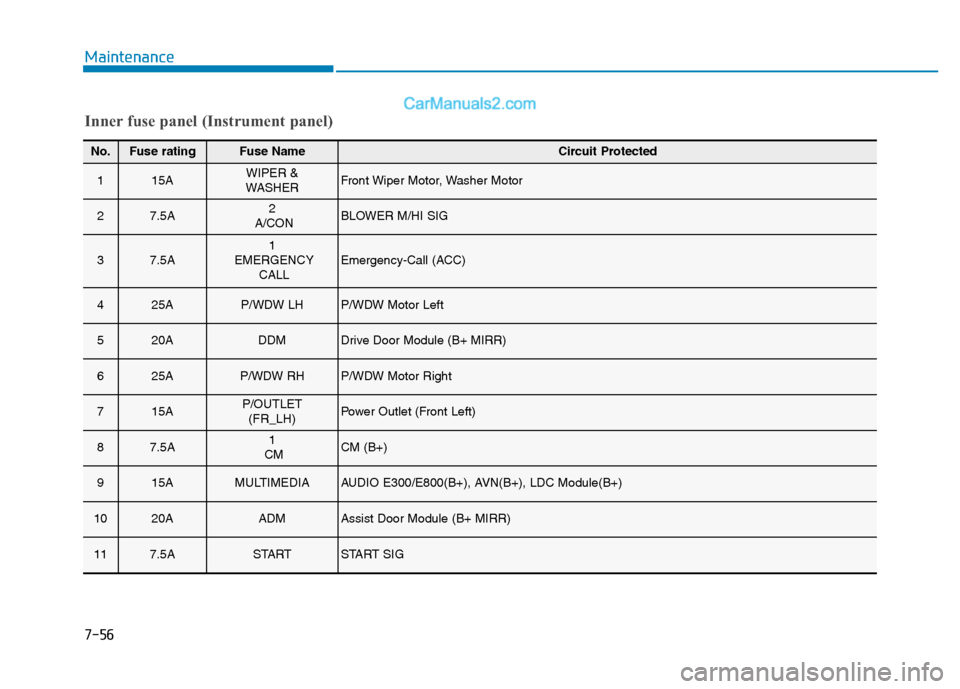

Inner fuse panel (Instrument panel)
No.Fuse ratingFuse NameCircuit Protected
115AWIPER &
WASHERFront Wiper Motor, Washer Motor
27.5A2
A/CONBLOWER M/HI SIG
37.5A1
EMERGENCY CALLEmergency-Call (ACC)
425AP/WDW LHP/WDW Motor Left
520ADDMDrive Door Module (B+ MIRR)
625AP/WDW RHP/WDW Motor Right
715AP/OUTLET(FR_LH)Power Outlet (Front Left)
87.5A1
CMCM (B+)
915AMULTIMEDIAAUDIO E300/E800(B+), AVN(B+), LDC Module(B+)
1020AADMAssist Door Module (B+ MIRR)
117.5ASTARTSTART SIG

7-57
7
Maintenance

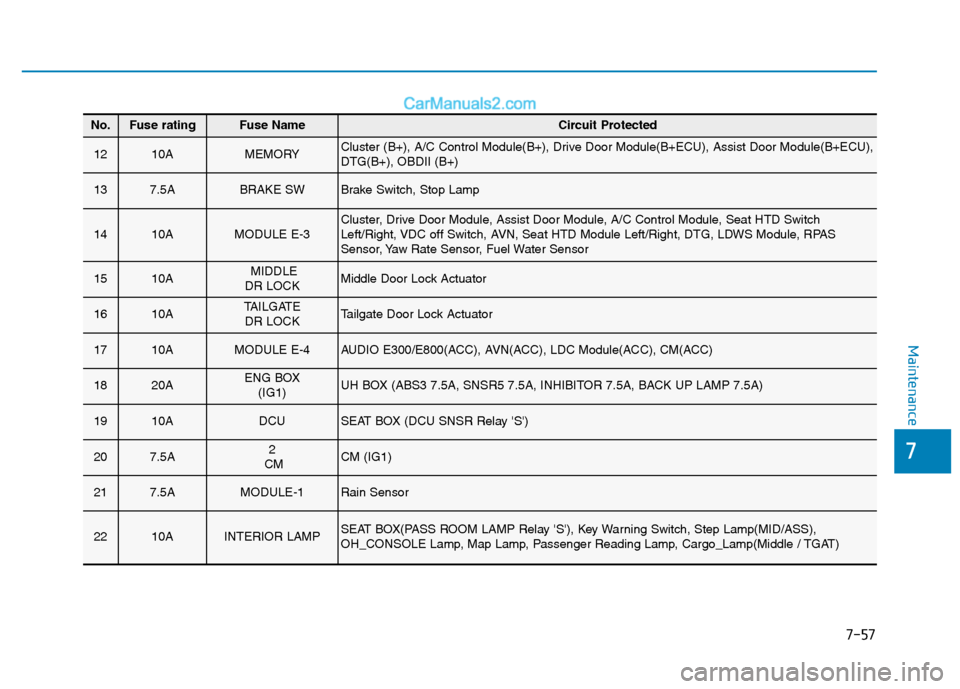

No.Fuse ratingFuse NameCircuit Protected
1210AMEMORYCluster (B+), A/C Control Module(B+), Drive Door Module(B+ECU), Assist Door Module(B+ECU), DTG(B+), OBDII (B+)
137.5ABRAKE SWBrake Switch, Stop Lamp
1410AMODULE E-3Cluster, Drive Door Module, Assist Door Module, A/C Control Module, Seat HTD Switch
Left/Right, VDC off Switch, AVN, Seat HTD Module Left/Right, DTG, LDWS Module, RPAS
Sensor, Yaw Rate Sensor, Fuel Water Sensor
1510AMIDDLE
DR LOCKMiddle Door Lock Actuator
1610ATAILGATE DR LOCKTailgate Door Lock Actuator
1710AMODULE E-4AUDIO E300/E800(ACC), AVN(ACC), LDC Module(ACC), CM(ACC)
1820AENG BOX (IG1)UH BOX (ABS3 7.5A, SNSR5 7.5A, INHIBITOR 7.5A, BACK UP LAMP 7.5A)
1910ADCUSEAT BOX (DCU SNSR Relay 'S')
207.5A2
CMCM (IG1)
217.5AMODULE-1Rain Sensor
2210AINTERIOR LAMPSEAT BOX(PASS ROOM LAMP Relay 'S'), Key Warning Switch, Step Lamp(MID/ASS),
OH_CONSOLE Lamp, Map Lamp, Passenger Reading Lamp, Cargo_Lamp(Middle / TGAT)
