Hyundai H350 2015 Owner's Manual

7-58
Maintenance

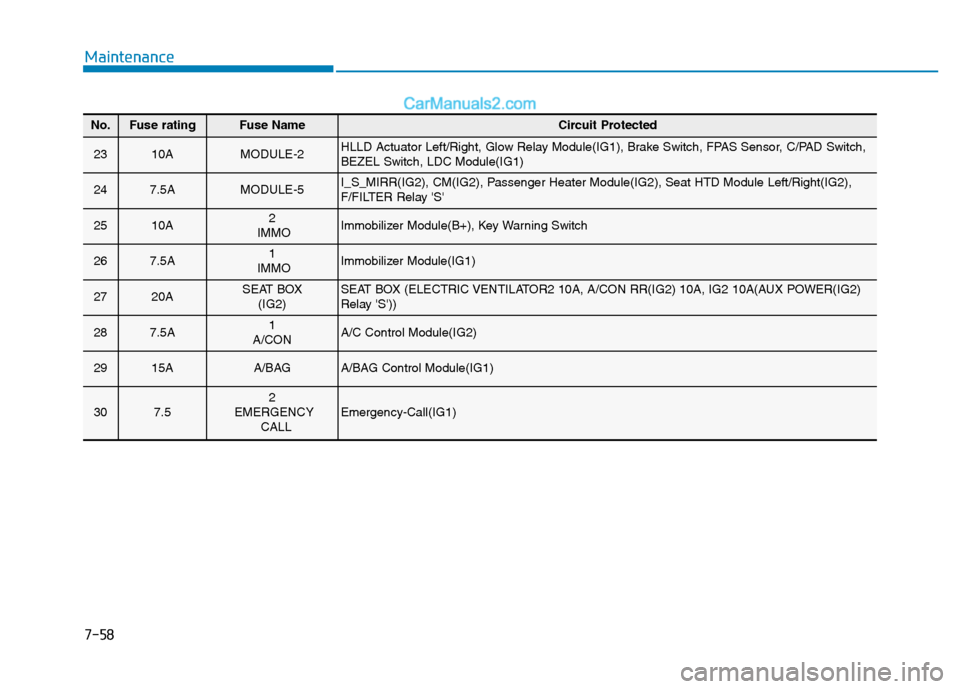

No.Fuse ratingFuse NameCircuit Protected
2310AMODULE-2HLLD Actuator Left/Right, Glow Relay Module(IG1), Brake Switch, FPAS Sensor, C/PAD Switch, BEZEL Switch, LDC Module(IG1)
247.5AMODULE-5I_S_MIRR(IG2), CM(IG2), Passenger Heater Module(IG2), Seat HTD Module Left/Right(IG2),
F/FILTER Relay 'S'
2510A2
IMMOImmobilizer Module(B+), Key Warning Switch
267.5A1
IMMOImmobilizer Module(IG1)
2720ASEAT BOX (IG2)SEAT BOX (ELECTRIC VENTILATOR2 10A, A/CON RR(IG2) 10A, IG2 10A(AUX POWER(IG2)
Relay 'S'))
287.5A1
A/CONA/C Control Module(IG2)
2915AA/BAGA/BAG Control Module(IG1)
307.52
EMERGENCY CALLEmergency-Call(IG1)

7-59
7
Maintenance

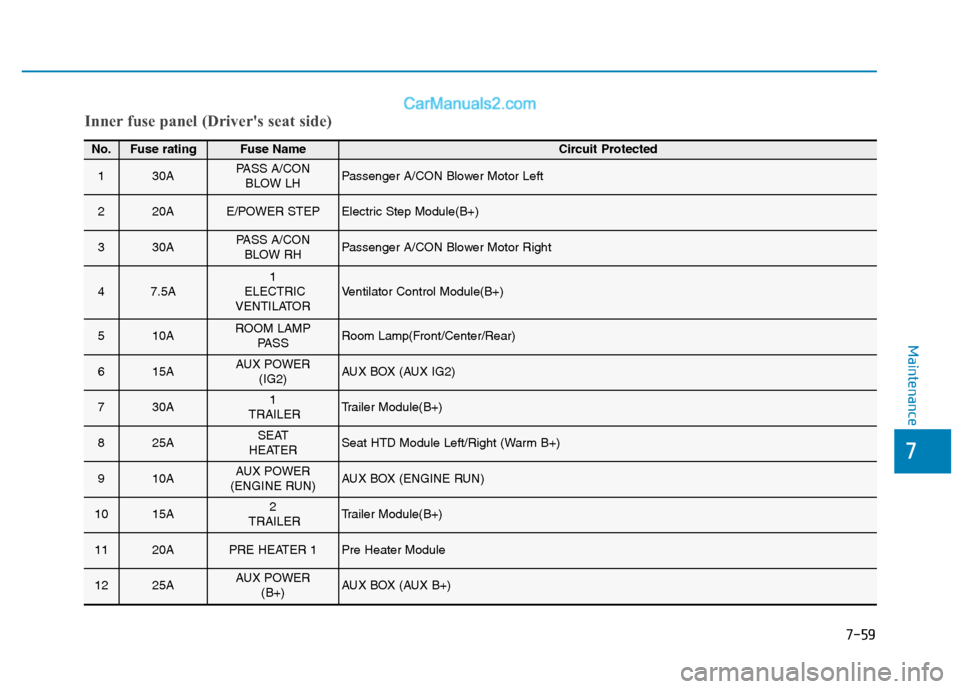

Inner fuse panel (Driver's seat side)
No.Fuse ratingFuse Name Circuit Protected
130APASS A/CONBLOW LHPassenger A/CON Blower Motor Left
220AE/POWER STEPElectric Step Module(B+)
330APASS A/CONBLOW RHPassenger A/CON Blower Motor Right
47.5A1
ELECTRIC
VENTILATORVentilator Control Module(B+)
510AROOM LAMP PASSRoom Lamp(Front/Center/Rear)
615AAUX POWER (IG2)AUX BOX (AUX IG2)
730A1
TRAILERTrailer Module(B+)
825ASEAT
HEATERSeat HTD Module Left/Right (Warm B+)
910AAUX POWER
(ENGINE RUN)AUX BOX (ENGINE RUN)
1015A2
TRAILERTrailer Module(B+)
1120APRE HEATER 1Pre Heater Module
1225AAUX POWER (B+)AUX BOX (AUX B+)

7-60
Maintenance

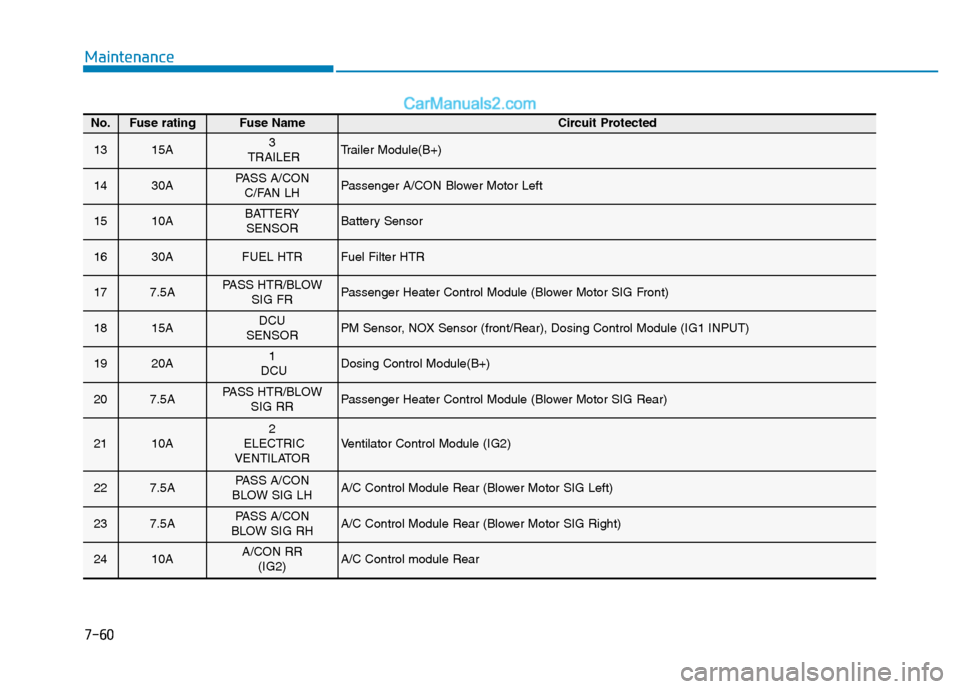

No.Fuse ratingFuse Name Circuit Protected
1315A3
TRAILERTrailer Module(B+)
1430APASS A/CON C/FAN LHPassenger A/CON Blower Motor Left
1510ABATTERYSENSORBattery Sensor
1630AFUEL HTRFuel Filter HTR
177.5APASS HTR/BLOW SIG FRPassenger Heater Control Module (Blower Motor SIG Front)
1815ADCU
SENSORPM Sensor, NOX Sensor (front/Rear), Dosing Control Module (IG1 INPUT)
1920A1
DCUDosing Control Module(B+)
207.5APASS HTR/BLOW SIG RRPassenger Heater Control Module (Blower Motor SIG Rear)
2110A2
ELECTRIC
VENTILATORVentilator Control Module (IG2)
227.5APASS A/CON
BLOW SIG LHA/C Control Module Rear (Blower Motor SIG Left)
237.5APASS A/CON
BLOW SIG RHA/C Control Module Rear (Blower Motor SIG Right)
2410AA/CON RR (IG2)A/C Control module Rear

7-61
7
Maintenance
No.Fuse ratingFuse Name Circuit Protected
2520A2
DCUDosing Control Module(B+)
2620A3
DCUDosing Control Module(B+)
2710AIG2Electric Step Module, SEAT BOX(AUX POWER (IG2) Relay 'S')
2830APASS A/CON C/FAN RHPassenger A/CON Blower Motor Right
2925APASS HTR FRTPassenger Heater Blower Motor Front
3025APASS HTR RRPassenger Heater Blower Motor Rear

7-62
Maintenance

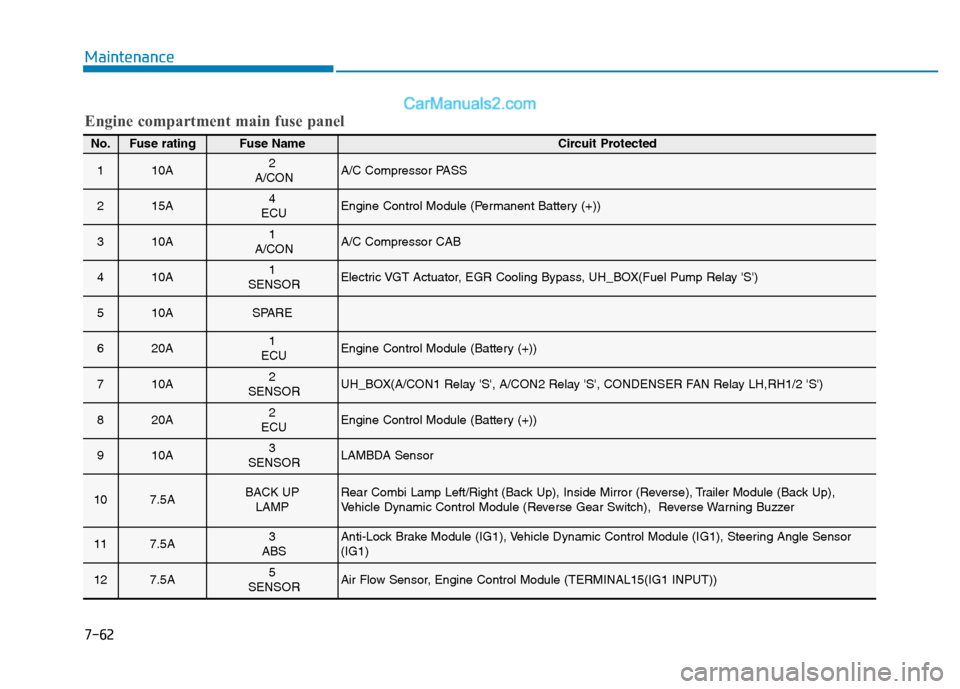

Engine compartment main fuse panel
No.Fuse ratingFuse Name Circuit Protected
110A2
A/CONA/C Compressor PASS
215A4
ECUEngine Control Module (Permanent Battery (+))
310A1
A/CONA/C Compressor CAB
410A1
SENSORElectric VGT Actuator, EGR Cooling Bypass, UH_BOX(Fuel Pump Relay 'S')
510ASPARE
620A1
ECUEngine Control Module (Battery (+))
710A2
SENSORUH_BOX(A/CON1 Relay 'S', A/CON2 Relay 'S', CONDENSER FAN Relay LH,RH1/2 'S')
820A2
ECUEngine Control Module (Battery (+))
910A3
SENSORLAMBDA Sensor
107.5ABACK UP LAMPRear Combi Lamp Left/Right (Back Up), Inside Mirror (Reverse), Trailer Module (Back Up),
Vehicle Dynamic Control Module (Reverse Gear Switch), Reverse Warning Buzzer
117.5A3
ABSAnti-Lock Brake Module (IG1), Vehicle Dynamic Control Module (IG1), Steering Angle Sensor (IG1)
127.5A5
SENSORAir Flow Sensor, Engine Control Module (TERMINAL15(IG1 INPUT))

7-63
7
Maintenance

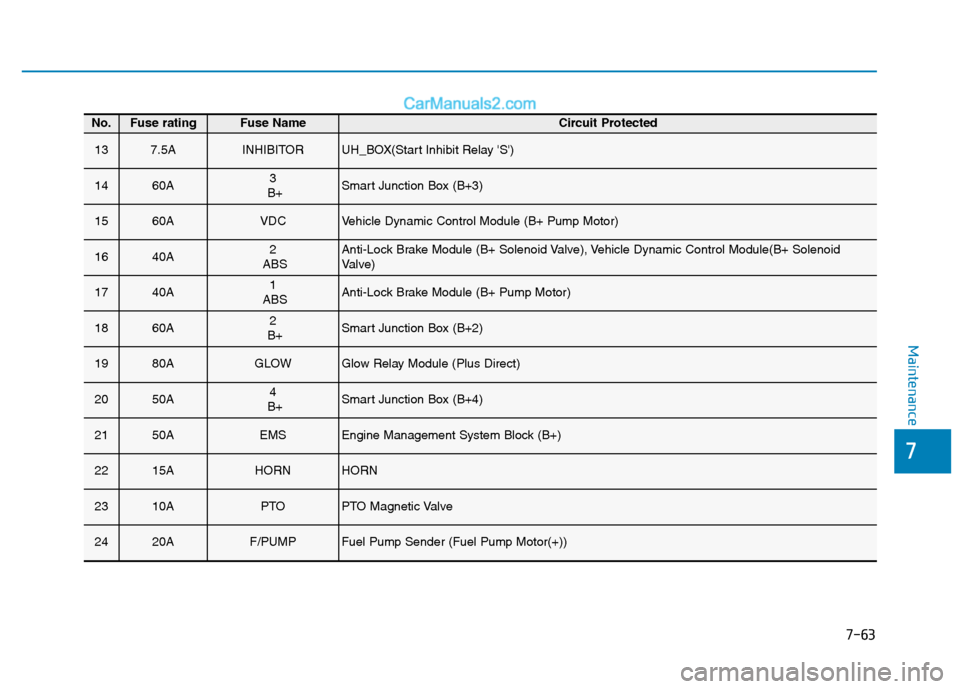

No.Fuse ratingFuse Name Circuit Protected
137.5AINHIBITORUH_BOX(Start Inhibit Relay 'S')
1460A3
B+Smart Junction Box (B+3)
1560AVDCVehicle Dynamic Control Module (B+ Pump Motor)
1640A2
ABSAnti-Lock Brake Module (B+ Solenoid Valve), Vehicle Dynamic Control Module(B+ Solenoid
Valve)
1740A1
ABSAnti-Lock Brake Module (B+ Pump Motor)
1860A2
B+Smart Junction Box (B+2)
1980AGLOWGlow Relay Module (Plus Direct)
2050A4
B+Smart Junction Box (B+4)
2150AEMSEngine Management System Block (B+)
2215AHORNHORN
2310APTOPTO Magnetic Valve
2420AF/PUMPFuel Pump Sender (Fuel Pump Motor(+))

7-64
Maintenance

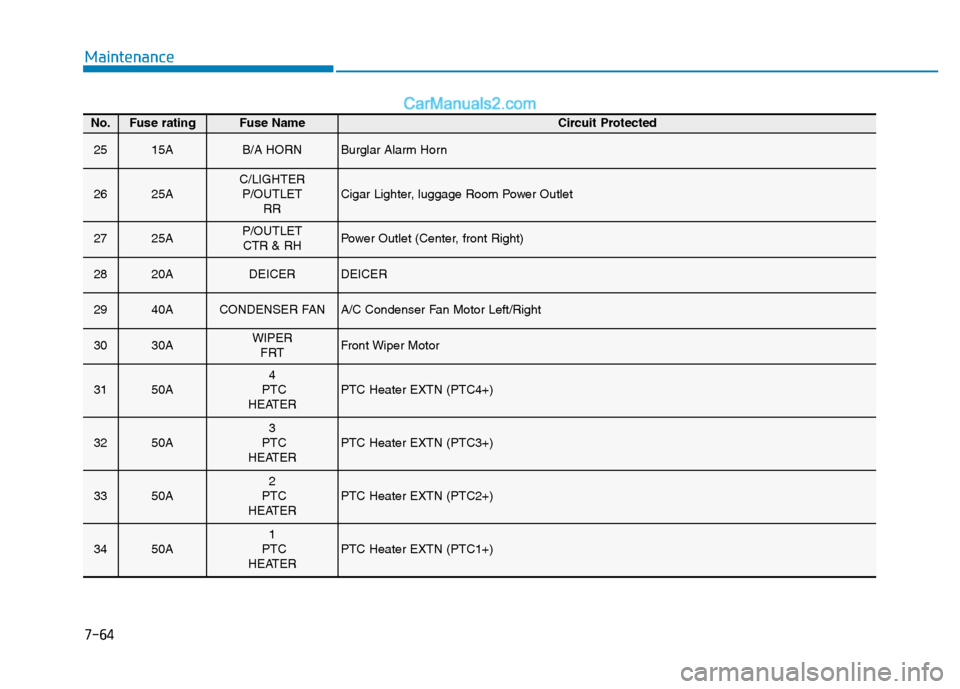

No.Fuse ratingFuse Name Circuit Protected
2515AB/A HORNBurglar Alarm Horn
2625AC/LIGHTERP/OUTLET RRCigar Lighter, luggage Room Power Outlet
2725AP/OUTLETCTR & RHPower Outlet (Center, front Right)
2820ADEICERDEICER
2940ACONDENSER FANA/C Condenser Fan Motor Left/Right
3030AWIPER FRTFront Wiper Motor
3150A4
PTC
HEATERPTC Heater EXTN (PTC4+)
3250A3
PTC
HEATERPTC Heater EXTN (PTC3+)
3350A2
PTC
HEATERPTC Heater EXTN (PTC2+)
3450A1
PTC
HEATERPTC Heater EXTN (PTC1+)

7-65
7
Maintenance

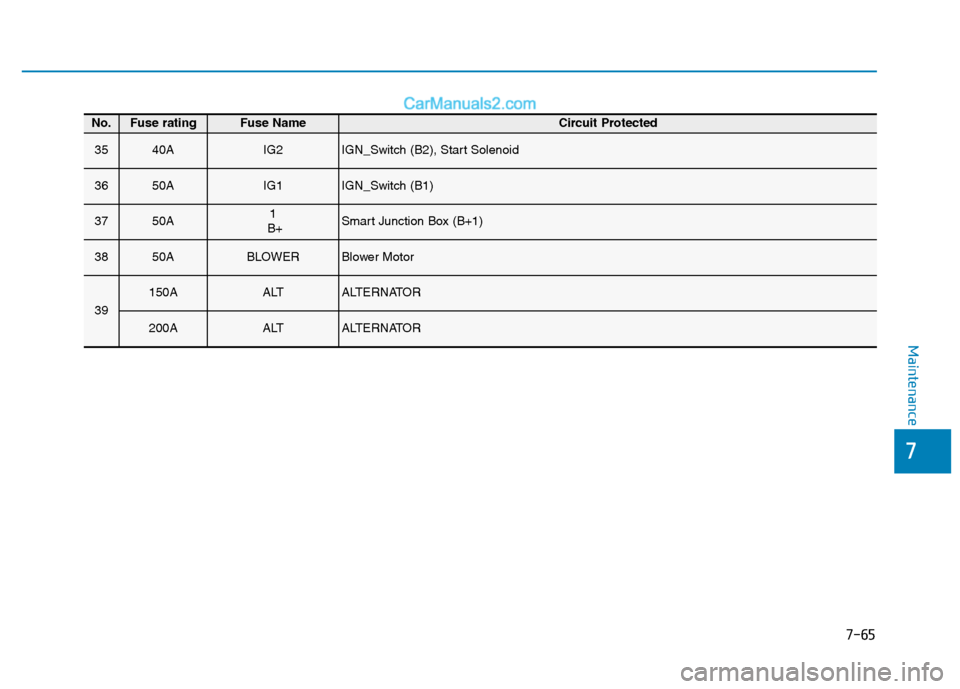

No.Fuse ratingFuse Name Circuit Protected
3540AIG2IGN_Switch (B2), Start Solenoid
3650AIG1IGN_Switch (B1)
3750A1
B+Smart Junction Box (B+1)
3850ABLOWERBlower Motor
39
150AALTALTERNATOR
200AALTALTERNATOR

7-66
Maintenance

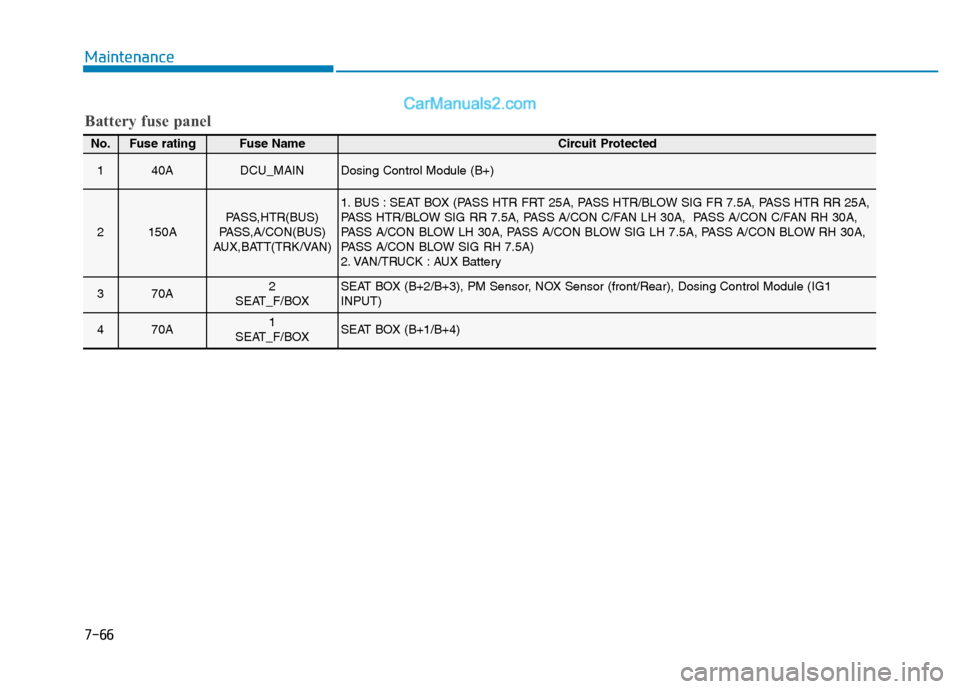

Battery fuse panel
No.Fuse ratingFuse Name Circuit Protected
140ADCU_MAINDosing Control Module (B+)
2150APASS,HTR(BUS)
PASS,A/CON(BUS)
AUX,BATT(TRK/VAN)1. BUS : SEAT BOX (PASS HTR FRT 25A, PASS HTR/BLOW SIG FR 7.5A, PASS HTR RR 25A,
PASS HTR/BLOW SIG RR 7.5A, PASS A/CON C/FAN LH 30A, PASS A/CON C/FAN RH 30A,
PASS A/CON BLOW LH 30A, PASS A/CON BLOW SIG LH 7.5A, PASS A/CON BLOW RH 30A,
PASS A/CON BLOW SIG RH 7.5A)
2. VAN/TRUCK : AUX Battery
370A2
SEAT_F/BOXSEAT BOX (B+2/B+3), PM Sensor, NOX Sensor (front/Rear), Dosing Control Module (IG1 INPUT)
470A1
SEAT_F/BOXSEAT BOX (B+1/B+4)

7-67
7

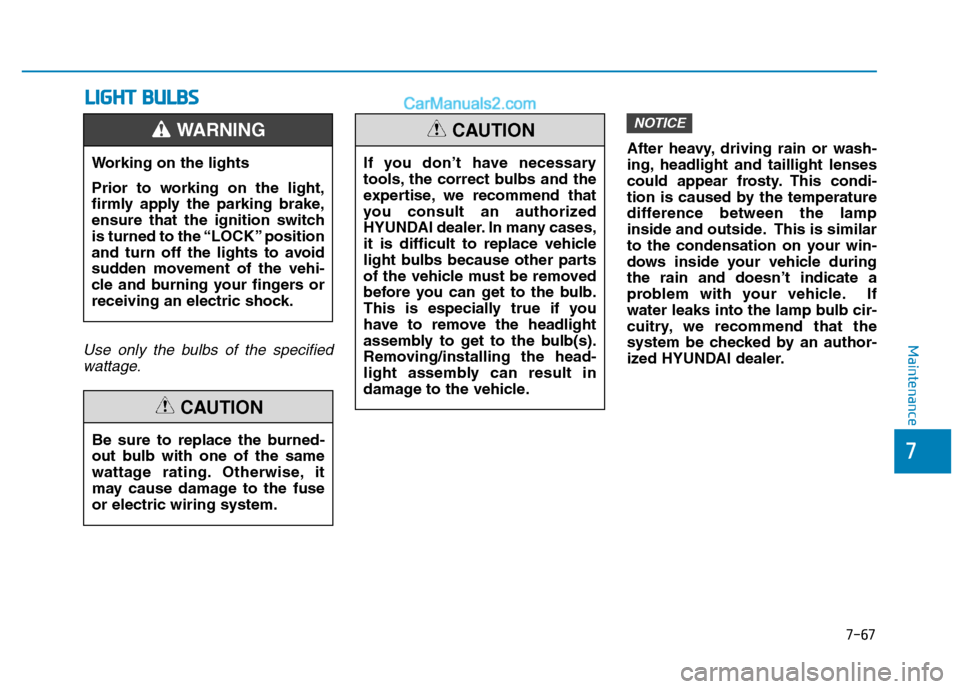

MaintenanceUse only the bulbs of the specifiedwattage.
After heavy, driving rain or wash-
ing, headlight and taillight lenses
could appear frosty. This condi-
tion is caused by the temperature
difference between the lamp
inside and outside. This is similar
to the condensation on your win-
dows inside your vehicle duringthe rain and doesn’t indicate a
problem with your vehicle. If
water leaks into the lamp bulb cir-
cuitry, we recommend that the
system be checked by an author-
ized HYUNDAI dealer.
NOTICE
LL IIGG HH TT BB UU LLBB SS
Working on the lights
Prior to working on the light,
firmly apply the parking brake,
ensure that the ignition switch
is turned to the “LOCK” position
and turn off the lights to avoid
sudden movement of the vehi-
cle and burning your fingers or
receiving an electric shock.
WARNING
Be sure to replace the burned-
out bulb with one of the same
wattage rating. Otherwise, it
may cause damage to the fuseor electric wiring system.
CAUTION
If you don’t have necessary
tools, the correct bulbs and the
expertise, we recommend that
you consult an authorized
HYUNDAI dealer. In many cases,
it is difficult to replace vehicle
light bulbs because other parts
of the vehicle must be removed
before you can get to the bulb.
This is especially true if you
have to remove the headlight
assembly to get to the bulb(s).
Removing/installing the head-
light assembly can result in
damage to the vehicle.
CAUTION
