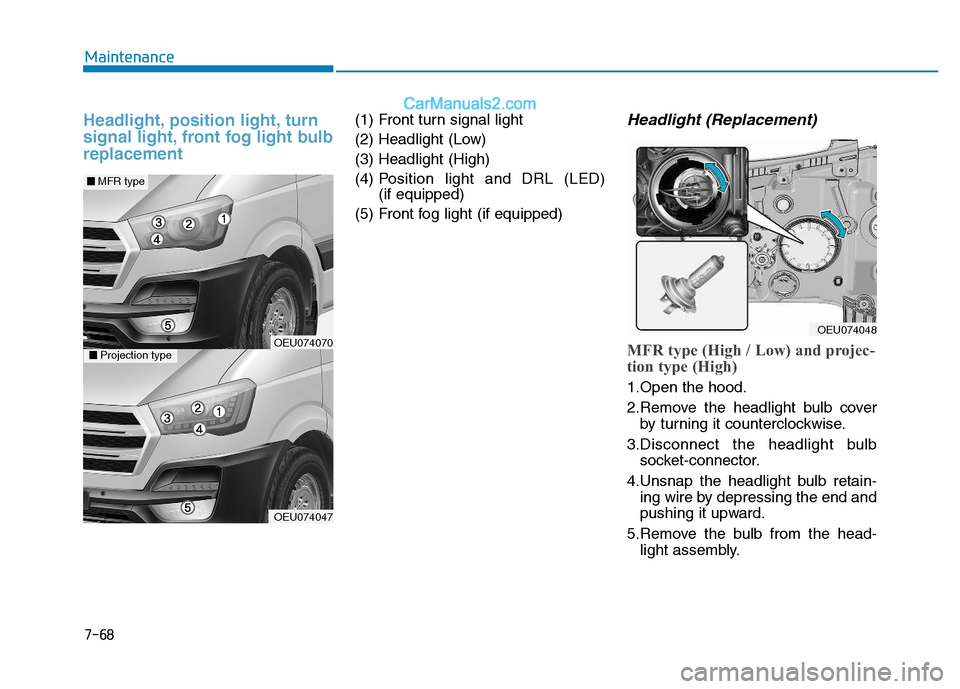

Headlight, position light, turn
signal light, front fog light bulbreplacement(1) Front turn signal light
(2) Headlight (Low)(3) Headlight (High)(4) Position light and DRL (LED)
(if equipped)
(5) Front fog light (if equipped)Headlight (Replacement)
MFR type (High / Low) and projec-
tion type (High)
1.Open the hood.
2.Remove the headlight bulb cover by turning it counterclockwise.
3.Disconnect the headlight bulb socket-connector.
4.Unsnap the headlight bulb retain- ing wire by depressing the end and
pushing it upward.
5.Remove the bulb from the head- light assembly.
OEU074048
OEU074047
OEU074070
■■MFR type
■■Projection type

7-69
7
Maintenance

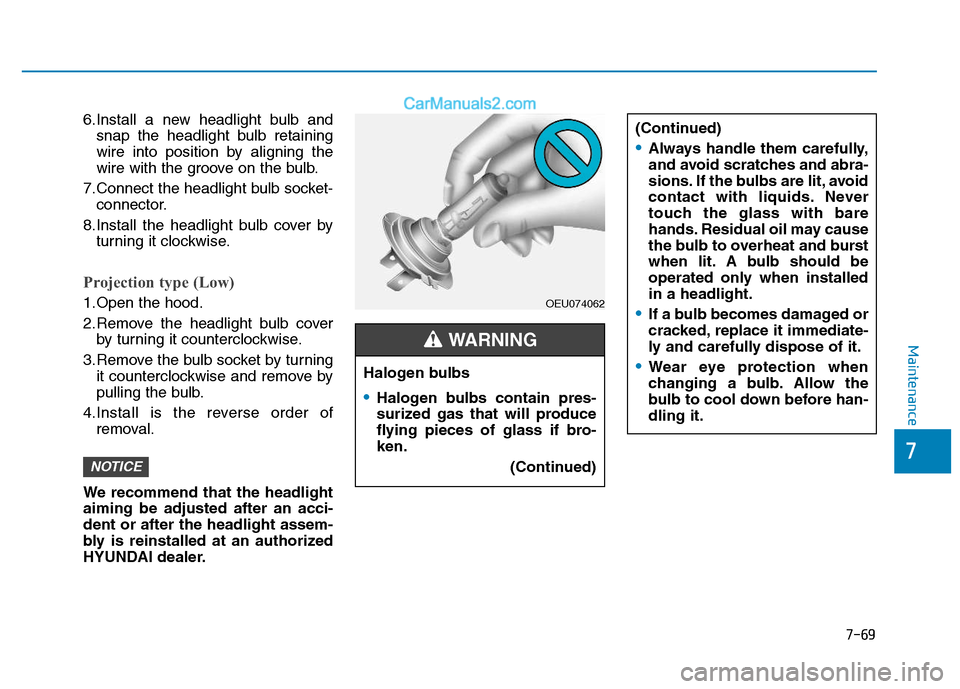

6.Install a new headlight bulb andsnap the headlight bulb retaining
wire into position by aligning the
wire with the groove on the bulb.
7.Connect the headlight bulb socket- connector.
8.Install the headlight bulb cover by turning it clockwise.
Projection type (Low)
1.Open the hood.
2.Remove the headlight bulb coverby turning it counterclockwise.
3.Remove the bulb socket by turning it counterclockwise and remove by
pulling the bulb.
4.Install is the reverse order of removal.
We recommend that the headlightaiming be adjusted after an acci-dent or after the headlight assem-
bly is reinstalled at an authorized
HYUNDAI dealer.
NOTICE
Halogen bulbs
Halogen bulbs contain pres-
surized gas that will produce
flying pieces of glass if bro-ken. (Continued)
(Continued)
Always handle them carefully,
and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never
touch the glass with bare
hands. Residual oil may cause
the bulb to overheat and burst
when lit. A bulb should be
operated only when installedin a headlight.
If a bulb becomes damaged or
cracked, replace it immediate-
ly and carefully dispose of it.
Wear eye protection when
changing a bulb. Allow the
bulb to cool down before han-dling it.
WARNING
OEU074062

7-70
Maintenance

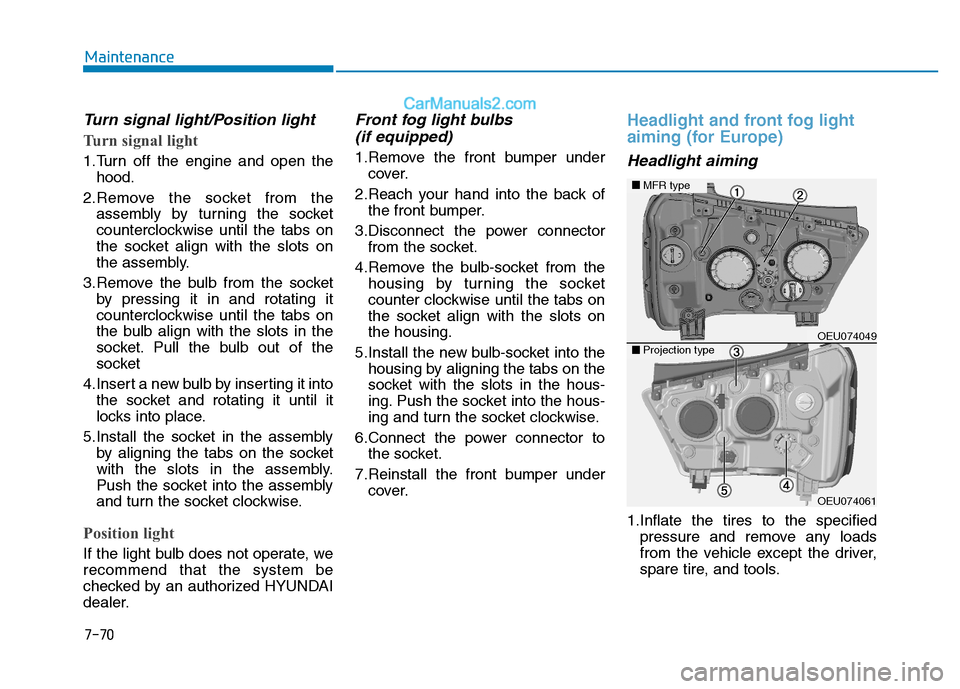

Turn signal light/Position light
Turn signal light
1.Turn off the engine and open thehood.
2.Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
3.Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket
4.Insert a new bulb by inserting it into the socket and rotating it until it
locks into place.
5.Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
Position light
If the light bulb does not operate, we recommend that the system be
checked by an authorized HYUNDAI
dealer.
Front fog light bulbs
(if equipped)
1.Remove the front bumper under cover.
2.Reach your hand into the back of the front bumper.
3.Disconnect the power connector from the socket.
4.Remove the bulb-socket from the housing by turning the socket
counter clockwise until the tabs on
the socket align with the slots onthe housing.
5.Install the new bulb-socket into the housing by aligning the tabs on the
socket with the slots in the hous-
ing. Push the socket into the hous-
ing and turn the socket clockwise.
6.Connect the power connector to the socket.
7.Reinstall the front bumper under cover.
Headlight and front fog light
aiming (for Europe)
Headlight aiming
1.Inflate the tires to the specified
pressure and remove any loads
from the vehicle except the driver,
spare tire, and tools.
OEU074061
OEU074049■■Projection type
■■MFR type

7-71
7
Maintenance

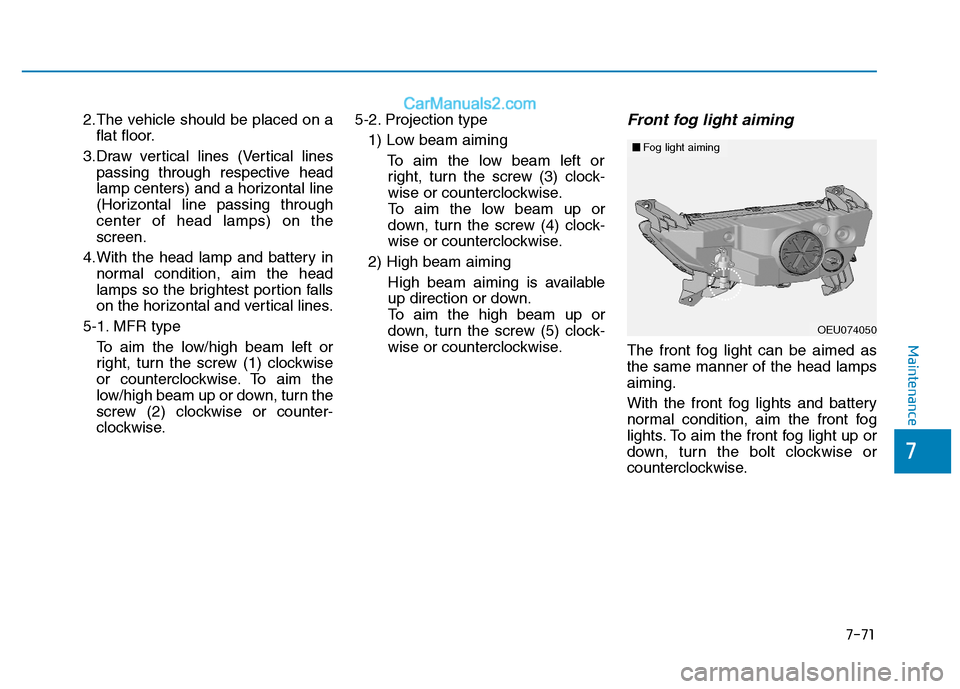

2.The vehicle should be placed on aflat floor.
3.Draw vertical lines (Vertical lines passing through respective head
lamp centers) and a horizontal line
(Horizontal line passing throughcenter of head lamps) on thescreen.
4.With the head lamp and battery in normal condition, aim the head
lamps so the brightest portion falls
on the horizontal and vertical lines.
5-1. MFR type To aim the low/high beam left or
right, turn the screw (1) clockwise
or counterclockwise. To aim the
low/high beam up or down, turn the
screw (2) clockwise or counter-
clockwise. 5-2. Projection type
1) Low beam aiming
To aim the low beam left orright, turn the screw (3) clock-
wise or counterclockwise.
To aim the low beam up or
down, turn the screw (4) clock-
wise or counterclockwise.
2) High beam aiming High beam aiming is available
up direction or down.
To aim the high beam up or
down, turn the screw (5) clock-
wise or counterclockwise.Front fog light aiming
The front fog light can be aimed asthe same manner of the head lampsaiming.
With the front fog lights and battery
normal condition, aim the front fog
lights. To aim the front fog light up or
down, turn the bolt clockwise or
counterclockwise.
OEU074050
■■Fog light aiming

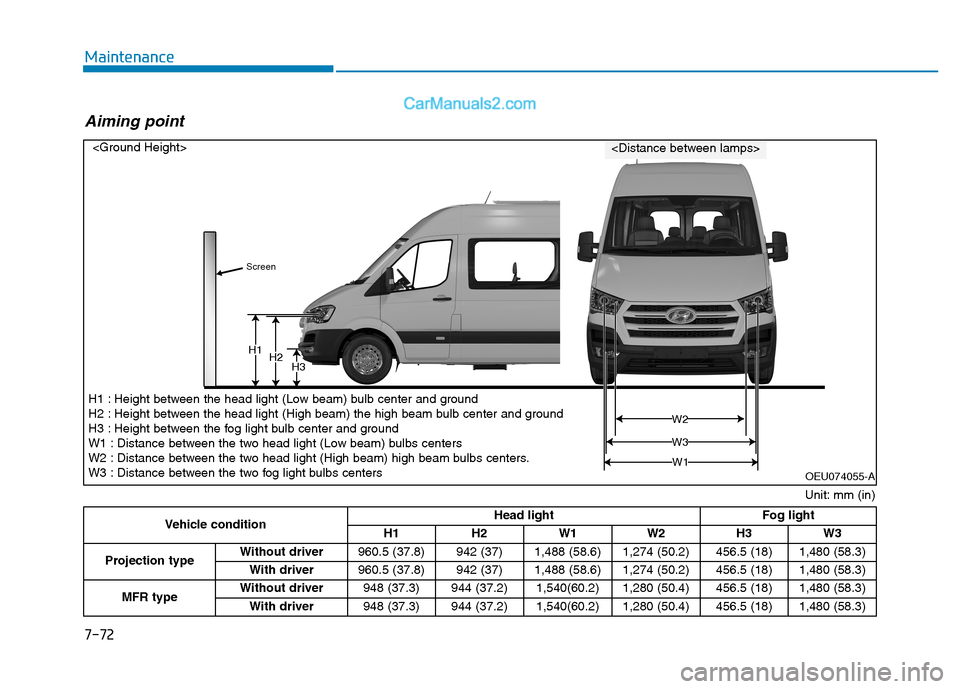

7-72
Maintenance
H1H2H3
W1
W 3
W2
Vehicle condition Head light
Fog light
H1 H2 W1 W2 H3 W3
Projection type Without driver
960.5 (37.8) 942 (37) 1,488 (58.6) 1,274 (50.2) 456.5 (18) 1,480 (58.3)
With driver 960.5 (37.8) 942 (37) 1,488 (58.6) 1,274 (50.2) 456.5 (18) 1,480 (58.3)
MFR type Without driver
948 (37.3) 944 (37.2) 1,540(60.2) 1,280 (50.4) 456.5 (18) 1,480 (58.3)
With driver 948 (37.3) 944 (37.2) 1,540(60.2) 1,280 (50.4) 456.5 (18) 1,480 (58.3)
Unit: mm (in)


H1 : Height between the head light (Low beam) bulb center and ground
H2 : Height between the head light (High beam) the high beam bulb center and ground
H3 : Height between the fog light bulb center and ground
W1 : Distance between the two head light (Low beam) bulbs centers
W2 : Distance between the two head light (High beam) high beam bulbs centers.
W3 : Distance between the two fog light bulbs centers
Aiming point
OEU074055-A

7-73
7
Maintenance

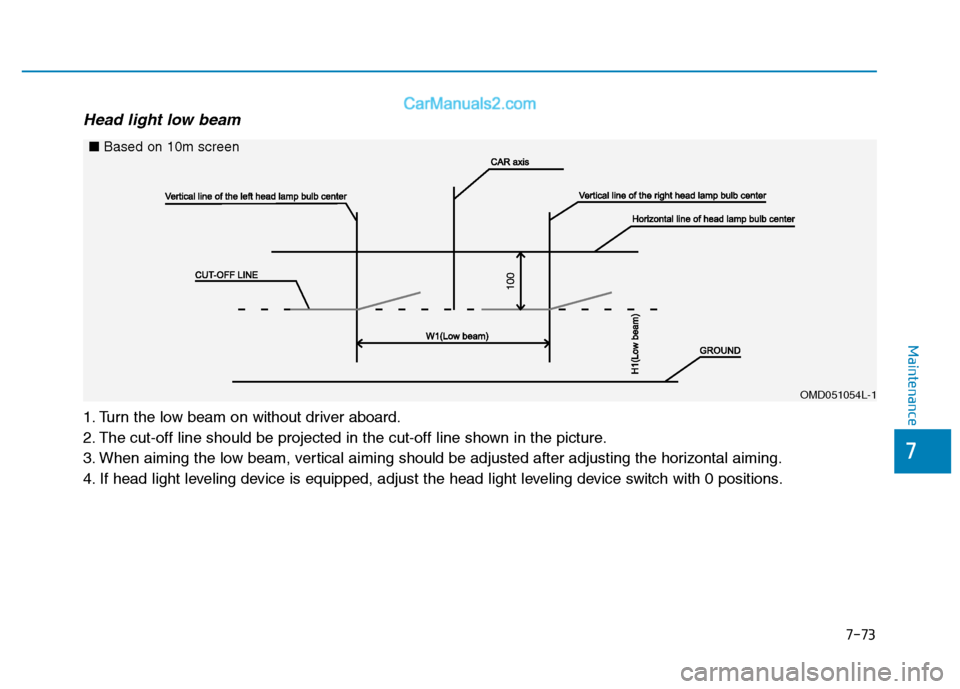

Head light low beam
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If head light leveling device is equipped, adjust the head light leveling device switch with 0 positions.
OMD051054L-1
■
Based on 10m screen

7-74
Maintenance

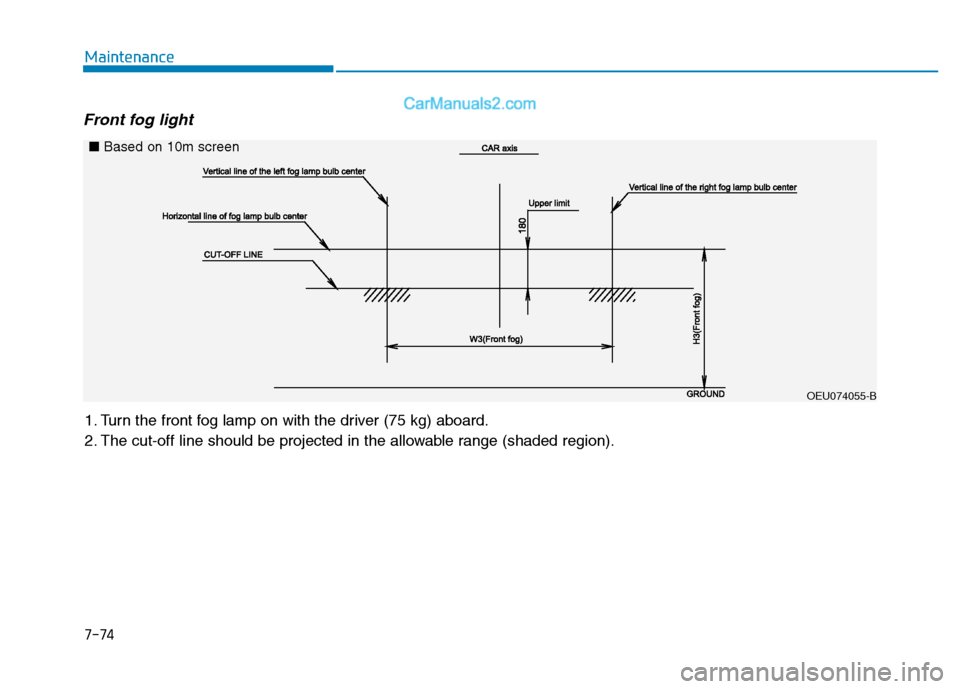

Front fog light
1. Turn the front fog lamp on with the driver (75 kg) aboard.
2. The cut-off line should be projected in the allowable range (shaded region).
OEU074055-B
■
Based on 10m screen

7-75
7
Maintenance
Side marker lamp
1.To remove the lamp, pry the lampwith a flat-tip screwdriver and push
it rearward.
2.Disconnect the wiring connector, and remove the bulb by turning the
bulb socket counterclockwise.
3.To install the bulb, reverse the removal procedure.

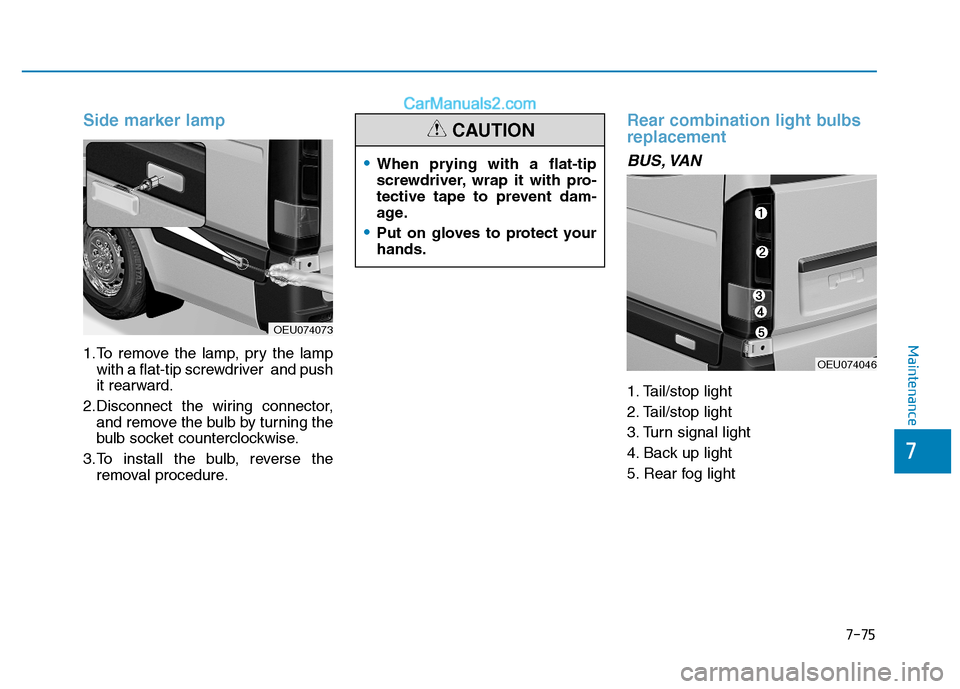

Rear combination light bulbs replacement
BUS, VAN
1. Tail/stop light
2. Tail/stop light
3. Turn signal light
4. Back up light
5. Rear fog light
OEU074046
OEU074073
When prying with a flat-tip
screwdriver, wrap it with pro-
tective tape to prevent dam-
age.
Put on gloves to protect your hands.
CAUTION

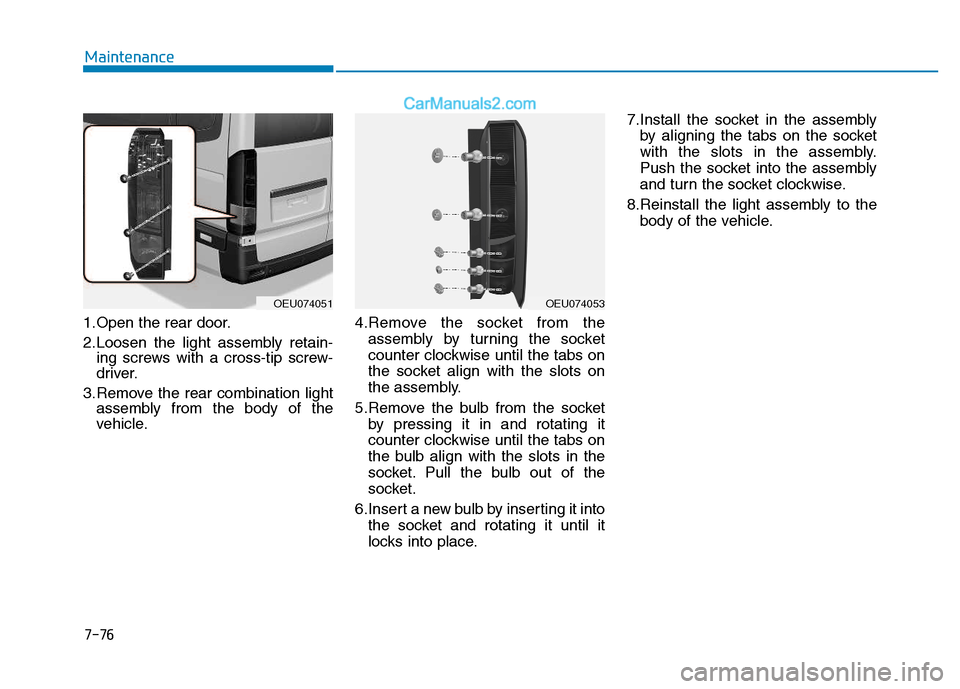

1.Open the rear door.
2.Loosen the light assembly retain-ing screws with a cross-tip screw-
driver.
3.Remove the rear combination light assembly from the body of the
vehicle. 4.Remove the socket from the
assembly by turning the socket
counter clockwise until the tabs on
the socket align with the slots on
the assembly.
5.Remove the bulb from the socket by pressing it in and rotating it
counter clockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
6.Insert a new bulb by inserting it into the socket and rotating it until it
locks into place. 7.Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
8.Reinstall the light assembly to the body of the vehicle.
7-76
Maintenance
OEU074053OEU074051

7-77
7
Maintenance

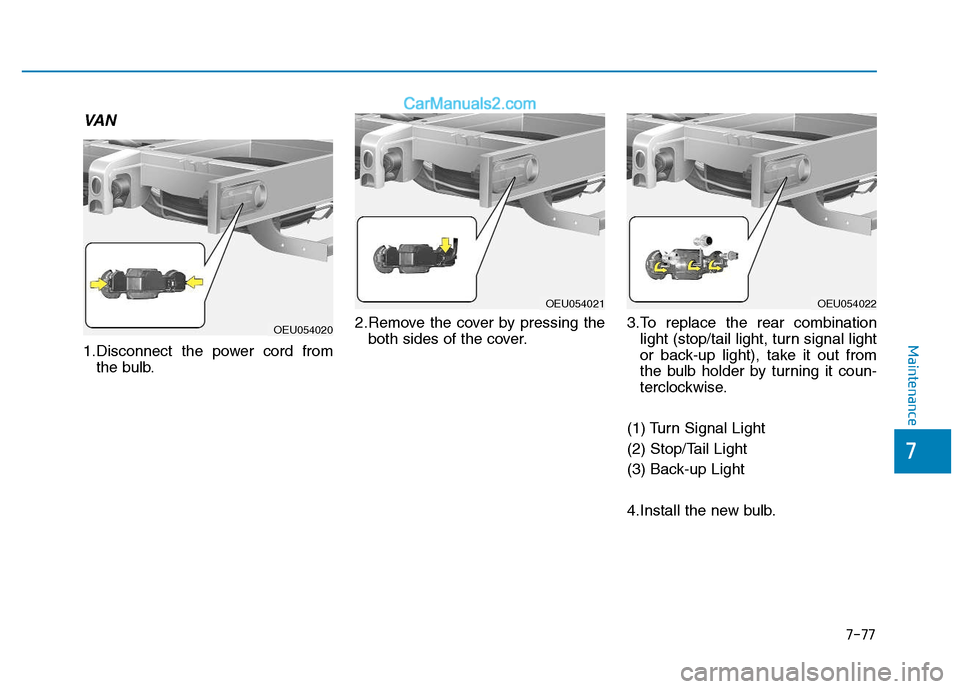

VA N
1.Disconnect the power cord fromthe bulb. 2.Remove the cover by pressing the
both sides of the cover. 3.To replace the rear combination
light (stop/tail light, turn signal light
or back-up light), take it out from
the bulb holder by turning it coun-
terclockwise.
(1) Turn Signal Light
(2) Stop/Tail Light
(3) Back-up Light
4.Install the new bulb.
OEU054020
OEU054021OEU054022
