Instrument cluster
Door, Bonnet, Tailgate open
indicator
OAC3079037R
This warning is displayed indicating
which door, bonnet, or tailgate is
open.
CAUTION
Before driving the vehicle, you
should confirm that the door/ bon-
net/tailgate is fully closed. Also,
check there is no door/bonnet/tail-
gate open warning light or mes-
sage displayed on the instrument
cluster.
Turn on FUSE SWITCH
This warning message is displayed if
the fuse switch located on the fuse
box under the steering wheel is OFF.
You should turn the fuse switch on.
For more details, refer to “Fuses”
in chapter 8.

4-23
04

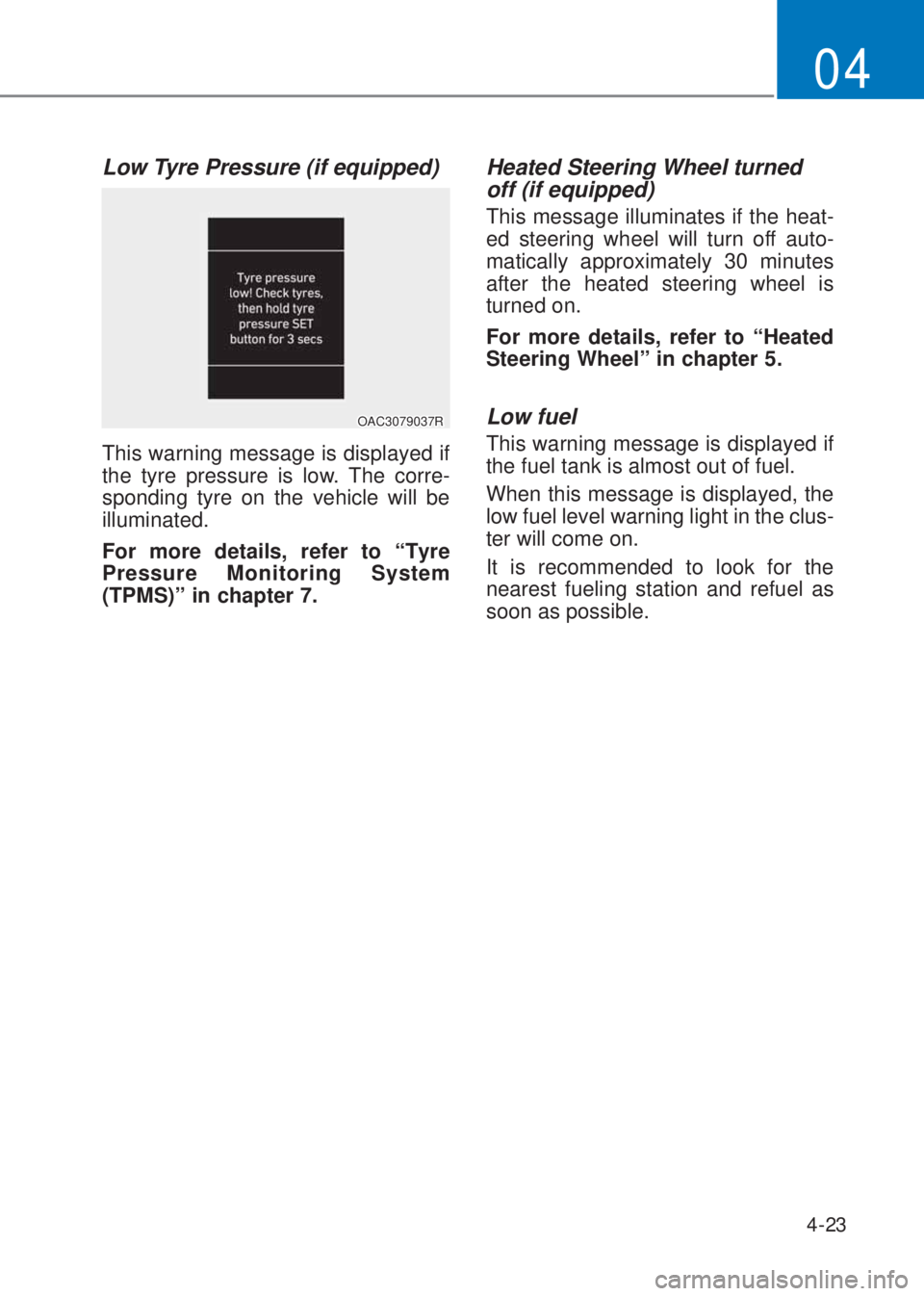

Low Tyre Pressure (if equipped)
OAC3079037R
This warning message is displayed if
the tyre pressure is low. The corre-
sponding tyre on the vehicle will be
illuminated.
For more details, refer to “Tyre
Pressure Monitoring System
(TPMS)” in chapter 7.
Heated Steering Wheel turned
off (if equipped)
This message illuminates if the heat-
ed steering wheel will turn off auto-
matically approximately 30 minutes
after the heated steering wheel is
turned on.
For more details, refer to “Heated
Steering Wheel” in chapter 5.
Low fuel
This warning message is displayed if
the fuel tank is almost out of fuel.
When this message is displayed, the
low fuel level warning light in the clus-
ter will come on.
It is recommended to look for the
nearest fueling station and refuel as
soon as possible.

4-24
Instrument cluster
Low engine oil (if equipped)
This warning message is displayed
when the engine oil level should be
checked.
If this warning message is displayed,
check the engine oil level as soon as
possible and add engine oil as
required.
Slowly pour the recommended oil lit-
tle by little into a funnel. (Oil refill
capacity : approximately 0.15 ~ 0.26
gal. (0.6 ~ 1.0 l)
Use only the specified engine oil.
(Refer to "Recommended lubricants
and capacities" in chapter 8.)
Do not overfill the engine oil. Make
sure the oil level is not above F (Full)
mark on the dipstick.
NOTICE
If the message is displayed contin-
uously after adding the engine oil
and travelling approximately
50~100 km after the engine warms
up, we recommend that the system
be checked by a HYUNDAI autho-
rised repairer.
Engine has overheated
(if equipped)
This warning message is displayed
when the engine coolant temperature
is above 120°C (248°F). This means
that the engine is overheated and
may be damaged.
If your vehicle is overheated, refer
to “Overheating” in chapter 7.
Check headlight (if equipped)
This warning message is displayed if
the headlamps are not operating
properly.
In addition, if a specific lamp(turn sig-
nal lamp etc.) is not operating proper-
ly, the warning message according to
a specific lamp (turn signal lamp etc.)
is displayed. A corresponding bulb
may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same watt-
age rating.
Check brake light (if equipped)
This warning message is displayed if
the stop lamps are not operating
properly. A lamp may need to be
replaced.
Make sure to replace the burned out
bulb with a new one of the same watt-
age rating.

4-25
04
Check HBA (High Beam Assist)
system (if equipped)
This warning message is displayed if
there is a problem with the High Beam
Assist system. We recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
For more details, refer to “High
Beam Assist (HBA)” in chapter 5.
Check forward safety systems
(if equipped)
This warning message is displayed if
there is a problem with Forward
Collision-Avoidance Assist system.
We recommend that you have the
vehicle inspected by a HYUNDAI
authorised repairer.
For more details, refer to “Forward
Collision-Avoidance Assist (FCA)”
in chapter 6.
Check DAW (Driver Attention
Warning) system (if equipped)
This warning message is displayed if
there is a problem with Driver
Attention Warning system. We rec-
ommend that you have the vehicle
inspected by a HYUNDAI authorised
repairer.
For more details, refer to “Driver
Attention Warning (DAW)” in chap-
ter 6.
Check LKA (Lane Keeping
Assist) system (if equipped)
This warning message is displayed if
there is a problem with Lane Keeping
Assist system. We recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
For more details, refer to “Lane
Keeping Assist (LKA)” in chapter
6.
Check exhaust system
(if equipped)
This warning message illuminates if
the GPF system has a malfunction.
At this time, GPF warning light also
blinks.
In this case, we recommend that you
have the GPF system checked by a
HYUNDAI authorised repairer.
GPF : Petrol Particulate Filter
For more details, refer to "Warning
lights" in this chapter.

4-26
Instrument cluster
LCD DISPLAY

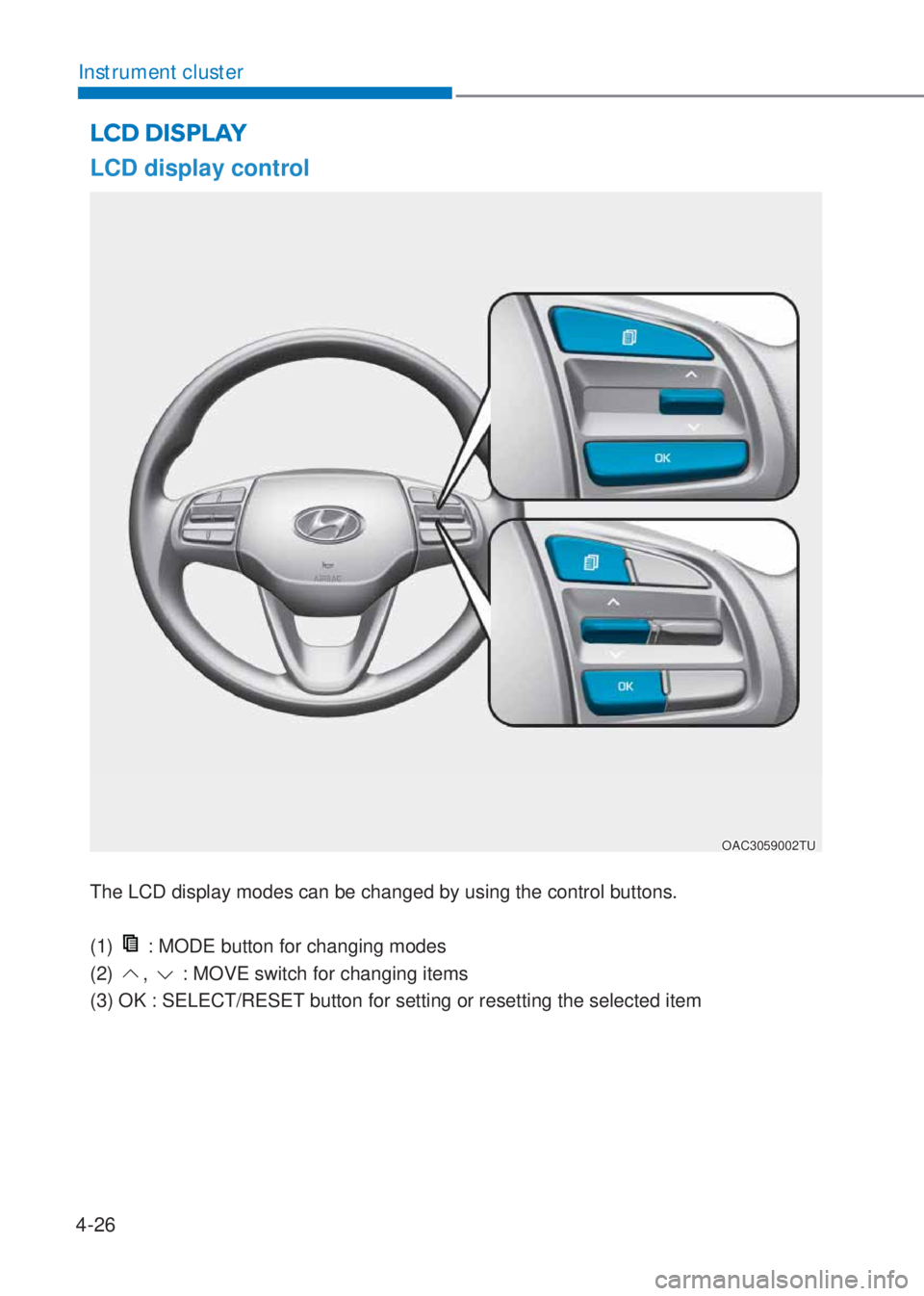

LCD display control
The LCD display modes can be changed by using the control buttons.
(1)
: MODE button for changing modes
(2)
, : MOVE switch for changing items
(3) OK : SELECT/RESET button for setting or resetting the selected item
OAC3059002TU

4-27
04

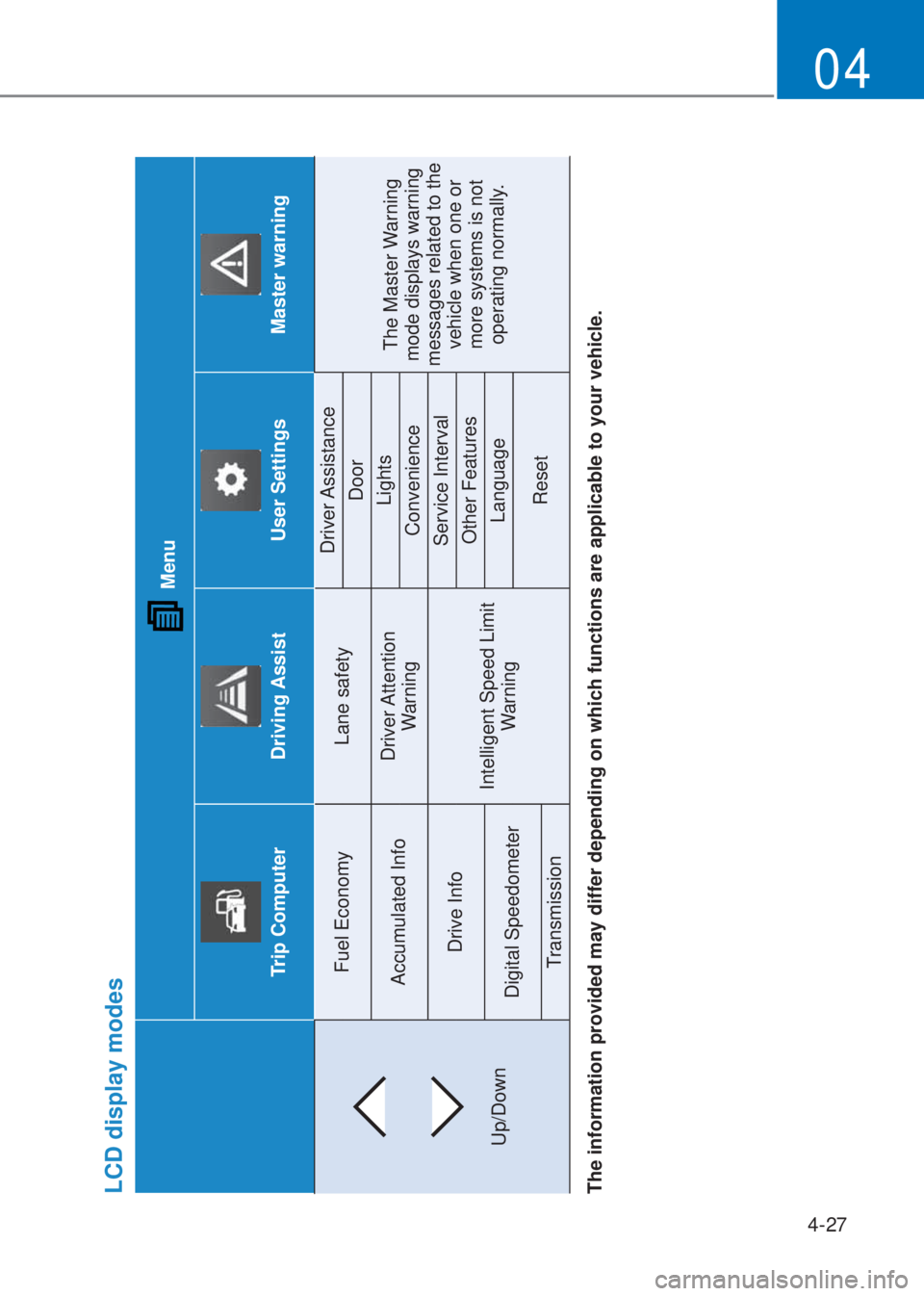

LCD display modes
Menu
Trip Computer
Driving Assist
User Settings
Master warning
Up/DownFuel Economy Lane safetyDriver Assistance
The Master Warning
mode displays warning
messages related to the
vehicle when one or
more systems is not
operating normally. Door
Accumulated InfoDriver Attention
Warning Lights
Convenience
Drive Info
Intelligent Speed Limit
WarningService Interval
Other Features
Digital SpeedometerLanguage
Reset
Transmission
The information provided may differ depending on which functions are applicable to your vehicle.

4-28
Instrument cluster

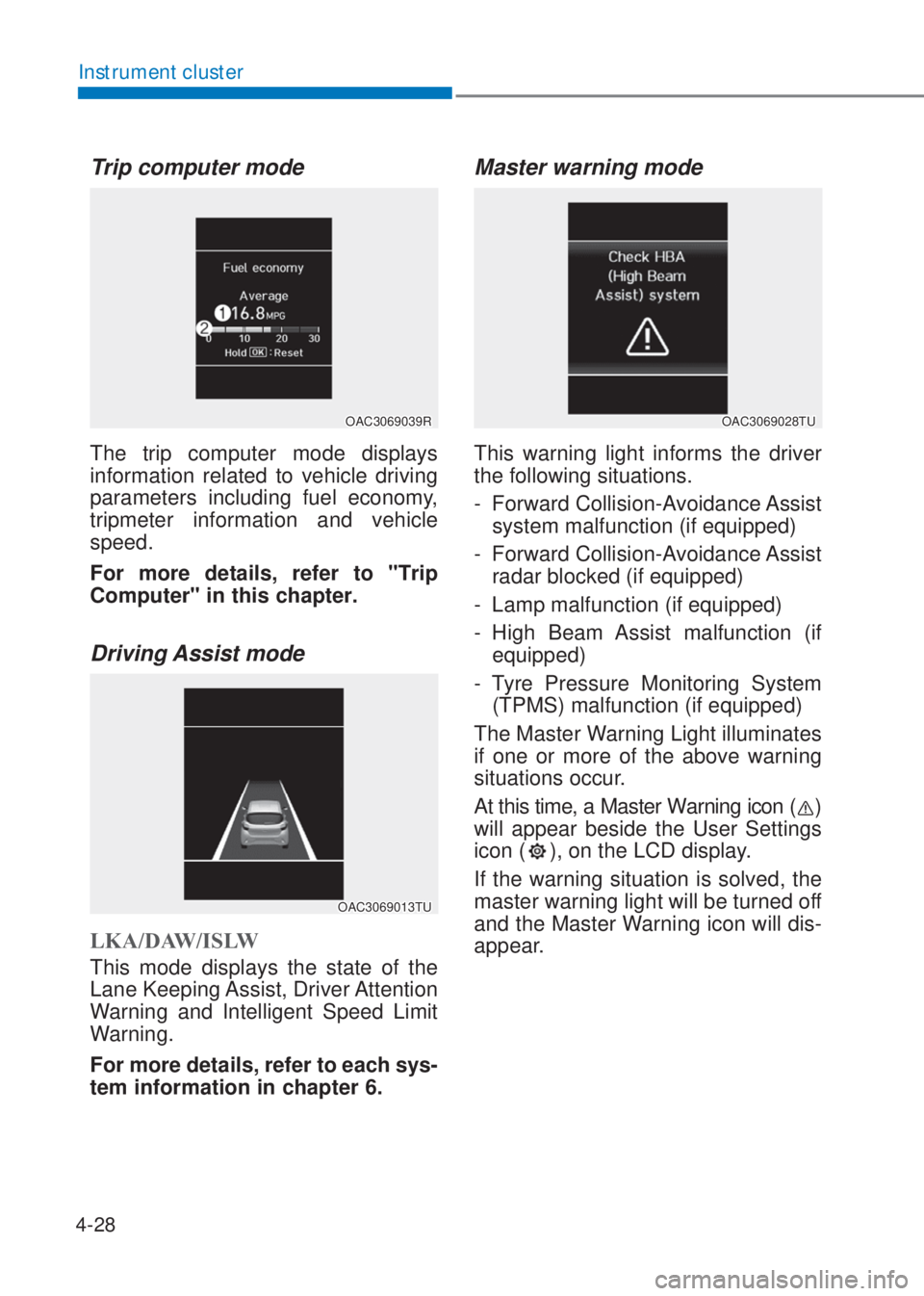

Trip computer mode
OAC3069039R
The trip computer mode displays
information related to vehicle driving
parameters including fuel economy,
tripmeter information and vehicle
speed.
For more details, refer to "Trip
Computer" in this chapter.
Driving Assist mode
OAC3069013TU
L.A/'AW/ISLW
This mode displays the state of the
Lane Keeping Assist, Driver Attention
Warning and Intelligent Speed Limit
Warning.
For more details, refer to each sys-
tem information in chapter 6.
Master warning mode
OAC3069028TU
This warning light informs the driver
the following situations.
- Forward Collision-Avoidance Assist
system malfunction (if equipped)
- Forward Collision-Avoidance Assist
radar blocked (if equipped)
- Lamp malfunction (if equipped)
- High Beam Assist malfunction (if
equipped)
- Tyre Pressure Monitoring System
(TPMS) malfunction (if equipped)
The Master Warning Light illuminates
if one or more of the above warning
situations occur.
At this time, a Master Warning icon (
)
will appear beside the User Settings
icon (
), on the LCD display.
If the warning situation is solved, the
master warning light will be turned off
and the Master Warning icon will dis-
appear.

4-32
Instrument cluster

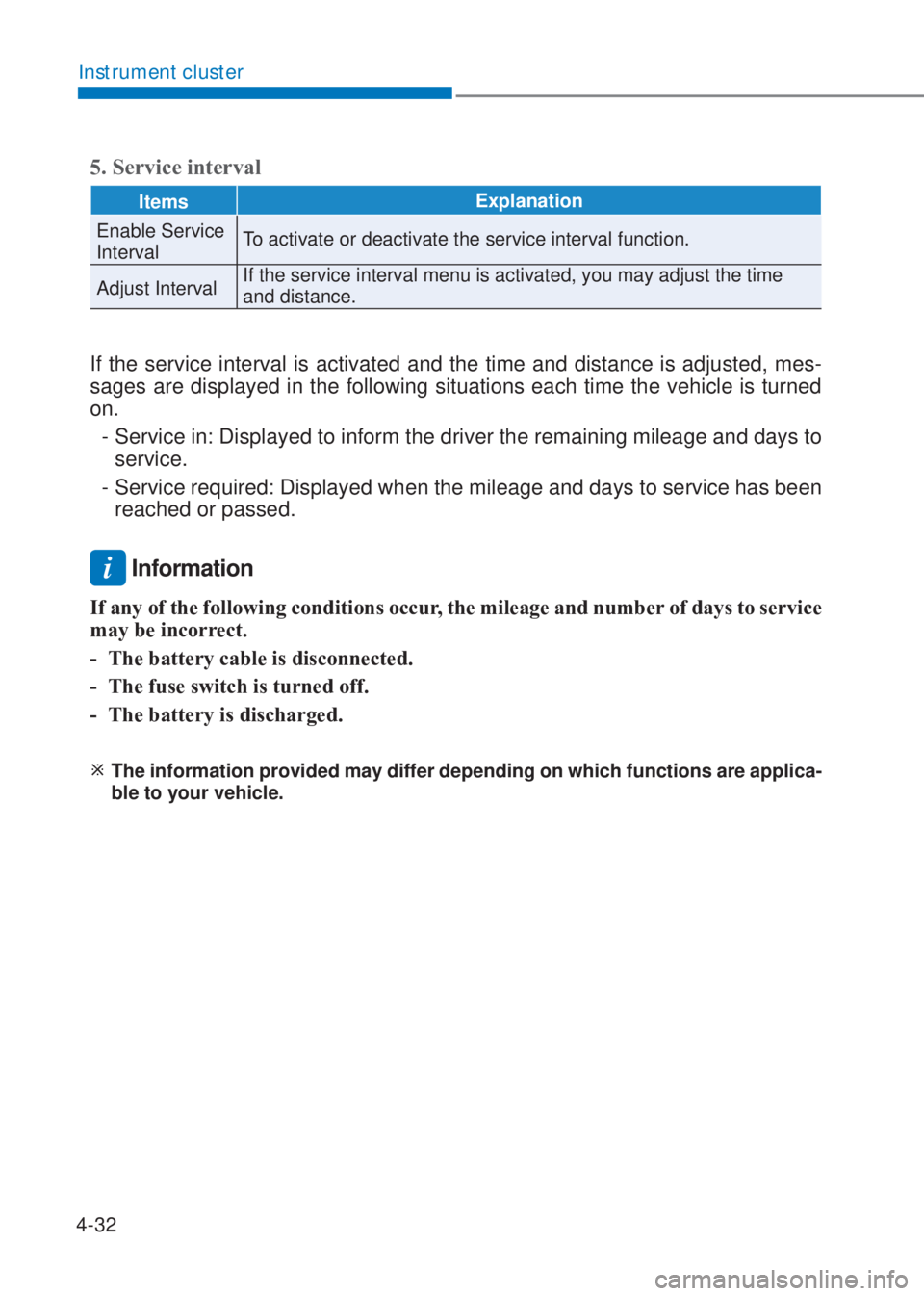

5. Service interval
ItemsExplanation
Enable Service
IntervalTo activate or deactivate the service interval function.
Adjust IntervalIf the service interval menu is activated, you may adjust the time
and distance.
If the service interval is activated and the time and distance is adjusted, mes-
sages are displayed in the following situations each time the vehicle is turned
on.
- Service in: Displayed to inform the driver the remaining mileage and days to
service.
- Service required: Displayed when the mileage and days to service has been
reached or passed.
i Information
If any of the following conditions occur, the mileage and number of days to service
may be incorrect.
- 7he battery cable is disconnected.
- 7he fuse switch is turned off.
- 7he battery is discharged.
Ú
The information provided may differ depending on which functions are applica-
ble to your vehicle.

4-34
Instrument cluster
Trip computer
The trip computer is a microcomput-
er-controlled driver information sys-
tem that displays information related
to driving.
i Information
Some driving information stored in the
trip computer (for e[ample Average
9ehicle Speed) resets if the battery is
disconnected.

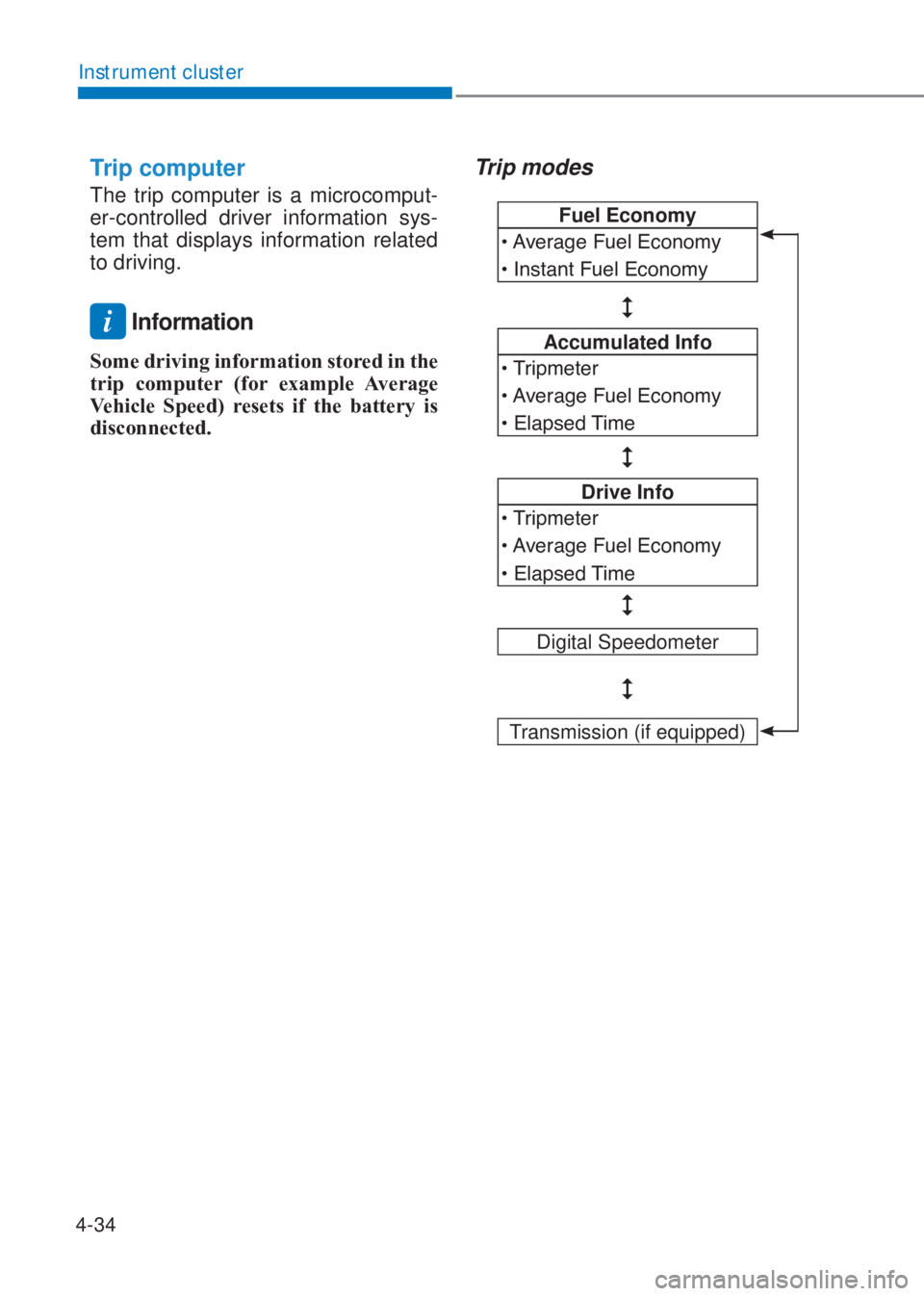

Trip modes
Fuel Economy

4-35
04
„Type A
OQX069060L
„Type B
To change the trip mode, toggle the
"
, " switch on the steering wheel.
Fuel economy
OAC3069039R
Average Fuel (conomy (1)
‡The average fuel economy is calcu-
lated by the total driving distance
and fuel consumption since the last
average fuel economy reset.
‡The average fuel economy can be
reset both manually and automati-
cally.Manual reset
To clear the average fuel economy
manually, press the [OK] button on
the steering wheel for more than 1
second when the average fuel econo-
my is displayed.
Automatic reset
To automatically reset the average
fuel economy after refueling, select
the "Fuel Econ. Reset" mode in the
User Settings menu on the LCD dis-
play.
- After vehicle On: The average fuel
economy will reset automatically
whenever it has passed 4 hours
after turning OFF the engine.
- After refueling: The average fuel
economy will reset automatically
when driving speed exceeds 1
km/h, after adding 1.6 gallons (6
liters) of fuel or more.
i Information
7he average fuel economy may be
inaccurate, when the vehicle drives
shorter than .1 miles (3 metres)
after turning 21 the (ngine Start/
Stop button.
Instant Fuel Economy (2)
‡This mode displays the instant fuel
economy during the last few sec-
onds when the vehicle speed is
more than 6.2 mph (10 km/h).
