Page 80 of 486

3-48
Safety system
SRS warning light
The SRS (Supplement Restraint
System) air bag warning light on the
instrument panel displays the air bag
symbol depicted in the illustration.
The system checks the air bag elec-
trical system for malfunctions. The
light indicates that there is a potential
problem with your air bag system,
which could include your side and/or
curtain air bags used for rollover pro-
tection (if equipped with rollover sen-
sor).
WARNING
If your SRS malfunctions, the air
bag may not inflate properly dur-
ing an accident increasing the risk
of serious injury or death.
If any of the following conditions
occur, your SRS is malfunction-
ing:
‡ The light does not turn on for
approximately six seconds when
the ignition switch is in the ON
position.
‡ The light stays on after illuminat-
ing for approximately six sec-
onds.
‡ The light comes on whilst the
vehicle is in motion.
‡ The light blinks when the engine
is running.
We recommend that a HYUNDAI
authorised repairer inspect the
SRS as soon as possible if any of
these conditions occur.During a frontal collision, sensors will
detect the vehicle’s deceleration. If
the rate of deceleration is high
enough, the control unit will inflate the
front air bags, at the time and with the
force needed.
The front air bags help protect the
driver and front passenger by
responding to frontal impacts in which
seat belts alone cannot provide ade-
quate restraint. When needed, the
side air bags help provide protection
in the event of a side impact or roll-
over by supporting the side upper
body area.
‡ Air bags are activated (able to
inflate if necessary) only when the
ignition switch is in the ON position.
‡ Air bags inflate in the event of cer-
tain frontal or side collisions to help
protect the occupants from serious
physical injury.
‡ Generally, air bags are designed to
inflate based upon the severity of a
collision it’s direction etc. These
two factors determine whether the
sensors produce an electronic
deployment/inflation signal.
‡ The front air bags will completely
inflate and deflate in an instant. It is
virtually impossible for you to see
the air bags inflate during an acci-
dent. It is much more likely that you
will simply see the deflated air bags
hanging out of their storage com-
partments after the collision.
Page 91 of 486

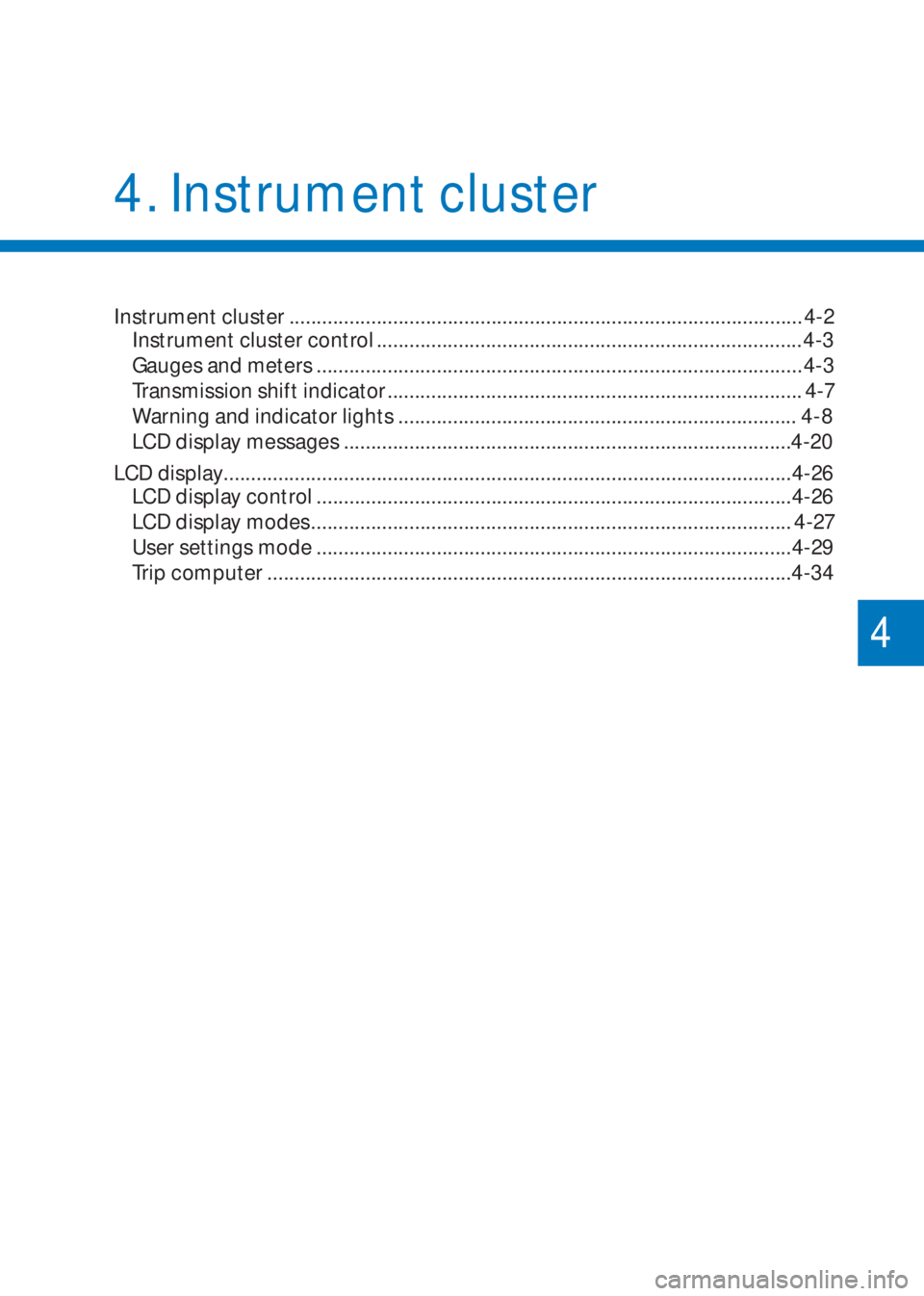

Instrument cluster .............................................................................................. 4-2
Instrument cluster control .............................................................................. 4-3
Gauges and meters ......................................................................................... 4-3
Transmission shift indicator ............................................................................ 4-7
Warning and indicator lights ......................................................................... 4-8
LCD display messages ..................................................................................4-20
LCD display........................................................................................................4-26
LCD display control .......................................................................................4-26
LCD display modes ........................................................................................ 4-27
User settings mode .......................................................................................4-29
Trip computer ................................................................................................4-34
4. Instrument cluster
4
Page 92 of 486

4-2
Instrument cluster
INSTRUMENT CLUSTER

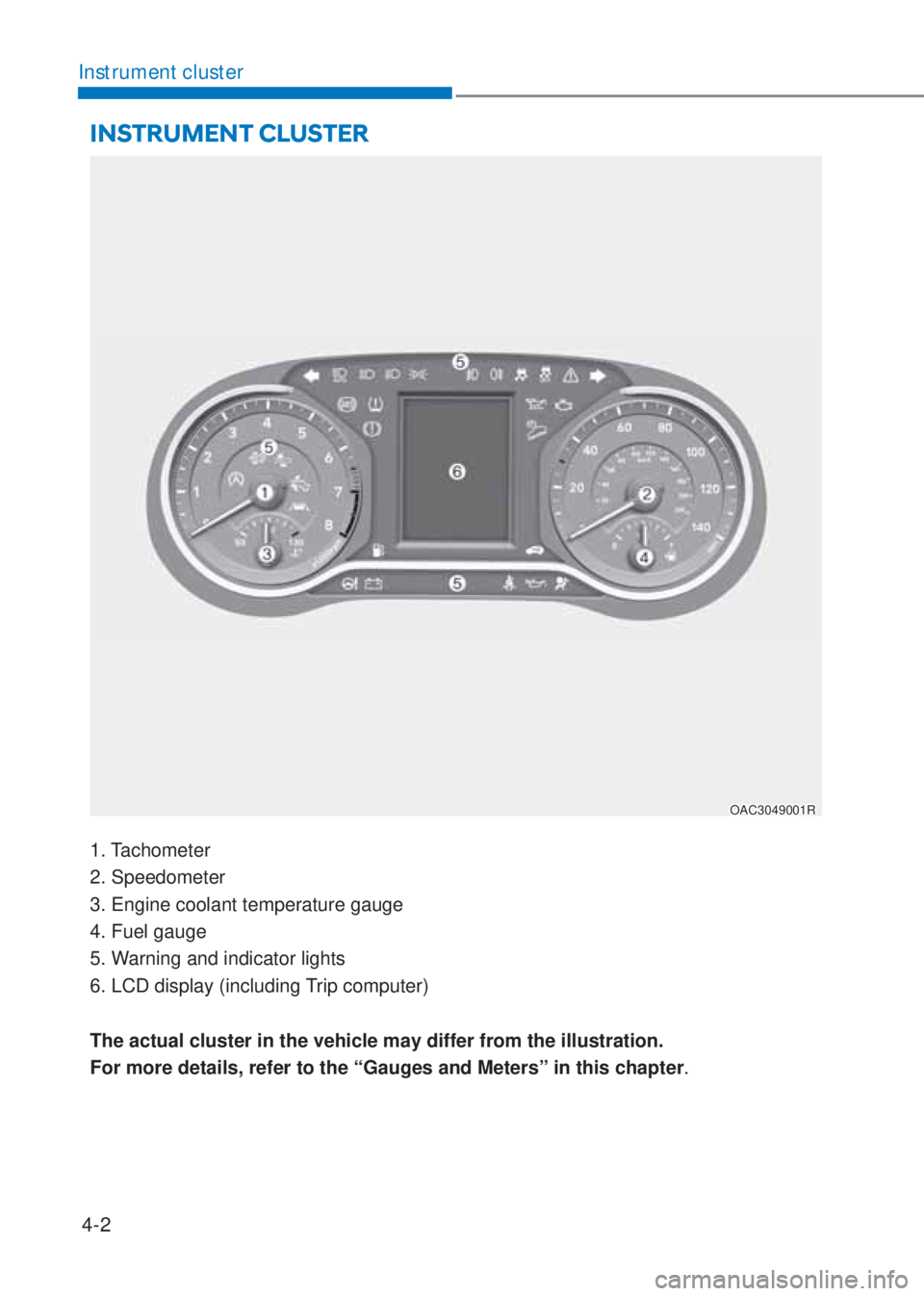

OAC3049001R
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5. Warning and indicator lights
6. LCD display (including Trip computer)
The actual cluster in the vehicle may differ from the illustration.
For more details, refer to the “Gauges and Meters” in this chapter.
Page 95 of 486

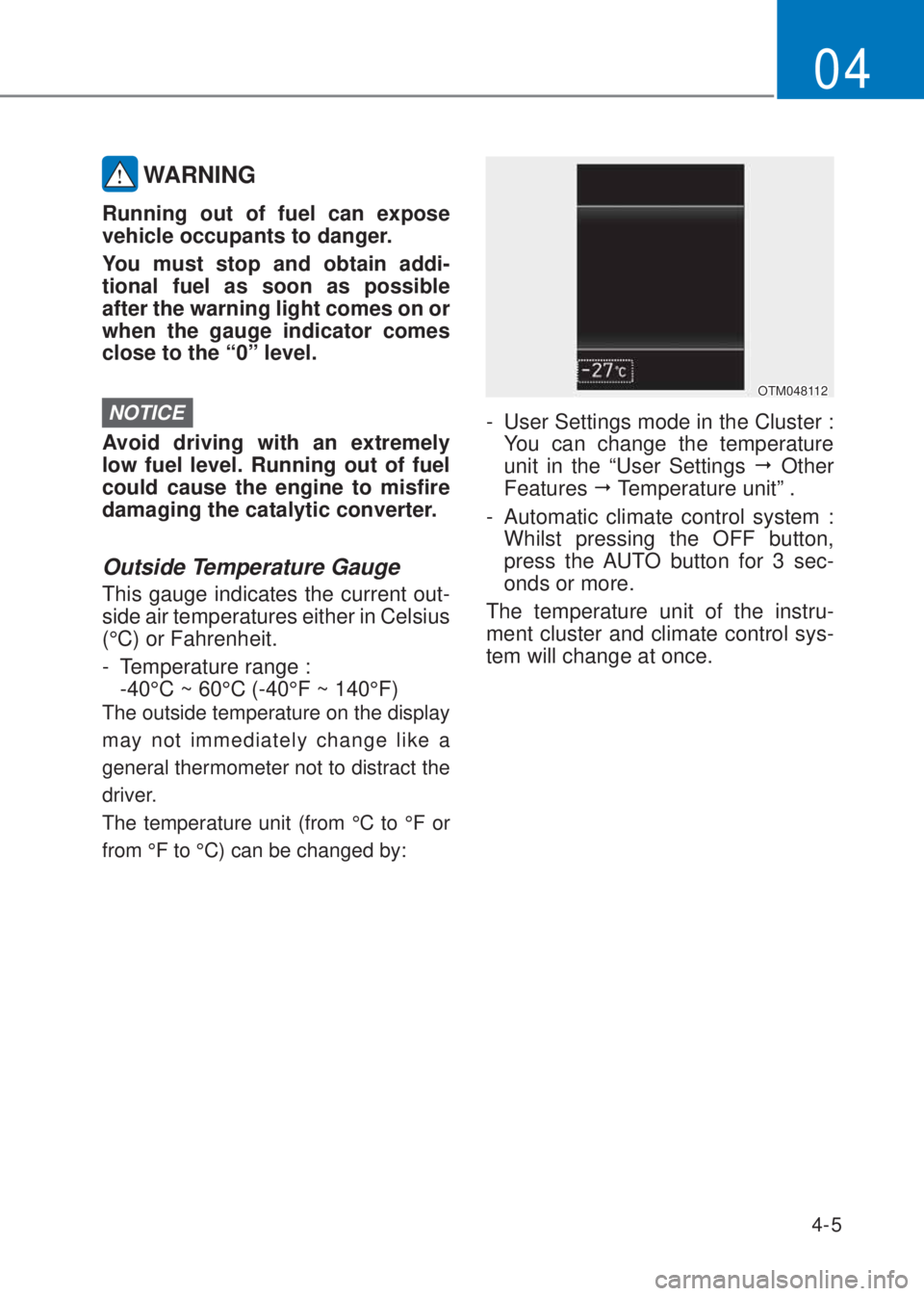

4-5
04
WARNING
Running out of fuel can expose
vehicle occupants to danger.
You must stop and obtain addi-
tional fuel as soon as possible
after the warning light comes on or
when the gauge indicator comes
close to the “0” level.
NOTICE
Avoid driving with an extremely
low fuel level. Running out of fuel
could cause the engine to misfire
damaging the catalytic converter.
Outside Temperature Gauge
This gauge indicates the current out-
side air temperatures either in Celsius
(°C) or Fahrenheit.
- Temperature range :
-40°C ~ 60°C (-40°F ~ 140°F)
The outside temperature on the display
may not immediately change like a
general thermometer not to distract the
driver.
The temperature unit (from °C to °F or
from °F to °C) can be changed by:
OTM048112
- User Settings mode in the Cluster :
You can change the temperature
unit in the “User Settings Other
Features Temperature unit” .
- Automatic climate control system :
Whilst pressing the OFF button,
press the AUTO button for 3 sec-
onds or more.
The temperature unit of the instru-
ment cluster and climate control sys-
tem will change at once.
Page 96 of 486

4-6
Instrument cluster
Odometer
OPDE046141R
The odometer indicates the total dis-
tance that the vehicle has been driv-
en and should be used to determine
when periodic maintenance should
be performed.
Distance to empty
OOS048469N
‡ The distance to empty is the esti-
mated distance the vehicle can be
driven with the remaining fuel.
‡ If the estimated distance is below 1
mi. (1 km), the trip computer will
display “---” as distance to empty.
i Information
‡ If the vehicle is not on level ground
or the battery power has been inter-
rupted, the distance to empty func-
tion may not operate correctly.
‡ 7he distance to empty may differ
from the actual driving distance as it
is an estimate of the available driving
distance.
‡ 7he trip computer may not register
additional fuel if less than 1.6 gallons
(6 liters) of fuel are added to the
vehicle.
‡ 7he distance to empty may vary sig-
nificantly based on driving condi-
tions, driving habits, and condition
of the vehicle.
Page 97 of 486

4-7
04
Transmission shift indicator
(if equipped)
Automated manual transmission
Shift Indicator (if equipped)
OTL045132
This indicator displays which Automa-
ted Manual Transmission shift lever is
selected.
Page 104 of 486

4-14
Instrument cluster
NOTICE
If the light comes on continuously
after adding the engine oil and
travelling approximately 50~100
km after the engine warms up, we
recommend that the system be
checked by a HYUNDAI authorised
repairer.
Even if this light doesn't come on
after the engine has started, the
engine oil should be checked and
supplied periodically.
Low Fuel Level
Warning Light
7his warning light illuminates
‡ When the fuel tank is nearly empty.
Add fuel as soon as possible.
NOTICE
Driving with the Low Fuel Level
warning light on or with the fuel
level below “0” can cause the
engine to misfire and damage the
catalytic converter (if equipped).
Master Warning Light
7his indicator light illuminates
‡ When there is a malfunction in
operation in any of the following
systems:
- Forward Collision-Avoidance
Assist system malfunction (if
equipped)
- Forward Collision-Avoidance
Assist radar blocked (if equipped)
- Lamp malfunction (if equipped)
- High Beam Assist malfunction (if
equipped)
- Tire Pressure Monitoring System
(TPMS) malfunction (if equipped)
To identify the details of the warning,
look at the LCD display.
