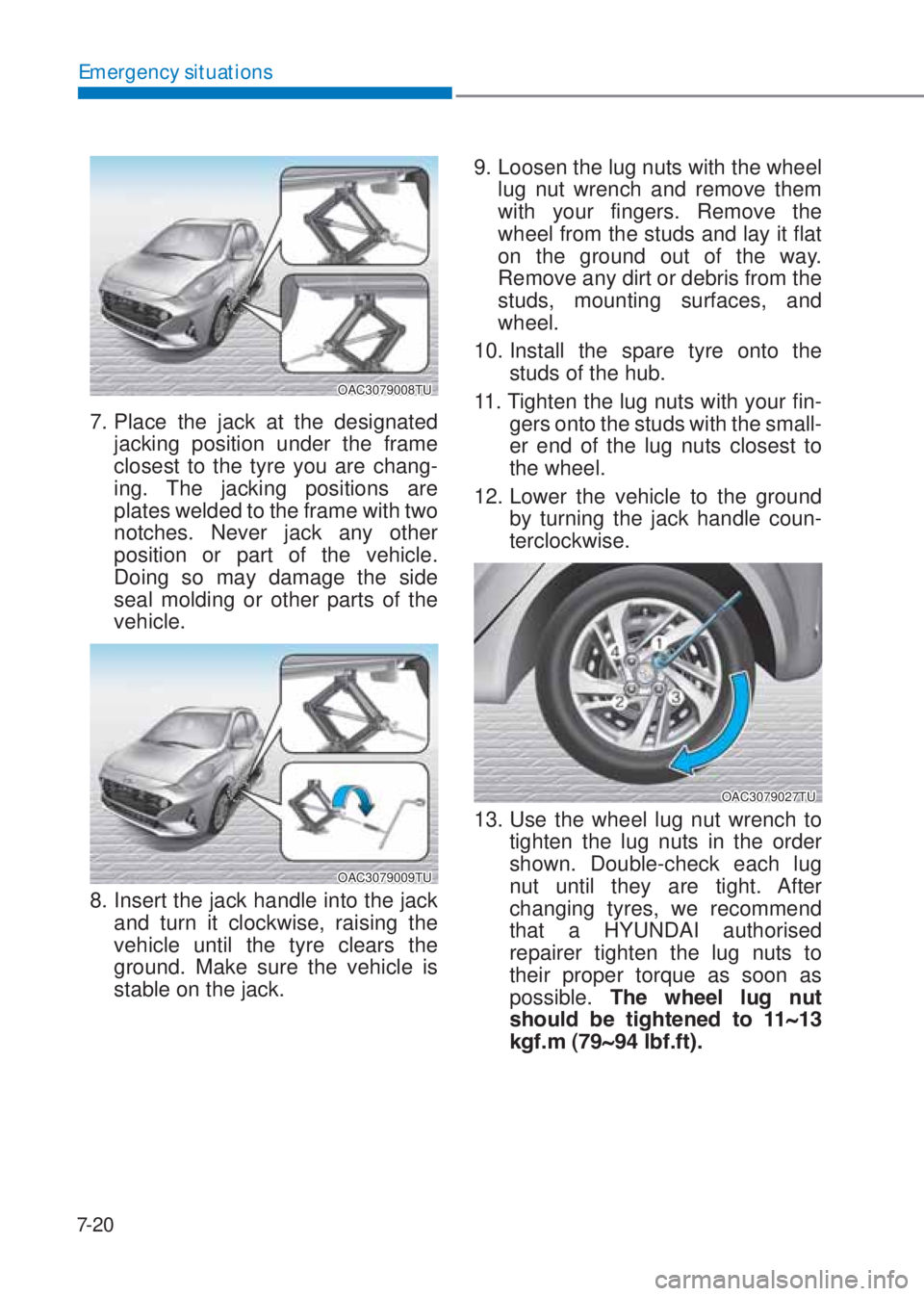

jacking HYUNDAI I10 2022 Owners Manual

7-20
Emergency situations
OAC3079008TU
7. Place the jack at the designated
jacking position under the frame
closest to the tyre you are chang-
ing. The jacking positions are
plates welded to the frame with two
notches. Never jack any other
position or part of the vehicle.
Doing so may damage the side
seal molding or other parts of the
vehicle.
OAC3079009TU
8. Insert the jack handle into the jack
and turn it clockwise, raising the
vehicle until the tyre clears the
ground. Make sure the vehicle is
stable on the jack.9. Loosen the lug nuts with the wheel
lug nut wrench and remove them
with your fingers. Remove the
wheel from the studs and lay it flat
on the ground out of the way.
Remove any dirt or debris from the
studs, mounting surfaces, and
wheel.
10. Install the spare tyre onto the
studs of the hub.
11 . Tighten the lug nuts with your fin-
gers onto the studs with the small-
er end of the lug nuts closest to
the wheel.
12. Lower the vehicle to the ground
by turning the jack handle coun-
terclockwise.
OAC3079027TU
13. Use the wheel lug nut wrench to
tighten the lug nuts in the order
shown. Double-check each lug
nut until they are tight. After
changing tyres, we recommend
that a HYUNDAI authorised
repairer tighten the lug nuts to
their proper torque as soon as
possible. 7KH ZKHHO OXJ QXW
VKRXOG EH WLJKWHQHG WR a
NJIPaOEIIW
