2-2
Hyundai Warranty Policy
HYUNDAI NEW VEHICLE WARRANTY
Hyundai Motor India Limited herein-
after called “HMIL”, warrants that
each new Hyundai vehicle sold shall
be free from any defects in material
and workmanship, under normal use
and maintenance, subject to the fol-
lowing terms and conditions.
1. Warranty Period
This warranty for hyundai vehicle
shall exist for a period as per option
selected on page F1 by the first pur-
chaser from the date of delivery
whichsoever is earlier. However the
warranty for CRETA being used for
commercial purpose such as Taxi/
Tourist operation is 36
months/100,000 kilometers from the
date of delivery to the first purchaser
which soever is earlier. This warranty
is transferable to subsequent owner
for the remaining warranty period.
This warranty is applicable only in In-
dia and not transferable to any other
country.
2. What is covered
Except as provided in paragraph 3
hereof, our Authorized Dealers shall
either repair or replace, any Hyundai
genuine part that is acknowledged by
HMIL to be defective in material or
workmanship within the warranty pe-
riod stipulated above, at no cost to
the owner of the Hyundai vehicle for
parts or labour. Such defective parts
which have been replaced will be-
come the property of HMIL
3. What is not covered
This warranty shall not apply to:
▶Normal maintenance services
other than the three free ser-
vices, including without limita-
tion, cleaning and polishing, mi-
nor adjustments, engine tuning,
oil/fluid changes, filters replen-
ishment, fastener retightening,
wheel balancing, wheel align-
ment and tyre rotation etc.
▶Replacement of parts as a result
of normal wear and tear such as
spark plugs, belts, brake pads
and linings, clutch disc/facing,
filters, wiper blades, bulbs, fuses,
etc.
Damage or failure resulting from :
▶Negligence of proper mainte-
nance as required in this Owner’s
Manual and Service Booklet.
▶Misuse, abuse, accident, theft,-
flooding or fire.
▶Use of improper or insufficientfu-
el, fluids or lubricants.
▶Use of parts other than Hyundai
Genuine Parts.
▶Any device and/or accessories-
not supplied by HMIL.
▶Modifications, alterations, tam-
pering or improper repair.
▶Parts used in applications of-
which they were not designed or
not approved by HMIL.
▶Slight irregularities not rec-
ognised as affecting quality or-
function of the vehicle or parts,-
such as slight noise or
vibrations,or items considered-
characteristic of the vehicle.
▶Airborne “fallout”, Industrialfall
out, acid rain, hail and wind-
storms, or other Acts of God.

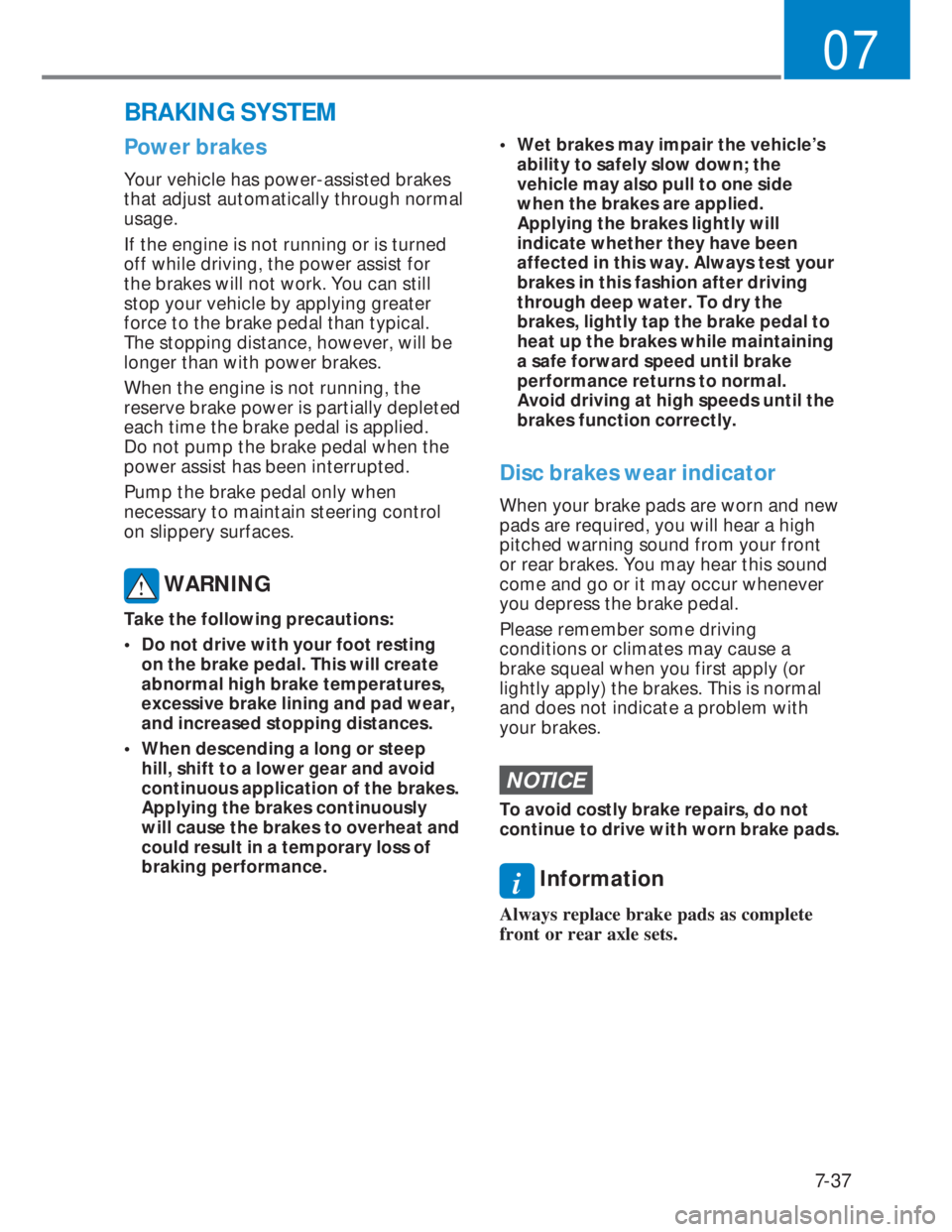

7-37
07
Power brakes
Your vehicle has power-assisted brakes
that adjust automatically through normal
usage.
If the engine is not running or is turned
off while driving, the power assist for
the brakes will not work. You can still
stop your vehicle by applying greater
force to the brake pedal than typical.
The stopping distance, however, will be
longer than with power brakes.
When the engine is not running, the
reserve brake power is partially depleted
each time the brake pedal is applied.
Do not pump the brake pedal when the
power assist has been interrupted.
Pump the brake pedal only when
necessary to maintain steering control
on slippery surfaces.
WARNING
Take the following precautions:
• Do not drive with your foot resting
on the brake pedal. This will create
abnormal high brake temperatures,
excessive brake lining and pad wear,
and increased stopping distances.
• When descending a long or steep
hill, shift to a lower gear and avoid
continuous application of the brakes.
Applying the brakes continuously
will cause the brakes to overheat and
could result in a temporary loss of
braking performance.
• Wet brakes may impair the vehicle’s
ability to safely slow down; the
vehicle may also pull to one side
when the brakes are applied.
Applying the brakes lightly will
indicate whether they have been
affected in this way. Always test your
brakes in this fashion after driving
through deep water. To dry the
brakes, lightly tap the brake pedal to
heat up the brakes while maintaining
a safe forward speed until brake
performance returns to normal.
Avoid driving at high speeds until the
brakes function correctly.
Disc brakes wear indicator
When your brake pads are worn and new
pads are required, you will hear a high
pitched warning sound from your front
or rear brakes. You may hear this sound
come and go or it may occur whenever
you depress the brake pedal.
Please remember some driving
conditions or climates may cause a
brake squeal when you first apply (or
lightly apply) the brakes. This is normal
and does not indicate a problem with
your brakes.
NOTICE
To avoid costly brake repairs, do not
continue to drive with worn brake pads.
i Information
Always replace brake pads as complete
front or rear axle sets.
BRAKING SYSTEM

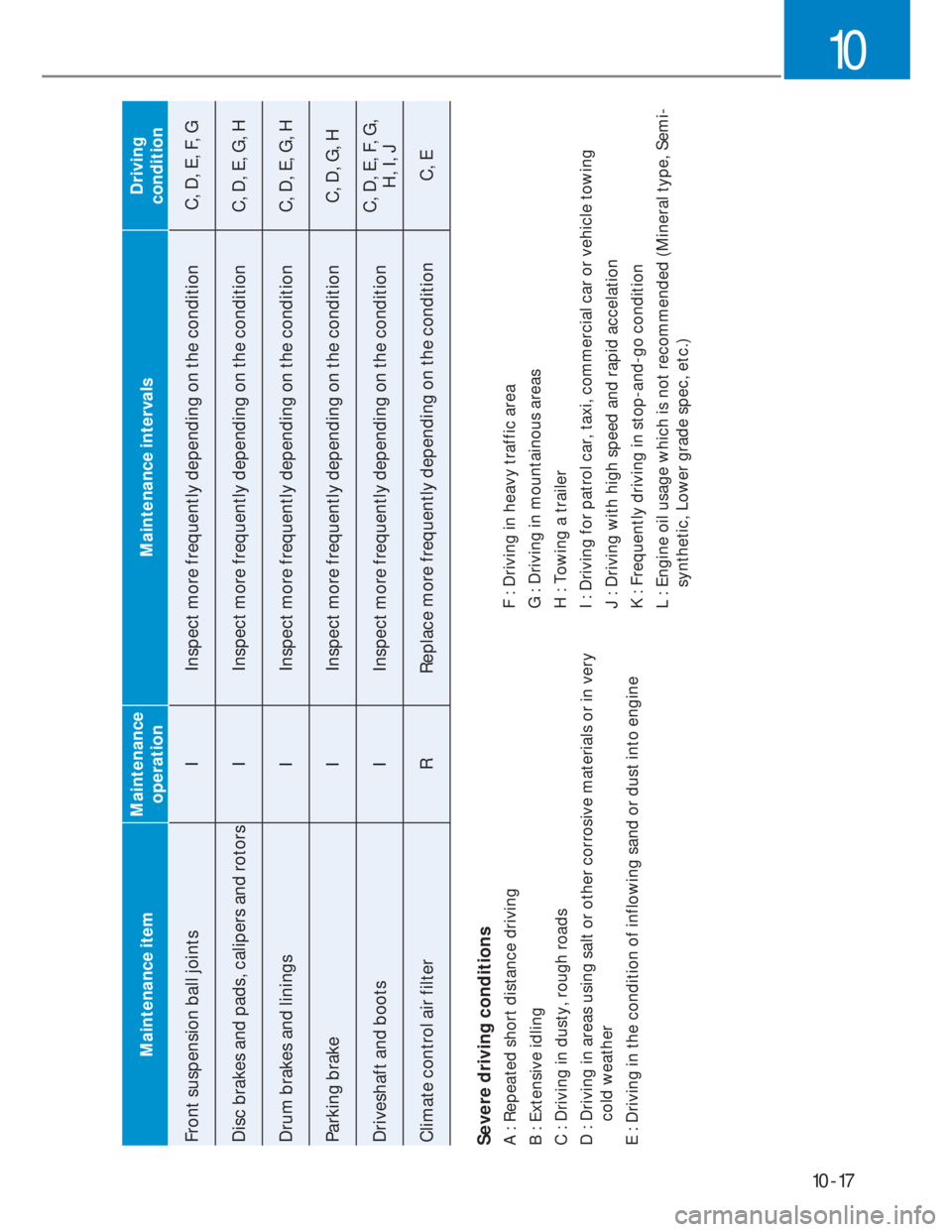

10-17
10
Maintenance itemMaintenance
operationMaintenance intervalsDriving
condition
Front suspension ball joints I Inspect more frequently depending on the condition C, D, E, F, G
Disc brakes and pads, calipers and rotors I Inspect more frequently depending on the condition C, D, E, G, H
Drum brakes and linings I Inspect more frequently depending on the condition C, D, E, G, H
Parking brake I Inspect more frequently depending on the condition C, D, G, H
Driveshaft and boots I Inspect more frequently depending on the conditionC, D, E, F, G,
H, I, J
Climate control air filter R Replace more frequently depending on the condition C, ESevere driving conditionsA : Repeated short distance driving
B : Extensive idling
C : Driving in dusty, rough roads
D : Driving in areas using salt or other corrosive materials or in very
cold weather
E : Driving in the condition of inflowing sand or dust into engineF : Driving in heavy traffic area
G : Driving in mountainous areas
H : Towing a trailer
I : Driving for patrol car, taxi, commercial car or vehicle towing
J : Driving with high speed and rapid accelation
K : Frequently driving in stop-and-go condition
L : Engine oil usage which is not recommended (Mineral type, Semi-
synthetic, Lower grade spec, etc.)

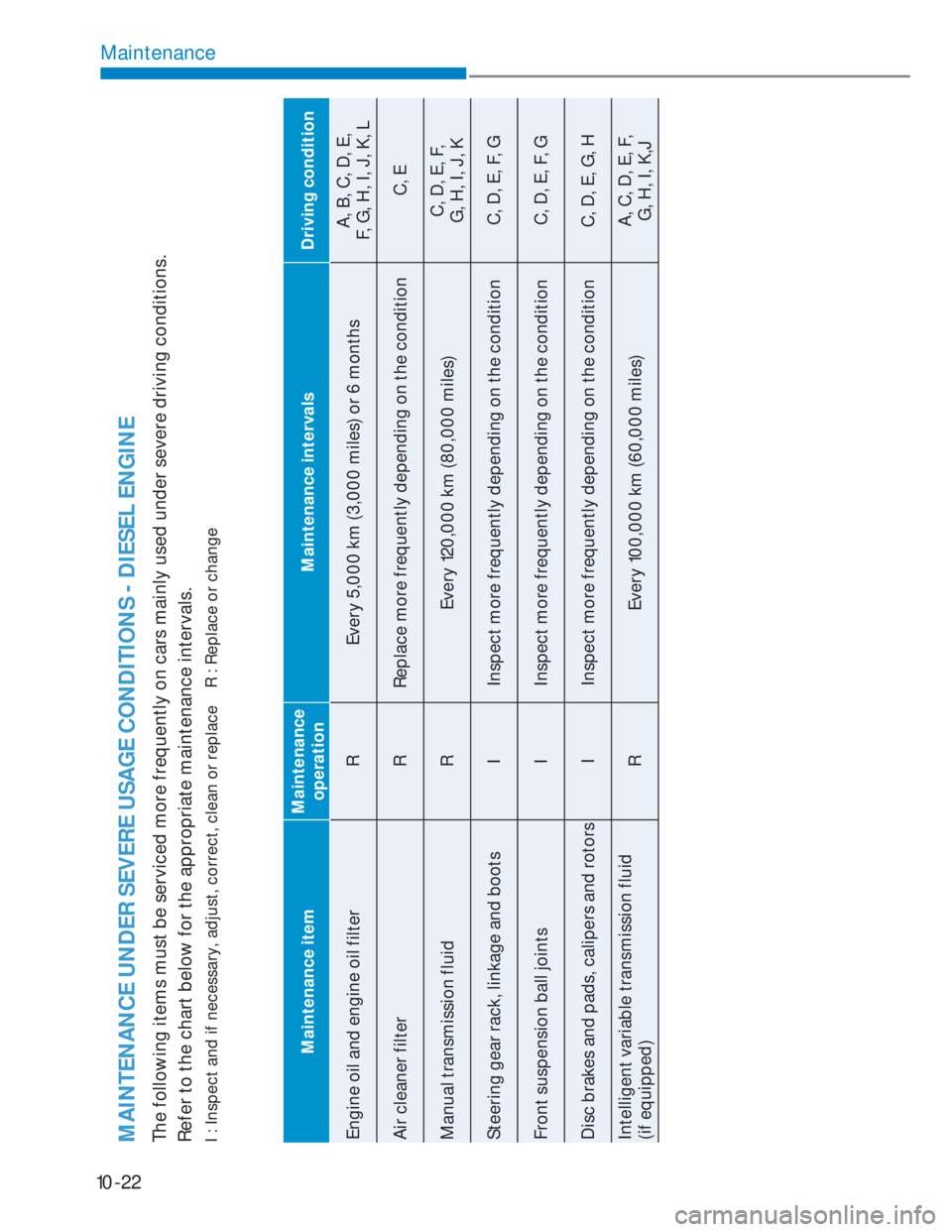

10-22
Maintenance
Maintenance itemMaintenance
operationMaintenance intervals Driving condition
Engine oil and engine oil filter R Every 5,000 km (3,000 miles) or 6 monthsA, B, C, D, E,
F, G, H, I, J, K, L
Air cleaner filter R Replace more frequently depending on the condition C, E
Manual transmission fluid R Every 120,000 km (80,000 miles)C, D, E, F,
G, H, I, J, K
Steering gear rack, linkage and boots I Inspect more frequently depending on the condition C, D, E, F, G
Front suspension ball joints I Inspect more frequently depending on the condition C, D, E, F, G
Disc brakes and pads, calipers and rotors I Inspect more frequently depending on the condition C, D, E, G, H
Intelligent variable transmission fluid
(if equipped)R Every 100,000 km (60,000 miles)A, C, D, E, F,
G, H, I, K,JMAINTENANCE UNDER SEVERE USAGE CONDITIONS - DIESEL ENGINEThe following items must be serviced more frequently on cars mainly used under severe driving conditions.
Refer to the chart below for the appropriate maintenance intervals.I : Inspect and if necessary, adjust, correct, clean or replace R : Replace or change

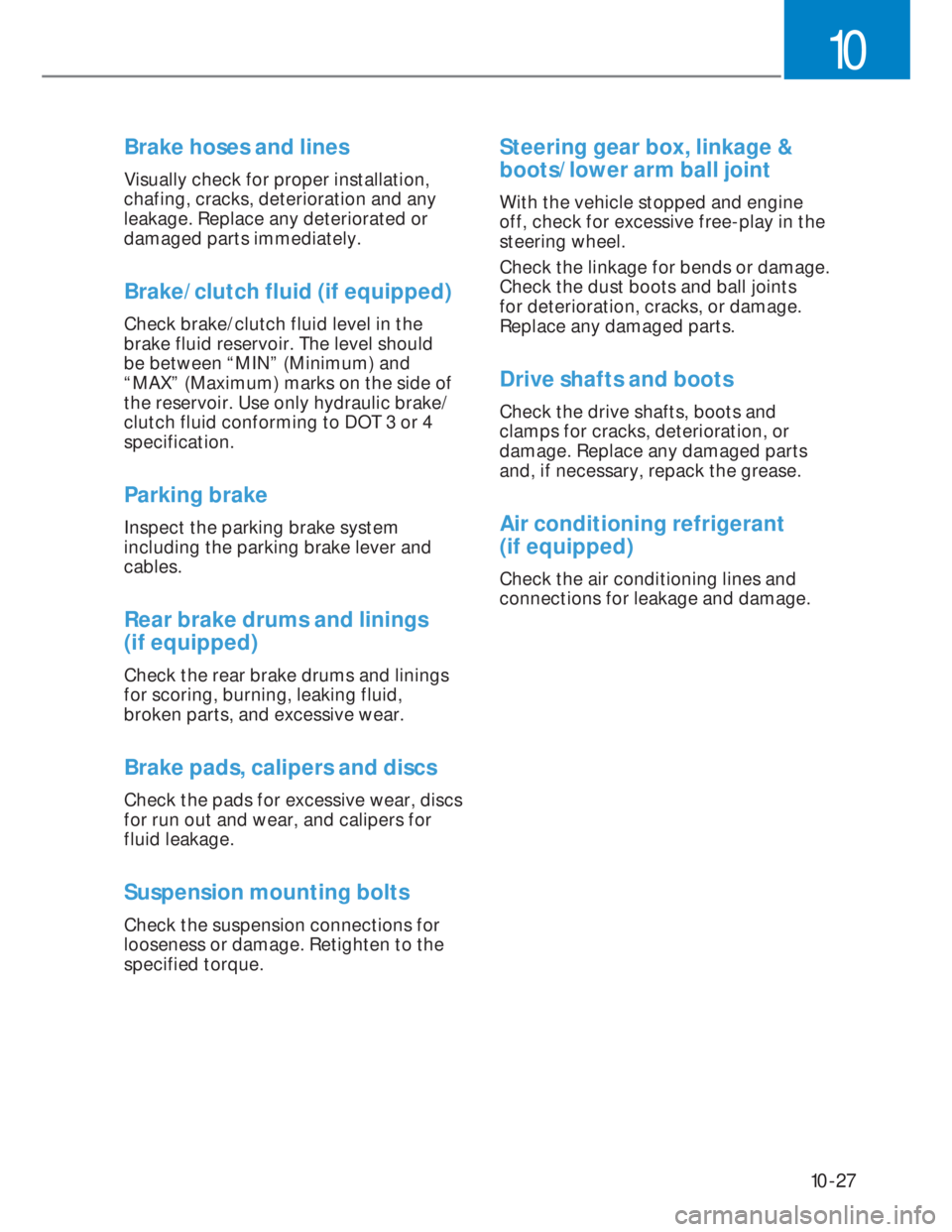

10-27
10
Brake hoses and lines
Visually check for proper installation,
chafing, cracks, deterioration and any
leakage. Replace any deteriorated or
damaged parts immediately.
Brake/clutch fluid (if equipped)
Check brake/clutch fluid level in the
brake fluid reservoir. The level should
be between “MIN” (Minimum) and
“MAX” (Maximum) marks on the side of
the reservoir. Use only hydraulic brake/
clutch fluid conforming to DOT 3 or 4
specification.
Parking brake
Inspect the parking brake system
including the parking brake lever and
cables.
Rear brake drums and linings
(if equipped)
Check the rear brake drums and linings
for scoring, burning, leaking fluid,
broken parts, and excessive wear.
Brake pads, calipers and discs
Check the pads for excessive wear, discs
for run out and wear, and calipers for
fluid leakage.
Suspension mounting bolts
Check the suspension connections for
looseness or damage. Retighten to the
specified torque.
Steering gear box, linkage &
boots/lower arm ball joint
With the vehicle stopped and engine
off, check for excessive free-play in the
steering wheel.
Check the linkage for bends or damage.
Check the dust boots and ball joints
for deterioration, cracks, or damage.
Replace any damaged parts.
Drive shafts and boots
Check the drive shafts, boots and
clamps for cracks, deterioration, or
damage. Replace any damaged parts
and, if necessary, repack the grease.
Air conditioning refrigerant
(if equipped)
Check the air conditioning lines and
connections for leakage and damage.

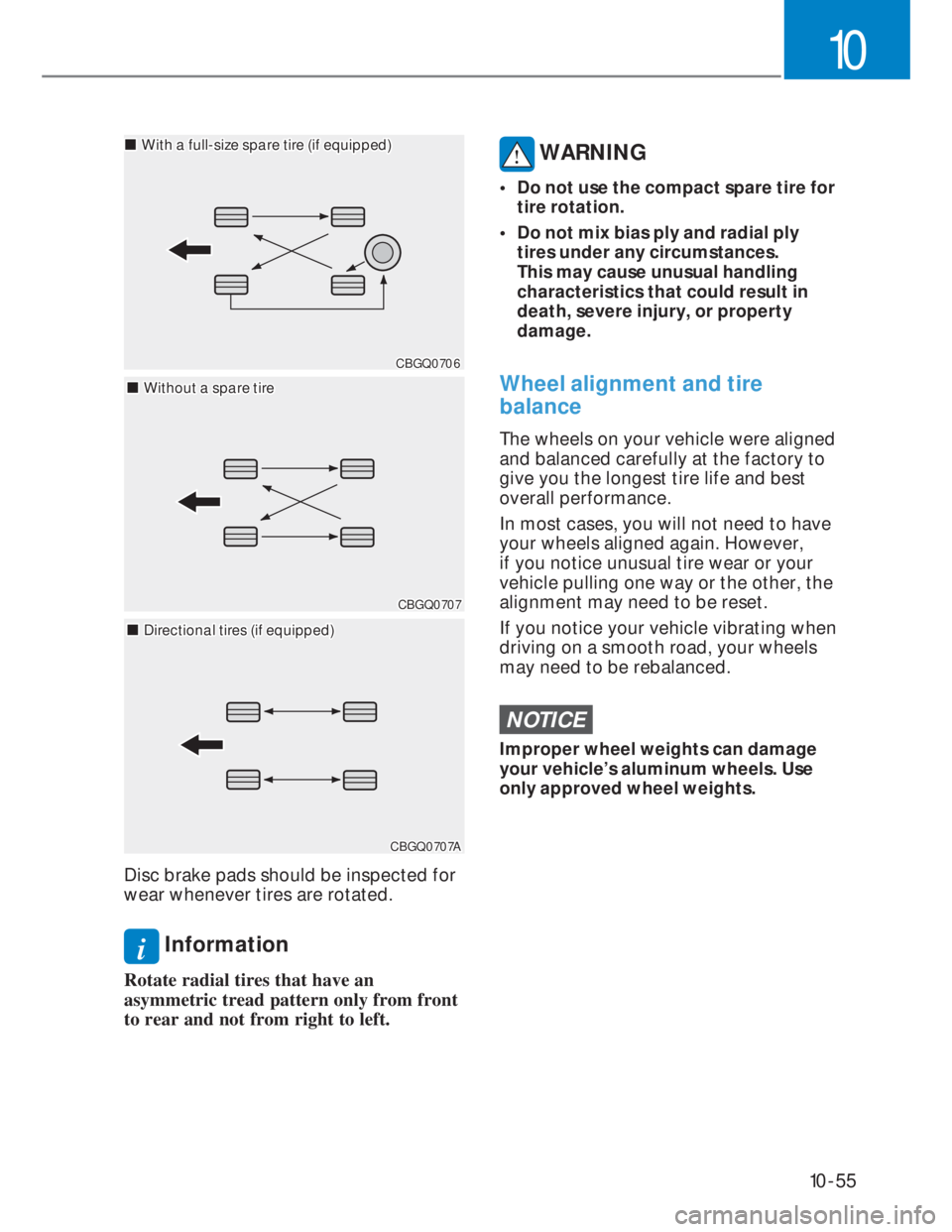

10-55
10
CBGQ0706CBGQ0706
„„With a full-size spare tire (if equipped)With a full-size spare tire (if equipped)
„„Without a spare tireWithout a spare tire
CBGQ0707CBGQ0707
„„Directional tires (if equipped)Directional tires (if equipped)
CBGQ0707ACBGQ0707A
Disc brake pads should be inspected for
wear whenever tires are rotated.
i Information
Rotate radial tires that have an
asymmetric tread pattern only from front
to rear and not from right to left.
WARNING
• Do not use the compact spare tire for
tire rotation.
• Do not mix bias ply and radial ply
tires under any circumstances.
This may cause unusual handling
characteristics that could result in
death, severe injury, or property
damage.
Wheel alignment and tire
balance
The wheels on your vehicle were aligned
and balanced carefully at the factory to
give you the longest tire life and best
overall performance.
In most cases, you will not need to have
your wheels aligned again. However,
if you notice unusual tire wear or your
vehicle pulling one way or the other, the
alignment may need to be reset.
If you notice your vehicle vibrating when
driving on a smooth road, your wheels
may need to be rebalanced.
NOTICE
Improper wheel weights can damage
your vehicle’s aluminum wheels. Use
only approved wheel weights.
