HYUNDAI I20 2021 Owners Manual

Instrument cluster .......................................................................................... 5-2
Instrument Cluster Control ........................................................................................5-3
Gauges ....................................................................................................................... 5-4
Transmission Shift Indicator ...................................................................................... 5-7
Warning and indicator lights .................................................................................... 5-9
LCD display messages
............................................................................................. 5-19
LCD display (cluster type B) ......................................................................... 5-23
LCD display control ..................................................................................................5-23
LCD display modes.................................................................................................. 5-24
User settings mode
................................................................................................. 5-26
Trip computer ................................................................................................ 5-30
Cluster type A .......................................................................................................... 5-30
Cluster type B
.......................................................................................................... 5-35
5. Instrument cluster
5

5-2
Instrument cluster
INSTRUMENT CLUSTER
1. Tachometer
2. Speedometer
3. Fuel gauge
4. Temperature gauges
5. Warning and light indicators
 The actual cluster in the vehicle may differ from the illustration.
For more details, refer to the “Gauges” in this chapter.
„„Type AType A
„„Type BType B
OBI3040014/OBI3040001OBI3040014/OBI3040001

5-3
05
Instrument Cluster Control
You can adjust the brightness of the
instrument panel illumination form the
User Settings Mode on the LCD display
when the ignition switch is on (‘Lights
J Illumination’). When the vehicle’s
parking lights or headlamps are on,
interior switch illumination intensity and
mood lamps are also adjusted.
If your vehicle is equipped with
additional navigation, please refer
to the infotainment system manual
separately supplied.
WARNING
Never adjust the instrument cluster
while driving. This could result in loss
of control and lead to an accident that
may cause death, serious injury, or
property damage.
OHCR046110OHCR046110
• The brightness of the instrument panel
illumination is displayed.
• If the brightness reaches to the
maximum or minimum level, an alarm
will sound (if equipped).

5-4
Instrument cluster
Gauges
Speedometer
OIB044104OIB044104
„„ Type A Type A
OBI3040002OBI3040002
„„ Type B Type B
The speedometer indicates the speed
of the vehicle and is calibrated in
kilometers per hour (km/h).
Tachometer
OBI3040015OBI3040015
„„Petrol enginePetrol engine
• Type A • Type A
OBI3040003OBI3040003
• Type B • Type B
OBI3040016OBI3040016
„„Diesel engineDiesel engine
• Type A • Type A
OBI3040004OBI3040004
• Type B • Type B

5-5
05
The tachometer indicates the
approximate number of engine
revolutions per minute (rpm).
Use the tachometer to select the correct
shift points and to prevent lugging and/
or over-revving the engine.
NOTICE
Do not operate the engine within the
tachometer’s RED ZONE. This may
cause severe engine damage.
Fuel Gauge
OIB044114OIB044114
„„Type AType A
„„Type BType B
OBI3040005OBI3040005
This gauge indicates the approximate
amount of fuel remaining in the fuel
tank.
i Information
• The fuel tank capacity is given in
chapter 2.
• The fuel gauge is supplemented by
a low fuel warning light, which will
illuminate when the fuel tank is nearly
empty.
• On inclines or curves, the fuel gauge
pointer may fluctuate or the low fuel
warning light may come on earlier than
usual due to the movement of fuel in the
tank.
WARNING
Running out of fuel can expose vehicle
occupants to danger.
You must stop and obtain additional
fuel as soon as possible after the
warning light comes on or when the
gauge indicator comes close to the “E
(Empty)” level.
NOTICE
Avoid driving with a very low fuel
level. Running out of fuel could cause
the engine to misfire damaging the
catalytic converter.

5-6
Instrument cluster
Engine Coolant Temperature Gauge
OIB044113OIB044113
„„Type AType A
„„Type BType B
OBI3040006OBI3040006
This gauge shows the temperature of the
engine coolant when the ignition switch
is in the ON position.
NOTICE
If the gauge pointer moves beyond the
normal range area toward the “130”
position, it indicates overheating that
may damage the engine.
Do not continue driving with an
overheated engine. If your vehicle
overheats, refer to “If the Engine
Overheats” in chapter 8.
WARNING
Never remove the radiator cap or
reservoir cap when the engine is hot.
The engine coolant is under pressure
and could cause severe burns. Wait
until the engine is cool before adding
coolant to the reservoir.
Odometer
OIB044116OIB044116
„„ Type A Type A
OIB044115OIB044115
„„Type BType B
The odometer indicates the total
distance that the vehicle has been
driven and should be used to determine
when periodic maintenance should be
performed.
- Odometer range : 0 ~ 1599999
kilometers or 999999 miles.
i Information
It is forbidden to alter the odometer of
all vehicles with the intent to change
the mileage registered on the odometer.
The alteration may void your warranty
coverage.

5-7
05
Outside Temperature Gauge
OIB044156OIB044156
„„ Type A Type A
OIB044155OIB044155
„„Type BType B
This gauge indicates the current outside
air temperatures by 1°C (1°F).
- Temperature range : - 40°C ~ 85°C
(-40°F ~ 211°F)
The outside temperature on the display
may not change immediately like a
general thermometer to prevent the
driver from being inattentive.
The temperature unit (from °C to °F or
from °F to °C) can be changed as below
procedures (if equipped).
- User Settings Mode in the Cluster : You
can change the temperature unit in the
“Other Features – Temperature unit”.
Transmission Shift Indicator
Dual Clutch Transmission Shift
Indicator (if equipped)
OIB044118OIB044118
„„ Type A Type A
OIB044115OIB044115
„„Type BType B
This indicator displays which
continuously variable transmission shift
lever is selected.
• Park : P
• Reverse : R
• Neutral : N
• Drive : D
• Sports Mode : 1, 2, 3, 4, 5, 6

5-8
Instrument cluster

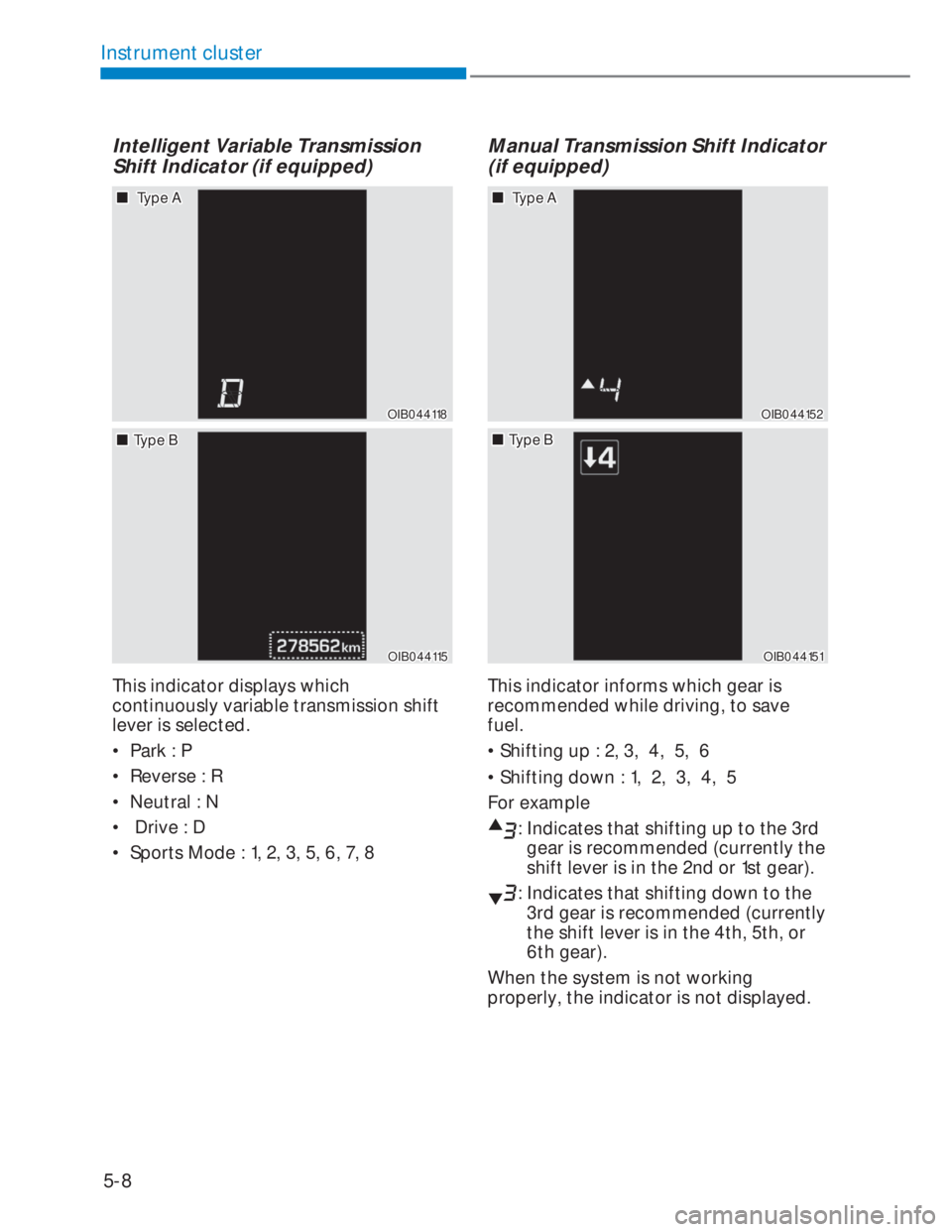

Intelligent Variable Transmission
Shift Indicator (if equipped)
OIB044118OIB044118
„„ Type A Type A
OIB044115OIB044115
„„Type BType B
This indicator displays which
continuously variable transmission shift
lever is selected.
• Park : P
• Reverse : R
• Neutral : N
• Drive : D
• Sports Mode : 1, 2, 3, 5, 6, 7, 8
Manual Transmission Shift Indicator
(if equipped)
OIB044152OIB044152
„„ Type A Type A
OIB044151OIB044151
„„Type BType B
This indicator informs which gear is
recommended while driving, to save
fuel.
• Shifting up : 2, 3,
%4,
%5,
%6
• Shifting down :
'1,
'2,
'3,
'4,
'5
For example
: Indicates that shifting up to the 3rd
gear is recommended (currently the
shift lever is in the 2nd or 1st gear).
: Indicates that shifting down to the
3rd gear is recommended (currently
the shift lever is in the 4th, 5th, or
6th gear).
When the system is not working
properly, the indicator is not displayed.

5-9
05
Warning and indicator lights
i Information
Make sure that all warning lights are
OFF after starting the engine. If any light
is still ON, this indicates a situation that
needs attention.
Air bag Warning Light
This warning light illuminates:
• Once you set the ignition switch or
Engine Start/Stop button to the ON
position.
- It illuminates for approximately 6
seconds and then goes off.
• When there is a malfunction with the
SRS.
In this case, we recommend that you
have the vehicle inspected by an
authorized HYUNDAI dealer.
Seat Belt Warning Light
This warning light informs the driver (or
front passenger) that the seat belt is not
fastened.
For more details, refer to the “Seat
Belts” in chapter 3.
Parking Brake & Brake
Fluid Warning Light
This warning light illuminates:
• Once you set the ignition switch or
Engine Start/Stop button to the ON
position.
- It illuminates for approximately 3
seconds
- It remains on if the parking brake is
applied.
• When the parking brake is applied.
• When the brake fluid level in the
reservoir is low.
- If the warning light illuminates
with the parking brake released, it
indicates the brake fluid level is low.

5-10
Instrument cluster
If the brake fluid level in the reser-
voir is low:
1. Drive carefully to the nearest safe
location and stop your vehicle.
2. With the engine stopped, check the
brake fluid level immediately and add
fluid as required (For more details,
refer to “Brake Fluid” in chapter 9).
Then check all brake components for
fluid leaks. If any leak on brake system
is still found, the warning light remains
on, or the brakes do not operate
properly, do not drive the vehicle.
In this case, we recommend that
you have the vehicle towed to an
authorized HYUNDAI dealer and
inspected.
Dual-diagonal braking system
Your vehicle is equipped with dual-
diagonal braking systems. This means
you still have braking on two wheels
even if one of the dual systems should
fail.
With only one of the dual systems
working, more than normal pedal travel
and greater pedal pressure are required
to stop the vehicle.
Also, the vehicle will not stop in as short
a distance with only a portion of the
brake system working.
If the brakes fail while you are driving,
shift to a lower gear for additional
engine braking and stop the vehicle as
soon as it is safe to do so.
WARNING
Parking Brake & Brake Fluid Warning
Light
Driving the vehicle with a warning light
ON is dangerous. If the Parking Brake &
Brake Fluid Warning Light illuminates
with the parking brake released, it
indicates that the brake fluid level is
low.
In this case, we recommend that you
have the vehicle inspected by an
authorized HYUNDAI dealer.
Anti-lock Brake System
(ABS) Warning Light
This warning light illuminates:
• Once you set the ignition switch or
Engine Start/Stop button to the ON
position.
- It illuminates for approximately 3
seconds and then goes off.
• When there is a malfunction with
the ABS (The normal braking system
will still be operational without the
assistance of the anti-lock brake
system).
In this case, we recommend that you
have the vehicle inspected by an
authorized HYUNDAI dealer.
