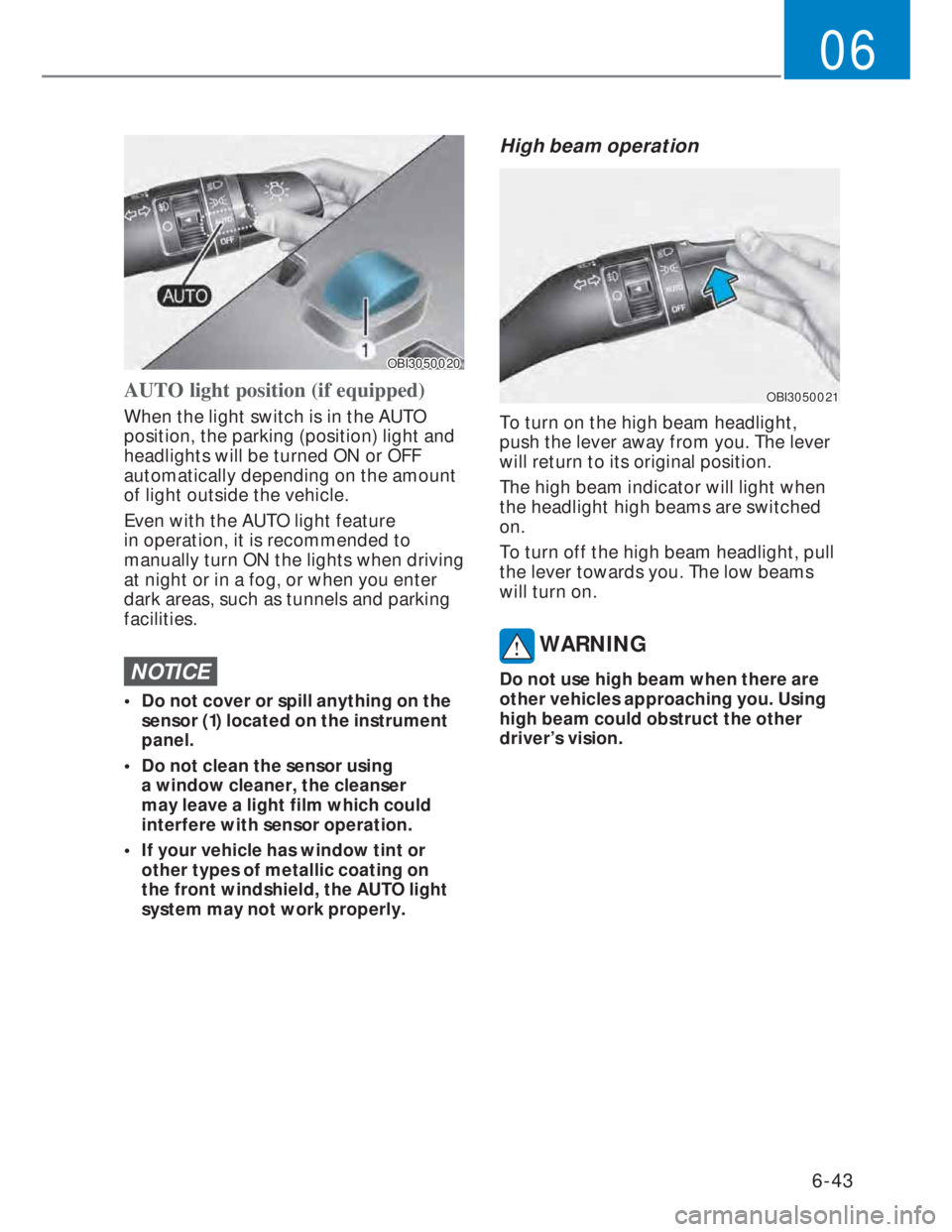

Page 171 of 444

6-43
06
OBI3050020OBI3050020
AUTO light position (if equipped)
When the light switch is in the AUTO
position, the parking (position) light and
headlights will be turned ON or OFF
automatically depending on the amount
of light outside the vehicle.
Even with the AUTO light feature
in operation, it is recommended to
manually turn ON the lights when driving
at night or in a fog, or when you enter
dark areas, such as tunnels and parking
facilities.
NOTICE
• Do not cover or spill anything on the
sensor (1) located on the instrument
panel.
• Do not clean the sensor using
a window cleaner, the cleanser
may leave a light film which could
interfere with sensor operation.
• If your vehicle has window tint or
other types of metallic coating on
the front windshield, the AUTO light
system may not work properly.
High beam operation
OBI3050021OBI3050021
To turn on the high beam headlight,
push the lever away from you. The lever
will return to its original position.
The high beam indicator will light when
the headlight high beams are switched
on.
To turn off the high beam headlight, pull
the lever towards you. The low beams
will turn on.
WARNING
Do not use high beam when there are
other vehicles approaching you. Using
high beam could obstruct the other
driver’s vision.
Page 191 of 444

6-63
06
Automatic heating and air
conditioning
The Automatic Climate Control System
is controlled by setting the desired
temperature.
OBI3050116OBI3050116
1. Press the AUTO button.
The modes, fan speeds, air intake and
air-conditioning will be controlled
automatically by the temperature setting
you select.
OBI3050114OBI3050114
2. Push the temperature control switch
to set the desired temperature. If
the temperature is set to the lowest
setting (Lo), the air conditioning
system will operate continuously.To turn the automatic operation off,
select any button of the following:
- Mode selection button
- Front windshield defrost button (Press
the button one more time to deselect
the front windshield defroster function.
- Fan speed control button
The selected function will be controlled
manually while other functions operate
automatically.
For your convenience and to improve
the effectiveness of the climate control,
use the AUTO button and set the
temperature to 23°C (73°F).
i Information
OBI3050027OBI3050027
Never place anything near the sensor
located to ensure better control of the
heating and cooling system.
Page 203 of 444

6-75
06
To cancel or reset the Auto Defogging
System
Press the front windscreen defroster
button for 3 seconds when the ignition
switch is in the ON position.
When the Auto Defogging System is
cancelled, defrost button indicator will
blink 3 times.
When the Auto Defogging System is
reset, defrost button indicator will blink
6 times without a signal.
i Information
When the air conditioning is turned on by
Auto defogging system, if you try to turn
off the air conditioning, the indicator will
blink 3 times and the air conditioning will
not be turned off.
To maintain the effectiveness and
efficiency of the Auto Defogging System,
do not select Recirculation mode whilst
the system is operating.
When the Auto Defogging System is
operating, the blower speed adjustment
knob, the temperature adjustment knob,
and the air intake control button are all
disabled.
NOTICE
Do not remove the sensor cover
located at the top of the driver side
windscreen glass.
Damage to system parts could occur
and may not be covered by your vehicle
warranty.
Defroster
NOTICE
To prevent damage to the conductors
bonded to the inside surface of the rear
window, never use sharp instruments
or window cleaners containing
abrasives to clean the window.
i Information
If you want to defrost and defog the
front windshield, refer to “Windshield
Defrosting and Defogging” in this chapter.

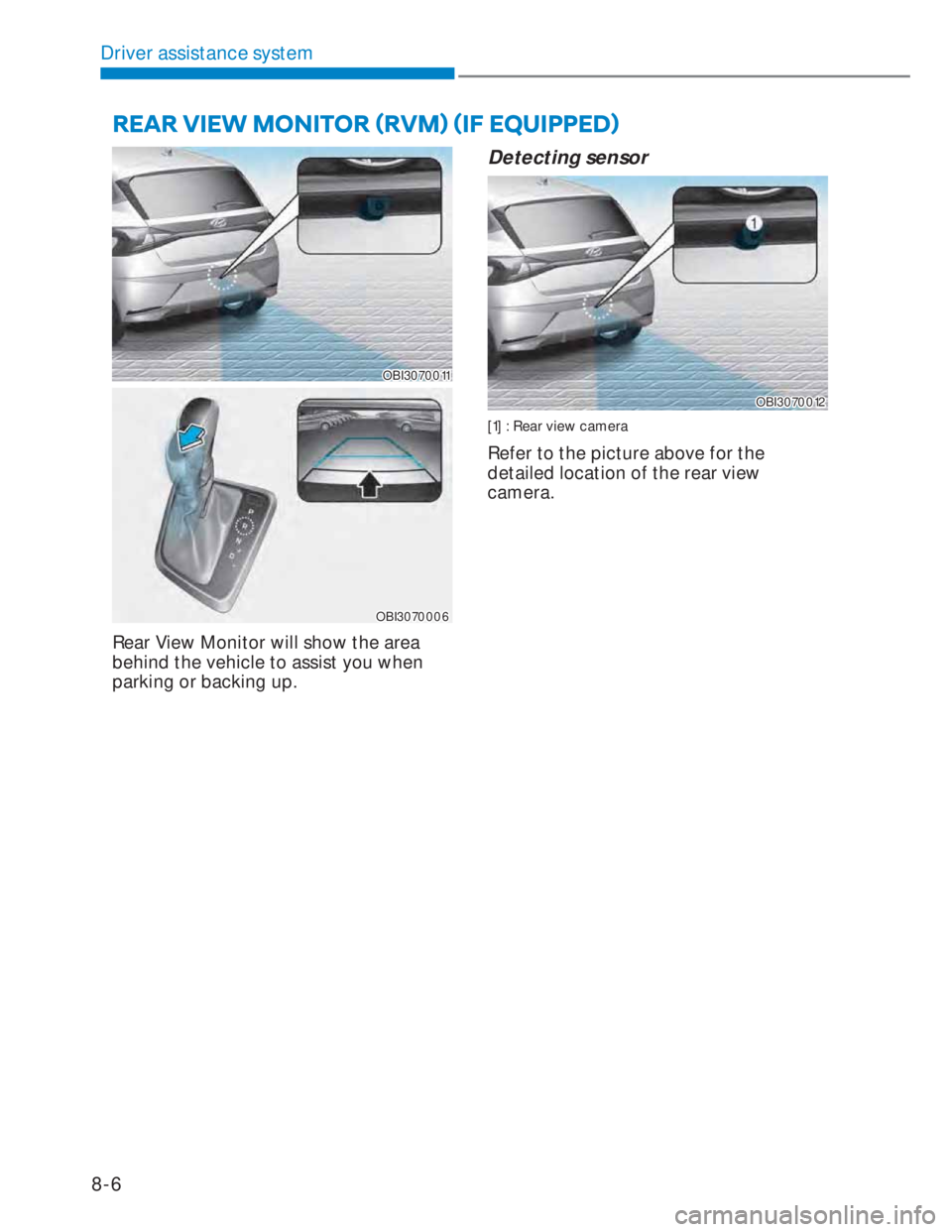

Page 308 of 444

Driver assistance system
8-6
OBI3070011OBI3070011
OBI3070006OBI3070006
Rear View Monitor will show the area
behind the vehicle to assist you when
parking or backing up.
Detecting sensor
OBI3070012OBI3070012
[1] : Rear view camera
Refer to the picture above for the
detailed location of the rear view
camera.
5 ( $ 5 9 , ( : 0 2 1 , 7 2 5
Page 313 of 444

08
8-11
System malfunction and
precautions
System malfunction
After starting the engine, a beep will
sound when the gear is shifted to R
(Reverse) to indicate the system is
operating normally.
However, if one or more of the following
occurs, first check whether the
ultrasonic sensor is damaged or blocked
with foreign material. If it still does not
work properly, we recommend that the
system be inspected by an authorized
HYUNDAI dealer.
• The audible warning does not sound.
• The buzzer sounds intermittently.
• The ‘Sensor error or blockage. System
limited’ warning message appears on
the cluster.
OBI3070014OBI3070014
WARNING
• Reverse Parking Distance Warning
is a supplemental system. The
operation of the system can be
affected by several factors (including
environmental conditions). It is the
responsibility of the driver to always
check the rear view before and while
parking.
• Your new vehicle warranty does not
cover any accidents or damage to
the vehicle due to the malfunction of
Reverse Parking Distance Warning.
• Pay close attention when driving near
objects, pedestrians, and especially
children. Some objects may not be
detected by the ultrasonic sensors,
due to the objects distance, size or
material, all of which can limit the
effectiveness of the sensor.
Limitations of the system
• Reverse Parking Distance Warning
may not operate normally when:
- Moisture is frozen to the sensor
- Sensor is covered with foreign
material, such as snow or water (The
system will operate normally when
such foreign material are removed.)
- The weather is extremely hot or cold
- The sensor or sensor assembly is
disassembled
- The surface of the sensor is pressed
hard or an impact is applied with a
hard object
- The surface of the sensor is
scratched with a sharp object
- The sensors or its surrounding area is
directly sprayed with high pressure
washer

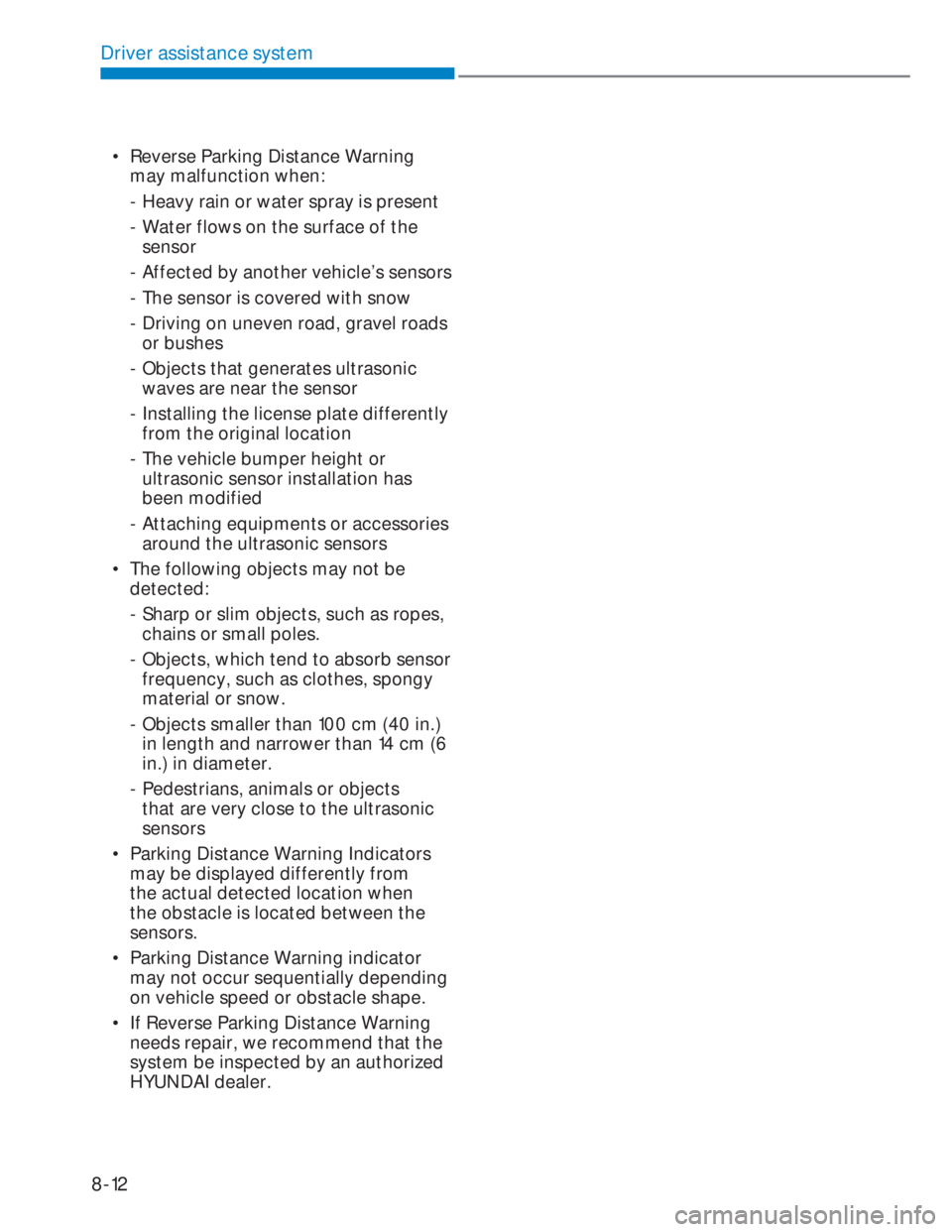

Page 314 of 444

Driver assistance system
8-12
• Reverse Parking Distance Warning
may malfunction when:
- Heavy rain or water spray is present
- Water flows on the surface of the
sensor
- Affected by another vehicle’s sensors
- The sensor is covered with snow
- Driving on uneven road, gravel roads
or bushes
- Objects that generates ultrasonic
waves are near the sensor
- Installing the license plate differently
from the original location
- The vehicle bumper height or
ultrasonic sensor installation has
been modified
- Attaching equipments or accessories
around the ultrasonic sensors
• The following objects may not be
detected:
- Sharp or slim objects, such as ropes,
chains or small poles.
- Objects, which tend to absorb sensor
frequency, such as clothes, spongy
material or snow.
- Objects smaller than 100 cm (40 in.)
in length and narrower than 14 cm (6
in.) in diameter.
- Pedestrians, animals or objects
that are very close to the ultrasonic
sensors
• Parking Distance Warning Indicators
may be displayed differently from
the actual detected location when
the obstacle is located between the
sensors.
• Parking Distance Warning indicator
may not occur sequentially depending
on vehicle speed or obstacle shape.
• If Reverse Parking Distance Warning
needs repair, we recommend that the
system be inspected by an authorized
HYUNDAI dealer.

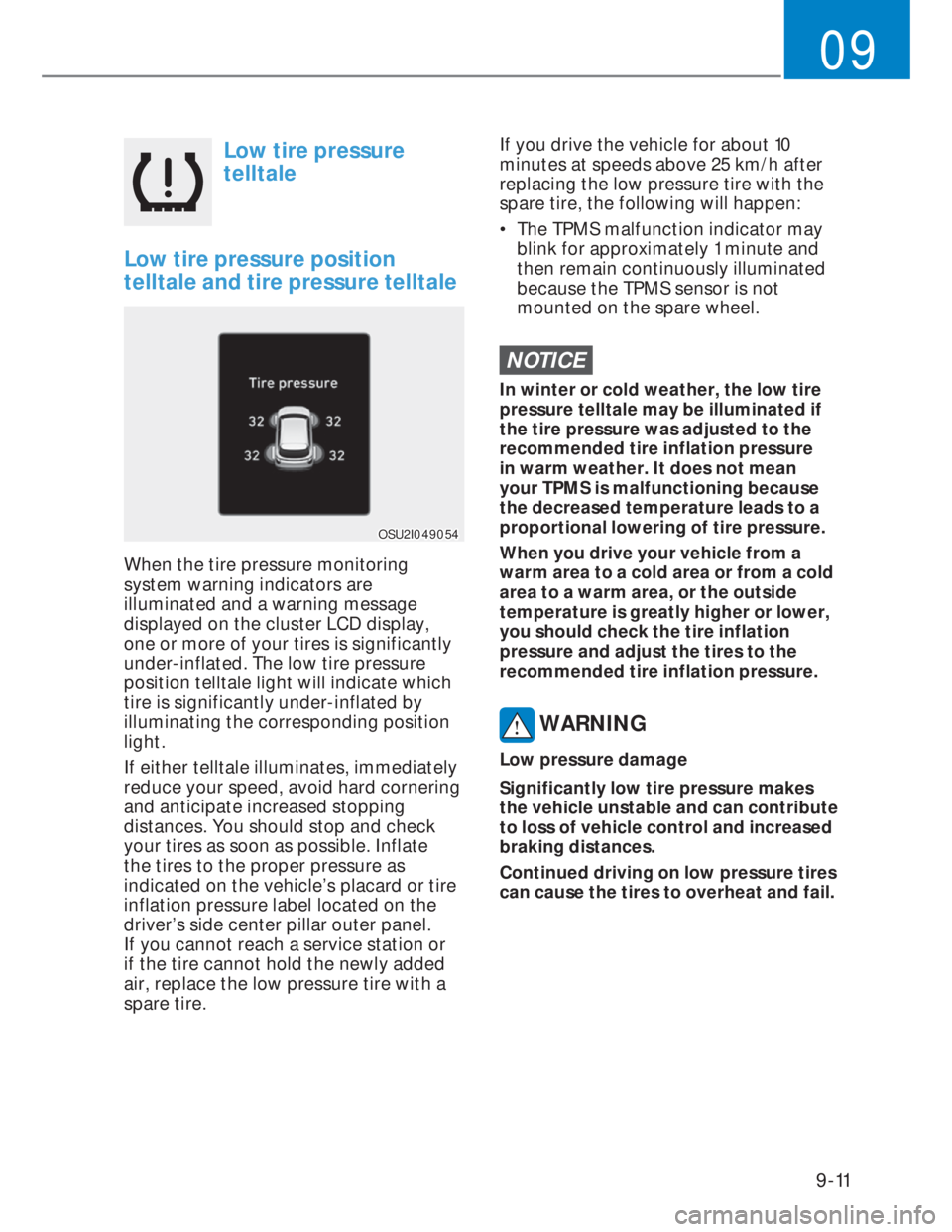

Page 325 of 444

9-11
09
Low tire pressure
telltale
Low tire pressure position
telltale and tire pressure telltale
OSU2I049054OSU2I049054
When the tire pressure monitoring
system warning indicators are
illuminated and a warning message
displayed on the cluster LCD display,
one or more of your tires is significantly
under-inflated. The low tire pressure
position telltale light will indicate which
tire is significantly under-inflated by
illuminating the corresponding position
light.
If either telltale illuminates, immediately
reduce your speed, avoid hard cornering
and anticipate increased stopping
distances. You should stop and check
your tires as soon as possible. Inflate
the tires to the proper pressure as
indicated on the vehicle’s placard or tire
inflation pressure label located on the
driver’s side center pillar outer panel.
If you cannot reach a service station or
if the tire cannot hold the newly added
air, replace the low pressure tire with a
spare tire.
If you drive the vehicle for about 10
minutes at speeds above 25 km/h after
replacing the low pressure tire with the
spare tire, the following will happen:
• The TPMS malfunction indicator may
blink for approximately 1 minute and
then remain continuously illuminated
because the TPMS sensor is not
mounted on the spare wheel.
NOTICE
In winter or cold weather, the low tire
pressure telltale may be illuminated if
the tire pressure was adjusted to the
recommended tire inflation pressure
in warm weather. It does not mean
your TPMS is malfunctioning because
the decreased temperature leads to a
proportional lowering of tire pressure.
When you drive your vehicle from a
warm area to a cold area or from a cold
area to a warm area, or the outside
temperature is greatly higher or lower,
you should check the tire inflation
pressure and adjust the tires to the
recommended tire inflation pressure.
WARNING
Low pressure damage
Significantly low tire pressure makes
the vehicle unstable and can contribute
to loss of vehicle control and increased
braking distances.
Continued driving on low pressure tires
can cause the tires to overheat and fail.

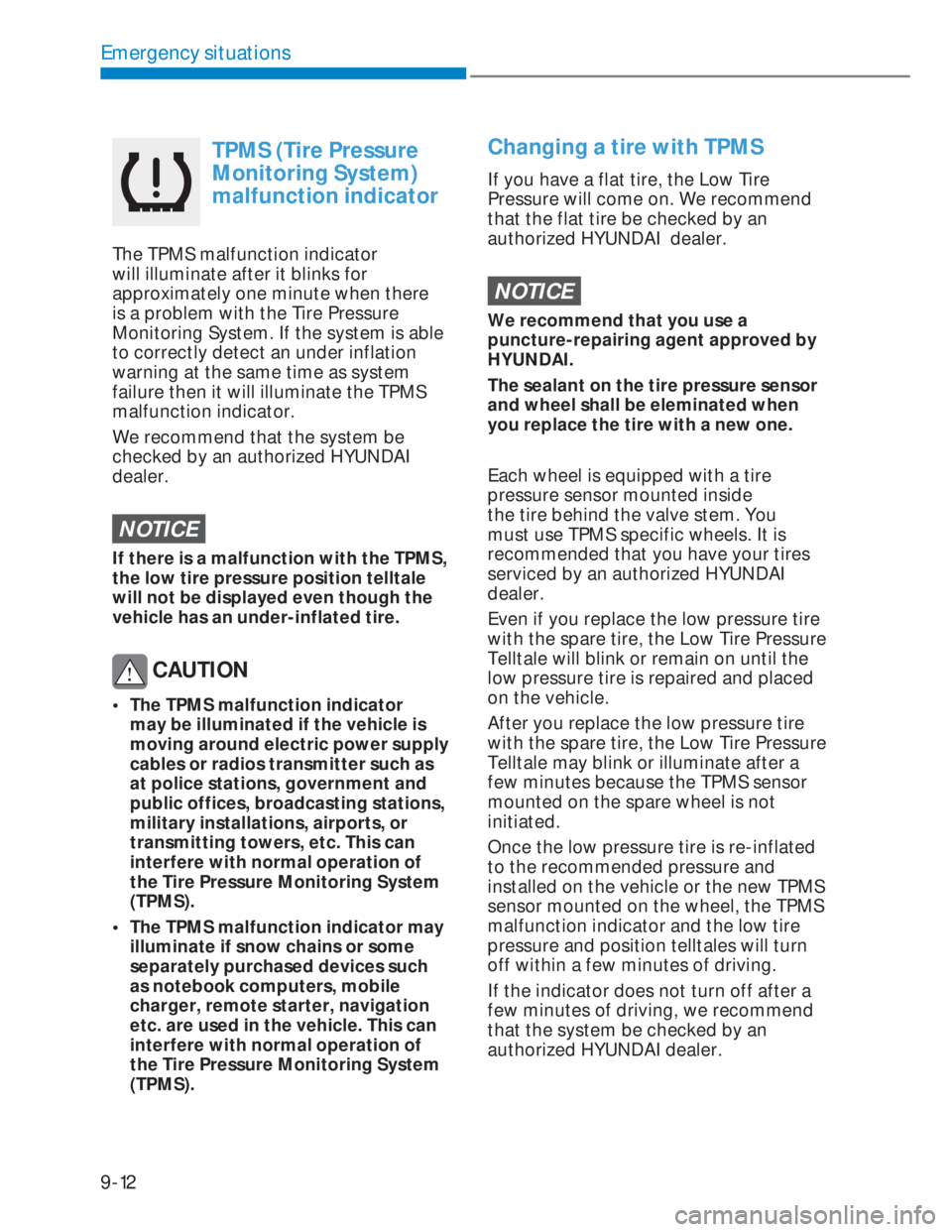

Page 326 of 444

9-12
Emergency situations
TPMS (Tire Pressure
Monitoring System)
malfunction indicator
The TPMS malfunction indicator
will illuminate after it blinks for
approximately one minute when there
is a problem with the Tire Pressure
Monitoring System. If the system is able
to correctly detect an under inflation
warning at the same time as system
failure then it will illuminate the TPMS
malfunction indicator.
We recommend that the system be
checked by an authorized HYUNDAI
dealer.
NOTICE
If there is a malfunction with the TPMS,
the low tire pressure position telltale
will not be displayed even though the
vehicle has an under-inflated tire.
CAUTION
• The TPMS malfunction indicator
may be illuminated if the vehicle is
moving around electric power supply
cables or radios transmitter such as
at police stations, government and
public offices, broadcasting stations,
military installations, airports, or
transmitting towers, etc. This can
interfere with normal operation of
the Tire Pressure Monitoring System
(TPMS).
• The TPMS malfunction indicator may
illuminate if snow chains or some
separately purchased devices such
as notebook computers, mobile
charger, remote starter, navigation
etc. are used in the vehicle. This can
interfere with normal operation of
the Tire Pressure Monitoring System
(TPMS).
Changing a tire with TPMS
If you have a flat tire, the Low Tire
Pressure will come on. We recommend
that the flat tire be checked by an
authorized HYUNDAI dealer.
NOTICE
We recommend that you use a
puncture-repairing agent approved by
HYUNDAI.
The sealant on the tire pressure sensor
and wheel shall be eleminated when
you replace the tire with a new one.
Each wheel is equipped with a tire
pressure sensor mounted inside
the tire behind the valve stem. You
must use TPMS specific wheels. It is
recommended that you have your tires
serviced by an authorized HYUNDAI
dealer.
Even if you replace the low pressure tire
with the spare tire, the Low Tire Pressure
Telltale will blink or remain on until the
low pressure tire is repaired and placed
on the vehicle.
After you replace the low pressure tire
with the spare tire, the Low Tire Pressure
Telltale may blink or illuminate after a
few minutes because the TPMS sensor
mounted on the spare wheel is not
initiated.
Once the low pressure tire is re-inflated
to the recommended pressure and
installed on the vehicle or the new TPMS
sensor mounted on the wheel, the TPMS
malfunction indicator and the low tire
pressure and position telltales will turn
off within a few minutes of driving.
If the indicator does not turn off after a
few minutes of driving, we recommend
that the system be checked by an
authorized HYUNDAI dealer.
Page 327 of 444

9-13
09
NOTICE
If original mounted tire is replaced
with the spare tire, the TPMS sensor
on the replaced spare wheel should be
initiated and we recommend that the
TPMS sensor on the original mounted
wheel be deactivated by a HYUNDAI
dealer. If the TPMS sensor on the
original mounted wheel located in the
spare tire carrier still activates, the
tire pressure monitoring system may
not operate properly. We recommend
that the system be serviced by an
authorized HYUNDAI dealer.
You may not be able to identify a low
tire by simply looking at it. Always use
a good quality tire pressure gauge to
measure the tire’s inflation pressure.
Please note that a tire that is hot (from
being driven) will have a higher pressure
measurement than a tire that is cold.
A cold tire means the vehicle is in parked
position for at least 3 hours or driven
less than 1.6 km (1 mile) in that period.
Allow the tire to cool before measuring
the inflation pressure. Always be sure
the tire is cold before inflating to the
recommended pressure.
NOTICE
We recommend that you use the tire
sealant approved by HYUNDAI if your
vehicle is equipped with a Tire Pressure
Monitoring System. The liquid sealant
can damage the tire pressure sensors.
WARNING
TPMS
• The TPMS cannot alert you to severe
and sudden tire damage caused by
external factors such as nails or road
debris.
• If you feel any vehicle instability,
immediately take your foot off
the accelerator, apply the brakes
gradually and with light force, and
slowly move to a safe position off the
road.
WARNING
Protecting TPMS
Tampering with, modifying, or disabling
the Tire Pressure Monitoring System
(TPMS) components may interfere with
the system’s ability to warn the driver
of low tire pressure conditions and/
or TPMS malfunctions. Tamper-ing
with, modifying, or disabling the Tire
Pressure Monitoring System (TPMS)
components may void the war-ranty for
that portion of the vehicle.
Page 381 of 444

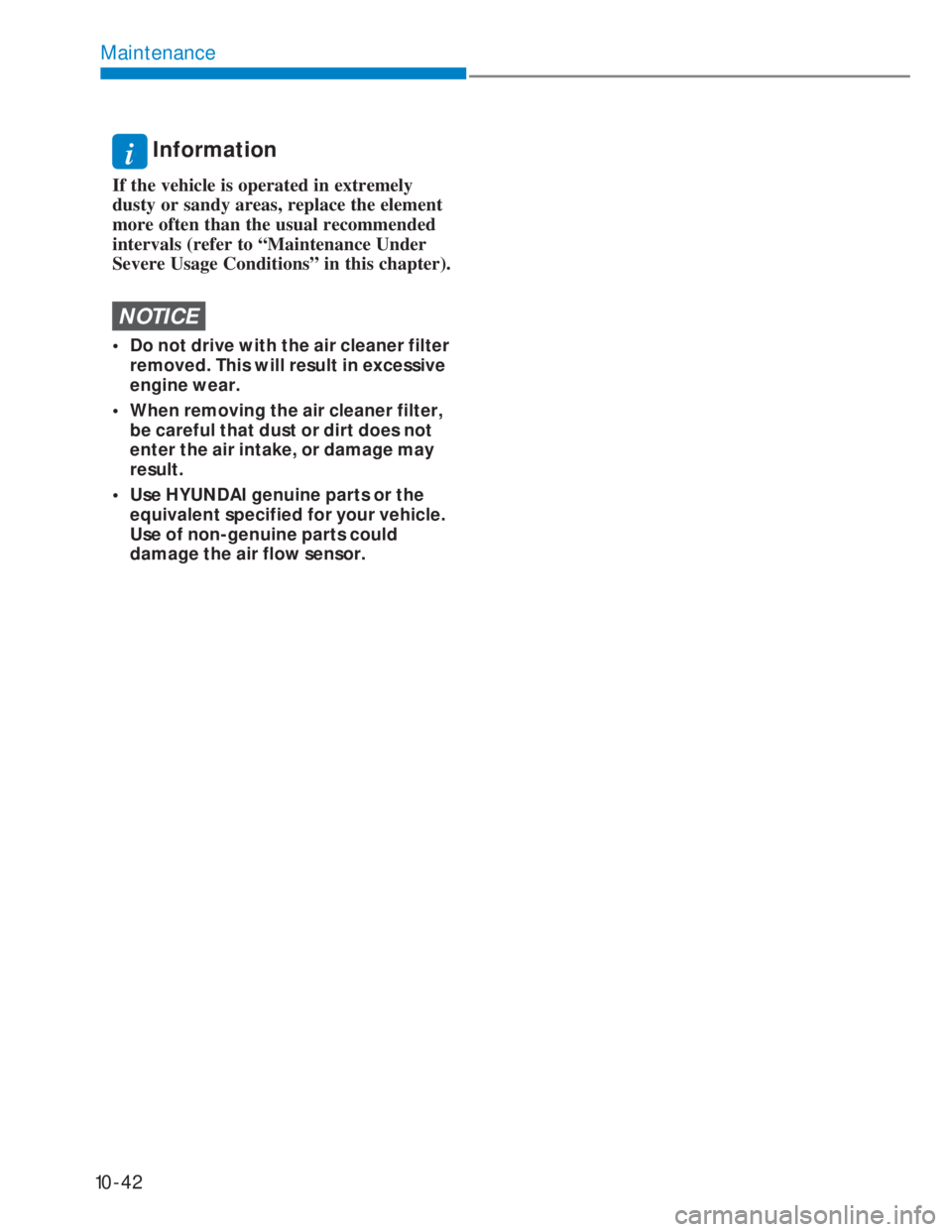

10-42
Maintenance
i Information
If the vehicle is operated in extremely
dusty or sandy areas, replace the element
more often than the usual recommended
intervals (refer to “Maintenance Under
Severe Usage Conditions” in this chapter).
NOTICE
• Do not drive with the air cleaner filter
removed. This will result in excessive
engine wear.
• When removing the air cleaner filter,
be careful that dust or dirt does not
enter the air intake, or damage may
result.
• Use HYUNDAI genuine parts or the
equivalent specified for your vehicle.
Use of non-genuine parts could
damage the air flow sensor.
