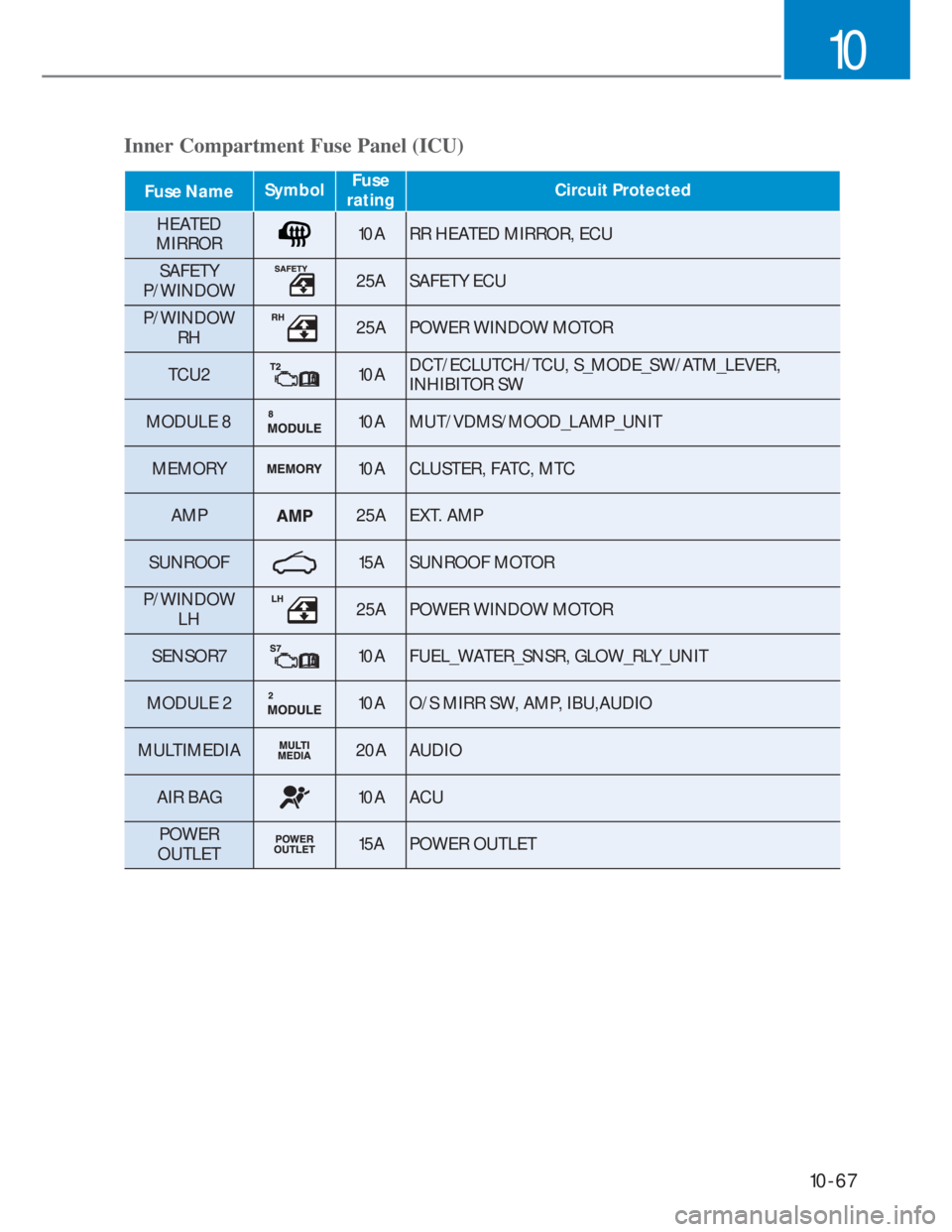

Page 406 of 444

10-67
10
Fuse NameSymbolFuse
ratingCircuit Protected
HEATED
MIRROR10A RR HEATED MIRROR, ECU
SAFETY
P/WINDOW
25A SAFETY ECU
P/WINDOW
RH
25A POWER WINDOW MOTOR
TCU2
10ADCT/ECLUTCH/TCU, S_MODE_SW/ATM_LEVER,
INHIBITOR SW
MODULE 8
10A MUT/VDMS/MOOD_LAMP_UNIT
MEMORY
10A CLUSTER, FATC, MTC
AMP
25A EXT. AMP
SUNROOF
15A SUNROOF MOTOR
P/WINDOW
LH
25A POWER WINDOW MOTOR
SENSOR7
10A FUEL_WATER_SNSR, GLOW_RLY_UNIT
MODULE 2
10A O/S MIRR SW, AMP, IBU,AUDIO
MULTIMEDIA
20A AUDIO
AIR BAG
10A ACU
POWER
OUTLET
15A POWER OUTLET
Inner Compartment Fuse Panel (ICU)
Page 411 of 444

10-72
Maintenance
Engine Compartment Fuse Panel (1.0 T-GDi)
Fuse Name SymbolFuse
RatingCircuit Protected
BATT250A ICU Junction Block (IPS2, IPS4, IPS6, IPS9, IPS10)
IG2
40AE/R Junction Block (RLY.9).
[With Smart Key] PDM Relay Box (IG2 Relay)
[W/O Smart Key] Ignition Switch
C/FAN
60A E/R Junction Block (RLY.2)
IGN COIL
20A Ignition Coil #1/#2/#3
ECU5
20A ECU
SENSOR 1
10AE/R Junction Block (RLY.2/3),
Oil Control Valve #1/#2 (Intake/Exhaust),
Purge Control Solenoid Valve
SENSOR 2
10A Oxygen Sensor (Up/Down)
RR DEFOG
40A ICU Junction Block (Rear Defogger Relay)
ABS 1
40A ABS/ESP Control Module
ABS 2
30A ABS/ESP Control Module
BLOWER
40A E/R Junction Block (RLY.10)
WIPER 2
10A E/R Junction Block (RLY. 5), Front Wiper Motor, IBU
SENSOR8
15A E/R Junction Block (RLY. 6)
SENSOR3
10A RCV Control Solenoid Valve
ECU6
15A ECU
WIPER 1
25A E/R Junction Block (RLY. 5), Front Wiper Motor
Page 413 of 444

10-74
Maintenance
Engine Compartment Fuse Panel (Smartstream G1.2)
Fuse Name SymbolFuse
RatingCircuit Protected
ECU520A ECU/PCU
SENSOR 1
10AE/R Junction Block (RLY.2/3),
Front Wheel Sensor RH,
Oil Control Valve #1/#2 (Intake/Exhaust),
Purge Control Solenoid Valve,
Variable Intake Solenoid Valve
SENSOR 2
10A Oxygen Sensor (Up/Down)
RR DEFOG
40A ICU Junction Block (Rear Defogger Relay)
ABS 1
40A ABS/ESP Control Module
ABS 2
30A ABS/ESP Control Module
BLOWER
40A E/R Junction Block (RLY.10)
WIPER 2
10A E/R Junction Block (RLY. 5), Front Wiper Motor, IBU
INJECTOR1
15AE/R Junction Block (RLY. 6),
Injector #1-1/#2-1/#3-1/#4-1
INJECTOR2
15AE/R Junction Block (RLY. 6),
Injector #1-2/#2-2/#3-2/#4-2
ECU6
15A ECU
WIPER 1
25A E/R Junction Block (RLY. 5), Front Wiper Motor
Page 414 of 444

10-75
10
Engine Compartment Fuse Panel (1.5 WGT)
Fuse Name SymbolFuse
RatingCircuit Protected
GLOW100A Glow Relay Unit
ALT
180A Alternator, Multi Fuse - F3, Fuse - F32/F33/F34/F35
MDPS
80A MDPS Unit
ECU1
30A E/R Junction Block (RLY.1)
IG1
30A[With Smart Key] PDM Relay Box (IG1, ACC Relay)
[W/O Smart Key] Ignition Switch
FUEL PUMP
20A E/R Junction Block (RLY.6)
ECU2
15A ECU
A/CON 1
10A E/R Junction Block (RLY.3)
FUEL HEATER
30A E/R Junction Block (RLY.14)
BATT4
40AICU Junction Block
(Power Window Relay, Fuse - F3/F10/F11)
BATT1
50A ICU Junction Block (IPS1, IPS3, IPS5, IPS7, IPS8, IPS11)
BATT3
40AICU Junction Block (Fuse - F8/F21/F25/F29,
Long Term Load Latch Relay)
HORN
15A E/R Junction Block (RLY.11, RLY.12)
AMS
10A Battery Sensor
BATT2
50A ICU Junction Block (IPS2, IPS4, IPS6, IPS9, IPS10)
IG2
40AE/R Junction Block (RLY.9).
[With Smart Key] PDM Relay Box (IG2 Relay)
[W/O Smart Key] Ignition Switch
Page 415 of 444

10-76
Maintenance
Engine Compartment Fuse Panel (1.5 WGT)
Fuse Name SymbolFuse
RatingCircuit Protected
C/FAN50A E/R Junction Block (RLY.2)
SENSOR 6
15A PM Sensor
ECU5
20A ECU
SENSOR 1
10AE/R Junction Block (RLY.2/3),
Oil Control Valve #1/#2 (Intake/Exhaust),
Purge Control Solenoid Valve
SENSOR 2
10A Oxygen Sensor (Up/Down)
SENSOR 3
10A COOLING FAN, A/CON COMPRESSOR
RR DEFOG
40A ICU Junction Block (Rear Defogger Relay)
ABS 1
40A ABS/ESP Control Module
ABS 2
30A ABS/ESP Control Module
BLOWER
40A E/R Junction Block (RLY.10)
WIPER 2
10A E/R Junction Block (RLY. 5), Front Wiper Motor, IBU
SENSOR 4
10A Inlet Metering Valve, E/R Junction Block (RLY. 6)
SENSOR 5
10AAir Flow Sensor, EGR Cooling Bypass Solenoid Valve,
WGR Vacuum Modulator
WIPER 1
25A E/R Junction Block (RLY. 5), Front Wiper Motor

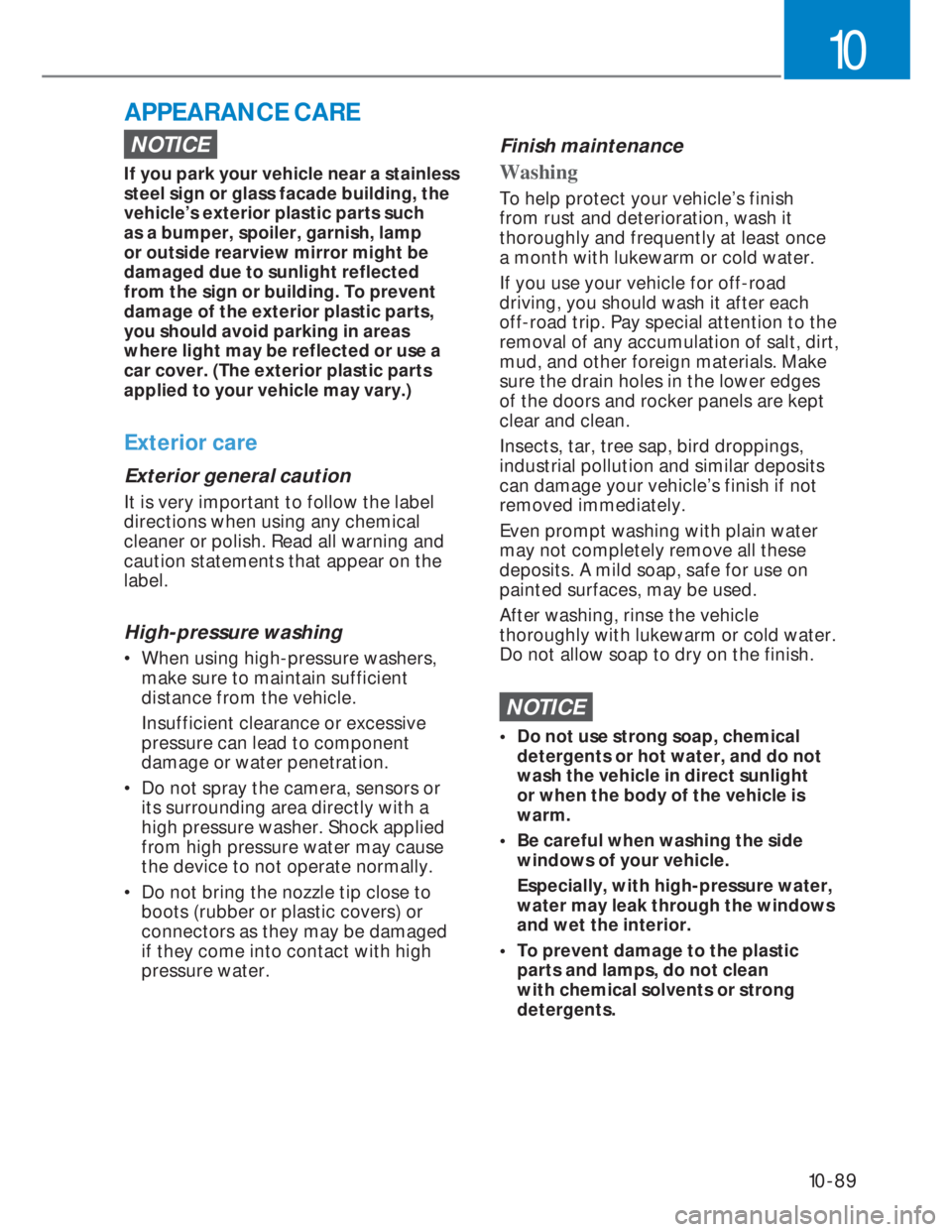

Page 428 of 444

10-89
10
NOTICE
If you park your vehicle near a stainless
steel sign or glass facade building, the
vehicle’s exterior plastic parts such
as a bumper, spoiler, garnish, lamp
or outside rearview mirror might be
damaged due to sunlight reflected
from the sign or building. To prevent
damage of the exterior plastic parts,
you should avoid parking in areas
where light may be reflected or use a
car cover. (The exterior plastic parts
applied to your vehicle may vary.)
Exterior care
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning and
caution statements that appear on the
label.
High-pressure washing
• When using high-pressure washers,
make sure to maintain sufficient
distance from the vehicle.
Insufficient clearance or excessive
pressure can lead to component
damage or water penetration.
• Do not spray the camera, sensors or
its surrounding area directly with a
high pressure washer. Shock applied
from high pressure water may cause
the device to not operate normally.
• Do not bring the nozzle tip close to
boots (rubber or plastic covers) or
connectors as they may be damaged
if they come into contact with high
pressure water.
Finish maintenance
Washing
To help protect your vehicle’s finish
from rust and deterioration, wash it
thoroughly and frequently at least once
a month with lukewarm or cold water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to the
removal of any accumulation of salt, dirt,
mud, and other foreign materials. Make
sure the drain holes in the lower edges
of the doors and rocker panels are kept
clear and clean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar deposits
can damage your vehicle’s finish if not
removed immediately.
Even prompt washing with plain water
may not completely remove all these
deposits. A mild soap, safe for use on
painted surfaces, may be used.
After washing, rinse the vehicle
thoroughly with lukewarm or cold water.
Do not allow soap to dry on the finish.
NOTICE
• Do not use strong soap, chemical
detergents or hot water, and do not
wash the vehicle in direct sunlight
or when the body of the vehicle is
warm.
• Be careful when washing the side
windows of your vehicle.
Especially, with high-pressure water,
water may leak through the windows
and wet the interior.
• To prevent damage to the plastic
parts and lamps, do not clean
with chemical solvents or strong
detergents.
APPEARANCE CARE
