HYUNDAI I20 2022 Owners Manual

6-13
06
WARNING
In order to prevent theft of your
vehicle, do not leave spare keys
anywhere in your vehicle. Your
immobilizer password is a customer
unique password and should be kept
confidential.
NOTICE
The transponder in your key is an
important part of the immobilizer
system. It is designed to give years
of trouble-free service, however you
should avoid exposure to moisture,
static electricity and rough handling.
Immobilizer system malfunction could
occur.
MT (Manual Transmission)
Remote start function
(if equipped)
Remote Engine Start allows you to start
your vehicle engine remotely from your
convenient place by Mobile (Blue Link
Application).
The following conditions must be met
for a vehicle to start remotely:
• All the vehicle doors including tailgate
and hood must be closed and Locked.
OAI3069006OAI3069006
• Verify that the parking brake lever
should be pulled above 5 notches,
Notch can be detected as the click
sound when parking brake lever
operating.
OIB054001OIB054001
• Gear shift lever must be in ‘N’ position.

6-14
Convenient features
• Vehicle should be parked on a flat
surface.
• Smart Key (FOB) should not be placed
inside the vehicle.
Remote Engine Start will not
operate:
1. If gear position is other than ‘N’
2. If the parking brake position is less
than 5th notch condition
3. If vehicle is parked on a hill or an
inclination road(not on flat area)
4. If vehicle battery is low.
CAUTION
For remote start operation in Manual
Transmission, vehicle must be parked
on a flat surface.
Door lock/unlock sound
When a user steps out of the car, all
doors are closed and then the user tries
to lock or unlock the car with the remote
key or smart key, sound occurs along
with flashing.
• Door Lock beep sound : 1time
• Door Unlock beep sound : 2times
Lock/Unlock Sound Function
Disable / Enable:
The user can disable or enable the lock/
unlock sound using the remote key or
smart key.
• Default condition : Sound is Enabled
(ON)
- Sound Disable : User must press
both lock and unlock buttons in the
remote key or smart key together for
at least 4seconds to deactivate the
sound (from “ON  OFF”).
- Sound Enable : User must press
both lock and unlock buttons in the
remote key or smart key together for
at least 4seconds to activate Sound
(from “ OFF  ON”).
• For a successful Activation/
De-activation of Sound, Hazard
warning lights will blink 4 times.

6-15
06

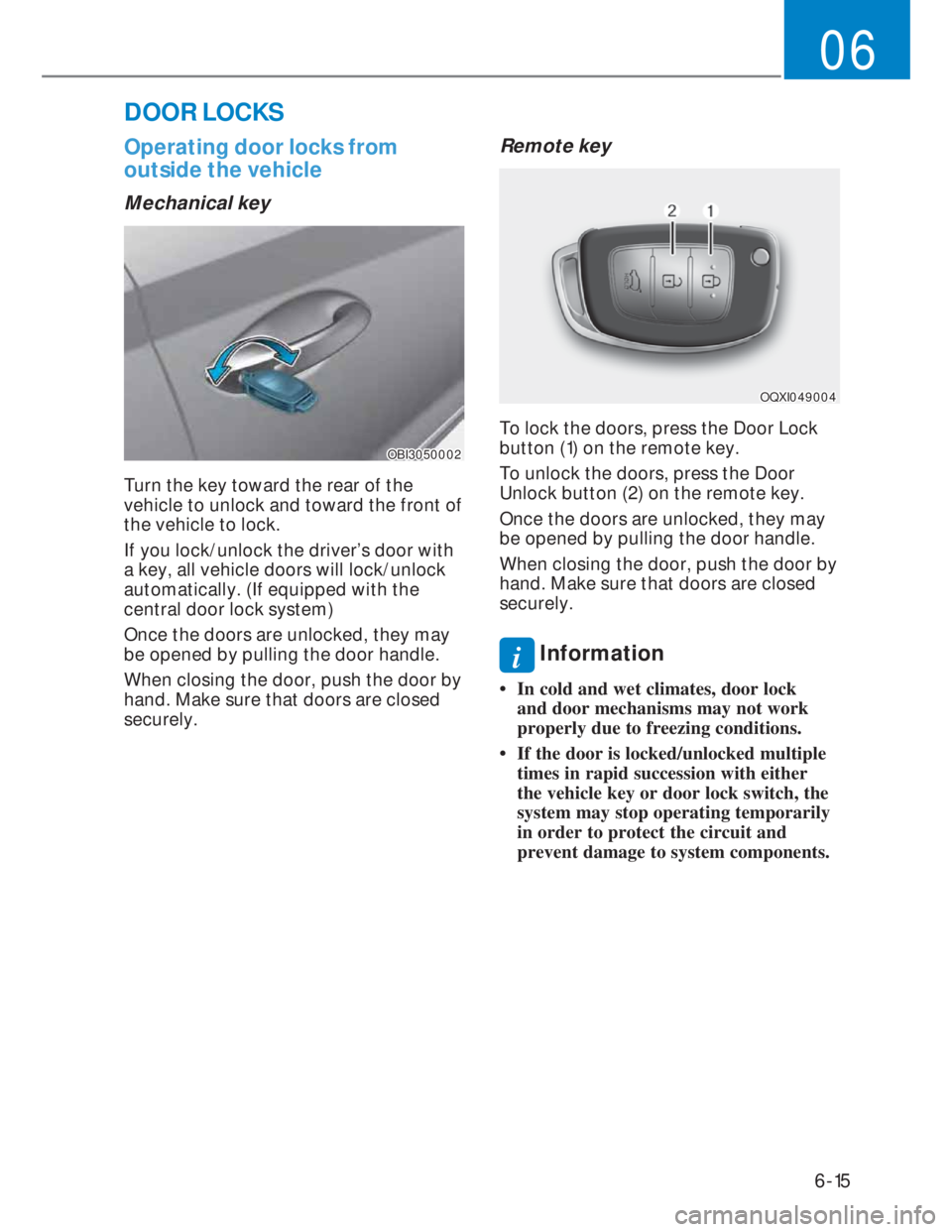

DOOR LOCKS
Operating door locks from
outside the vehicle
Mechanical key
OBI3050002OBI3050002
Turn the key toward the rear of the
vehicle to unlock and toward the front of
the vehicle to lock.
If you lock/unlock the driver’s door with
a key, all vehicle doors will lock/unlock
automatically. (If equipped with the
central door lock system)
Once the doors are unlocked, they may
be opened by pulling the door handle.
When closing the door, push the door by
hand. Make sure that doors are closed
securely.
Remote key
OQXI049004OQXI049004
To lock the doors, press the Door Lock
button (1) on the remote key.
To unlock the doors, press the Door
Unlock button (2) on the remote key.
Once the doors are unlocked, they may
be opened by pulling the door handle.
When closing the door, push the door by
hand. Make sure that doors are closed
securely.
i Information
• In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.
• If the door is locked/unlocked multiple
times in rapid succession with either
the vehicle key or door lock switch, the
system may stop operating temporarily
in order to protect the circuit and
prevent damage to system components.

6-16
Convenient features

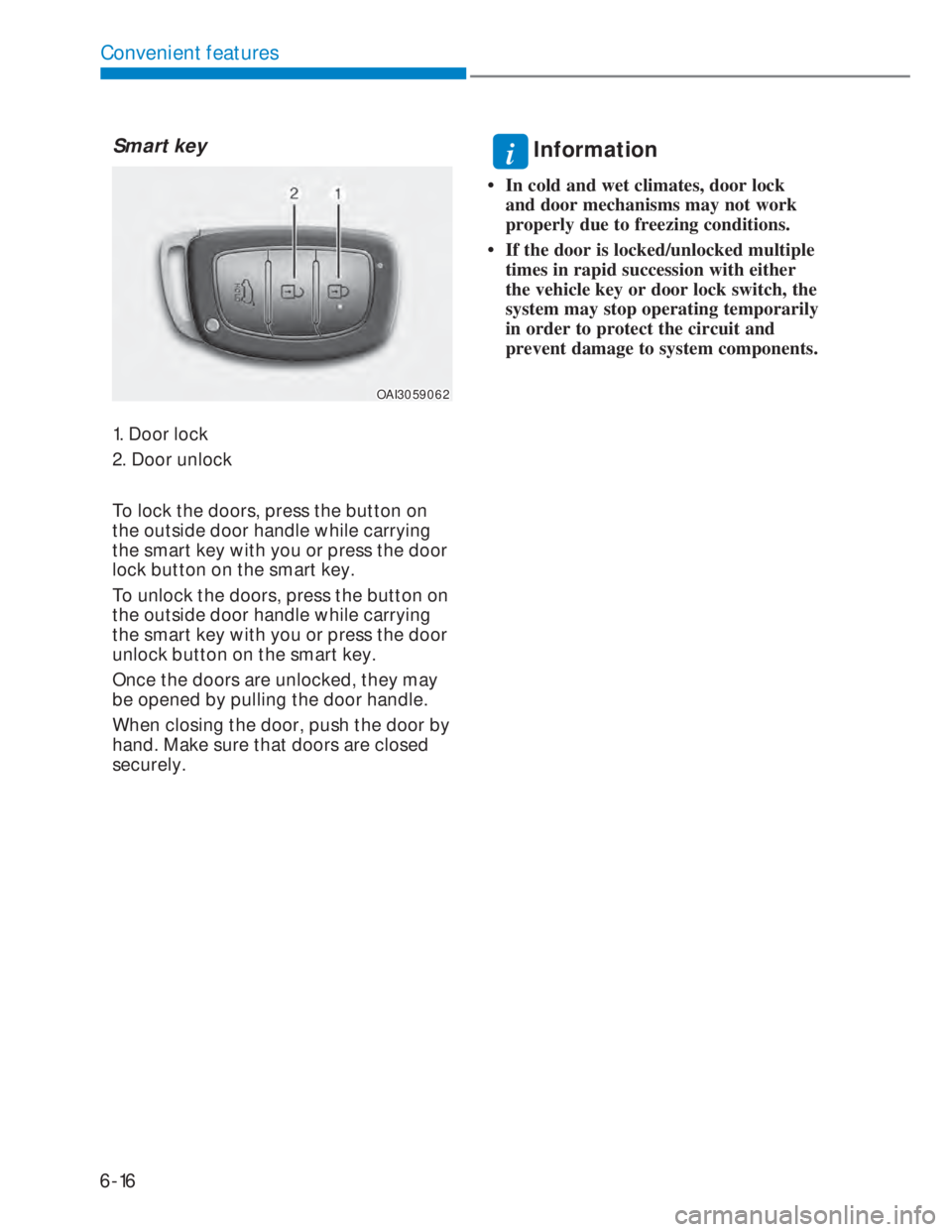

Smart key
OAI3059062OAI3059062
1. Door lock
2. Door unlock
To lock the doors, press the button on
the outside door handle while carrying
the smart key with you or press the door
lock button on the smart key.
To unlock the doors, press the button on
the outside door handle while carrying
the smart key with you or press the door
unlock button on the smart key.
Once the doors are unlocked, they may
be opened by pulling the door handle.
When closing the door, push the door by
hand. Make sure that doors are closed
securely.
i Information
• In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.
• If the door is locked/unlocked multiple
times in rapid succession with either
the vehicle key or door lock switch, the
system may stop operating temporarily
in order to protect the circuit and
prevent damage to system components.

6-17
06

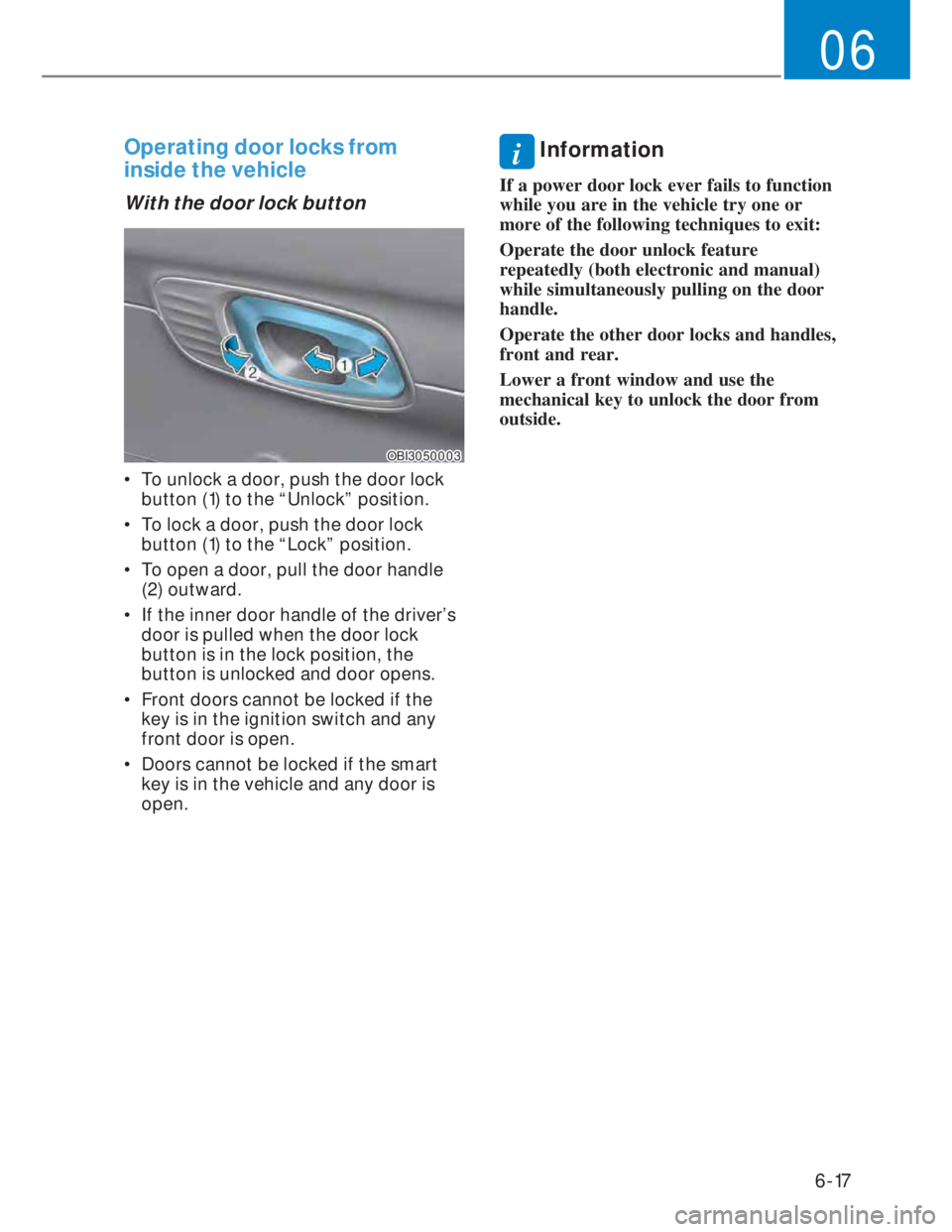

Operating door locks from
inside the vehicle
With the door lock button
OBI3050003OBI3050003
• To unlock a door, push the door lock
button (1) to the “Unlock” position.
• To lock a door, push the door lock
button (1) to the “Lock” position.
• To open a door, pull the door handle
(2) outward.
• If the inner door handle of the driver’s
door is pulled when the door lock
button is in the lock position, the
button is unlocked and door opens.
• Front doors cannot be locked if the
key is in the ignition switch and any
front door is open.
• Doors cannot be locked if the smart
key is in the vehicle and any door is
open.
i Information
If a power door lock ever fails to function
while you are in the vehicle try one or
more of the following techniques to exit:
Operate the door unlock feature
repeatedly (both electronic and manual)
while simultaneously pulling on the door
handle.
Operate the other door locks and handles,
front and rear.
Lower a front window and use the
mechanical key to unlock the door from
outside.

6-18
Convenient features

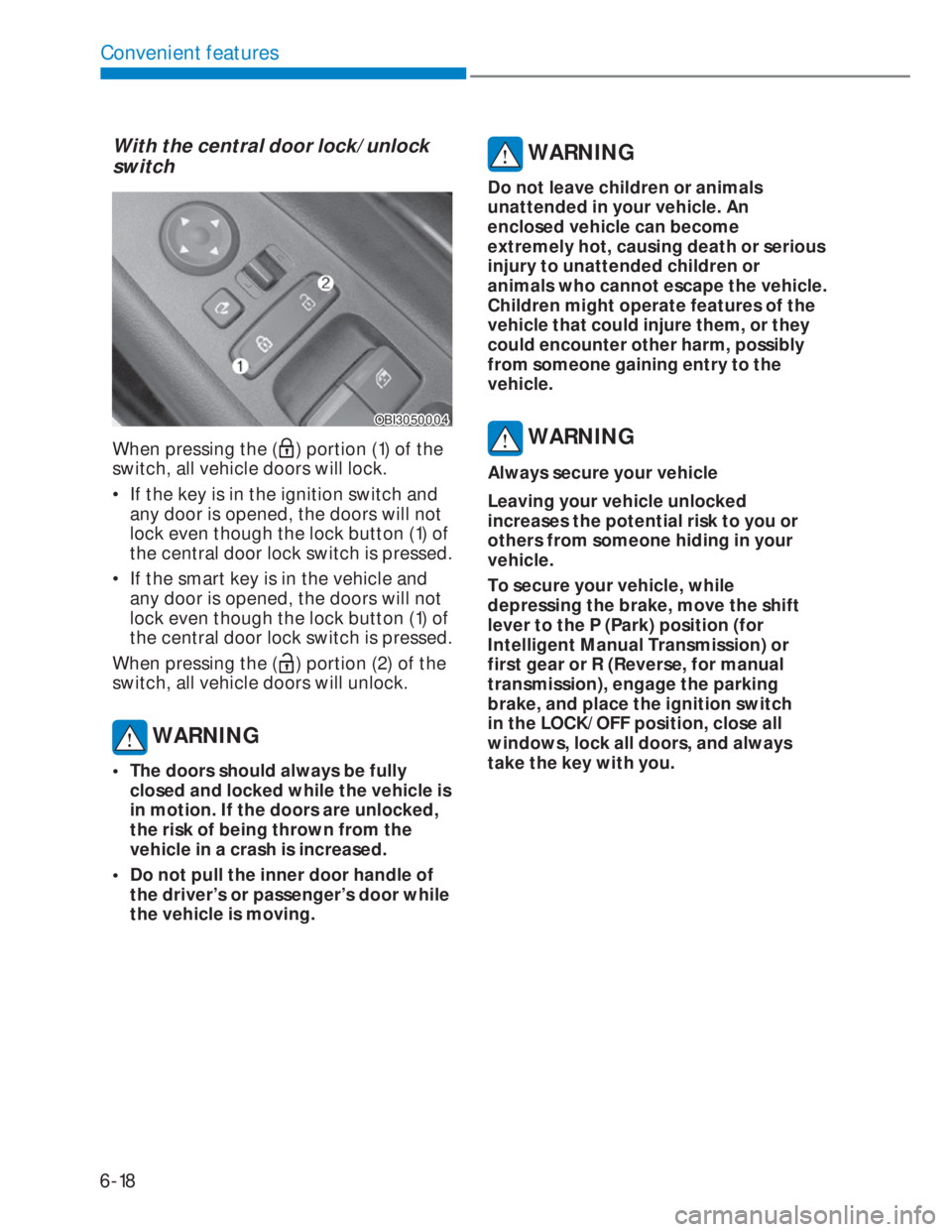

With the central door lock/unlock
switch
OBI3050004OBI3050004
When pressing the () portion (1) of the
switch, all vehicle doors will lock.
• If the key is in the ignition switch and
any door is opened, the doors will not
lock even though the lock button (1) of
the central door lock switch is pressed.
• If the smart key is in the vehicle and
any door is opened, the doors will not
lock even though the lock button (1) of
the central door lock switch is pressed.
When pressing the (
) portion (2) of the
switch, all vehicle doors will unlock.
WARNING
• The doors should always be fully
closed and locked while the vehicle is
in motion. If the doors are unlocked,
the risk of being thrown from the
vehicle in a crash is increased.
• Do not pull the inner door handle of
the driver’s or passenger’s door while
the vehicle is moving.
WARNING
Do not leave children or animals
unattended in your vehicle. An
enclosed vehicle can become
extremely hot, causing death or serious
injury to unattended children or
animals who cannot escape the vehicle.
Children might operate features of the
vehicle that could injure them, or they
could encounter other harm, possibly
from someone gaining entry to the
vehicle.
WARNING
Always secure your vehicle
Leaving your vehicle unlocked
increases the potential risk to you or
others from someone hiding in your
vehicle.
To secure your vehicle, while
depressing the brake, move the shift
lever to the P (Park) position (for
Intelligent Manual Transmission) or
first gear or R (Reverse, for manual
transmission), engage the parking
brake, and place the ignition switch
in the LOCK/OFF position, close all
windows, lock all doors, and always
take the key with you.

6-19
06

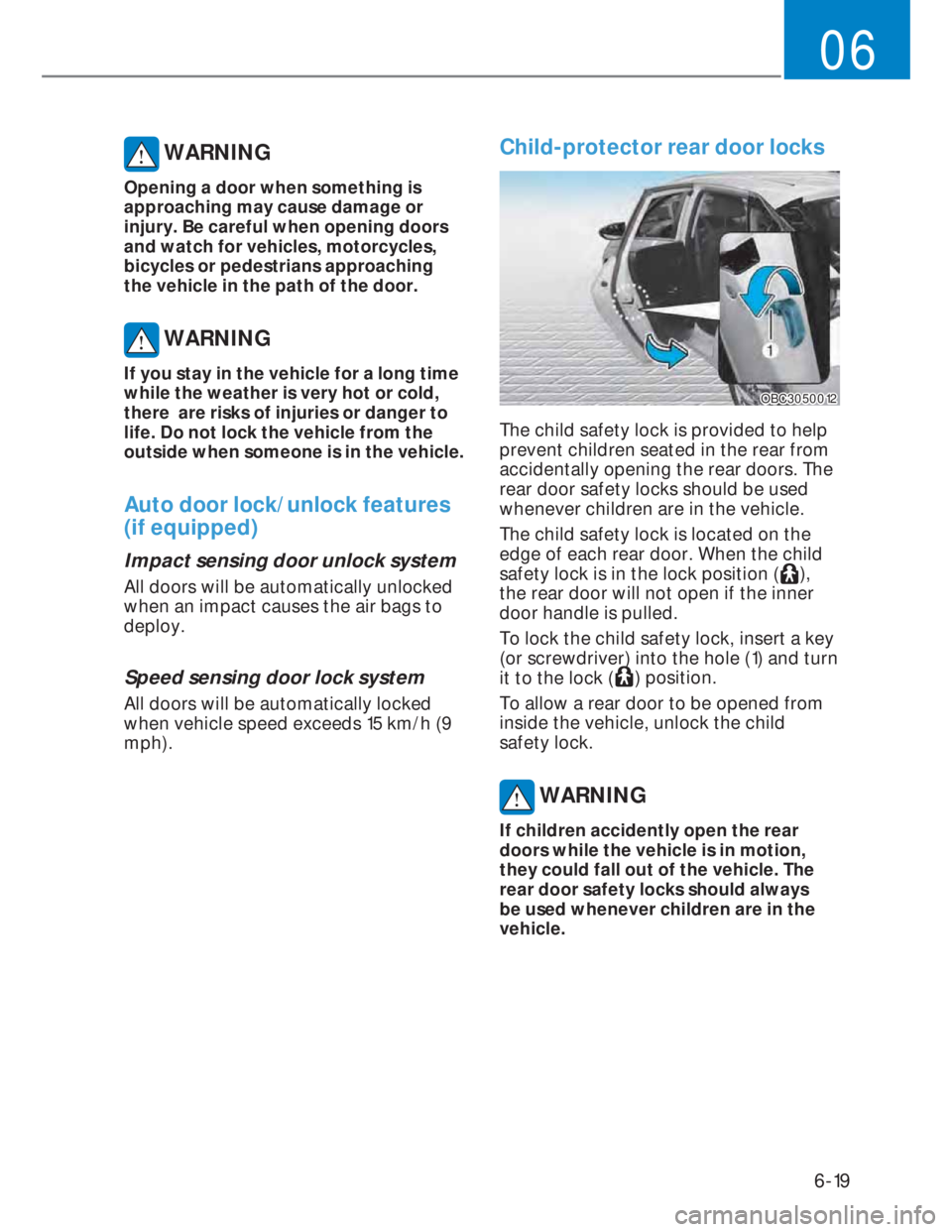

WARNING
Opening a door when something is
approaching may cause damage or
injury. Be careful when opening doors
and watch for vehicles, motorcycles,
bicycles or pedestrians approaching
the vehicle in the path of the door.
WARNING
If you stay in the vehicle for a long time
while the weather is very hot or cold,
there are risks of injuries or danger to
life. Do not lock the vehicle from the
outside when someone is in the vehicle.
Auto door lock/unlock features
(if equipped)
Impact sensing door unlock system
All doors will be automatically unlocked
when an impact causes the air bags to
deploy.
Speed sensing door lock system
All doors will be automatically locked
when vehicle speed exceeds 15 km/h (9
mph).
Child-protector rear door locks
OBC3050012OBC3050012
The child safety lock is provided to help
prevent children seated in the rear from
accidentally opening the rear doors. The
rear door safety locks should be used
whenever children are in the vehicle.
The child safety lock is located on the
edge of each rear door. When the child
safety lock is in the lock position (
),
the rear door will not open if the inner
door handle is pulled.
To lock the child safety lock, insert a key
(or screwdriver) into the hole (1) and turn
it to the lock (
) position.
To allow a rear door to be opened from
inside the vehicle, unlock the child
safety lock.
WARNING
If children accidently open the rear
doors while the vehicle is in motion,
they could fall out of the vehicle. The
rear door safety locks should always
be used whenever children are in the
vehicle.

6-20
Convenient features
Electric power steering (EPS)
The system assists you with steering
the vehicle. If the engine is off or if
the power steering system becomes
inoperative, the vehicle may still be
steered, but it will require increased
steering effort.
Also, the steering effort becomes
heavier as the vehicle’s speed increases
and becomes lighter as the vehicle’s
speed decreases for better control of the
steering wheel.
Should you notice any change in the
effort required to steer during normal
vehicle operation, we recommend that
the system be checked by an authorized
HYUNDAI dealer.
NOTICE
If the Electric Power Steering System
does not operate normally, the
warning light (
) will illuminate on
the instrument cluster. The steering
wheel may become difficult to control
or operate. Take your vehicle to an
authorized HYUNDAI dealer and
have the system checked as soon as
possible.
i Information
The following symptoms may occur
during normal vehicle operation:
• The steering effort may be high
immediately after placing the ignition
switch in the ON position.
This happens as the system performs
the EPS system diagnostics. When
the diagnostics is completed, the
steering wheel will return to its normal
condition.
• When the battery voltage is low, you
might have to put more steering effort.
However, it is a temporary condition so
that it will return to normal condition
after charging the battery.
• A click noise may be heard from the
EPS relay after the ignition switch
is placed to the ON or LOCK/OFF
position.
• Motor noise may be heard when the
vehicle is at stop or at a low driving
speed.
• When you operate the steering wheel
in low temperature, abnormal noise
may occur. If temperature rises, the
noise will disappear. This is a normal
condition.

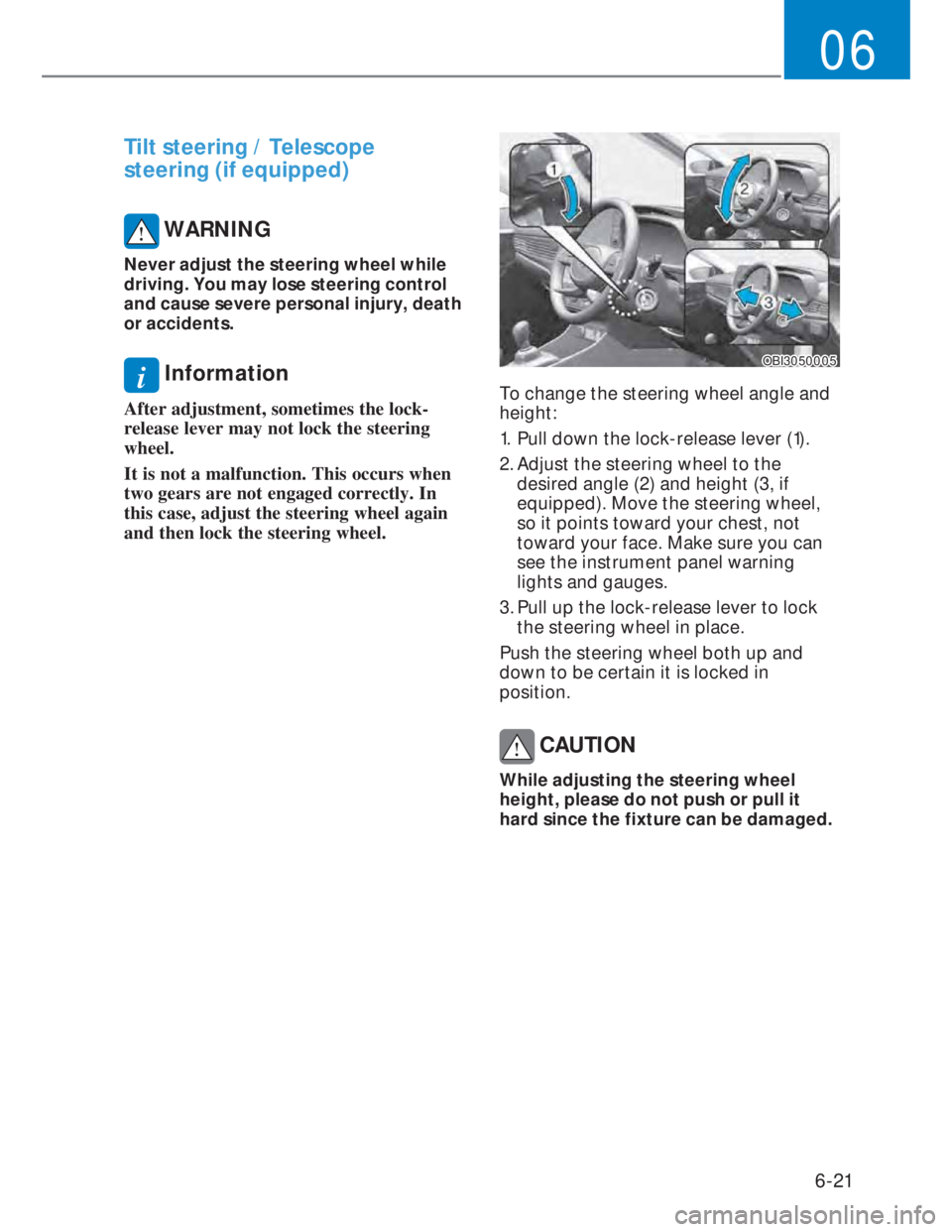

WARNING
Never adjust the steering wheel while
driving. You may lose steering control
and cause severe personal injury, death
or accidents.
STEERING WHEEL

6-21
06
Tilt steering / Telescope
steering (if equipped)
WARNING
Never adjust the steering wheel while
driving. You may lose steering control
and cause severe personal injury, death
or accidents.
i Information
After adjustment, sometimes the lock-
release lever may not lock the steering
wheel.
It is not a malfunction. This occurs when
two gears are not engaged correctly. In
this case, adjust the steering wheel again
and then lock the steering wheel.
OBI3050005OBI3050005
To change the steering wheel angle and
height:
1. Pull down the lock-release lever (1).
2. Adjust the steering wheel to the
desired angle (2) and height (3, if
equipped). Move the steering wheel,
so it points toward your chest, not
toward your face. Make sure you can
see the instrument panel warning
lights and gauges.
3. Pull up the lock-release lever to lock
the steering wheel in place.
Push the steering wheel both up and
down to be certain it is locked in
position.
CAUTION
While adjusting the steering wheel
height, please do not push or pull it
hard since the fixture can be damaged.

6-22
Convenient features

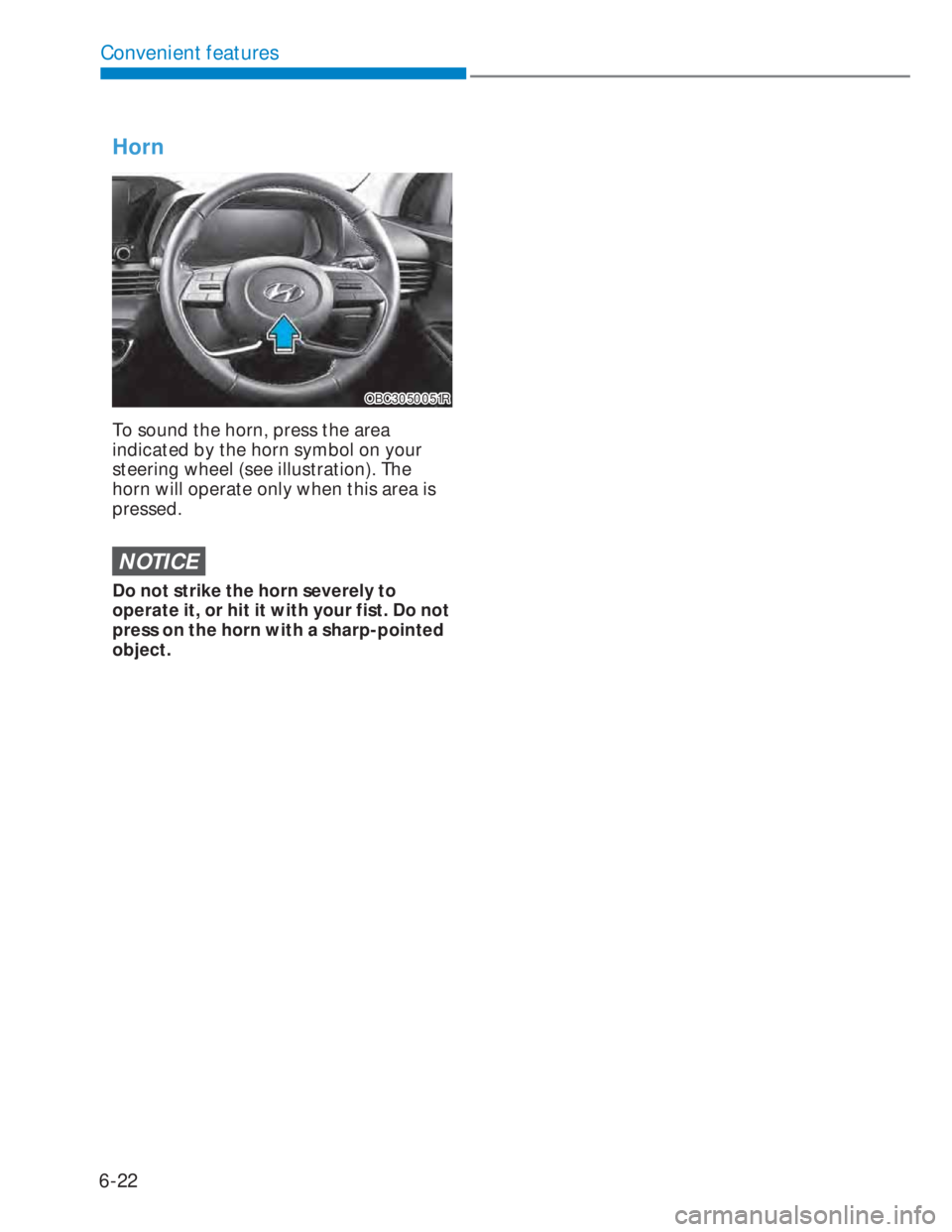

Horn
OBC3050051ROBC3050051R
To sound the horn, press the area
indicated by the horn symbol on your
steering wheel (see illustration). The
horn will operate only when this area is
pressed.
NOTICE
Do not strike the horn severely to
operate it, or hit it with your fist. Do not
press on the horn with a sharp-pointed
object.
