HYUNDAI I20 2022 Owners Manual

6-43
06
OBI3050020OBI3050020
AUTO light position (if equipped)
When the light switch is in the AUTO
position, the parking (position) light and
headlights will be turned ON or OFF
automatically depending on the amount
of light outside the vehicle.
Even with the AUTO light feature
in operation, it is recommended to
manually turn ON the lights when driving
at night or in a fog, or when you enter
dark areas, such as tunnels and parking
facilities.
NOTICE
• Do not cover or spill anything on the
sensor (1) located on the instrument
panel.
• Do not clean the sensor using
a window cleaner, the cleanser
may leave a light film which could
interfere with sensor operation.
• If your vehicle has window tint or
other types of metallic coating on
the front windshield, the AUTO light
system may not work properly.
High beam operation
OBI3050021OBI3050021
To turn on the high beam headlight,
push the lever away from you. The lever
will return to its original position.
The high beam indicator will light when
the headlight high beams are switched
on.
To turn off the high beam headlight, pull
the lever towards you. The low beams
will turn on.
WARNING
Do not use high beam when there are
other vehicles approaching you. Using
high beam could obstruct the other
driver’s vision.

6-44
Convenient features
OBI3050022OBI3050022

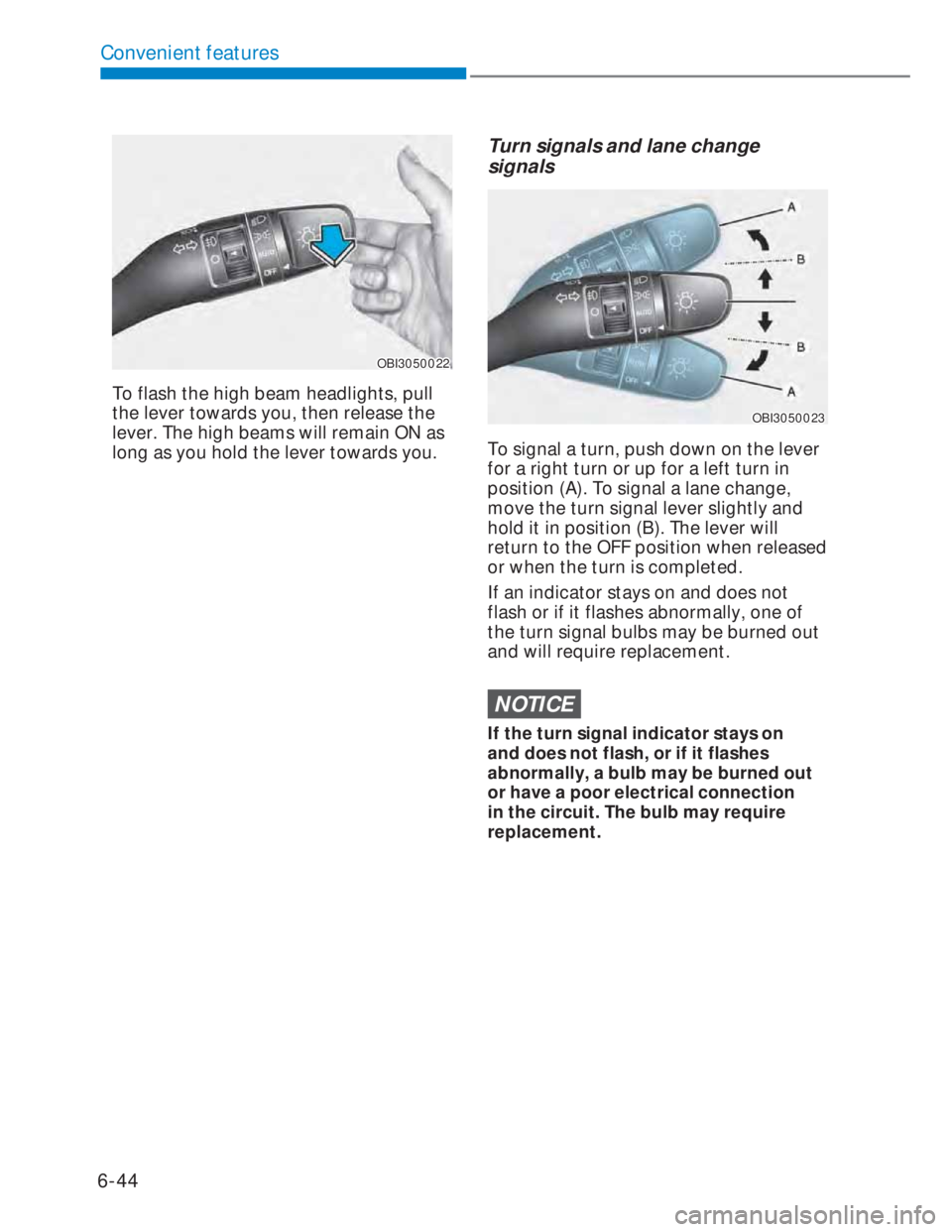

To flash the high beam headlights, pull
the lever towards you, then release the
lever. The high beams will remain ON as
long as you hold the lever towards you.
Turn signals and lane change
signals
OBI3050023OBI3050023
To signal a turn, push down on the lever
for a right turn or up for a left turn in
position (A). To signal a lane change,
move the turn signal lever slightly and
hold it in position (B). The lever will
return to the OFF position when released
or when the turn is completed.
If an indicator stays on and does not
flash or if it flashes abnormally, one of
the turn signal bulbs may be burned out
and will require replacement.
NOTICE
If the turn signal indicator stays on
and does not flash, or if it flashes
abnormally, a bulb may be burned out
or have a poor electrical connection
in the circuit. The bulb may require
replacement.

6-45
06
One-touch turn signal function
(if equipped)
To activate a one-touch turn signal
function, move the turn signal lever
slightly and then release it. The lane
change signals will blink 3, 5 or 7 times.
You can activate or deactivate the One
Touch Turn Signal function or choose
the number of blinks (3, 5, or 7) from the
User Settings Mode on the LCD display.
For more details, refer to “LCD Display
Modes” in chapter 4.
Front fog lamp (if equipped)
OBI3050024OBI3050024
Fog lights are used to provide improved
visibility when visibility is poor due to
fog, rain or snow, etc.
1. Turn on the park light.
2. Move the light switch (1) to the front
fog light position.
3. To turn off the front fog light, turn
the light switch to the front fog light
position again or turn off the Parking
(Position) light
NOTICE
When in operation, the fog lights
consume large amounts of vehicle
electrical power. Only use the fog lights
when visibility is poor.
Battery saver function
The purpose of this feature is to prevent
the battery from being discharged.
The system automatically turns off the
position lamp when the driver turns the
engine off and opens the driver-side
door.
With this feature, the position lamps will
turn off automatically if the driver parks
on the side of road at night.
If necessary, to keep the lamps on when
the engine is turned off, perform the
following:
1) Open the driver-side door.
2) Turn the position lamps OFF and ON
again using the light switch on the
steering column.
NOTICE
If the driver exits the vehicle through
another door besides the driver
door, the battery saver function
does not operate and the headlight
delay function does not turn OFF
automatically.
This may cause the battery to
discharge. To avoid battery discharge,
turn OFF the headlights manually from
the headlight switch before exiting the
vehicle.

6-46
Convenient features
Headlamps delay function
(if equipped)
If you place the ignition switch in the
ACC or OFF position with the headlamps
ON, the headlamps (and/or position
lamps) remain on for about 5 minutes.
However, with the engine off if the
driver’s door is opened and closed, the
headlamps (and/or position lamps) are
turned off after 15 seconds.
The headlamps (and/or position lamps)
can be turned off by pressing the lock
button on the remote key or smart
key twice or turning the light switch to
the OFF or AUTO position. However, if
you turn the light switch to the AUTO
position when it is dark outside, the
headlamps will not be turned off.
Headlight leveling device
(if equipped)
OBI3050025OBI3050025
To adjust the headlight beam level
according to the number of the
passengers and loading weight in the
luggage area, turn the beam leveling
switch.
The higher the number of the switch
position, the lower the headlight beam
level. Always keep the headlight beam
at the proper leveling position, or
headlights may dazzle other road users.Listed below are the examples of proper
switch settings. For loading conditions
other than those listed below, adjust the
switch position so that the beam level
may be the nearest as the condition
obtained according to the list.
Loading conditionSwitch position
Driver only 0
Driver +
Front passenger0
Full passengers
(including driver)1
Full passengers
(including driver) +
Maximum permissible
loading2
Driver + Maximum
permissible loading 3
Low Beam Assist-Static light
(if equipped)
While driving a corner, for greater
visibility and safety, either the left or
right side Low Beam Assist-Static light
will turn on automatically. The Low
Beam Assist-Static light will turn on
when one of the following conditions
occur.
• Vehicle speed is less than 10 km/h
(6 mph) and steering wheel angle is
turned approximately 80 degrees with
the low beam on.
• Vehicle speed is between 10 km/h
(6 mph) to 90 km/h (56 mph) and
steering wheel angle is turned
approximately 35 degrees with the low
beam on.
• When the vehicle is in reverse with
one of the conditions above satisfied,
the light opposite to the direction the
steering wheel is turned will turn on.

6-47
06
Daytime running light (DRL)
(if equipped)
The Daytime Running Lights (DRL) can
make it easier for others to see the front
of your vehicle during the day, especially
after dawn and before sunset.
The DRL system will turn the dedicated
lamp OFF when:
1. The headlights or front fog lights are
in the ON position.
2. The engine is turned off.

Interior lights
NOTICE
Do not use the interior lights for
extended periods when the engine is
turned off or the battery will discharge.
Interior light AUTO cut
The interior lights will automatically go
off approximately 20 minutes after the
engine is turned off and the doors are
closed. If a door is opened, the light will
go off 40 minutes after the engine is
turned off. If the doors are locked by the
remote key or smart key and the vehicle
enters the armed stage of the theft
alarm system, the lights will go off five
seconds later.
Front Room Lights (if equipped)
OBI3050026OBI3050026
(1) Front Map Lamp
(2) Front Door Lamp
(3) Front Room Lamp ON
(4) Front Room Lamp OFF
Front map lamp:
Press either of these lens to turn the
map lamp on or off. This light produces a
spot beam for convenient use as a map
lamp at night or as a personal lamp for
the driver and the front passenger.

6-48
Convenient features
Front door lamp ():
The front or rear
room lamps come on when the front
or rear doors are opened if the engine
is running or not. When doors are
unlocked by the remote key or smart
key, the front and rear lamps come on
for approximately 30 seconds as long as
any door is not opened. The front and
rear room lamps go out gradually after
approximately 30 seconds if the door is
closed. However, if the ignition switch
is in the ON position or all doors are
locked, the front and rear lamps will turn
off. If a door is opened with the ignition
switch in the ACC position or the OFF
position, the front and rear lamps stay
on for about 20 minutes.
Front room lamp
() : Press the button to turn ON the
room lamp for the front/rear
seats.
(
) : Press the button to turn OFF the
room lamp for the front/rear
seats.
Rear lamps
OAH2048032OAH2048032
„„Type AType A
• (1) : In the OFF position, the light stays
off at all times even when a door is
opened.
• (2): In the DOOR position, the light
comes on when any door is opened
regardless of the ignition switch
position.
When doors are unlocked by the
transmitter, the light comes on for
approximately 30 seconds as long
as any door is not opened. The light
goes out gradually after approximately
30 seconds if the door is closed.
However, if the ignition switch is ON
or all doors are locked, the light will go
out immediately.
If a door is opened with the ignition
switch in the ACC or LOCK position,
the light stays on for about 20
minutes.
However, if a door is opened with the
ignition switch in the ON position, the
light stays on continuously.
• (3) : In the ON position, the light stays
on at all times.
NOTICE
Do not leave the lamp switches on for
an extended period of time when the
engine is turned off.

6-49
06
OCN7050057OCN7050057
„„Type BType B

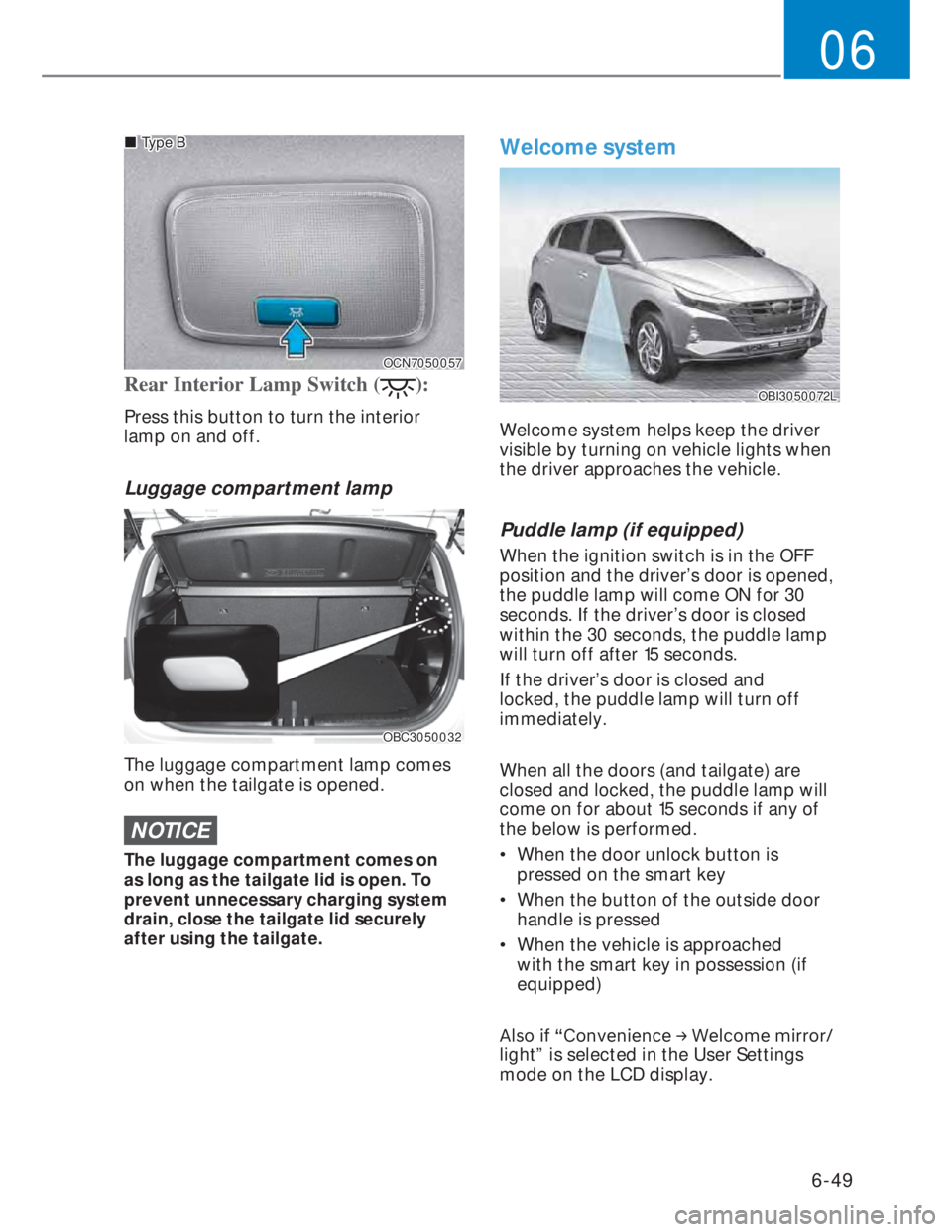

Rear Interior Lamp Switch ():
Press this button to turn the interior
lamp on and off.
Luggage compartment lamp
OBC3050032OBC3050032
The luggage compartment lamp comes
on when the tailgate is opened.
NOTICE
The luggage compartment comes on
as long as the tailgate lid is open. To
prevent unnecessary charging system
drain, close the tailgate lid securely
after using the tailgate.
Welcome system
OBI3050072LOBI3050072L
Welcome system helps keep the driver
visible by turning on vehicle lights when
the driver approaches the vehicle.
Puddle lamp (if equipped)
When the ignition switch is in the OFF
position and the driver’s door is opened,
the puddle lamp will come ON for 30
seconds. If the driver’s door is closed
within the 30 seconds, the puddle lamp
will turn off after 15 seconds.
If the driver’s door is closed and
locked, the puddle lamp will turn off
immediately.
When all the doors (and tailgate) are
closed and locked, the puddle lamp will
come on for about 15 seconds if any of
the below is performed.
• When the door unlock button is
pressed on the smart key
• When the button of the outside door
handle is pressed
• When the vehicle is approached
with the smart key in possession (if
equipped)
$OVRLI
U&RQYHQLHQFH

6-50
Convenient features
:,3(56$1':$6+(56

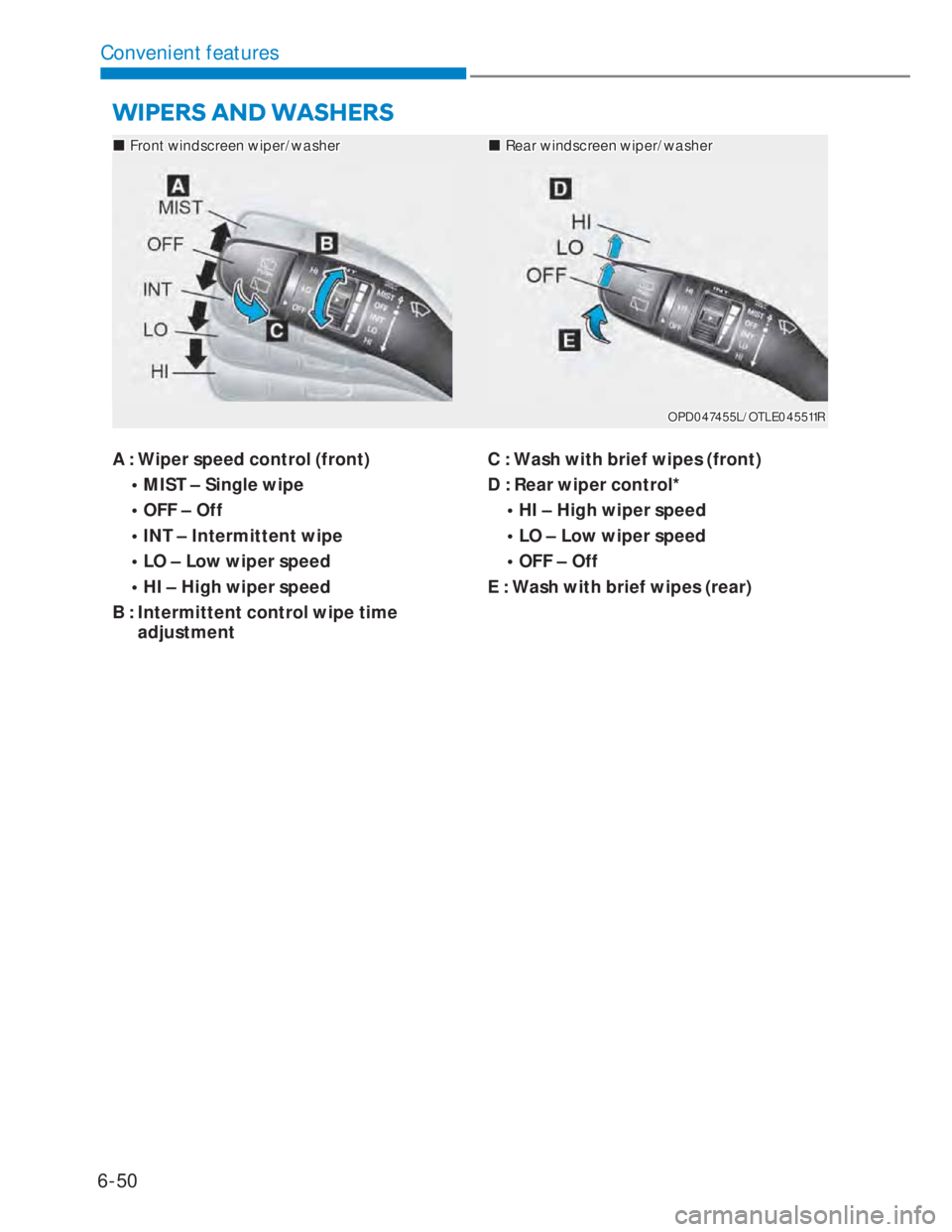

„„Front windscreen wiper/washerFront windscreen wiper/washer
OPD047455L/OTLE045511ROPD047455L/OTLE045511R
„„Rear windscreen wiper/washerRear windscreen wiper/washer
A : Wiper speed control (front)
• MIST – Single wipe
• OFF – Off
• INT – Intermittent wipe
• LO – Low wiper speed
• HI – High wiper speed
B : Intermittent control wipe time
adjustmentC : Wash with brief wipes (front)
D : Rear wiper control*
• HI – High wiper speed
• LO – Low wiper speed
• OFF – Off
E : Wash with brief wipes (rear)

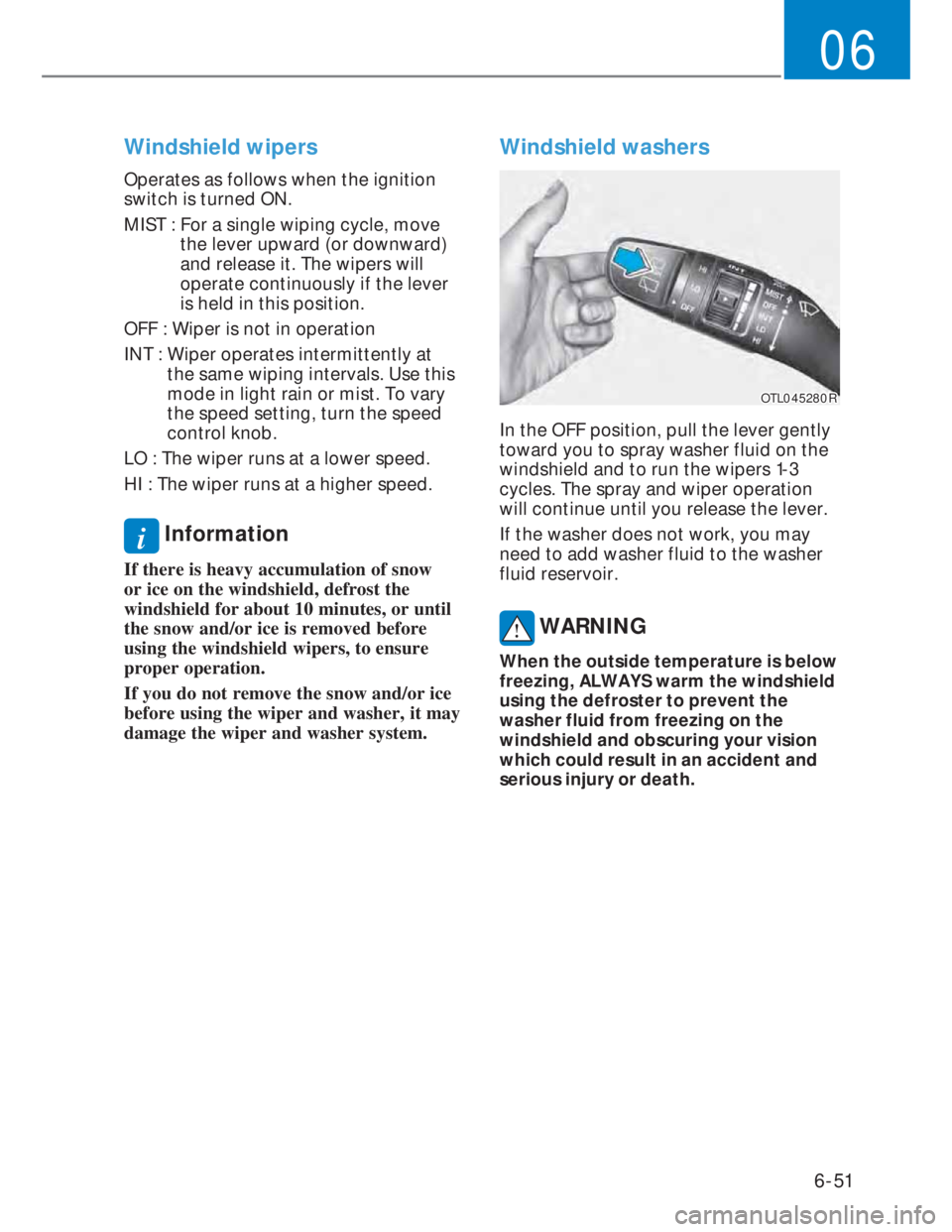

6-51
06
Windshield wipers
Operates as follows when the ignition
switch is turned ON.
MIST : For a single wiping cycle, move
the lever upward (or downward)
and release it. The wipers will
operate continuously if the lever
is held in this position.
OFF : Wiper is not in operation
INT : Wiper operates intermittently at
the same wiping intervals. Use this
mode in light rain or mist. To vary
the speed setting, turn the speed
control knob.
LO : The wiper runs at a lower speed.
HI : The wiper runs at a higher speed.
i Information
If there is heavy accumulation of snow
or ice on the windshield, defrost the
windshield for about 10 minutes, or until
the snow and/or ice is removed before
using the windshield wipers, to ensure
proper operation.
If you do not remove the snow and/or ice
before using the wiper and washer, it may
damage the wiper and washer system.
Windshield washers
OTL045280ROTL045280R
In the OFF position, pull the lever gently
toward you to spray washer fluid on the
windshield and to run the wipers 1-3
cycles. The spray and wiper operation
will continue until you release the lever.
If the washer does not work, you may
need to add washer fluid to the washer
fluid reservoir.
WARNING
When the outside temperature is below
freezing, ALWAYS warm the windshield
using the defroster to prevent the
washer fluid from freezing on the
windshield and obscuring your vision
which could result in an accident and
serious injury or death.

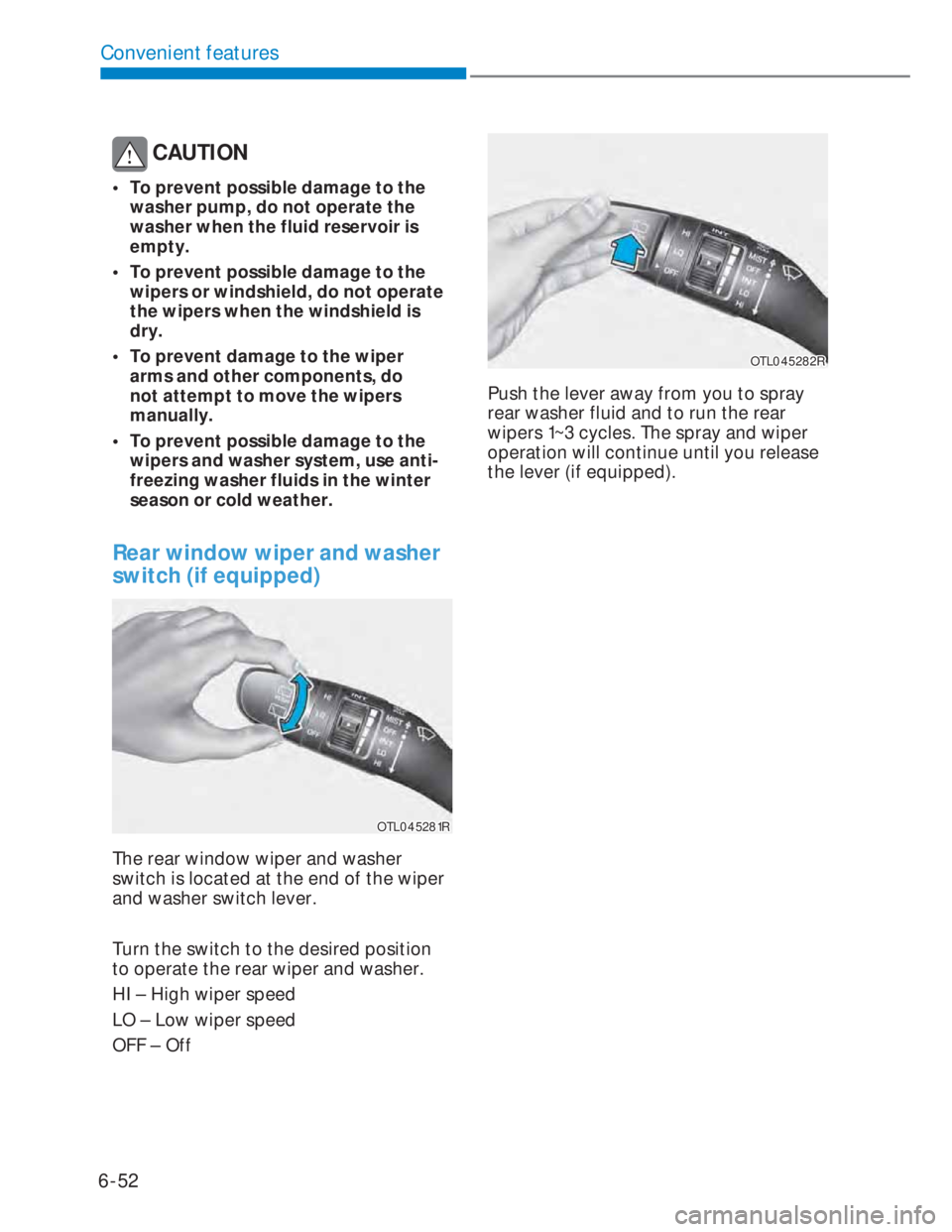

6-52
Convenient features
CAUTION
• To prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.
• To prevent possible damage to the
wipers or windshield, do not operate
the wipers when the windshield is
dry.
• To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.
• To prevent possible damage to the
wipers and washer system, use anti-
freezing washer fluids in the winter
season or cold weather.
Rear window wiper and washer
switch (if equipped)
OTL045281ROTL045281R
The rear window wiper and washer
switch is located at the end of the wiper
and washer switch lever.
Turn the switch to the desired position
to operate the rear wiper and washer.
HI – High wiper speed
LO – Low wiper speed
OFF – Off
OTL045282ROTL045282R
Push the lever away from you to spray
rear washer fluid and to run the rear
wipers 1~3 cycles. The spray and wiper
operation will continue until you release
the lever (if equipped).
