6-23
06

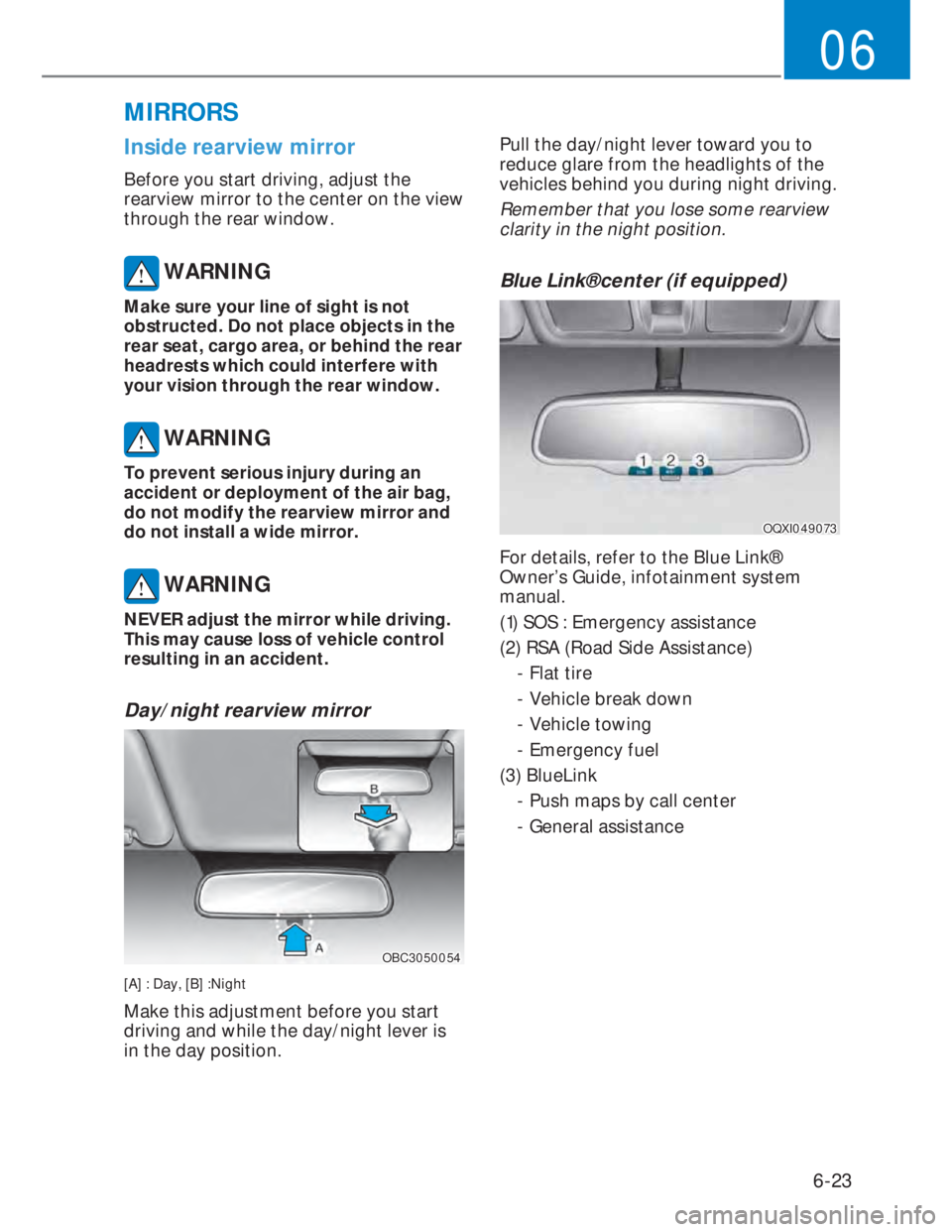

Inside rearview mirror
Before you start driving, adjust the
rearview mirror to the center on the view
through the rear window.
WARNING
Make sure your line of sight is not
obstructed. Do not place objects in the
rear seat, cargo area, or behind the rear
headrests which could interfere with
your vision through the rear window.
WARNING
To prevent serious injury during an
accident or deployment of the air bag,
do not modify the rearview mirror and
do not install a wide mirror.
WARNING
NEVER adjust the mirror while driving.
This may cause loss of vehicle control
resulting in an accident.
Day/night rearview mirror
OBC3050054OBC3050054
[A] : Day, [B] :Night
Make this adjustment before you start
driving and while the day/night lever is
in the day position.Pull the day/night lever toward you to
reduce glare from the headlights of the
vehicles behind you during night driving.
Remember that you lose some rearview
clarity in the night position.
Blue Link® center (if equipped)
OQXI049073OQXI049073
For details, refer to the Blue Link®
Owner’s Guide, infotainment system
manual.
(1) SOS : Emergency assistance
(2) RSA (Road Side Assistance)
- Flat tire
- Vehicle break down
- Vehicle towing
- Emergency fuel
(3) BlueLink
- Push maps by call center
- General assistance
MIRRORS

6-24
Convenient features

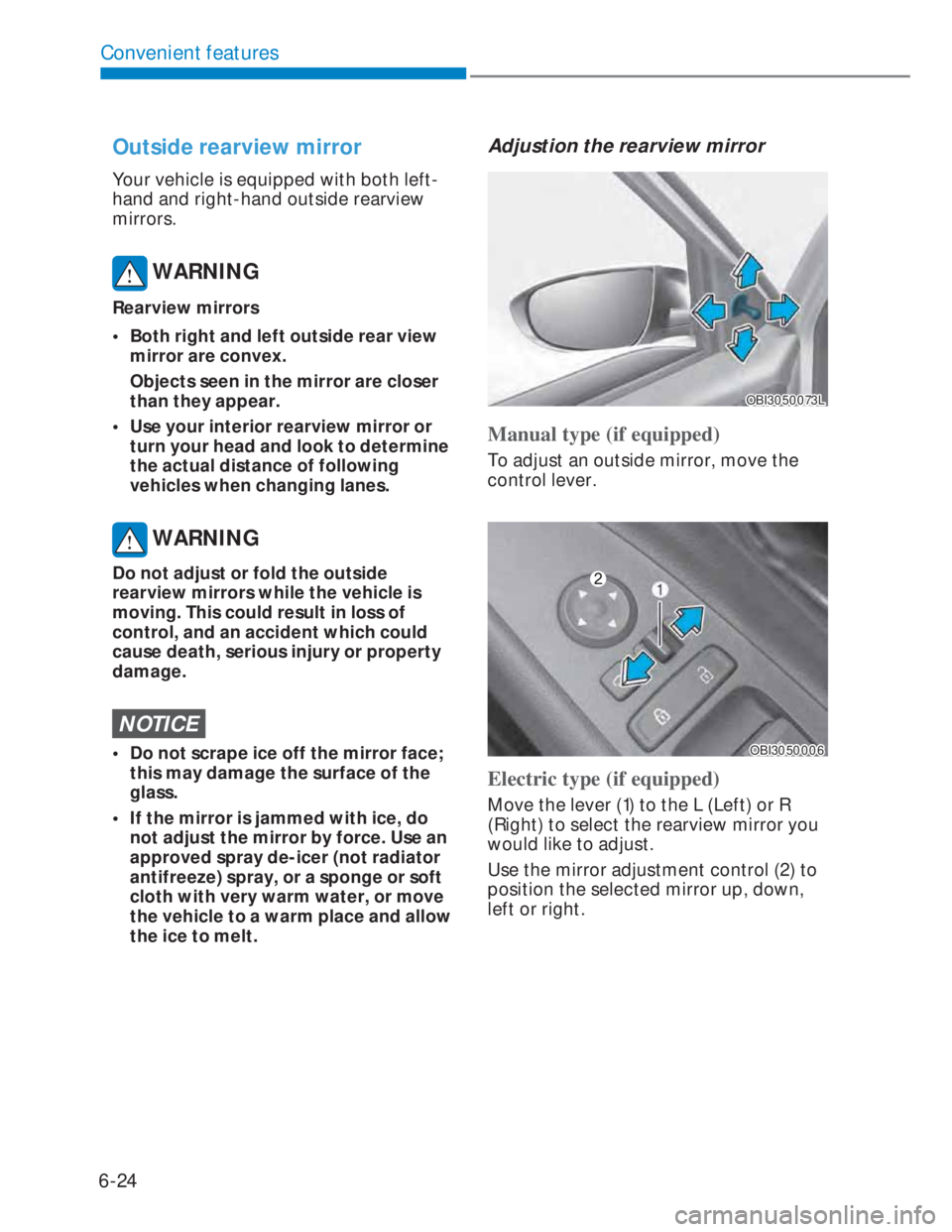

Outside rearview mirror
Your vehicle is equipped with both left-
hand and right-hand outside rearview
mirrors.
WARNING
Rearview mirrors
• Both right and left outside rear view
mirror are convex.
Objects seen in the mirror are closer
than they appear.
• Use your interior rearview mirror or
turn your head and look to determine
the actual distance of following
vehicles when changing lanes.
WARNING
Do not adjust or fold the outside
rearview mirrors while the vehicle is
moving. This could result in loss of
control, and an accident which could
cause death, serious injury or property
damage.
NOTICE
• Do not scrape ice off the mirror face;
this may damage the surface of the
glass.
• If the mirror is jammed with ice, do
not adjust the mirror by force. Use an
approved spray de-icer (not radiator
antifreeze) spray, or a sponge or soft
cloth with very warm water, or move
the vehicle to a warm place and allow
the ice to melt.
Adjustion the rearview mirror
OBI3050073LOBI3050073L
Manual type (if equipped)
To adjust an outside mirror, move the
control lever.
OBI3050006OBI3050006
Electric type (if equipped)
Move the lever (1) to the L (Left) or R
(Right) to select the rearview mirror you
would like to adjust.
Use the mirror adjustment control (2) to
position the selected mirror up, down,
left or right.

6-25
06
NOTICE
• The mirrors stop moving when
they reach the maximum adjusting
angles, but the motor continues to
operate while the switch is pressed.
Do not press the switch longer
than necessary, the motor may be
damaged.
• Do not attempt to adjust the outside
rearview mirror by hand or the motor
may be damaged.
Folding the outside rearview mirror
OBI3050074LOBI3050074L
Manual type (if equipped)
To fold the outside rearview mirror,
grasp the housing of the mirror and then
fold it toward the rear of the vehicle.
OBI3050007OBI3050007
Electric type (if equipped)
To fold the outside rearview mirror,
press the button.
To unfold outside rearview mirror, press
the button again.
If the button is pressed, the mirror will
fold or unfold automatically.
NOTICE
The electric type outside rearview
mirror operates even though the
ignition switch is in the ACC position.
However, to prevent unnecessary
battery discharge, do not adjust the
mirrors longer than necessary while the
engine is not running.
NOTICE
Do not fold the electric type outside
rearview mirror by hand. It could cause
motor failure.

6-26
Convenient features

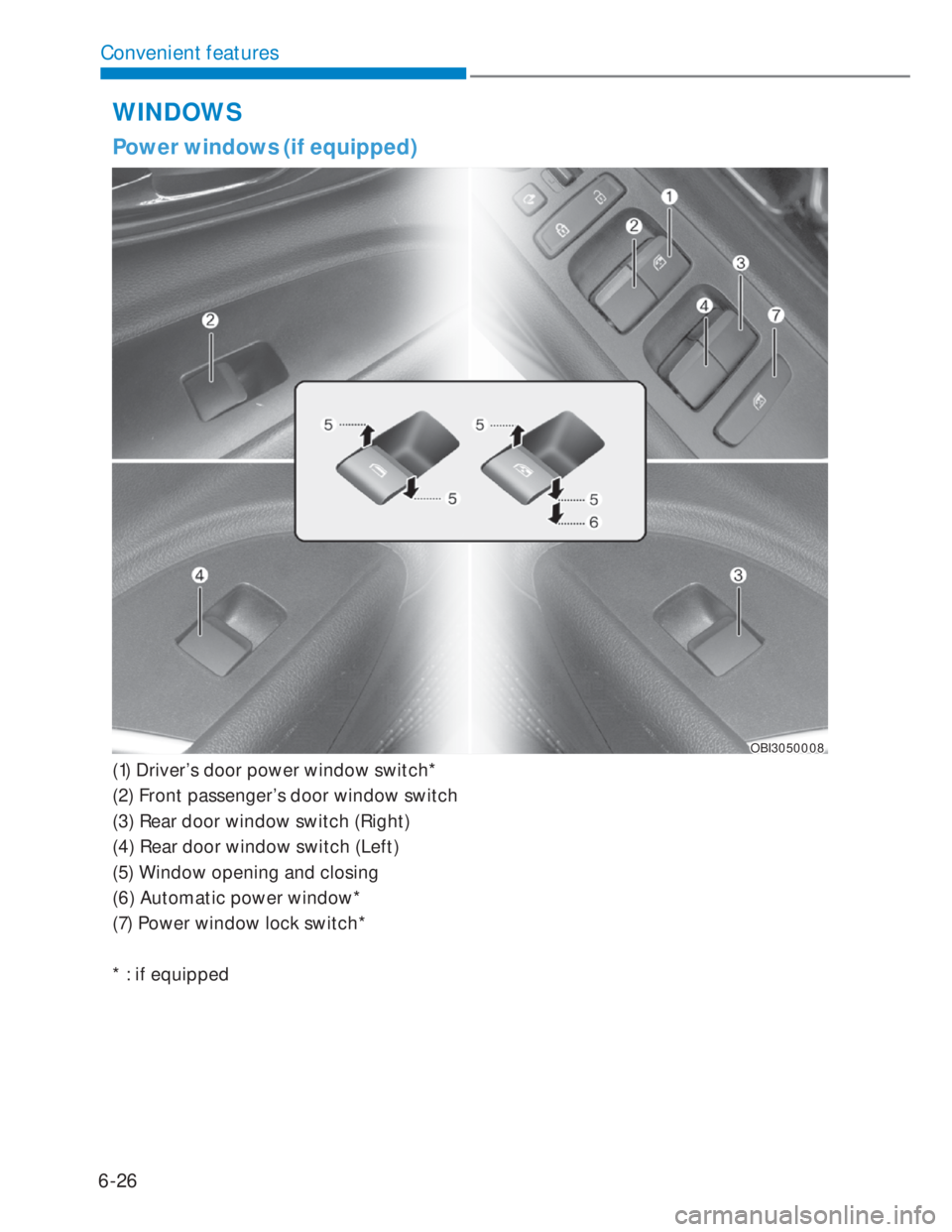

WINDOWS
Power windows (if equipped)
OBI3050008OBI3050008
(1) Driver’s door power window switch*
(2) Front passenger’s door window switch
(3) Rear door window switch (Right)
(4) Rear door window switch (Left)
(5) Window opening and closing
(6) Automatic power window*
(7) Power window lock switch*
* : if equipped

6-27
06
The ignition switch must be in the
ON position to be able to raise or
lower the windows. Each door has a
Power Window switch to control that
door’s window. The driver has a Power
Window Lock switch which can block
the operation of passenger windows.
The power windows will operate for
approximately 3 minutes after the
ignition switch is placed in the ACC or
OFF position. However, if the front doors
are opened, the Power Windows cannot
be operated even within the 3 minutes
period.
WARNING
To avoid serious injury or death, do not
extend your head, arms or body outside
the windows while driving.
i Information
• In cold and wet climates, power
windows may not work properly due to
freezing conditions.
• While driving with the rear windows
down or with the sunroof (if equipped)
opened (or partially opened), your
vehicle may demonstrate a wind
buffeting or pulsation noise. This
noise is normal and can be reduced
or eliminated by taking the following
actions. If the noise occurs with one
or both of the rear windows down,
partially lower both front windows
approximately 2.5 cm (one inch).
If you experience the noise with the
sunroof open, slightly close the sunroof.
Window opening and closing
OAI3059009OAI3059009
To open or close a window, press
down or pull up the front portion of the
corresponding switch to the first detent
position (5).
Auto up/down Window
(if equipped) (Driver’s window)
OAC3059015TUOAC3059015TU
Pressing the power window switch
momentarily to the second detent
position (6) completely lowers the
driver’s window even when the switch
is released. To stop the window at the
desired position while the window is in
operation, pull up and release the switch
to the opposite direction of the window
movement.

6-28
Convenient features

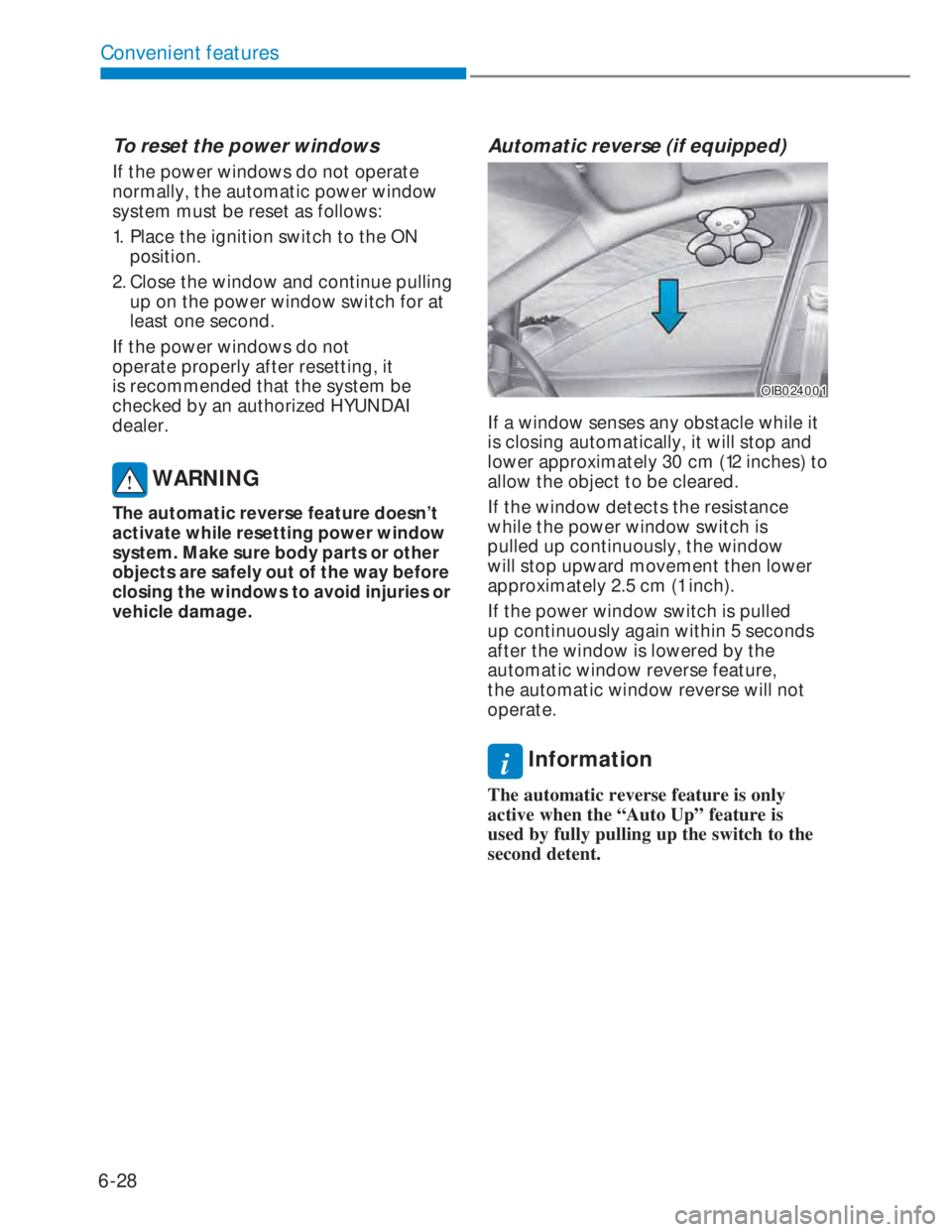

To reset the power windows
If the power windows do not operate
normally, the automatic power window
system must be reset as follows:
1. Place the ignition switch to the ON
position.
2. Close the window and continue pulling
up on the power window switch for at
least one second.
If the power windows do not
operate properly after resetting, it
is recommended that the system be
checked by an authorized HYUNDAI
dealer.
WARNING
The automatic reverse feature doesn’t
activate while resetting power window
system. Make sure body parts or other
objects are safely out of the way before
closing the windows to avoid injuries or
vehicle damage.
Automatic reverse (if equipped)
OIB024001OIB024001
If a window senses any obstacle while it
is closing automatically, it will stop and
lower approximately 30 cm (12 inches) to
allow the object to be cleared.
If the window detects the resistance
while the power window switch is
pulled up continuously, the window
will stop upward movement then lower
approximately 2.5 cm (1 inch).
If the power window switch is pulled
up continuously again within 5 seconds
after the window is lowered by the
automatic window reverse feature,
the automatic window reverse will not
operate.
i Information
The automatic reverse feature is only
active when the “Auto Up” feature is
used by fully pulling up the switch to the
second detent.

6-29
06
WARNING
Make sure body parts or other objects
are safely out of the way before closing
the windows to avoid injuries or vehicle
damage.
Objects less than 4 mm (0.16 inch) in
diameter caught between the window
glass and the upper window channel
may not be detected by the automatic
reverse window and the window will
not stop and reverse direction.
NOTICE
Do not install any accessories on the
windows. The automatic reverse
feature may not operate.

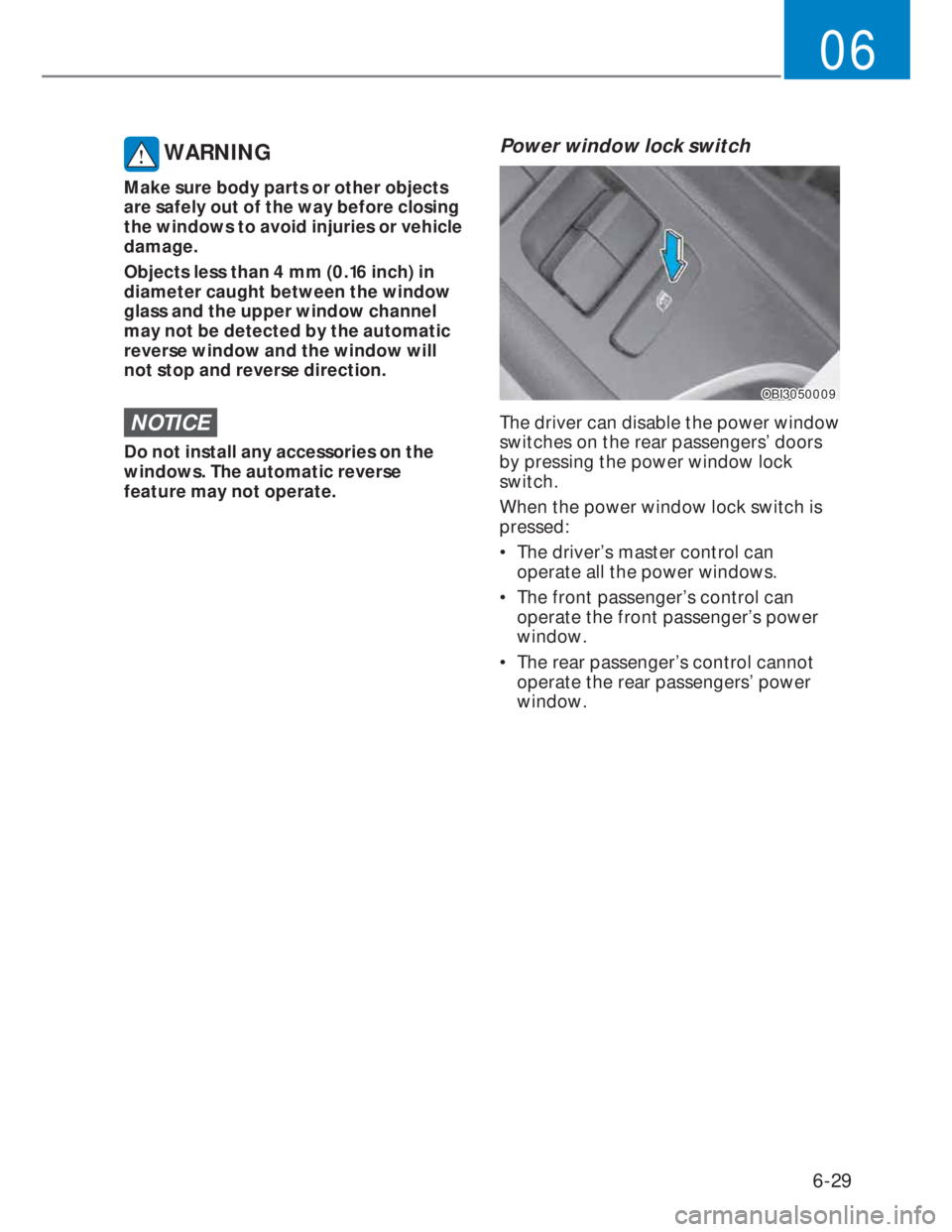

Power window lock switch
OBI3050009OBI3050009
The driver can disable the power window
switches on the rear passengers’ doors
by pressing the power window lock
switch.
When the power window lock switch is
pressed:
• The driver’s master control can
operate all the power windows.
• The front passenger’s control can
operate the front passenger’s power
window.
• The rear passenger’s control cannot
operate the rear passengers’ power
window.

6-30
Convenient features
NOTICE
• To prevent possible damage to the
power window system, do not open
or close two windows or more at the
same time. This will also ensure the
longevity of the fuse.
• Never try to operate the main
switch on the driver’s door and the
individual door window switch in
opposite directions at the same time.
If this is done, the window will stop
and cannot be opened or closed.
WARNING
• NEVER leave the keys in your vehicle
with unsupervised children, when the
engine is running.
• NEVER leave any child unattended in
the vehicle. Even very young children
may inadvertently cause the vehicle
to move, entangle themselves in
the windows, or otherwise injure
themselves or others.
• Always double check to make
sure arms, hands, head and other
obstructions are safely out of the way
before closing a window.
• Do not allow children to play with the
power windows. Keep the driver’s
door power window lock switch in
the LOCK position (pressed). Serious
injury can result from unintentional
window operation by the child.
• Do not extend your head, arms or
body outside the windows while
driving.
Manual windows (if equipped)
OYC046423OYC046423
To raise or lower the window, turn the
window regulator handle clockwise or
counterclockwise in right side. And left
side is opposite direction.
WARNING
When opening or closing the windows,
make sure your passenger’s arms,
hands and body are safely out of the
way.

6-31
06
OYC046018OYC046018
If your vehicle is equipped with a
sunroof, you can slide or tilt your sunroof
with the sunroof control switch located
on the overhead console.
The sunroof can only be opened, closed,
or tilted when the ignition switch is in
the ON position.
The sunroof can be operated for
approximately 3 minutes after the
ENGINE START/STOP button is turned to
the ACC or LOCK position.
However, if the front door is opened, the
sunroof cannot be operated even within
the 3 minutes period.
i Information
In cold and wet climates, the sunroof
may not work properly due to freezing
conditions.
After the vehicle is washed or in a
rainstorm, be sure to wipe off any water
that is on the sunroof before operating it.
WARNING
• Never adjust the sunroof or sunshade
whilst driving. This could result in
loss of control and an accident that
may cause death, serious injury, or
property damage.
• Make sure heads, other body parts
or objects are out of the way before
using the sunroof.
• Do not extend your head, arms or
body outside the sunroof whilst
driving, to avoid serious injury.
• Do not leave the engine running
and the key in your vehicle with
unsupervised children. Unsupervised
children could operate the sunroof,
which could result in serious injury.
• Do not sit on the top of the vehicle.
It may cause injuries or vehicle
damage.
NOTICE
• Do not continue to move the sunroof
control lever after the sunroof is fully
opened, closed, or tilted. Damage
to the motor or system components
could occur.
• Make sure the sunroof is closed fully
when leaving your vehicle. If the
sunroof is open, rain or snow may
leak through the sunroof and wet the
interior as well as allow theft.
681522)

6-32

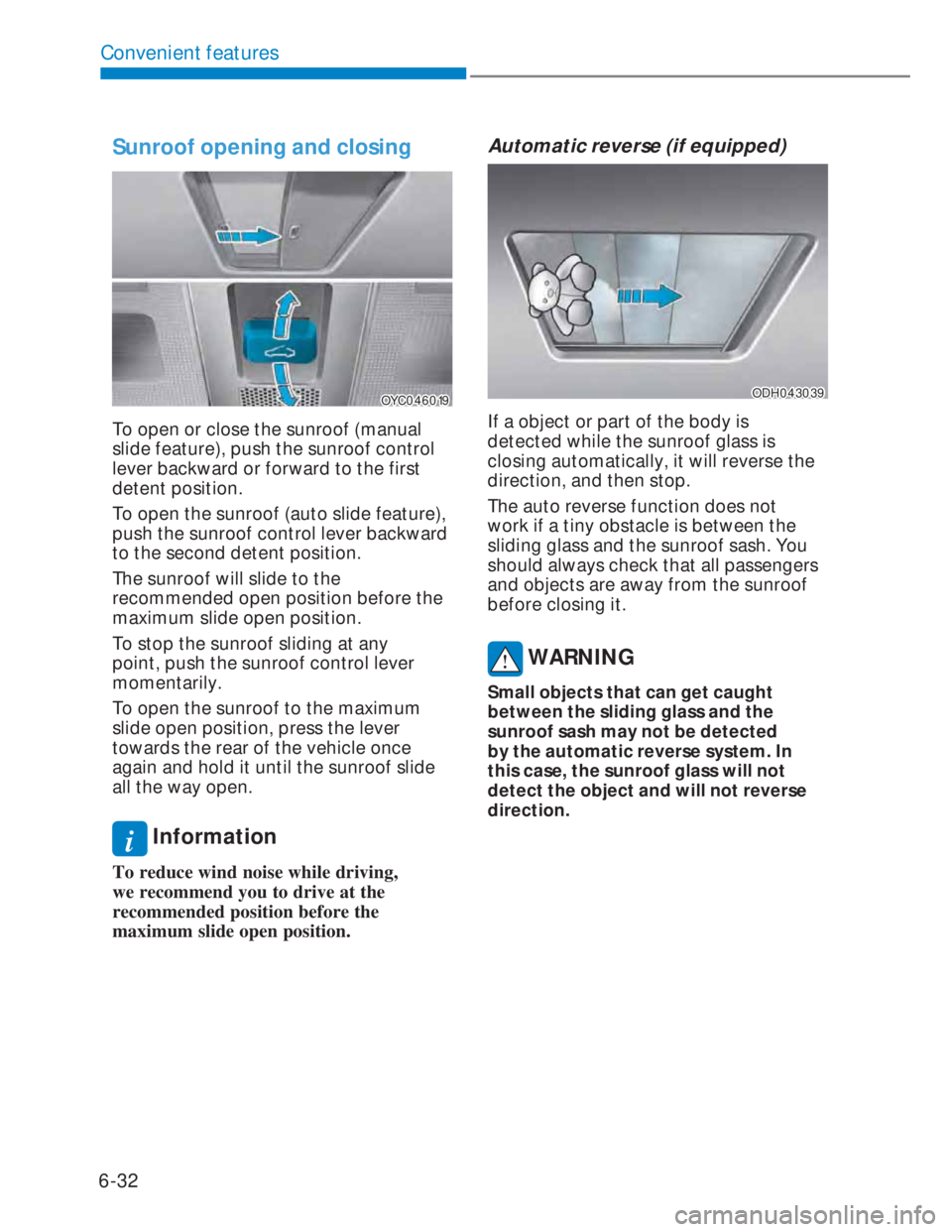

Convenient features
Sunroof opening and closing
OYC046019OYC046019
To open or close the sunroof (manual
slide feature), push the sunroof control
lever backward or forward to the first
detent position.
To open the sunroof (auto slide feature),
push the sunroof control lever backward
to the second detent position.
The sunroof will slide to the
recommended open position before the
maximum slide open position.
To stop the sunroof sliding at any
point, push the sunroof control lever
momentarily.
To open the sunroof to the maximum
slide open position, press the lever
towards the rear of the vehicle once
again and hold it until the sunroof slide
all the way open.
i Information
To reduce wind noise while driving,
we recommend you to drive at the
recommended position before the
maximum slide open position.
Automatic reverse (if equipped)
ODH043039ODH043039
If a object or part of the body is
detected while the sunroof glass is
closing automatically, it will reverse the
direction, and then stop.
The auto reverse function does not
work if a tiny obstacle is between the
sliding glass and the sunroof sash. You
should always check that all passengers
and objects are away from the sunroof
before closing it.
WARNING
Small objects that can get caught
between the sliding glass and the
sunroof sash may not be detected
by the automatic reverse system. In
this case, the sunroof glass will not
detect the object and will not reverse
direction.
