Instrument cluster
LCD display modes
Modes Symbol Explanation
Trip
ComputerThis mode displays driving information such as the tripmeter,
fuel economy, etc.
For more details, refer to "Trip Computer" in this chapter.
Turn By
Turn (TBT)
This mode displays the state of the navigation.
Driving
Assist
- Cruise Control (CC)
- Tire Pressure (TPMS)
User
Settings
In this mode, you can change settings of the doors, lamps,
etc.
Warning
- This mode displays warning messages related to the
lamp malfunction, etc.
- Tire pressure information
The information provided may differ depending on which functions are applicable
to your vehicle.

5-25
05
Trip computer mode
OIK047124LOIK047124L
The trip computer mode displays
information related to vehicle driving
parameters including fuel economy,
tripmeter information and vehicle speed.
For more details, refer to "Trip
Computer" in this chapter.
Turn By Turn (TBT) group
OCN7060149OCN7060149
This group displays the state of the
navigation.
Driving Assist mode
OSU2I049039OSU2I049039
CC
This mode displays the state of Cruise
Control (CC).
For more details, refer to “Cruise
Control” in chapter 7.
OBI3040009OBI3040009
Tire Pressure
This mode displays information related
to Tire Pressure.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” in chapter
8.

5-26
Instrument cluster

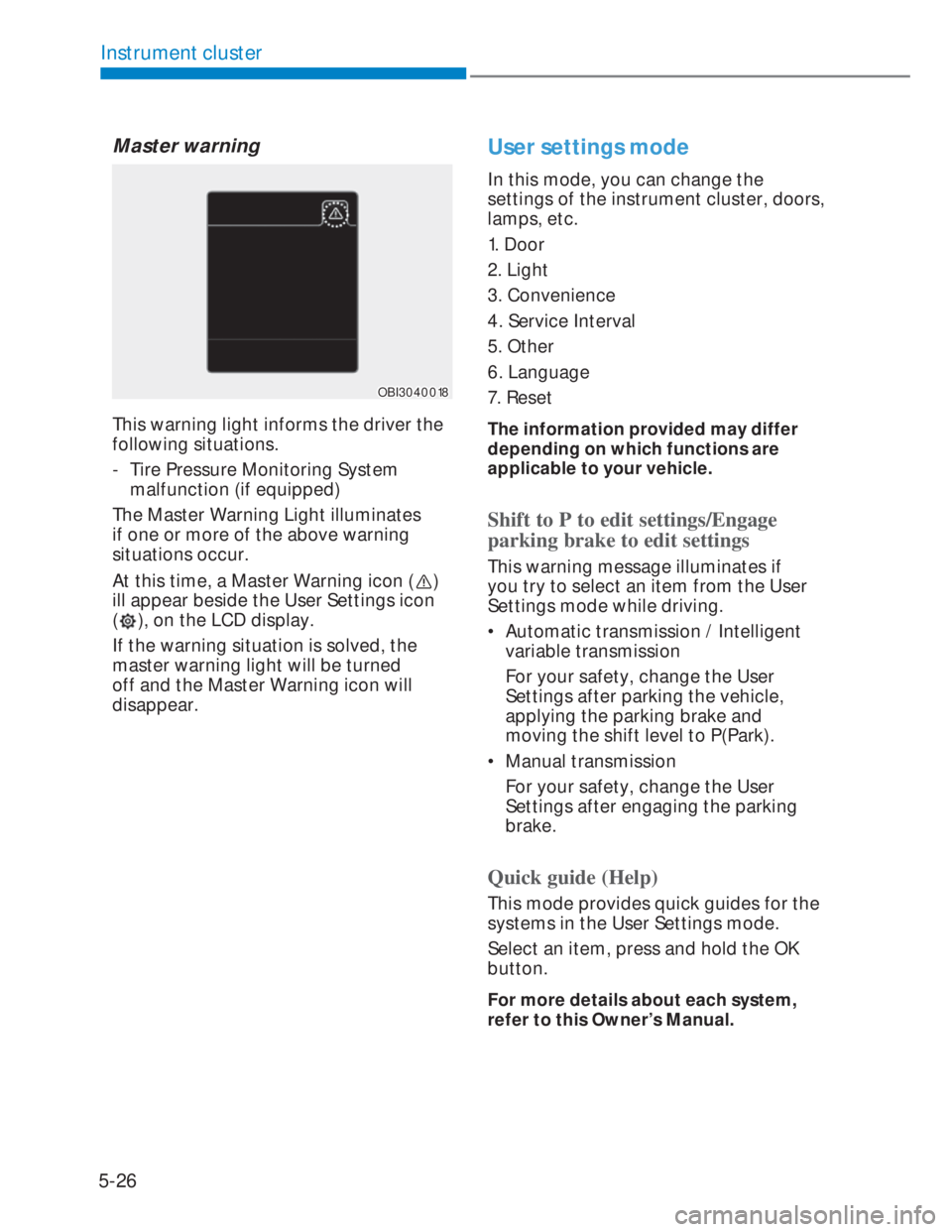

Master warning
OBI3040018OBI3040018
This warning light informs the driver the
following situations.
- Tire Pressure Monitoring System
malfunction (if equipped)
The Master Warning Light illuminates
if one or more of the above warning
situations occur.
At this time, a Master Warning icon (
)
ill appear beside the User Settings icon
(
), on the LCD display.
If the warning situation is solved, the
master warning light will be turned
off and the Master Warning icon will
disappear.
User settings mode
In this mode, you can change the
settings of the instrument cluster, doors,
lamps, etc.
1. Door
2. Light
3. Convenience
4. Service Interval
5. Other
6. Language
7. Reset
The information provided may differ
depending on which functions are
applicable to your vehicle.
Shift to P to edit settings/Engage
parking brake to edit settings
This warning message illuminates if
you try to select an item from the User
Settings mode while driving.
• Automatic transmission / Intelligent
variable transmission
For your safety, change the User
Settings after parking the vehicle,
applying the parking brake and
moving the shift level to P(Park).
• Manual transmission
For your safety, change the User
Settings after engaging the parking
brake.
Quick guide (Help)
This mode provides quick guides for the
systems in the User Settings mode.
Select an item, press and hold the OK
button.
For more details about each system,
refer to this Owner’s Manual.

5-28
Instrument cluster

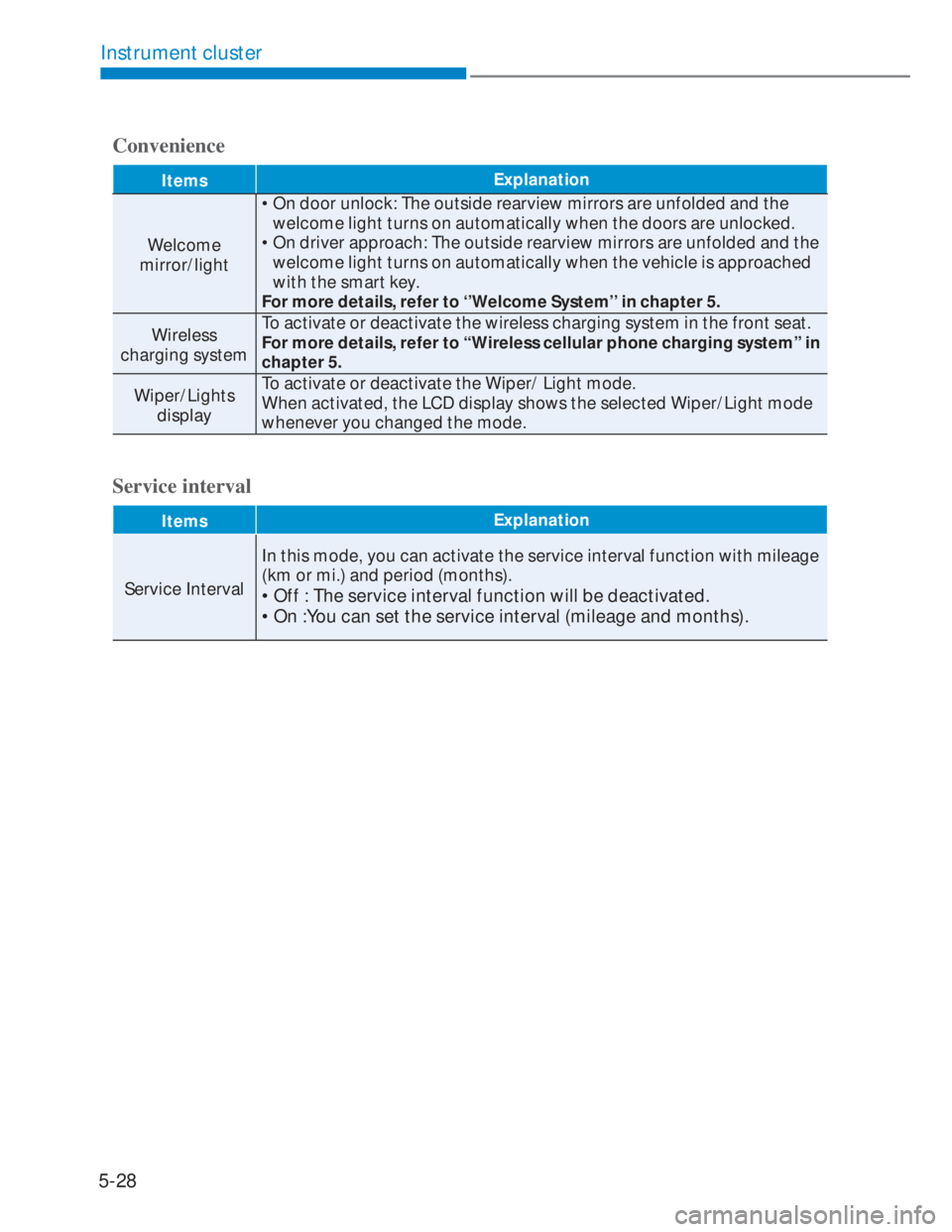

Convenience
ItemsExplanation
Welcome
mirror/light• On door unlock: The outside rearview mirrors are unfolded and the
welcome light turns on automatically when the doors are unlocked.
• On driver approach: The outside rearview mirrors are unfolded and the
welcome light turns on automatically when the vehicle is approached
with the smart key.
For more details, refer to ‘’Welcome System’’ in chapter 5.
Wireless
charging systemTo activate or deactivate the wireless charging system in the front seat.
For more details, refer to “Wireless cellular phone charging system” in
chapter 5.
Wiper/Lights
displayTo activate or deactivate the Wiper/ Light mode.
When activated, the LCD display shows the selected Wiper/Light mode
whenever you changed the mode.
Service interval
ItemsExplanation
Service IntervalIn this mode, you can activate the service interval function with mileage
(km or mi.) and period (months).• Off : The service interval function will be deactivated.
• On :You can set the service interval (mileage and months).

5-30
Instrument cluster
Cluster type A
Tripmeter/Trip computer
OBI3040011OBI3040011
„„Type AType A
„„Type BType B
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving,
when the ignition switch is in the ON
position. All stored driving information
(except odometer & Trip A & B) resets if
the battery is disconnected.Press the trip mode/reset button for less
than 1 second to select any mode as
follows:
* if equipped* if equipped
Tripmeter A
Tripmeter B
Distance to empty*
Average fuel consumption*
Instant fuel consumption*
Average speed*
Elapsed time*
Service Reminder*
TRIP COMPUTER

5-31
05
OQXI049117OQXI049117
„„ Type A Type A
OQXI049118OQXI049118
„„ Type B Type B
Tripmeter (km or mi.)
A : Tripmeter A
B : Tripmeter B
This mode indicates the distance of
individual trips selected since the last
tripmeter reset.
The meter’s working range is from 0.0
to 9999.9 km. (0.0 to 9999.9 miles).
Pressing the trip mode/reset button for
more than 1 second, when the tripmeter
is being displayed, clears the tripmeter
to zero (0.0).
OQXI049119OQXI049119
Distance to empty (if equipped)
(km or mi.)
This mode indicates the estimated
distance to empty based on the current
fuel in the fuel tank and the amount of
fuel delivered to the engine. When the
remaining distance is below 50 km (30
miles), “---” will be displayed.
The meter’s working range is from 50 to
999 km (30 to 615 miles).

5-32
Instrument cluster
OQXI049120OQXI049120

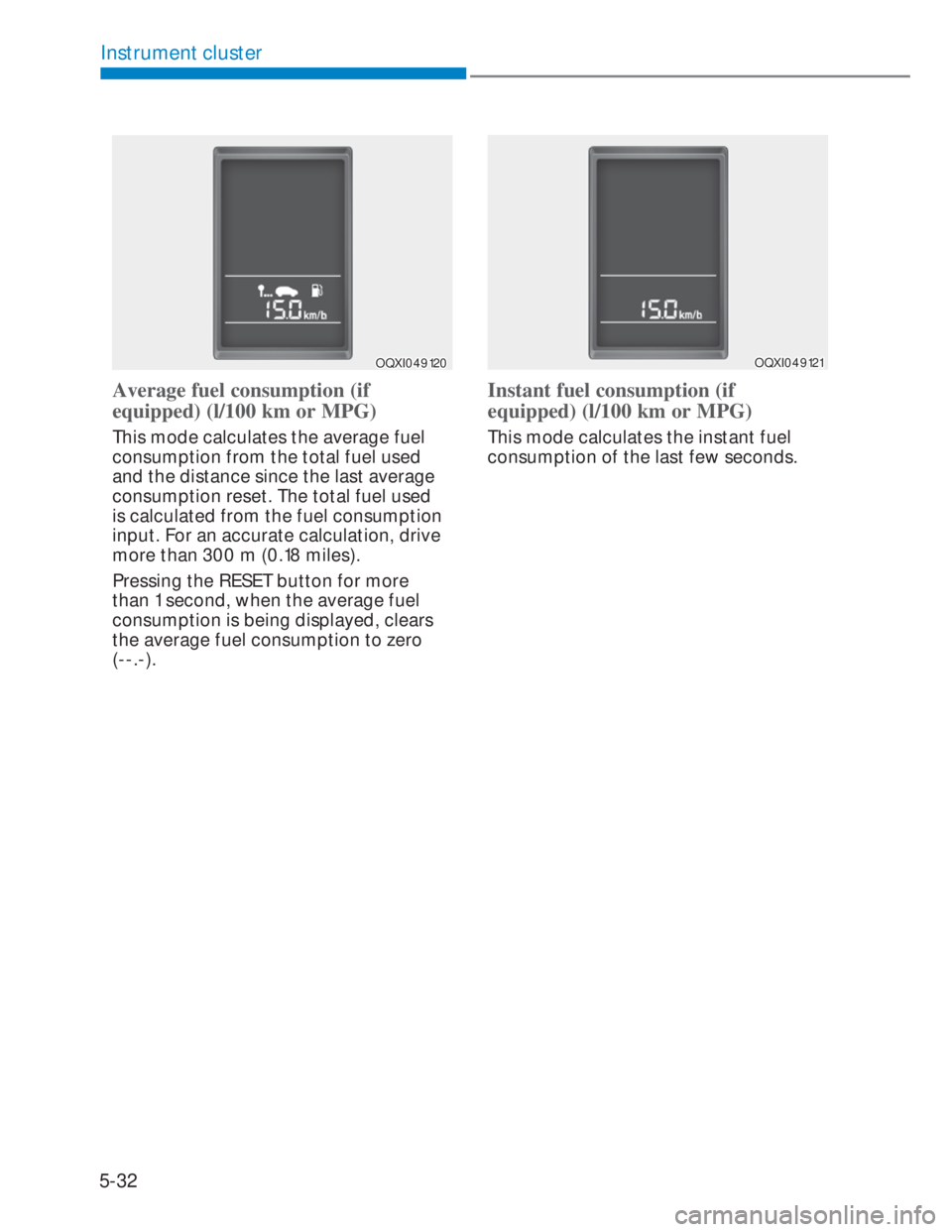

Average fuel consumption (if
equipped) (l/100 km or MPG)
This mode calculates the average fuel
consumption from the total fuel used
and the distance since the last average
consumption reset. The total fuel used
is calculated from the fuel consumption
input. For an accurate calculation, drive
more than 300 m (0.18 miles).
Pressing the RESET button for more
than 1 second, when the average fuel
consumption is being displayed, clears
the average fuel consumption to zero
(--.-).
OQXI049121OQXI049121
Instant fuel consumption (if
equipped) (l/100 km or MPG)
This mode calculates the instant fuel
consumption of the last few seconds.

5-33
05
NOTICE
• If the vehicle is not on level ground
or the battery power has been
interrupted, the “Distance to empty”
function may not operate correctly.
The trip computer may not register
additional fuel if less than 6 liters
(1.6 gallons) of fuel are added to the
vehicle.
• The fuel consumption and distance to
empty may vary significantly based
on driving conditions, driving habits,
and condition of the vehicle.
• The distance to empty value is an
estimate of the available driving
distance. This may differ from the
actual driving distance available.
OQXI049122OQXI049122
Average speed (km/h or MPH)
This mode calculates the average speed
of the vehicle since the last average
speed reset.
Even if the vehicle is not in motion, the
average speed keeps going while the
engine is running.
Pressing the RESET button for more
than 1 second, when the average speed
is being displayed, clears the average
speed to zero (---).

5-34
Instrument cluster
OQXI049123OQXI049123
Elapsed time (if equipped)
This mode indicates the total time
traveled since the last driving time reset.
Even if the vehicle is not in motion,
the driving time keeps going while the
engine is running.
The meter’s working range is from
00:00~99:59.
Pressing the RESET button for more than
1 second, when the driving time is being
displayed, clears the driving time to zero
(00:00).
Service reminder
OBI3040012OBI3040012
This mode displays the service interval
(mileage).
Digital Speedometer
OBI3040013OBI3040013
This message shows the speed of the
vehicle (km/h, MPH).

5-35
05
Cluster type B
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
i Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes
Fuel Economy
• Average Fuel Economy
• Instant Fuel Economy

Accumulated Info
• Tripmeter
• Average Fuel Economy
• Timer

Drive Info
• Tripmeter
• Average Fuel Economy
• Timer
