display HYUNDAI I20 2022 Owner's Manual

5-36
Instrument cluster
„„Type AType A
OBI3040019OBI3040019
„„Type BType B
To change the trip mode, toggle the
“
, ” switch on the steering wheel.
Fuel economy
OAC3069039TUOAC3069039TU
Average Fuel Economy (1)
• The average fuel economy is
calculated by the total driving distance
and fuel consumption since the last
average fuel economy reset.
• The average fuel economy can be
reset both manually and automatically.Manual reset
To clear the average fuel economy
manually, press the [OK] button on the
steering wheel for more than 1 second
when the average fuel economy is
displayed.
Automatic reset
To automatically reset the average fuel
economy after refueling, select the “Fuel
Econ. Reset” mode in the User Settings
menu on the LCD display.
- After ignition: The average fuel
economy will reset automatically
whenever it has passed 4 hours after
turning OFF the engine.
- After refueling: The average fuel
economy will reset automatically
when driving speed exceeds 1 km/h,
after adding 6 liters (1.6 gallons) of fuel
or more.
i Information
The average fuel economy may be
inaccurate, when the vehicle drives
shorter than 300 meters (0.19 miles) after
turning ON the Engine Start/Stop button.
Instant Fuel Economy (2)
• This mode displays the instant fuel
economy during the last few seconds
when the vehicle speed is more than
10 km/h (6.2 mph).

5-37
05
Accumulated Info display
OAC3069041TUOAC3069041TU
This display shows the accumulated trip
distance (1), the average fuel economy
(2), and the total driving time (3).The information is accumulated starting
from the last reset.
To manually reset the information, press
and hold the OK button when viewing
the Accumulated driving info. The trip
distance, the average fuel economy,
and total driving time will reset
simultaneously.
The accumulated driving information will
continue to be counted while the engine
is still running (for example, when the
vehicle is in traffic or stopped at a stop
light).
i Information
The vehicle must be driven for a
minimum of 300 meters (0.19 miles) since
the last ignition key cycle before the
average fuel economy will be recalculated.

5-38
Instrument cluster
Drive Info display
OAC3069040TUOAC3069040TU
This display shows the trip distance (1),
the average fuel economy (2), and the
total driving time (3).
The information is combined for each
ignition cycle. However, when the
engine has been OFF for 4 hours or
longer the Drive Info screen will reset.
To manually reset the information, press
and hold the OK button when viewing
the Drive Info. The trip distance, the
average fuel economy, and total driving
time will reset simultaneously.
The driving information will continue
to be counted while the engine is still
running (for example, when the vehicle
is in traffic or stopped at a stop light.)
i Information
The vehicle must be driven for a
minimum of 300 meters (0.19 miles) since
the last ignition key cycle before the
average fuel economy will be recalculated.

6
5. Convenient features
Infotainment system ..................................................................................... 6-87
USB port ................................................................................................................... 6-87
Antenna .................................................................................................................... 6-87
Steering wheel audio control .................................................................................6-88
Voice recognition ....................................................................................................6-90
Bluetooth
® Wireless Technology hands-free .........................................................6-90
How vehicle audio works
.........................................................................................6-91
Audio (without touch screen) .......................................................................6-94
System layout – control panel ................................................................................ 6-94
System layout – steering wheel remote control
................................................... 6-96
Turning the system on or off ...................................................................................6-98
Turning the display on or off ................................................................................... 6-99
Getting to know the basic operations
.................................................................... 6-99
Radio ............................................................................................................ 6-100
Turning on the radio .............................................................................................. 6-100
Changing the radio mode ...................................................................................... 6-101
Scanning for available radio stations
.................................................................... 6-101
Searching for radio stations................................................................................... 6-101
Listening to saved radio stations...........................................................................6-102
Media player ................................................................................................ 6-103
Using the media player ..........................................................................................6-103
Using the USB mode ..............................................................................................6-103
Bluetooth ......................................................................................................6-107
Connecting Bluetooth devices .............................................................................. 6-107
Using a Bluetooth audio device
........................................................................... 6-109
Using a Bluetooth phone ........................................................................................ 6-111
System status icons ......................................................................................6-117
System specifications
.................................................................................. 6-118
USB .......................................................................................................................... 6-118
Bluetooth ................................................................................................................ 6-119
Trademarks ................................................................................................... 6-119

6-36
Convenient features
Closing the hood
1. Before closing the hood, check the
following:
• All filler caps in engine compartment
must be correctly installed.
• Gloves, rags or any other
combustible material must
be removed from the engine
compartment.
2. Return the support rod to its clip to
prevent it from rattling.
3. Lower the hood halfway (lifted
approximately 30 cm from the closed
position) and push down to securely
lock in place. Then double check to be
sure the hood is secure.
WARNING
Always double check to be sure that the
hood is firmly latched before driving
away. Check there is no hood open
warning light or message displayed on
the instrument cluster. Driving with the
hood opened may cause a total loss
of visibility, which might result in an
accident.
WARNING
• Before closing the hood, ensure that
all obstructions are removed from
the hood opening. Closing the hood
with an obstruction present in the
hood opening may result in property
damage or severe personal injury.
• Do not leave gloves, rags or any other
combustible material in the engine
compartment. Doing so may cause a
heat-induced fire.
• Do not move the vehicle with
the hood raised. The view will be
blocked and the hood could fall or be
damaged.
Tailgate
Opening the tailgate
OBI3050014OBI3050014
• The tailgate is locked or unlocked
when all doors are locked or unlocked
with the key, remote key, smart key or
central door lock/unlock switch.
• If unlocked, the tailgate can be
opened by pressing the handle and
pulling it up.
i Information
In cold and wet climates, door lock and
door mechanisms may not work properly
due to freezing conditions.

6-45
06
One-touch turn signal function
(if equipped)
To activate a one-touch turn signal
function, move the turn signal lever
slightly and then release it. The lane
change signals will blink 3, 5 or 7 times.
You can activate or deactivate the One
Touch Turn Signal function or choose
the number of blinks (3, 5, or 7) from the
User Settings Mode on the LCD display.
For more details, refer to “LCD Display
Modes” in chapter 4.
Front fog lamp (if equipped)
OBI3050024OBI3050024
Fog lights are used to provide improved
visibility when visibility is poor due to
fog, rain or snow, etc.
1. Turn on the park light.
2. Move the light switch (1) to the front
fog light position.
3. To turn off the front fog light, turn
the light switch to the front fog light
position again or turn off the Parking
(Position) light
NOTICE
When in operation, the fog lights
consume large amounts of vehicle
electrical power. Only use the fog lights
when visibility is poor.
Battery saver function
The purpose of this feature is to prevent
the battery from being discharged.
The system automatically turns off the
position lamp when the driver turns the
engine off and opens the driver-side
door.
With this feature, the position lamps will
turn off automatically if the driver parks
on the side of road at night.
If necessary, to keep the lamps on when
the engine is turned off, perform the
following:
1) Open the driver-side door.
2) Turn the position lamps OFF and ON
again using the light switch on the
steering column.
NOTICE
If the driver exits the vehicle through
another door besides the driver
door, the battery saver function
does not operate and the headlight
delay function does not turn OFF
automatically.
This may cause the battery to
discharge. To avoid battery discharge,
turn OFF the headlights manually from
the headlight switch before exiting the
vehicle.

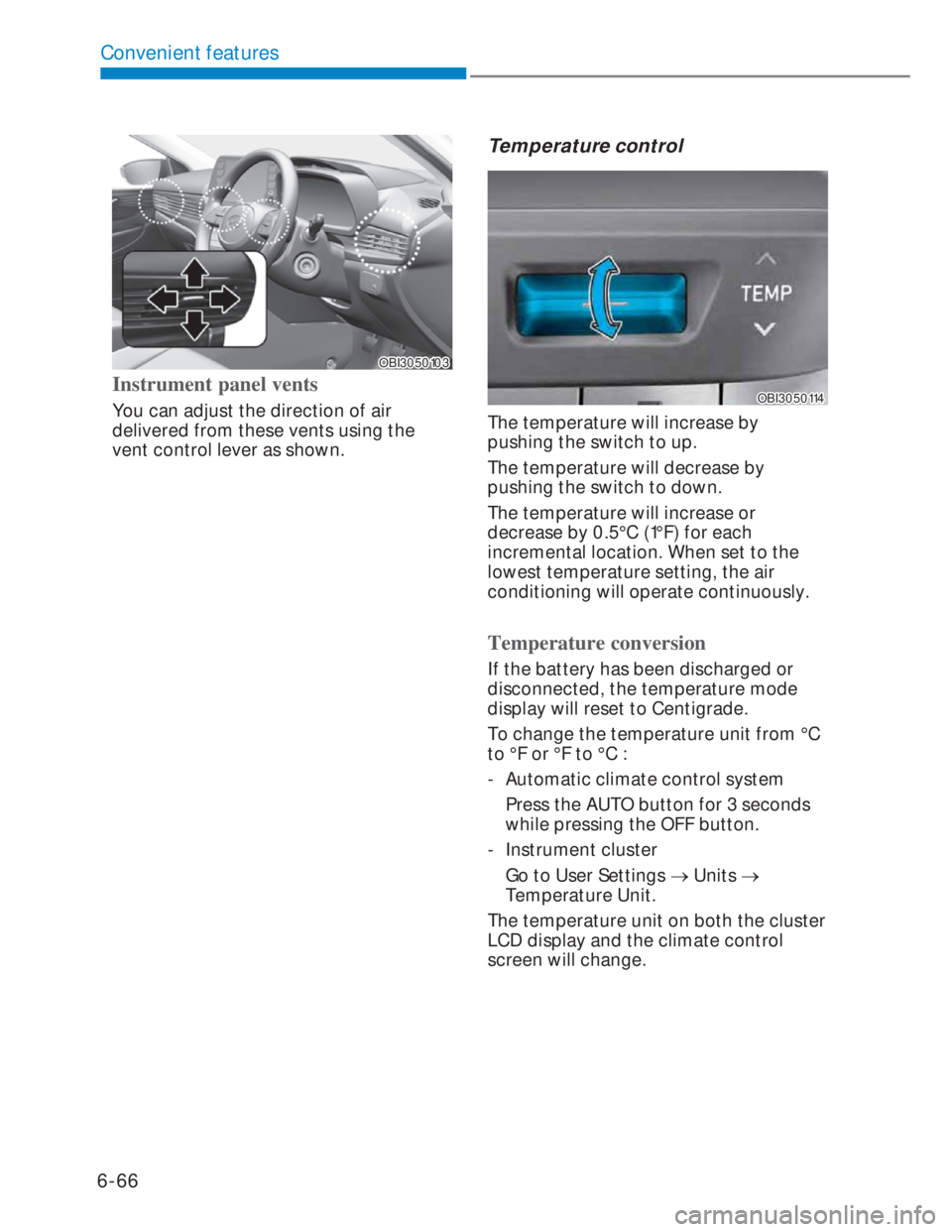

6-66
Convenient features
OBI3050103OBI3050103
Instrument panel vents
You can adjust the direction of air
delivered from these vents using the
vent control lever as shown.
Temperature control
OBI3050114OBI3050114
The temperature will increase by
pushing the switch to up.
The temperature will decrease by
pushing the switch to down.
The temperature will increase or
decrease by 0.5°C (1°F) for each
incremental location. When set to the
lowest temperature setting, the air
conditioning will operate continuously.
Temperature conversion
If the battery has been discharged or
disconnected, the temperature mode
display will reset to Centigrade.
To change the temperature unit from °C
to °F or °F to °C :
- Automatic climate control system
Press the AUTO button for 3 seconds
while pressing the OFF button.
- Instrument cluster
Go to User Settings o Units o
Temperature Unit.
The temperature unit on both the cluster
LCD display and the climate control
screen will change.

6-83
06
To charge a cellular phone
The wireless cellular phone charging
system charges only the Qi-enabled
cellular phones (
). Read the label on
the cellular phone accessory cover or
visit your cellular phone manufacturer’s
website to check whether your cellular
phone supports the Qi technology.
The wireless charging process starts
when you put a Qi-enabled cellular
phone on the wireless charging unit.
1. Remove other items, including the
smart key, from the wireless charging
unit. If not, the wireless charging
process may be interrupted. Place
the cellular phone on the center of
charging pad.
2. You can turn ON or OFF the wireless
charging function in the User Settings
mode on the instrument cluster. For
further information, refer to the “LCD
Display Modes” in chapter 4.If your cellular phone is not charging:
- Slightly change the position of the
cellular phone on the charging pad.
- Make sure the indicator light is orange.
The ERROR symbol will blink/flash for
10seconds and turn off if there is a
malfunction in the wireless charging
system.
In this case, temporarily stop the
charging process, re-attempt to
wirelessly charge your cellular phone
and then check the charging status
again.
The system warns you with a message
on the LCD display if the cellular phone
is still on the wireless charging unit after
the engine is turned OFF and the front
door is opened.
For some manufacturers’ cellular
phones, the system may not warn you
even though the cellular phone is left on
the wireless charging unit. This is due
to the particular characteristic of the
cellular phone and not a malfunction of
the wireless charging.
CAUTION
To prevent liquid from damaging
the wireless cellular phone charging
system in your vehicle, be sure not to
spill liquid over the pad when charging
your cellular phone.

6-97
06
WARNING - About driving
• Do not operate the system while
driving. Driving while distracted may
result in a loss of vehicle control,
potentially leading to an accident,
severe personal injury, or death.
The driver’s primary responsibility
is the safe and legal operation of a
vehicle, and any handheld devices,
equipment, or vehicle systems which
divert the driver’s attention from this
responsibility should never be used
during operation of the vehicle.
• Avoid watching the screen while
driving. Driving while distracted
may lead to a traffic accident. Stop
your vehicle in a safe location before
using functions that require multiple
operations.
• Stop your vehicle first before using
your mobile phone. Using a mobile
phone while driving may lead to a
traffic accident. If necessary, use the
Bluetooth Handsfree feature to make
calls and keep the call as short as
possible.
• Keep the volume low enough to hear
external sounds. Driving without the
ability to hear external sounds may
lead to a traffic accident. Listening
to a loud volume for a long time may
cause hearing damage.
WARNING
- About handling the system
• Do not disassemble or modify the
system. Doing so may result in an
accident, fire, or electric shock.
• Do not allow liquids or foreign
substances to enter the system.
Liquids or foreign substances may
cause noxious fumes, a fire, or a
system malfunction.
• Stop using the system if it
malfunctions, such as no audio
output or display. If you continue
using the system when it is
malfunctioning, it may lead to a fire,
electric shock, or system failure.
• Do not touch the antenna during
thunder or lightning because such an
act may cause electric shock.
i Information
- About operating the system
• Use the system with the engine running.
Using the system for a long time when
the engine is stopped may discharge the
battery.
• Do not install unapproved products.
Using unapproved products may cause
an error while using the system. System
errors caused by installing unapproved
products are not covered under the
warranty.

6-98
Convenient features
i Information
- About handling the system
• Do not apply excessive force to the
system. Excessive pressure on the
screen may damage the LCD panel or
the touch panel.
• When cleaning the screen or button
panel, make sure to stop the engine
and use a soft, dry cloth. Wiping the
screen or buttons with a rough cloth or
using solvents (alcohol, benzene, paint
thinner, etc.) may scratch or chemically
damage the surface.
• If you attach a liquid-type air freshener
to the fan louvre, the surface of the
louvre may become deformed due to
the flowing air.
• If you want to change the position of
the installed device, please inquire
with your place of purchase or service
maintenance centre. Technical expertise
is required to install or disassemble the
device.
NOTICE
• If you experience any problems with
the system, contact your place of
purchase or dealer.
• Placing the audio system within an
electromagnetic environment may
result in noise interference.
Turning the system on or off
To turn on the system, start the engine.
• If you do not want to use the system
while driving, you can turn off the
system by pressing the [POWER]
button on the control panel. To use
the system again, press the [POWER]
button again.
After you have turned off the engine, the
system will automatically turn off after a
while or as soon as you open the driver’s
door.
• Depending on the vehicle model or
specifications, the system may turn
off as soon as you turn off the engine.
• When you turn back on the system,
the previous mode and settings will
remain intact.
WARNING
• Some functions may be disabled for
safety reasons while the vehicle is
moving. They work only when the
vehicle stops. Park your vehicle in
a safe location before using any of
them.
• Stop using the system if it
malfunctions, such as no audio
output or display. If you continue
using the system when it is
malfunctioning, it may lead to a fire,
electric shock, or system failure.
i Information
You can turn on the system when the key
ignition switch is placed in the “ACC”
or “ON” position. Using the system for
an extended period without the engine
running drains the battery. If you plan on
using the system for a long time, start the
engine.
