HYUNDAI I20 2022 Owners Manual

7-54
Driving your vehicle
Don’t let your parking brake freeze
Under some conditions your parking
brake can freeze in the engaged
position. This is most likely to happen
when there is an accumulation of snow
or ice around or near the rear brakes or
if the brakes are wet. If there is a risk
the parking brake may freeze, apply
it only temporarily while you put the
shift lever in N (for Automated Manual
Transmission) or in first or reverse gear
(for manual transmission) and block the
rear wheels so the vehicle cannot roll.
Then release the parking brake.
Don’t let ice and snow accumulate
underneath
Under some conditions, snow and ice
can build up under the fenders and
interfere with the steering. When driving
in severe winter conditions where this
may happen, you should periodically
check underneath the car to be sure the
movement of the front wheels and the
steering components is not obstructed.
Carry emergency equipment
Depending on the severity of the
weather, you should carry appropriate
emergency equipment. Some of the
items you may want to carry include tire
chains, tow straps or chains, flashlight,
emergency flares, sand, shovel, jumper
cables, window scraper, gloves, ground
cloth, coveralls, blanket, etc.
Don’t place foreign objects
or materials in the engine
compartment
Placement of foreign objects or
materials which prevent cooling of the
engine, in the engine compartment,
may cause a failure or combustion. The
manufacturer is not responsible for the
damage caused by such placement.

7-55
07

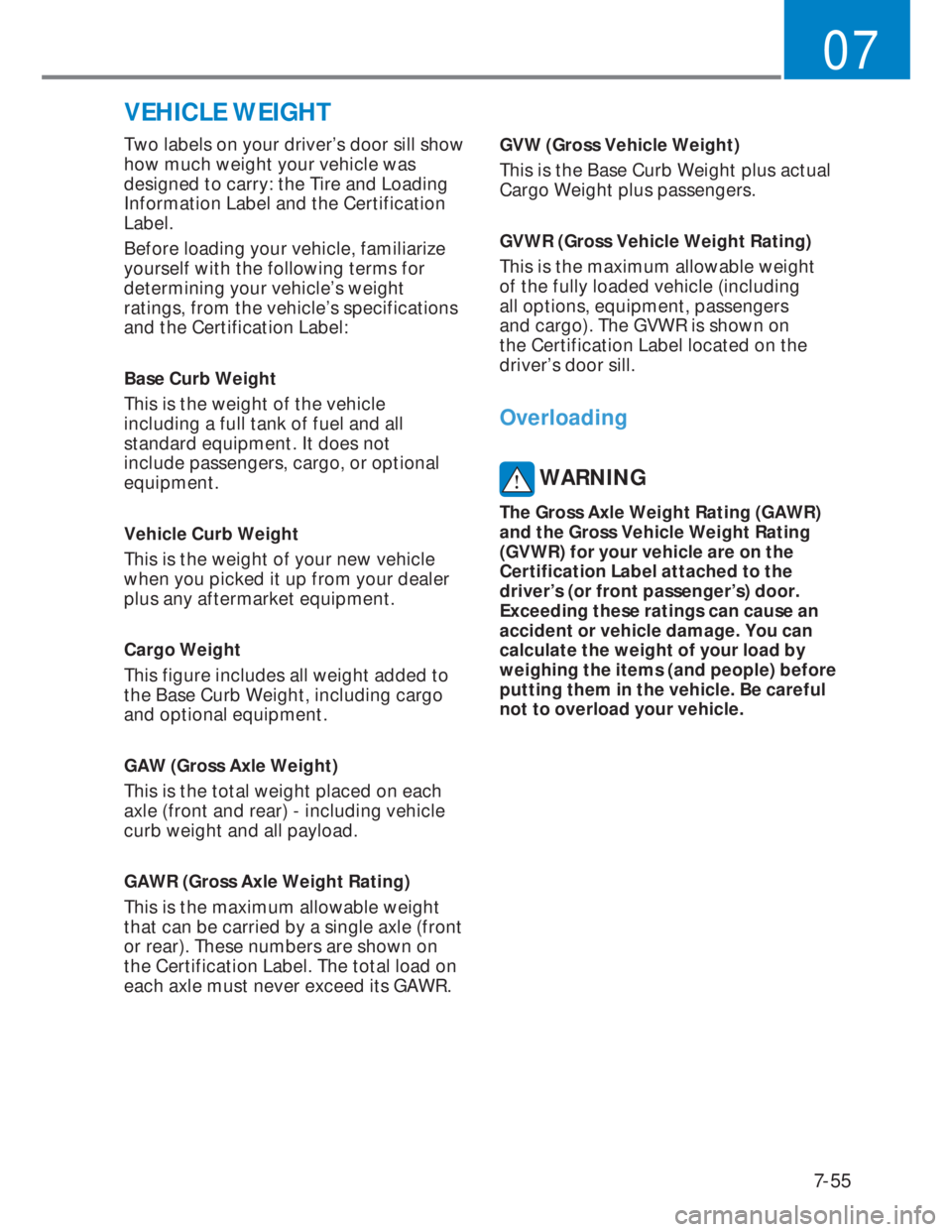

Two labels on your driver’s door sill show
how much weight your vehicle was
designed to carry: the Tire and Loading
Information Label and the Certification
Label.
Before loading your vehicle, familiarize
yourself with the following terms for
determining your vehicle’s weight
ratings, from the vehicle’s specifications
and the Certification Label:
Base Curb Weight
This is the weight of the vehicle
including a full tank of fuel and all
standard equipment. It does not
include passengers, cargo, or optional
equipment.
Vehicle Curb Weight
This is the weight of your new vehicle
when you picked it up from your dealer
plus any aftermarket equipment.
Cargo Weight
This figure includes all weight added to
the Base Curb Weight, including cargo
and optional equipment.
GAW (Gross Axle Weight)
This is the total weight placed on each
axle (front and rear) - including vehicle
curb weight and all payload.
GAWR (Gross Axle Weight Rating)
This is the maximum allowable weight
that can be carried by a single axle (front
or rear). These numbers are shown on
the Certification Label. The total load on
each axle must never exceed its GAWR.GVW (Gross Vehicle Weight)
This is the Base Curb Weight plus actual
Cargo Weight plus passengers.
GVWR (Gross Vehicle Weight Rating)
This is the maximum allowable weight
of the fully loaded vehicle (including
all options, equipment, passengers
and cargo). The GVWR is shown on
the Certification Label located on the
driver’s door sill.
Overloading
WARNING
The Gross Axle Weight Rating (GAWR)
and the Gross Vehicle Weight Rating
(GVWR) for your vehicle are on the
Certification Label attached to the
driver’s (or front passenger’s) door.
Exceeding these ratings can cause an
accident or vehicle damage. You can
calculate the weight of your load by
weighing the items (and people) before
putting them in the vehicle. Be careful
not to overload your vehicle.
VEHICLE WEIGHT

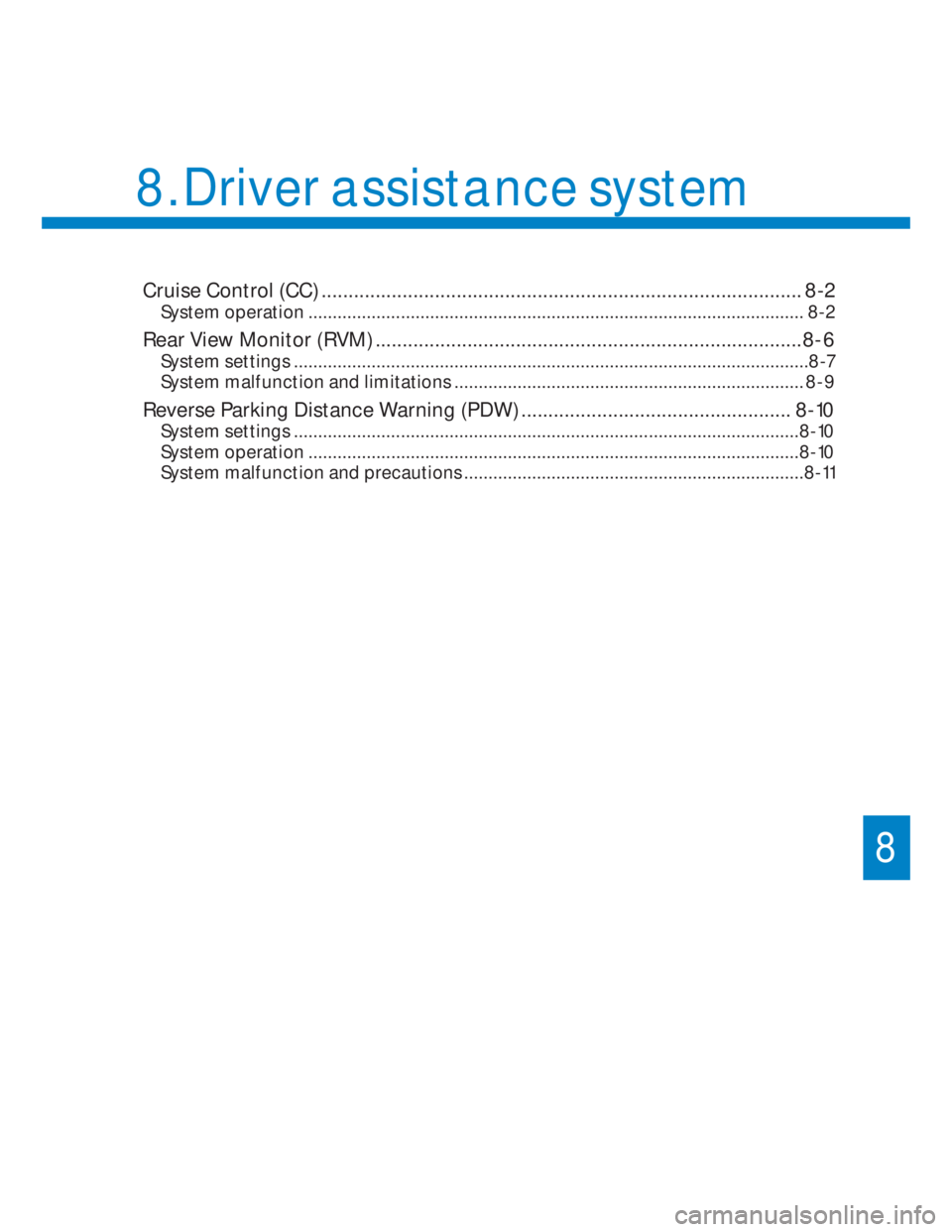

8
Cruise Control (CC) ......................................................................................... 8-2
System operation ...................................................................................................... 8-2
Rear View Monitor (RVM) ...............................................................................8-6
System settings ..........................................................................................................8-7
System malfunction and limitations ........................................................................ 8-9
Reverse Parking Distance Warning (PDW) .................................................. 8-10
System settings ........................................................................................................8-10
System operation
.....................................................................................................8-10
System malfunction and precautions ......................................................................8-11
8. Driver assistance system

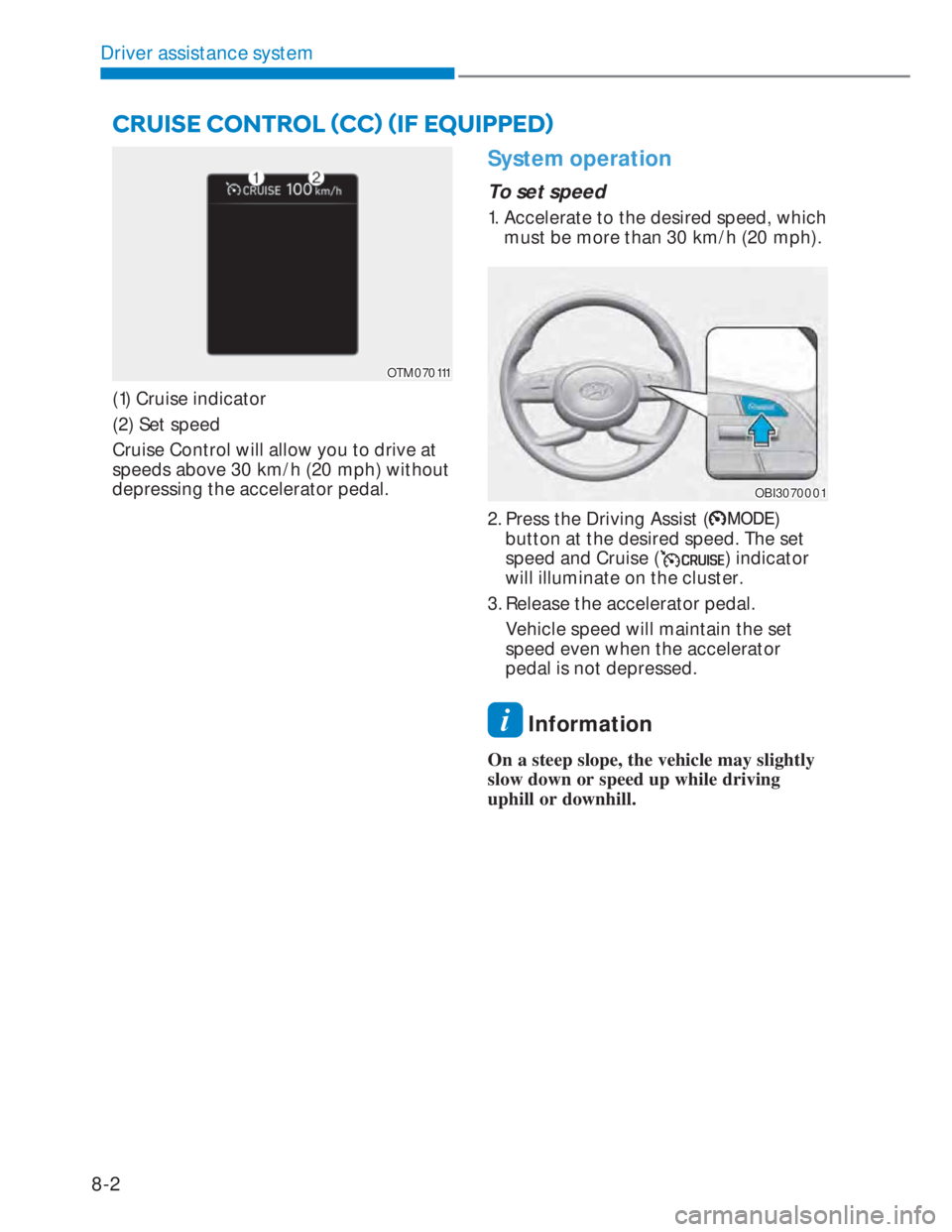

Driver assistance system
8-2
OTM070111OTM070111
(1) Cruise indicator
(2) Set speed
Cruise Control will allow you to drive at
speeds above 30 km/h (20 mph) without
depressing the accelerator pedal.
System operation
To set speed
1. Accelerate to the desired speed, which
must be more than 30 km/h (20 mph).
OBI3070001OBI3070001
2. Press the Driving Assist ()
button at the desired speed. The set
speed and Cruise (
) indicator
will illuminate on the cluster.
3. Release the accelerator pedal.
Vehicle speed will maintain the set
speed even when the accelerator
pedal is not depressed.
Information
On a steep slope, the vehicle may slightly
slow down or speed up while driving
uphill or downhill.
&58,6(&21752/

08
8-3

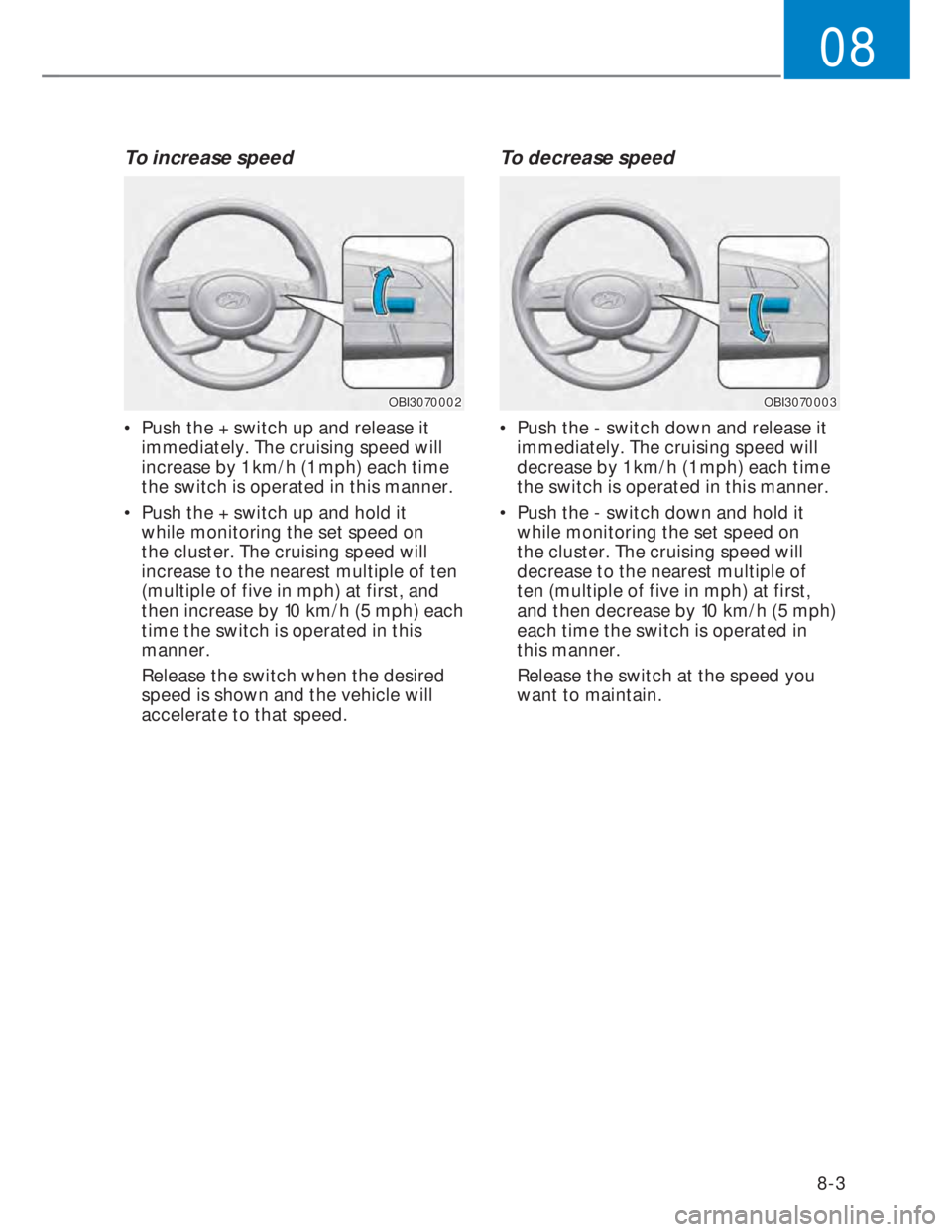

To increase speed
OBI3070002OBI3070002
• Push the + switch up and release it
immediately. The cruising speed will
increase by 1 km/h (1 mph) each time
the switch is operated in this manner.
• Push the + switch up and hold it
while monitoring the set speed on
the cluster. The cruising speed will
increase to the nearest multiple of ten
(multiple of five in mph) at first, and
then increase by 10 km/h (5 mph) each
time the switch is operated in this
manner.
Release the switch when the desired
speed is shown and the vehicle will
accelerate to that speed.
To decrease speed
OBI3070003OBI3070003
• Push the - switch down and release it
immediately. The cruising speed will
decrease by 1 km/h (1 mph) each time
the switch is operated in this manner.
• Push the - switch down and hold it
while monitoring the set speed on
the cluster. The cruising speed will
decrease to the nearest multiple of
ten (multiple of five in mph) at first,
and then decrease by 10 km/h (5 mph)
each time the switch is operated in
this manner.
Release the switch at the speed you
want to maintain.

Driver assistance system
8-4

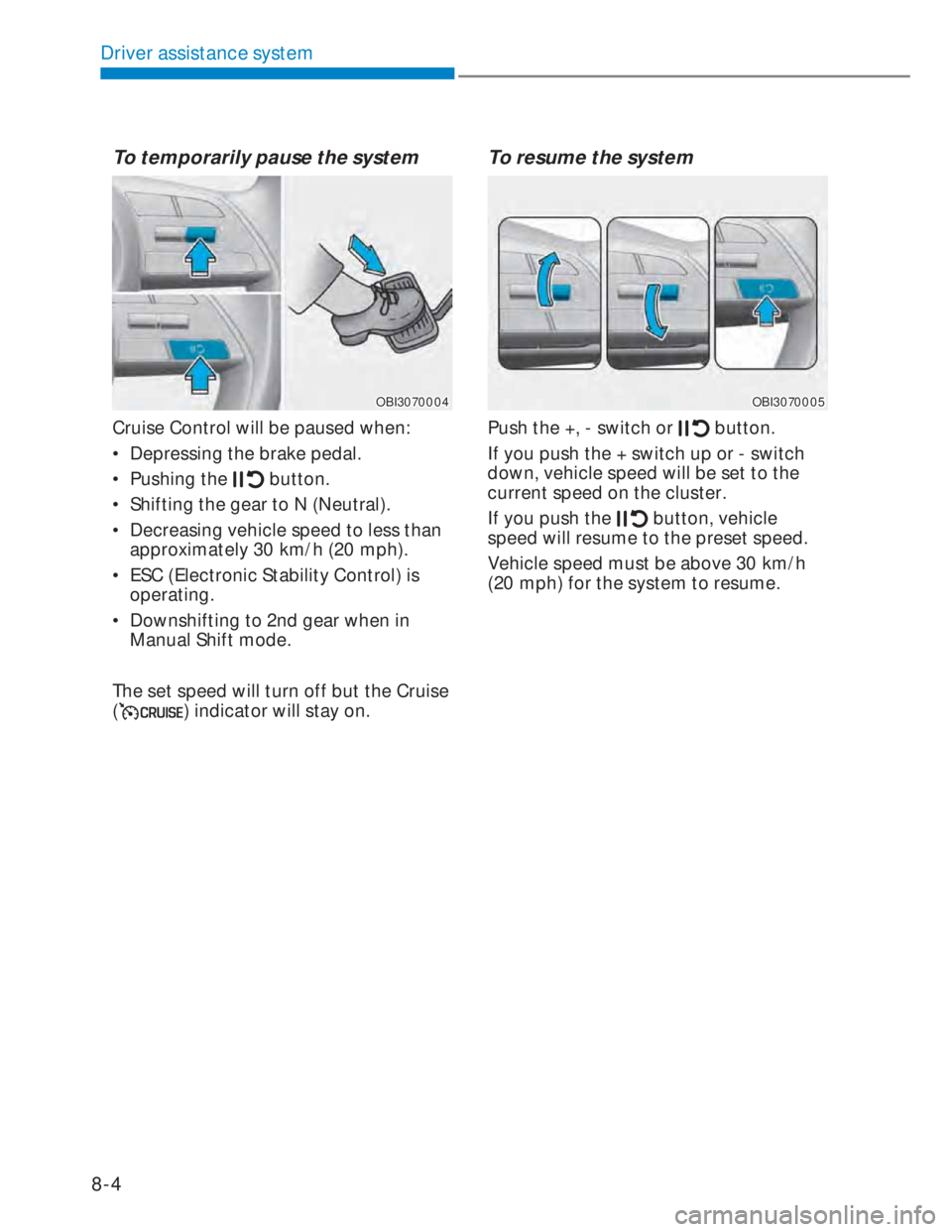

To temporarily pause the system
OBI3070004OBI3070004
Cruise Control will be paused when:
• Depressing the brake pedal.
• Pushing the
button.
• Shifting the gear to N (Neutral).
• Decreasing vehicle speed to less than
approximately 30 km/h (20 mph).
• ESC (Electronic Stability Control) is
operating.
• Downshifting to 2nd gear when in
Manual Shift mode.
The set speed will turn off but the Cruise
(
) indicator will stay on.
To resume the system
OBI3070005OBI3070005
Push the +, - switch or button.
If you push the + switch up or - switch
down, vehicle speed will be set to the
current speed on the cluster.
If you push the
button, vehicle
speed will resume to the preset speed.
Vehicle speed must be above 30 km/h
(20 mph) for the system to resume.

08
8-5
To turn off the system
OBI3070001OBI3070001
Press the Driving Assist () button
to turn Cruise Control off. The Cruise
(
) indicator will go off.
Always press the Driving Assist (
)
button to turn Cruise Control off when
not in use.
Information
If your vehicle is equipped with Manual
Speed Limit Assist, press and hold the
Driving Assist button to turn off Cruise
Control. However, Manual Speed Limit
Assist will turn on.
WARNING
Take the following precautions when
using Cruise Control:
• Always set the vehicle speed to the
speed limit in your country.
• Keep Cruise Control off when
the system is not in use, to avoid
inadvertently setting a speed. Check
that the Cruise (
) indicator is
off.
• Cruise Control does not substitute
for proper and safe driving. It is the
responsibility of the driver to always
drive safely and should always be
aware of unexpected and sudden
situations from occurring.
• Always drive cautiously to prevent
unexpected and sudden situations
from occurring. Pay attention to the
road conditions at all times.
• Do not use Cruise Control when it
may be unsafe to keep the vehicle at
a constant speed:
- When driving in heavy traffic, or
when traffic conditions make it
difficult to drive at a constant speed
- When driving on rainy, icy, or snow-
covered roads
- When driving on hilly or windy roads
- When driving in windy areas
- When driving with limited view
(possibly due to bad weather, such
as fog, snow, rain and sandstorm)

Driver assistance system
8-6
OBI3070011OBI3070011
OBI3070006OBI3070006
Rear View Monitor will show the area
behind the vehicle to assist you when
parking or backing up.
Detecting sensor
OBI3070012OBI3070012
[1] : Rear view camera
Refer to the picture above for the
detailed location of the rear view
camera.
5($59,(:021,725

08
8-7
System settings
Camera settings (if equipped)
OBI3070013OBI3070013
• You can change Rear View Monitor
‘Display Contents’ or ‘Display Settings’
by touching the setup icon (
) on
the screen while Rear View Monitor
is operating, or selecting ‘Driver
DVVLVWDQFH

Driver assistance system
8-8
Maintaining rear view
The rear view will maintain showing on
the screen to help you when parking.
Operating conditions
Shift the gear from R (Reverse) to N
(Neutral) or D (Drive), the rear view will
appear on the screen.
Off conditions
• When vehicle speed is above 10 km/h
(6 mph), the rear view will turn off.
• Shift the gear to P (Park), the rear view
will turn off.
Rear view while driving
(if equipped)
OBI3070008OBI3070008
The driver is able to check the rear view
on the screen while driving, it is to assist
with safe driving.
Operating conditions
Press the Parking/View button (1) while
the gear is in D (Drive) or N (Neutral),
the driving rear view will appear on the
screen.
Off conditions
• Press the Parking/View button (1)
again, the driving rear view will turn
off.
• Press one of the infotainment system
button (2), the driving rear view will
turn off.
• Shift the gear to P (Park), the driving
rear view will turn off.
When operating
• If the gear is shifted to R (Reverse), as
Rear view while driving is displayed on
the screen, the screen will change to
rear view with parking guidance.
• When Rear view while driving is
displayed on the screen, an icon (
) will appear on the upper right side
of the screen indicating that the rear
view is being displayed.
