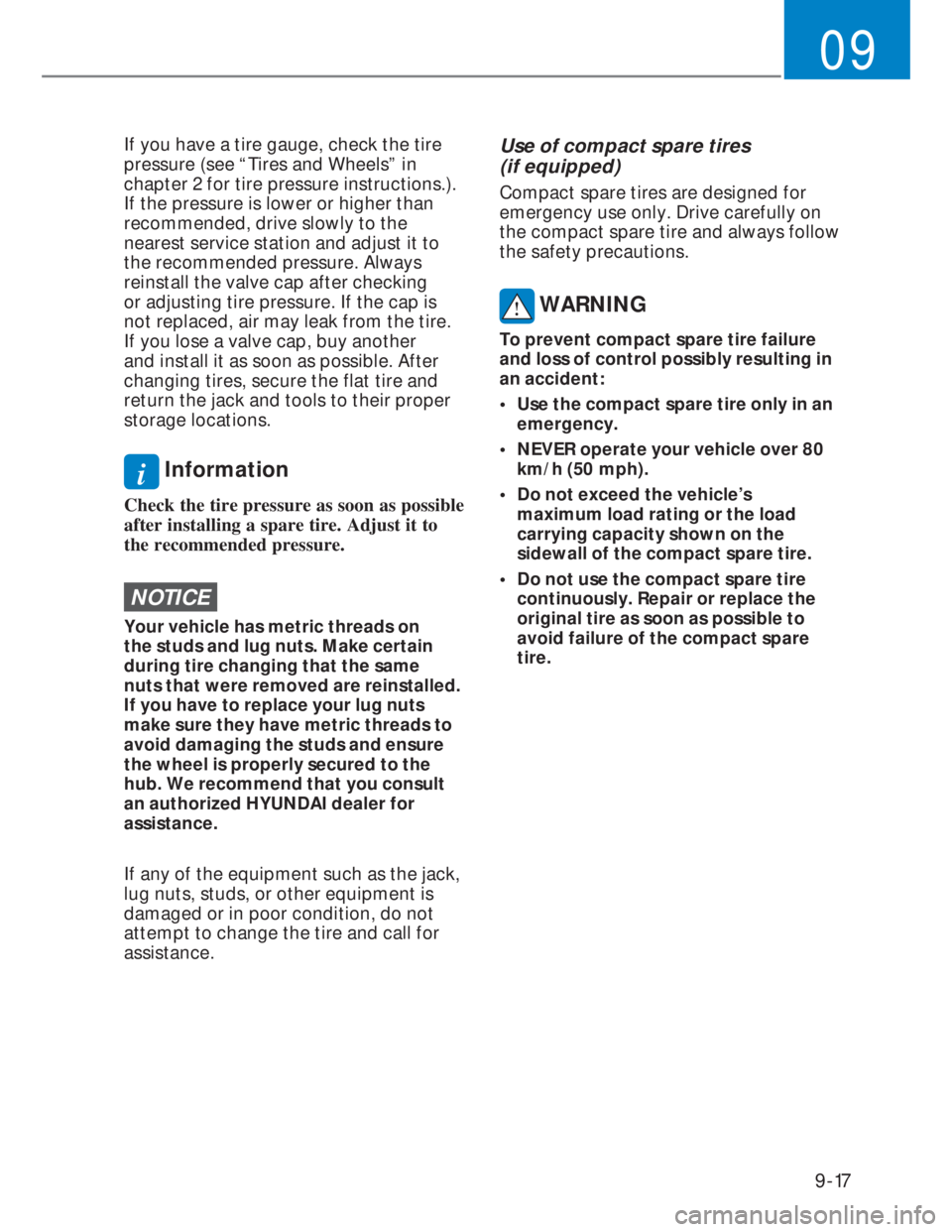

If you have a tire gauge, check the tire
pressure (see “Tires and Wheels” in
chapter 2 for tire pressure instructions.).
If the pressure is lower or higher than
recommended, drive slowly to the
nearest service station and adjust it to
the recommended pressure. Always
reinstall the valve cap after checking
or adjusting tire pressure. If the cap is
not replaced, air may leak from the tire.
If you lose a valve cap, buy another
and install it as soon as possible. After
changing tires, secure the flat tire and
return the jack and tools to their proper
storage locations.
i Information
Check the tire pressure as soon as possible
after installing a spare tire. Adjust it to
the recommended pressure.
NOTICE
Your vehicle has metric threads on
the studs and lug nuts. Make certain
during tire changing that the same
nuts that were removed are reinstalled.
If you have to replace your lug nuts
make sure they have metric threads to
avoid damaging the studs and ensure
the wheel is properly secured to the
hub. We recommend that you consult
an authorized HYUNDAI dealer for
assistance.
If any of the equipment such as the jack,
lug nuts, studs, or other equipment is
damaged or in poor condition, do not
attempt to change the tire and call for
assistance.
Use of compact spare tires
(if equipped)
Compact spare tires are designed for
emergency use only. Drive carefully on
the compact spare tire and always follow
the safety precautions.
WARNING
To prevent compact spare tire failure
and loss of control possibly resulting in
an accident:
• Use the compact spare tire only in an
emergency.
• NEVER operate your vehicle over 80
km/h (50 mph).
• Do not exceed the vehicle’s
maximum load rating or the load
carrying capacity shown on the
sidewall of the compact spare tire.
• Do not use the compact spare tire
continuously. Repair or replace the
original tire as soon as possible to
avoid failure of the compact spare
tire.

9-18
Emergency situations
When driving with the compact spare
tire mounted to your vehicle:
• Check the tire pressure after installing
the compact spare tire. The compact
spare tire should be inflated to 420
kPa (60 psi).
• Do not take this vehicle through an
automatic car wash while the compact
spare tire is installed.
• Do not use the compact spare tire on
any other vehicle because this tire
has been designed especially for your
vehicle.
• The compact spare tire’s tread life
is shorter than a regular tire. Inspect
your compact spare tire regularly and
replace worn compact spare tires with
the same size and design, mounted on
the same wheel.
• Do not use more than one compact
spare tire at a time.
• Do not tow a trailer while the compact
spare tire is installed.
i Information
When the original tire and wheel are
repaired and reinstalled on the vehicle,
the lug nut torque must be set correctly
to prevent wheel vibration. The correct
lug nut tightening torque is 11~13 kgf.m
(79~94 lbf.ft).
NOTICE
To prevent damaging the compact
spare tire and your vehicle:
• Drive slowly enough for the road
conditions to avoid all hazards, such
as a potholes or debris.
• Avoid driving over obstacles. The
compact spare tire diameter is
smaller than the diameter of a
conventional tire and reduces the
ground clearance approximately 25
mm (1 inch).
• Do not use tire chains on the compact
spare tire. Because of the smaller
size, a tire chain will not fit properly.
• Do not use the compact spare tire
on any other wheels, nor should
standard tires, snow tires, wheel
covers or trim rings be used with the
compact spare wheel.

9-19
09
1. Model Name
2. Maximum allowable load
3. When using the jack, set your parking
brake.
4. When using the jack, stop the engine.
5. Do not get under a vehicle that is
supported by a jack.
6. The designated locations under the
frame
7. When supporting the vehicle, the base
plate of jack must be vertical under
the lifting point.8. Shift into Reverse gear on vehicles
with manual transmission or move the
shift lever to the N (Neutral) position
on vehicles with Automated manual
transmission
9. The jack should be used on firm level
ground.
10. Jack manufacture
11. Production date
12. Representative company and address
Jack label
„„ExampleExample
• Type B • Type A
OHYK065011OHYK065011
OHYK065010OHYK065010
h The actual Jack label in the vehicle may differ from the illustration.
For more detailed specifications, refer to the label attached to the jack.

9-20
Emergency situations

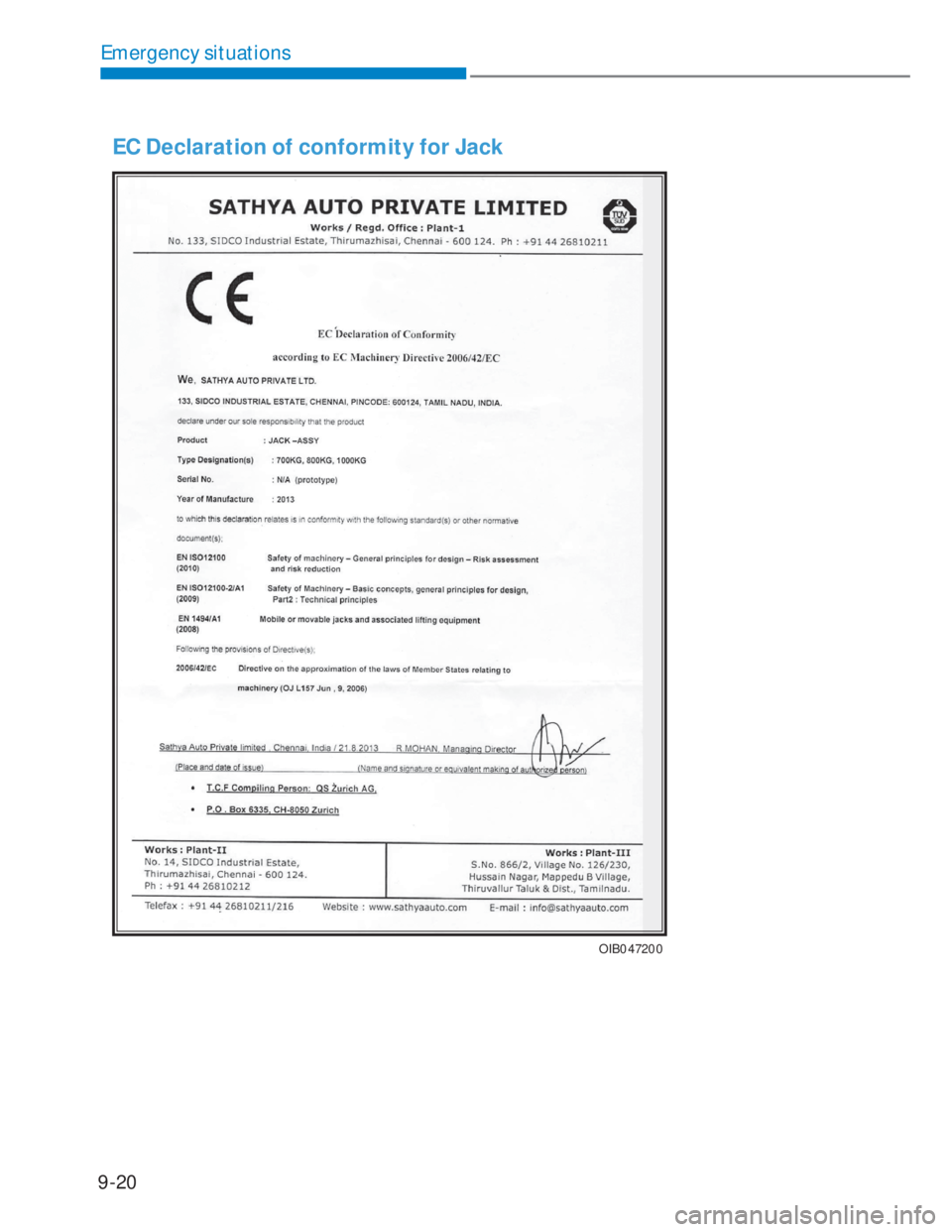

EC Declaration of conformity for Jack
OIB047200OIB047200

9-21
09

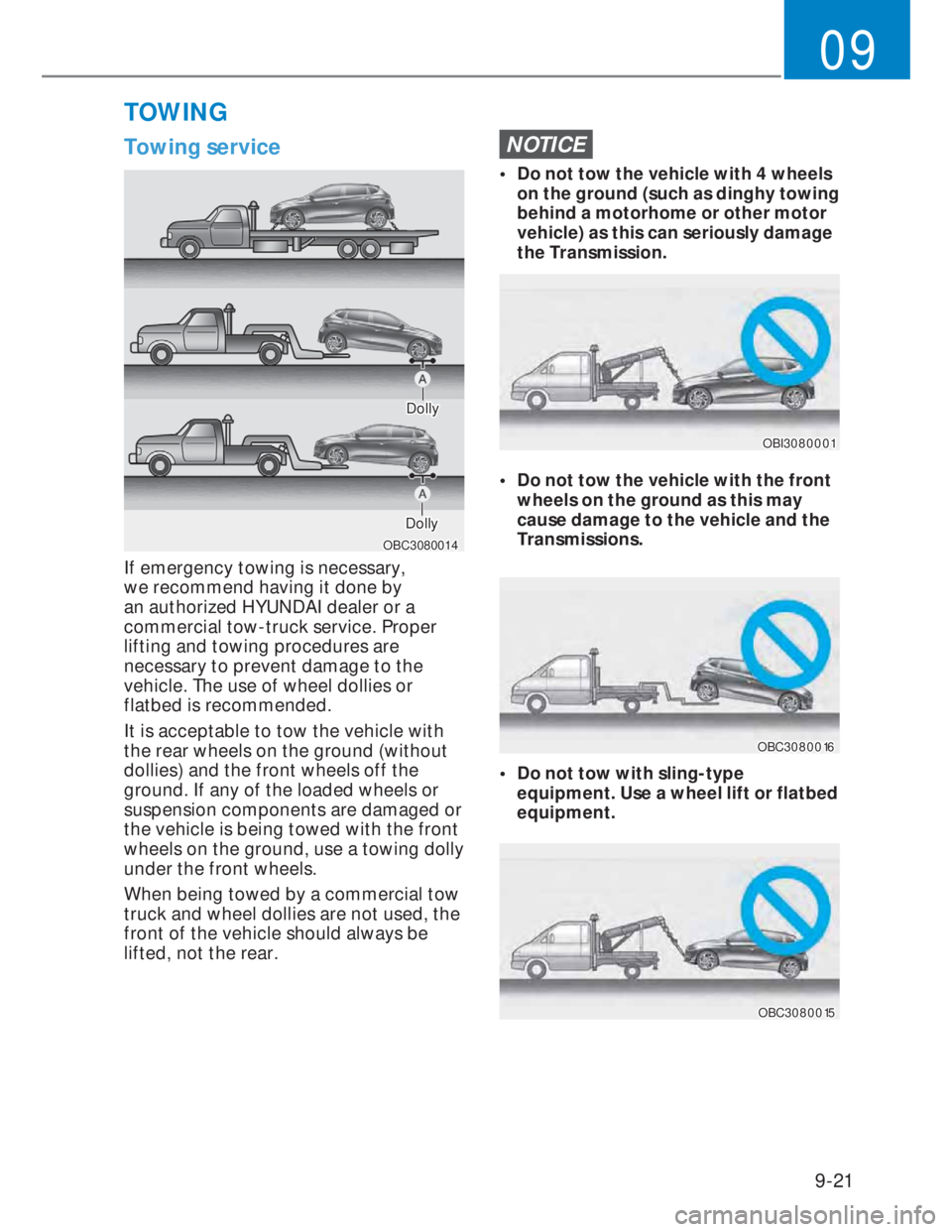

Towing service
OBC3080014OBC3080014
DollyDolly
DollyDolly
If emergency towing is necessary,
we recommend having it done by
an authorized HYUNDAI dealer or a
commercial tow-truck service. Proper
lifting and towing procedures are
necessary to prevent damage to the
vehicle. The use of wheel dollies or
flatbed is recommended.
It is acceptable to tow the vehicle with
the rear wheels on the ground (without
dollies) and the front wheels off the
ground. If any of the loaded wheels or
suspension components are damaged or
the vehicle is being towed with the front
wheels on the ground, use a towing dolly
under the front wheels.
When being towed by a commercial tow
truck and wheel dollies are not used, the
front of the vehicle should always be
lifted, not the rear.

NOTICE
• Do not tow the vehicle with 4 wheels
on the ground (such as dinghy towing
behind a motorhome or other motor
vehicle) as this can seriously damage
the Transmission.
OBI3080001OBI3080001
• Do not tow the vehicle with the front
wheels on the ground as this may
cause damage to the vehicle and the
Transmissions.
OBC3080016OBC3080016
• Do not tow with sling-type
equipment. Use a wheel lift or flatbed
equipment.
OBC3080015OBC3080015
TOWING

9-22
Emergency situations
When towing your vehicle in an
emergency without wheel dollies:
1. Place the ignition switch in the ACC
position.
2. Place the shift lever in N (Neutral).
3. Release the parking brake.
NOTICE
Failure to place the shift lever in N
(Neutral) when being towed with the
front wheels on the ground can cause
internal damage to the transmission.

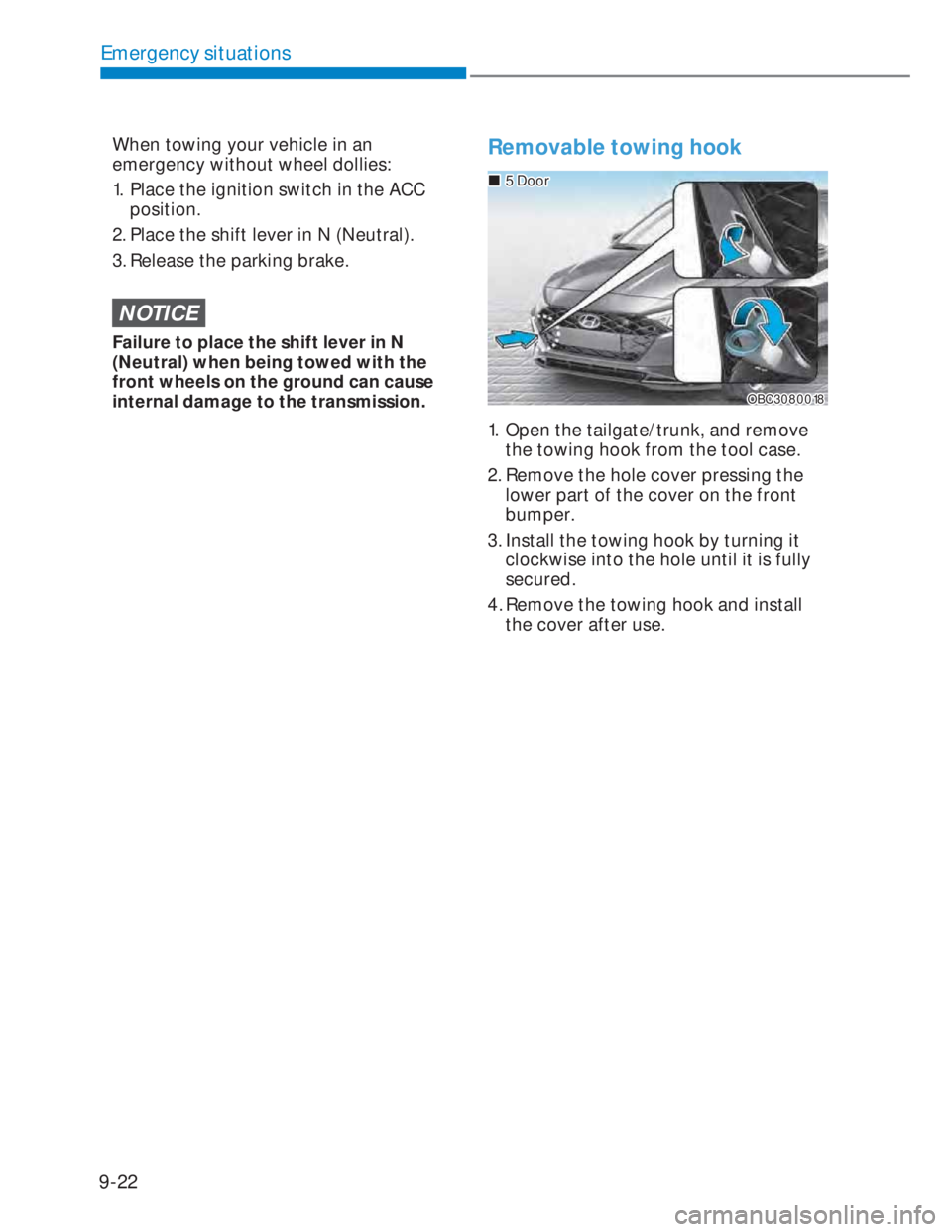

Removable towing hook
OBC3080018OBC3080018
„„5 Door5 Door
1. Open the tailgate/trunk, and remove
the towing hook from the tool case.
2. Remove the hole cover pressing the
lower part of the cover on the front
bumper.
3. Install the towing hook by turning it
clockwise into the hole until it is fully
secured.
4. Remove the towing hook and install
the cover after use.

9-23
09

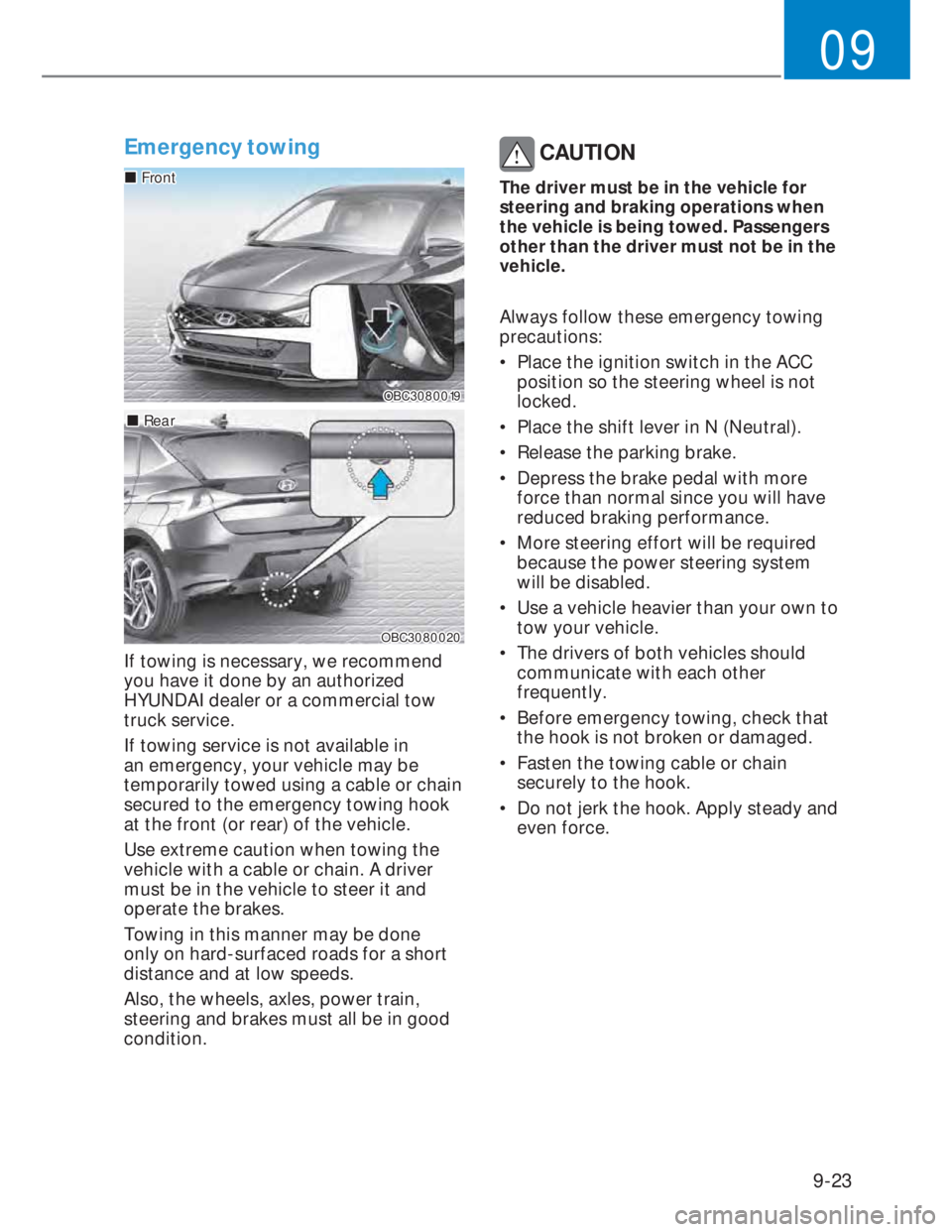

Emergency towing
OBC3080019OBC3080019
„„FrontFront
„„RearRear
OBC3080020OBC3080020
If towing is necessary, we recommend
you have it done by an authorized
HYUNDAI dealer or a commercial tow
truck service.
If towing service is not available in
an emergency, your vehicle may be
temporarily towed using a cable or chain
secured to the emergency towing hook
at the front (or rear) of the vehicle.
Use extreme caution when towing the
vehicle with a cable or chain. A driver
must be in the vehicle to steer it and
operate the brakes.
Towing in this manner may be done
only on hard-surfaced roads for a short
distance and at low speeds.
Also, the wheels, axles, power train,
steering and brakes must all be in good
condition.
CAUTION
The driver must be in the vehicle for
steering and braking operations when
the vehicle is being towed. Passengers
other than the driver must not be in the
vehicle.
Always follow these emergency towing
precautions:
• Place the ignition switch in the ACC
position so the steering wheel is not
locked.
• Place the shift lever in N (Neutral).
• Release the parking brake.
• Depress the brake pedal with more
force than normal since you will have
reduced braking performance.
• More steering effort will be required
because the power steering system
will be disabled.
• Use a vehicle heavier than your own to
tow your vehicle.
• The drivers of both vehicles should
communicate with each other
frequently.
• Before emergency towing, check that
the hook is not broken or damaged.
• Fasten the towing cable or chain
securely to the hook.
• Do not jerk the hook. Apply steady and
even force.

9-24
Emergency situations

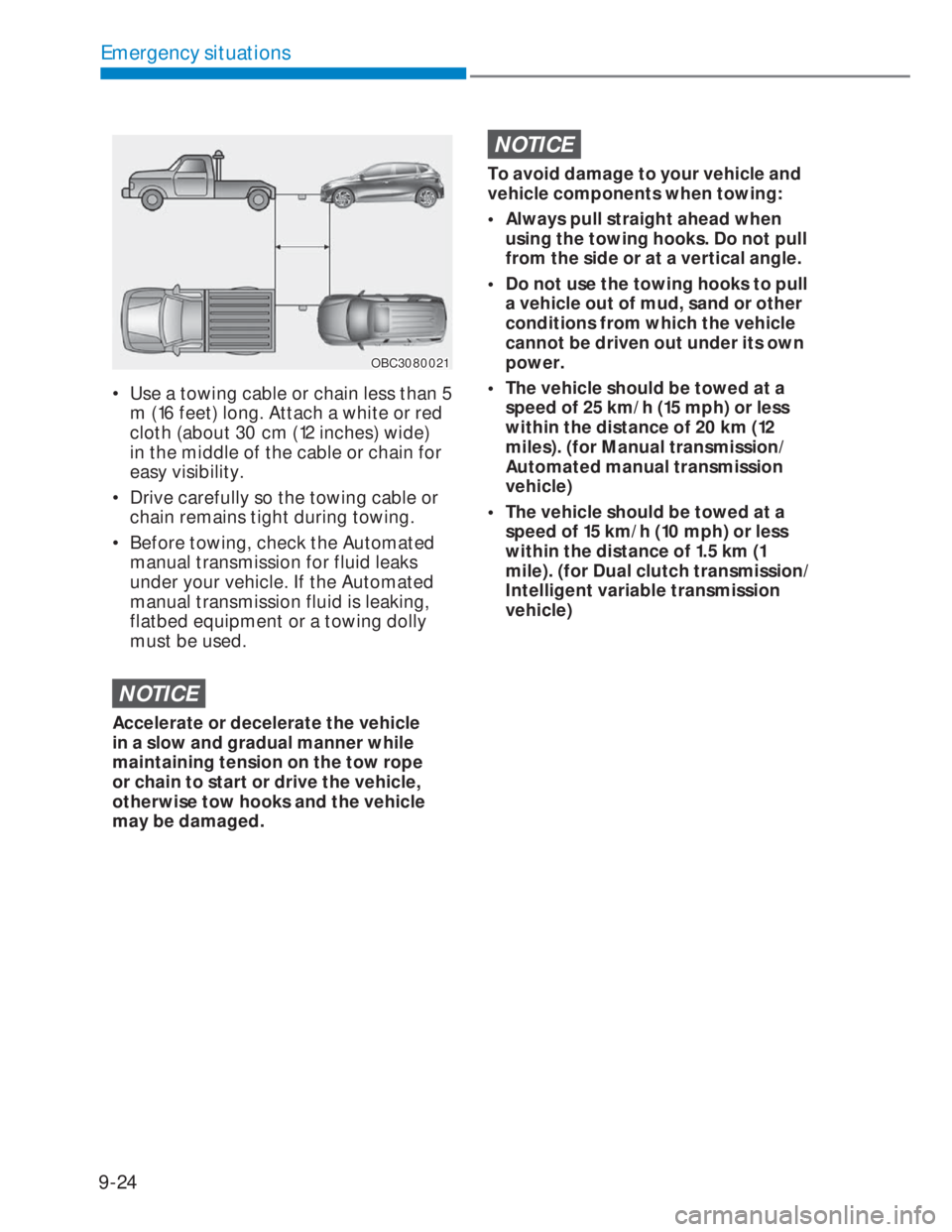

OBC3080021OBC3080021
• Use a towing cable or chain less than 5
m (16 feet) long. Attach a white or red
cloth (about 30 cm (12 inches) wide)
in the middle of the cable or chain for
easy visibility.
• Drive carefully so the towing cable or
chain remains tight during towing.
• Before towing, check the Automated
manual transmission for fluid leaks
under your vehicle. If the Automated
manual transmission fluid is leaking,
flatbed equipment or a towing dolly
must be used.
NOTICE
Accelerate or decelerate the vehicle
in a slow and gradual manner while
maintaining tension on the tow rope
or chain to start or drive the vehicle,
otherwise tow hooks and the vehicle
may be damaged.
NOTICE
To avoid damage to your vehicle and
vehicle components when towing:
• Always pull straight ahead when
using the towing hooks. Do not pull
from the side or at a vertical angle.
• Do not use the towing hooks to pull
a vehicle out of mud, sand or other
conditions from which the vehicle
cannot be driven out under its own
power.
• The vehicle should be towed at a
speed of 25 km/h (15 mph) or less
within the distance of 20 km (12
miles). (for Manual transmission/
Automated manual transmission
vehicle)
• The vehicle should be towed at a
speed of 15 km/h (10 mph) or less
within the distance of 1.5 km (1
mile). (for Dual clutch transmission/
Intelligent variable transmission
vehicle)

9-25
09
Your vehicle is equipped with
emergency commodities to help you
respond to emergency situation.
First aid kit
Supplies for use in giving first aid such
as bandage and adhesive tape, etc. are
provided.
Triangle reflector
Place the triangle reflector on the road
to warn oncoming vehicles during
emergencies, such as when the vehicle
is parked by the roadside due to
problems.
(0(5*(1&<&2002',7<

Engine compartment .................................................................................... 10-4
Maintenance services
................................................................................... 10-6
Owner’s responsibility ............................................................................................ 10-6
Owner maintenance precautions........................................................................... 10-6
Owner maintenance ..................................................................................... 10-8
Owner maintenance schedule ............................................................................... 10-8
Scheduled maintenance service ................................................................ 10-10
Normal maintenance schedule - petrol engine .................................................... 10-11
Maintenance under severe usage conditions - petrol engine
............................ 10-15
Normal maintenance schedule - diesel engine ....................................................10-17
Maintenance under severe usage conditions - diesel engine ............................10-20
Explanation of scheduled maintenance items ..........................................10-24
Engine oil
..................................................................................................... 10-26
Checking the engine oil level (Petrol Engine) .......................................................10-28
Checking the engine oil level (Diesel Engine) ......................................................10-29
Changing the engine oil and filter
......................................................................... 10-31
Engine coolant .............................................................................................10-32
Checking the coolant level .................................................................................... 10-32
Recommended engine coolant .............................................................................10-34
Changing the coolant
............................................................................................10-34
Brake/clutch fluid ........................................................................................10-35
Checking the brake/clutch fluid level ................................................................... 10-35
Intelligent Manual Transmission (iMT) System actuator fluid .................. 10-37
Checking the iMT system actuator fluid level ...................................................... 10-37
Washer fluid ................................................................................................ 10-38
Checking the washer fluid level ............................................................................10-38
Parking brake .............................................................................................. 10-39
Checking the parking brake ..................................................................................10-39
Fuel filter (for diesel) ................................................................................... 10-40
Draining water from fuel filter .............................................................................. 10-40
Fuel filter cartridge replacement
......................................................................... 10-40
Air cleaner .................................................................................................... 10-41
Filter replacement .................................................................................................. 10-41
Climate control air filter.............................................................................. 10-43
Filter inspection ..................................................................................................... 10-43
Filter replacement ................................................................................................. 10-43
10. Maintenance
10
