Maintenance
Maintenance itemMaintenance
operationMaintenance intervals Driving condition
Engine oil and engine oil filter R Every 5,000 km (3,000 miles) or 6 monthsA, B, C, D, E,
F, G, H, I, J, K, L
Air cleaner filter R Replace more frequently depending on the condition C, E
Manual transmission fluid R Every 120,000 km (80,000 miles)C, D, E, F,
G, H, I, J, K
Steering gear rack, linkage and boots I Inspect more frequently depending on the condition C, D, E, F, G
Front suspension ball joints I Inspect more frequently depending on the condition C, D, E, F, G
Disc brakes and pads, calipers and rotors I Inspect more frequently depending on the condition C, D, E, G, H
Intelligent variable transmission fluid
(if equipped)R Every 100,000 km (60,000 miles)A, C, D, E, F,
G, H, I, K,JMAINTENANCE UNDER SEVERE USAGE CONDITIONS - DIESEL ENGINEThe following items must be serviced more frequently on cars mainly used under severe driving conditions.
Refer to the chart below for the appropriate maintenance intervals.I : Inspect and if necessary, adjust, correct, clean or replace R : Replace or change

10-23
10
Maintenance itemMaintenance
operationMaintenance intervals Driving condition
Parking brake I Inspect more frequently depending on the condition C, D, G, H
Driveshaft and boots I Inspect more frequently depending on the conditionC, D, E, F,
G, H, I, K
Climate control air filter R Replace more frequently depending on the condition C, ESevere driving conditionsA :Repeated short distance driving
B : Extensive idling
C : Driving in dusty, rough roads
D : Driving in areas using salt or other corrosive materials or in very
cold weather
E : Driving in the condition of inflowing sand or dust into engine
F : Driving in heavy traffic areaG : Driving in mountainous areas
H : Using for towing or camping, and driving with loading on the roof
I : Driving for patrol car, taxi, commercial car or vehicle towing
J : Driving in very cold weather
K : Frequently driving under high speed or rapid acceleration
L : Frequently driving in stop-and-go conditions

10-24
Maintenance
Engine oil and filter
The engine oil and filter should be
changed at the intervals specified in
the maintenance schedule. If the car
is being driven in severe conditions,
more frequent oil and filter changes are
required.
Drive belts
Inspect all drive belts for evidence
of cuts, cracks, excessive wear or oil
saturation and replace if necessary.
Drive belts should be checked
periodically for proper tension and
adjusted as necessary.
NOTICE
When you are inspecting the belt, place
the ignition switch in the LOCK/OFF or
ACC position.
Fuel filter
A clogged filter can limit the speed
at which the vehicle may be driven,
damage the emission system and cause
multiple issues such as hard starting.
If an excessive amount of foreign
matter accumulates in the fuel tank, the
filter may require replacement more
frequently.
After installing a new filter, run the
engine for several minutes, and check
for leaks at the connections.
We recommend that the fuel filter be
replaced by an authoized HYUNDAI
dealer.
Fuel lines, fuel hoses and
connections
Check the fuel lines, fuel hoses and
connections for leakage and damage.
We recommend that the fuel lines, fuel
hoses and connections be replaced by
an authoized HYUNDAI dealer.
WARNING
Diesel Engine
Never manipulate or modify the
injection system while running the
diesel engine or within 30 seconds
after turning OFF the diesel engine. The
high-pressure pump, high-pressure
pipes, rail, and injectors are still subject
to high pressure immediately after
stopping the diesel engine.
When the fuel leakage vents out, it
may cause serious body injury. Any
people, who are implanted with the
artificial cardiac pacemaker, should
remain away from the ECU or the
wiring harness by at least 30 cm,
while running the diesel engine. The
high currents of the electronic engine
control system produce a considerable
amount of magnetic fields.
Vapor hose and fuel filler cap
The vapor hose and fuel filler cap should
be inspected at those intervals specified
in the maintenance schedule. Make sure
that a new vapor hose or fuel filler cap is
correctly replaced.
EXPLANATION OF SCHEDULED MAINTENANCE ITEMS

10-25
10
Vacuum crankcase ventilation
hoses (if equipped)
Inspect the surface of hoses for
evidence of heat and/or mechanical
damage. Hard and brittle rubber,
cracking, tears, cuts, abrasions, and
excessive swelling indicate deterioration.
Particular attention should be paid to
examine those hose surfaces nearest to
high heat sources, such as the exhaust
manifold.
Inspect the hose routing to assure that
the hoses do not come in contact with
any heat source, sharp edges or moving
component which might cause heat
damage or mechanical wear. Inspect
all hose connections, such as clamps
and couplings, to make sure they are
secure, and that no leaks are present.
Hoses should be replaced immediately if
there is any evidence of deterioration or
damage.
Air cleaner filter
We recommend that the air cleaner filter
be replaced by an authorized HYUNDAI
dealer.
Spark plugs
Make sure to install new spark plugs of
the correct heat range.
WARNING
Do not disconnect and inspect spark
plugs when the engine is hot. You may
burn yourself.
Valve clearance (For 1.0 T-GDi)
Inspect for excessive valve noise and/or
engine vibration and adjust if necessary.
We recommend that the system be
serviced by an authorized HYUNDAI
dealer.
Cooling system
Check cooling system components, such
as radiator, coolant reservoir, hoses and
connections for leakage and damage.
Replace any damaged parts.
Coolant
The coolant should be changed at the
intervals specified in the maintenance
schedule.
Manual transmission fluid
(if equipped)
Inspect the manual transmission fluid
according to the maintenance schedule.
Automated manual transmission
fluid (if equipped)
Inspect the Automated manual
transmission fluid according to the
maintenance schedule.

10-26
Maintenance
NOTICE
The use of non-specified fluid
(even marked as compatible with
genuine) could result in shift quality
deterioration and vibrations,
eventually, the transmission failure.
Use only specified Automated
manual transmission fluid. (Refer
to “Recommended lubricants and
capacities” in chapter 2.)
Intelligent VariableTransmission
(IVT) Fluid (if equipped)
Intelligent Variable Transmission (IVT)
Fluid should not be checked under
normal usage conditions. But, the
Intel-ligent Variable Transmission (IVT)
Fluid should be changed under severe
usage conditions. We recommend that
the Intelligent Variable Transmission
(IVT) Fluid changed by an authorized
HYUNDAI dealer according to the
maintenance schedule. (Refer to
“Maintenance Under Severe Usage
Conditions” in this chapter.)
i Information
Intelligent variable transmission (IVT)
fluid color is basically light amber. As the
vehicle is driven, the intelligent variable
transmission (IVT) fluid will begin to
look darker. This is a normal condition
and you should not judge the need to
replace the fluid based upon the changed
color.
NOTICE
The use of non-specified fluid (even
marked as compatible with genuine)
could result in shift quality deteriora-
tion and vibrations, and eventual
transmission failure. Use only specified
Intelligent Variable Transmission
(IVT) fluid. (Refer to “Recommended
lubricants and capacities” in chapter 8.)

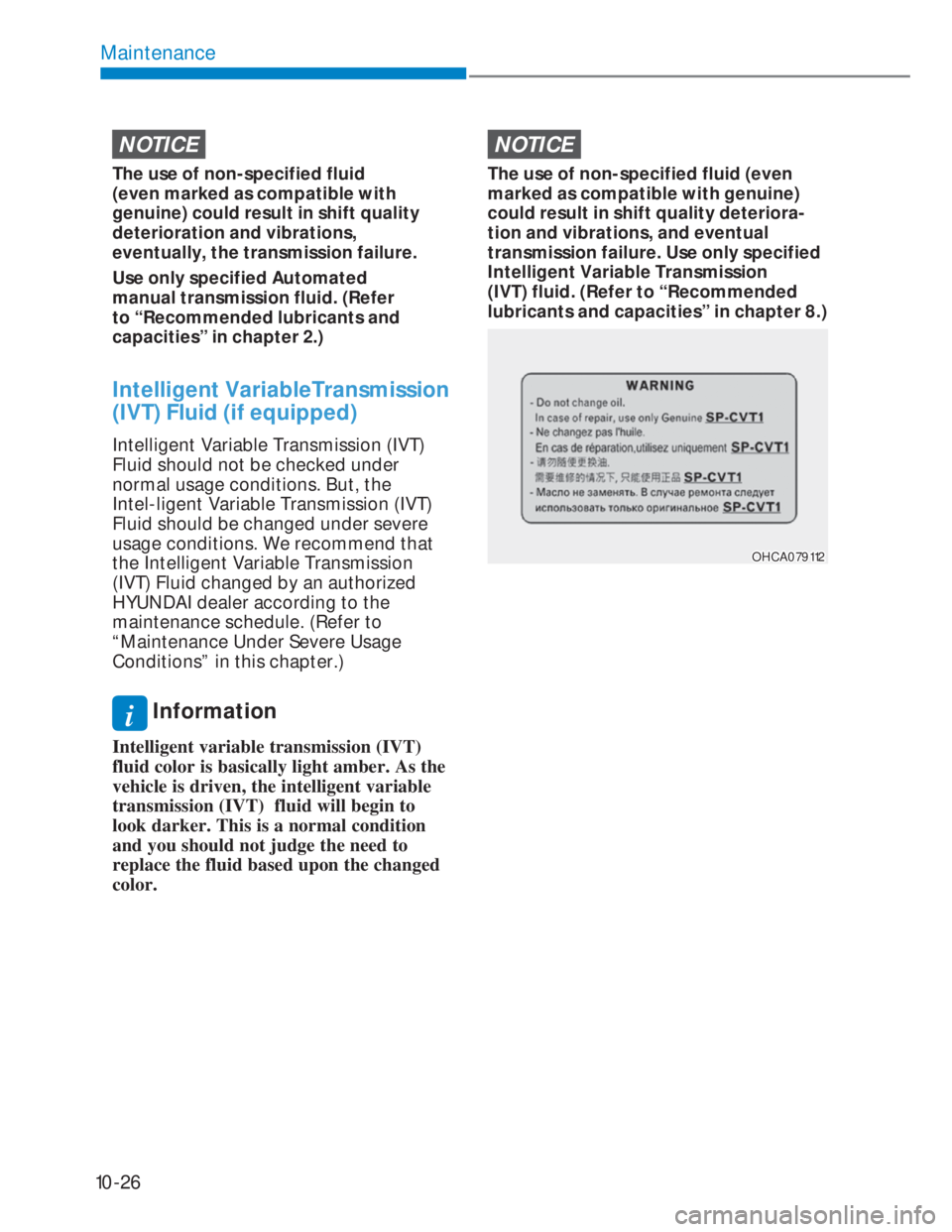

OHCA079112OHCA079112

10-27
10
Brake hoses and lines
Visually check for proper installation,
chafing, cracks, deterioration and any
leakage. Replace any deteriorated or
damaged parts immediately.
Brake/clutch fluid (if equipped)
Check brake/clutch fluid level in the
brake fluid reservoir. The level should
be between “MIN” (Minimum) and
“MAX” (Maximum) marks on the side of
the reservoir. Use only hydraulic brake/
clutch fluid conforming to DOT 3 or 4
specification.
Parking brake
Inspect the parking brake system
including the parking brake lever and
cables.
Rear brake drums and linings
(if equipped)
Check the rear brake drums and linings
for scoring, burning, leaking fluid,
broken parts, and excessive wear.
Brake pads, calipers and discs
Check the pads for excessive wear, discs
for run out and wear, and calipers for
fluid leakage.
Suspension mounting bolts
Check the suspension connections for
looseness or damage. Retighten to the
specified torque.
Steering gear box, linkage &
boots/lower arm ball joint
With the vehicle stopped and engine
off, check for excessive free-play in the
steering wheel.
Check the linkage for bends or damage.
Check the dust boots and ball joints
for deterioration, cracks, or damage.
Replace any damaged parts.
Drive shafts and boots
Check the drive shafts, boots and
clamps for cracks, deterioration, or
damage. Replace any damaged parts
and, if necessary, repack the grease.
Air conditioning refrigerant
(if equipped)
Check the air conditioning lines and
connections for leakage and damage.

10-28
Maintenance
ENGINE OIL
Checking the engine oil level
(Petrol Engine )
OBI3090003OBI3090003
„„Petrol Engine (1.0 T-GDi)Petrol Engine (1.0 T-GDi)
OBC3090009OBC3090009
„„Petrol Engine (Smartstream G1.2)Petrol Engine (Smartstream G1.2)
1. Be sure the vehicle is on level ground.
2. Start the engine and allow it to reach
normal operating temperature.
3. Turn the engine off and wait for a few
minutes (about 15 minutes) for the oil
to return to the oil pan.
4. Pull the dipstick out, wipe it clean, and
reinsert it fully.
5. Pull the dipstick out again and check
the level. The level should be between
F (Full) and L (Low).
OBI3090004OBI3090004
„„Petrol Engine (1.0 T-GDi)Petrol Engine (1.0 T-GDi)
OBC3090013OBC3090013
„„Petrol Engine (Smartstream G1.2)Petrol Engine (Smartstream G1.2)
If it is near or at L (Low), add enough
oil to bring the level to F (Full). Do not
overfill.
Use a funnel to help prevent oil from
being spilled on engine components.
Use only the specified engine oil. (Refer
to “Recommended lubricants and
capacities” in chapter 2.)

10-29
10
WARNING
Radiator hose
Be very careful not to touch the
radiator hose when checking or adding
the engine oil as it may be hot enough
to burn you.
CAUTION
• Do not overfill the engine oil. It may
damage the engine.
• Do not spill engine oil, when adding
or changing engine oil. If you drop
the engine oil on the engine room,
wipe it off immediately.
• When you wipe the oil level gauge,
you should wipe it with a clean cloth.
When mixed with debris, it can cause
engine damage.
• Oil consumption may increase while
you break in a new vehicle and it will
be stabilized after driving 6,000 km.
• The engine oil consumption can be
affected by driving habits, climate
conditions, traffic conditions,
oil quality, etc. Therefore, it is
recommended that you inspect the
engine oil level regularly and refill it if
necessary.
• The engine oil change interval is
set for the purpose of preventing
oil deterioration, and is not related
the amount of oil consumption; so,
check and refill the amount of the oil
regularly.
Checking the engine oil level
(Diesel Engine)
OBI3090006OBI3090006
FigureRequired action
Range (A)Recommend to contact
an authorized HYUNDAI
dealer.
Range (B)Do not refill engine oil.
Range (C)You may add engine oil
as long as the oil level
does not go above the C
range.
Range (D)You must add oil and
make sure that the oil
level is in the C Range.
1. Be sure the vehicle is on level ground.
2. Start the engine and allow it to reach
normal operating temperature.
3. Turn the engine off and wait for a few
minutes (about 5 minutes) for the oil
to return to the oil pan.
4. Pull the dipstick out, wipe it clean, and
re-insert it fully.
5. Pull the dipstick out again and check
the level.
6. The level should be in the C range. If
the level is in the D range, add enough
engine oil to bring the level up to the
C range.

10-30
Maintenance
OBI3090007OBI3090007
If it is near or at L, add enough oil to
bring the level to F. Do not overfill.
Use only the specified engine oil.
• If exceeding the maintenance
schedule for replacement of engine
oil, the engine oil performance
may deteriorate and the engine
condition may be affected. Therefore,
the replacement cycle should be
observed.
• If not using the recommended oil,
replace it according to the severe
usage maintenance conditions.
(Refer to “Recommended lubricants
and capacities” in chapter 2.)
WARNING
Radiator hose
Be very careful not to touch the
radiator hose when checking or adding
engine oil as it may be hot enough to
burn you.
CAUTION
• Do not spill engine oil, when adding
or changing engine oil. If you drop
the engine oil on the engine room,
wipe it off immediately.
• When you wipe the oil level gauge,
you should wipe it with a clean cloth.
When mixed with debris, it can cause
engine damage.

10-31
10
Changing the engine oil and
filter
We recommend that the engine oil
and filter be replaced by an authorized
HYUNDAI dealer.
WARNING
Used engine oil may cause skin
irritation or cancer if left in contact
with the skin for prolonged periods
of time. Used engine oil contains
chemicals that have caused cancer in
laboratory animals. Always protect your
skin by washing your hands thoroughly
with soap and warm water as soon as
possible after handling used oil.
