HYUNDAI I20 2023 Owners Manual

9-52
Maintenance
Fuse Name Symbol (A) Circuit Protected
IGN COIL15A Ignition Coil #1/#2/#3
ECU5
20A ECM
ECU6
15A ECM
SENSOR 1
10AE/R Junction Block (RLY.2/10),
Oil Control Valve #1/#2 (Intake/Exhaust),
Purge Control Solenoid Valve, RCV Control, V_Oil
Pump Solenoid Valve
SENSOR 2
10A Oxygen Sensor (Up/Down)
RR DEFOG
40A ICU Junction Block (Rear Defogger Relay)
ABS 1
40A ESP Control Module
BLOWER
40A E/R Junction Block (RLY.13)
PTC
HEATER
50A E/R Junction Block (RLY.14)
ABS 2
30A ESP Control Module
POWER
OUTLET
40A ICU Junction Block (Power Outlet Relay)
WIPER 2
10A E/T Junction Block (RLY. 4), Front Wiper Motor, IBU
SENSOR3
15A E/T Junction Block (RLY. 5)
MHSG
10A Mild Hybrid Starter & Generator Motor
BATTERY
C/FAN
10A BMS Cooling Fan, E/R Junction Block (Fuse - F8)
WIPER 1
25AE/T Junction Block (RLY. 4), Front Wiper Motor,
Ignition Switch
BATTERY
MANAGEMENT2
10ABMS Control Module, E/R Junction Block (Fuse -
F8)
6PDUWVWUHDP*7*'L6PDUWVWUHDP*7*'L+(9

9-53
09
6PDUWVWUHDP*
RR WIPER Relay Symbol Relay Name Type
RLY.1 E30Main Relay MINI
RLY.3 E32
Wiper (High) Relay MICRO
RLY.4 E33
Wiper (Low) Relay MICRO
RLY.5 E34
Fuel Pump Relay MICRO
RLY.6 E36
Start Relay MICRO
RLY.7 E36
RR WIPER Relay MICRO
RLY.8 E37
A/CON Relay MICRO
RLY.9 E38
Cooling Fan High Relay MICRO
RLY.10 E39
Cooling Fan Low Relay MICRO
RLY.11 E40
Horn Relay MICRO
RLY.12 E41
B/Alarm Horn Relay MICRO
RLY.13 E42
Blower Relay MICRO
RLY.14 E43
PTC Heater Relay MICRO

9-54
Maintenance
Fuse Name Symbol (A) Circuit Protected
ALT(125A)
[150A]Alternator, Multi Fuse - F2, Fuse - F31/F32/F33/F34/
F35/F36
MDPS
80A MDPS Unit
ECU1
30A E/R Junction Block (RLY.1)
IG1
30A[With Smart Key] PDM Relay Box (IG1, ACC Relay)
[W/O Smart Key] Ignition Switch
FUEL PUMP
20A E/R Junction Block (RLY.5)
ECU3
15A ECM, Clutch Switch
ECU2
15A ECM
A/CON 1
10A E/R Junction Block (RLY.8)
IG2
30A[With Smart Key] PDM Relay Box (IG2 Relay)
[W/O Smart Key] Ignition Switch, START MTR RLY
BATT1
50AICU Junction Block (IPS1, IPS3, IPS5, IPS7, IPS8,
IPS11)
BATT3
50AICU Junction Block (Fuse - F8/F15/F21/F25/F29,
Long Term Load Latch Relay-F16/F9/F22)
HORN
15A E/R Junction Block (RLY.11, RLY.12)
AMS
10A Battery Sensor
BATT2
50A ICU Junction Block (IPS2, IPS4, IPS6, IPS9, IPS10)
BATT4
50AICU Junction Block (Power Window Relay-F5/F12,
Fuse - F3/F4/F10/F11)
C/FAN
40A E/R Junction Block (RLY.9/10)
IGN COIL
20A Ignition Coil #1/#2/#3/#4
ECU5
20A ECM
ECU6
15A ECM
SENSOR 1
10AE/R Junction Block (RLY.8/9/10),
Oil Control Valve #1/#2 (Intake/Exhaust),
Purge Control Solenoid Valve
SENSOR 2
10A Oxygen Sensor (Up/Down)
RR DEFOG
40A ICU Junction Block (Rear Defogger Relay)
ABS 1
40A ESP Control Module
6PDUWVWUHDP*

9-55
09
6PDUWVWUHDP*
Fuse Name Symbol (A) Circuit Protected
BLOWER40A E/R Junction Block (RLY.13)
PTC
HEATER
50A E/R Junction Block (RLY.14)
ABS 2
30A ESP Control Module
POWER
OUTLET
40A ICU Junction Block (Power Outlet Relay)
WIPER 2
10A E/R Junction Block (RLY. 4), Front Wiper Motor, IBU
INJECTOR1
15AE/R Junction Block (RLY. 5), Injector #1-1/#2-1/#3-
1/#4-1
INJECTOR2
15A Injector #1-2/#2-2/#3-2/#4-2
WIPER 1
25AE/T Junction Block (RLY. 4), Front Wiper Motor,
Ignition Switch

9-56
Maintenance
3HWURO
Fuse Name Symbol Relay Name Type
RLY.1 E30Main Relay MINI
RLY.3 E32
Wiper (High) Relay MICRO
RLY.4 E33
Wiper (Low) Relay MICRO
RLY.5 E34
Fuel Pump Relay MICRO
RLY.6 E36
Start Relay MICRO
RLY.7 E36
RR WIPER Relay MICRO
RLY.9 E38
Cooling Fan High Relay MICRO
RLY.10 E39
Cooling Fan Low Relay MICRO
RLY.11 E40
Horn Relay MICRO
RLY.12 E41
B/Alarm Horn Relay MICRO
RLY.13 E42 Blower Relay MICRO
RLY.14 E43
PTC Heater Relay MICRO

9-57
09
3HWURO
Fuse Name Symbol (A) Circuit Protected
ALT(125A)
[150A]Alternator, Multi Fuse - F2, Fuse - F31/F32/F33/F34/
F35/F36
MDPS
80A MDPS Unit
ECU1
30A E/R Junction Block (RLY.1)
IG1
30A[With Smart Key] PDM Relay Box (IG1, ACC Relay)
[W/O Smart Key] Ignition Switch
FUEL PUMP
20A E/R Junction Block (RLY.5)
TCU1
15A PCM, Clutch Switch
ECU2
15A ECM/PCM
EOP
40A Electronic Oil Pump
IG2
30A[With Smart Key] PDM Relay Box (IG2 Relay)
[W/O Smart Key] Ignition Switch, START MTR RLY
BATT1
50AICU Junction Block (IPS1, IPS3, IPS5, IPS7, IPS8,
IPS11)
BATT3
50AICU Junction Block (Fuse - F8/F15/F21/F25/F29,
Long Term Load Latch Relay-F16/F9/F22)
HORN
15A E/R Junction Block (RLY.11, RLY.12)
AMS
10A Battery Sensor
BATT2
50A ICU Junction Block (IPS2, IPS4, IPS6, IPS9, IPS10)
BATT4
50AICU Junction Block (Power Window Relay-F5/F12,
Fuse - F3/F4/F10/F11)
C/FAN
40A E/R Junction Block (RLY.9/10)
IGN COIL
20A Ignition Coil #1/#2/#3/#4, Condensor
ECU5
20A ECM/PCM
ECU6
15A ECM/PCM
SENSOR 1
10AE/R Junction Block (RLY.9/10),
Oil Control Valve #1/#2 (Intake/Exhaust),
Purge Control Solenoid Valve, Variable Intake
Solenoid Valve
SENSOR 2
10A Oxygen Sensor (Up/Down)
RR DEFOG
40A ICU Junction Block (Rear Defogger Relay)

9-58
Maintenance
3HWURO
Fuse Name Symbol (A) Circuit Protected
ABS 140A ESP Control Module
BLOWER
40A E/R Junction Block (RLY.13)
PTC
HEATER
50A E/R Junction Block (RLY.14)
ABS 2
30A ESP Control Module
POWER
OUTLET
40A ICU Junction Block (Power Outlet Relay)
WIPER 2
10A E/R Junction Block (RLY. 4), Front Wiper Motor, IBU
INJECTOR
15A E/R Junction Block (RLY. 5), Injector #1/#2/#3/#4
WIPER 1
25AE/R Junction Block (RLY. 4), Front Wiper Motor,
Ignition Switch

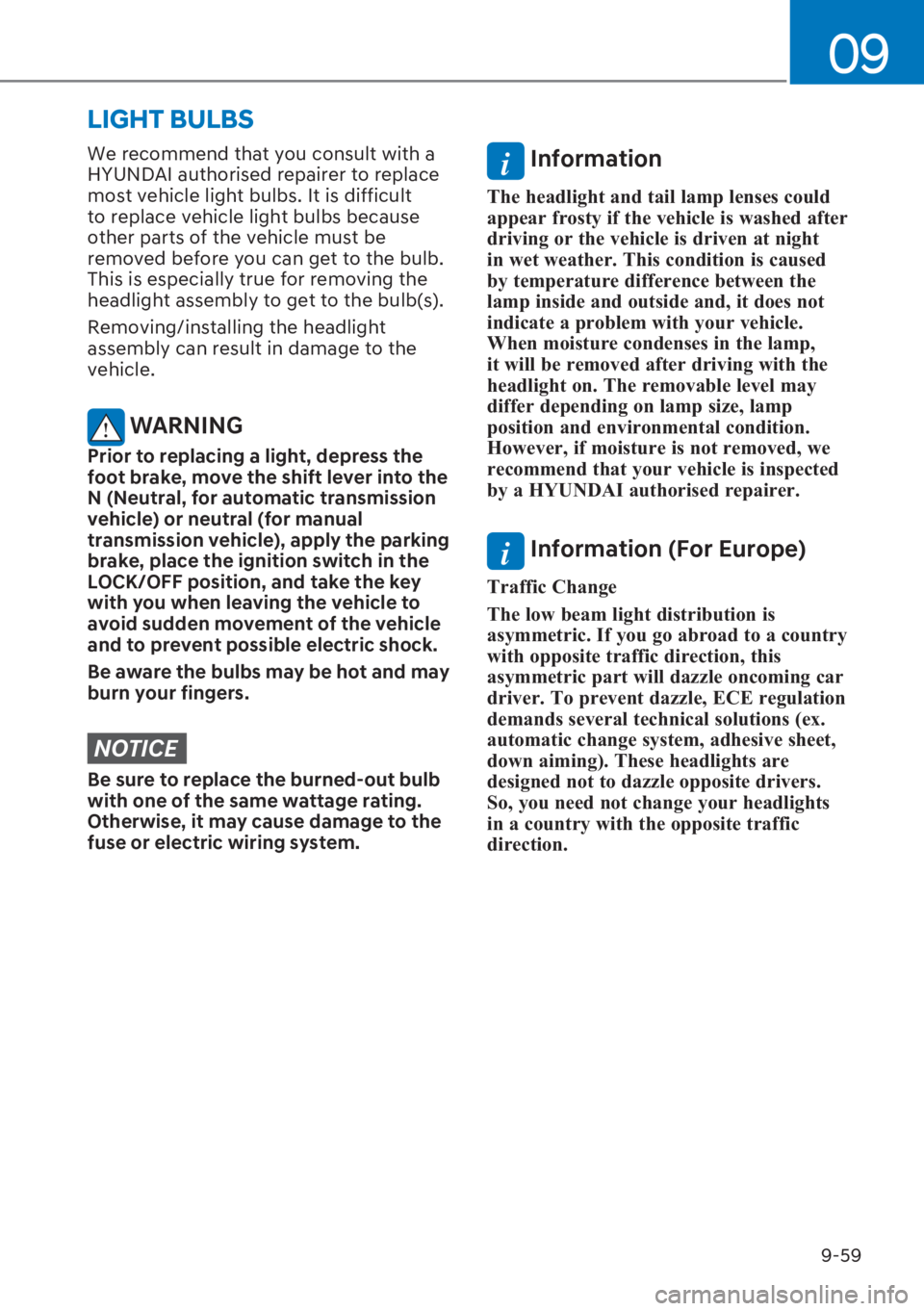

9-59
09
We recommend that you consult with a
HYUNDAI authorised repairer to replace
most vehicle light bulbs. It is difficult
to replace vehicle light bulbs because
other parts of the vehicle must be
removed before you can get to the bulb.
This is especially true for removing the
headlight assembly to get to the bulb(s).
Removing/installing the headlight
assembly can result in damage to the
vehicle.
WARNING
Prior to replacing a light, depress the
foot brake, move the shift lever into the
N (Neutral, for automatic transmission
vehicle) or neutral (for manual
transmission vehicle), apply the parking
brake, place the ignition switch in the
LOCK/OFF position, and take the key
with you when leaving the vehicle to
avoid sudden movement of the vehicle
and to prevent possible electric shock.
%HDZDUHWKHEXOEVPD\EHKRWDQGPD\
burn your fingers.
NOTICE
%HVXUHWRUHSODFHWKHEXUQHGRXWEXOE
with one of the same wattage rating.
Otherwise, it may cause damage to the
fuse or electric wiring system.
i Information
7KHKHDGOLJKWDQGWDLOODPSOHQVHVFRXOG
DSSHDUIURVW\LIWKHYHKLFOHLVZDVKHGDIWHU
GULYLQJRUWKHYHKLFOHLVGULYHQDWQLJKW
LQZHWZHDWKHU7KLVFRQGLWLRQLVFDXVHG
E\WHPSHUDWXUHGLIIHUHQFHEHWZHHQWKH
ODPSLQVLGHDQGRXWVLGHDQGLWGRHVQRW
LQGLFDWHDSUREOHPZLWK\RXUYHKLFOH
:KHQPRLVWXUHFRQGHQVHVLQWKHODPS
LWZLOOEHUHPRYHGDIWHUGULYLQJZLWKWKH
KHDGOLJKWRQ7KHUHPRYDEOHOHYHOPD\
GLIIHUGHSHQGLQJRQODPSVL]HODPS
SRVLWLRQDQGHQYLURQPHQWDOFRQGLWLRQ
+RZHYHULIPRLVWXUHLVQRWUHPRYHGZH
UHFRPPHQGWKDW\RXUYHKLFOHLVLQVSHFWHG
E\D+<81'$,DXWKRULVHGUHSDLUHU
i Information (For Europe)
7UDIILF&KDQJH
7KHORZEHDPOLJKWGLVWULEXWLRQLV
DV\PPHWULF,I\RXJRDEURDGWRDFRXQWU\
ZLWKRSSRVLWHWUDIILFGLUHFWLRQWKLV
DV\PPHWULFSDUWZLOOGD]]OHRQFRPLQJFDU
GULYHU7RSUHYHQWGD]]OH(&(UHJXODWLRQ
GHPDQGVVHYHUDOWHFKQLFDOVROXWLRQVH[
DXWRPDWLFFKDQJHV\VWHPDGKHVLYHVKHHW
GRZQDLPLQJ7KHVHKHDGOLJKWVDUH
GHVLJQHGQRWWRGD]]OHRSSRVLWHGULYHUV
6R\RXQHHGQRWFKDQJH\RXUKHDGOLJKWV
LQDFRXQWU\ZLWKWKHRSSRVLWHWUDIILF
GLUHFWLRQ
LIGHT BULBS

9-60
Maintenance
Headlight, Position Light,
Turn signal Light bulb
replacement
Type A
OBC3N090030
(1) Headlight (Low/High)
(2) Turn signal light
(3) Position light (if equipped)
(4) Daytime running light/
D.R.L & Position
Type B -N line
OBC3TN091003
(1) Headlight (Low/High)
(2) Turn signal light
(3) Daytime running light & Position light
Type C - CUV
OBC3V091001
(1) Headlight(Low/High)
(2) Turn signal light
(3) Daytime running light & Position light
*1 : MFR (Multi Focus Reflector) Headlight

9-61
09
OLMB073042L
WARNING

[Handle halogen bulbs with care.
Halogen bulbs contain pressurized
gas that will produce flying pieces
of glass that could cause injuries if
broken.

[Wear eye protection when changing
a bulb. Allow the bulb to cool down
before handling it.

[Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.

[Never touch the glass with bare
hands. Residual oil may cause the bulb
to overheat and burst when lit.

[A bulb should be operated only when
installed in a headlight.

[If a bulb becomes damaged or
cracked, replace it immediately and
carefully dispose of it.
i Information
:HUHFRPPHQGWKDWWKHKHDGOLJKWDLPLQJ
EHDGMXVWHGDIWHUDQDFFLGHQWRUDIWHUWKH
KHDGOLJKWDVVHPEO\LVUHLQVWDOOHG
❈7UDIILF&KDQJH)RU(XURSH
The low beam light distribution is
asymmetric. If you go abroad to a
country with opposite traffic direction,
this asymmetric part will dazzle
oncoming car driver. To prevent dazzle,
ECE regulation demands several
technical solutions (ex. automatic
change system, adhesive sheet, down
aiming). This headlamps are designed
not to dazzle opposite drivers.
So, you need not change your
headlamps in a country with the
opposite traffic direction.
