HYUNDAI I20 2023 Owners Manual
Manufacturer: HYUNDAI, Model Year: 2023, Model line: I20, Model: HYUNDAI I20 2023Pages: 649, PDF Size: 12.35 MB
Page 581 of 649

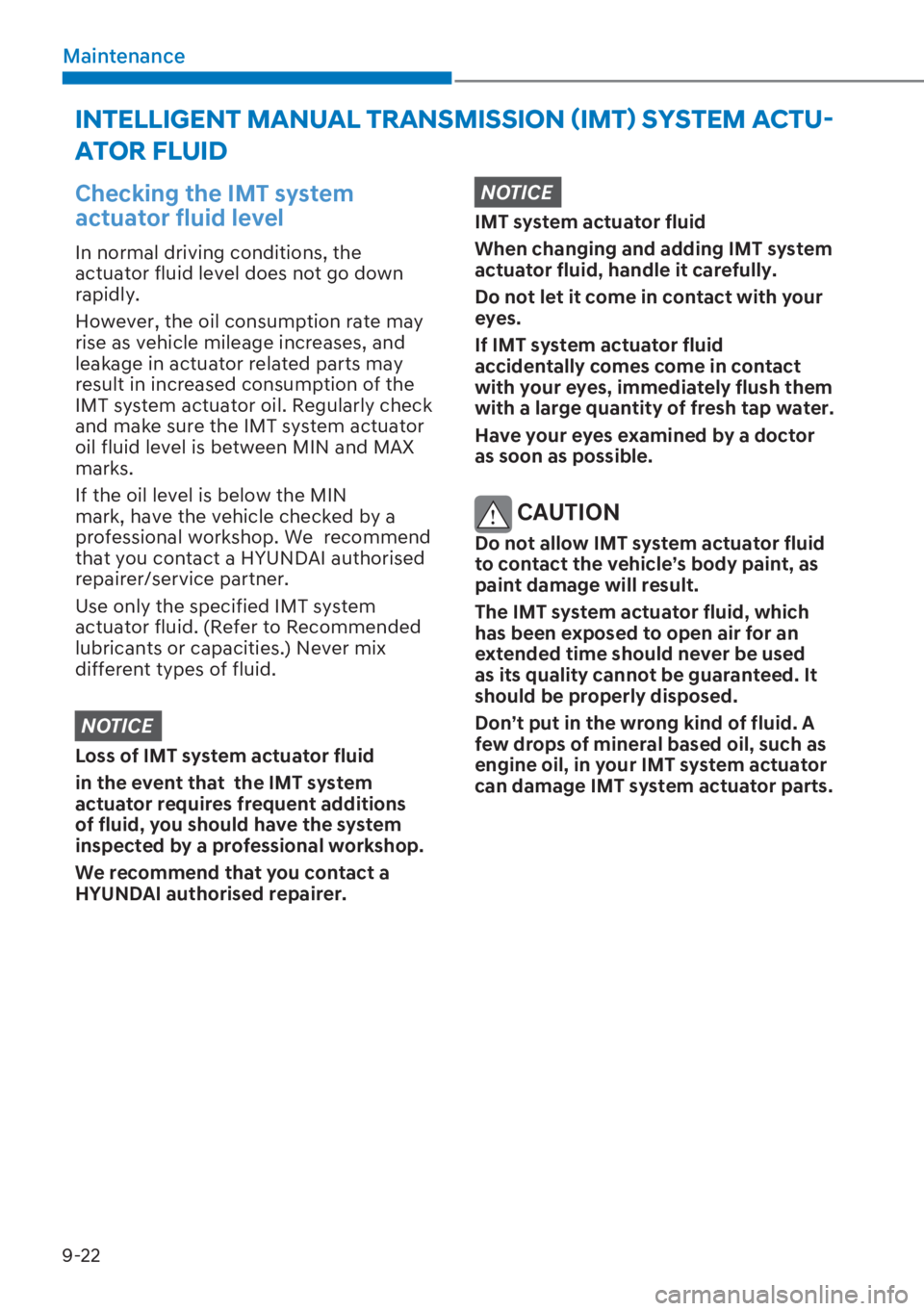

9-22
Maintenance
, 1 7 ( / / , * ( 1 7 0 $ 1 8 $ / 7 5 $ 1 6 0 , 6 6 , 2 1
Page 582 of 649
9-23
09

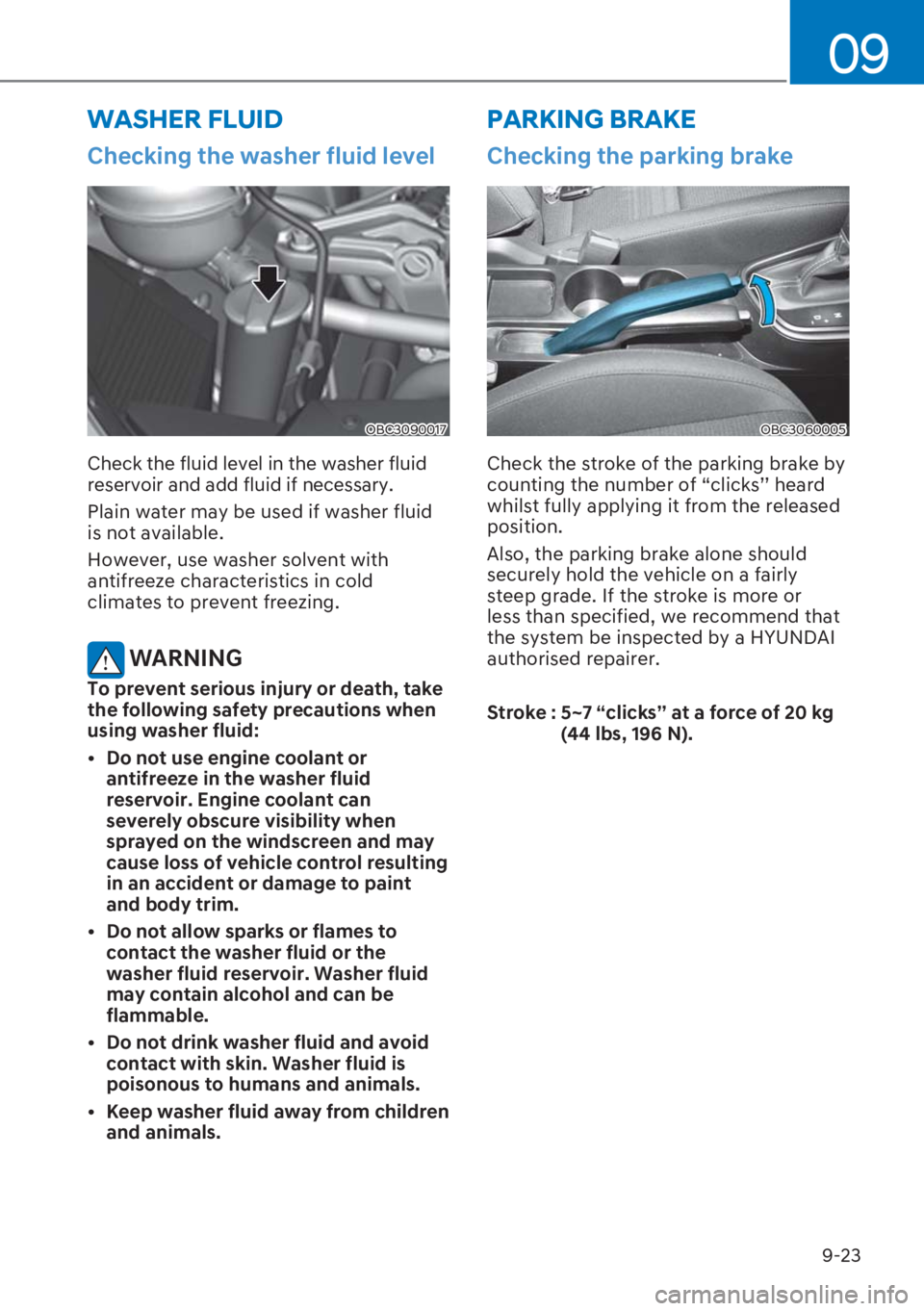

Checking the washer fluid level
OBC3090017
Check the fluid level in the washer fluid
reservoir and add fluid if necessary.
Plain water may be used if washer fluid
is not available.
However, use washer solvent with
antifreeze characteristics in cold
climates to prevent freezing.
WARNING
To prevent serious injury or death, take
the following safety precautions when
using washer fluid:
[ ' R Q R W X V H H Q J L Q H F R R O D Q W R U
antifreeze in the washer fluid
reservoir. Engine coolant can
severely obscure visibility when
sprayed on the windscreen and may
cause loss of vehicle control resulting
in an accident or damage to paint
and body trim.
[ ' R Q R W D O O R Z V S D U N V R U I O D P H V W R
contact the washer fluid or the
washer fluid reservoir. Washer fluid
may contain alcohol and can be
flammable.
[ ' R Q R W G U L Q N Z D V K H U I O X L G D Q G D Y R L G
contact with skin. Washer fluid is
poisonous to humans and animals.
[ . H H S Z D V K H U I O X L G D Z D \ I U R P F K L O G U H Q
and animals.
Checking the parking brake
OBC3060005
Check the stroke of the parking brake by
counting the number of “clicks’’ heard
whilst fully applying it from the released
position.
Also, the parking brake alone should
securely hold the vehicle on a fairly
steep grade. If the stroke is more or
less than specified, we recommend that
the system be inspected by a HYUNDAI
authorised repairer.
Stroke : 5~7 “clicks’’ at a force of 20 kg
(44 lbs, 196 N).
WASHER FLUID PARKING BRAKE
Page 583 of 649
9-24
Maintenance

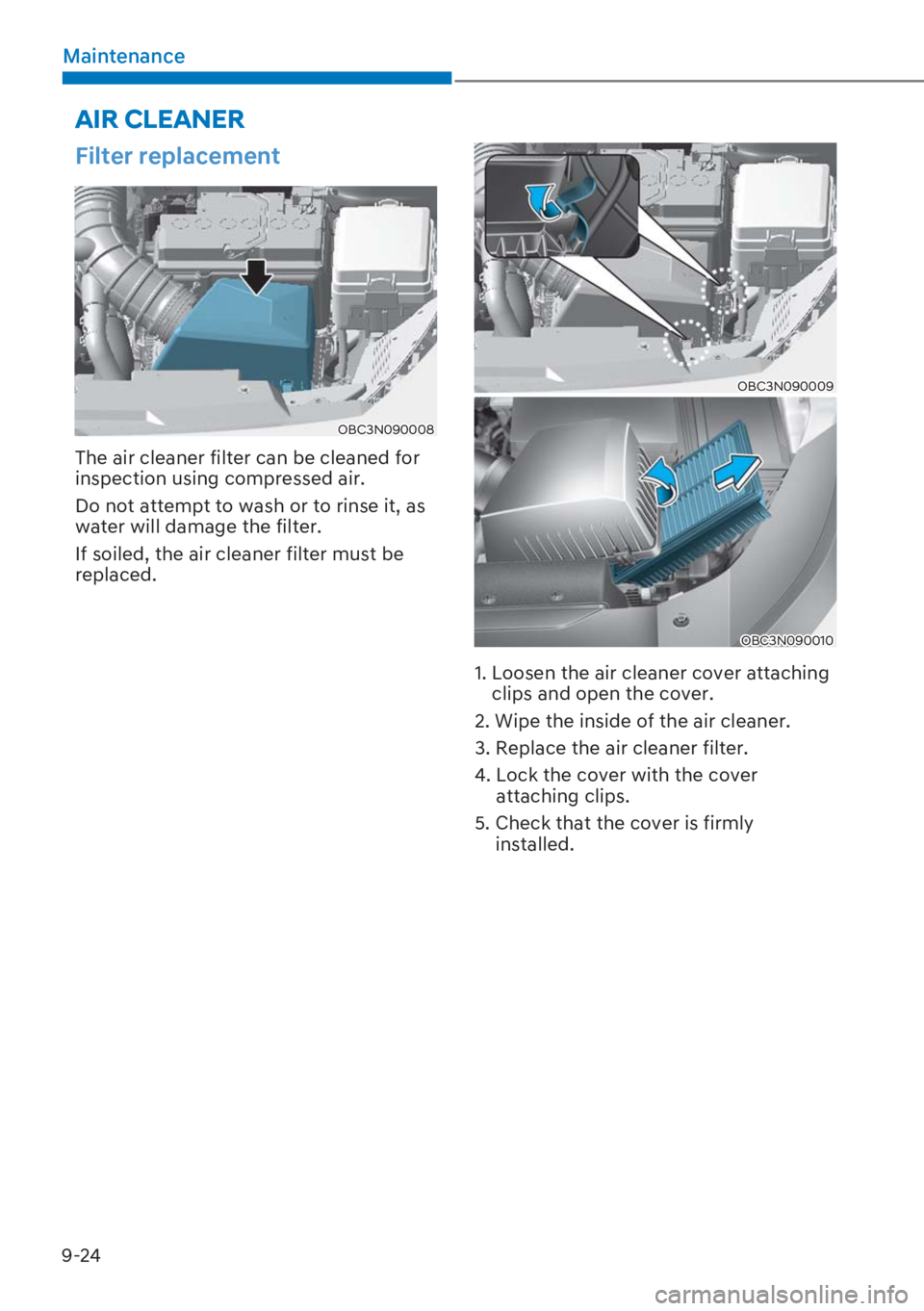

Filter replacement
OBC3N090008
The air cleaner filter can be cleaned for
inspection using compressed air.
Do not attempt to wash or to rinse it, as
water will damage the filter.
If soiled, the air cleaner filter must be
replaced.
OBC3N090009
OBC3N090010
1. Loosen the air cleaner cover attaching
clips and open the cover.
2. Wipe the inside of the air cleaner.
3. Replace the air cleaner filter.
4. Lock the cover with the cover
attaching clips.
5. Check that the cover is firmly
installed.
AIR CLEANER
Page 584 of 649
![HYUNDAI I20 2023 Owners Manual 9-25
09
i Information
, I W K H Y H K L F O H L V R S H U D W H G L Q H [ W U H P H O \
G X V W \ R U V D Q G \ D U H D V U H S O D F H W K H S D U W V
P R U H R I W](/img/35/56129/w960_56129-583.png "HYUNDAI I20 2023 Owners Manual 9-25
09
i Information
, I W K H Y H K L F O H L V R S H U D W H G L Q H [ W U H P H O \
G X V W \ R U V D Q G \ D U H D V U H S O D F H W K H S D U W V
P R U H R I W")
9-25
09
i Information
, I W K H Y H K L F O H L V R S H U D W H G L Q H [ W U H P H O \
G X V W \ R U V D Q G \ D U H D V U H S O D F H W K H S D U W V
P R U H R I W H Q W K D Q W K H X V X D O U H F R P P H Q G H G
L Q W H U Y D O V
NOTICE
[ ' R Q R W G U L Y H Z L W K W K H D L U F O H D Q H U I L O W H U
removed. This will result in excessive
engine wear.
[ : K H Q U H P R Y L Q J W K H D L U F O H D Q H U I L O W H U
be careful that dust or dirt does not
enter the air intake, or damage may
result.
[ 8 V H + < 8 1 ' $ , J H Q X L Q H S D U W V R U W K H
equivalent specified one for your
vehicle. Use of non-genuine parts
could damage the air flow sensor.
Page 585 of 649
9-26
Maintenance

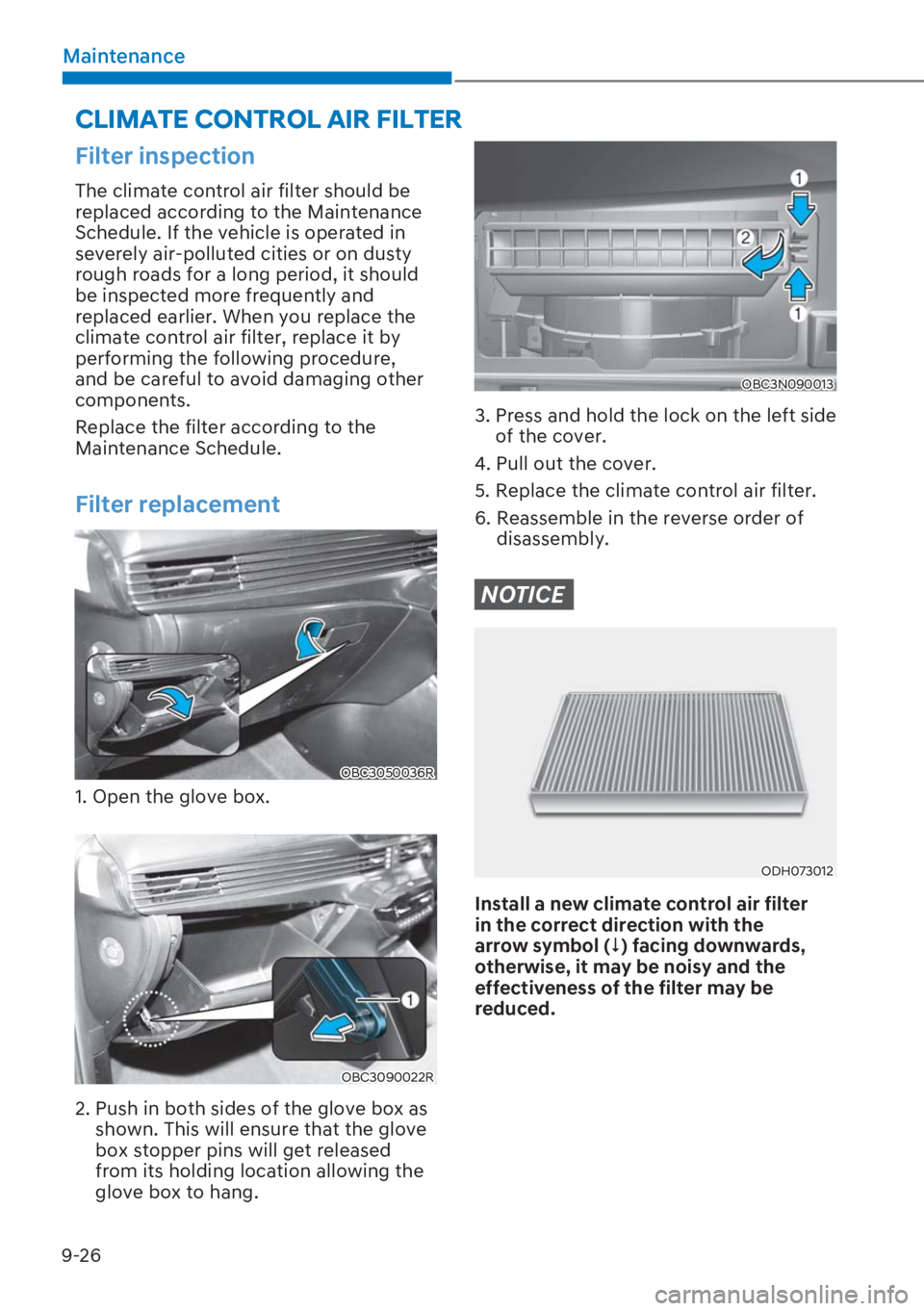

Filter inspection
The climate control air filter should be
replaced according to the Maintenance
Schedule. If the vehicle is operated in
severely air-polluted cities or on dusty
rough roads for a long period, it should
be inspected more frequently and
replaced earlier. When you replace the
climate control air filter, replace it by
performing the following procedure,
and be careful to avoid damaging other
components.
Replace the filter according to the
Maintenance Schedule.
Filter replacement
OBC3050036R
1. Open the glove box.
OBC3090022R
2. Push in both sides of the glove box as
shown. This will ensure that the glove
box stopper pins will get released
from its holding location allowing the
glove box to hang.
OBC3N090013
3. Press and hold the lock on the left side
of the cover.
4. Pull out the cover.
5. Replace the climate control air filter.
6. Reassemble in the reverse order of
disassembly.
NOTICE
ODH073012
Install a new climate control air filter
in the correct direction with the
arrow symbol ( ) facing downwards,
otherwise, it may be noisy and the
effectiveness of the filter may be
reduced.
CLIMATE CONTROL AIR FILTER
Page 586 of 649

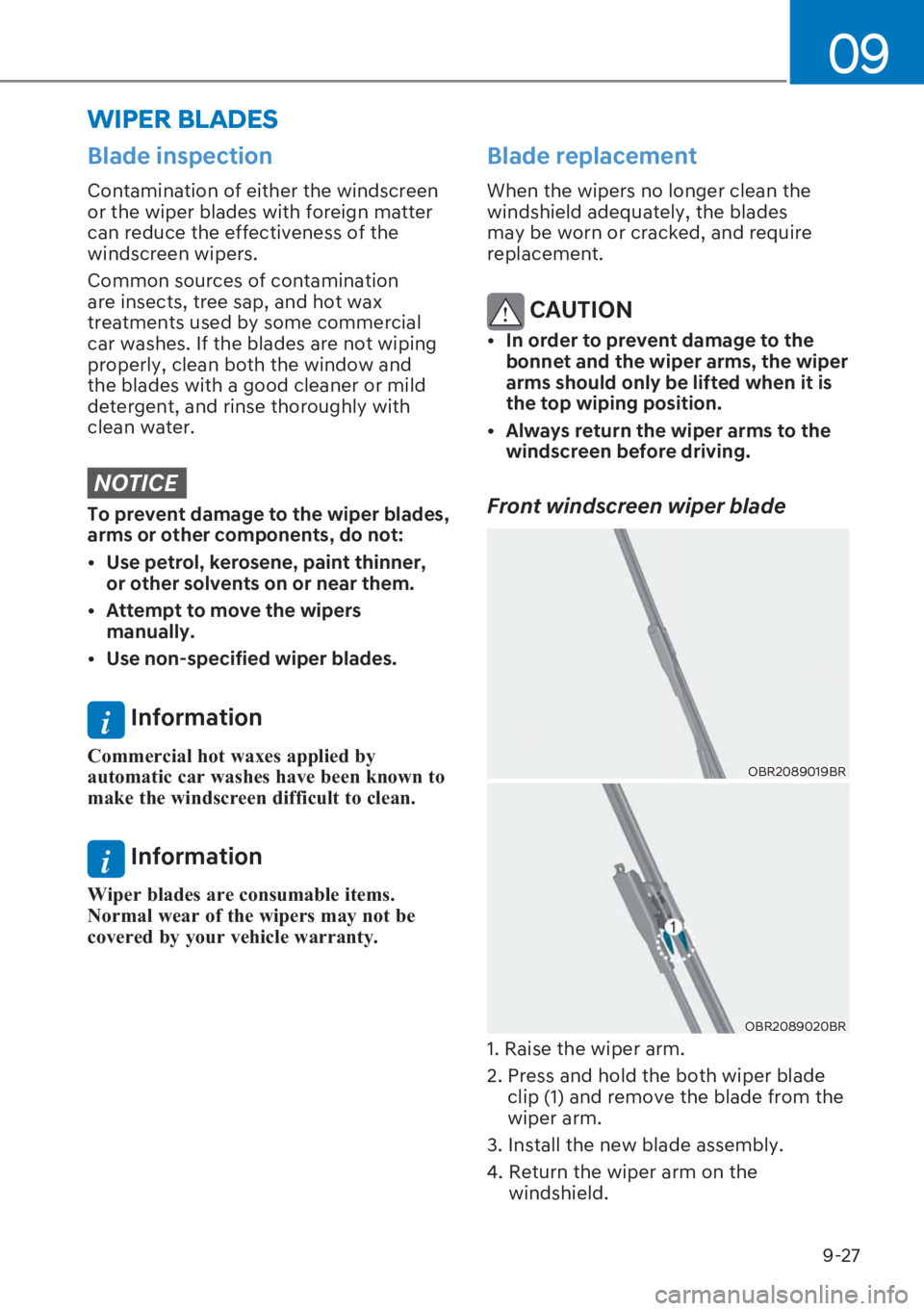

9-27
09
% O D G H L Q V S H F W L R Q
Contamination of either the windscreen
or the wiper blades with foreign matter
can reduce the effectiveness of the
windscreen wipers.
Common sources of contamination
are insects, tree sap, and hot wax
treatments used by some commercial
car washes. If the blades are not wiping
properly, clean both the window and
the blades with a good cleaner or mild
detergent, and rinse thoroughly with
clean water.
NOTICE
To prevent damage to the wiper blades,
arms or other components, do not:
[ 8 V H S H W U R O N H U R V H Q H S D L Q W W K L Q Q H U
or other solvents on or near them.
[ $ W W H P S W W R P R Y H W K H Z L S H U V
manually.
[ 8 V H Q R Q V S H F L I L H G Z L S H U E O D G H V
i Information
& R P P H U F L D O K R W Z D [ H V D S S O L H G E \
D X W R P D W L F F D U Z D V K H V K D Y H E H H Q N Q R Z Q W R
P D N H W K H Z L Q G V F U H H Q G L I I L F X O W W R F O H D Q
i Information
: L S H U E O D G H V D U H F R Q V X P D E O H L W H P V
1 R U P D O Z H D U R I W K H Z L S H U V P D \ Q R W E H
F R Y H U H G E \ \ R X U Y H K L F O H Z D U U D Q W \
% O D G H U H S O D F H P H Q W
When the wipers no longer clean the
windshield adequately, the blades
may be worn or cracked, and require
replacement.
CAUTION
[ In order to prevent damage to the
bonnet and the wiper arms, the wiper
arms should only be lifted when it is
the top wiping position.
[ Always return the wiper arms to the
windscreen before driving.
Front windscreen wiper blade
OBR2089019BR
OBR2089020BR
1. Raise the wiper arm.
2. Press and hold the both wiper blade
clip (1) and remove the blade from the
wiper arm.
3. Install the new blade assembly.
4. Return the wiper arm on the
windshield.
WIPER BLADES
Page 587 of 649
9-28
Maintenance

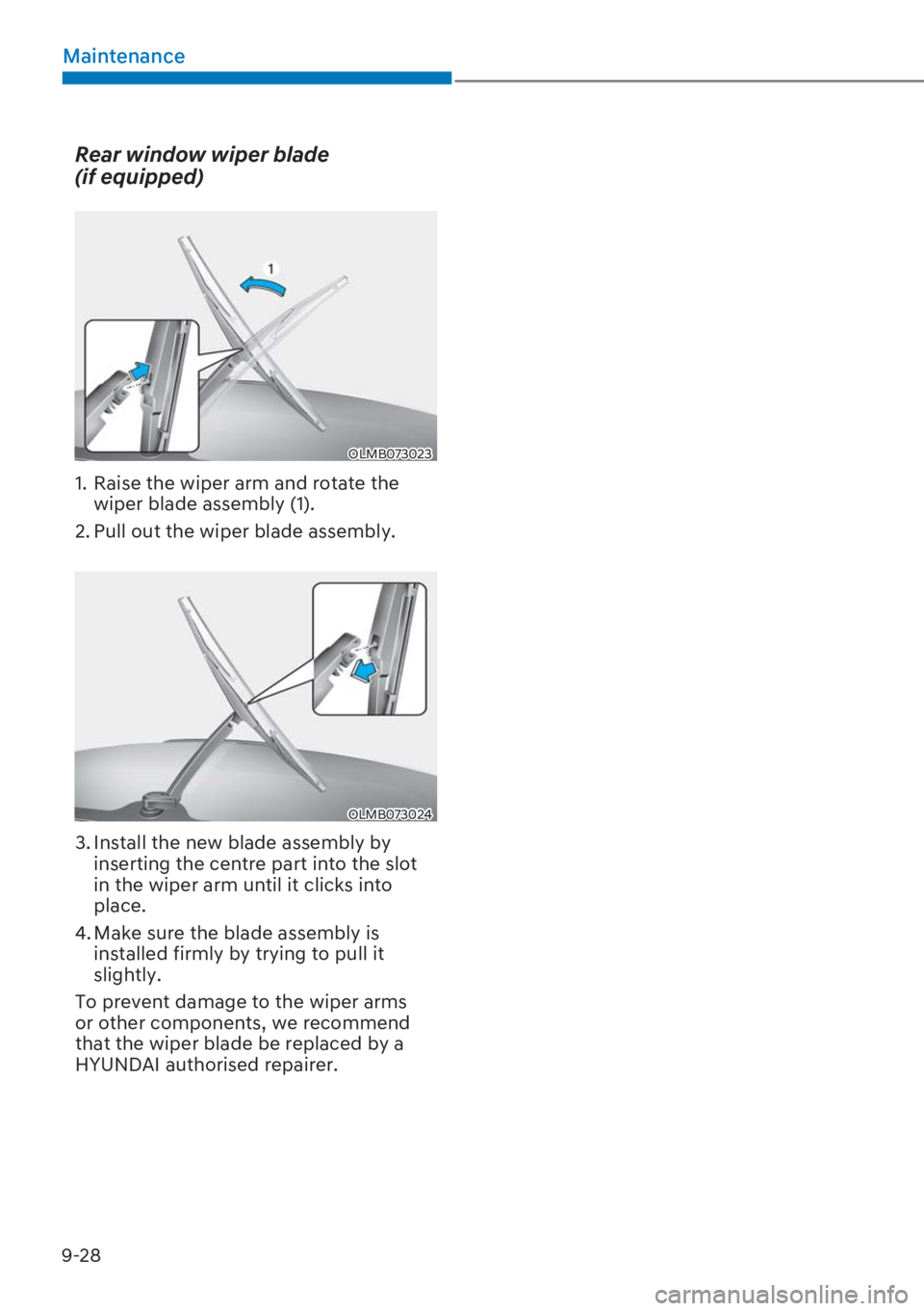

Rear window wiper blade
(if equipped)
OLMB073023
1. Raise the wiper arm and rotate the
wiper blade assembly (1).
2. Pull out the wiper blade assembly.
OLMB073024
3. Install the new blade assembly by
inserting the centre part into the slot
in the wiper arm until it clicks into
place.
4. Make sure the blade assembly is
installed firmly by trying to pull it
slightly.
To prevent damage to the wiper arms
or other components, we recommend
that the wiper blade be replaced by a
HYUNDAI authorised repairer.
Page 588 of 649
9-29
09

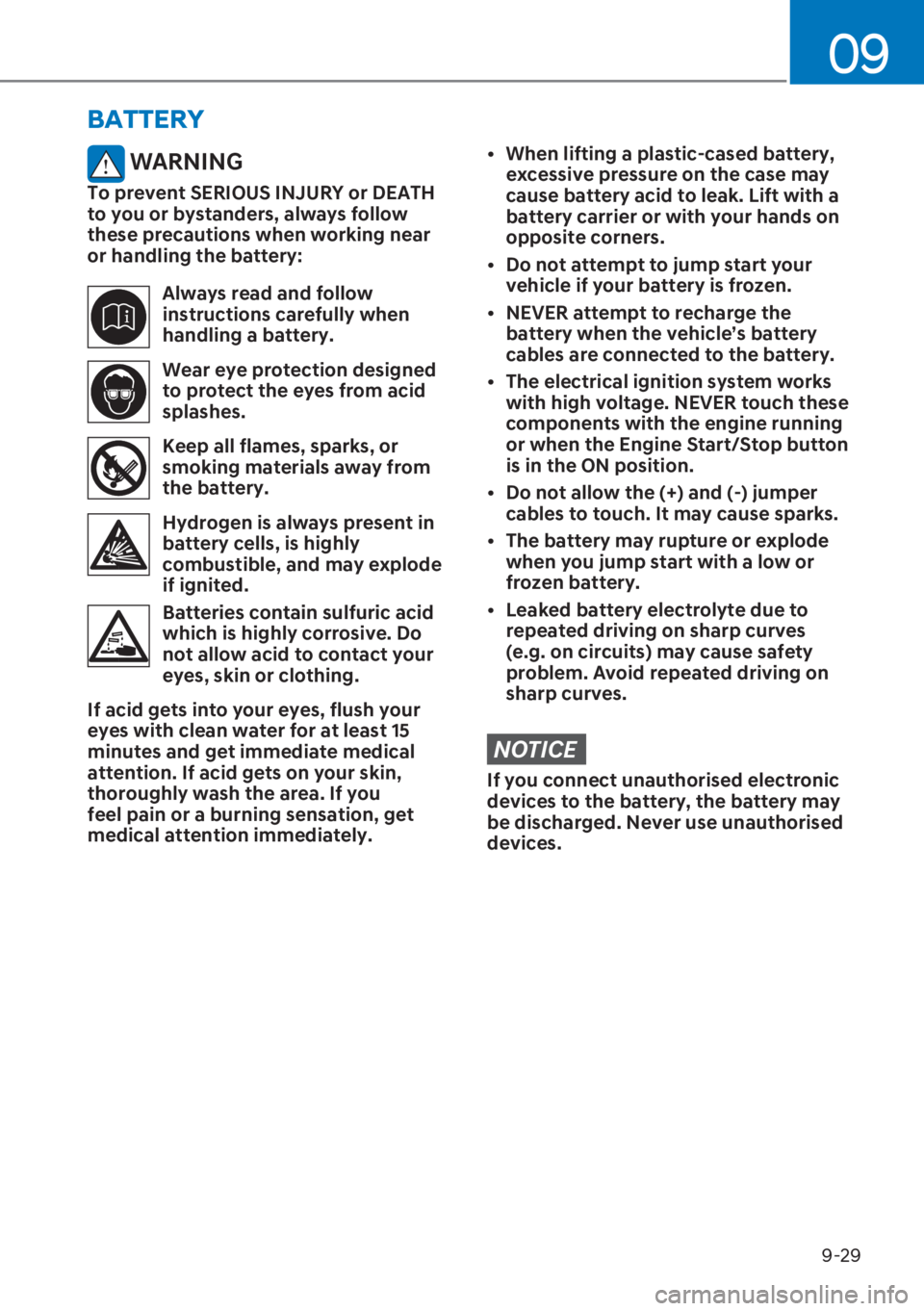

WARNING
To prevent SERIOUS INJURY or DEATH
to you or bystanders, always follow
these precautions when working near
or handling the battery:
Always read and follow
instructions carefully when
handling a battery.
Wear eye protection designed
to protect the eyes from acid
splashes.
Keep all flames, sparks, or
smoking materials away from
the battery.
Hydrogen is always present in
battery cells, is highly
combustible, and may explode
if ignited.
% D W W H U L H V F R Q W D L Q V X O I X U L F D F L G
which is highly corrosive. Do
not allow acid to contact your
eyes, skin or clothing.
If acid gets into your eyes, flush your
eyes with clean water for at least 15
minutes and get immediate medical
attention. If acid gets on your skin,
thoroughly wash the area. If you
feel pain or a burning sensation, get
medical attention immediately.
[ When lifting a plastic-cased battery,
excessive pressure on the case may
cause battery acid to leak. Lift with a
battery carrier or with your hands on
opposite corners.
[ Do not attempt to jump start your
vehicle if your battery is frozen.
[ NEVER attempt to recharge the
battery when the vehicle’s battery
cables are connected to the battery.
[ The electrical ignition system works
with high voltage. NEVER touch these
components with the engine running
or when the Engine Start/Stop button
is in the ON position.
[ Do not allow the (+) and (-) jumper
cables to touch. It may cause sparks.
[ The battery may rupture or explode
when you jump start with a low or
frozen battery.
[ Leaked battery electrolyte due to
repeated driving on sharp curves
(e.g. on circuits) may cause safety
problem. Avoid repeated driving on
sharp curves.
NOTICE
If you connect unauthorised electronic
devices to the battery, the battery may
be discharged. Never use unauthorised
devices.
% $ 7 7 ( 5 <
Page 589 of 649

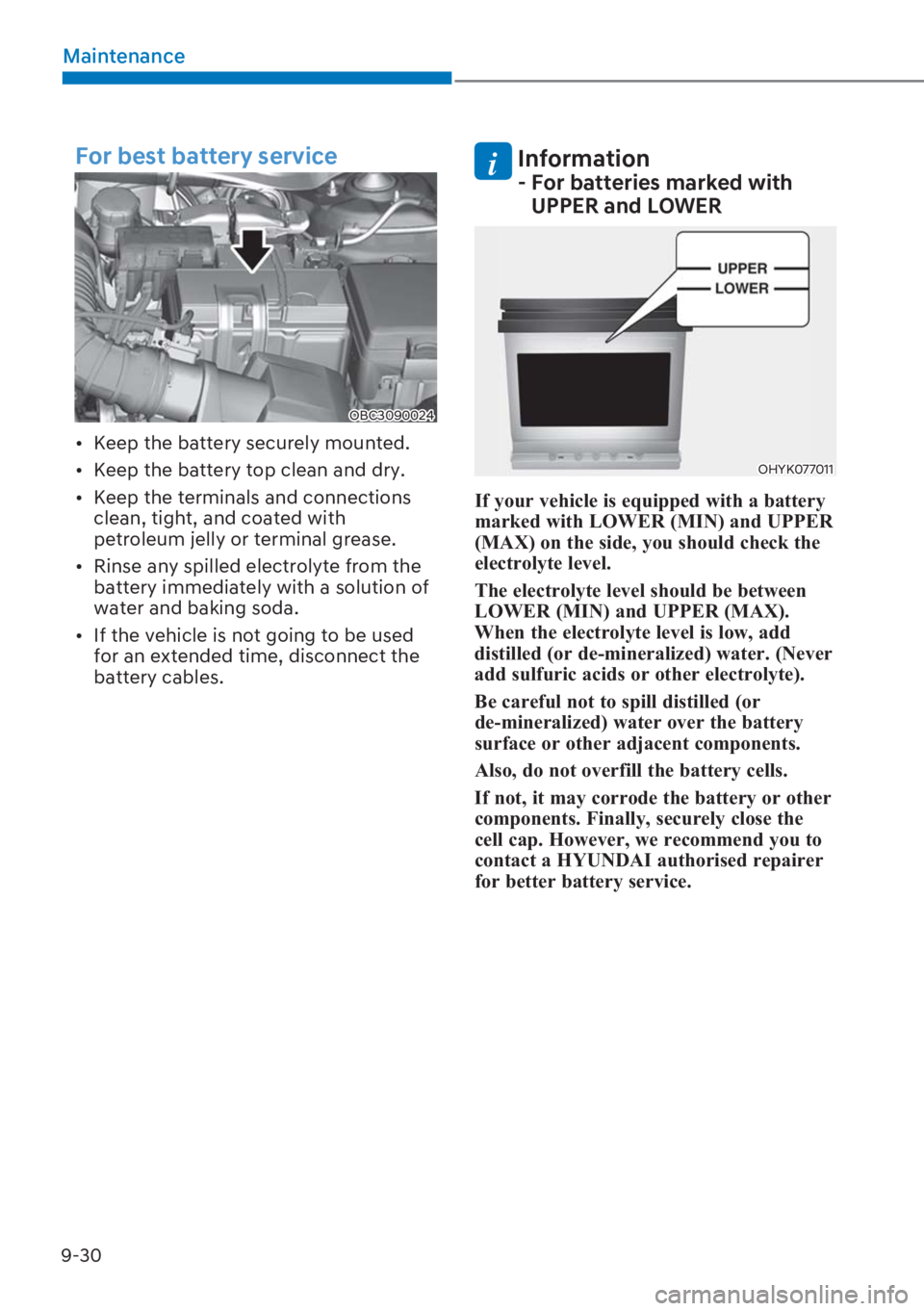

9-30
Maintenance
For best battery service
OBC3090024
[ Keep the battery securely mounted.
[ Keep the battery top clean and dry.
[ Keep the terminals and connections
clean, tight, and coated with
petroleum jelly or terminal grease.
[ Rinse any spilled electrolyte from the
battery immediately with a solution of
water and baking soda.
[ If the vehicle is not going to be used
for an extended time, disconnect the
battery cables.
i Information
- For batteries marked with
UPPER and LOWER
OHYK077011
, I \ R X U Y H K L F O H L V H T X L S S H G Z L W K D E D W W H U \
P D U N H G Z L W K / 2 : ( 5 0 , 1 D Q G 8 3 3 ( 5
0 $ ; R Q W K H V L G H \ R X V K R X O G F K H F N W K H
H O H F W U R O \ W H O H Y H O
7 K H H O H F W U R O \ W H O H Y H O V K R X O G E H E H W Z H H Q
/ 2 : ( 5 0 , 1 D Q G 8 3 3 ( 5 0 $ ;
: K H Q W K H H O H F W U R O \ W H O H Y H O L V O R Z D G G
G L V W L O O H G R U G H P L Q H U D O L ] H G Z D W H U 1 H Y H U
D G G V X O I X U L F D F L G V R U R W K H U H O H F W U R O \ W H
% H F D U H I X O Q R W W R V S L O O G L V W L O O H G R U
G H P L Q H U D O L ] H G Z D W H U R Y H U W K H E D W W H U \
V X U I D F H R U R W K H U D G M D F H Q W F R P S R Q H Q W V
$ O V R G R Q R W R Y H U I L O O W K H E D W W H U \ F H O O V
, I Q R W L W P D \ F R U U R G H W K H E D W W H U \ R U R W K H U
F R P S R Q H Q W V ) L Q D O O \ V H F X U H O \ F O R V H W K H
F H O O F D S + R Z H Y H U Z H U H F R P P H Q G \ R X W R
F R Q W D F W D + < 8 1 ' $ , D X W K R U L V H G U H S D L U H U
I R U E H W W H U E D W W H U \ V H U Y L F H
Page 590 of 649
9-31
09

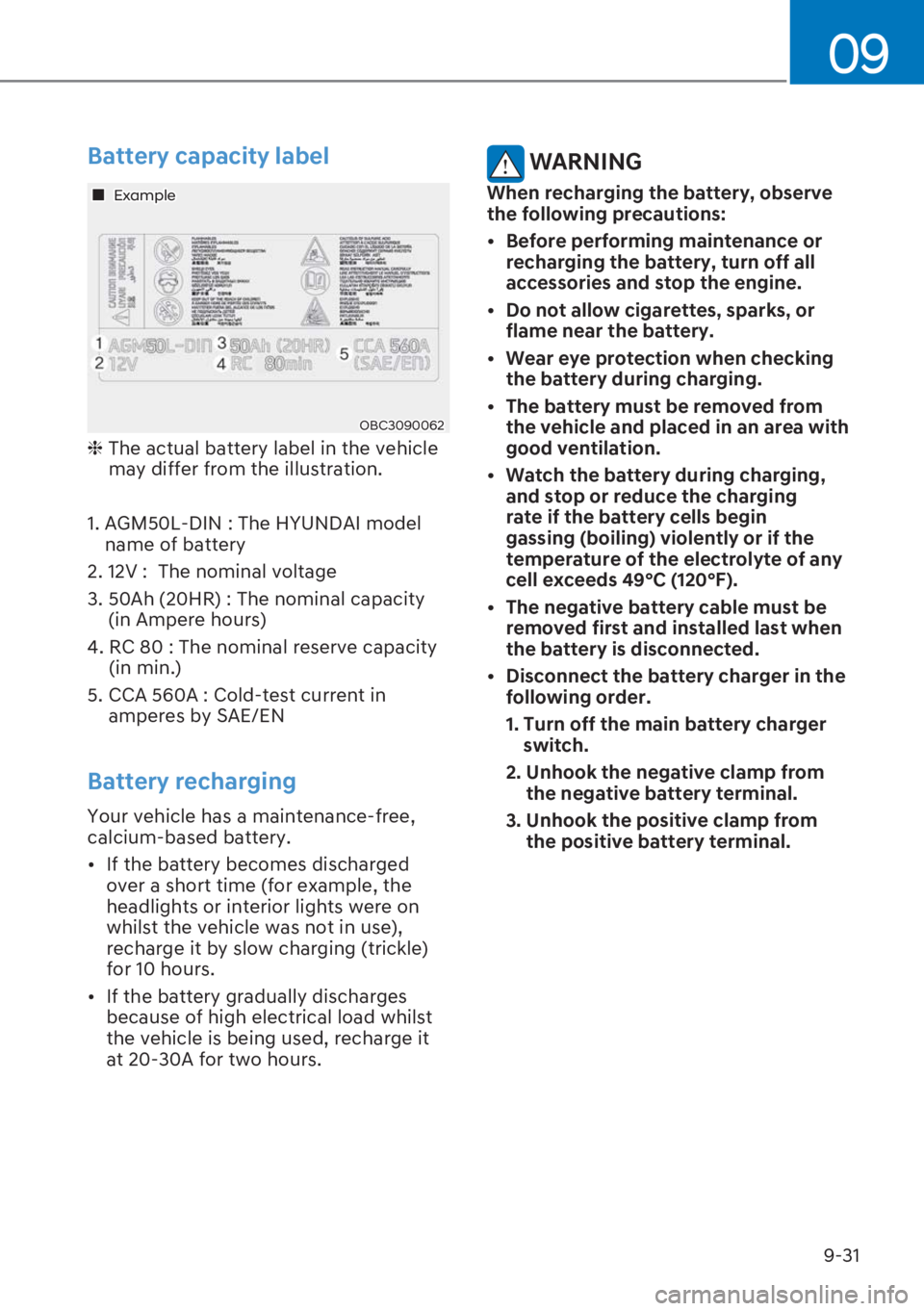

% D W W H U \ F D S D F L W \ O D E H O
OBC3090062
„ Example
❈ The actual battery label in the vehicle
may differ from the illustration.
1. AGM50L-DIN : The HYUNDAI model
name of battery
2. 12V : The nominal voltage
3. 50Ah (20HR) : The nominal capacity
(in Ampere hours)
4. RC 80 : The nominal reserve capacity
(in min.)
5. CCA 560A : Cold-test current in
amperes by SAE/EN
% D W W H U \ U H F K D U J L Q J
Your vehicle has a maintenance-free,
calcium-based battery.
[ , I W K H E D W W H U \ E H F R P H V G L V F K D U J H G
over a short time (for example, the
headlights or interior lights were on
whilst the vehicle was not in use),
recharge it by slow charging (trickle)
for 10 hours.
[ , I W K H E D W W H U \ J U D G X D O O \ G L V F K D U J H V
because of high electrical load whilst
the vehicle is being used, recharge it
at 20-30A for two hours.
WARNING
When recharging the battery, observe
the following precautions:
[ % H I R U H S H U I R U P L Q J P D L Q W H Q D Q F H R U
recharging the battery, turn off all
accessories and stop the engine.
[ Do not allow cigarettes, sparks, or
flame near the battery.
[ Wear eye protection when checking
the battery during charging.
[ The battery must be removed from
the vehicle and placed in an area with
good ventilation.
[ Watch the battery during charging,
and stop or reduce the charging
rate if the battery cells begin
gassing (boiling) violently or if the
temperature of the electrolyte of any
cell exceeds 49°C (120°F).
[ The negative battery cable must be
removed first and installed last when
the battery is disconnected.
[ Disconnect the battery charger in the
following order.
1. Turn off the main battery charger
switch.
2. Unhook the negative clamp from
the negative battery terminal.
3. Unhook the positive clamp from
the positive battery terminal.
