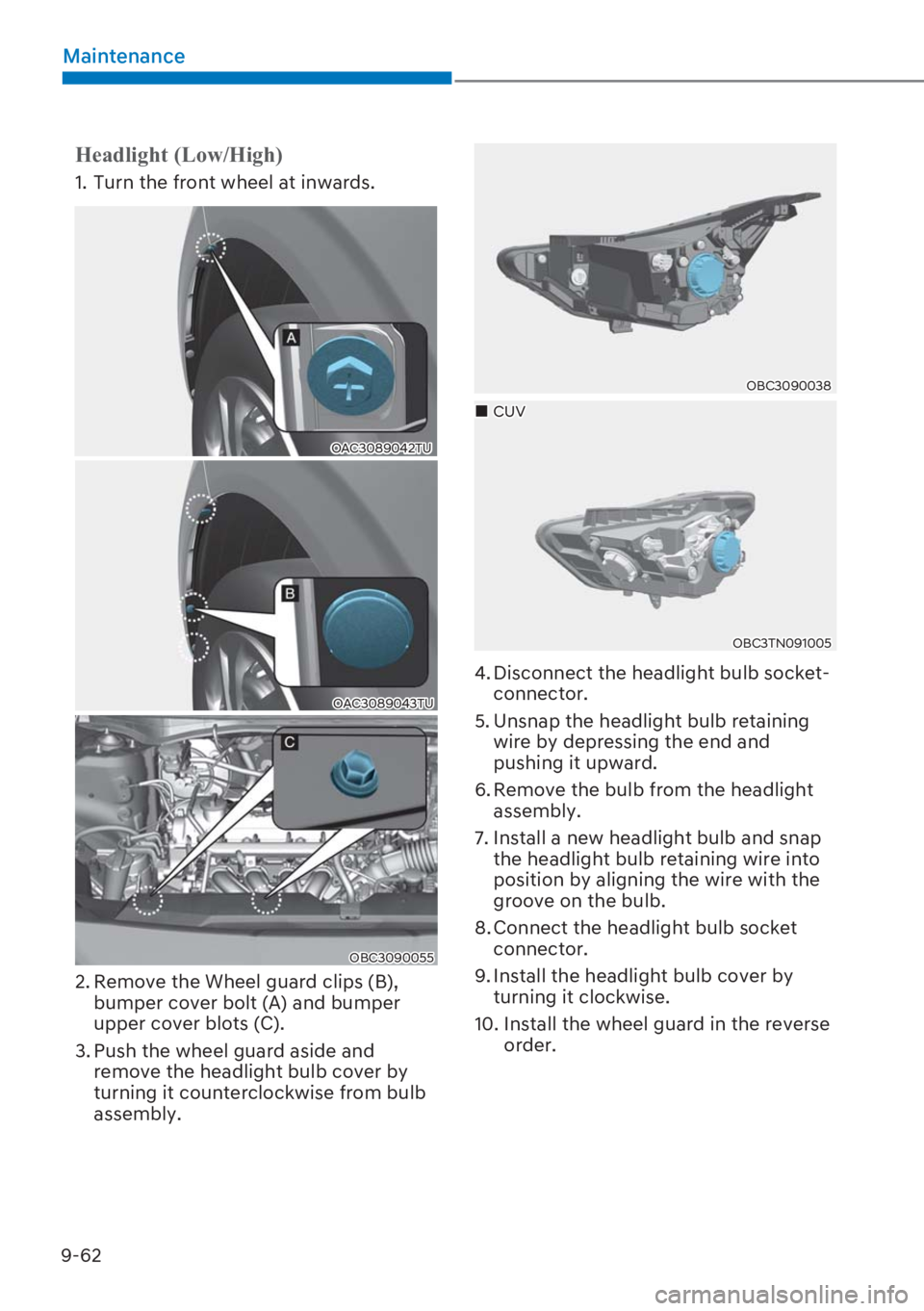

HYUNDAI I20 2023 Owners Manual

9-62
Maintenance
+HDGOLJKW/RZ+LJK
1. Turn the front wheel at inwards.
OAC3089042TU
OAC3089043TU
OBC3090055
2. Remove the Wheel guard clips (B),
bumper cover bolt (A) and bumper
upper cover blots (C).
3. Push the wheel guard aside and
remove the headlight bulb cover by
turning it counterclockwise from bulb
assembly.
OBC3090038
OBC3TN091005
„CUV
4. Disconnect the headlight bulb socket-
connector.
5. Unsnap the headlight bulb retaining
wire by depressing the end and
pushing it upward.
6. Remove the bulb from the headlight
assembly.
7. Install a new headlight bulb and snap
the headlight bulb retaining wire into
position by aligning the wire with the
groove on the bulb.
8. Connect the headlight bulb socket
connector.
9. Install the headlight bulb cover by
turning it clockwise.
10. Install the wheel guard in the reverse
order.

9-63
09
OBC3090039
OBC3TN091006
„CUV

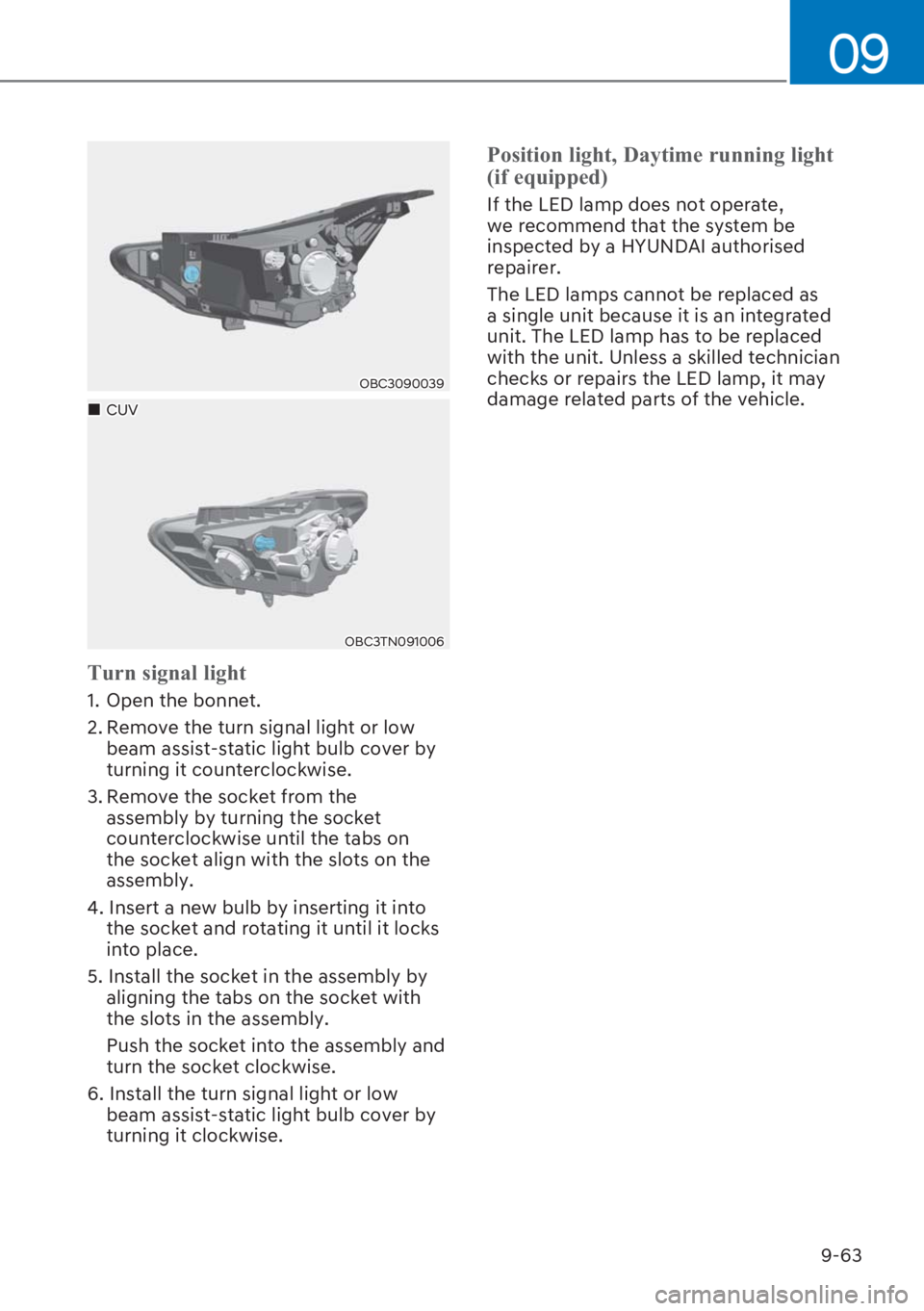

7XUQVLJQDOOLJKW
1. Open the bonnet.
2. Remove the turn signal light or low
beam assist-static light bulb cover by
turning it counterclockwise.
3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
4. Insert a new bulb by inserting it into
the socket and rotating it until it locks
into place.
5. Install the socket in the assembly by
aligning the tabs on the socket with
the slots in the assembly.
Push the socket into the assembly and
turn the socket clockwise.
6. Install the turn signal light or low
beam assist-static light bulb cover by
turning it clockwise.
3RVLWLRQOLJKW'D\WLPHUXQQLQJOLJKW
LIHTXLSSHG
If the LED lamp does not operate,
we recommend that the system be
inspected by a HYUNDAI authorised
repairer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamp has to be replaced
with the unit. Unless a skilled technician
checks or repairs the LED lamp, it may
damage related parts of the vehicle.

9-64
Maintenance

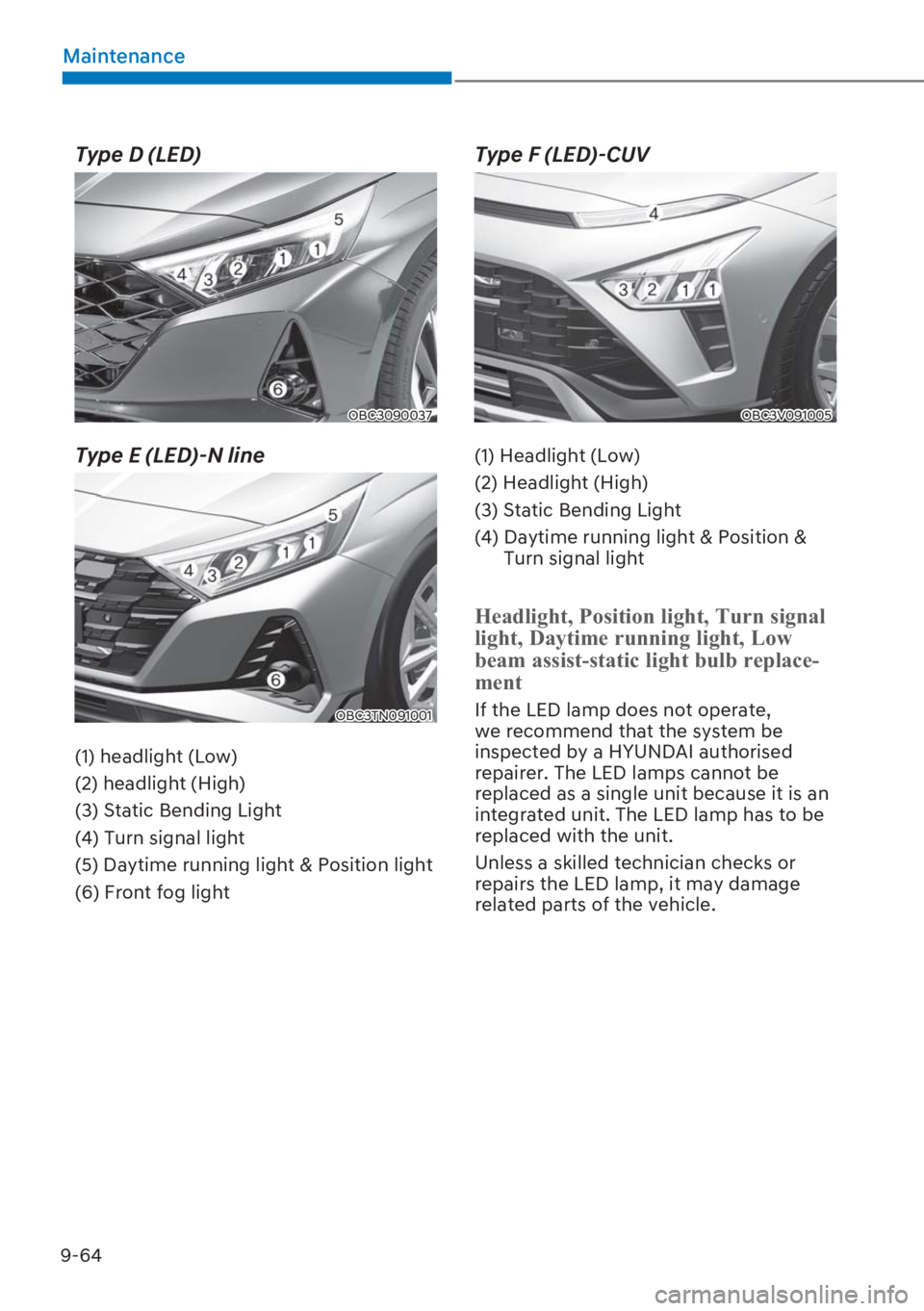

Type D (LED)
OBC3090037
Type E (LED)-N line
OBC3TN091001
(1) headlight (Low)
(2) headlight (High)
(3) Static Bending Light
(4) Turn signal light
(5) Daytime running light & Position light
(6) Front fog light
Type F (LED)-CUV
OBC3V091005
(1) Headlight (Low)
(2) Headlight (High)
(3) Static Bending Light
(4) Daytime running light & Position &
Turn signal light
+HDGOLJKW3RVLWLRQOLJKW7XUQVLJQDO
OLJKW'D\WLPHUXQQLQJOLJKW/RZ
EHDPDVVLVWVWDWLFOLJKWEXOEUHSODFH
PHQW
If the LED lamp does not operate,
we recommend that the system be
inspected by a HYUNDAI authorised
repairer. The LED lamps cannot be
replaced as a single unit because it is an
integrated unit. The LED lamp has to be
replaced with the unit.
Unless a skilled technician checks or
repairs the LED lamp, it may damage
related parts of the vehicle.

9-65
09

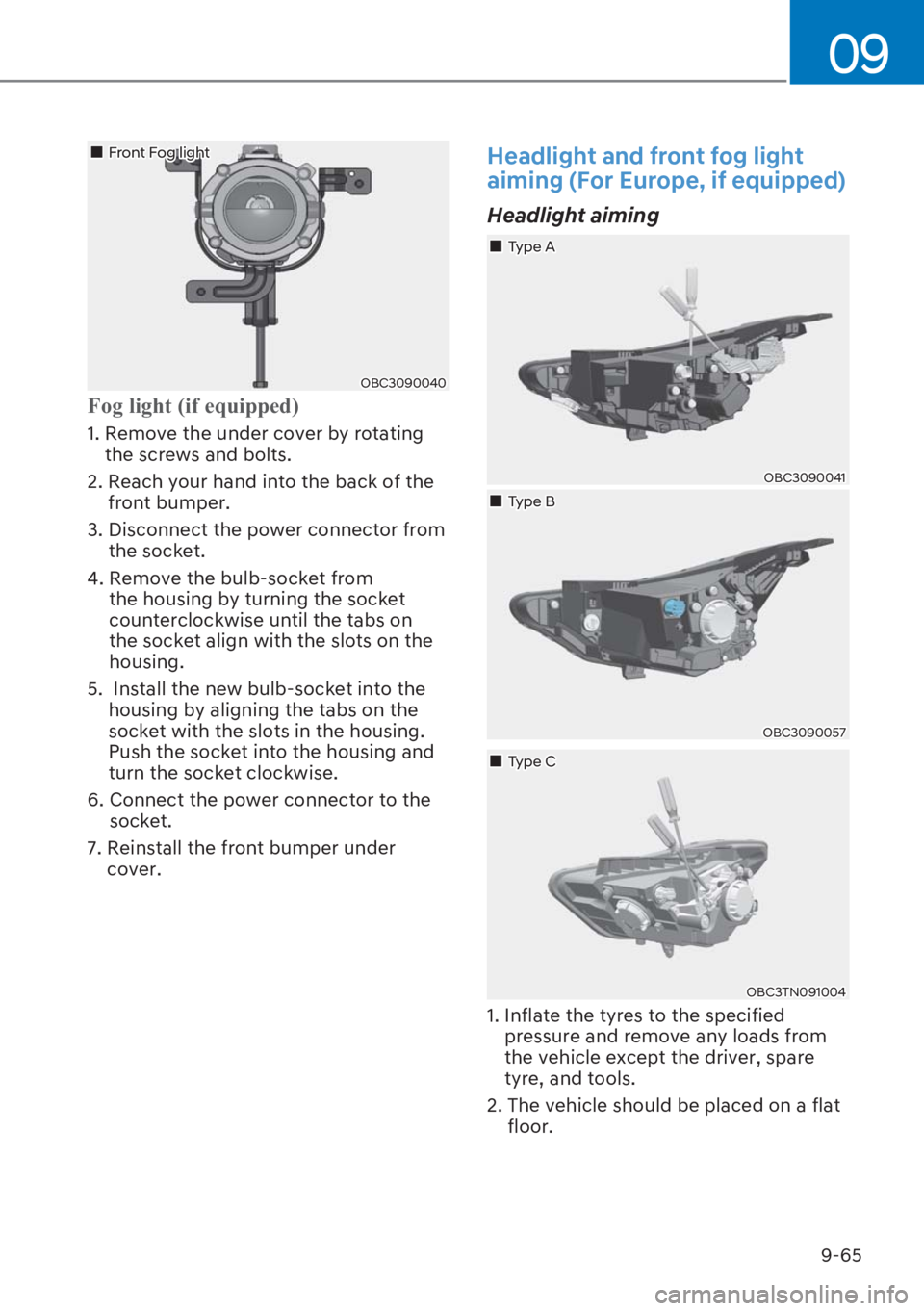

„Front Fog light
OBC3090040
)RJOLJKWLIHTXLSSHG
1. Remove the under cover by rotating
the screws and bolts.
2. Reach your hand into the back of the
front bumper.
3. Disconnect the power connector from
the socket.
4. Remove the bulb-socket from
the housing by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
housing.
5. Install the new bulb-socket into the
housing by aligning the tabs on the
socket with the slots in the housing.
Push the socket into the housing and
turn the socket clockwise.
6. Connect the power connector to the
socket.
7. Reinstall the front bumper under
cover.
Headlight and front fog light
aiming (For Europe, if equipped)
Headlight aiming
„Type A
OBC3090041
„Type B
OBC3090057
„Type C
OBC3TN091004
1. Inflate the tyres to the specified
pressure and remove any loads from
the vehicle except the driver, spare
tyre, and tools.
2. The vehicle should be placed on a flat
floor.

9-66
Maintenance

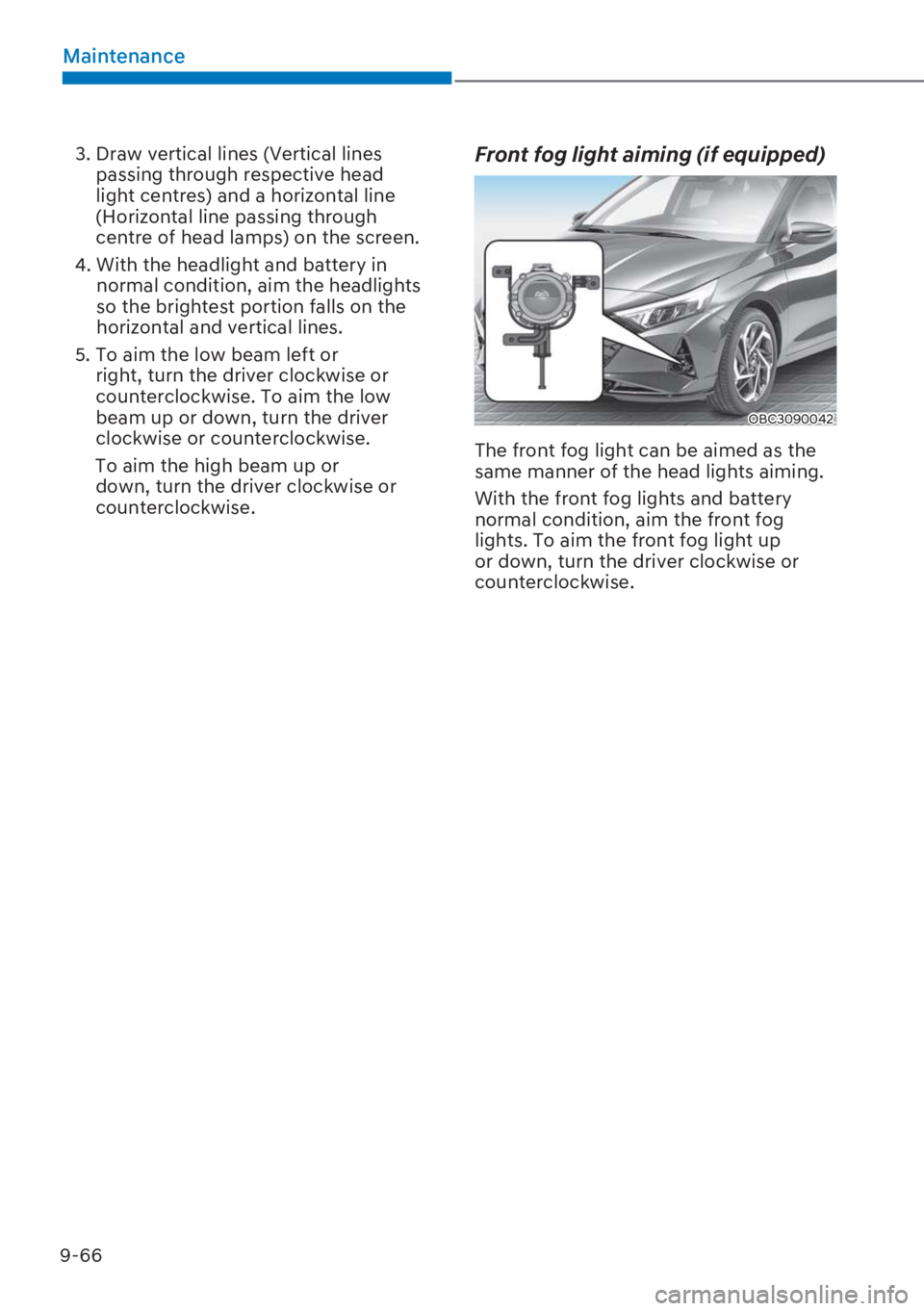

3. Draw vertical lines (Vertical lines
passing through respective head
light centres) and a horizontal line
(Horizontal line passing through
centre of head lamps) on the screen.
4. With the headlight and battery in
normal condition, aim the headlights
so the brightest portion falls on the
horizontal and vertical lines.
5. To aim the low beam left or
right, turn the driver clockwise or
counterclockwise. To aim the low
beam up or down, turn the driver
clockwise or counterclockwise.
To aim the high beam up or
down, turn the driver clockwise or
counterclockwise.Front fog light aiming (if equipped)
OBC3090042
The front fog light can be aimed as the
same manner of the head lights aiming.
With the front fog lights and battery
normal condition, aim the front fog
lights. To aim the front fog light up
or down, turn the driver clockwise or
counterclockwise.

9-67
09
Aiming point
OBC3090043

H1 : Lighting centre Ground clearance of Headlight Low & High BeamH3 : Lighting centre Ground clearance of Front fog lightW1 : Lighting centre Distance between Headlight Low & High BeamW3 : Lighting centre Distance between Front fog light
1. Headlamp (LOW - H1, W1 / HIGH BEAM - H2, W2) mm(in.)
Vehicle condition “H1” “H2” “W1” “W2”
Without driver (HAL 2 MFR) 654.9 (25.8) 654.9 (25.8) 1320 (52.0) 1320 (52.0)
Without driver (LED 4 MFR) 670.4 (26.4) 622.3 (24.5) 1396.8 (55.0) 1233.6 (48.57)
With driver (HAL 2 MFR) 646.9 (25.5) 646.9 (25.5) 1320 (52.0) 1320 (52.0)
With driver (LED 4 MFR) 662.4 (26.1) 614.3 (24.2) 1396.8 (55.0) 1233.6 (48.57)
2. Fog lamp (H3, W3)
Vehicle condition “H3” “W3”
Without driver 352 (13.9) 1434.4 (56.5)
With driver 344 (13.6) 1434.4 (56.5)

9-68
Maintenance

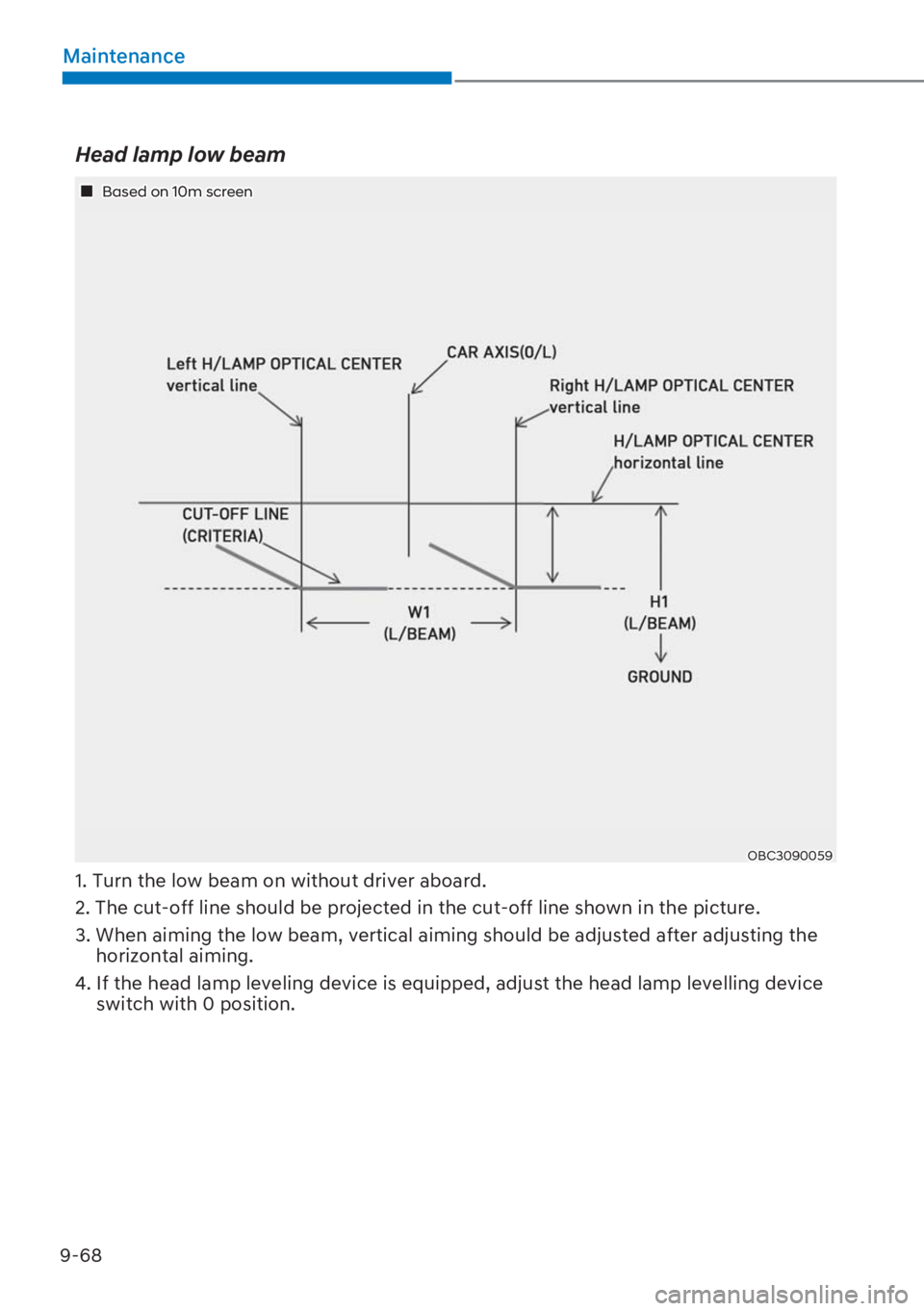

Head lamp low beam
OBC3090059
„ Based on 10m screen
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the
horizontal aiming.
4. If the head lamp leveling device is equipped, adjust the head lamp levelling device
switch with 0 position.

9-69
09

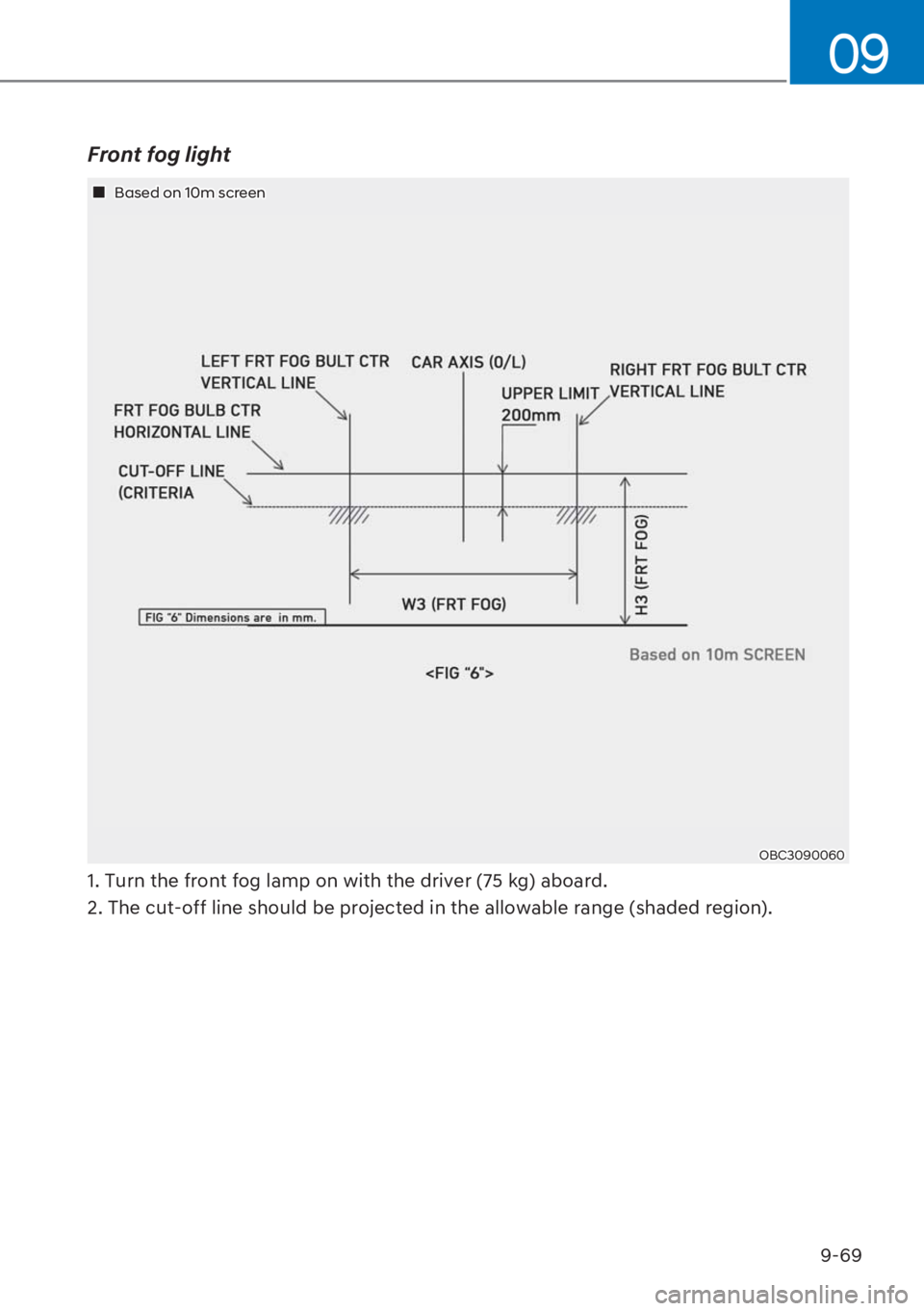

Front fog light
OBC3090060
„ Based on 10m screen
1. Turn the front fog lamp on with the driver (75 kg) aboard.
2. The cut-off line should be projected in the allowable range (shaded region).

9-70
Maintenance

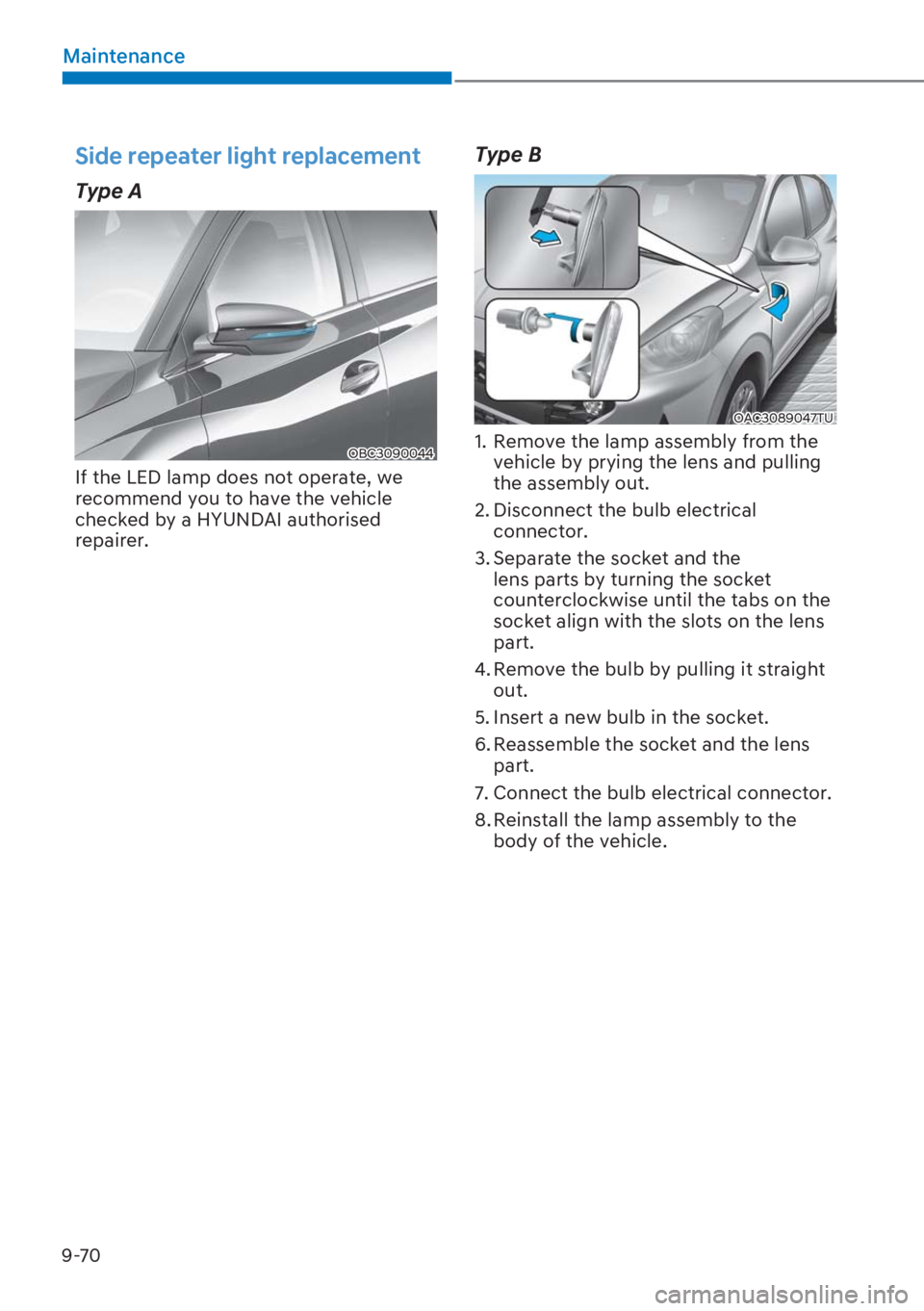

Side repeater light replacement
Type A
OBC3090044
If the LED lamp does not operate, we
recommend you to have the vehicle
checked by a HYUNDAI authorised
repairer.
Type B
OAC3089047TU
1. Remove the lamp assembly from the
vehicle by prying the lens and pulling
the assembly out.
2. Disconnect the bulb electrical
connector.
3. Separate the socket and the
lens parts by turning the socket
counterclockwise until the tabs on the
socket align with the slots on the lens
part.
4. Remove the bulb by pulling it straight
out.
5. Insert a new bulb in the socket.
6. Reassemble the socket and the lens
part.
7. Connect the bulb electrical connector.
8. Reinstall the lamp assembly to the
body of the vehicle.

9-71
09

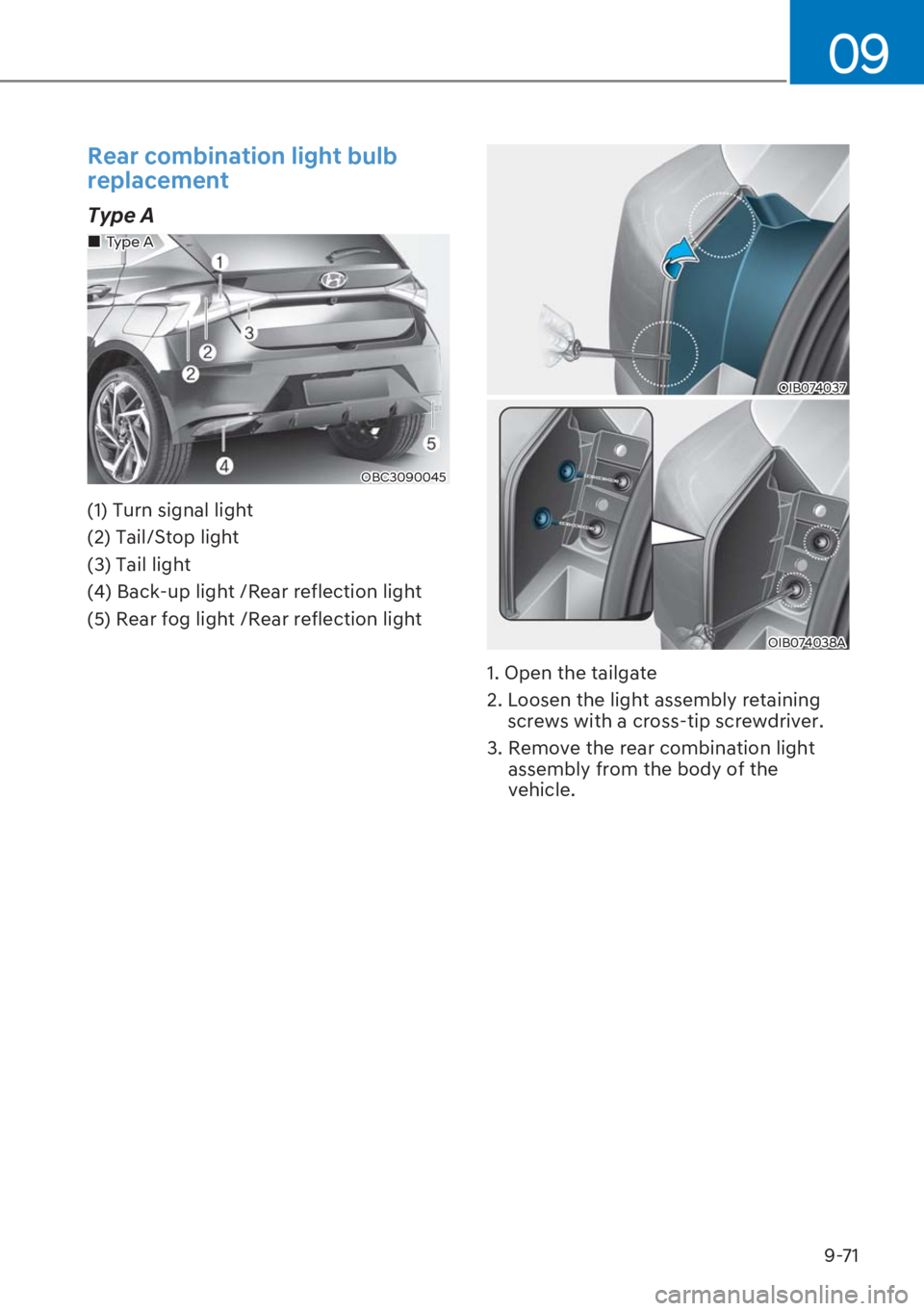

Rear combination light bulb
replacement
Type A
OBC3090045
„Type A
(1) Turn signal light
(2) Tail/Stop light
(3) Tail light
(4) Back-up light /Rear reflection light
(5) Rear fog light /Rear reflection light
OIB074037
OIB074038A
1. Open the tailgate
2. Loosen the light assembly retaining
screws with a cross-tip screwdriver.
3. Remove the rear combination light
assembly from the body of the
vehicle.
