Page 101 of 419
427
Features of your vehicle

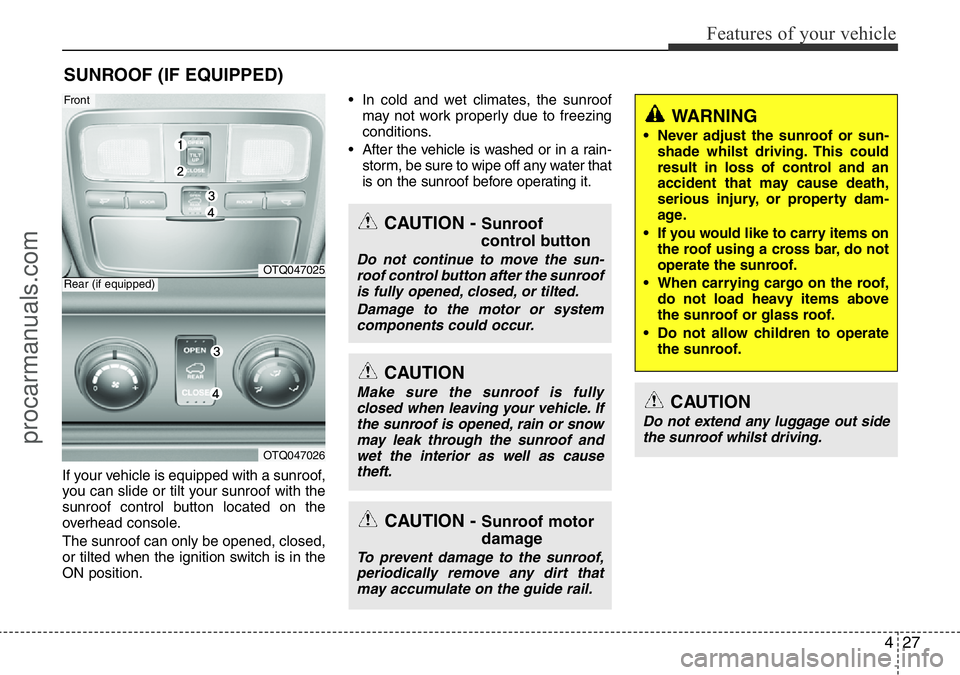

If your vehicle is equipped with a sunroof,
you can slide or tilt your sunroof with the
sunroof control button located on the
overhead console.
The sunroof can only be opened, closed,
or tilted when the ignition switch is in the
ON position.• In cold and wet climates, the sunroof
may not work properly due to freezing
conditions.
• After the vehicle is washed or in a rain-
storm, be sure to wipe off any water that
is on the sunroof before operating it.
SUNROOF (IF EQUIPPED)
OTQ047025
OTQ047026
Rear (if equipped)
Front
CAUTION - Sunroof
control button
Do not continue to move the sun-
roof control button after the sunroof
is fully opened, closed, or tilted.
Damage to the motor or system
components could occur.
CAUTION
Make sure the sunroof is fully
closed when leaving your vehicle. If
the sunroof is opened, rain or snow
may leak through the sunroof and
wet the interior as well as cause
theft.
CAUTION - Sunroof motor
damage
To prevent damage to the sunroof,
periodically remove any dirt that
may accumulate on the guide rail.
WARNING
• Never adjust the sunroof or sun-
shade whilst driving. This could
result in loss of control and an
accident that may cause death,
serious injury, or property dam-
age.
• If you would like to carry items on
the roof using a cross bar, do not
operate the sunroof.
• When carrying cargo on the roof,
do not load heavy items above
the sunroof or glass roof.
• Do not allow children to operate
the sunroof.
CAUTION
Do not extend any luggage out side
the sunroof whilst driving.
procarmanuals.com
Page 102 of 419

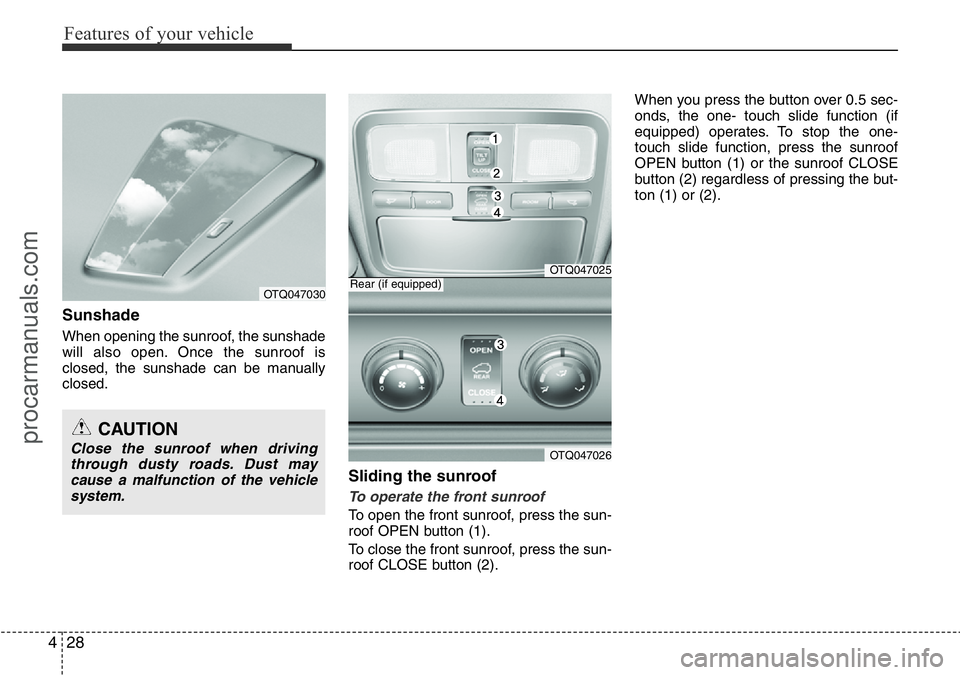

Features of your vehicle
28 4
Sunshade
When opening the sunroof, the sunshade
will also open. Once the sunroof is
closed, the sunshade can be manually
closed.
Sliding the sunroof
To operate the front sunroof
To open the front sunroof, press the sun-
roof OPEN button (1).
To close the front sunroof, press the sun-
roof CLOSE button (2).When you press the button over 0.5 sec-
onds, the one- touch slide function (if
equipped) operates. To stop the one-
touch slide function, press the sunroof
OPEN button (1) or the sunroof CLOSE
button (2) regardless of pressing the but-
ton (1) or (2).
CAUTION
Close the sunroof when driving
through dusty roads. Dust may
cause a malfunction of the vehicle
system.
OTQ047030
OTQ047025
OTQ047026
Rear (if equipped)
procarmanuals.com
Page 103 of 419
429
Features of your vehicle

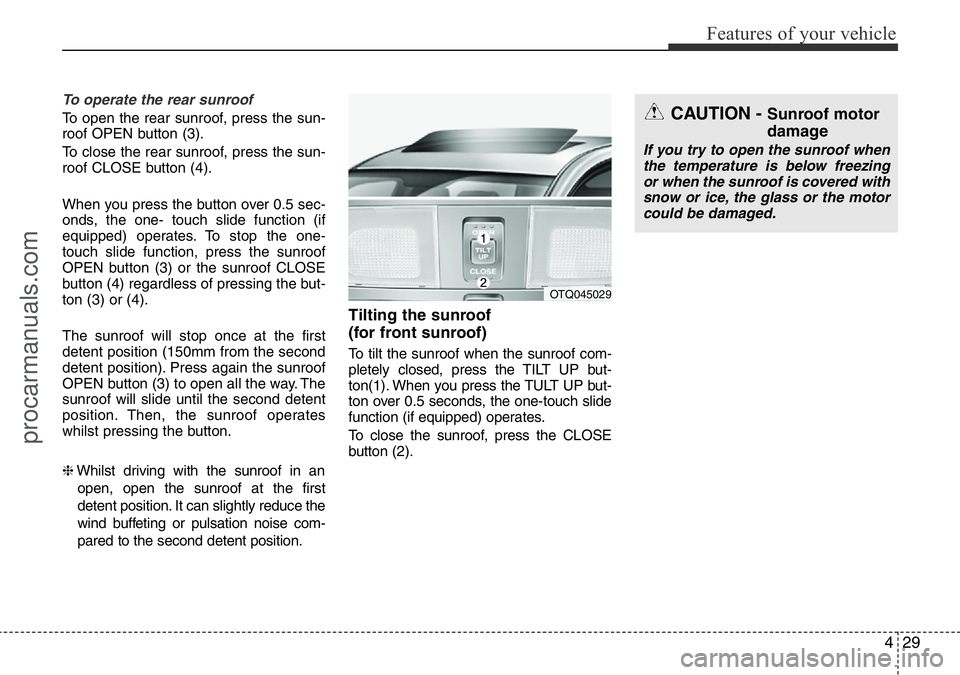

To operate the rear sunroof
To open the rear sunroof, press the sun-
roof OPEN button (3).
To close the rear sunroof, press the sun-
roof CLOSE button (4).
When you press the button over 0.5 sec-
onds, the one- touch slide function (if
equipped) operates. To stop the one-
touch slide function, press the sunroof
OPEN button (3) or the sunroof CLOSE
button (4) regardless of pressing the but-
ton (3) or (4).
The sunroof will stop once at the first
detent position (150mm from the second
detent position). Press again the sunroof
OPEN button (3) to open all the way. The
sunroof will slide until the second detent
position. Then, the sunroof operates
whilst pressing the button.
❈Whilst driving with the sunroof in an
open, open the sunroof at the first
detent position. It can slightly reduce the
wind buffeting or pulsation noise com-
pared to the second detent position.
Tilting the sunroof
(for front sunroof)
To tilt the sunroof when the sunroof com-
pletely closed, press the TILT UP but-
ton(1). When you press the TULT UP but-
ton over 0.5 seconds, the one-touch slide
function (if equipped) operates.
To close the sunroof, press the CLOSE
button (2).
OTQ045029
CAUTION - Sunroof motor
damage
If you try to open the sunroof when
the temperature is below freezing
or when the sunroof is covered with
snow or ice, the glass or the motor
could be damaged.
procarmanuals.com
Page 104 of 419
Features of your vehicle
30 4

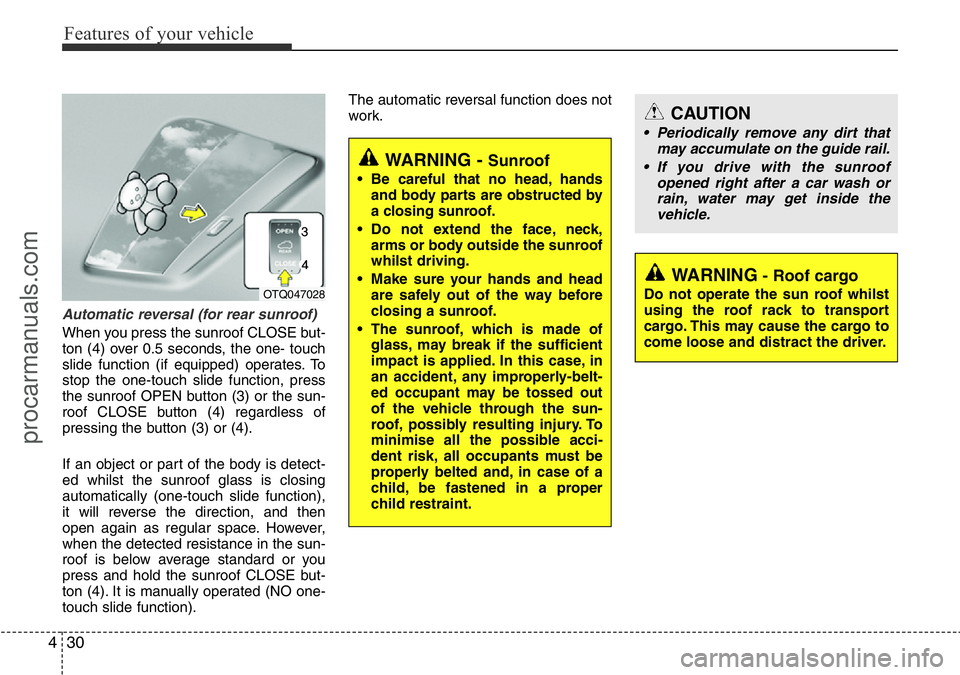

Automatic reversal (for rear sunroof)
When you press the sunroof CLOSE but-
ton (4) over 0.5 seconds, the one- touch
slide function (if equipped) operates. To
stop the one-touch slide function, press
the sunroof OPEN button (3) or the sun-
roof CLOSE button (4) regardless of
pressing the button (3) or (4).
If an object or part of the body is detect-
ed whilst the sunroof glass is closing
automatically (one-touch slide function),
it will reverse the direction, and then
open again as regular space. However,
when the detected resistance in the sun-
roof is below average standard or you
press and hold the sunroof CLOSE but-
ton (4). It is manually operated (NO one-
touch slide function).The automatic reversal function does not
work.
OTQ047028
WARNING - Sunroof
• Be careful that no head, hands
and body parts are obstructed by
a closing sunroof.
• Do not extend the face, neck,
arms or body outside the sunroof
whilst driving.
• Make sure your hands and head
are safely out of the way before
closing a sunroof.
• The sunroof, which is made of
glass, may break if the sufficient
impact is applied. In this case, in
an accident, any improperly-belt-
ed occupant may be tossed out
of the vehicle through the sun-
roof, possibly resulting injury. To
minimise all the possible acci-
dent risk, all occupants must be
properly belted and, in case of a
child, be fastened in a proper
child restraint.
CAUTION
• Periodically remove any dirt that
may accumulate on the guide rail.
• If you drive with the sunroof
opened right after a car wash or
rain, water may get inside the
vehicle.
WARNING- Roof cargo
Do not operate the sun roof whilst
using the roof rack to transport
cargo. This may cause the cargo to
come loose and distract the driver.
procarmanuals.com
Page 105 of 419
431
Features of your vehicle

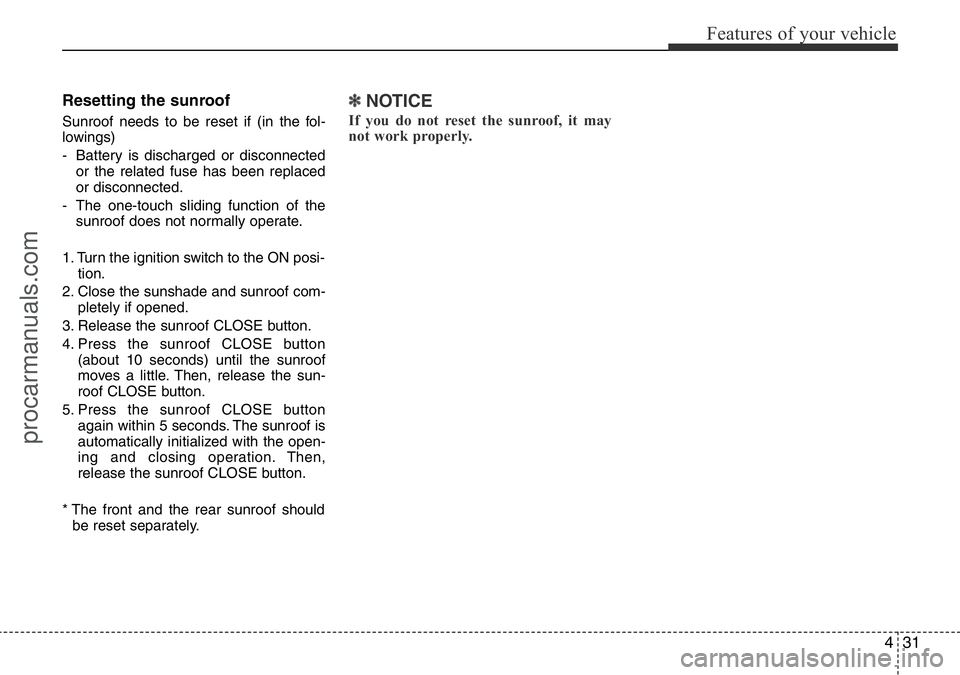

Resetting the sunroof
Sunroof needs to be reset if (in the fol-
lowings)
- Battery is discharged or disconnected
or the related fuse has been replaced
or disconnected.
- The one-touch sliding function of the
sunroof does not normally operate.
1. Turn the ignition switch to the ON posi-
tion.
2. Close the sunshade and sunroof com-
pletely if opened.
3. Release the sunroof CLOSE button.
4. Press the sunroof CLOSE button
(about 10 seconds) until the sunroof
moves a little. Then, release the sun-
roof CLOSE button.
5. Press the sunroof CLOSE button
again within 5 seconds. The sunroof is
automatically initialized with the open-
ing and closing operation. Then,
release the sunroof CLOSE button.
* The front and the rear sunroof should
be reset separately.
✽NOTICE
If you do not reset the sunroof, it may
not work properly.
procarmanuals.com
Page 106 of 419
Features of your vehicle
32 4
WARNING
• Never adjust the angle of the
steering wheel whilst driving. You
may lose steering control and
cause severe personal injury,
death or accidents.
• After adjusting, push the steering
wheel both up and down to be
certain it is locked in position.

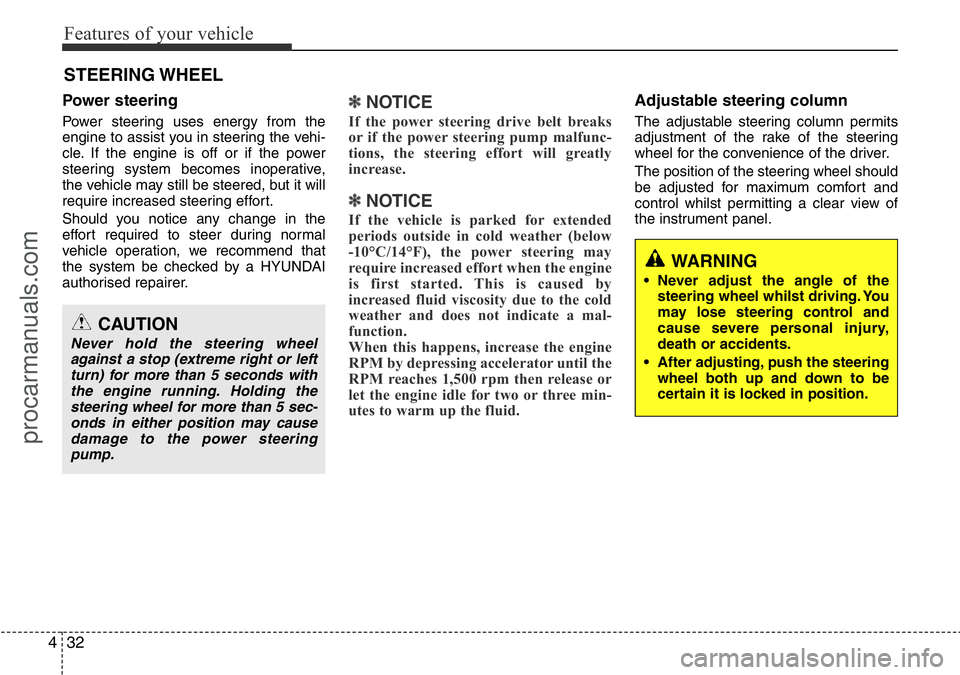

Power steering
Power steering uses energy from the
engine to assist you in steering the vehi-
cle. If the engine is off or if the power
steering system becomes inoperative,
the vehicle may still be steered, but it will
require increased steering effort.
Should you notice any change in the
effort required to steer during normal
vehicle operation, we recommend that
the system be checked by a HYUNDAI
authorised repairer.
✽NOTICE
If the power steering drive belt breaks
or if the power steering pump malfunc-
tions, the steering effort will greatly
increase.
✽NOTICE
If the vehicle is parked for extended
periods outside in cold weather (below
-10°C/14°F), the power steering may
require increased effort when the engine
is first started. This is caused by
increased fluid viscosity due to the cold
weather and does not indicate a mal-
function.
When this happens, increase the engine
RPM by depressing accelerator until the
RPM reaches 1,500 rpm then release or
let the engine idle for two or three min-
utes to warm up the fluid.
Adjustable steering column
The adjustable steering column permits
adjustment of the rake of the steering
wheel for the convenience of the driver.
The position of the steering wheel should
be adjusted for maximum comfort and
control whilst permitting a clear view of
the instrument panel.
STEERING WHEEL
CAUTION
Never hold the steering wheel
against a stop (extreme right or left
turn) for more than 5 seconds with
the engine running. Holding the
steering wheel for more than 5 sec-
onds in either position may cause
damage to the power steering
pump.
procarmanuals.com
Page 107 of 419
433
Features of your vehicle

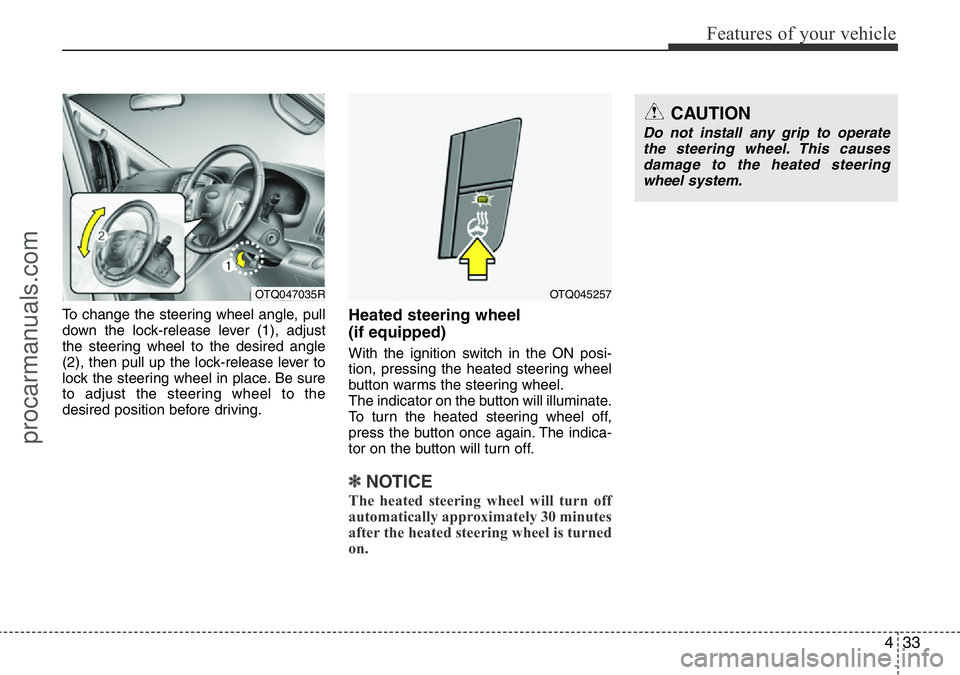

To change the steering wheel angle, pull
down the lock-release lever (1), adjust
the steering wheel to the desired angle
(2), then pull up the lock-release lever to
lock the steering wheel in place. Be sure
to adjust the steering wheel to the
desired position before driving.Heated steering wheel
(if equipped)
With the ignition switch in the ON posi-
tion, pressing the heated steering wheel
button warms the steering wheel.
The indicator on the button will illuminate.
To turn the heated steering wheel off,
press the button once again. The indica-
tor on the button will turn off.
✽NOTICE
The heated steering wheel will turn off
automatically approximately 30 minutes
after the heated steering wheel is turned
on.
OTQ047035ROTQ045257
CAUTION
Do not install any grip to operate
the steering wheel. This causes
damage to the heated steering
wheel system.
procarmanuals.com
Page 108 of 419
Features of your vehicle
34 4

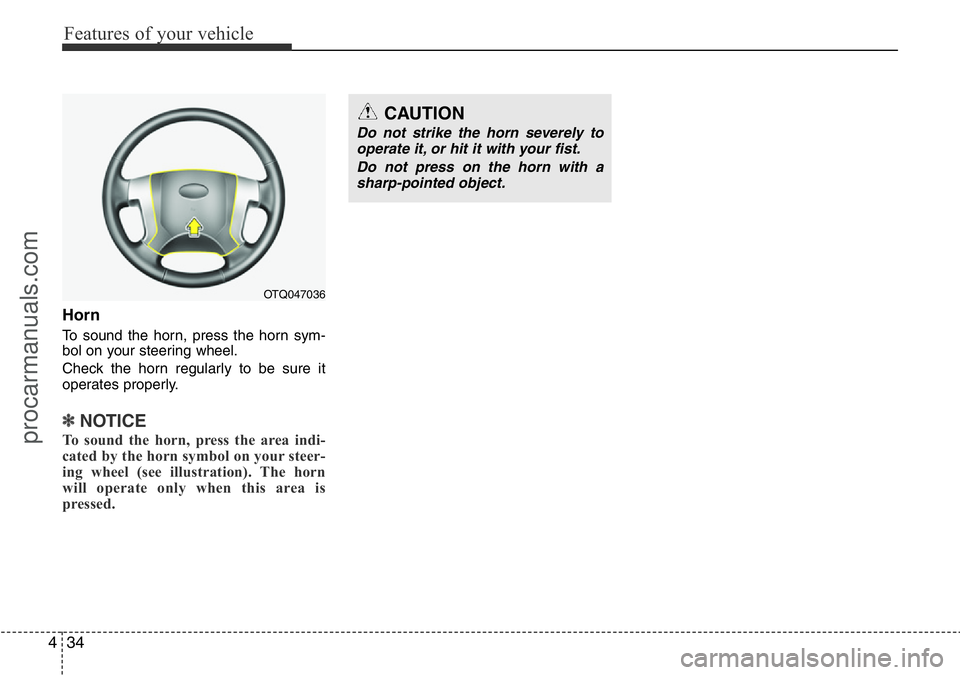

Horn
To sound the horn, press the horn sym-
bol on your steering wheel.
Check the horn regularly to be sure it
operates properly.
✽NOTICE
To sound the horn, press the area indi-
cated by the horn symbol on your steer-
ing wheel (see illustration). The horn
will operate only when this area is
pressed.
CAUTION
Do not strike the horn severely to
operate it, or hit it with your fist.
Do not press on the horn with a
sharp-pointed object.
OTQ047036
procarmanuals.com
Page 109 of 419
435
Features of your vehicle

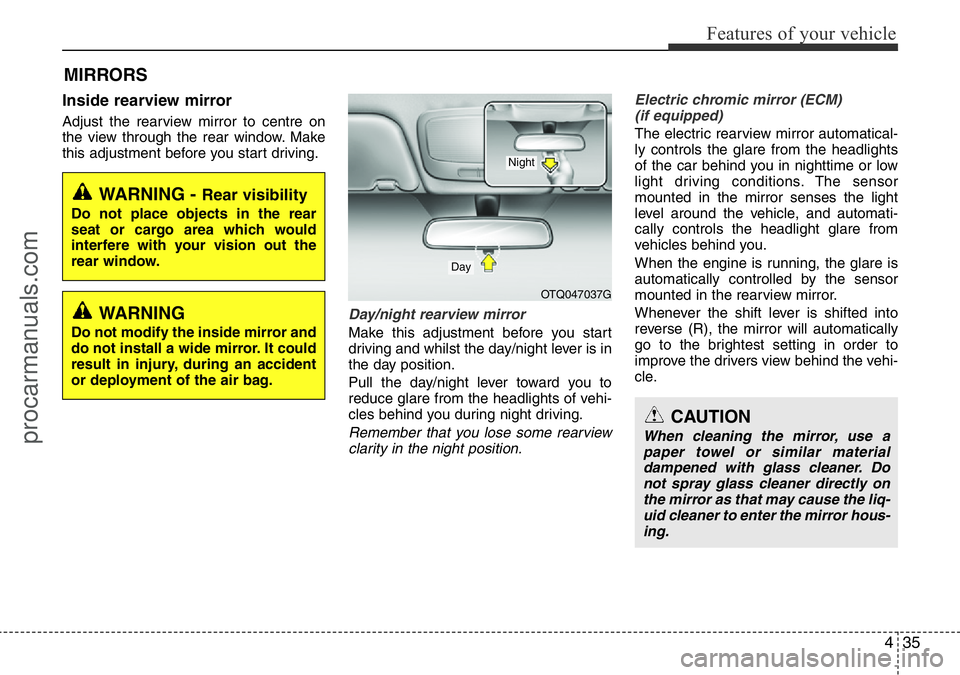

Inside rearview mirror
Adjust the rearview mirror to centre on
the view through the rear window. Make
this adjustment before you start driving.
Day/night rearview mirror
Make this adjustment before you start
driving and whilst the day/night lever is in
the day position.
Pull the day/night lever toward you to
reduce glare from the headlights of vehi-
cles behind you during night driving.
Remember that you lose some rearview
clarity in the night position.Electric chromic mirror (ECM)
(if equipped)
The electric rearview mirror automatical-
ly controls the glare from the headlights
of the car behind you in nighttime or low
light driving conditions. The sensor
mounted in the mirror senses the light
level around the vehicle, and automati-
cally controls the headlight glare from
vehicles behind you.
When the engine is running, the glare is
automatically controlled by the sensor
mounted in the rearview mirror.
Whenever the shift lever is shifted into
reverse (R), the mirror will automatically
go to the brightest setting in order to
improve the drivers view behind the vehi-
cle.
MIRRORS
WARNING - Rear visibility
Do not place objects in the rear
seat or cargo area which would
interfere with your vision out the
rear window.
OTQ047037G
CAUTION
When cleaning the mirror, use a
paper towel or similar material
dampened with glass cleaner. Do
not spray glass cleaner directly on
the mirror as that may cause the liq-
uid cleaner to enter the mirror hous-
ing.
Day
Night
WARNING
Do not modify the inside mirror and
do not install a wide mirror. It could
result in injury, during an accident
or deployment of the air bag.
procarmanuals.com
Page 110 of 419
Features of your vehicle
36 4
To operate the electric rearview mirror:
• Press the on/off button (1) to turn the
automatic dimming function on. The
mirror indicator light will illuminate.
Press the on/off button to turn the auto-
matic dimming function off. The mirror
indicator light will turn off.
• The mirror defaults to the ON position
whenever the ignition switch is turned
on.Outside rearview mirror
Be sure to adjust mirror angles before
driving.
Your vehicle is equipped with both left-
hand and right-hand outside rearview
mirrors. The mirrors can be adjusted
remotely with the remote switch (if
equipped). The mirror heads can be fold-
ed back to prevent damage during an
automatic car wash or when passing in a
narrow street.
OTQ027002GOTQ047038G/H
1IndicatorSensor
WARNING - Rearview mir-
rors
• The right outside rearview mirror
is convex. In some countries, the
left outside rearview mirror is
also convex. Objects seen in the
mirror are closer than they
appear.
• Use your interior rearview mirror
or direct observation to deter-
mine the actual distance of fol-
lowing vehicles when changing
lanes.
procarmanuals.com
