HYUNDAI IONIQ 5 2022 Owners Manual

3-4
Seats & Safety System

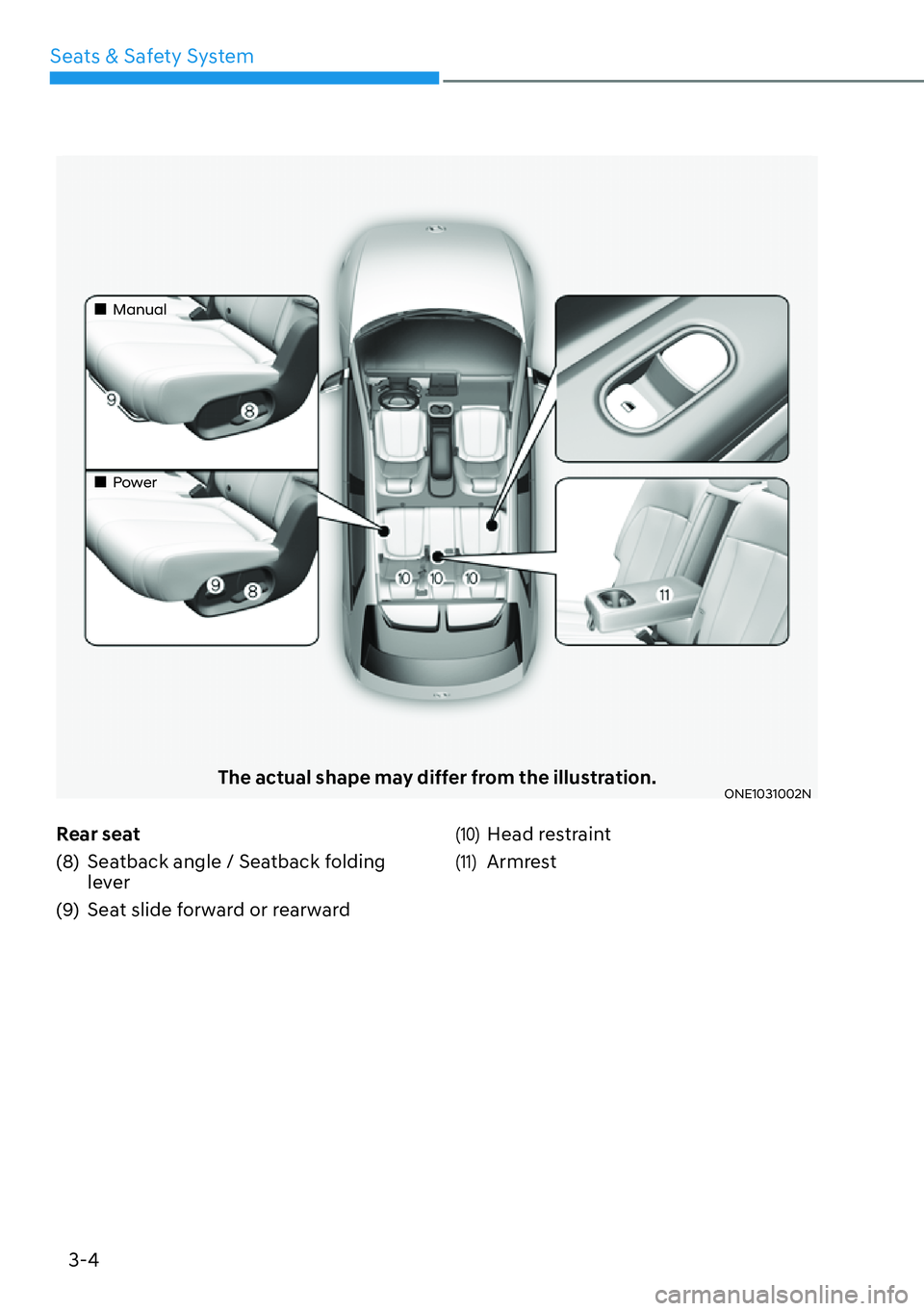

The actual shape may differ from the illustration.ONE1031002N
Rear seat
(8) Seatback angle / Seatback folding
lever
(9) Seat slide forward or rearward(10) Head restraint
(11) Armrest
„Manual

„Power

03
3-5

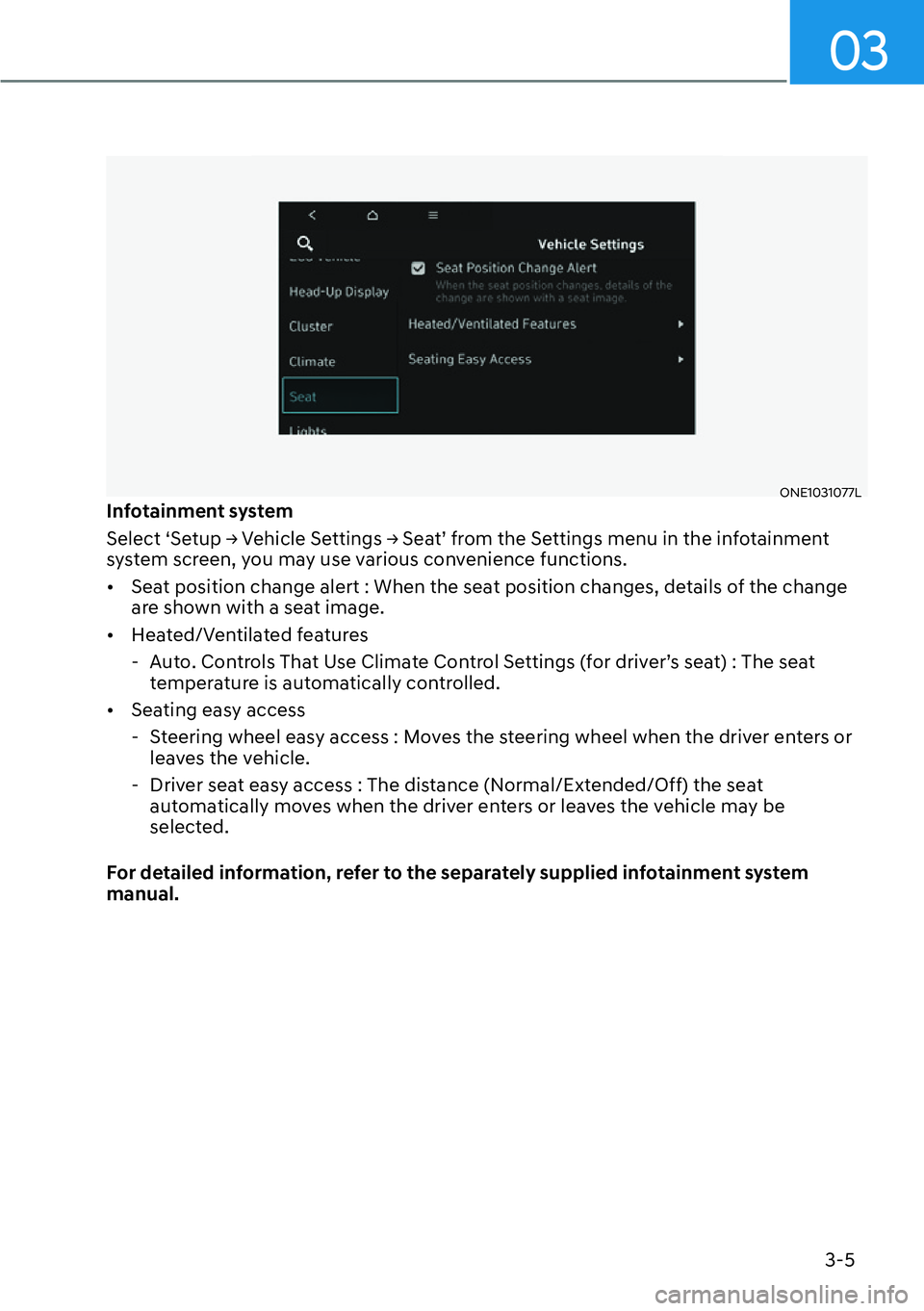

ONE1031077LInfotainment system
6HOHFW
S6HWXS

Seats & Safety System
3-6
Information
The information provided may differ
depending on which functions are
applicable to your vehicle.
Safety Precautions
Adjusting the seats so that you are sitting
in a safe and comfortable position plays
an important role for the safety of the
driver and passengers, as much as seat
belts and air bags when in an accident.
WARNING
Do not use a cushion that reduces
friction between the seat and the
passenger. The passenger’s hips may
slide under the lap portion of the seat
belt during an accident or a sudden
stop.
Serious or fatal internal injuries could
result because the seat belt cannot
operate properly.
Air bags
You can take steps to reduce the risk
of being injured by an inflating air bag.
Sitting too close to an air bag greatly
increases the risk of injury in the event
the air bag inflates. Move your seat as
far back as possible from front air bags,
while still maintaining control of the
vehicle.
WARNING
To reduce the risk of serious injury or
death from an inflating air bag, take the
following precautions:

[Adjust the driver’s seat as far to the
rear as possible maintaining the
ability to control the vehicle.

[Adjust the front passenger seat as far
to the rear as possible.

[Hold the steering wheel by the rim
with hands at the 9 o’clock and 3
o’clock positions to minimize the risk
of injuries to your hands and arms.

[NEVER place anything or anyone
between you and the air bag.

[Do not allow the front passenger to
place feet or legs on the dashboard
to minimize the risk of leg injuries.

03
3-7
Seat belts
Always fasten your seat belt before
starting any trip. At all times, passengers
should sit upright and be properly
restrained. Infants and small children
must be restrained in appropriate Child
Restraint Systems. Children who have
outgrown a booster seat and adults must
be restrained using the seat belts.
WARNING
Take the following precautions when
adjusting your seat belt:

[NEVER use one seat belt for more
than one occupant.

[Always position the seatback upright
with the lap portion of the seat belt
snug and low across the hips.

[NEVER allow children or small infants
to ride on a passenger’s lap.

[Do not route the seat belt across your
neck, across sharp edges, or reroute
the shoulder strap away from your
body.

[Do not allow the seat belt to become
caught or jammed.
Front Seats
WARNING
Take the following precautions when
adjusting your seat:

[NEVER attempt to adjust the seat
while the vehicle is moving. The seat
could respond with unexpected
movement and may cause loss
of vehicle control resulting in an
accident.

[Do not place anything under the
front seats. Loose objects in the
driver’s foot area could interfere
with the operation of the foot pedals,
causing an accident.

[Do not allow anything to interfere
with the normal position and proper
locking of the seatback.

[Do not place a cigarette lighter on
the floor or seat. When you operate
the seat, gas may exit out of the
lighter causing a fire.

[Use extreme caution when picking
up small objects trapped under the
seats or between the seat and the
center console. Your hands might be
cut or injured by the sharp edges of
the seat mechanism.

[If there are occupants in the rear
seats, be careful while adjusting the
front seat position.

[Make sure that the seat is locked in
place after the adjustment. If not,
the seat might move unexpectedly
resulting in an accident.

Seats & Safety System
3-8
CAUTION
To prevent injury:

[Do not adjust your seat while
wearing your seat belt. Moving the
seat cushion forward may cause
strong pressure on your abdomen.

[Do not allow your hands or fingers to
get caught in the seat mechanisms
while the seat is moving.
WARNING
NEVER allow children in the vehicle
unattended. The power seats are
operable when the vehicle is turned off.
NOTICE
To prevent damage to the seats:

[Always stop adjusting the seats when
the seat has been adjusted as far
forward or rearward as possible.

[Do not adjust the seats longer than
necessary when the vehicle is turned
off. This may result in unnecessary
battery drain.

[Do not operate two or more seats at
the same time. This may result in an
electrical malfunction.
Manual adjustment (if equipped)
The front seat can be adjusted by using
the levers located underneath the seat
cushion. Before driving, adjust the seat
to the proper position so that you can
easily control the steering wheel, foot
pedals and controls on the instrument
panel.
ONE1031003N
Forward and rearward adjustment
To move the seat forward or rearward:
1. Pull up the seat slide adjustment lever
and hold it.
2. Slide the seat to the position you
desire.
3. Release the lever and make sure the
seat is locked in place. Move forward
and rearward without using the lever.
If the seat moves, it is not locked
properly.

03
3-9

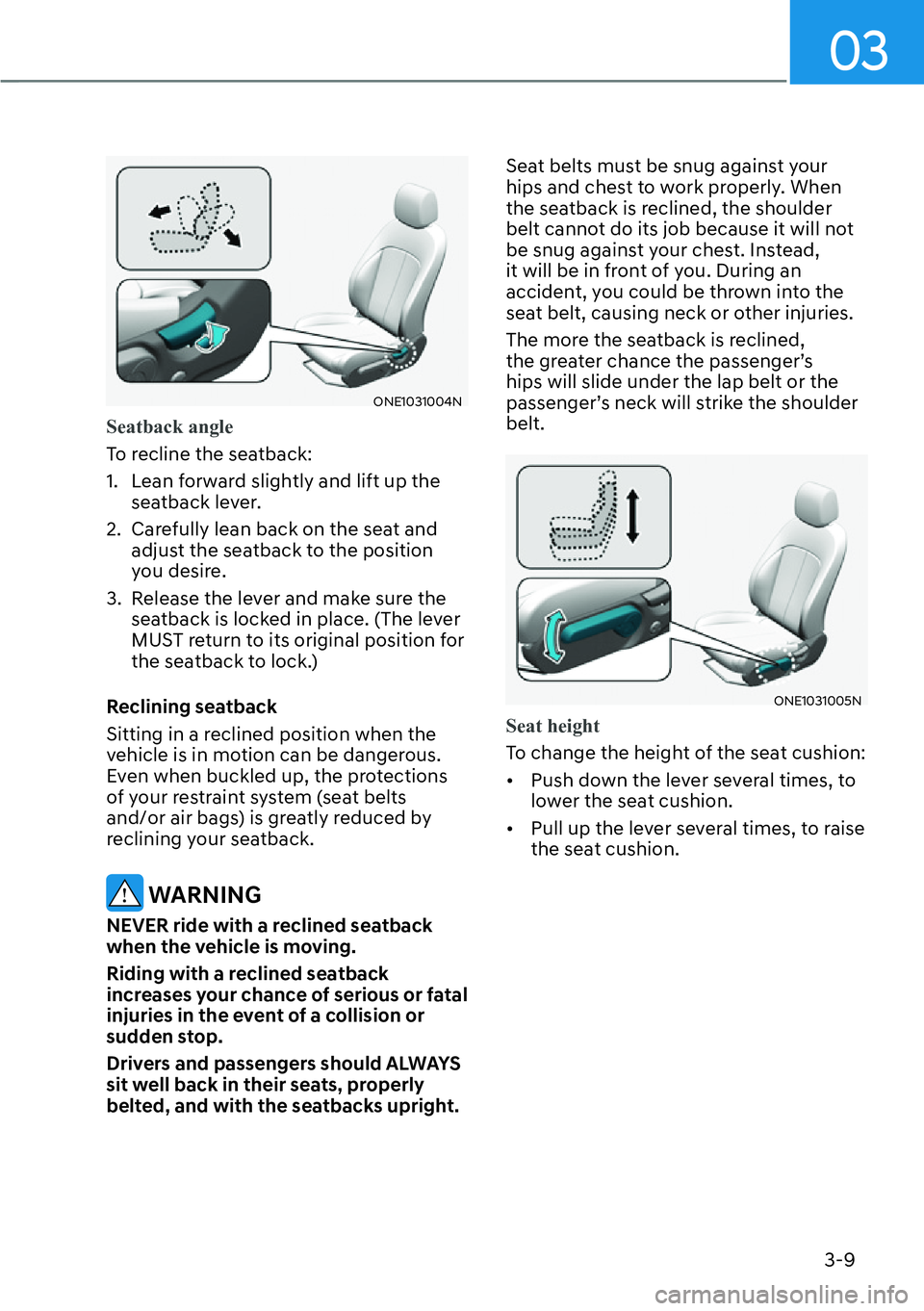

ONE1031004N
Seatback angle
To recline the seatback:
1. Lean forward slightly and lift up the
seatback lever.
2. Carefully lean back on the seat and
adjust the seatback to the position
you desire.
3. Release the lever and make sure the
seatback is locked in place. (The lever
MUST return to its original position for
the seatback to lock.)
Reclining seatback
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Even when buckled up, the protections
of your restraint system (seat belts
and/or air bags) is greatly reduced by
reclining your seatback.
WARNING
NEVER ride with a reclined seatback
when the vehicle is moving.
Riding with a reclined seatback
increases your chance of serious or fatal
injuries in the event of a collision or
sudden stop.
Drivers and passengers should ALWAYS
sit well back in their seats, properly
belted, and with the seatbacks upright.Seat belts must be snug against your
hips and chest to work properly. When
the seatback is reclined, the shoulder
belt cannot do its job because it will not
be snug against your chest. Instead,
it will be in front of you. During an
accident, you could be thrown into the
seat belt, causing neck or other injuries.
The more the seatback is reclined,
the greater chance the passenger’s
hips will slide under the lap belt or the
passenger’s neck will strike the shoulder
belt.
ONE1031005N
Seat height
To change the height of the seat cushion:

[Push down the lever several times, to
lower the seat cushion.

[Pull up the lever several times, to raise
the seat cushion.

Seats & Safety System
3-10
ONE1031090N
Lumbar support
To adjust the lumbar support:

[Press the front portion of the switch
(1) to increase the support or the rear
portion of the switch (2) to decrease
the support.
NOTICE
Do not continue to operate the lumbar
support when the lumbar support
provides its maximum support. Damage
to the lumbar support motor could
occur.
Power adjustment (if equipped)
The front seat can be adjusted by using
the control switches located on the
outside of the seat cushion. Before
driving, adjust the seat to the proper
position so that you can easily control
the steering wheel, foot pedals and
controls on the instrument panel.
ONE1031006N
Forward and rearward adjustment
To move the seat forward or rearward:
1. Push the control switch forward or
rearward.
2. Release the switch once the seat
reaches the desired position.

03
3-11

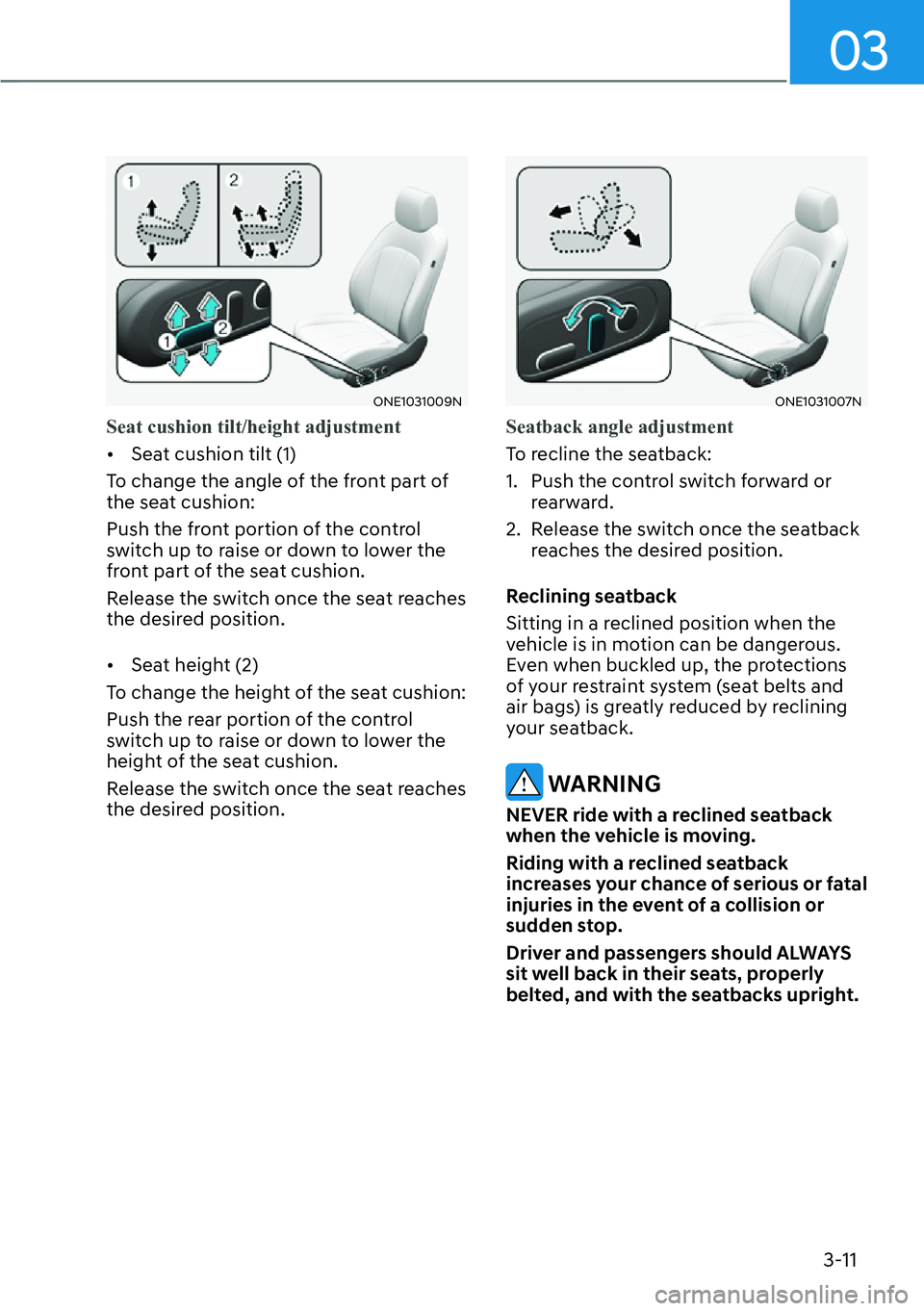

ONE1031009N
Seat cushion tilt/height adjustment

[Seat cushion tilt (1)
To change the angle of the front part of
the seat cushion:
Push the front portion of the control
switch up to raise or down to lower the
front part of the seat cushion.
Release the switch once the seat reaches
the desired position.

[Seat height (2)
To change the height of the seat cushion:
Push the rear portion of the control
switch up to raise or down to lower the
height of the seat cushion.
Release the switch once the seat reaches
the desired position.
ONE1031007N
Seatback angle adjustment
To recline the seatback:
1. Push the control switch forward or
rearward.
2. Release the switch once the seatback
reaches the desired position.
Reclining seatback
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Even when buckled up, the protections
of your restraint system (seat belts and
air bags) is greatly reduced by reclining
your seatback.
WARNING
NEVER ride with a reclined seatback
when the vehicle is moving.
Riding with a reclined seatback
increases your chance of serious or fatal
injuries in the event of a collision or
sudden stop.
Driver and passengers should ALWAYS
sit well back in their seats, properly
belted, and with the seatbacks upright.

Seats & Safety System
3-12
Seat belts must be snug against your
hips and chest to work properly. When
the seatback is reclined, the shoulder
belt cannot do its job because it will not
be snug against your chest. Instead,
it will be in front of you. During an
accident, you could be thrown into the
seat belt, causing neck or other injuries.
The more the seatback is reclined,
the greater chance the passenger’s
hips will slide under the lap belt or the
passenger’s neck will strike the shoulder
belt.
ONE1031008N
Leg support adjustment (if equipped)
1. Press the front portion of the switch
(1) to raise the leg support.
2. Press the rear portion of the switch (2)
to lower the leg support.
ONE1031010N
Lumbar support
To adjust the lumbar support:

[Press the front portion of the switch
(1) to increase support or the rear
portion of the switch (2) to decrease
support.
NOTICE
Do not continue to operate the lumbar
support when the lumbar support
provides its maximum support. Damage
to the lumbar support motor could
occur.

03
3-13

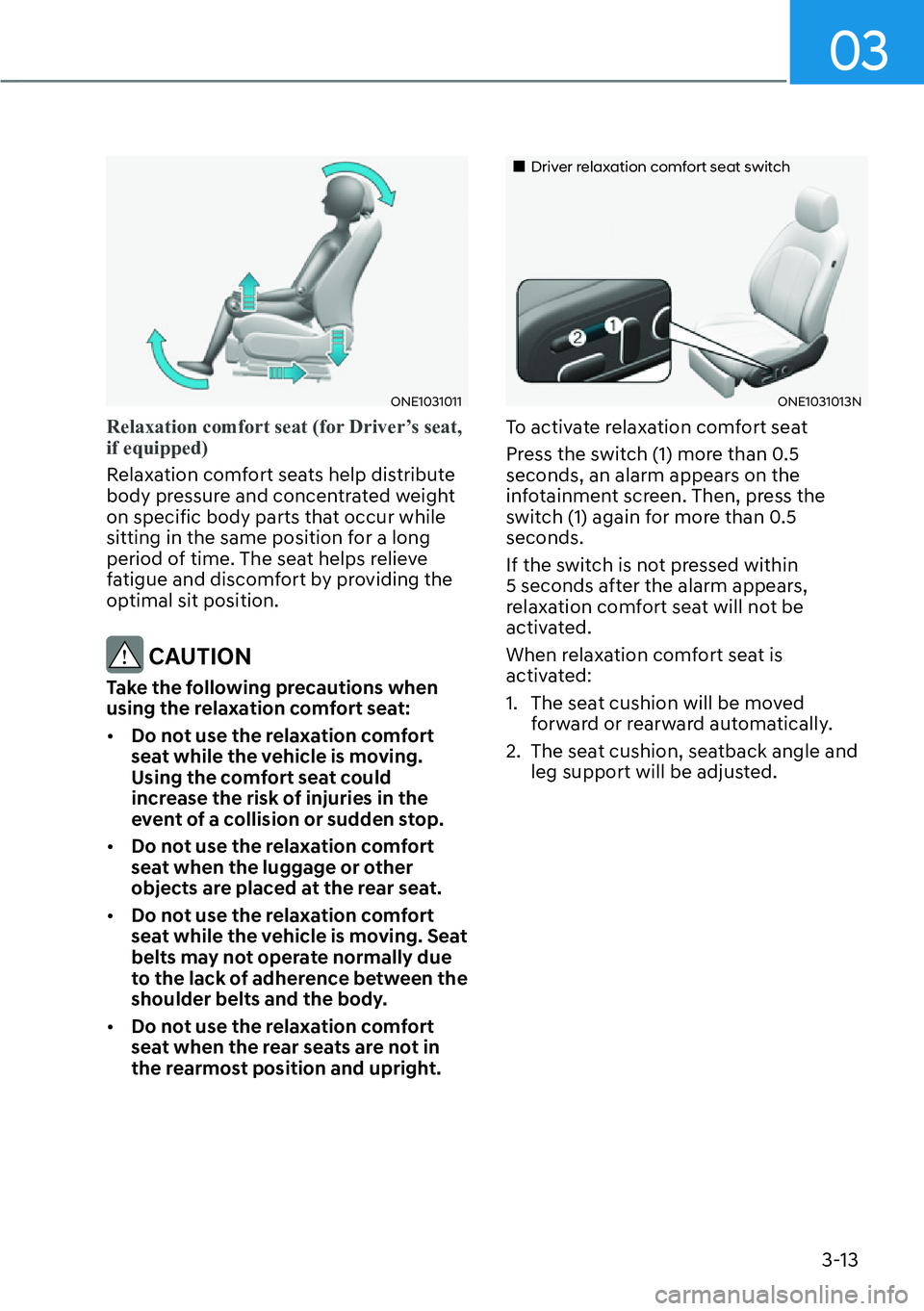

ONE1031011
Relaxation comfort seat (for Driver’s seat,
if equipped)
Relaxation comfort seats help distribute
body pressure and concentrated weight
on specific body parts that occur while
sitting in the same position for a long
period of time. The seat helps relieve
fatigue and discomfort by providing the
optimal sit position.
CAUTION
Take the following precautions when
using the relaxation comfort seat:

[Do not use the relaxation comfort
seat while the vehicle is moving.
Using the comfort seat could
increase the risk of injuries in the
event of a collision or sudden stop.

[Do not use the relaxation comfort
seat when the luggage or other
objects are placed at the rear seat.

[Do not use the relaxation comfort
seat while the vehicle is moving. Seat
belts may not operate normally due
to the lack of adherence between the
shoulder belts and the body.

[Do not use the relaxation comfort
seat when the rear seats are not in
the rearmost position and upright.
„Driver relaxation comfort seat switch
ONE1031013N
To activate relaxation comfort seat
Press the switch (1) more than 0.5
seconds, an alarm appears on the
infotainment screen. Then, press the
switch (1) again for more than 0.5
seconds.
If the switch is not pressed within
5 seconds after the alarm appears,
relaxation comfort seat will not be
activated.
When relaxation comfort seat is
activated:
1. The seat cushion will be moved
forward or rearward automatically.
2. The seat cushion, seatback angle and
leg support will be adjusted.
