Seats & Safety System
3-14
In the following cases, an alarm appears
on when the infotainment screen is on
and the relaxation comfort seat will be
deactivated.

[When the gear is not in P (Parking).

[When the vehicle is moving more than
1.8 mph (3 km/h).

[When the rear seat belt is fastened
Information
When relaxion comfort seat cannot be
operated, try to reset Integrated Memory
System. If relaxation comfort seat does
not operate even after Integrated Memory
System is reset, contact an authorized
HYUNDAI dealer. ONE1031014N
ONE1031015N[A] : Moves simultaneously
You can adjust moves simultaneously
the seat directly by using the seat
adjustment switches (3).
Push down the forward part of the switch
(3) to move back the chair to the original
position.
Pull up the forward part of the switch
(3) to adjust the seat to the relaxation
comfort position.
Even when the relaxation comfort seat
is operated by others, the additional
adjustment is possible by pressing
relaxation comfort seat switches.

03
3-15

[To deactivate relaxation comfort seat
If you press the front portion of the
switch (2) while the seat is in the
relaxion comfort seat position, the
seat return backs to the original
position.
When relaxation comfort seat is
deactivated:

[The driver seat will return to the
position which the gear was in P
(Park).

[Passenger seat will return to the
original position.
In the following cases, the relaxation
comfort seat will not return to the
original position for the driver’ seat.

[When the gear is not in P (Parking).

[When the vehicle is moving more than
1.8 mph (3 km/h).
Information
When relaxation comfort seat cannot be
operated, try to reset Integrated Memory
System. If relaxation comfort seat does
not operate even after Integrated Memory
System is reset, contact an authorized
HYUNDAI dealer.
NOTICE
Do not use the seat switches
simultaneously. It may damage the seat
system.
Seatback pocket
ONE1031022
The seatback pocket is provided on the
back of the front seatbacks.
CAUTION
Do not put heavy or sharp objects in the
seatback pockets. In an accident they
could come loose from the pocket and
injure occupants.

Seats & Safety System
3-16

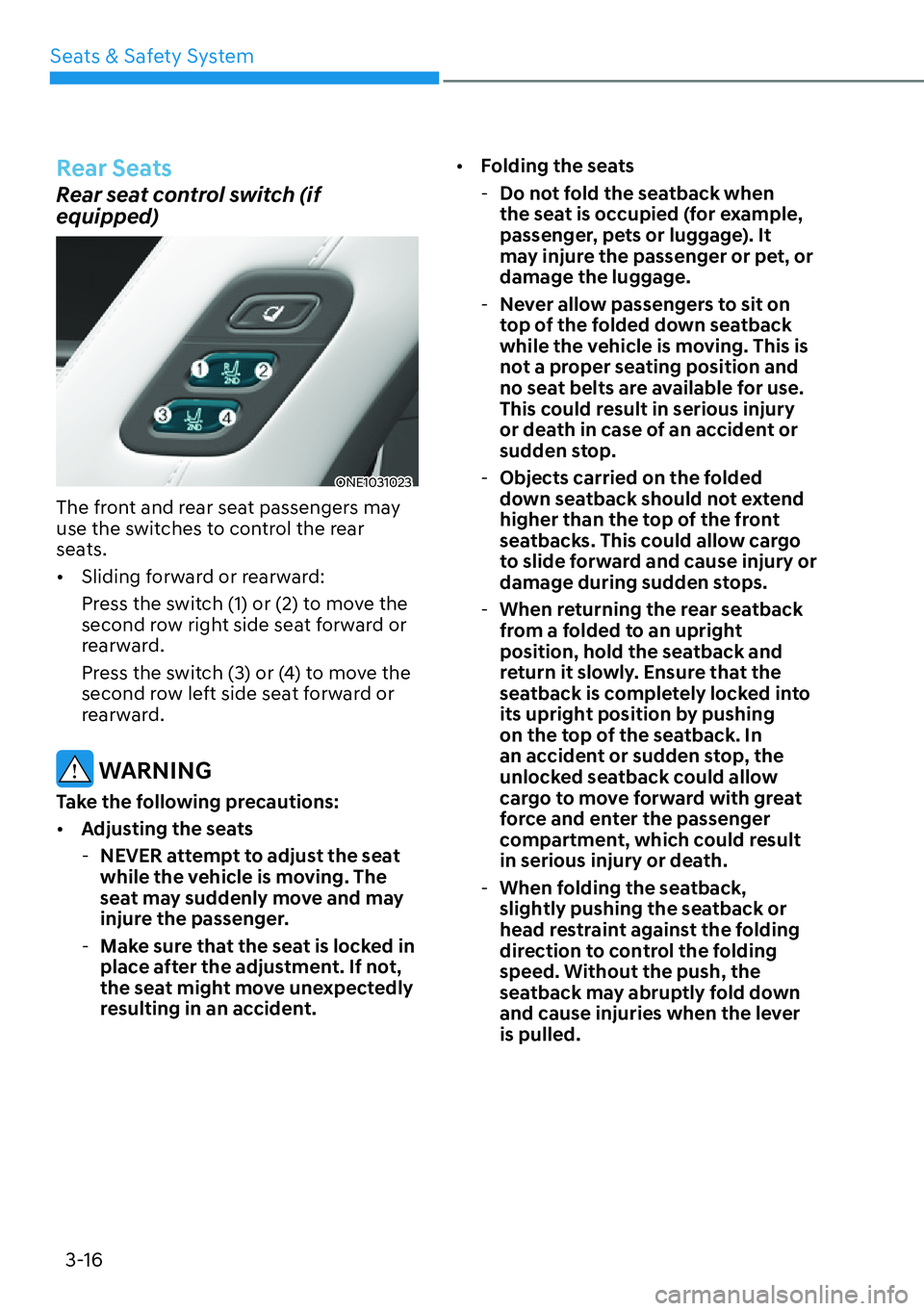

Rear Seats
Rear seat control switch (if
equipped)
ONE1031023
The front and rear seat passengers may
use the switches to control the rear
seats.

[Sliding forward or rearward:
Press the switch (1) or (2) to move the
second row right side seat forward or
rearward.
Press the switch (3) or (4) to move the
second row left side seat forward or
rearward.
WARNING
Take the following precautions:

[Adjusting the seats
-NEVER attempt to adjust the seat
while the vehicle is moving. The
seat may suddenly move and may
injure the passenger.
-Make sure that the seat is locked in
place after the adjustment. If not,
the seat might move unexpectedly
resulting in an accident.
[Folding the seats
-Do not fold the seatback when
the seat is occupied (for example,
passenger, pets or luggage). It
may injure the passenger or pet, or
damage the luggage.
-Never allow passengers to sit on
top of the folded down seatback
while the vehicle is moving. This is
not a proper seating position and
no seat belts are available for use.
This could result in serious injury
or death in case of an accident or
sudden stop.
-Objects carried on the folded
down seatback should not extend
higher than the top of the front
seatbacks. This could allow cargo
to slide forward and cause injury or
damage during sudden stops.
-When returning the rear seatback
from a folded to an upright
position, hold the seatback and
return it slowly. Ensure that the
seatback is completely locked into
its upright position by pushing
on the top of the seatback. In
an accident or sudden stop, the
unlocked seatback could allow
cargo to move forward with great
force and enter the passenger
compartment, which could result
in serious injury or death.
-When folding the seatback,
slightly pushing the seatback or
head restraint against the folding
direction to control the folding
speed. Without the push, the
seatback may abruptly fold down
and cause injuries when the lever
is pulled.

03
3-17

[Loading cargo
-Make sure the vehicle is off, the
gear shifted to P (Park), and the
parking brake is securely applied
whenever loading or unloading
cargo. Failure to take these steps
may allow the vehicle to move
if the shift button or shift dial is
inadvertently pressed or rotated to
another position.
-When cargo is loaded through
the rear passenger seats, ensure
the cargo is properly secured
to prevent it from moving while
driving.

[Do not place objects in the rear
seats, since they cannot be properly
secured and may hit vehicle
occupants in a collision causing
serious injury or death.
CAUTION
Do not allow your hands or fingers to
get caught in the seat mechanisms
while adjusting the seats.
NOTICE
To prevent damage to the vehicle:

[Rear seat belts
Before folding the seatback, insert
the seat belt buckle in the holder
between the seatback and cushion.
And insert the seat belt webbing in
the guide to prevent the seat belt
from being damaged.

[Cargo
Be careful when loading cargo
through the rear passenger seats
to prevent damage to the vehicle
interior.
Manual adjustment
ONE1031073N
Forward and rearward
To move the seat forward or rearward:
1. Pull the seat slide adjustment lever up
and hold it.
2. Slide the seat to the position you
desire.
3. Release the lever and make sure the
seat is locked in place.
Information
For the optimal safety, slide the rear seat
to the rearmost position.

Seats & Safety System
3-18

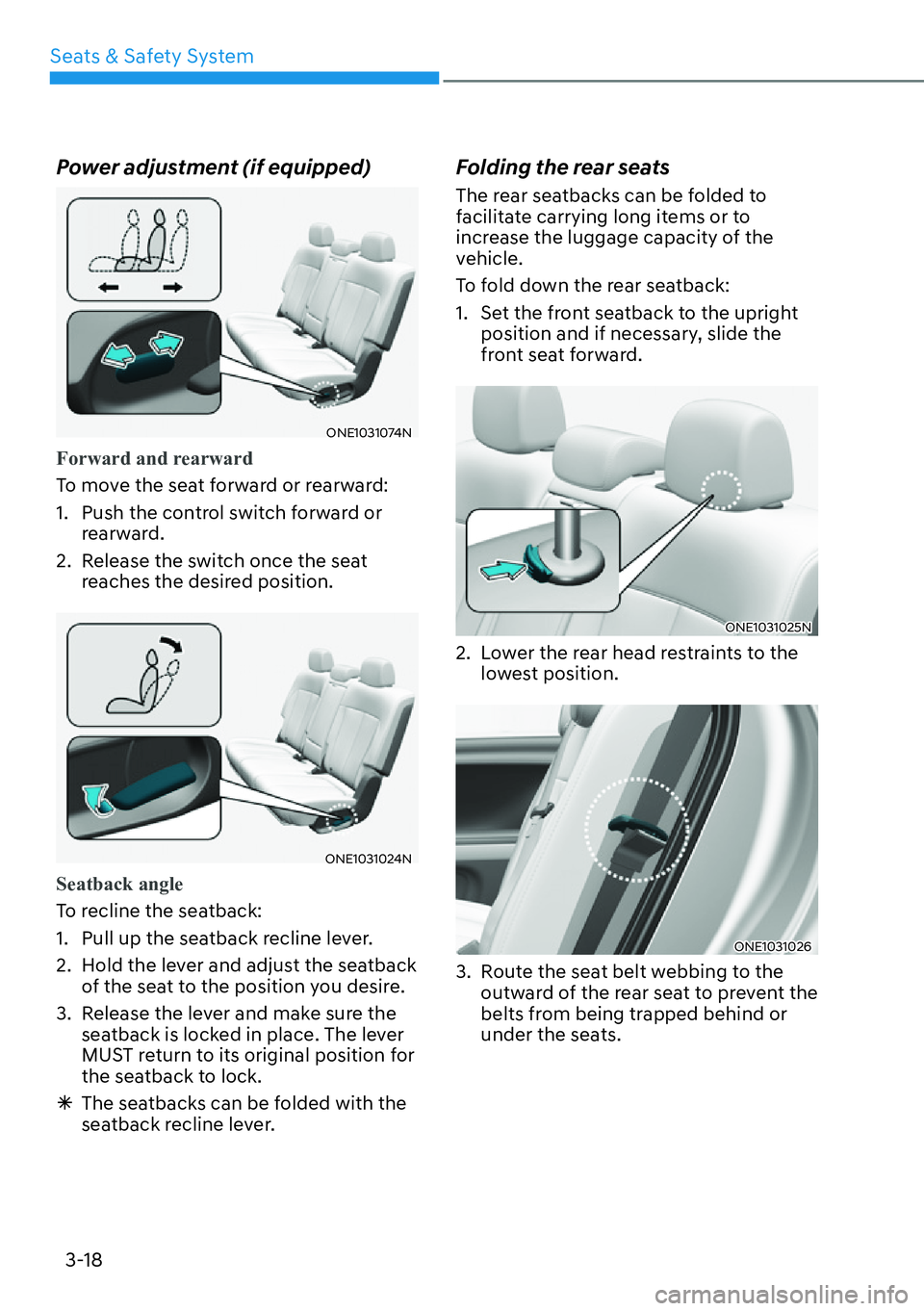

Power adjustment (if equipped)
ONE1031074N
Forward and rearward
To move the seat forward or rearward:
1. Push the control switch forward or
rearward.
2. Release the switch once the seat
reaches the desired position.
ONE1031024N
Seatback angle
To recline the seatback:
1. Pull up the seatback recline lever.
2. Hold the lever and adjust the seatback
of the seat to the position you desire.
3. Release the lever and make sure the
seatback is locked in place. The lever
MUST return to its original position for
the seatback to lock.
ÃThe seatbacks can be folded with the
seatback recline lever.
Folding the rear seats
The rear seatbacks can be folded to
facilitate carrying long items or to
increase the luggage capacity of the
vehicle.
To fold down the rear seatback:
1. Set the front seatback to the upright
position and if necessary, slide the
front seat forward.
ONE1031025N
2. Lower the rear head restraints to the
lowest position.
ONE1031026
3. Route the seat belt webbing to the
outward of the rear seat to prevent the
belts from being trapped behind or
under the seats.

03
3-19

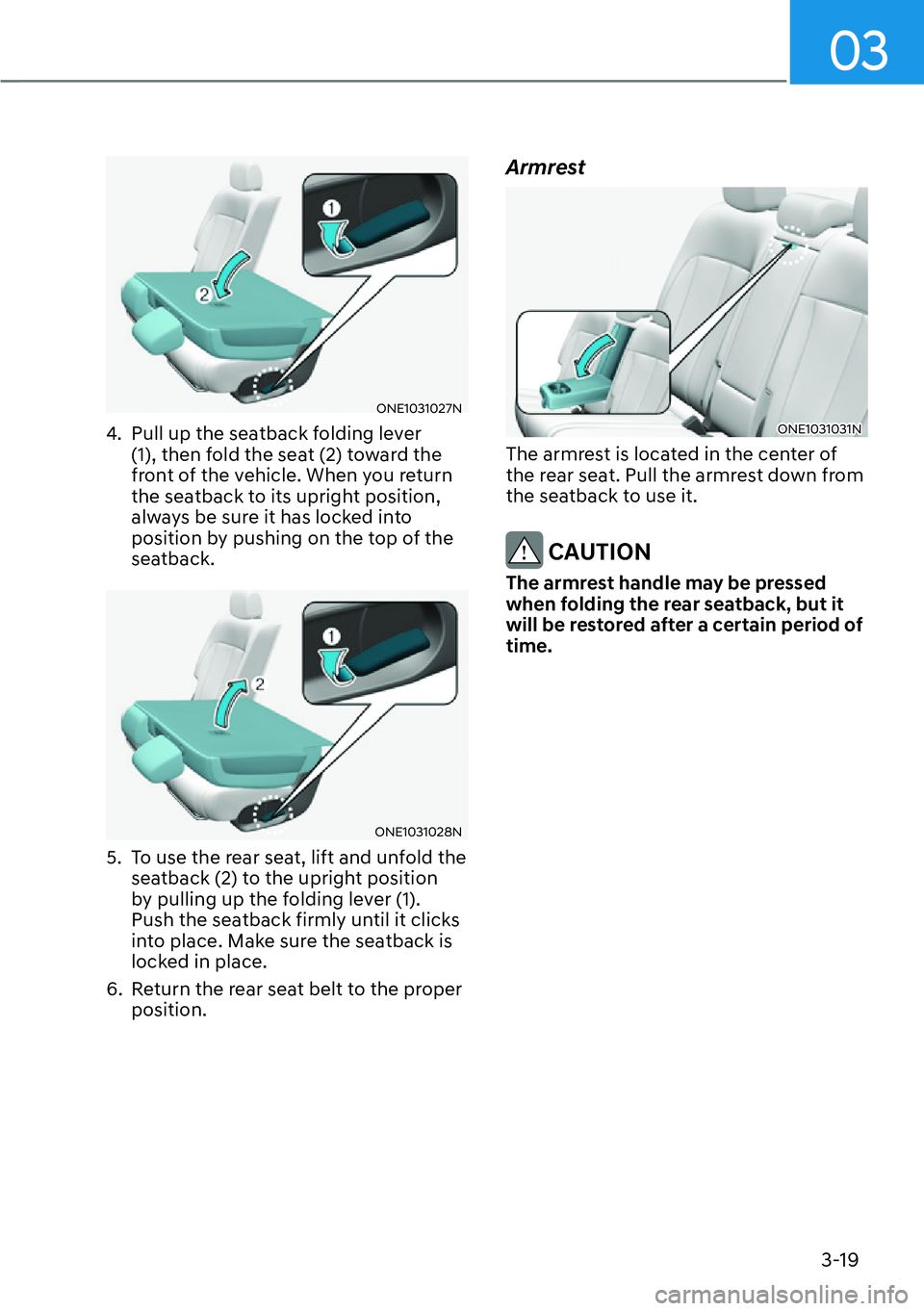

ONE1031027N
4. Pull up the seatback folding lever
(1), then fold the seat (2) toward the
front of the vehicle. When you return
the seatback to its upright position,
always be sure it has locked into
position by pushing on the top of the
seatback.
ONE1031028N
5. To use the rear seat, lift and unfold the
seatback (2) to the upright position
by pulling up the folding lever (1).
Push the seatback firmly until it clicks
into place. Make sure the seatback is
locked in place.
6. Return the rear seat belt to the proper
position.
Armrest
ONE1031031N
The armrest is located in the center of
the rear seat. Pull the armrest down from
the seatback to use it.
CAUTION
The armrest handle may be pressed
when folding the rear seatback, but it
will be restored after a certain period of
time.

Seats & Safety System
3-20
Head Restraint
The vehicle’s front and rear seats
have adjustable head restraints. The
head restraints provide comfort for
passengers, but more importantly they
are designed to help protect passengers
from whiplash and other neck and spinal
injuries during an accident, especially in
a rear impact collision.
WARNING
To reduce the risk of serious injury or
death in an accident, take the following
precautions when adjusting your head
restraints:

[Always properly adjust the head
restraints for all passengers BEFORE
starting the vehicle.

[NEVER let anyone ride in a seat
with the head restraint removed or
reversed.
OHI039190N

[Adjust the head restraints so the
middle of the head restraint is at the
same height as the height of the top
of the eyes.

[NEVER adjust the head restraint
position of the driver’s seat when the
vehicle is in motion.

[Adjust the head restraint as close to
the passenger’s head as possible. Do
not use a seat cushion that holds the
body away from the seatback.

[Make sure the head restraint locks
into position after adjusting it.
WARNING
OTL035061
When sitting on the rear seat, do not
adjust the height of the head restraint
to the lowest position.
CAUTION
When there is no occupant in the rear
seats, adjust the height of the head
restraint to the lowest position. The
rear seat head restraint can reduce the
visibility of the rear area.
NOTICE
To prevent damage, NEVER hit or pull
on the head restraints.

03
3-21

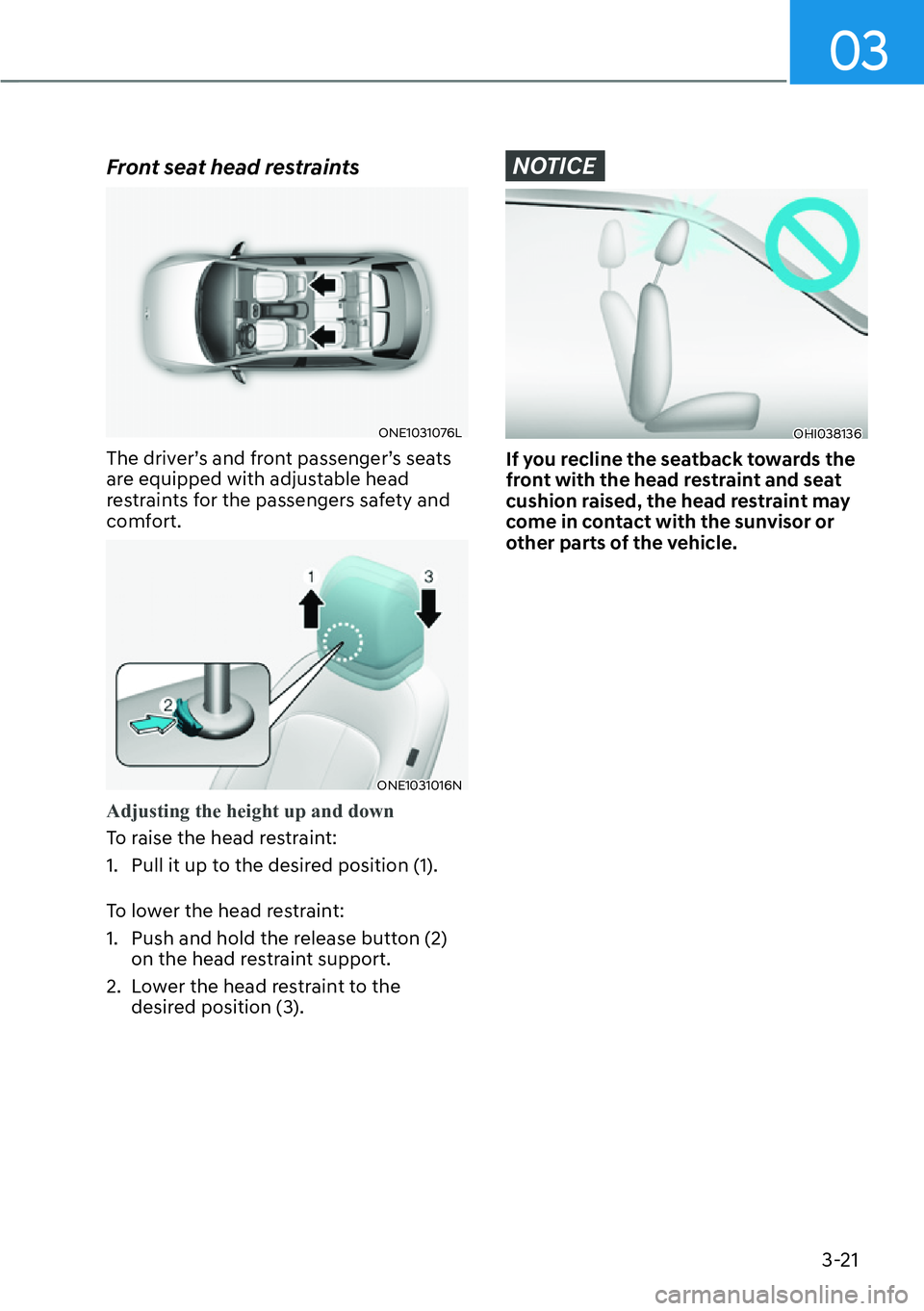

Front seat head restraints
ONE1031076L
The driver’s and front passenger’s seats
are equipped with adjustable head
restraints for the passengers safety and
comfort.
ONE1031016N
Adjusting the height up and down
To raise the head restraint:
1. Pull it up to the desired position (1).
To lower the head restraint:
1. Push and hold the release button (2)
on the head restraint support.
2. Lower the head restraint to the
desired position (3).
NOTICE
OHI038136
If you recline the seatback towards the
front with the head restraint and seat
cushion raised, the head restraint may
come in contact with the sunvisor or
other parts of the vehicle.

Seats & Safety System
3-22

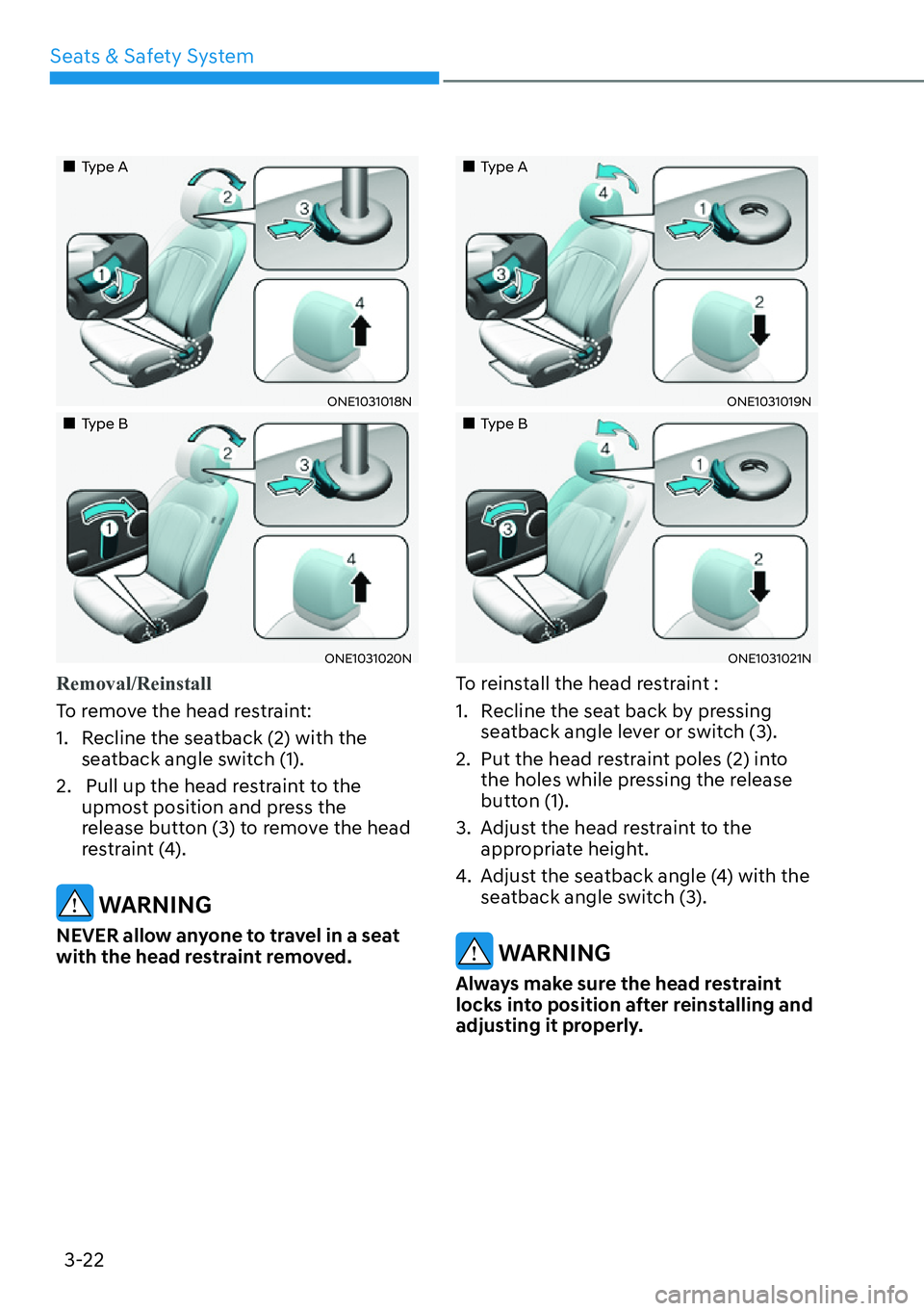

„Type A
ONE1031018N
„Type B
ONE1031020N
Removal/Reinstall
To remove the head restraint:
1. Recline the seatback (2) with the
seatback angle switch (1).
2. Pull up the head restraint to the
upmost position and press the
release button (3) to remove the head
restraint (4).
WARNING
NEVER allow anyone to travel in a seat
with the head restraint removed.
„Type A
ONE1031019N
„Type B
ONE1031021N
To reinstall the head restraint :
1. Recline the seat back by pressing
seatback angle lever or switch (3).
2. Put the head restraint poles (2) into
the holes while pressing the release
button (1).
3. Adjust the head restraint to the
appropriate height.
4. Adjust the seatback angle (4) with the
seatback angle switch (3).
WARNING
Always make sure the head restraint
locks into position after reinstalling and
adjusting it properly.

03
3-23

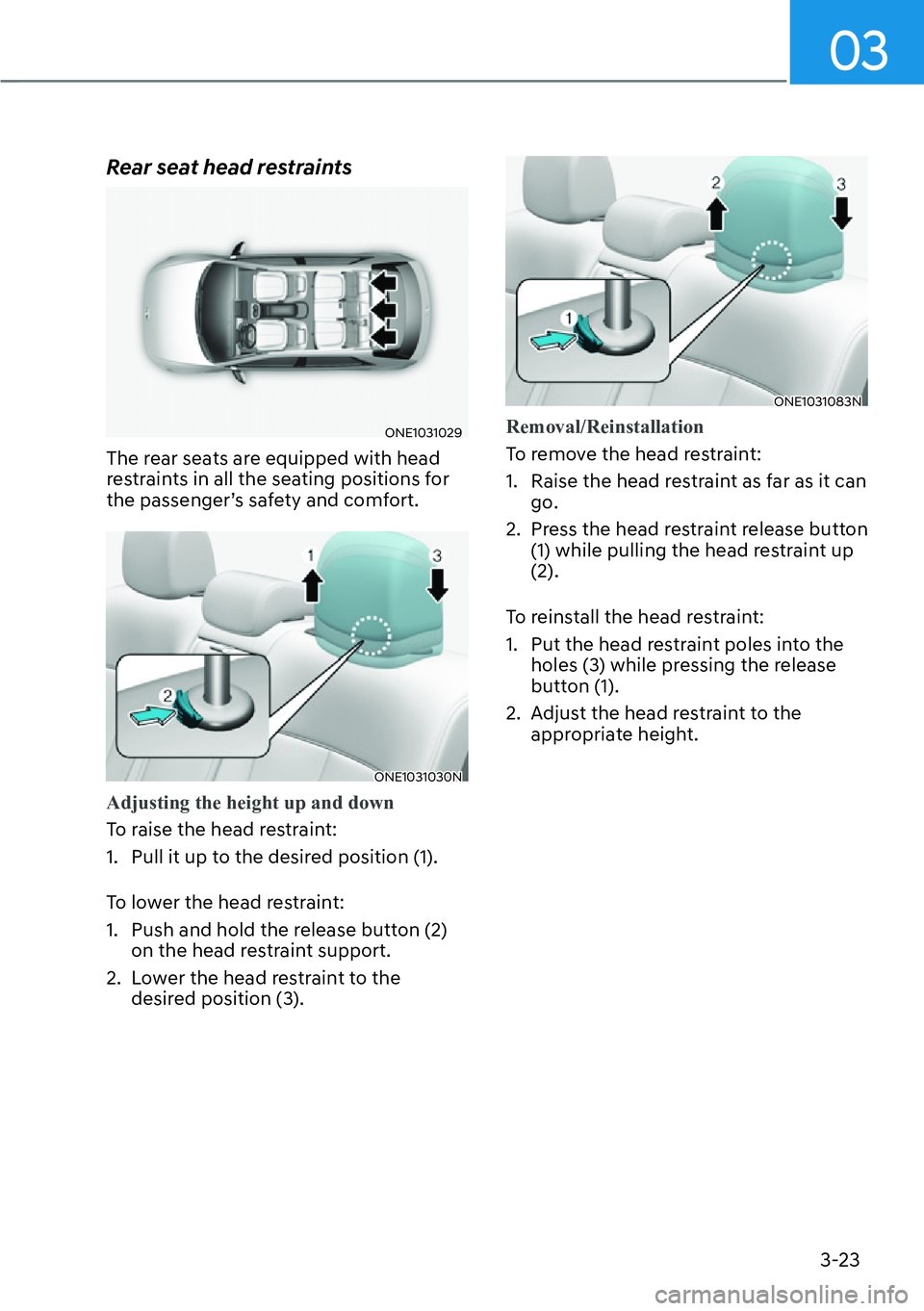

Rear seat head restraints
ONE1031029
The rear seats are equipped with head
restraints in all the seating positions for
the passenger’s safety and comfort.
ONE1031030N
Adjusting the height up and down
To raise the head restraint:
1. Pull it up to the desired position (1).
To lower the head restraint:
1. Push and hold the release button (2)
on the head restraint support.
2. Lower the head restraint to the
desired position (3).
ONE1031083N
Removal/Reinstallation
To remove the head restraint:
1. Raise the head restraint as far as it can
go.
2. Press the head restraint release button
(1) while pulling the head restraint up
(2).
To reinstall the head restraint:
1. Put the head restraint poles into the
holes (3) while pressing the release
button (1).
2. Adjust the head restraint to the
appropriate height.
