HYUNDAI IONIQ 5 2022 Manual PDF

2

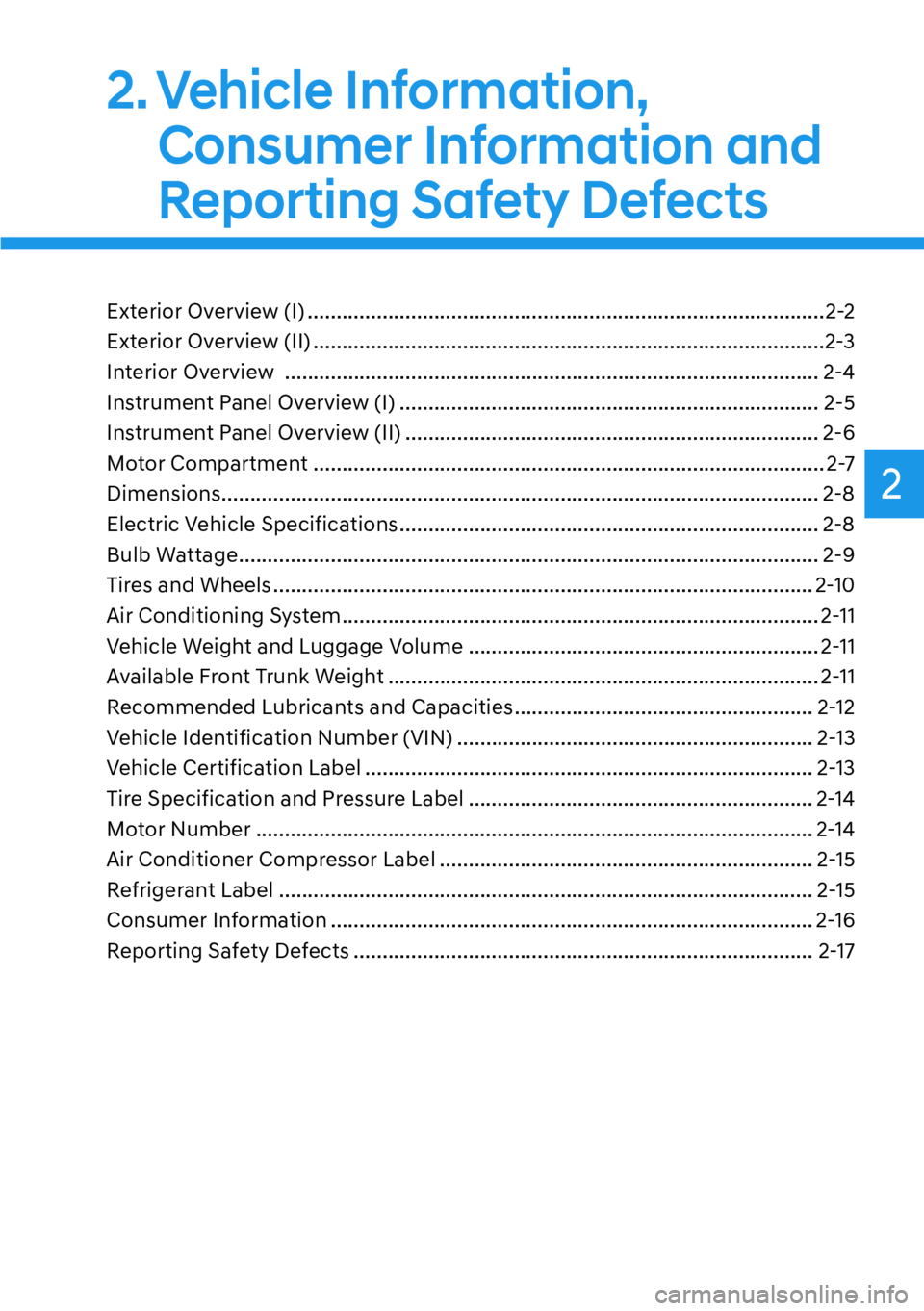

2. Vehicle Information,
Consumer Information and
Reporting Safety Defects
Exterior Overview (I) ..........................................................................................2-2
Exterior Overview (II) .........................................................................................2-3
Interior Overview ............................................................................................. 2-4
Instrument Panel Overview (I) ......................................................................... 2-5
Instrument Panel Overview (II) ........................................................................ 2-6
Motor Compartment ......................................................................................... 2-7
Dimensions ........................................................................................................ 2-8
Electric Vehicle Specifications ......................................................................... 2-8
Bulb Wattage ..................................................................................................... 2-9
Tires and Wheels .............................................................................................. 2-10
Air Conditioning System ................................................................................... 2-11
Vehicle Weight and Luggage Volume ............................................................. 2-11
Available Front Trunk Weight ........................................................................... 2-11
Recommended Lubricants and Capacities .................................................... 2-12
Vehicle Identification Number (VIN) .............................................................. 2-13
Vehicle Certification Label .............................................................................. 2-13
Tire Specification and Pressure Label ............................................................ 2-14
Motor Number ................................................................................................. 2-14
Air Conditioner Compressor Label ................................................................. 2-15
Refrigerant Label ............................................................................................. 2-15
Consumer Information .................................................................................... 2-16
Reporting Safety Defects ................................................................................ 2-17

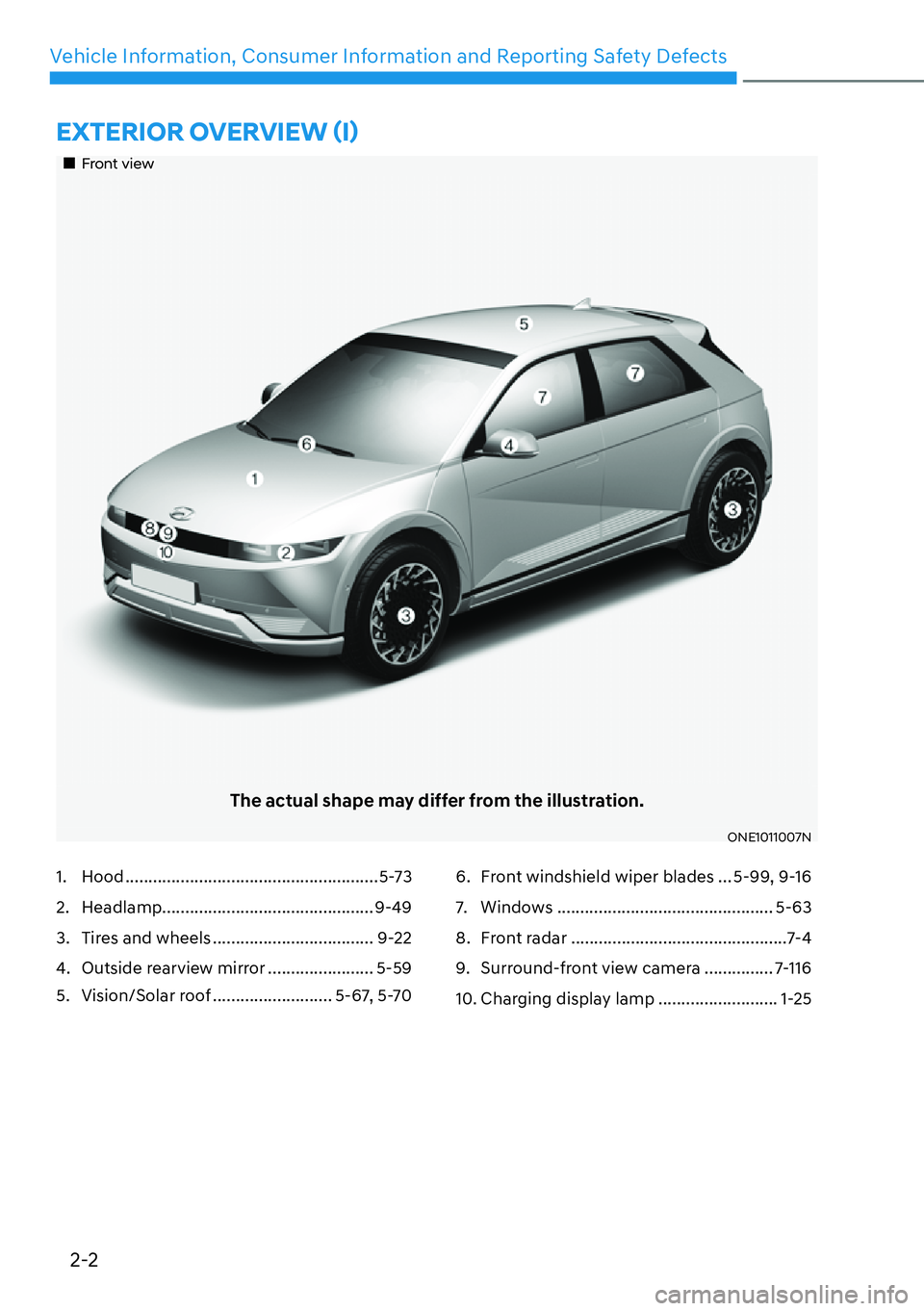

2-2
Vehicle Information, Consumer Information and Reporting Safety Defects
(;7(5,2529(59,(:

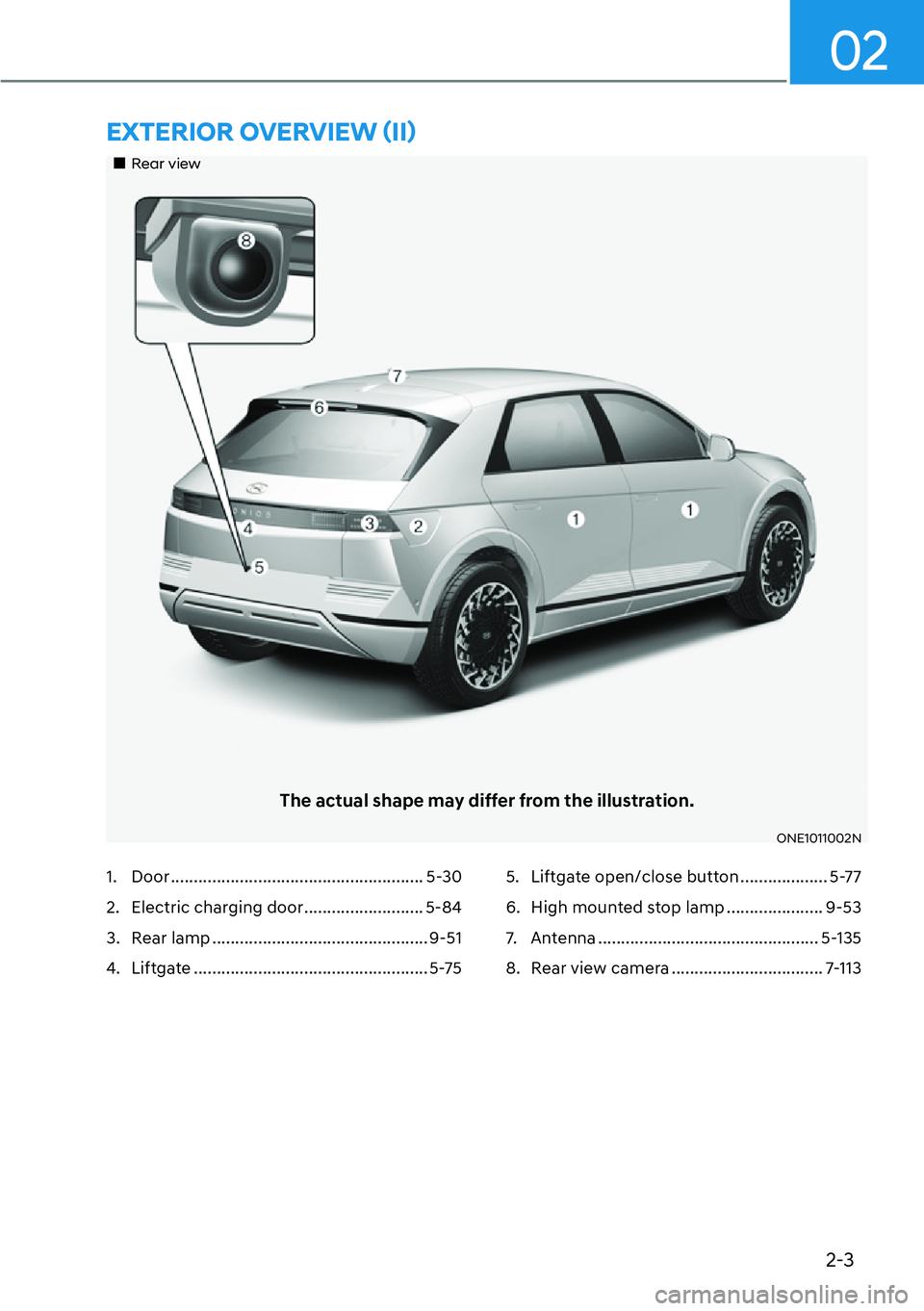

2-3
02
„Rear view
The actual shape may differ from the illustration.
ONE1011002N
(;7(5,2529(59,(:

2-4
Vehicle Information, Consumer Information and Reporting Safety Defects
The actual shape may differ from the illustration.
ONE1011003N
1. Inside door handle ................................ 5-34
2. Integrated memory system ................. 5-40
3. Side view mirror control switch ........... 5-60
4. Side view mirror folding button........... 5-60
5. Central door lock switch ...................... 5-34
6. Power window switches ...................... 5-63
7. Power window lock button / ............... 5-65
Electronic child safety lock button .......5-37
8. Instrument panel illumination ............... 4-59. ESC (Electronic Stability Control) OFF
button .................................................... 6-37
10. Power liftgate open/close button ........5-78
11. AUTO Hold button ................................ 6-32
12. EPB (Electronic Parking Brake)
switch .....................................................6-27
13. Hood release lever .................................5-73
14. Steering wheel tilt/telescopic lever .... 5-45
15. Steering wheel ...................................... 5-44
16. Seat .......................................................... 3-3
17. Cluster fascia side panel ..................... 5-130
INTERIOR OVERVIEW

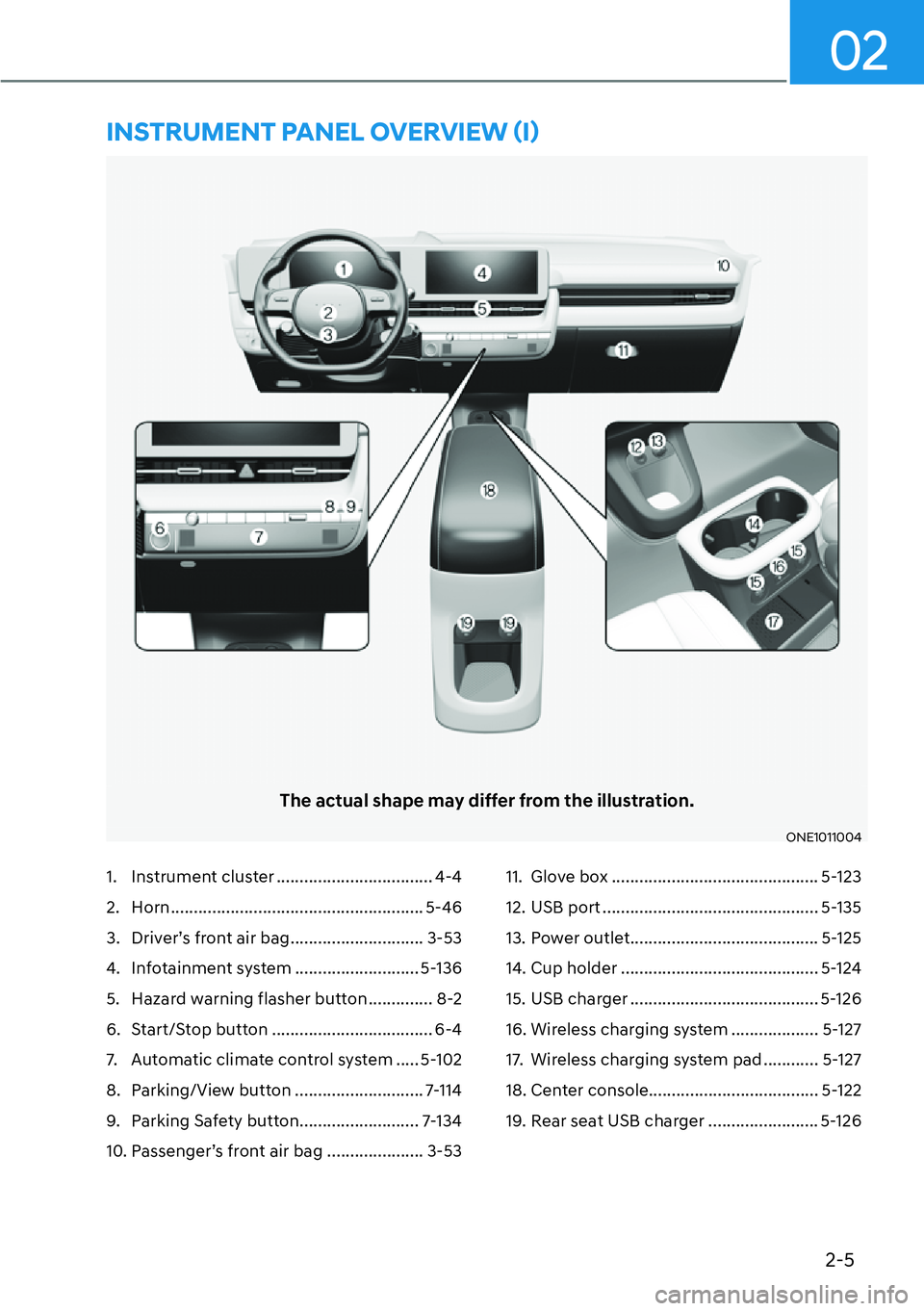

2-5
02
1. Instrument cluster .................................. 4-4
2. Horn ....................................................... 5-46
3. Driver’s front air bag ............................. 3-53
4. Infotainment system ........................... 5-136
5. Hazard warning flasher button .............. 8-2
6. Start/Stop button ................................... 6-4
7. Automatic climate control system ..... 5-102
8. Parking/View button ............................ 7-114
9. Parking Safety button .......................... 7-134
10. Passenger’s front air bag ..................... 3-5311. Glove box ............................................. 5-123
12. USB port ............................................... 5-135
13. Power outlet ......................................... 5-125
14. Cup holder ........................................... 5-124
15. USB charger ......................................... 5-126
16. Wireless charging system ................... 5-127
17. Wireless charging system pad ............ 5-127
18. Center console..................................... 5-122
19. Rear seat USB charger ........................ 5-126
The actual shape may differ from the illustration.
ONE1011004
,167580(173$1(/29(59,(:

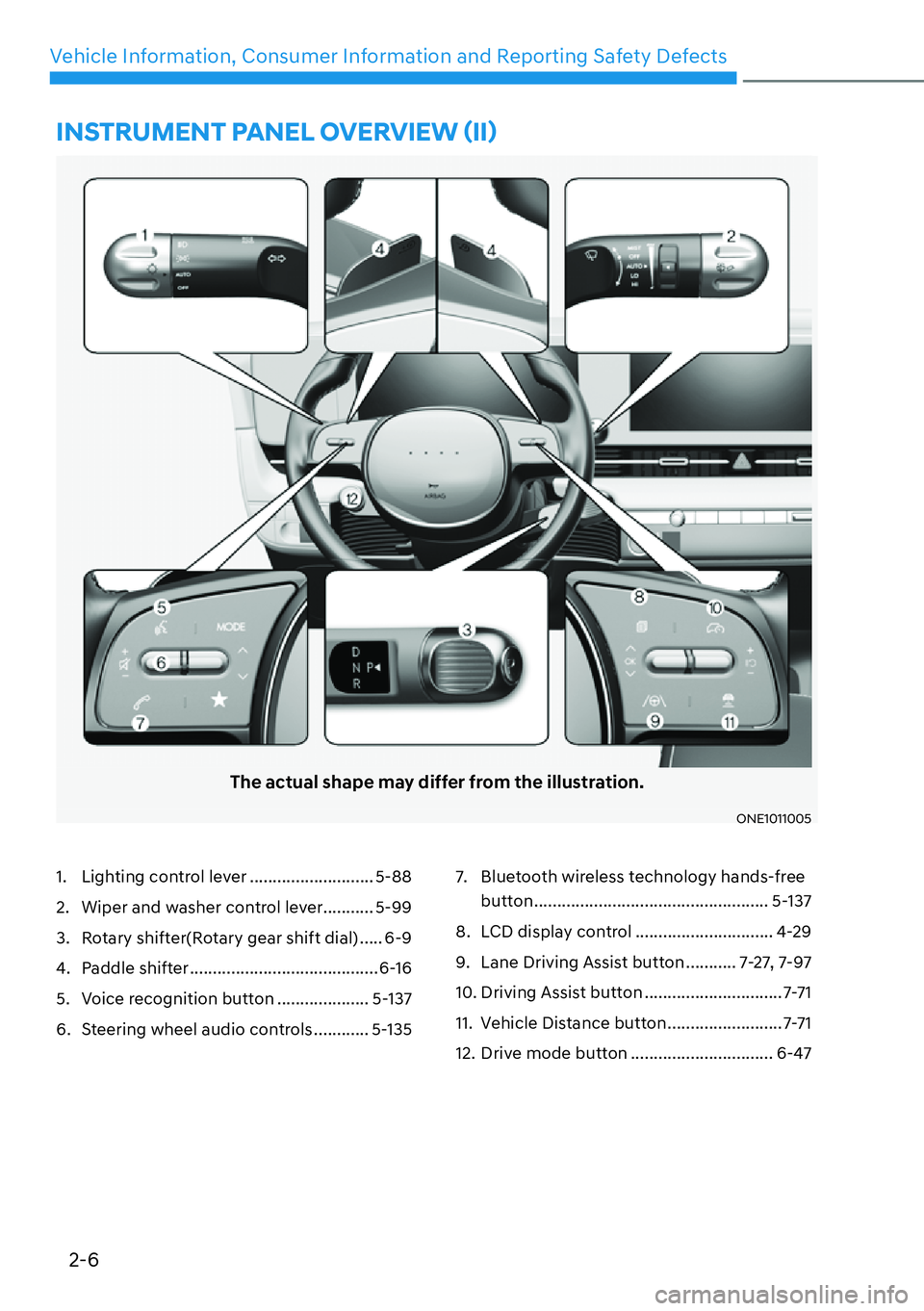

2-6
Vehicle Information, Consumer Information and Reporting Safety Defects
,167580(173$1(/29(59,(:

2-7
02
The actual motor compartment in the vehicle may differ from the illustration.
ONE1091001
1. Coolant reservoir ................................... 9-12
2. Low Conductivity Water (LCW) ........... 9-12
Conductivity Water (LCW) coolant
reservoir ................................................. 9-12
3. Brake fluid reservoir .............................. 9-13
4. Windshield washer fluid reservoir ........ 9-145. Fuse box ................................................ 9-36
6. Cabin air filter ........................................ 9-15
7. Front trunk ............................................. 5-74
8. Battery (12 volt) ...................................... 9-19
MOTOR COMPARTMENT

Vehicle Information, Consumer Information and Reporting Safety Defects
2-8
Items in (mm)
Overall length 182.48 (4,635)
Overall width 74.41 (1,890)
Overall height 63.0 (1,600) / 64.65 (1,642)*
TreadTire size Front Rear
19 in 64.49 (1,638) 64.84 (1,647)
20 in 64.09 (1,628) 64.49 (1,637)
Wheelbase 118.11 (3,000)
* : When measuring based on the shark fin antenna
ELECTRIC VEHICLE SPECIFICATIONS
ItemsStandard type Extended type
2WD AWD 2WD AWD
MotorMax. output (kW) 125 53+120 168 74+165
Max. torque (Nm) 350 255 + 350 350 255 + 350
Battery
(Lithium-ion)Capacity (kWh) 58 58 77.4 77.4
Power output (kW) 195 195 253 253
Voltage (V) 523 523 697 697
Charger (OBC) Max. output (kW) 10.5 kW 10.5 10.9 10.9
OBC : On-Board Battery Chargers
DIMENSIONS

02

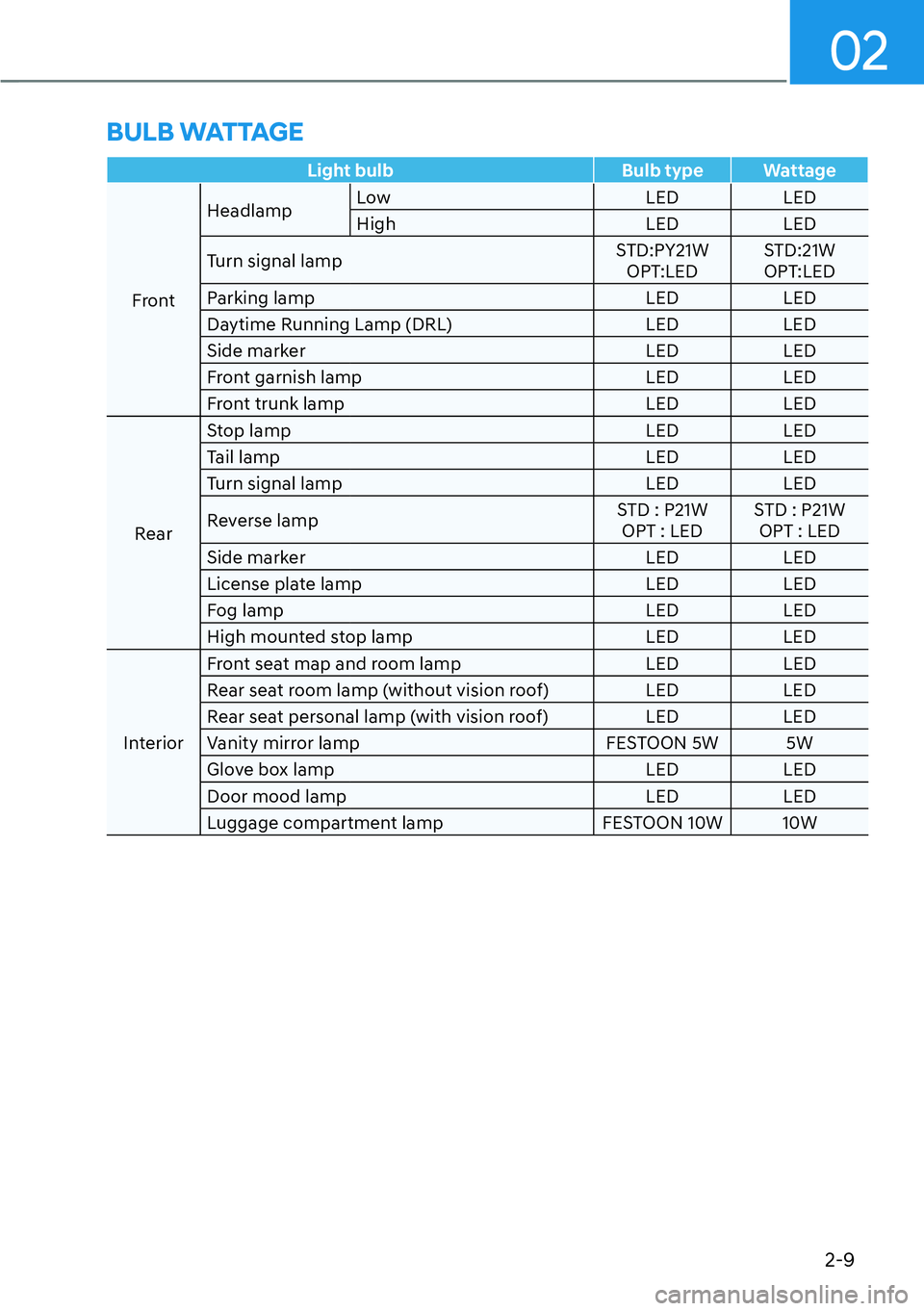

2-9
Light bulb Bulb type Wattage
FrontHeadlampLow LED LED
High LED LED
Turn signal lampSTD:PY21W
OPT:LEDSTD:21W
OPT:LED
Parking lamp LED LED
Daytime Running Lamp (DRL) LED LED
Side marker LED LED
Front garnish lamp LED LED
Front trunk lamp LED LED
RearStop lamp LED LED
Tail lamp LED LED
Turn signal lamp LED LED
Reverse lampSTD : P21W
OPT : LEDSTD : P21W
OPT : LED
Side marker LED LED
License plate lamp LED LED
Fog lamp LED LED
High mounted stop lamp LED LED
InteriorFront seat map and room lamp LED LED
Rear seat room lamp (without vision roof) LED LED
Rear seat personal lamp (with vision roof) LED LED
Vanity mirror lamp FESTOON 5W 5W
Glove box lamp LED LED
Door mood lamp LED LED
Luggage compartment lamp FESTOON 10W 10W
BULB WATTAGE

Vehicle Information, Consumer Information and Reporting Safety Defects
2-10
Items Tire sizeWheel
sizeBattery
typeInflation pressure psi (kPa)
Wheel lug nut
torque lbf-ft
(kgf-m, N-m) Normal loadMaximum
load
Front Rear Front Rear
Full size
tire
235/55R 19 7.5J X 192WD
Standard36
(250)36
(250)36
(250)36
(250)
79~94
(11~13, 108~127)235/55R 19 7.5J X 192WD
Extended38
(260)38
(260)38
(260)38
(260)
235/55R 19 7.5J X 19AWD
Extended36
(250)36
(250)36
(250)36
(250)
255/45R20 8.5J X 20AWD
Extended34
(235)34
(235)34
(235)34
(235)
NOTICE

[Ambient temperature affects the tire pressure (about 1 psi (7 kPa) for every
12°F (7°C) change). If colder temperatures are anticipated, it is permissible to
increase cold tire inflation pressure by up to 3 psi (20 kPa) over the specification.
If extreme temperature changes are expected, be sure to check and adjust tire
pressure accordingly.

[Tire inflation pressure decreases with higher elevation, and increases with lower
elevation (about 2.4 psi (10 kPa) for every mile (or kilometer) elevation change).
Be sure to check and adjust tire pressure accordingly when driving through
changing elevations.

[Do not exceed the maximum inflation pressure, as found on the sidewall of the
tire(s).
CAUTION
When replacing tires, ALWAYS use the same size, type, brand, construction and
tread pattern supplied with the vehicle. If not, it can damage the related parts or
make it work irregularly.
TIRES AND WHEELS
