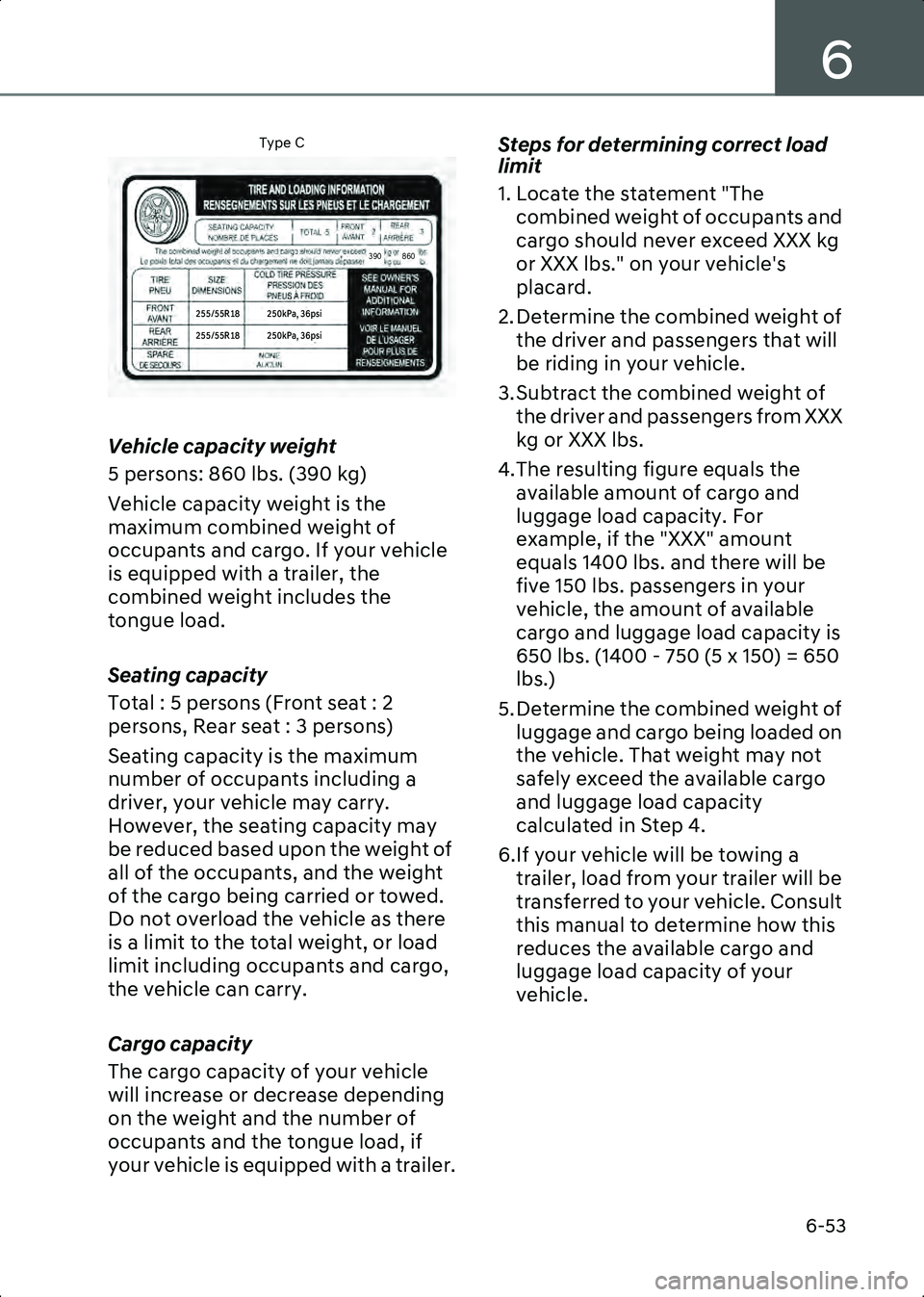

HYUNDAI IONIQ 6 2023 Owners Manual

6
6-53
Type C
ONE1061058N
Vehicle capacity weight
5 persons: 860 lbs. (390 kg)
Vehicle capacity weight is the
maximum combined weight of
occupants and cargo. If your vehicle
is equipped with a trailer, the
combined weight includes the
tongue load.
Seating capacity
Total : 5 persons (Front seat : 2
persons, Rear seat : 3 persons)
Seating capacity is the maximum
number of occupants including a
driver, your vehicle may carry.
However, the seating capacity may
be reduced based upon the weight of
all of the occupants, and the weight
of the cargo being carried or towed.
Do not overload the vehicle as there
is a limit to the total weight, or load
limit including occupants and cargo,
the vehicle can carry.
Cargo capacity
The cargo capacity of your vehicle
will increase or decrease depending
on the weight and the number of
occupants and the tongue load, if
your vehicle is equipped with a trailer.Steps for determining correct load
limit
1. Locate the statement "The
combined weight of occupants and
cargo should never exceed XXX kg
or XXX lbs." on your vehicle's
placard.
2. Determine the combined weight of the driver and passengers that will
be riding in your vehicle.
3. Subtract the combined weight of the driver and passengers from XXX
kg or XXX lbs.
4.The resulting figure equals the available amount of cargo and
luggage load capacity. For
example, if the "XXX" amount
equals 1400 lbs. and there will be
five 150 lbs. passengers in your
vehicle, the amount of available
cargo and luggage load capacity is
650 lbs. (1400 - 750 (5 x 150) = 650
lbs.)
5. Determine the combined weight of luggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo
and luggage load capacity
calculated in Step 4.
6.If your vehicle will be towing a trailer, load from your trailer will be
transferred to your vehicle. Consult
this manual to determine how this
reduces the available cargo and
luggage load capacity of your
vehicle.

3
3 L1B

QTJ
L1B

QTJ
Hyundai_CE_en_US.book Page 53

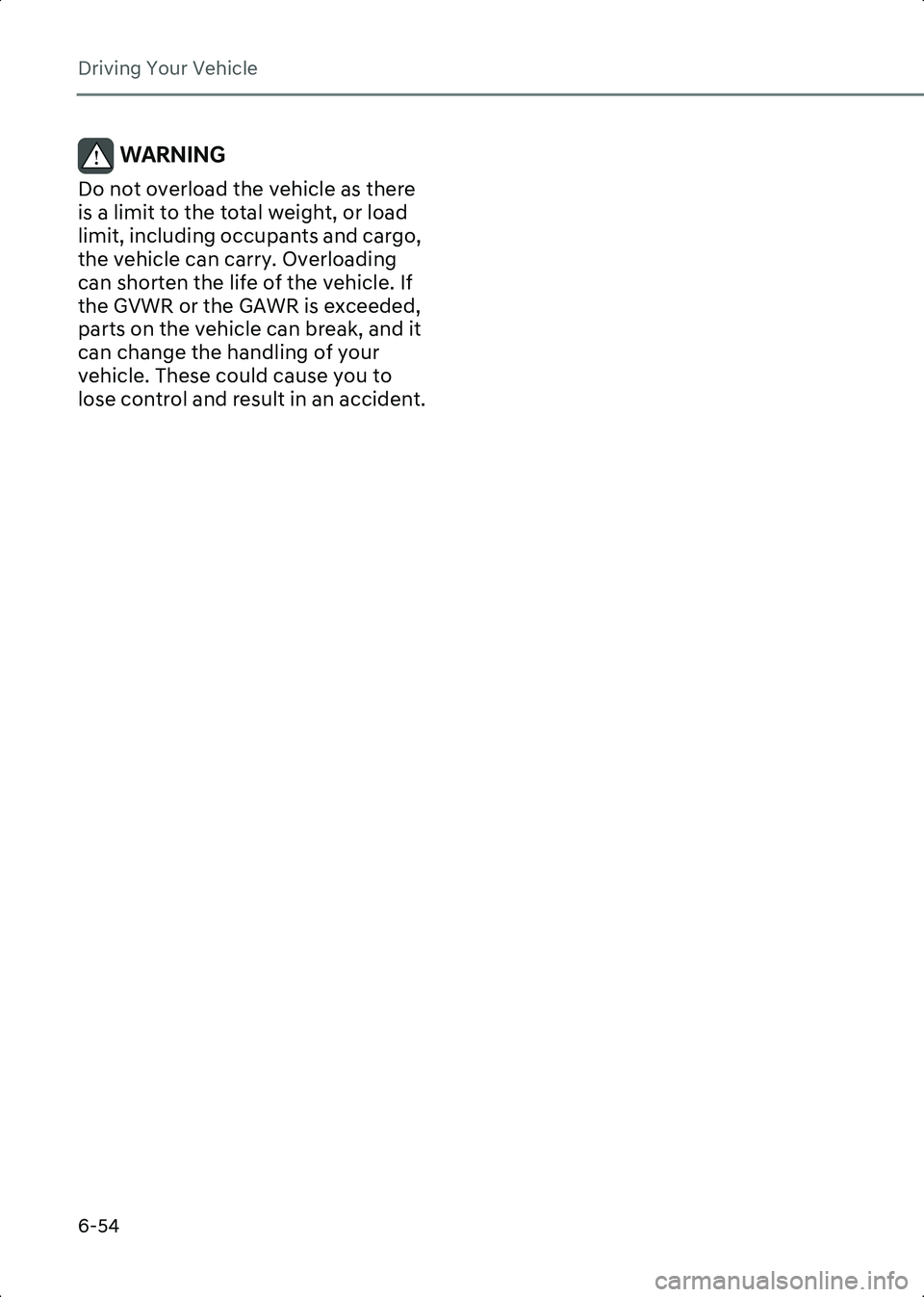

Driving Your Vehicle
6-54
WARNING Do not overload the vehicle as there
is a limit to the total weight, or load
limit, including occupants and cargo,
the vehicle can carry. Overloading
can shorten the life of the vehicle. If
the GVWR or the GAWR is exceeded,
parts on the vehicle can break, and it
can change the handling of your
vehicle. These could cause you to
lose control and result in an accident.

Hyundai_CE_en_US.book Page 54

6
6-55

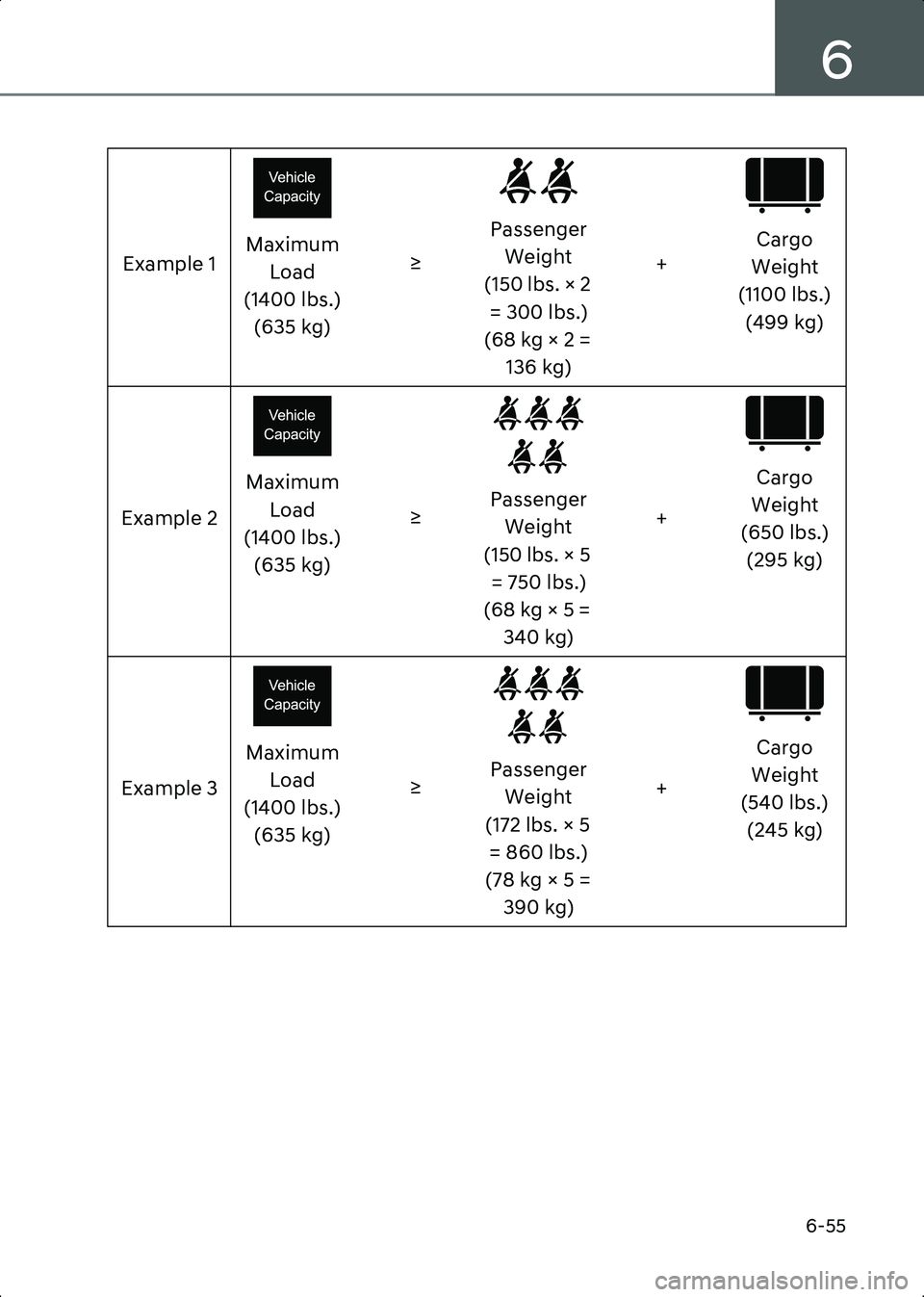

Example 1Maximum
Load
(1400 lbs.) (635 kg) ≥
Passenger
Weight
(150 lbs. × 2 = 300 lbs.)
(68 kg × 2 = 136 kg) +
Cargo
Weight
(1100 lbs.) (499 kg)
Example 2 Maximum
Load
(1400 lbs.) (635 kg) ≥
Passenger
Weight
(150 lbs. × 5 = 750 lbs.)
(68 kg × 5 = 340 kg) +
Cargo
Weight
(650 lbs.) (295 kg)
Example 3 Maximum
Load
(1400 lbs.) (635 kg) ≥
Passenger
Weight
(172 lbs. × 5 = 860 lbs.)
(78 kg × 5 = 390 kg) +
Cargo
Weight
(540 lbs.) (245 kg)
Hyundai_CE_en_US.book Page 55

Driving Your Vehicle
6-56

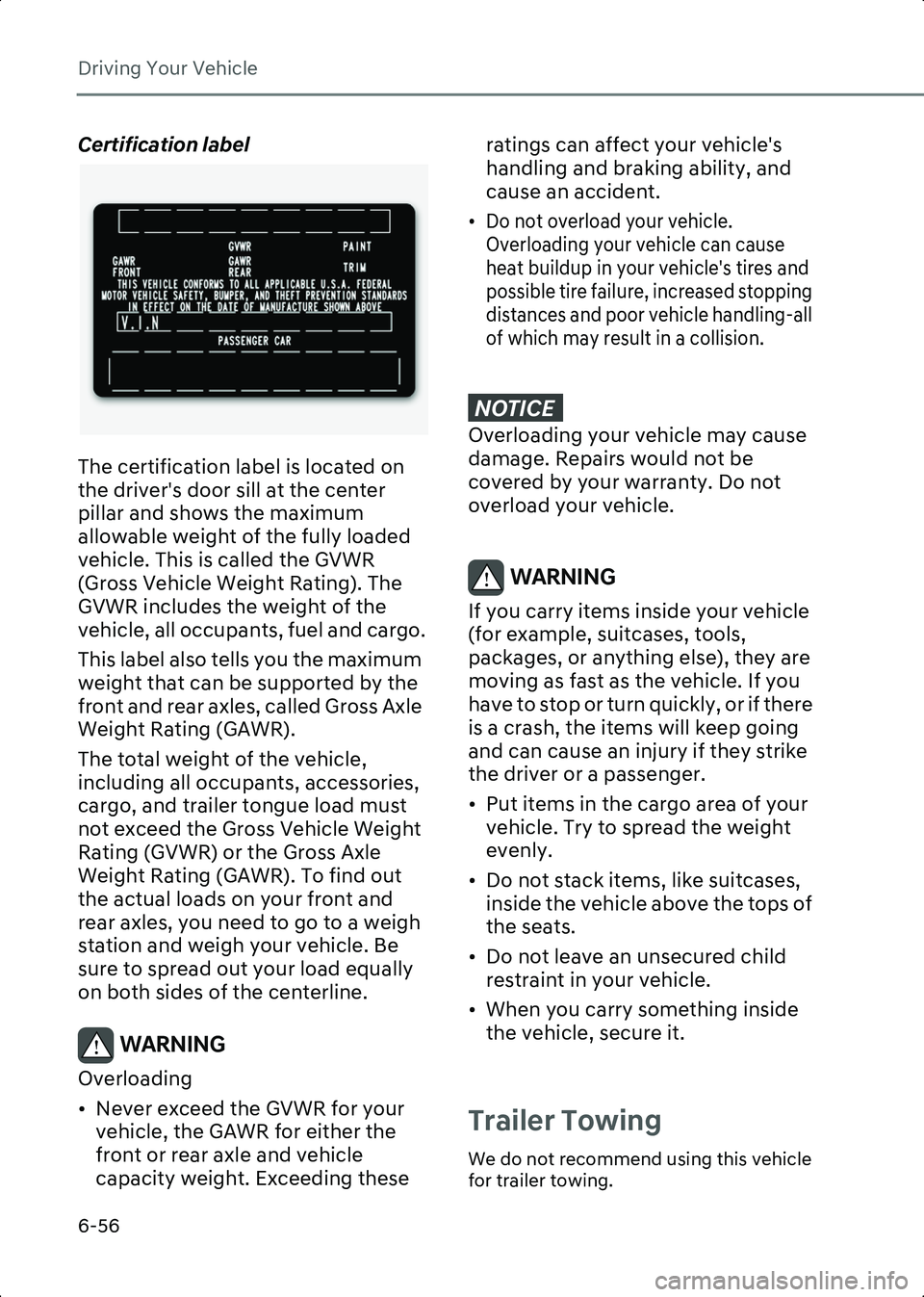

Certification label
OBH059070
The certification label is located on
the driver's door sill at the center
pillar and shows the maximum
allowable weight of the fully loaded
vehicle. This is called the GVWR
(Gross Vehicle Weight Rating). The
GVWR includes the weight of the
vehicle, all occupants, fuel and cargo.
This label also tells you the maximum
weight that can be supported by the
front and rear axles, called Gross Axle
Weight Rating (GAWR).
The total weight of the vehicle,
including all occupants, accessories,
cargo, and trailer tongue load must
not exceed the Gross Vehicle Weight
Rating (GVWR) or the Gross Axle
Weight Rating (GAWR). To find out
the actual loads on your front and
rear axles, you need to go to a weigh
station and weigh your vehicle. Be
sure to spread out your load equally
on both sides of the centerline.
WARNING Overloading
• Never exceed the GVWR for your vehicle, the GAWR for either the
front or rear axle and vehicle
capacity weight. Exceeding these ratings can affect your vehicle's
handling and braking ability, and
cause an accident.

• Do not overload your vehicle. Overloading your vehicle can cause
heat buildup in your vehicle's tires and
possible tire failure, increased stopping
distances and poor vehicle handling-all
of which may result in a collision.


NOTICE2YHUORDGLQJ\RXUYHKLFOHPD\FDXVH
GDPDJH5HSDLUVZRXOGQRWEH
FRYHUHGE\\RXUZDUUDQW\'RQRW
RYHUORDG\RXUYHKLFOH

WARNING If you carry items inside your vehicle
(for example, suitcases, tools,
packages, or anything else), they are
moving as fast as the vehicle. If you
have to stop or turn quickly, or if there
is a crash, the items will keep going
and can cause an injury if they strike
the driver or a passenger.
• Put items in the cargo area of your vehicle. Try to spread the weight
evenly.
• Do not stack items, like suitcases, inside the vehicle above the tops of
the seats.
• Do not leave an unsecured child restraint in your vehicle.
• When you carry something inside the vehicle, secure it.

Trailer Towing
We do not recommend using this vehicle
for trailer towing.
Hyundai_CE_en_US.book Page 56

7
7. Driver Assistance System
Driver Assistance System Notice ................................................................................... 7-4Forward Collision-Avoidance Assist (FCA) .................................................................... 7-4 Forward Collision-Avoidance Assist Settings ............................................................ 7-8
Forward Collision-Avoidance Assist Operation .........................................................7-11
Forward Collision-Avoidance Assist Malfunction and Limitations......................... 7-20
Lane Keeping Assist (LKA)..............................................................................................7-27 Lane Keeping Assist Settings .................................................................................... 7-28
Lane Keeping Assist Operation ................................................................................. 7-29
Lane Keeping Assist Malfunction and Limitations ................................................... 7-31
Blind-Spot Collision-Avoidance Assist (BCA) .............................................................. 7-33 Blind-Spot Collision-Avoidance Assist settings....................................................... 7-35
Blind-Spot Collision-Avoidance Assist Operation ................................................... 7-36
Blind-Spot Collision-Avoidance Assist Malfunction and Limitations..................... 7-38
Safe Exit Warning (SEW) ............................................................................................... 7-43 Safe Exit Warning Settings ........................................................................................ 7-43
Safe Exit Warning Operation ..................................................................................... 7-44
Safe Exit Warning Malfunction and Limitations ...................................................... 7-45
Manual Speed Limit Assist (MSLA) ............................................................................... 7-47 Manual Speed Limit Assist Operation ...................................................................... 7-47
Intelligent Speed Limit Assist (ISLA) ............................................................................ 7-49 Intelligent Speed Limit Assist Settings ..................................................................... 7-49
Intelligent Speed Limit Assist Operation .................................................................. 7-50
Intelligent Speed Limit Assist Malfunction and Limitations ................................... 7-52
Driver Attention Warning (DAW) .................................................................................. 7-54 Driver Attention Warning Settings............................................................................ 7-55
Driver Attention Warning Operation......................................................................... 7-55
Driver Attention Warning Malfunction and Limitations .......................................... 7-56
Blind-Spot View Monitor (BVM) ................................................................................... 7-59 Blind-Spot View Monitor Settings ............................................................................ 7-60
Blind-Spot View Monitor Operation ......................................................................... 7-60
Blind-Spot View Monitor Malfunction ...................................................................... 7-60
Smart Cruise Control (SCC) ...........................................................................................7-61 Smart Cruise Control Settings .................................................................................. 7-62
Smart Cruise Control Operation ............................................................................... 7-63
Smart Cruise Control Malfunction and Limitations .................................................. 7-71
Hyundai_CE_en_US.book Page 1

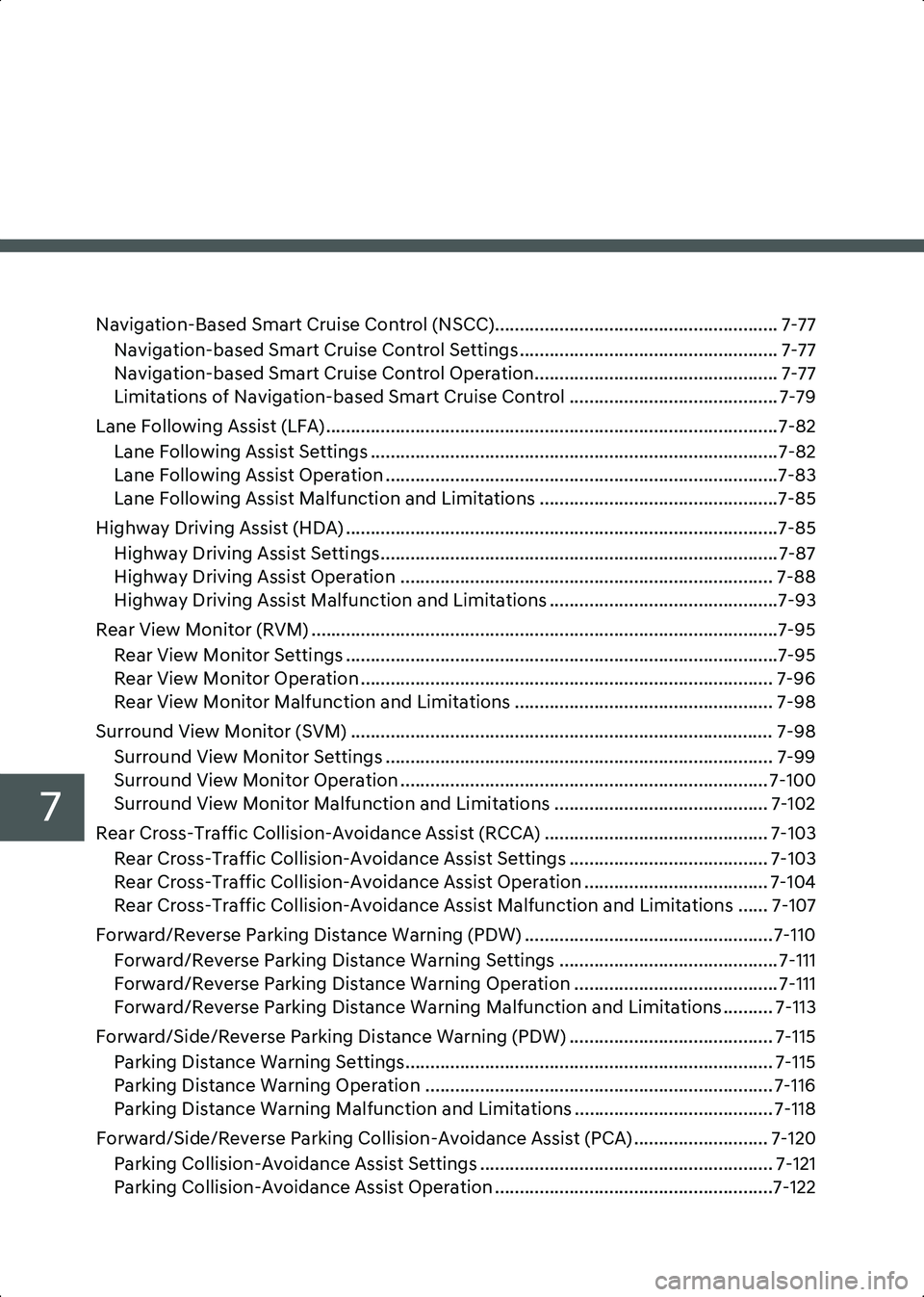

7
Navigation-Based Smart Cruise Control (NSCC)......................................................... 7-77Navigation-based Smart Cruise Control Settings .................................................... 7-77
Navigation-based Smart Cruise Control Operation................................................. 7-77
Limitations of Navigation-based Smart Cruise Control .......................................... 7-79
Lane Following Assist (LFA)........................................................................................... 7-82 Lane Following Assist Settings .................................................................................. 7-82
Lane Following Assist Operation ...............................................................................7-83
Lane Following Assist Malfunction and Limitations ................................................7-85
Highway Driving Assist (HDA) .......................................................................................7-85 Highway Driving Assist Settings................................................................................ 7-87
Highway Driving Assist Operation ........................................................................... 7-88Highway Driving Assist Malfunction and Limitations .............................................. 7-93
Rear View Monitor (RVM) ..............................................................................................7-95 Rear View Monitor Settings ....................................................................................... 7-95
Rear View Monitor Operation ................................................................................... 7-96
Rear View Monitor Malfunction and Limitations .................................................... 7-98
Surround View Monitor (SVM) ..................................................................................... 7-98 Surround View Monitor Settings .............................................................................. 7-99
Surround View Monitor Operation .......................................................................... 7-100
Surround View Monitor Malfunction and Limitations ........................................... 7-102
Rear Cross-Traffic Collision-Avoidance Assist (RCCA) ............................................. 7-103 Rear Cross-Traffic Collision-Avoidance Assist Settings ........................................ 7-103
Rear Cross-Traffic Collision-Avoidance Assist Operation ..................................... 7-104
Rear Cross-Traffic Collision-Avoidance Assist Malfunction and Limitations ...... 7-107
Forward/Reverse Parking Distance Warning (PDW) .................................................. 7-110 Forward/Reverse Parking Distance Warning Settings ............................................ 7-111
Forward/Reverse Parking Distance Warning Operation ......................................... 7-111
Forward/Reverse Parking Distance Warning Malfunction and Limitations .......... 7-113
Forward/Side/Reverse Parking Distance Warning (PDW) ......................................... 7-115 Parking Distance Warning Settings.......................................................................... 7-115
Parking Distance Warning Operation ...................................................................... 7-116Parking Distance Warning Malfunction and Limitations ........................................ 7-118
Forward/Side/Reverse Parking Collision-Avoidance Assist (PCA) ........................... 7-120 Parking Collision-Avoidance Assist Settings ........................................................... 7-121
Parking Collision-Avoidance Assist Operation ........................................................7-122
Hyundai_CE_en_US.book Page 2

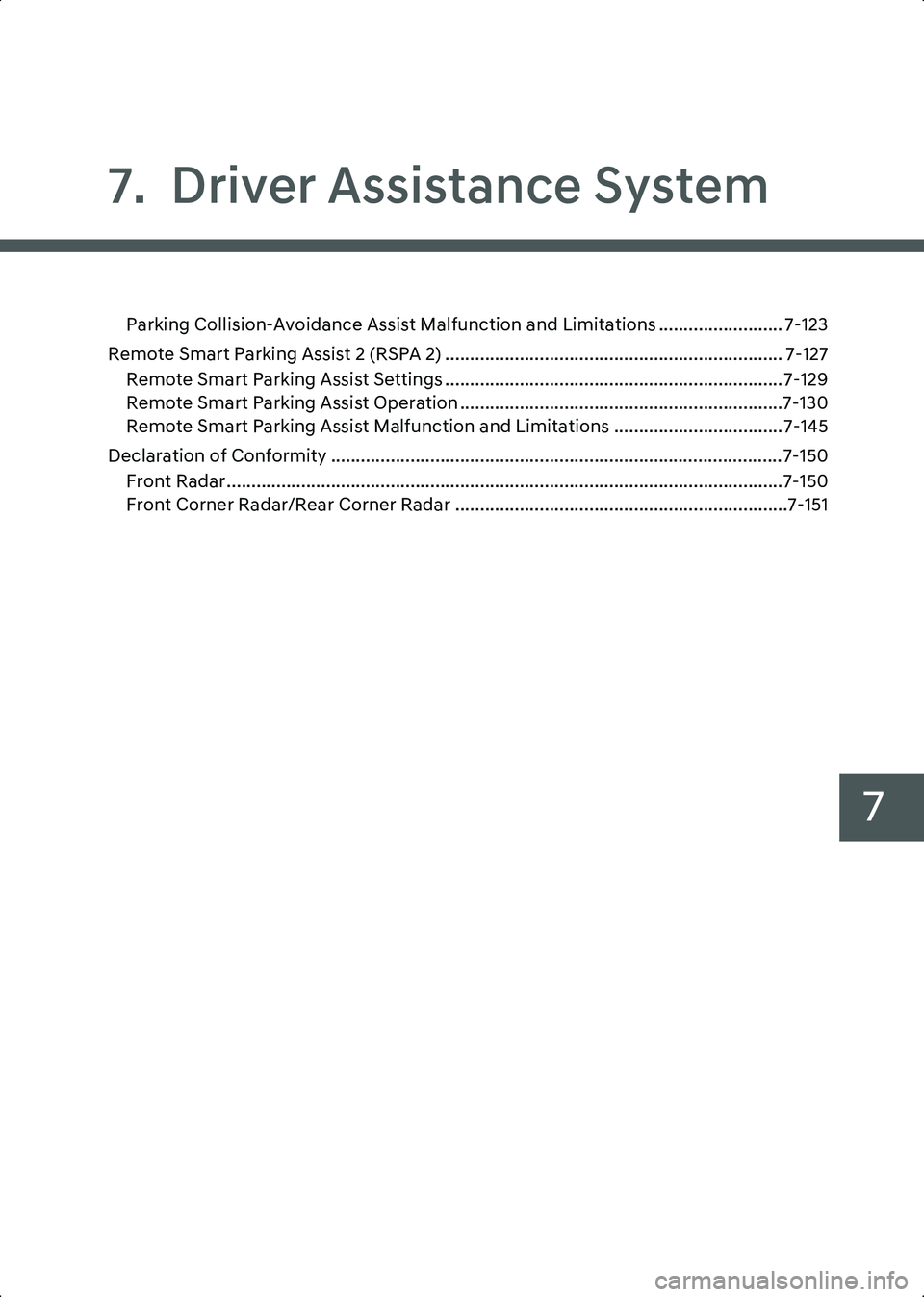

7
7. Driver Assistance System
Parking Collision-Avoidance Assist Malfunction and Limitations ......................... 7-123
Remote Smart Parking Assist 2 (RSPA 2) .................................................................... 7-127 Remote Smart Parking Assist Settings .................................................................... 7-129
Remote Smart Parking Assist Operation .................................................................7-130
Remote Smart Parking Assist Malfunction and Limitations .................................. 7-145
Declaration of Conformity ...........................................................................................7-150 Front Radar ................................................................................................................7-150
Front Corner Radar/Rear Corner Radar ...................................................................7-151
Hyundai_CE_en_US.book Page 3

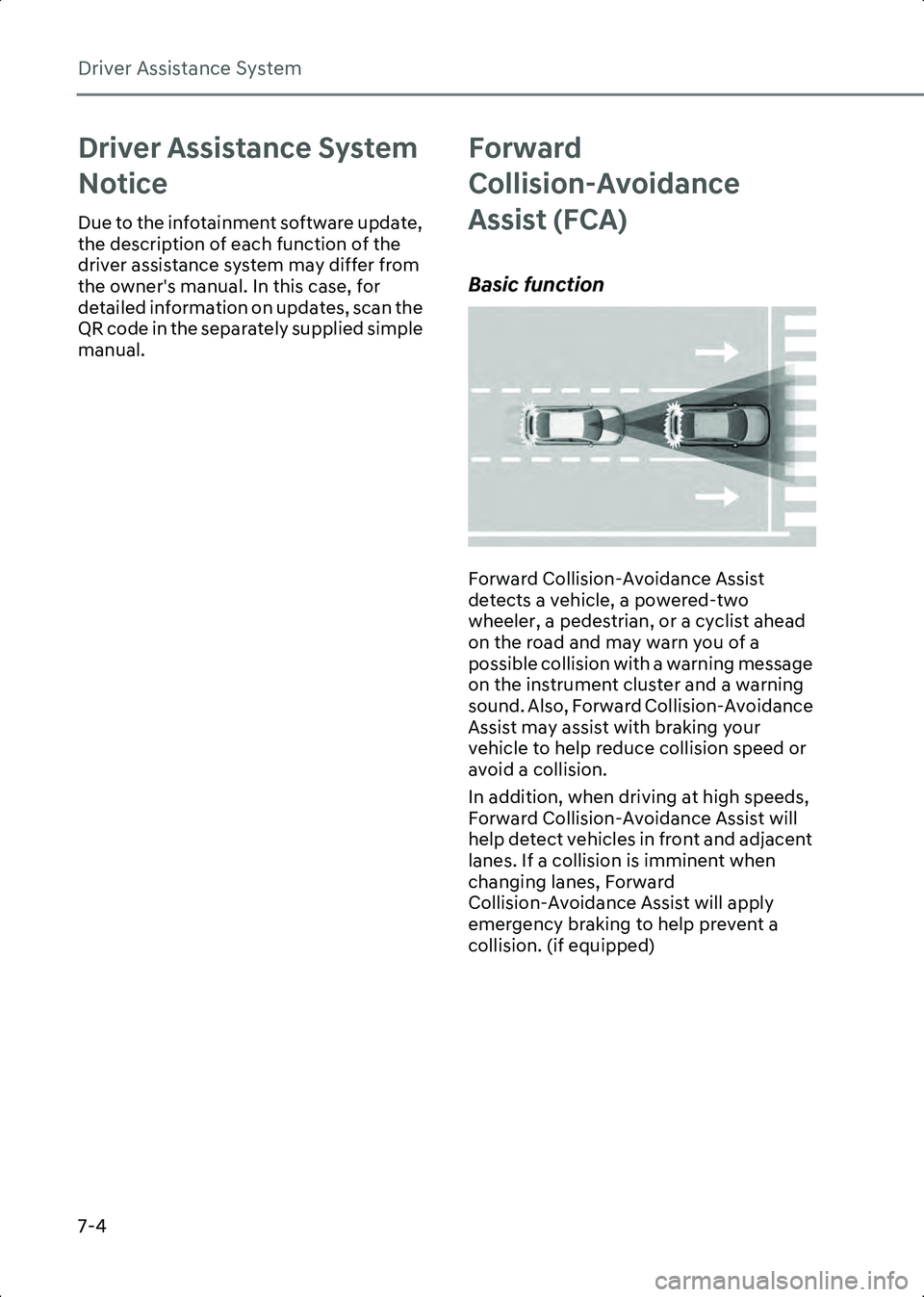

Driver Assistance System
7-4
Driver Assistance System
Notice
Due to the infotainment software update,
the description of each function of the
driver assistance system may differ from
the owner's manual. In this case, for
detailed information on updates, scan the
QR code in the separately supplied simple
manual.
Forward
Collision-Avoidance
Assist (FCA)
Basic function
B7000101
Forward Collision-Avoidance Assist
detects a vehicle, a powered-two
wheeler, a pedestrian, or a cyclist ahead
on the road and may warn you of a
possible collision with a warning message
on the instrument cluster and a warning
sound. Also, Forward Collision-Avoidance
Assist may assist with braking your
vehicle to help reduce collision speed or
avoid a collision.
In addition, when driving at high speeds,
Forward Collision-Avoidance Assist will
help detect vehicles in front and adjacent
lanes. If a collision is imminent when
changing lanes, Forward
Collision-Avoidance Assist will apply
emergency braking to help prevent a
collision. (if equipped)
Hyundai_CE_en_US.book Page 4

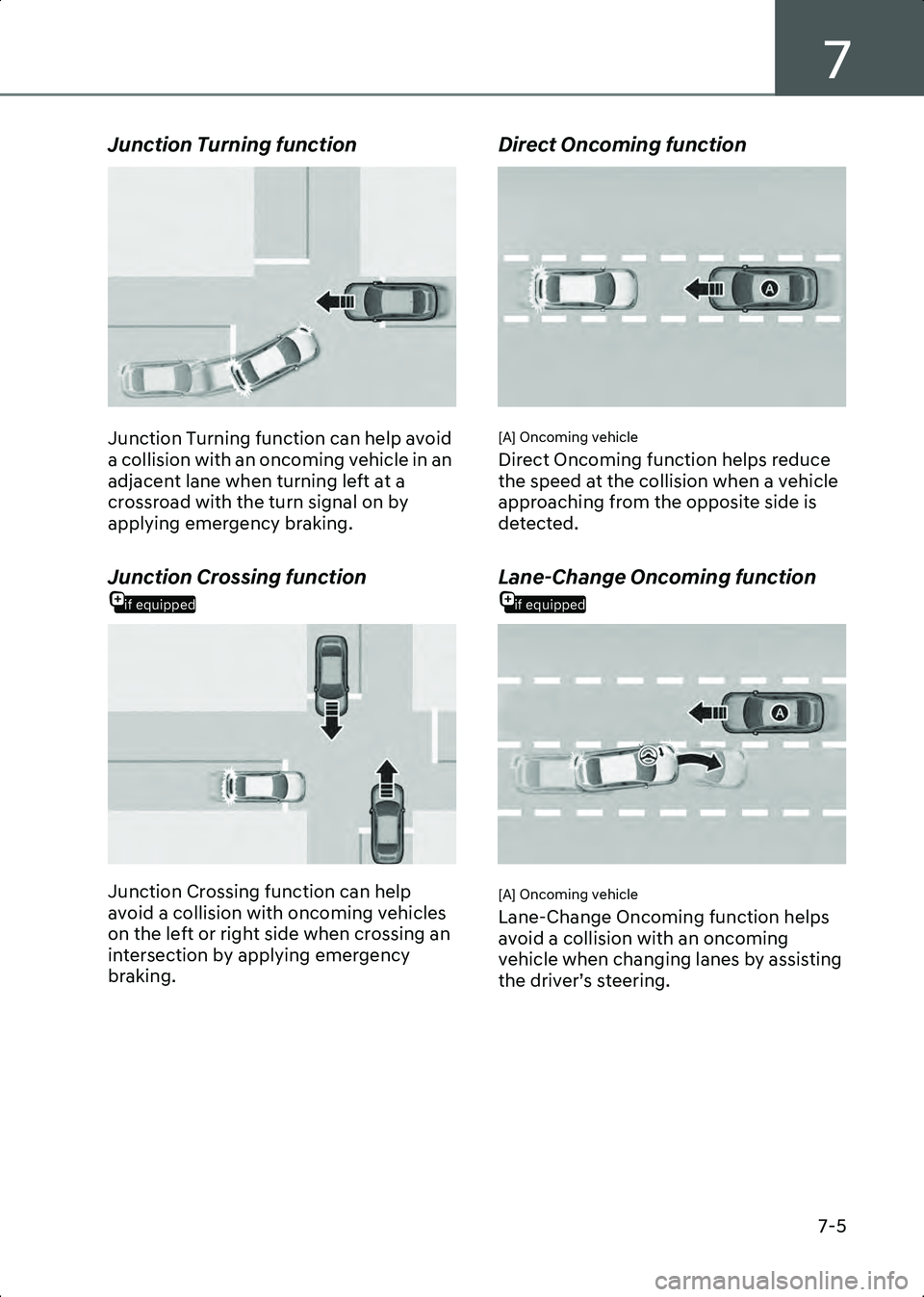

7
7-5
Junction Turning function
B7000102
Junction Turning function can help avoid
a collision with an oncoming vehicle in an
adjacent lane when turning left at a
crossroad with the turn signal on by
applying emergency braking.
if equipped
Junction Crossing function
B7000103
Junction Crossing function can help
avoid a collision with oncoming vehicles
on the left or right side when crossing an
intersection by applying emergency
braking.
Direct Oncoming function
B7000104
[A] Oncoming vehicle
Direct Oncoming function helps reduce
the speed at the collision when a vehicle
approaching from the opposite side is
detected.
if equipped
Lane-Change Oncoming function
B7000105
[A] Oncoming vehicle
Lane-Change Oncoming function helps
avoid a collision with an oncoming
vehicle when changing lanes by assisting
the driver’s steering.
Hyundai_CE_en_US.book Page 5

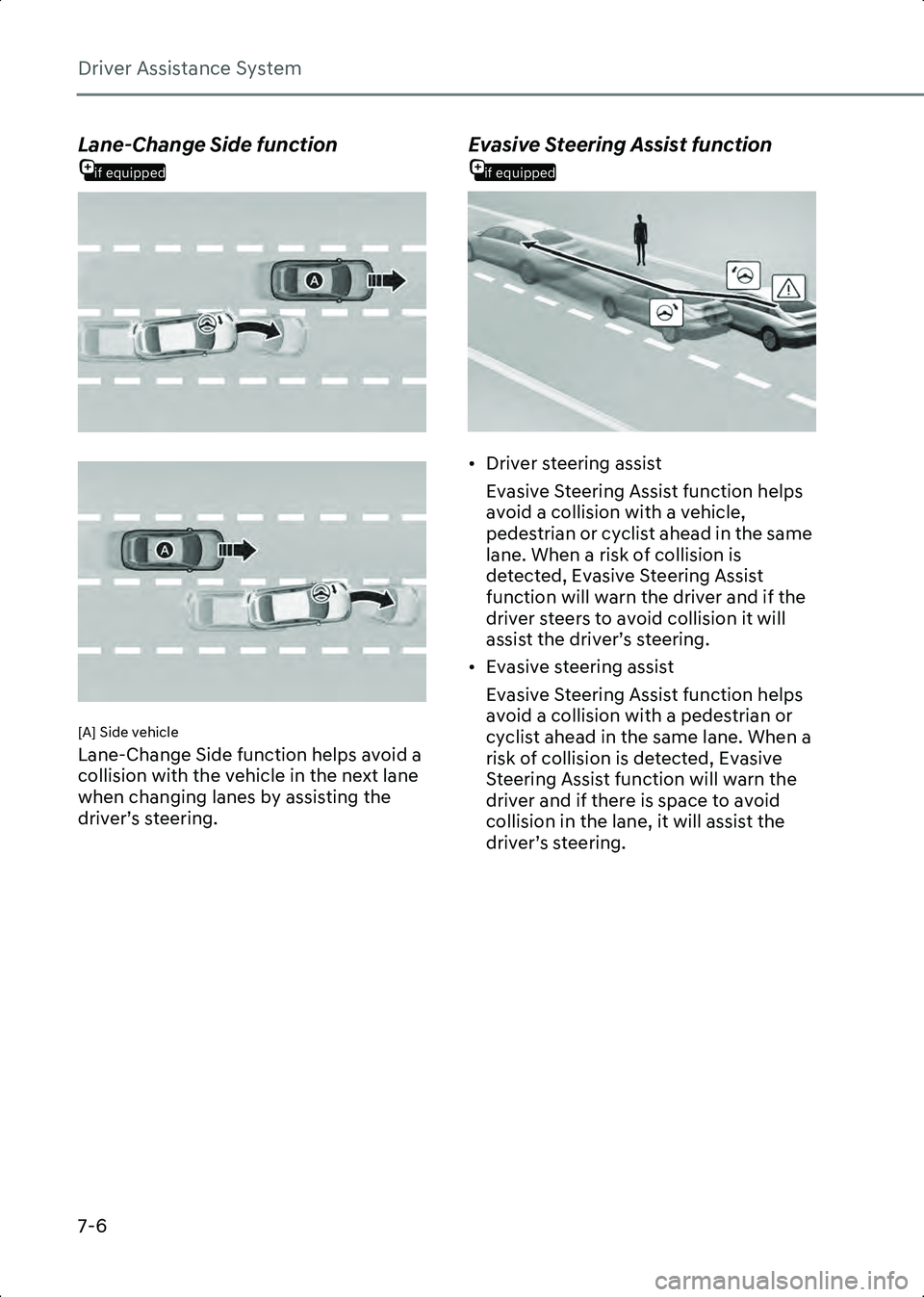

Driver Assistance System
7-6
if equipped
Lane-Change Side function
B7000106
B7000106_1
[A] Side vehicle
Lane-Change Side function helps avoid a
collision with the vehicle in the next lane
when changing lanes by assisting the
driver’s steering.
if equipped
Evasive Steering Assist function
B7000107
• Driver steering assistEvasive Steering Assist function helps
avoid a collision with a vehicle,
pedestrian or cyclist ahead in the same
lane. When a risk of collision is
detected, Evasive Steering Assist
function will warn the driver and if the
driver steers to avoid collision it will
assist the driver’s steering.
• Evasive steering assist Evasive Steering Assist function helps
avoid a collision with a pedestrian or
cyclist ahead in the same lane. When a
risk of collision is detected, Evasive
Steering Assist function will warn the
driver and if there is space to avoid
collision in the lane, it will assist the
driver’s steering.
Hyundai_CE_en_US.book Page 6
