HYUNDAI IONIQ 6 2023 Owners Manual
Manufacturer: HYUNDAI, Model Year: 2023, Model line: IONIQ 6, Model: HYUNDAI IONIQ 6 2023Pages: 582, PDF Size: 10.77 MB
Page 331 of 582
6
6-43

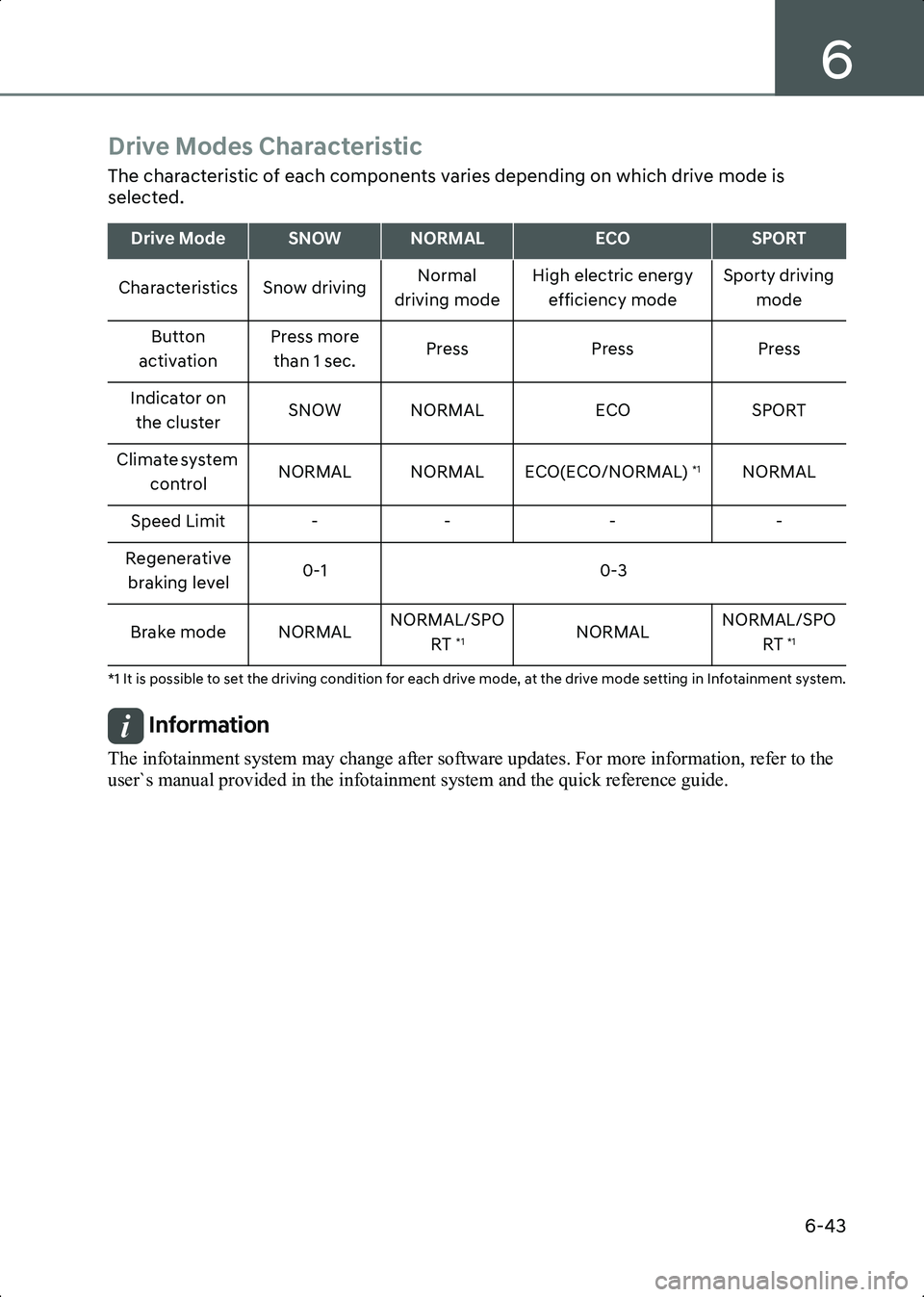

Drive Modes Characteristic
The characteristic of each components varies depending on which drive mode is
selected.
*1 It is possible to set the driving condition for each drive mode, at the drive mode setting in Infotainment system.
Information The infotainment system may change after software updates. For more information, refer to the
user`s manual provided in the infotainment system and the quick reference guide.
Drive ModeSNOWNORMALECOSPORT
Characteristics Snow driving Normal
driving mode High electric energy
efficiency mode Sporty driving
mode
Button
activation Press more
than 1 sec. Press
Press Press
Indicator on the cluster SNOW NORMAL
ECOSPORT
Climate system control NORMAL NORMAL ECO(ECO/NORMAL)
*1NORMAL
Speed Limit - -- -
Regenerative braking level 0-1
0-3
Brake mode NORMAL NORMAL/SPO
RT
*1NORMAL NORMAL/SPO
RT *1
Hyundai_CE_en_US.book Page 43
Page 332 of 582
Driving Your Vehicle
6-44

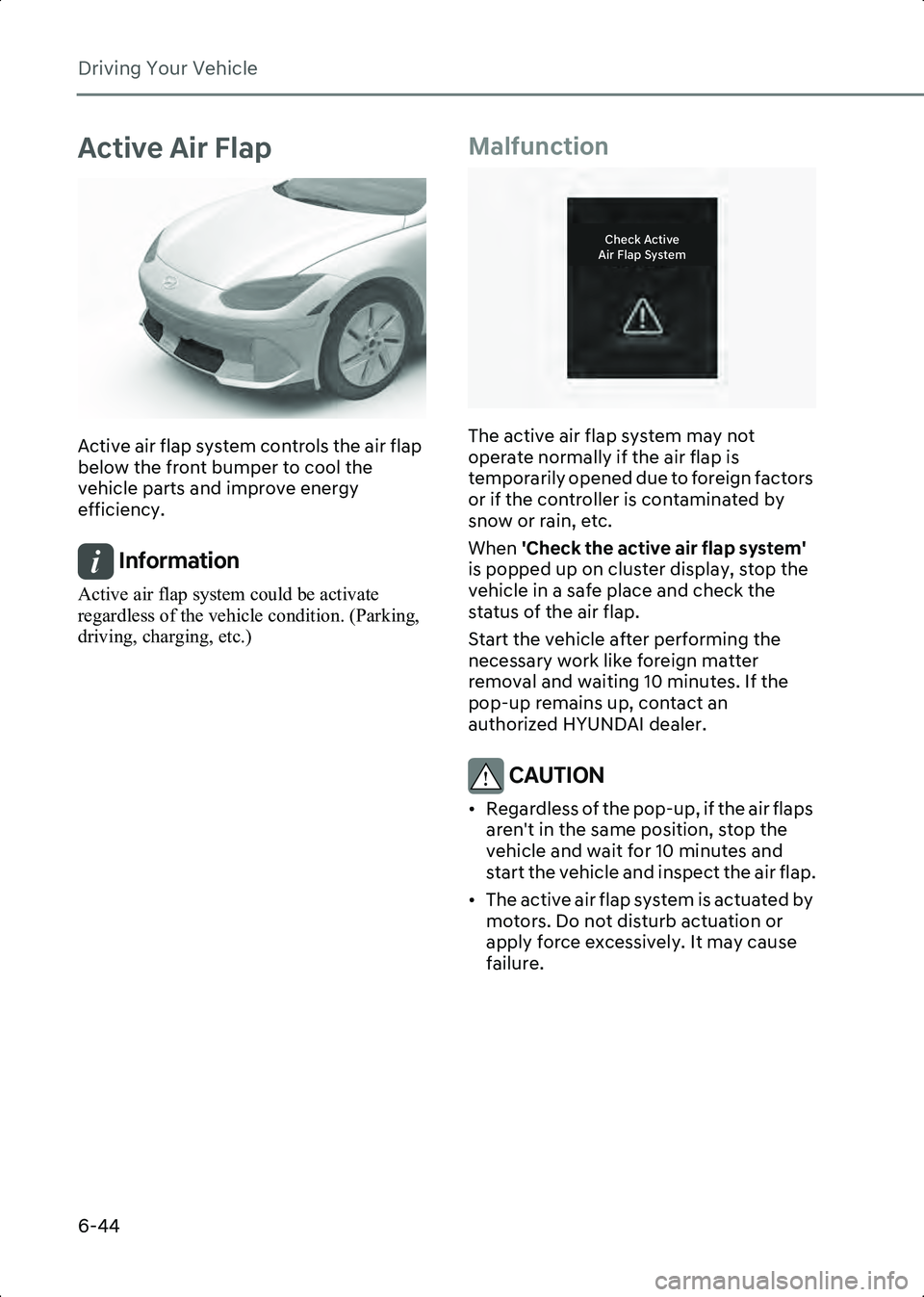

Active Air Flap
B6014001
Active air flap system controls the air flap
below the front bumper to cool the
vehicle parts and improve energy
efficiency.
Information Active air flap system could be activate
regardless of the vehicle condition. (Parking,
driving, charging, etc.)
Malfunction
B6014101
The active air flap system may not
operate normally if the air flap is
temporarily opened due to foreign factors
or if the controller is contaminated by
snow or rain, etc.
When 'Check the active air flap system'
is popped up on cluster display, stop the
vehicle in a safe place and check the
status of the air flap.
Start the vehicle after performing the
necessary work like foreign matter
removal and waiting 10 minutes. If the
pop-up remains up, contact an
authorized HYUNDAI dealer.
CAUTION • Regardless of the pop-up, if the air flaps aren't in the same position, stop the
vehicle and wait for 10 minutes and
start the vehicle and inspect the air flap.
• The active air flap system is actuated by motors. Do not disturb actuation or
apply force excessively. It may cause
failure.
$ I F D L " D U J W F
" J S ' M B Q 4 Z T U F N
Hyundai_CE_en_US.book Page 44
Page 333 of 582
6
6-45
if equipped

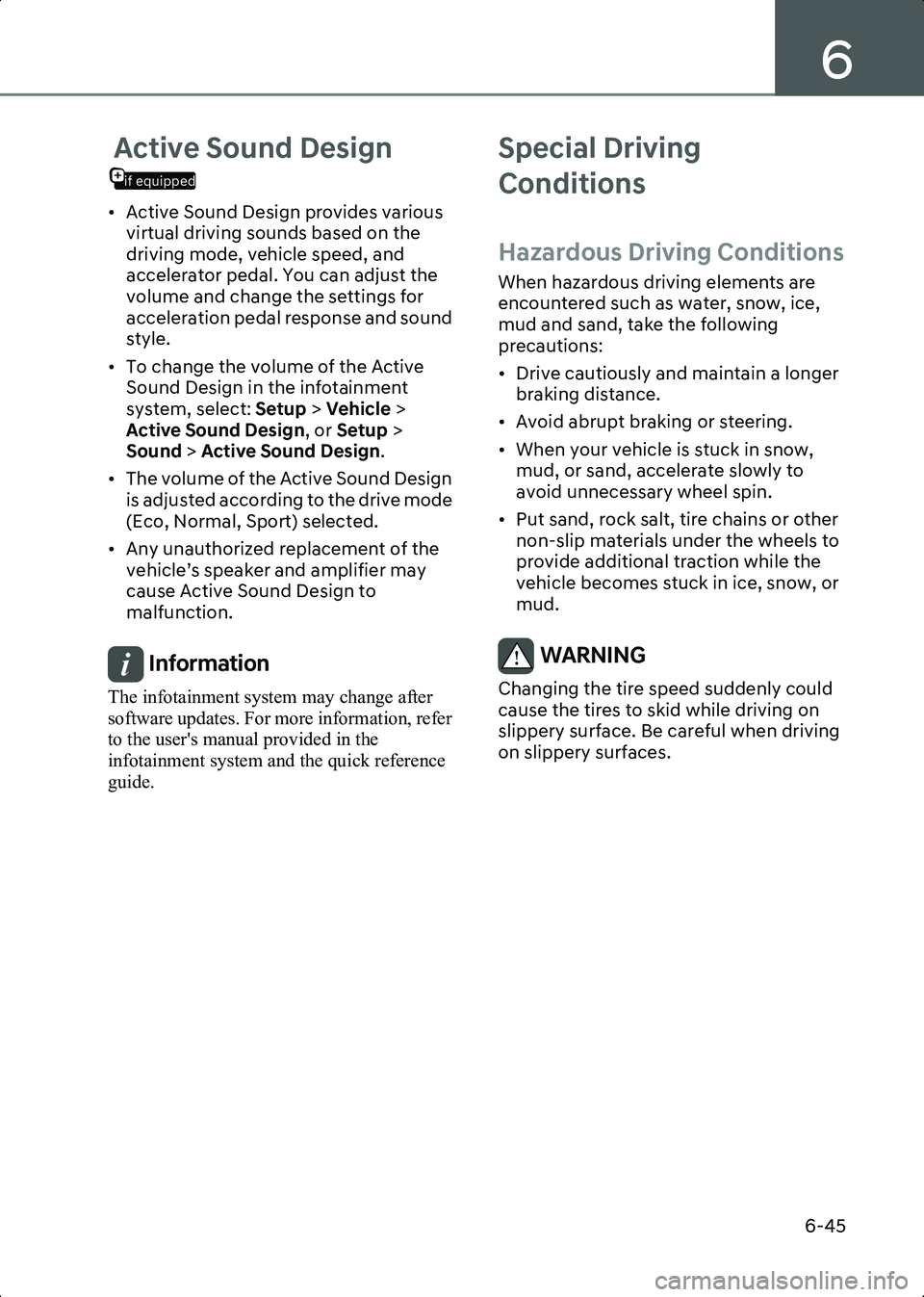

Active Sound Design
• Active Sound Design provides various virtual driving sounds based on the
driving mode, vehicle speed, and
accelerator pedal. You can adjust the
volume and change the settings for
acceleration pedal response and sound
style.
• To change the volume of the Active Sound Design in the infotainment
system, select: Setup > Vehicle >
Active Sound Design , or Setup >
Sound > Active Sound Design .
• The volume of the Active Sound Design is adjusted according to the drive mode
(Eco, Normal, Sport) selected.
• Any unauthorized replacement of the vehicle’s speaker and amplifier may
cause Active Sound Design to
malfunction.
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
Special Driving
Conditions
Hazardous Driving Conditions
When hazardous driving elements are
encountered such as water, snow, ice,
mud and sand, take the following
precautions:
• Drive cautiously and maintain a longer braking distance.
• Avoid abrupt braking or steering.
• When your vehicle is stuck in snow, mud, or sand, accelerate slowly to
avoid unnecessary wheel spin.
• Put sand, rock salt, tire chains or other non-slip materials under the wheels to
provide additional traction while the
vehicle becomes stuck in ice, snow, or
mud.
WARNING Changing the tire speed suddenly could
cause the tires to skid while driving on
slippery surface. Be careful when driving
on slippery surfaces.
Hyundai_CE_en_US.book Page 45
Page 334 of 582
Driving Your Vehicle
6-46

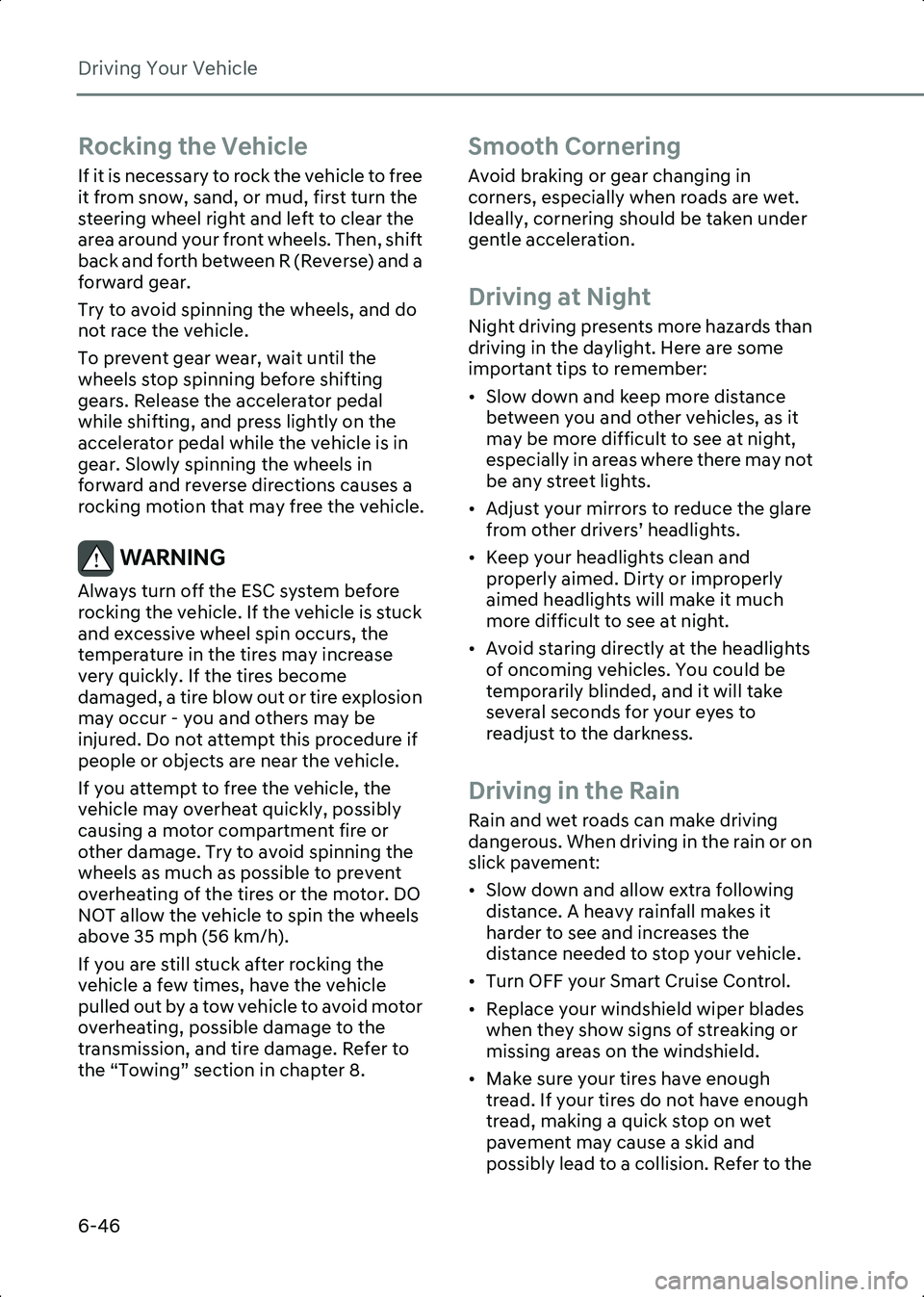

Rocking the Vehicle
If it is necessary to rock the vehicle to free
it from snow, sand, or mud, first turn the
steering wheel right and left to clear the
area around your front wheels. Then, shift
back and forth between R (Reverse) and a
forward gear.
Try to avoid spinning the wheels, and do
not race the vehicle.
To prevent gear wear, wait until the
wheels stop spinning before shifting
gears. Release the accelerator pedal
while shifting, and press lightly on the
accelerator pedal while the vehicle is in
gear. Slowly spinning the wheels in
forward and reverse directions causes a
rocking motion that may free the vehicle.
WARNING Always turn off the ESC system before
rocking the vehicle. If the vehicle is stuck
and excessive wheel spin occurs, the
temperature in the tires may increase
very quickly. If the tires become
damaged, a tire blow out or tire explosion
may occur - you and others may be
injured. Do not attempt this procedure if
people or objects are near the vehicle.
If you attempt to free the vehicle, the
vehicle may overheat quickly, possibly
causing a motor compartment fire or
other damage. Try to avoid spinning the
wheels as much as possible to prevent
overheating of the tires or the motor. DO
NOT allow the vehicle to spin the wheels
above 35 mph (56 km/h).
If you are still stuck after rocking the
vehicle a few times, have the vehicle
pulled out by a tow vehicle to avoid motor
overheating, possible damage to the
transmission, and tire damage. Refer to
the “Towing” section in chapter 8.
Smooth Cornering
Avoid braking or gear changing in
corners, especially when roads are wet.
Ideally, cornering should be taken under
gentle acceleration.
Driving at Night
Night driving presents more hazards than
driving in the daylight. Here are some
important tips to remember:
• Slow down and keep more distance between you and other vehicles, as it
may be more difficult to see at night,
especially in areas where there may not
be any street lights.
• Adjust your mirrors to reduce the glare from other drivers’ headlights.
• Keep your headlights clean and properly aimed. Dirty or improperly
aimed headlights will make it much
more difficult to see at night.
• Avoid staring directly at the headlights of oncoming vehicles. You could be
temporarily blinded, and it will take
several seconds for your eyes to
readjust to the darkness.
Driving in the Rain
Rain and wet roads can make driving
dangerous. When driving in the rain or on
slick pavement:
• Slow down and allow extra following distance. A heavy rainfall makes it
harder to see and increases the
distance needed to stop your vehicle.
• Turn OFF your Smart Cruise Control.
• Replace your windshield wiper blades when they show signs of streaking or
missing areas on the windshield.
• Make sure your tires have enough tread. If your tires do not have enough
tread, making a quick stop on wet
pavement may cause a skid and
possibly lead to a collision. Refer to the
Hyundai_CE_en_US.book Page 46
Page 335 of 582
6
6-47
“Tire Replacement” section in Chapter
9.
• Turn on your headlights to make it easier for others to see you. Using your
headlights when using your windshield
wipers is required in some jurisdictions.
• Driving too fast through large puddles may affect your brakes. If you must go
through puddles, try to drive through
them slowly.
• If you believe your brakes are wet, apply them several times while the
vehicle is moving slowly.
Hydroplaning
If the road is wet enough and you are
going fast enough, your vehicle may have
little or no contact with the road surface
and actually ride on the water. The best
advice is SLOW DOWN when the road is
wet.
The risk of hydroplaning increases as the
depth of tire tread decreases, For more
information, refer to the “Tire
Replacement” section in chapter 9.
Driving in Flooded Areas
Avoid driving through flooded areas
unless you are sure the water is not
deeper than the bottom of the wheel hub.
If you are not sure, turn around and find a
different route. Drive through any water
slowly. Allow adequate stopping distance
because the brake performance can be
reduced.
After driving through water, dry the
brakes by gently applying them several
times while the vehicle is moving slowly.
Highway Driving
Tires
Adjust the tire inflation pressure, as
specified. Under-inflation may overheat
or damage the tires.
Do not install worn-out or damaged tires,
which may reduce traction or fail.
Information Never over-inflate your tires above the
maximum inflation pressure, as specified on
your tires.
Coolant and high voltage battery
Driving at higher speeds on the highway
consumes more electric energy and is
less efficient than driving at a slower,
more moderate speed. Maintain a
moderate speed in order to conserve
electric energy when driving on the
highway.
Be sure to check both the coolant level
and the electric energy level before
driving.
Hyundai_CE_en_US.book Page 47
Page 336 of 582
Driving Your Vehicle
6-48
Winter Driving
The severe weather conditions of winter
quickly wear out tires and cause other
problems. To minimize winter driving
problems, you should take the following
suggestions:
Snow or Icy Conditions
You need to keep sufficient distance
between your vehicle and the vehicle in
front of you.
Apply the brakes gently. Speeding, rapid
acceleration, sudden brake applications,
and sharp turns are potentially very
hazardous practices. Sudden brake
applications on snowy or icy roads may
cause the vehicle to skid.
To drive your vehicle in deep snow, it may
be necessary to install tire chains on your
tires.
Always carry emergency equipment.
Some of the items you may want to carry
include tire chains, tow straps or chains, a
flashlight, emergency flares, sand, a
shovel, jumper cables, a window scraper,
gloves, ground cloth, coveralls, a blanket,
etc.
Snow tires
WARNING Snow tires should be equivalent in size
and type to the vehicle’s standard tires.
Otherwise, the safety and handling of
your vehicle may be adversely affected.
If you mount snow tires on your vehicle,
make sure to use radial tires of the same
size and load range as the original tires.
Mount snow tires on all four wheels to
balance your vehicle’s handling in all
weather conditions. The traction
provided by snow tires on dry roads may
not be as high as your vehicle’s original
equipment tires. Check with the tire dealer for maximum speed
recommendations.
Information Do not install studded tires without first
checking local and municipal regulations for
possible restrictions against their use.
Summer tires
• Summer tires are used to maximize the
driving performance on dry roads.
• If the temperature is below 45 °F (7 °C) or you are driving on snowy or icy
roads, the summer tires lose their brake
performance and traction as the tire
grip weakens significantly.
• If the temperature is below 45 °F (7 °C) or you are driving on snowy or icy
roads, mount snow tires or all-season
tires of the same size with your
vehicle’s standard tire for safe driving.
Both snow and all-season tires have
M+S markings.
• When using the M+S tires, use tires with the same tread produced by the same
manufacturer for safe driving.
• When driving with the M+S tires with the lower maximum allowable speed
than that of the vehicle’s standard
summer tire, be careful not to exceed
the speed allowed for the M+S tires.
Hyundai_CE_en_US.book Page 48
Page 337 of 582
6
6-49

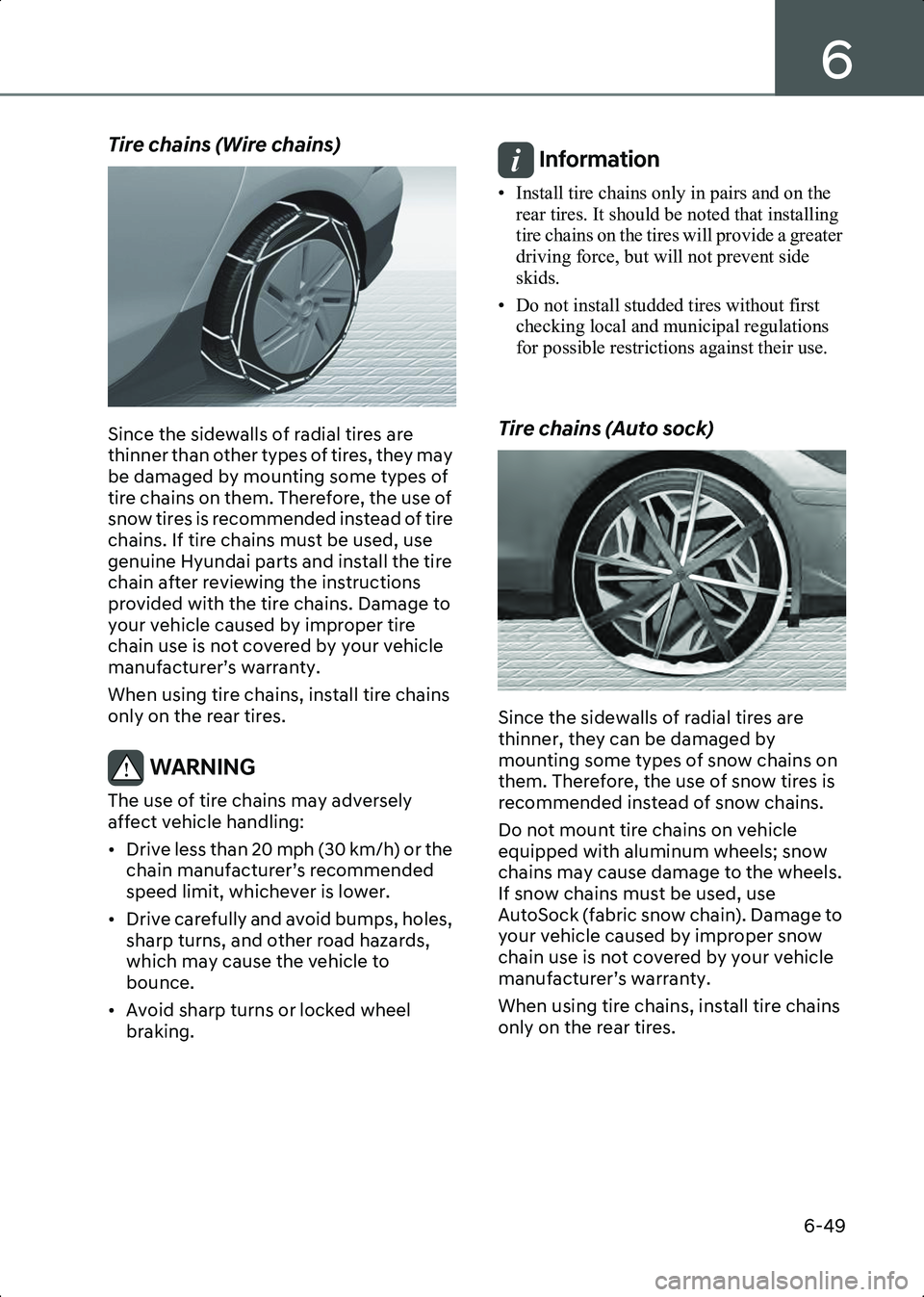

Tire chains (Wire chains)
B6015201
Since the sidewalls of radial tires are
thinner than other types of tires, they may
be damaged by mounting some types of
tire chains on them. Therefore, the use of
snow tires is recommended instead of tire
chains. If tire chains must be used, use
genuine Hyundai parts and install the tire
chain after reviewing the instructions
provided with the tire chains. Damage to
your vehicle caused by improper tire
chain use is not covered by your vehicle
manufacturer’s warranty.
When using tire chains, install tire chains
only on the rear tires.
WARNING The use of tire chains may adversely
affect vehicle handling:
• Drive less than 20 mph (30 km/h) or the chain manufacturer’s recommended
speed limit, whichever is lower.
• Drive carefully and avoid bumps, holes, sharp turns, and other road hazards,
which may cause the vehicle to
bounce.
• Avoid sharp turns or locked wheel braking.
Information • Install tire chains only in pairs and on the rear tires. It should be noted that installing
tire chains on the tires will provide a greater
driving force, but will not prevent side
skids.
• Do not install studded tires without first checking local and municipal regulations
for possible restrictions against their use.
Tire chains (Auto sock)
B6015202
Since the sidewalls of radial tires are
thinner, they can be damaged by
mounting some types of snow chains on
them. Therefore, the use of snow tires is
recommended instead of snow chains.
Do not mount tire chains on vehicle
equipped with aluminum wheels; snow
chains may cause damage to the wheels.
If snow chains must be used, use
AutoSock (fabric snow chain). Damage to
your vehicle caused by improper snow
chain use is not covered by your vehicle
manufacturer’s warranty.
When using tire chains, install tire chains
only on the rear tires.
Hyundai_CE_en_US.book Page 49
Page 338 of 582
Driving Your Vehicle
6-50

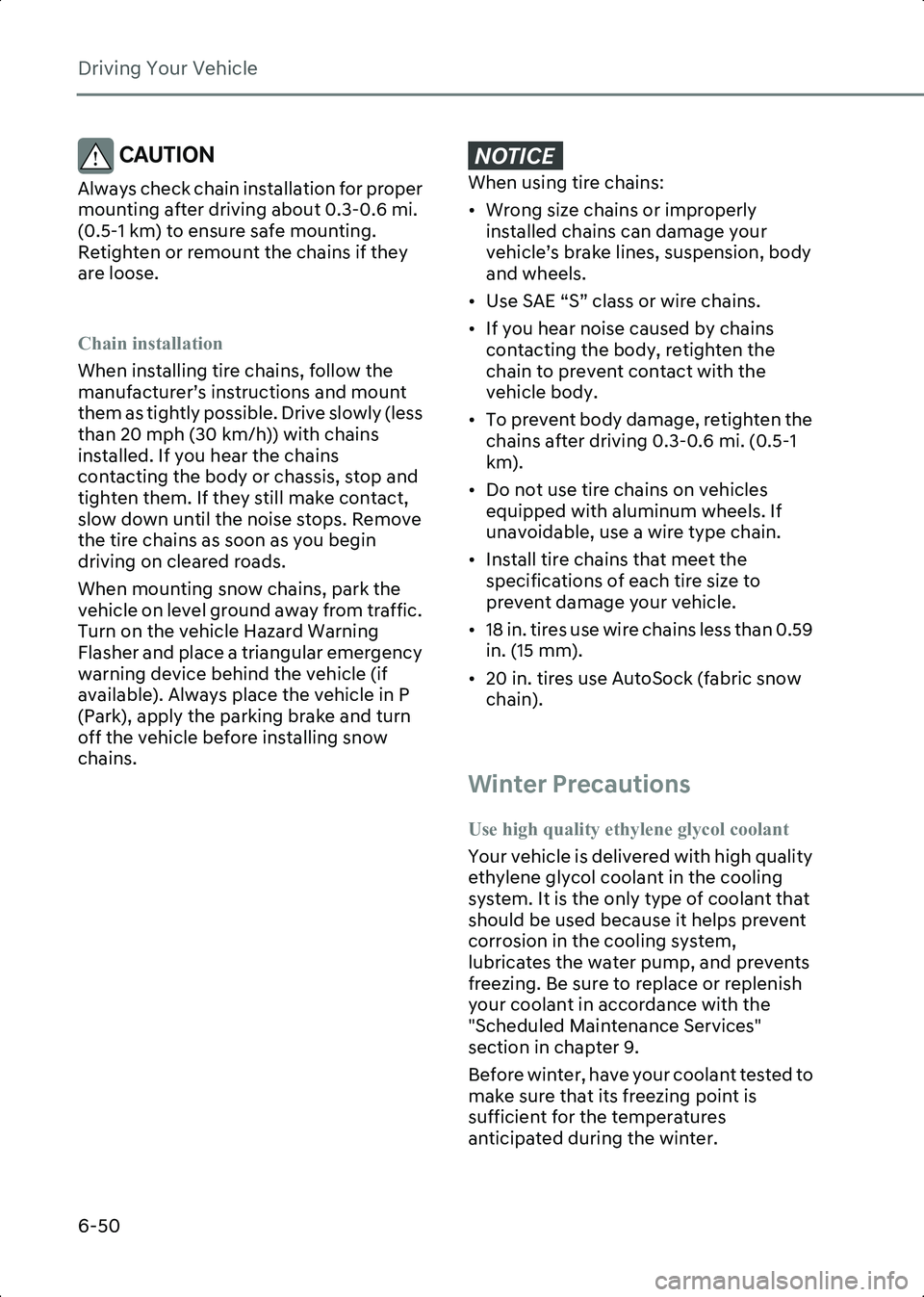

CAUTION Always check chain installation for proper
mounting after driving about 0.3-0.6 mi.
(0.5-1 km) to ensure safe mounting.
Retighten or remount the chains if they
are loose.
Chain installation
When installing tire chains, follow the
manufacturer’s instructions and mount
them as tightly possible. Drive slowly (less
than 20 mph (30 km/h)) with chains
installed. If you hear the chains
contacting the body or chassis, stop and
tighten them. If they still make contact,
slow down until the noise stops. Remove
the tire chains as soon as you begin
driving on cleared roads.
When mounting snow chains, park the
vehicle on level ground away from traffic.
Turn on the vehicle Hazard Warning
Flasher and place a triangular emergency
warning device behind the vehicle (if
available). Always place the vehicle in P
(Park), apply the parking brake and turn
off the vehicle before installing snow
chains.
NOTICE : K H Q X V L Q J W L U H F K D L Q V
[ : U R Q J V L ] H F K D L Q V R U L P S U R S H U O \ L Q V W D O O H G F K D L Q V F D Q G D P D J H \ R X U
Y H K L F O HT V E U D N H O L Q H V V X V S H Q V L R Q E R G \
D Q G Z K H H O V
[ 8 V H 6 $ ( U 6V F O D V V R U Z L U H F K D L Q V
[ , I \ R X K H D U Q R L V H F D X V H G E \ F K D L Q V F R Q W D F W L Q J W K H E R G \ U H W L J K W H Q W K H
F K D L Q W R S U H Y H Q W F R Q W D F W Z L W K W K H
Y H K L F O H E R G \
[ 7 R S U H Y H Q W E R G \ G D P D J H U H W L J K W H Q W K H F K D L Q V D I W H U G U L Y L Q J P L
N P \f
[ ' R Q R W X V H W L U H F K D L Q V R Q Y H K L F O H V H T X L S S H G Z L W K D O X P L Q X P Z K H H O V , I
X Q D Y R L G D E O H X V H D Z L U H W \ S H F K D L Q
[ , Q V W D O O W L U H F K D L Q V W K D W P H H W W K H V S H F L I L F D W L R Q V R I H D F K W L U H V L ] H W R
S U H Y H Q W G D P D J H \ R X U Y H K L F O H
[ L Q W L U H V X V H Z L U H F K D L Q V O H V V W K D Q L Q P P \f
[ L Q W L U H V X V H $ X W R 6 R F N I D E U L F V Q R Z F K D L Q \f
Winter Precautions
Use high quality ethylene glycol coolant
Your vehicle is delivered with high quality
ethylene glycol coolant in the cooling
system. It is the only type of coolant that
should be used because it helps prevent
corrosion in the cooling system,
lubricates the water pump, and prevents
freezing. Be sure to replace or replenish
your coolant in accordance with the
"Scheduled Maintenance Services"
section in chapter 9.
Before winter, have your coolant tested to
make sure that its freezing point is
sufficient for the temperatures
anticipated during the winter.
Hyundai_CE_en_US.book Page 50
Page 339 of 582
6
6-51
Check battery and cables
Winter temperatures affect battery
performance. Inspect the battery and
cables, as specified in chapter 9. The
battery charging level can be inspected
by an authorized HYUNDAI dealer or in a
service station.
To prevent locks from freezing
Spray approved de-icing fluid or glycerin
into key holes. When a lock opening is
already covered with ice, spray approved
de-icing fluid over the ice to remove it.
When an internal part of a lock freezes, try
to thaw it with a heated key. Carefully use
the heated key to avoid an injury.
Use approved window washer anti-freeze
solution
Add authorized window washer
anti-freeze solution, as specified on the
window washer container. Window
washer anti-freeze solution is available
from an authorized HYUNDAI dealer, and
most vehicle accessory outlets. Do not
use coolant or other types of anti-freeze
solution, to prevent any damage to the
vehicle paint.
Do not let your parking brake freeze
Under some conditions, your parking
brake may freeze in the engaged position.
This is most likely to happen when there is
an accumulation of snow or ice around or
near the rear brakes or the brakes are wet.
When there is the risk that your parking
brake may freeze: temporarily apply the
parking brake with the gear in P (Park),
then block the rear wheels, and then
release the parking brake.Do not let ice and snow accumulate
underneath
Under some conditions, snow and ice
may build up under the fenders and
interfere with the steering. When driving
in such conditions during the severe
winter, check underneath the vehicle on a
regular basis, to make sure that the front
wheels and the steering components are
not blocked.
Carry emergency equipment
In accordance with weather conditions,
carry appropriate emergency equipment,
while driving. Some of the items you may
want to carry include tire chains, tow
straps or chains, flashlight, emergency
flares, sand, shovel, jumper cables,
window scraper, gloves, ground cloth,
coveralls, blanket, etc.
Do not place objects or materials in the
motor compartment
Putting objects or materials in the motor
compartment may cause a motor failure.
Such damage is not be covered by the
manufacturer’s warranty.
Hyundai_CE_en_US.book Page 51
Page 340 of 582
Driving Your Vehicle
6-52

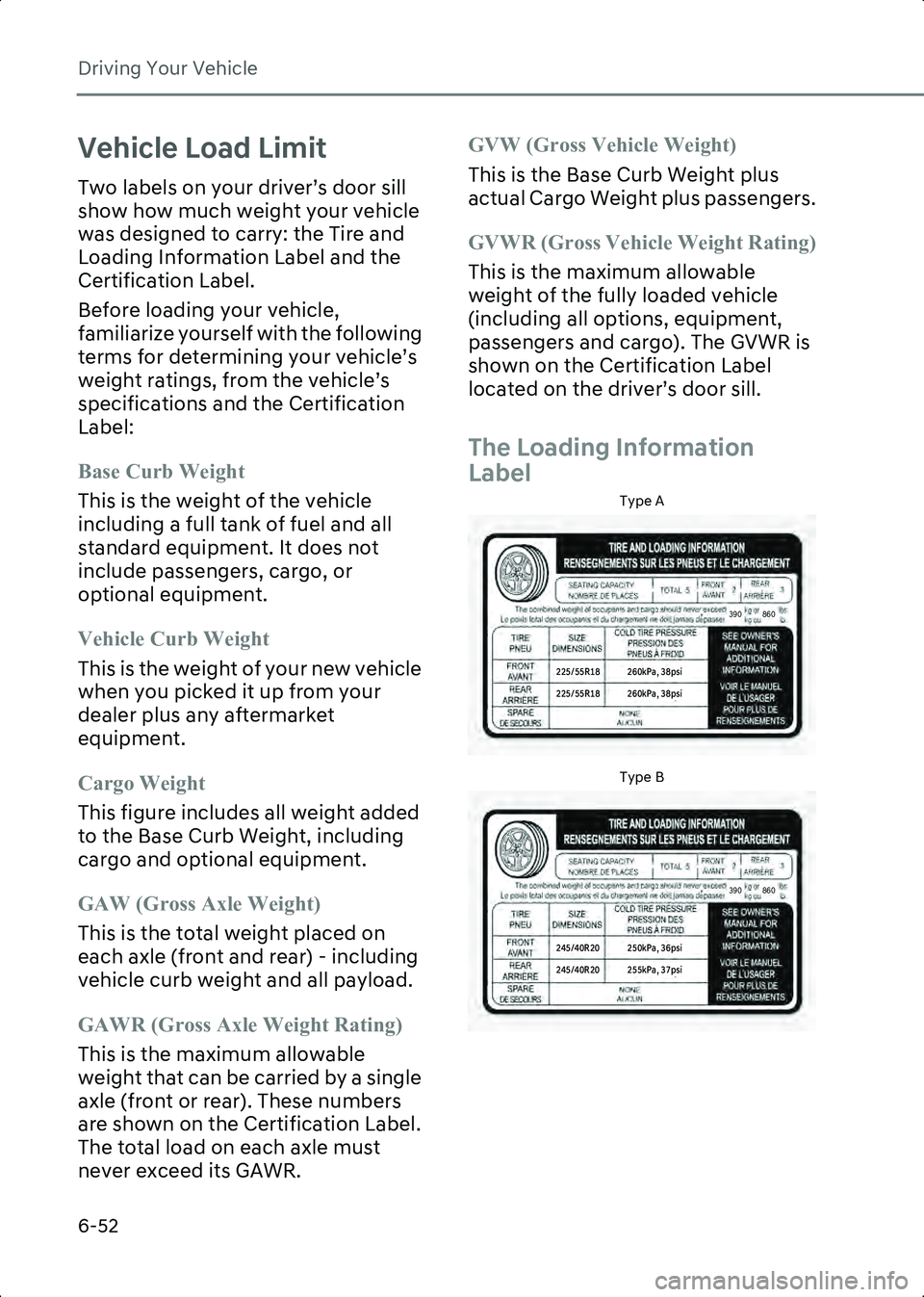

Vehicle Load Limit
Two labels on your driver’s door sill
show how much weight your vehicle
was designed to carry: the Tire and
Loading Information Label and the
Certification Label.
Before loading your vehicle,
familiarize yourself with the following
terms for determining your vehicle’s
weight ratings, from the vehicle’s
specifications and the Certification
Label:
Base Curb Weight
This is the weight of the vehicle
including a full tank of fuel and all
standard equipment. It does not
include passengers, cargo, or
optional equipment.
Vehicle Curb Weight
This is the weight of your new vehicle
when you picked it up from your
dealer plus any aftermarket
equipment.
Cargo Weight
This figure includes all weight added
to the Base Curb Weight, including
cargo and optional equipment.
GAW (Gross Axle Weight)
This is the total weight placed on
each axle (front and rear) - including
vehicle curb weight and all payload.
GAWR (Gross Axle Weight Rating)
This is the maximum allowable
weight that can be carried by a single
axle (front or rear). These numbers
are shown on the Certification Label.
The total load on each axle must
never exceed its GAWR.GVW (Gross Vehicle Weight)
This is the Base Curb Weight plus
actual Cargo Weight plus passengers.
GVWR (Gross Vehicle Weight Rating)
This is the maximum allowable
weight of the fully loaded vehicle
(including all options, equipment,
passengers and cargo). The GVWR is
shown on the Certification Label
located on the driver’s door sill.
The Loading Information
Label
Type A
ONE1061056NType B
ONE1061057N
3
3
L 1 B
Q T J
L 1 B
Q T J
3
3 L 1 B
Q T J
L 1 B
Q T J
Hyundai_CE_en_US.book Page 52
