HYUNDAI IONIQ 6 2023 Owners Manual
Manufacturer: HYUNDAI, Model Year: 2023, Model line: IONIQ 6, Model: HYUNDAI IONIQ 6 2023Pages: 582, PDF Size: 10.77 MB
Page 311 of 582
6
6-23

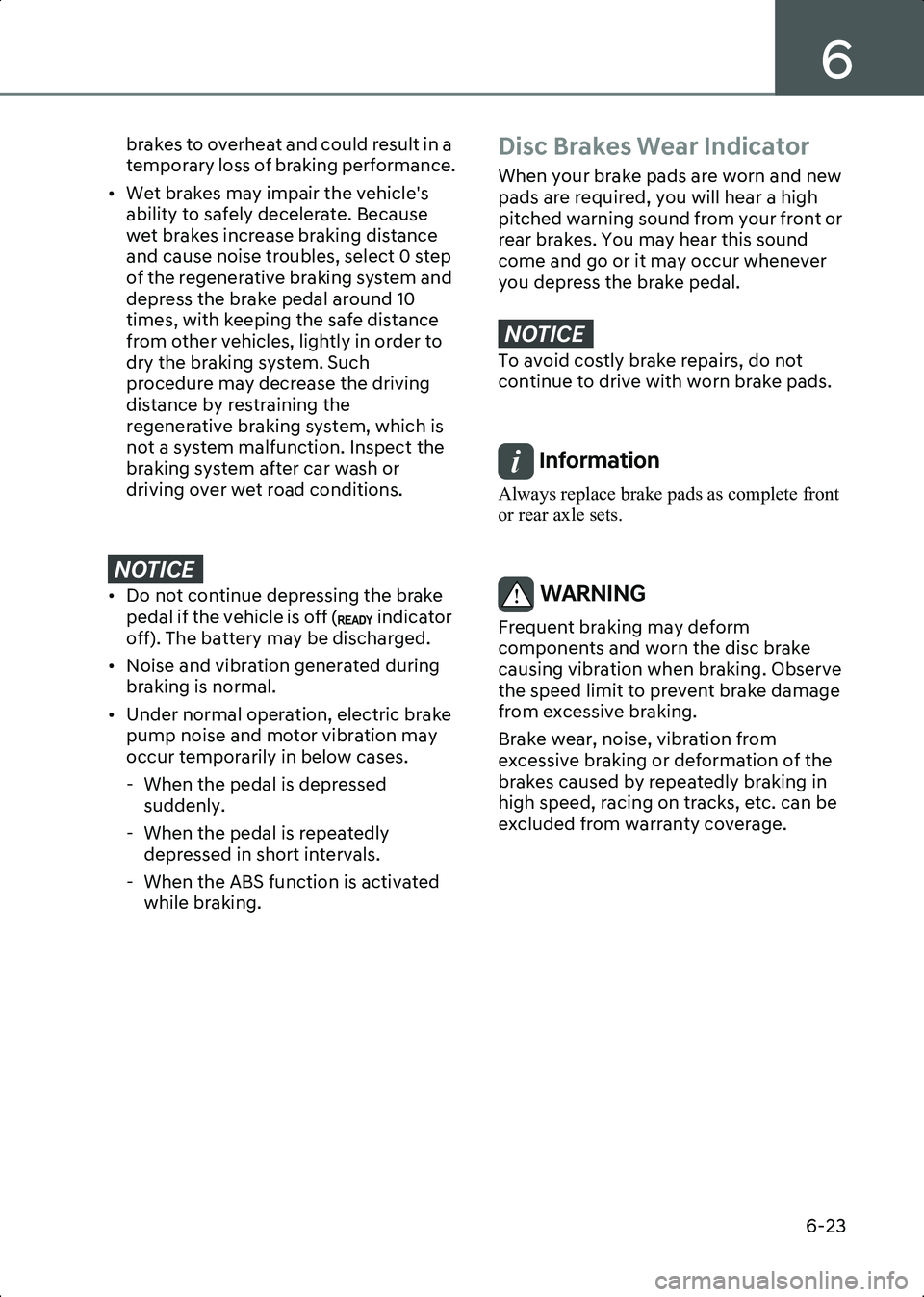

brakes to overheat and could result in a
temporary loss of braking performance.
• Wet brakes may impair the vehicle's ability to safely decelerate. Because
wet brakes increase braking distance
and cause noise troubles, select 0 step
of the regenerative braking system and
depress the brake pedal around 10
times, with keeping the safe distance
from other vehicles, lightly in order to
dry the braking system. Such
procedure may decrease the driving
distance by restraining the
regenerative braking system, which is
not a system malfunction. Inspect the
braking system after car wash or
driving over wet road conditions.
NOTICE [ ' R Q R W F R Q W L Q X H G H S U H V V L Q J W K H E U D N H S H G D O L I W K H Y H K L F O H L V R I I L Q G L F D W R U
R I I \f 7 K H E D W W H U \ P D \ E H G L V F K D U J H G
[ 1 R L V H D Q G Y L E U D W L R Q J H Q H U D W H G G X U L Q J E U D N L Q J L V Q R U P D O
[ 8 Q G H U Q R U P D O R S H U D W L R Q H O H F W U L F E U D N H S X P S Q R L V H D Q G P R W R U Y L E U D W L R Q P D \
R F F X U W H P S R U D U L O \ L Q E H O R Z F D V H V
: K H Q W K H S H G D O L V G H S U H V V H G V X G G H Q O \
: K H Q W K H S H G D O L V U H S H D W H G O \ G H S U H V V H G L Q V K R U W L Q W H U Y D O V
: K H Q W K H $ % 6 I X Q F W L R Q L V D F W L Y D W H G Z K L O H E U D N L Q J
Disc Brakes Wear Indicator
When your brake pads are worn and new
pads are required, you will hear a high
pitched warning sound from your front or
rear brakes. You may hear this sound
come and go or it may occur whenever
you depress the brake pedal.
NOTICE 7 R D Y R L G F R V W O \ E U D N H U H S D L U V G R Q R W
F R Q W L Q X H W R G U L Y H Z L W K Z R U Q E U D N H S D G V
Information Always replace brake pads as complete front
or rear axle sets.
WARNING Frequent braking may deform
components and worn the disc brake
causing vibration when braking. Observe
the speed limit to prevent brake damage
from excessive braking.
Brake wear, noise, vibration from
excessive braking or deformation of the
brakes caused by repeatedly braking in
high speed, racing on tracks, etc. can be
excluded from warranty coverage.
Hyundai_CE_en_US.book Page 23
Page 312 of 582
Driving Your Vehicle
6-24

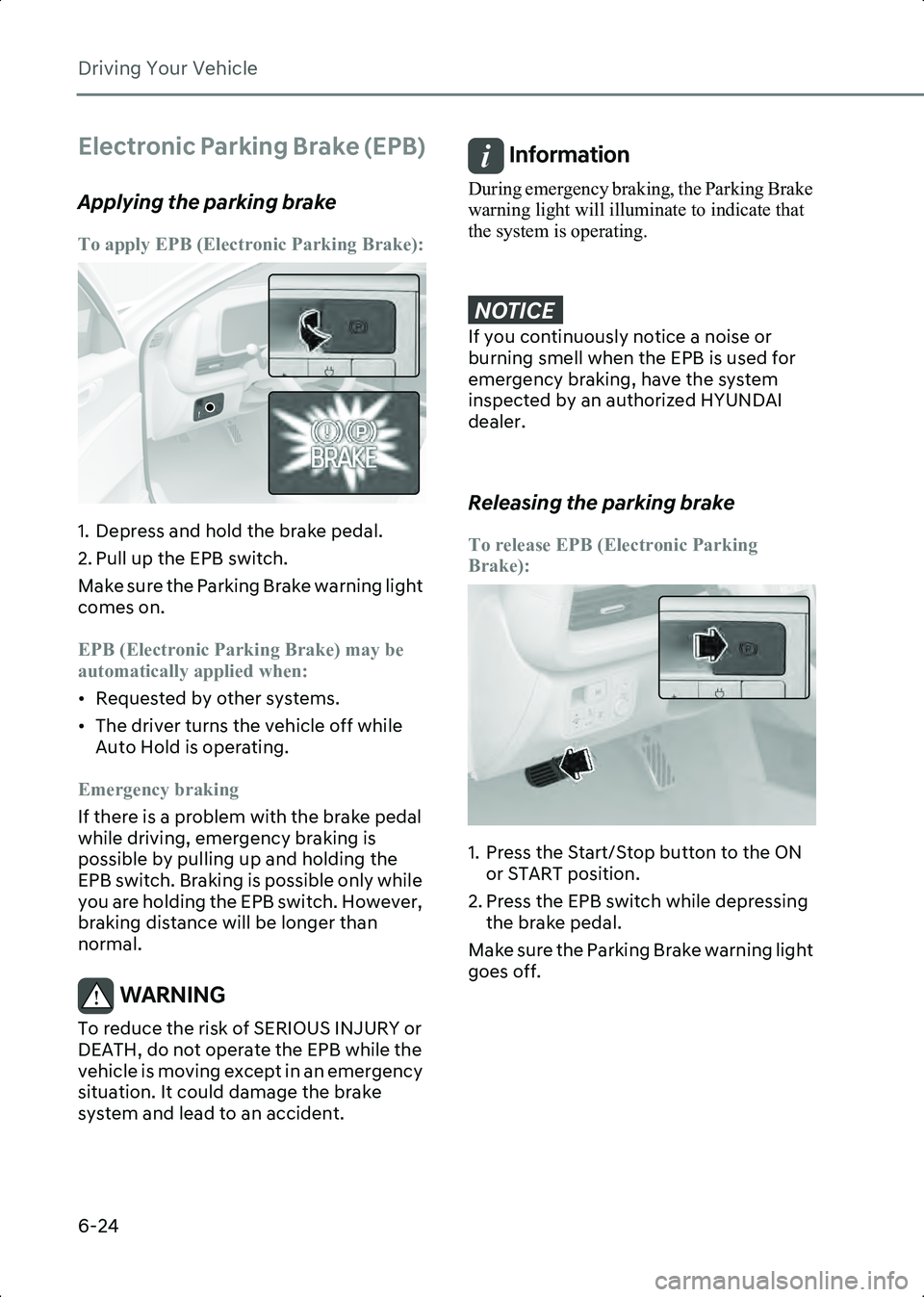

Electronic Parking Brake (EPB)
Applying the parking brake
To apply EPB (Electronic Parking Brake):
B6003801
1. Depress and hold the brake pedal.
2. Pull up the EPB switch.
Make sure the Parking Brake warning light
comes on.
EPB (Electronic Parking Brake) may be
automatically applied when:
• Requested by other systems.
• The driver turns the vehicle off while Auto Hold is operating.
Emergency braking
If there is a problem with the brake pedal
while driving, emergency braking is
possible by pulling up and holding the
EPB switch. Braking is possible only while
you are holding the EPB switch. However,
braking distance will be longer than
normal.
WARNING To reduce the risk of SERIOUS INJURY or
DEATH, do not operate the EPB while the
vehicle is moving except in an emergency
situation. It could damage the brake
system and lead to an accident.
Information During emergency braking, the Parking Brake
warning light will illuminate to indicate that
the system is operating.
NOTICE , I \ R X F R Q W L Q X R X V O \ Q R W L F H D Q R L V H R U
E X U Q L Q J V P H O O Z K H Q W K H ( 3 % L V X V H G I R U
H P H U J H Q F \ E U D N L Q J K D Y H W K H V \ V W H P
L Q V S H F W H G E \ D Q D X W K R U L ] H G + < 8 1 ' $ ,
G H D O H U
Releasing the parking brake
To release EPB (Electronic Parking
Brake):
B6003803
1. Press the Start/Stop button to the ON or START position.
2. Press the EPB switch while depressing the brake pedal.
Make sure the Parking Brake warning light
goes off.
Hyundai_CE_en_US.book Page 24
Page 313 of 582
6
6-25

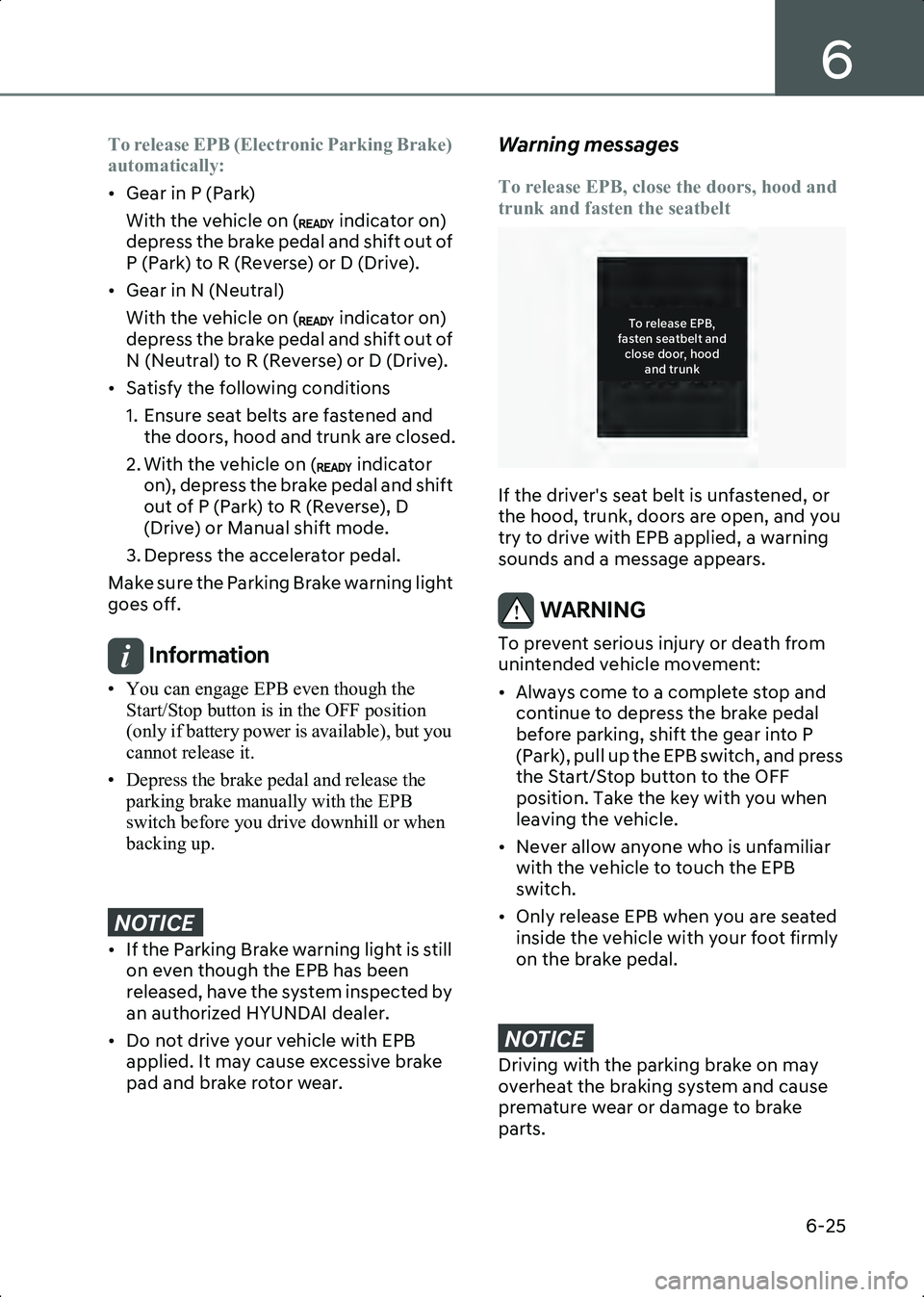

To release EPB (Electronic Parking Brake)
automatically:
• Gear in P (Park)With the vehicle on ( indicator on)
depress the brake pedal and shift out of
P (Park) to R (Reverse) or D (Drive).
• Gear in N (Neutral) With the vehicle on ( indicator on)
depress the brake pedal and shift out of
N (Neutral) to R (Reverse) or D (Drive).
• Satisfy the following conditions 1. Ensure seat belts are fastened and the doors, hood and trunk are closed.
2. With the vehicle on ( indicator on), depress the brake pedal and shift
out of P (Park) to R (Reverse), D
(Drive) or Manual shift mode.
3. Depress the accelerator pedal.
Make sure the Parking Brake warning light
goes off.
Information • You can engage EPB even though the Start/Stop button is in the OFF position
(only if battery power is available), but you
cannot release it.
• Depress the brake pedal and release the parking brake manually with the EPB
switch before you drive downhill or when
backing up.
NOTICE [ , I W K H 3 D U N L Q J % U D N H Z D U Q L Q J O L J K W L V V W L O O R Q H Y H Q W K R X J K W K H ( 3 % K D V E H H Q
U H O H D V H G K D Y H W K H V \ V W H P L Q V S H F W H G E \
D Q D X W K R U L ] H G + < 8 1 ' $ , G H D O H U
[ ' R Q R W G U L Y H \ R X U Y H K L F O H Z L W K ( 3 % D S S O L H G , W P D \ F D X V H H [ F H V V L Y H E U D N H
S D G D Q G E U D N H U R W R U Z H D U
Warning messages
To release EPB, close the doors, hood and
trunk and fasten the seatbelt
B6003804
If the driver's seat belt is unfastened, or
the hood, trunk, doors are open, and you
try to drive with EPB applied, a warning
sounds and a message appears.
WARNING To prevent serious injury or death from
unintended vehicle movement:
• Always come to a complete stop and continue to depress the brake pedal
before parking, shift the gear into P
(Park), pull up the EPB switch, and press
the Start/Stop button to the OFF
position. Take the key with you when
leaving the vehicle.
• Never allow anyone who is unfamiliar with the vehicle to touch the EPB
switch.
• Only release EPB when you are seated inside the vehicle with your foot firmly
on the brake pedal.
NOTICE ' U L Y L Q J Z L W K W K H S D U N L Q J E U D N H R Q P D \
R Y H U K H D W W K H E U D N L Q J V \ V W H P D Q G F D X V H
S U H P D W X U H Z H D U R U G D P D J H W R E U D N H
S D U W V
5 P S F M F B T F & 1 #
G B T U F O T F B U C F M U B O E D M P T F E P P S
I P P E B O E U S V O L
Hyundai_CE_en_US.book Page 25
Page 314 of 582
Driving Your Vehicle
6-26

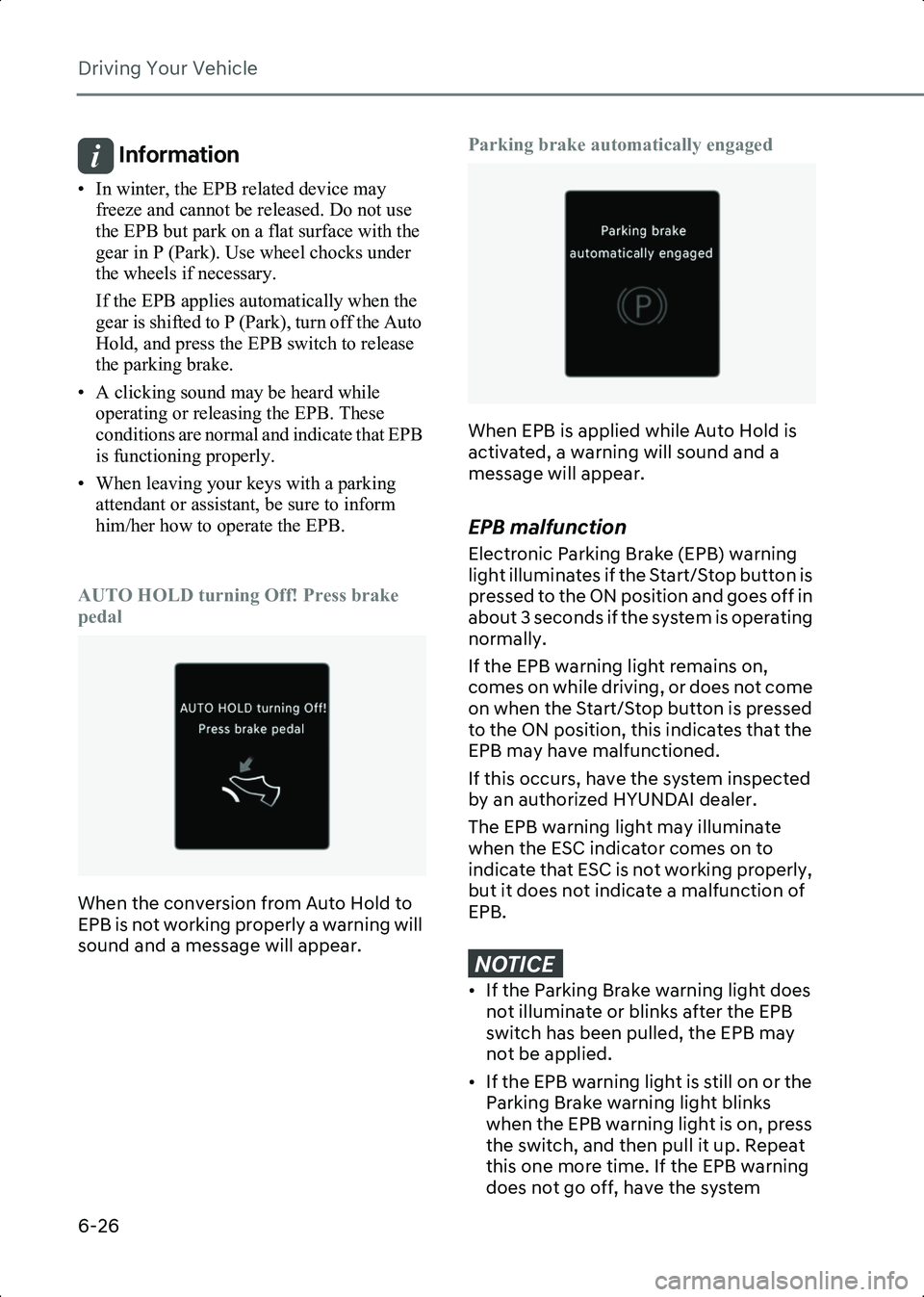

Information • In winter, the EPB related device may freeze and cannot be released. Do not use
the EPB but park on a flat surface with the
gear in P (Park). Use wheel chocks under
the wheels if necessary.
If the EPB applies automatically when the
gear is shifted to P (Park), turn off the Auto
Hold, and press the EPB switch to release
the parking brake.
• A clicking sound may be heard while operating or releasing the EPB. These
conditions are normal and indicate that EPB
is functioning properly.
• When leaving your keys with a parking attendant or assistant, be sure to inform
him/her how to operate the EPB.
AUTO HOLD turning Off! Press brake
pedal
OIK060067L
When the conversion from Auto Hold to
EPB is not working properly a warning will
sound and a message will appear. Parking brake automatically engaged
OIK060069L
When EPB is applied while Auto Hold is
activated, a warning will sound and a
message will appear.
EPB malfunction
Electronic Parking Brake (EPB) warning
light illuminates if the Start/Stop button is
pressed to the ON position and goes off in
about 3 seconds if the system is operating
normally.
If the EPB warning light remains on,
comes on while driving, or does not come
on when the Start/Stop button is pressed
to the ON position, this indicates that the
EPB may have malfunctioned.
If this occurs, have the system inspected
by an authorized HYUNDAI dealer.
The EPB warning light may illuminate
when the ESC indicator comes on to
indicate that ESC is not working properly,
but it does not indicate a malfunction of
EPB.
NOTICE [ , I W K H 3 D U N L Q J % U D N H Z D U Q L Q J O L J K W G R H V
Q R W L O O X P L Q D W H R U E O L Q N V D I W H U W K H ( 3 %
V Z L W F K K D V E H H Q S X O O H G W K H ( 3 % P D \
Q R W E H D S S O L H G
[ , I W K H ( 3 % Z D U Q L Q J O L J K W L V V W L O O R Q R U W K H 3 D U N L Q J % U D N H Z D U Q L Q J O L J K W E O L Q N V
Z K H Q W K H ( 3 % Z D U Q L Q J O L J K W L V R Q S U H V V
W K H V Z L W F K D Q G W K H Q S X O O L W X S 5 H S H D W
W K L V R Q H P R U H W L P H , I W K H ( 3 % Z D U Q L Q J
G R H V Q R W J R R I I K D Y H W K H V \ V W H P
Hyundai_CE_en_US.book Page 26
Page 315 of 582
6
6-27

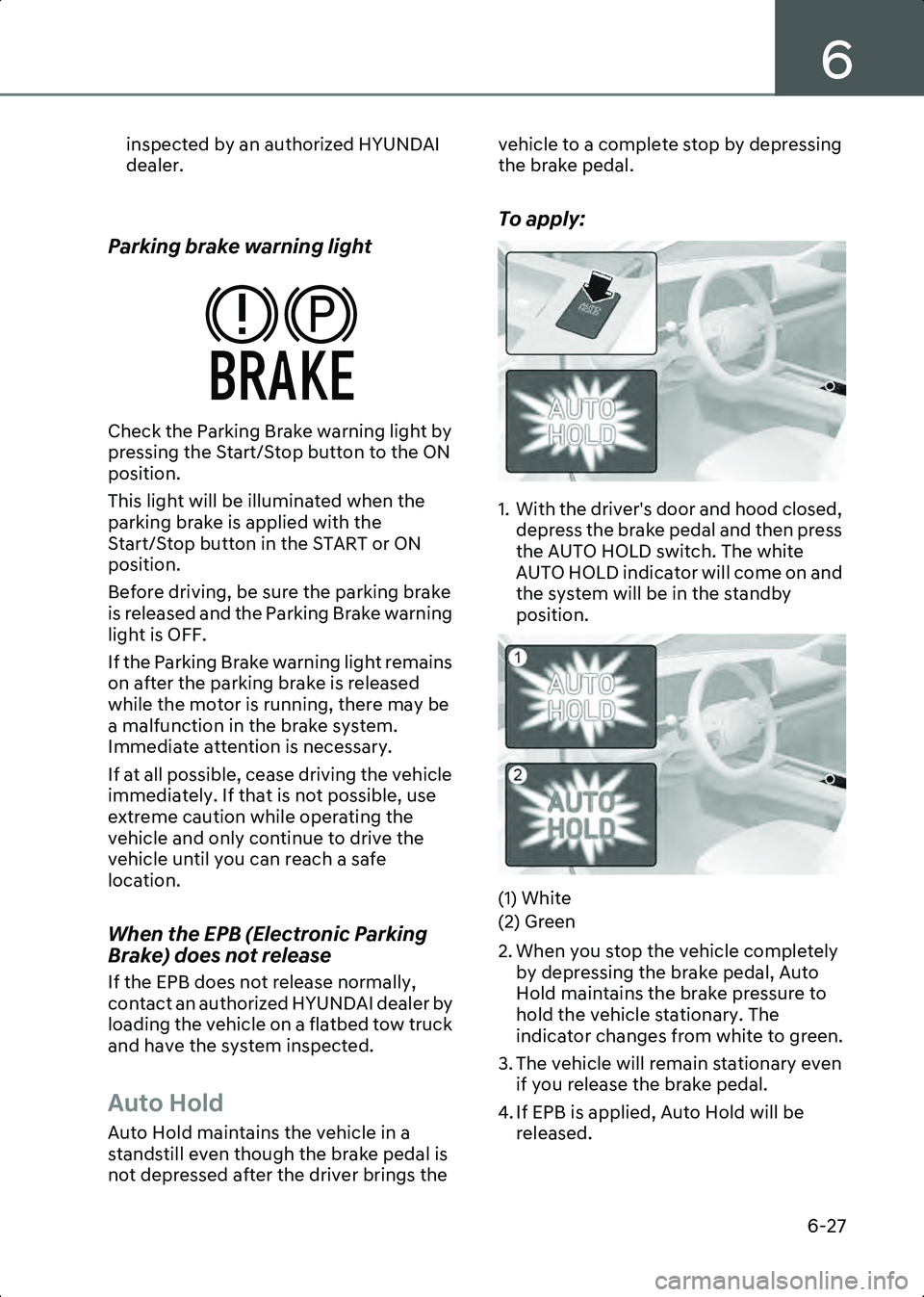

inspected by an authorized HYUNDAI
dealer.
Parking brake warning light
Check the Parking Brake warning light by
pressing the Start/Stop button to the ON
position.
This light will be illuminated when the
parking brake is applied with the
Start/Stop button in the START or ON
position.
Before driving, be sure the parking brake
is released and the Parking Brake warning
light is OFF.
If the Parking Brake warning light remains
on after the parking brake is released
while the motor is running, there may be
a malfunction in the brake system.
Immediate attention is necessary.
If at all possible, cease driving the vehicle
immediately. If that is not possible, use
extreme caution while operating the
vehicle and only continue to drive the
vehicle until you can reach a safe
location.
When the EPB (Electronic Parking
Brake) does not release
If the EPB does not release normally,
contact an authorized HYUNDAI dealer by
loading the vehicle on a flatbed tow truck
and have the system inspected.
Auto Hold
Auto Hold maintains the vehicle in a
standstill even though the brake pedal is
not depressed after the driver brings the vehicle to a complete stop by depressing
the brake pedal.
To apply:
B6003901
1. With the driver's door and hood closed,
depress the brake pedal and then press
the AUTO HOLD switch. The white
AUTO HOLD indicator will come on and
the system will be in the standby
position.
B6003902(1) White
(2) Green
2. When you stop the vehicle completely by depressing the brake pedal, Auto
Hold maintains the brake pressure to
hold the vehicle stationary. The
indicator changes from white to green.
3. The vehicle will remain stationary even if you release the brake pedal.
4. If EPB is applied, Auto Hold will be released.
Hyundai_CE_en_US.book Page 27
Page 316 of 582
Driving Your Vehicle
6-28

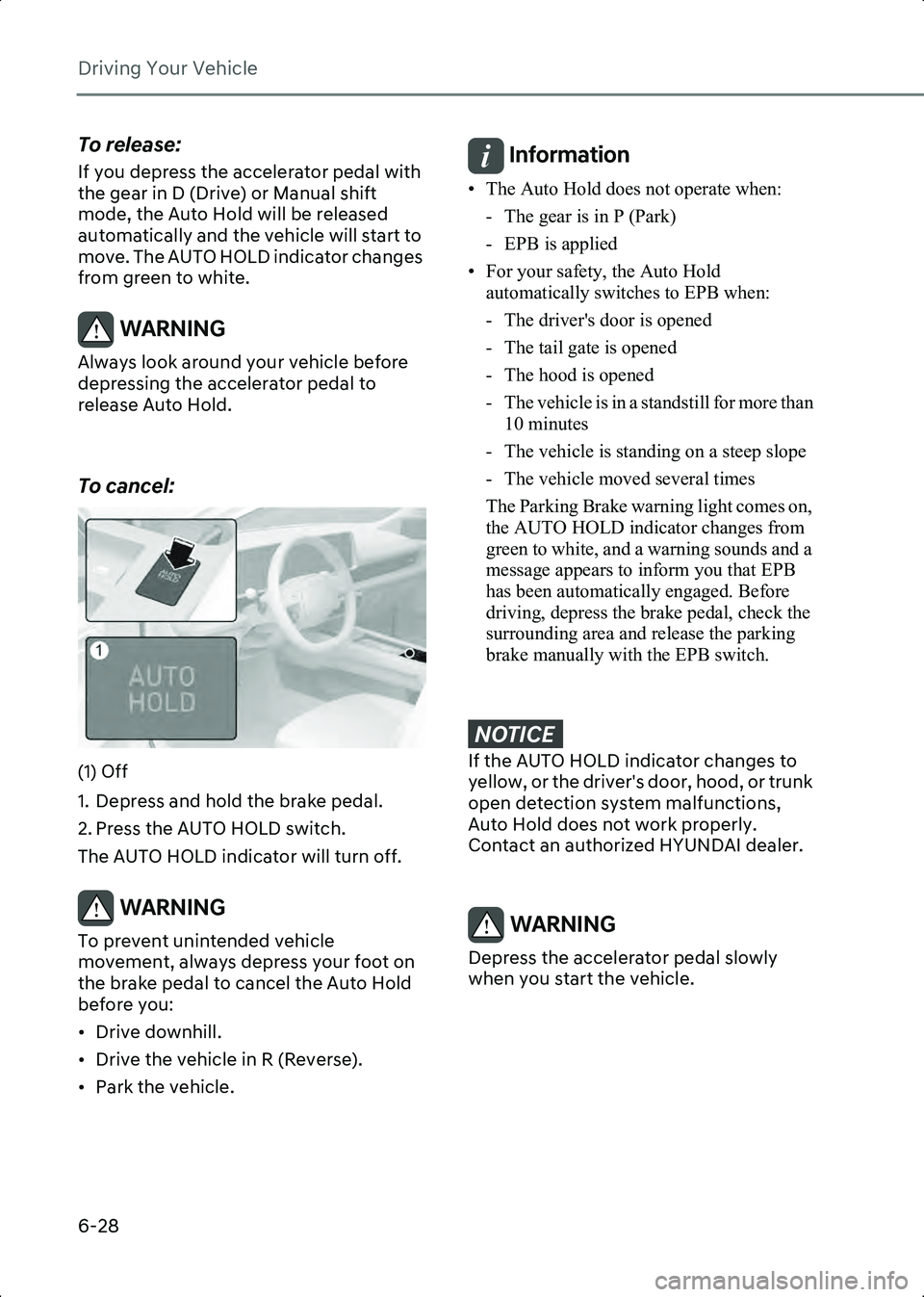

To release:
If you depress the accelerator pedal with
the gear in D (Drive) or Manual shift
mode, the Auto Hold will be released
automatically and the vehicle will start to
move. The AUTO HOLD indicator changes
from green to white.
WARNING Always look around your vehicle before
depressing the accelerator pedal to
release Auto Hold.
To cancel:
B6003903(1) Off
1. Depress and hold the brake pedal.
2. Press the AUTO HOLD switch.
The AUTO HOLD indicator will turn off.
WARNING To prevent unintended vehicle
movement, always depress your foot on
the brake pedal to cancel the Auto Hold
before you:
• Drive downhill.
• Drive the vehicle in R (Reverse).
• Park the vehicle.
Information • The Auto Hold does not operate when:- The gear is in P (Park)
- EPB is applied
• For your safety, the Auto Hold automatically switches to EPB when:
- The driver's door is opened
- The tail gate is opened
- The hood is opened
- The vehicle is in a standstill for more than 10 minutes
- The vehicle is standing on a steep slope
- The vehicle moved several times
The Parking Brake warning light comes on,
the AUTO HOLD indicator changes from
green to white, and a warning sounds and a
message appears to inform you that EPB
has been automatically engaged. Before
driving, depress the brake pedal, check the
surrounding area and release the parking
brake manually with the EPB switch.
NOTICE , I W K H $ 8 7 2 + 2 / ' L Q G L F D W R U F K D Q J H V W R
\ H O O R Z R U W K H G U L Y H U
V G R R U K R R G R U W U X Q N
R S H Q G H W H F W L R Q V \ V W H P P D O I X Q F W L R Q V
$ X W R + R O G G R H V Q R W Z R U N S U R S H U O \
& R Q W D F W D Q D X W K R U L ] H G + < 8 1 ' $ , G H D O H U
WARNING Depress the accelerator pedal slowly
when you start the vehicle.
Hyundai_CE_en_US.book Page 28
Page 317 of 582
6
6-29

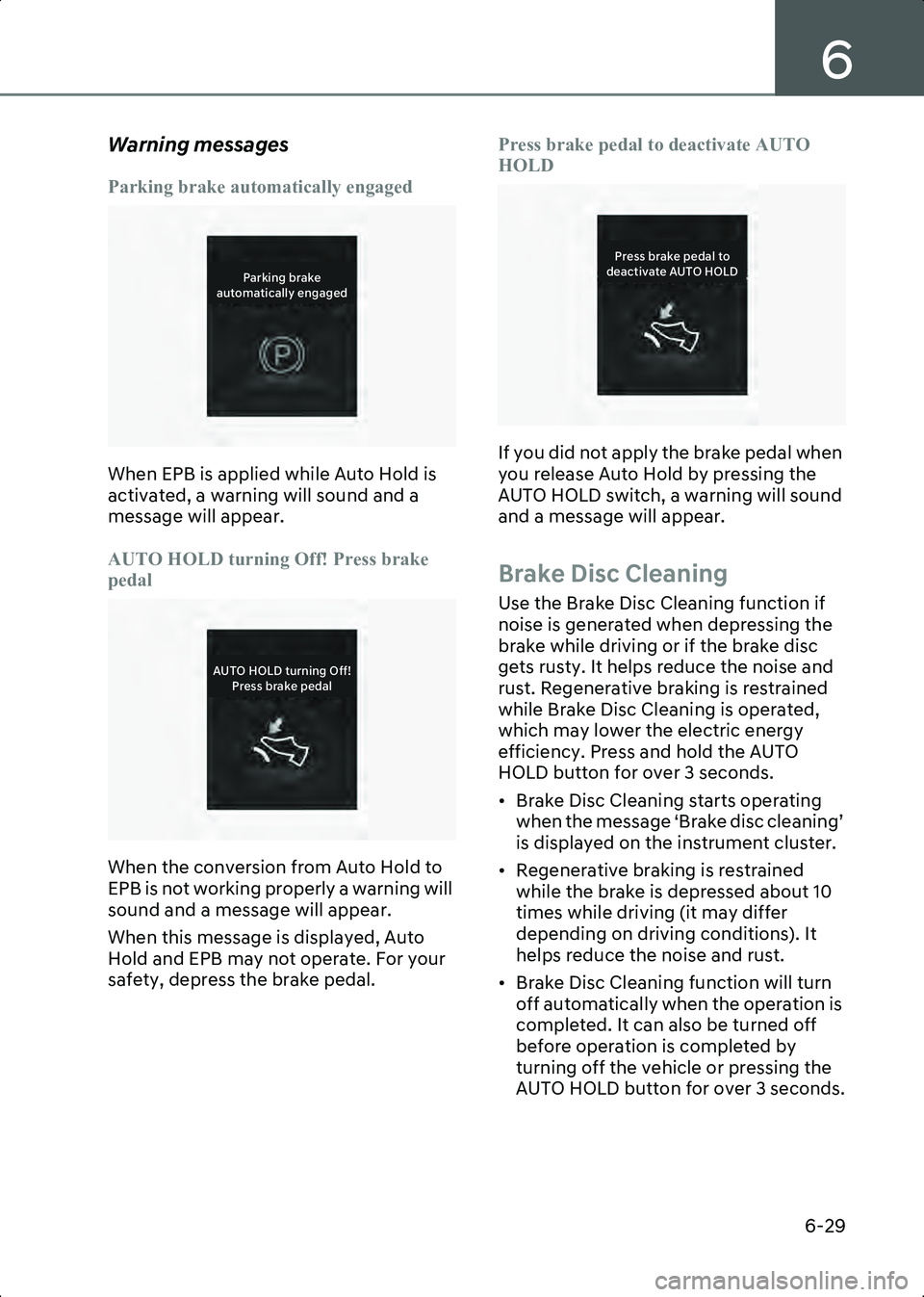

Warning messages
Parking brake automatically engaged
B6003802
When EPB is applied while Auto Hold is
activated, a warning will sound and a
message will appear.
AUTO HOLD turning Off! Press brake
pedal
B6003904
When the conversion from Auto Hold to
EPB is not working properly a warning will
sound and a message will appear.
When this message is displayed, Auto
Hold and EPB may not operate. For your
safety, depress the brake pedal.Press brake pedal to deactivate AUTO
HOLD
B6003905
If you did not apply the brake pedal when
you release Auto Hold by pressing the
AUTO HOLD switch, a warning will sound
and a message will appear.
Brake Disc Cleaning
Use the Brake Disc Cleaning function if
noise is generated when depressing the
brake while driving or if the brake disc
gets rusty. It helps reduce the noise and
rust. Regenerative braking is restrained
while Brake Disc Cleaning is operated,
which may lower the electric energy
efficiency. Press and hold the AUTO
HOLD button for over 3 seconds.
• Brake Disc Cleaning starts operating
when the message ‘Brake disc cleaning’
is displayed on the instrument cluster.
• Regenerative braking is restrained while the brake is depressed about 10
times while driving (it may differ
depending on driving conditions). It
helps reduce the noise and rust.
• Brake Disc Cleaning function will turn off automatically when the operation is
completed. It can also be turned off
before operation is completed by
turning off the vehicle or pressing the
AUTO HOLD button for over 3 seconds.
1 B S L J O H C S B L F
B V U P N B U J D B M M Z F O H B H F E
" 6 5 0 ) 0 - % U V S O J O H 0 G G 1 S F T T C S B L F Q F E B M
1 S F T T C S B L F Q F E B M U P
E F B D U J W B U F " 6 5 0 ) 0 - %
Hyundai_CE_en_US.book Page 29
Page 318 of 582

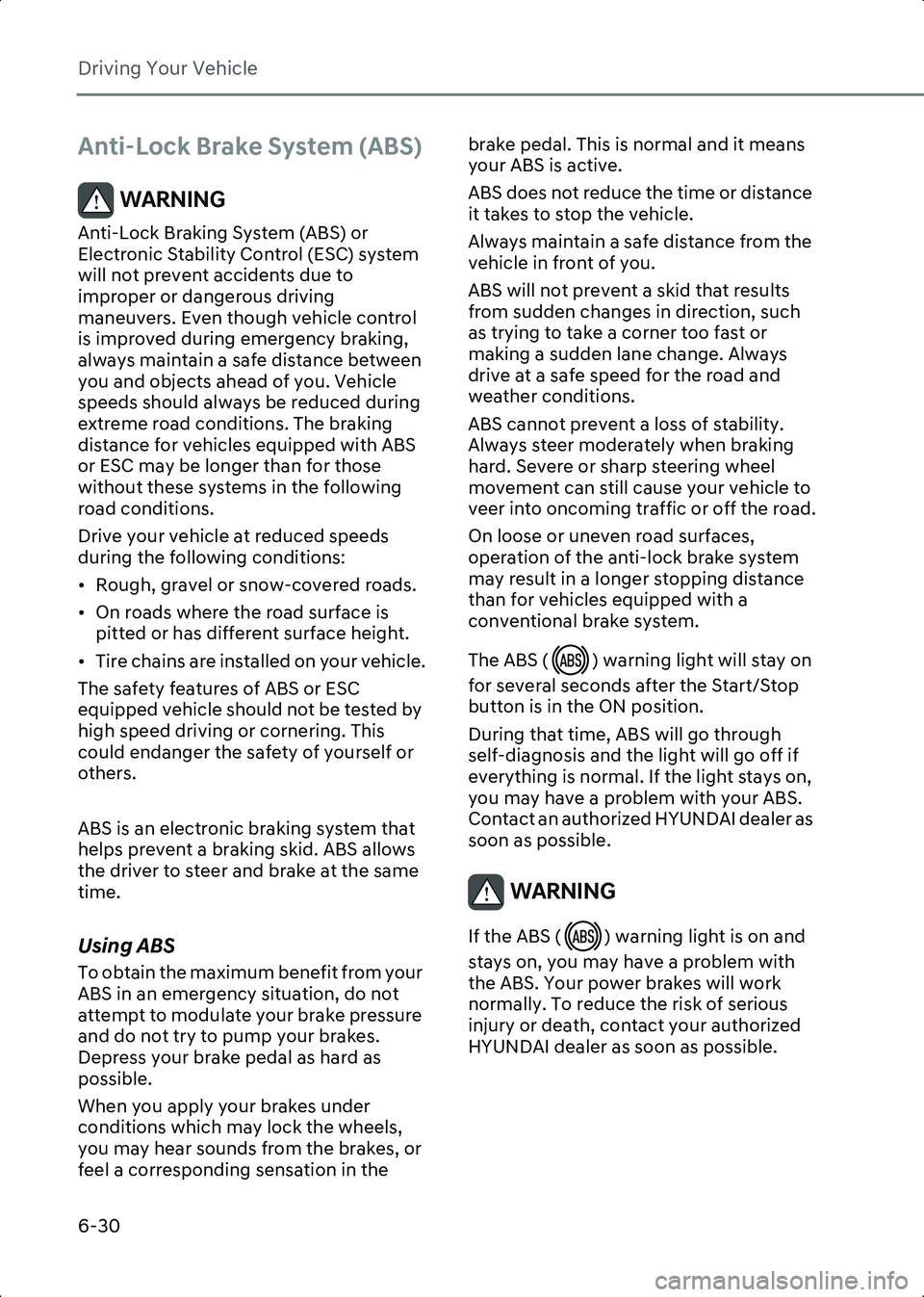

Driving Your Vehicle
6-30
Anti-Lock Brake System (ABS)
WARNING Anti-Lock Braking System (ABS) or
Electronic Stability Control (ESC) system
will not prevent accidents due to
improper or dangerous driving
maneuvers. Even though vehicle control
is improved during emergency braking,
always maintain a safe distance between
you and objects ahead of you. Vehicle
speeds should always be reduced during
extreme road conditions. The braking
distance for vehicles equipped with ABS
or ESC may be longer than for those
without these systems in the following
road conditions.
Drive your vehicle at reduced speeds
during the following conditions:
• Rough, gravel or snow-covered roads.
• On roads where the road surface is pitted or has different surface height.
• Tire chains are installed on your vehicle.
The safety features of ABS or ESC
equipped vehicle should not be tested by
high speed driving or cornering. This
could endanger the safety of yourself or
others.
ABS is an electronic braking system that
helps prevent a braking skid. ABS allows
the driver to steer and brake at the same
time.
Using ABS
To obtain the maximum benefit from your
ABS in an emergency situation, do not
attempt to modulate your brake pressure
and do not try to pump your brakes.
Depress your brake pedal as hard as
possible.
When you apply your brakes under
conditions which may lock the wheels,
you may hear sounds from the brakes, or
feel a corresponding sensation in the brake pedal. This is normal and it means
your ABS is active.
ABS does not reduce the time or distance
it takes to stop the vehicle.
Always maintain a safe distance from the
vehicle in front of you.
ABS will not prevent a skid that results
from sudden changes in direction, such
as trying to take a corner too fast or
making a sudden lane change. Always
drive at a safe speed for the road and
weather conditions.
ABS cannot prevent a loss of stability.
Always steer moderately when braking
hard. Severe or sharp steering wheel
movement can still cause your vehicle to
veer into oncoming traffic or off the road.
On loose or uneven road surfaces,
operation of the anti-lock brake system
may result in a longer stopping distance
than for vehicles equipped with a
conventional brake system.
The ABS ( ) warning light will stay on
for several seconds after the Start/Stop
button is in the ON position.
During that time, ABS will go through
self-diagnosis and the light will go off if
everything is normal. If the light stays on,
you may have a problem with your ABS.
Contact an authorized HYUNDAI dealer as
soon as possible.
WARNING
If the ABS ( ) warning light is on and
stays on, you may have a problem with
the ABS. Your power brakes will work
normally. To reduce the risk of serious
injury or death, contact your authorized
HYUNDAI dealer as soon as possible.
Hyundai_CE_en_US.book Page 30
Page 319 of 582
![HYUNDAI IONIQ 6 2023 Owners Manual 6

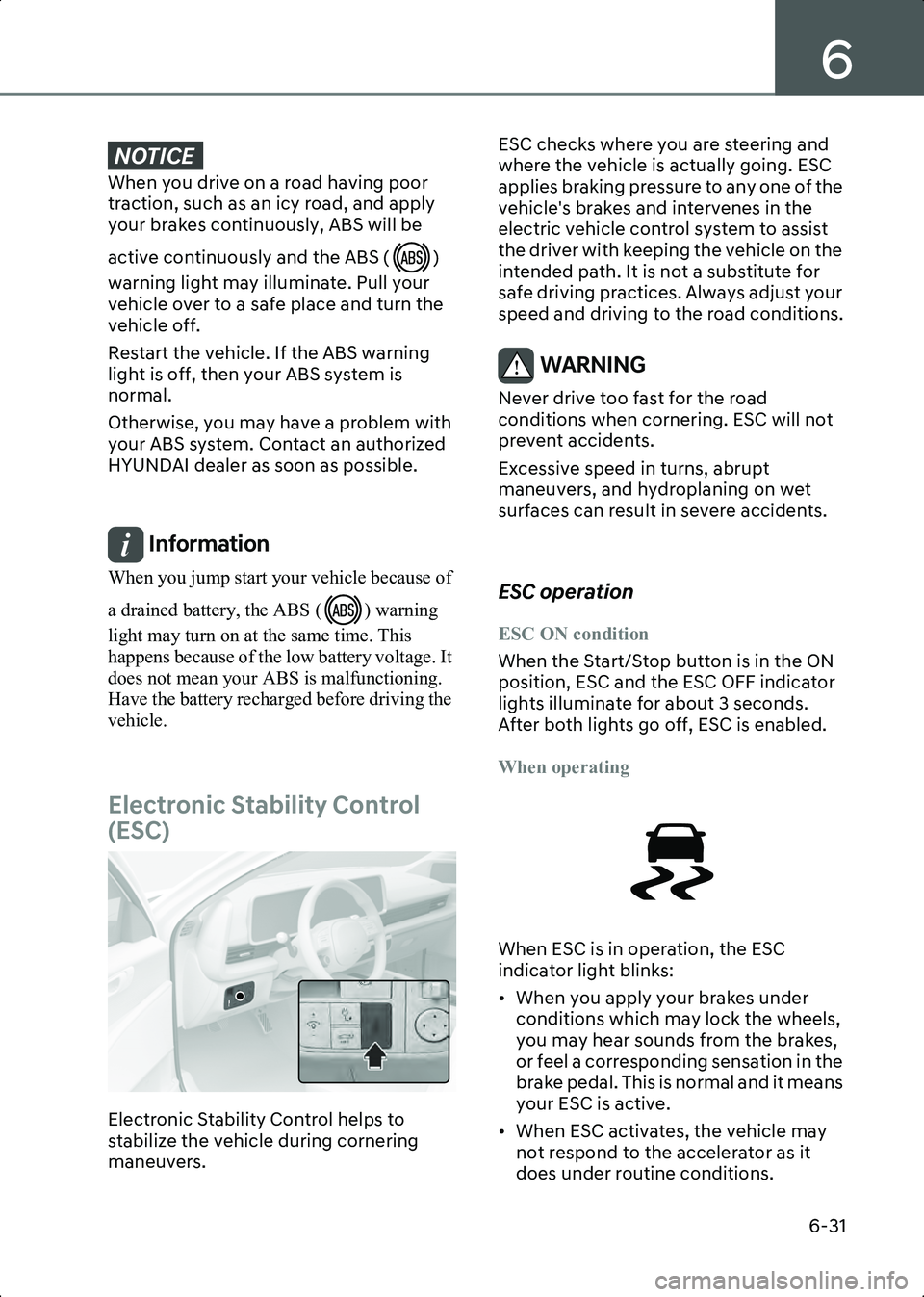

6-31
NOTICE : K H Q \ R X G U L Y H R Q D U R D G K D Y L Q J S R R U
W U D F W L R Q V X F K D V D Q L F \ U R D G D Q G D S S O \
\ R X U E U D N H V F](/img/35/58885/w960_58885-318.png "HYUNDAI IONIQ 6 2023 Owners Manual 6
6-31
NOTICE : K H Q \ R X G U L Y H R Q D U R D G K D Y L Q J S R R U
W U D F W L R Q V X F K D V D Q L F \ U R D G D Q G D S S O \
\ R X U E U D N H V F")
6
6-31
NOTICE : K H Q \ R X G U L Y H R Q D U R D G K D Y L Q J S R R U
W U D F W L R Q V X F K D V D Q L F \ U R D G D Q G D S S O \
\ R X U E U D N H V F R Q W L Q X R X V O \ $ % 6 Z L O O E H
D F W L Y H F R Q W L Q X R X V O \ D Q G W K H $ % 6 \f
Z D U Q L Q J O L J K W P D \ L O O X P L Q D W H 3 X O O \ R X U
Y H K L F O H R Y H U W R D V D I H S O D F H D Q G W X U Q W K H
Y H K L F O H R I I
5 H V W D U W W K H Y H K L F O H , I W K H $ % 6 Z D U Q L Q J
O L J K W L V R I I W K H Q \ R X U $ % 6 V \ V W H P L V
Q R U P D O
2 W K H U Z L V H \ R X P D \ K D Y H D S U R E O H P Z L W K
\ R X U $ % 6 V \ V W H P & R Q W D F W D Q D X W K R U L ] H G
+ < 8 1 ' $ , G H D O H U D V V R R Q D V S R V V L E O H
Information When you jump start your vehicle because of
a drained battery, the ABS ( ) warning
light may turn on at the same time. This
happens because of the low battery voltage. It
does not mean your ABS is malfunctioning.
Have the battery recharged before driving the
vehicle.
Electronic Stability Control
(ESC)
B6004101
Electronic Stability Control helps to
stabilize the vehicle during cornering
maneuvers.ESC checks where you are steering and
where the vehicle is actually going. ESC
applies braking pressure to any one of the
vehicle's brakes and intervenes in the
electric vehicle control system to assist
the driver with keeping the vehicle on the
intended path. It is not a substitute for
safe driving practices. Always adjust your
speed and driving to the road conditions.
WARNING Never drive too fast for the road
conditions when cornering. ESC will not
prevent accidents.
Excessive speed in turns, abrupt
maneuvers, and hydroplaning on wet
surfaces can result in severe accidents.
ESC operation
ESC ON condition
When the Start/Stop button is in the ON
position, ESC and the ESC OFF indicator
lights illuminate for about 3 seconds.
After both lights go off, ESC is enabled.
When operating
When ESC is in operation, the ESC
indicator light blinks:
• When you apply your brakes under
conditions which may lock the wheels,
you may hear sounds from the brakes,
or feel a corresponding sensation in the
brake pedal. This is normal and it means
your ESC is active.
• When ESC activates, the vehicle may not respond to the accelerator as it
does under routine conditions.
Hyundai_CE_en_US.book Page 31
Page 320 of 582

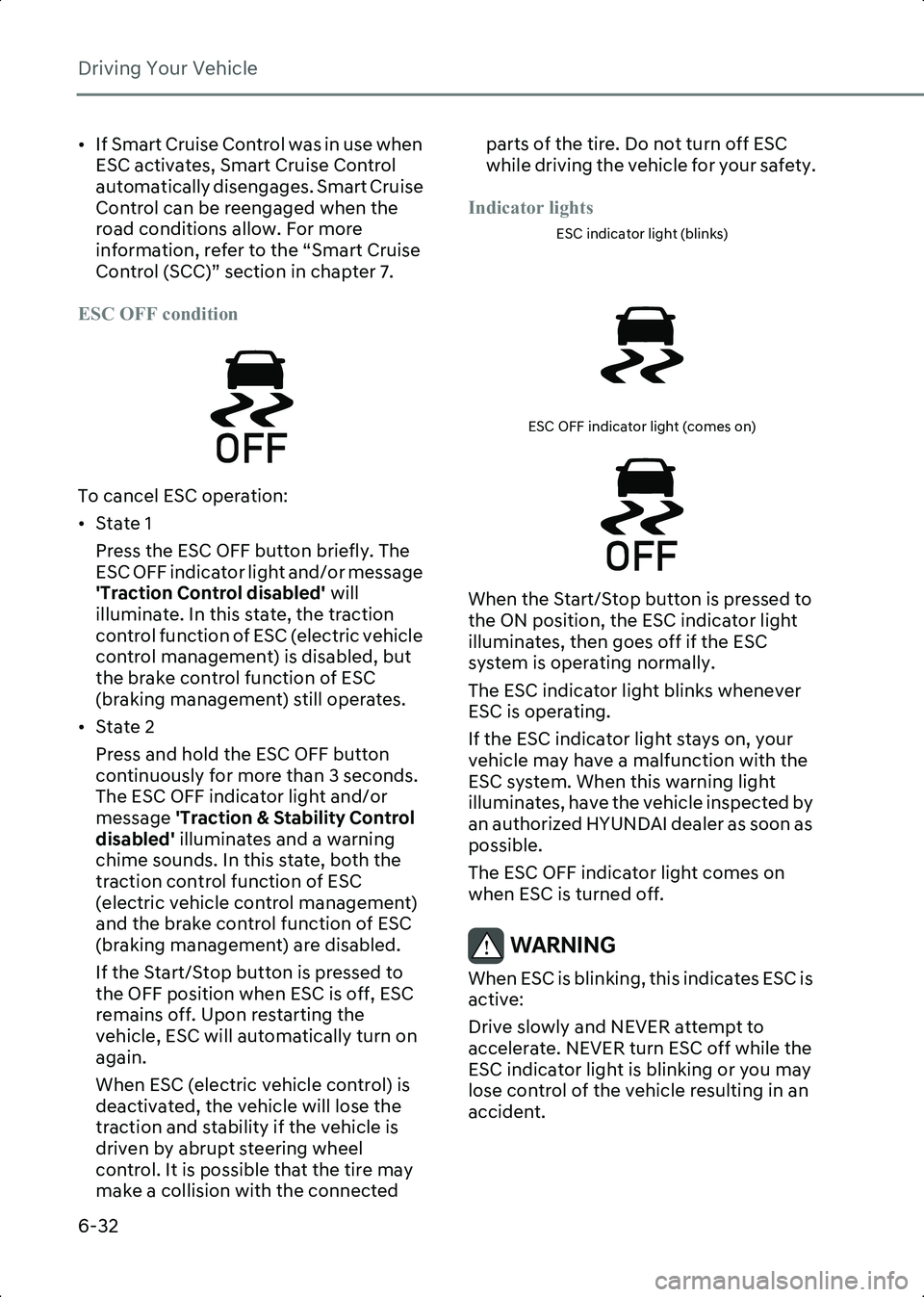

Driving Your Vehicle
6-32
• If Smart Cruise Control was in use when ESC activates, Smart Cruise Control
automatically disengages. Smart Cruise
Control can be reengaged when the
road conditions allow. For more
information, refer to the “Smart Cruise
Control (SCC)” section in chapter 7.
ESC OFF condition
To cancel ESC operation:
• State 1 Press the ESC OFF button briefly. The
ESC OFF indicator light and/or message
'Traction Control disabled' will
illuminate. In this state, the traction
control function of ESC (electric vehicle
control management) is disabled, but
the brake control function of ESC
(braking management) still operates.
• State 2 Press and hold the ESC OFF button
continuously for more than 3 seconds.
The ESC OFF indicator light and/or
message 'Traction & Stability Control
disabled' illuminates and a warning
chime sounds. In this state, both the
traction control function of ESC
(electric vehicle control management)
and the brake control function of ESC
(braking management) are disabled.
If the Start/Stop button is pressed to
the OFF position when ESC is off, ESC
remains off. Upon restarting the
vehicle, ESC will automatically turn on
again.
When ESC (electric vehicle control) is
deactivated, the vehicle will lose the
traction and stability if the vehicle is
driven by abrupt steering wheel
control. It is possible that the tire may
make a collision with the connected parts of the tire. Do not turn off ESC
while driving the vehicle for your safety.
Indicator lights
ESC indicator light (blinks)
ESC OFF indicator light (comes on)
When the Start/Stop button is pressed to
the ON position, the ESC indicator light
illuminates, then goes off if the ESC
system is operating normally.
The ESC indicator light blinks whenever
ESC is operating.
If the ESC indicator light stays on, your
vehicle may have a malfunction with the
ESC system. When this warning light
illuminates, have the vehicle inspected by
an authorized HYUNDAI dealer as soon as
possible.
The ESC OFF indicator light comes on
when ESC is turned off.
WARNING When ESC is blinking, this indicates ESC is
active:
Drive slowly and NEVER attempt to
accelerate. NEVER turn ESC off while the
ESC indicator light is blinking or you may
lose control of the vehicle resulting in an
accident.
Hyundai_CE_en_US.book Page 32
