Hyundai Ioniq Hybrid 2018 Owner's Manual

7-74
Maintenance

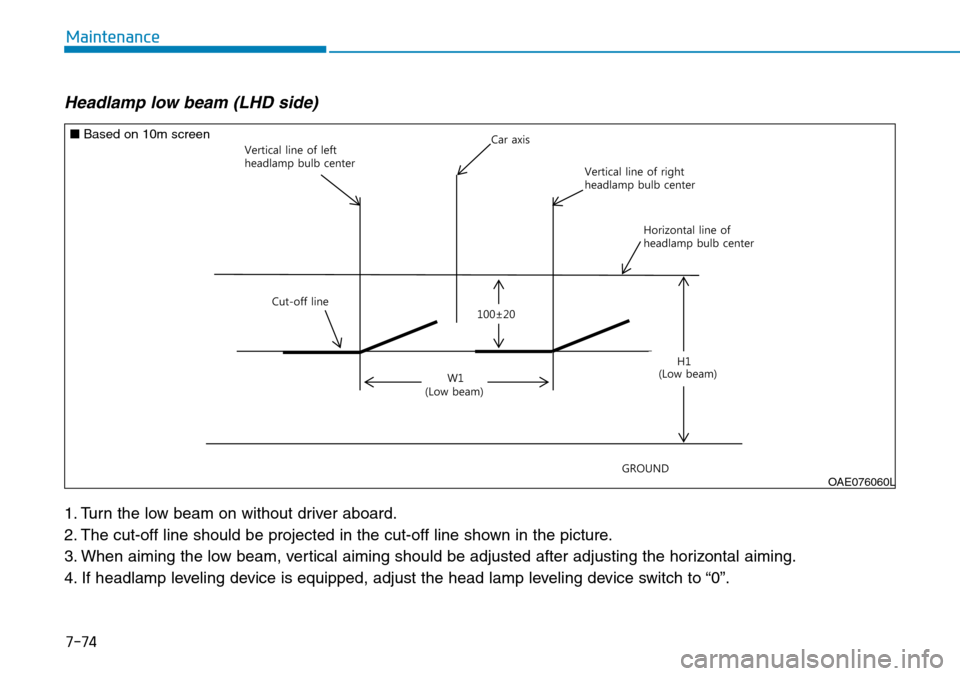

Headlamp low beam (LHD side)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If headlamp leveling device is equipped, adjust the head lamp leveling device switch to “0”.
:&DUD[LV
9HUWLFDOOLQHRIOHIW
KHDGODPSEXOEFHQWHU
&XWRIIOLQH
9HUWLFDOOLQHRIULJKW
KHDGODPSEXOEFHQWHU
+RUL]RQWDOOLQHRI
KHDGODPSEXOEFHQWHU
*5281'
—
+
/RZEHDP
/RZEHDP
OAE076060L
■Based on 10m screen

7-75
7
Maintenance

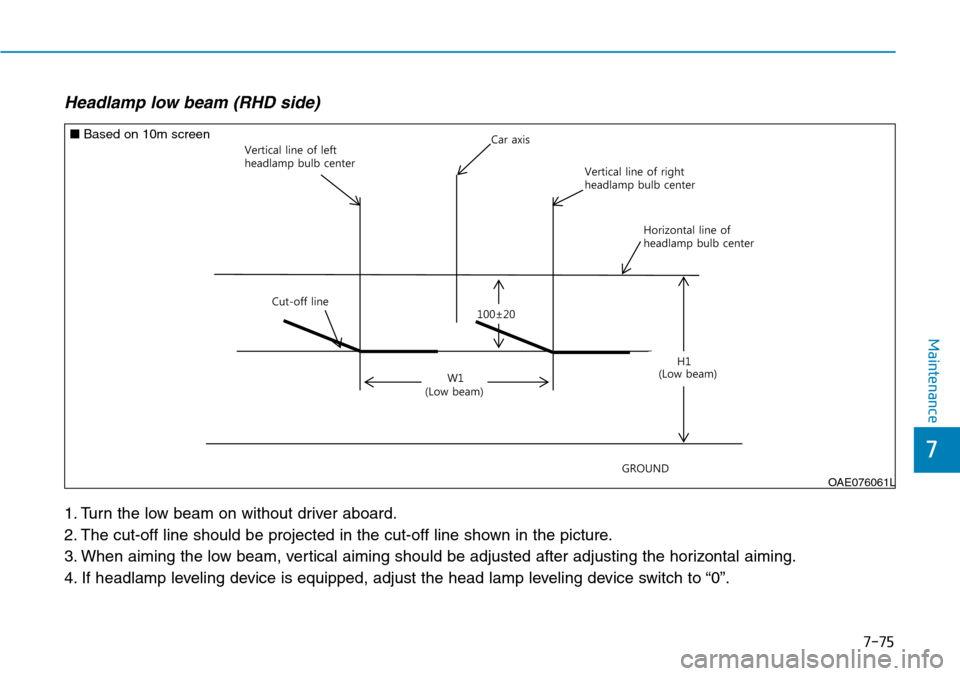

Headlamp low beam (RHD side)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If headlamp leveling device is equipped, adjust the head lamp leveling device switch to “0”.
:&DUD[LV
9HUWLFDOOLQHRIOHIW
KHDGODPSEXOEFHQWHU
&XWRIIOLQH
9HUWLFDOOLQHRIULJKW
KHDGODPSEXOEFHQWHU
+RUL]RQWDOOLQHRI
KHDGODPSEXOEFHQWHU
*5281'
—
+
/RZEHDP
/RZEHDP
OAE076061L
■Based on 10m screen

7-76
Maintenance

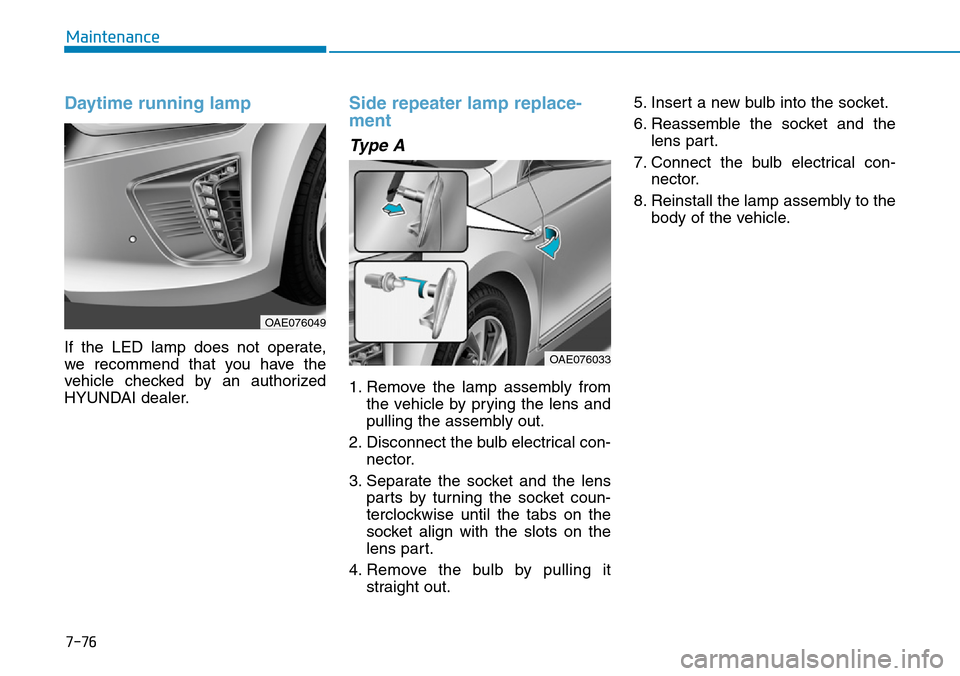

Daytime running lamp
If the LED lamp does not operate,
we recommend that you have the
vehicle checked by an authorized
HYUNDAI dealer.
Side repeater lamp replace-
ment
Type A
1. Remove the lamp assembly from
the vehicle by prying the lens and
pulling the assembly out.
2. Disconnect the bulb electrical con-
nector.
3. Separate the socket and the lens
parts by turning the socket coun-
terclockwise until the tabs on the
socket align with the slots on the
lens part.
4. Remove the bulb by pulling it
straight out.5. Insert a new bulb into the socket.
6. Reassemble the socket and the
lens part.
7. Connect the bulb electrical con-
nector.
8. Reinstall the lamp assembly to the
body of the vehicle.
OAE076049
OAE076033

7-77
7
Maintenance
Type B
If the LED lamp does not operate,
we recommend that you have the
vehicle checked by an authorized
HYUNDAI dealer.
Rear combination lamp bulb
replacement

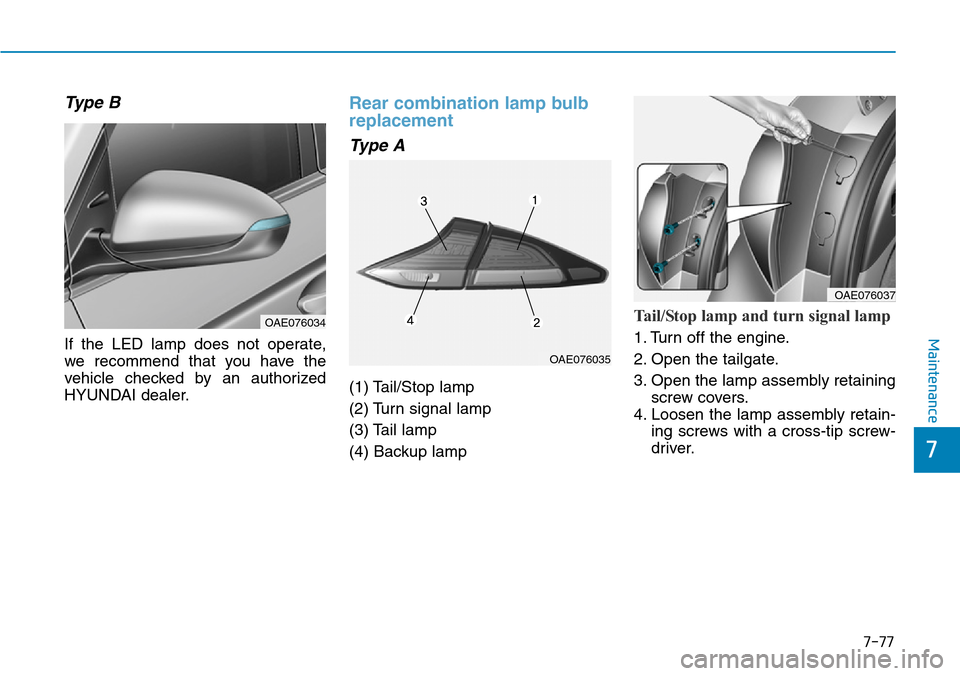

Type A
(1) Tail/Stop lamp
(2) Turn signal lamp
(3) Tail lamp
(4) Backup lamp
Tail/Stop lamp and turn signal lamp
1. Turn off the engine.
2. Open the tailgate.
3. Open the lamp assembly retaining
screw covers.
4. Loosen the lamp assembly retain-
ing screws with a cross-tip screw-
driver.OAE076034
OAE076035
OAE076037

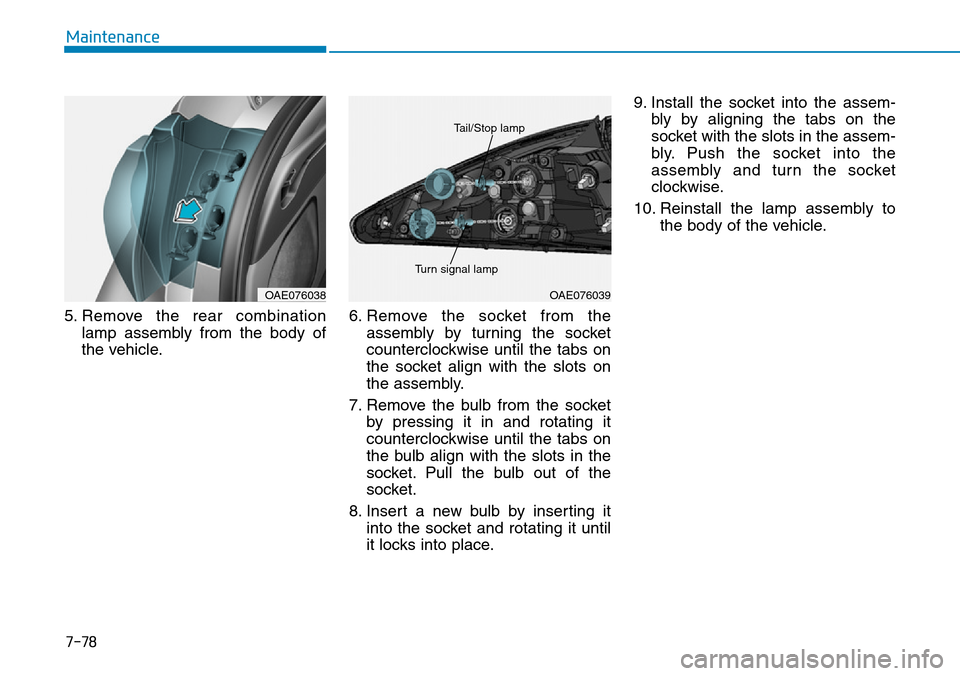

7-78
Maintenance
5. Remove the rear combination
lamp assembly from the body of
the vehicle.6. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
7. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
8. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.9. Install the socket into the assem-
bly by aligning the tabs on the
socket with the slots in the assem-
bly. Push the socket into the
assembly and turn the socket
clockwise.
10. Reinstall the lamp assembly to
the body of the vehicle.
OAE076038OAE076039
Tail/Stop lamp
Turn signal lamp

7-79
7
Maintenance
Tail lamp and backup lamp
1. Turn off the engine.
2. Open the tailgate.
3. Remove the service cover using a
flat-blade screwdriver.4. Remove the bulb by pulling it
straight out.
5. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
6. Install the socket into the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7. Reinstall the service cover.
Type B
(1) Tail/Stop lamp
(2) Turn signal lamp
(3) Tail lamp
(4) Backup lamp
Tail/Stop lamp
If the LED lamp does not operate, we
recommend that you have the vehi-
cle checked by an authorized
HYUNDAI dealer.
OAE076036
OAE076041OAE076042
Backup lamp

7-80
Maintenance

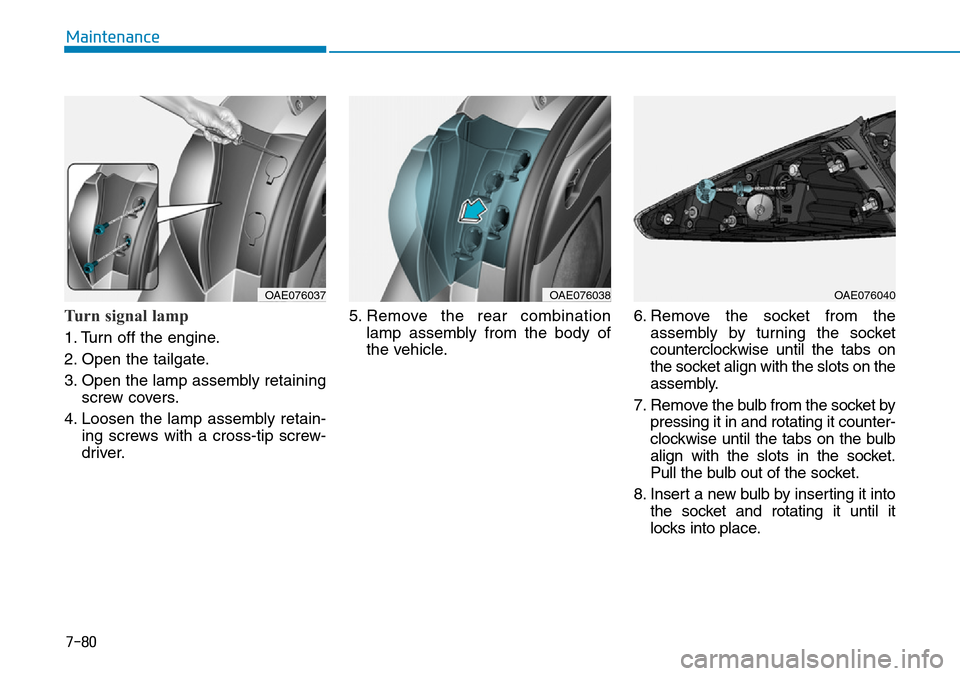

Turn signal lamp
1. Turn off the engine.
2. Open the tailgate.
3. Open the lamp assembly retaining
screw covers.
4. Loosen the lamp assembly retain-
ing screws with a cross-tip screw-
driver.5. Remove the rear combination
lamp assembly from the body of
the vehicle.6. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
7. Remove the bulb from the socket by
pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket.
Pull the bulb out of the socket.
8. Insert a new bulb by inserting it into
the socket and rotating it until it
locks into place.
OAE076040OAE076038OAE076037

7-81
7
Maintenance
9. Install the socket into the assembly
by aligning the tabs on the socket
with the slots in the assembly. Push
the socket into the assembly and
turn the socket clockwise.
10. Reinstall the lamp assembly to
the body of the vehicle

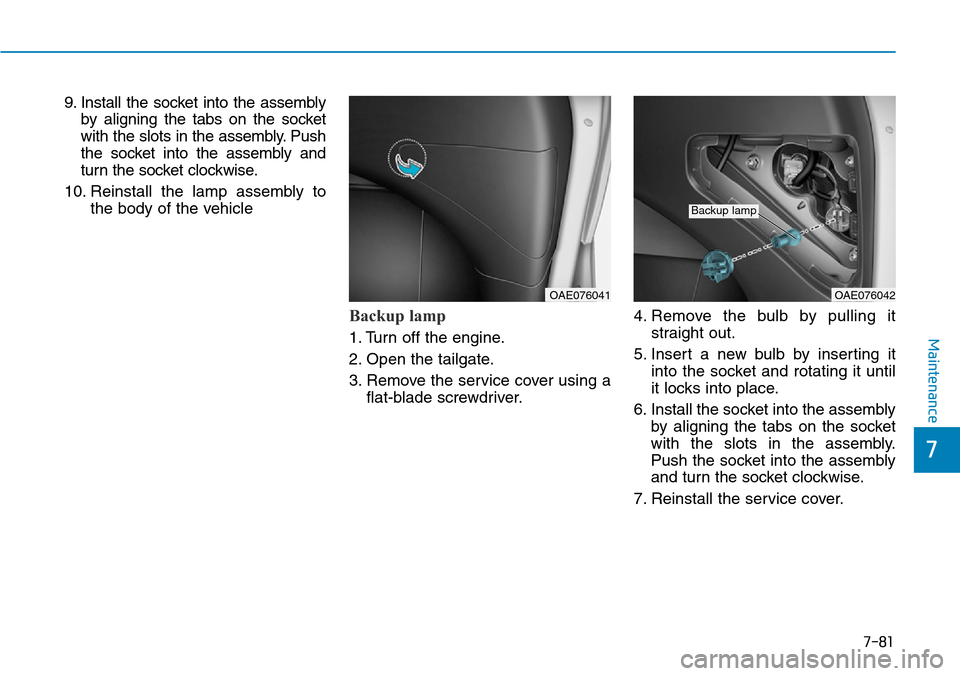

Backup lamp
1. Turn off the engine.
2. Open the tailgate.
3. Remove the service cover using a
flat-blade screwdriver.4. Remove the bulb by pulling it
straight out.
5. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
6. Install the socket into the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7. Reinstall the service cover.
OAE076042
Backup lamp
OAE076041

7-82
Maintenance

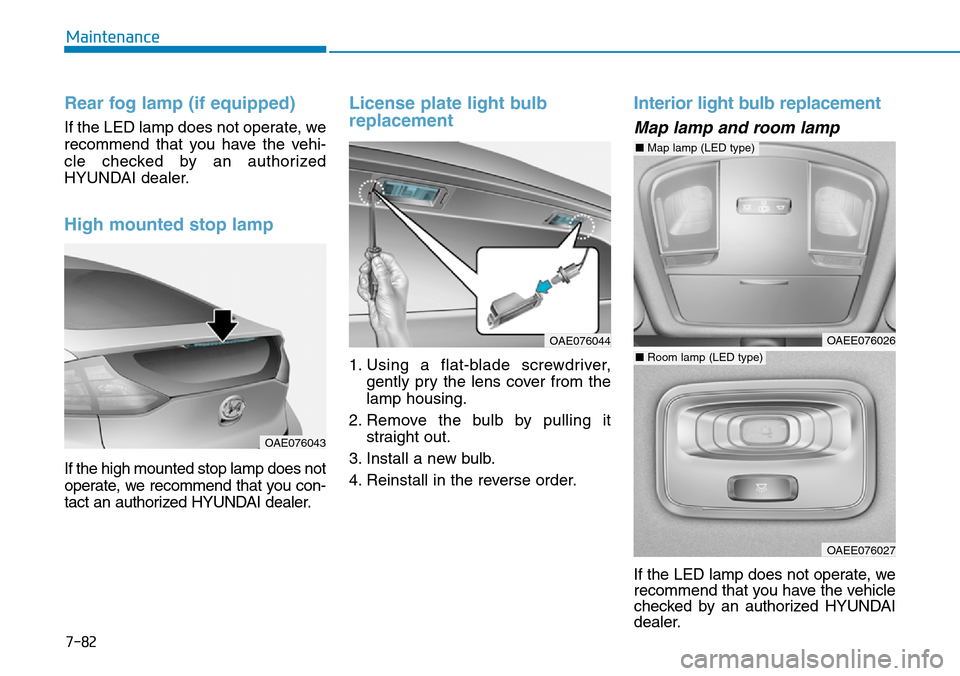

Rear fog lamp (if equipped)
If the LED lamp does not operate, we
recommend that you have the vehi-
cle checked by an authorized
HYUNDAI dealer.
High mounted stop lamp
If the high mounted stop lamp does not
operate, we recommend that you con-
tact an authorized HYUNDAI dealer.
License plate light bulb
replacement
1. Using a flat-blade screwdriver,
gently pry the lens cover from the
lamp housing.
2. Remove the bulb by pulling it
straight out.
3. Install a new bulb.
4. Reinstall in the reverse order.
Interior light bulb replacement
Map lamp and room lamp
If the LED lamp does not operate, we
recommend that you have the vehicle
checked by an authorized HYUNDAI
dealer.
OAE076044OAEE076026
OAEE076027
■Map lamp (LED type)
■Room lamp (LED type)
OAE076043

7-83
7
Maintenance
1. Using a flat-head screwdriver,
gently pry the lens from the interi-
or light housing.
2. Remove the bulb by pulling it
straight out.
3. Install a new bulb into the socket.
4. Align the lens tabs with the interior
light housing notches and snap
the lens into place.
Use care not to dirty or damage
lenses, lens tabs, and plastic
housings.
NOTICE
■Vanity mirror lamp
■Luggage compartment lamp
OAE076048
OAE076047
■Map lamp (Bulb type)
OAE076045
OAE076046
■Room lamp (Bulb type)

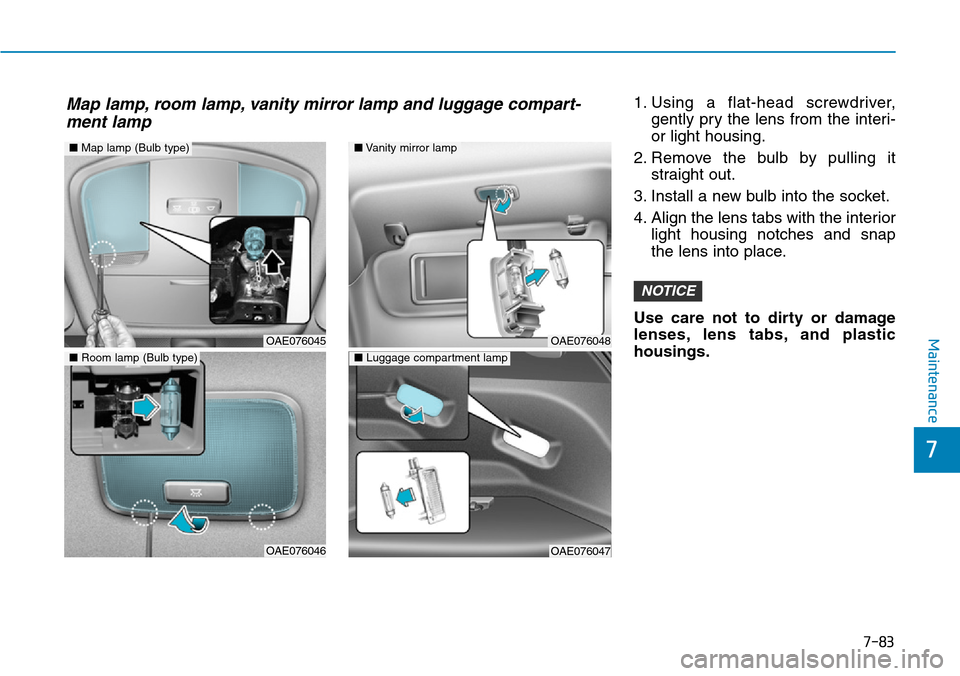

Map lamp, room lamp, vanity mirror lamp and luggage compart-
ment lamp
