Hyundai Ioniq Hybrid 2020 Owner's Manual - RHD (UK, Australia)

5-117
Driving your vehicle
5

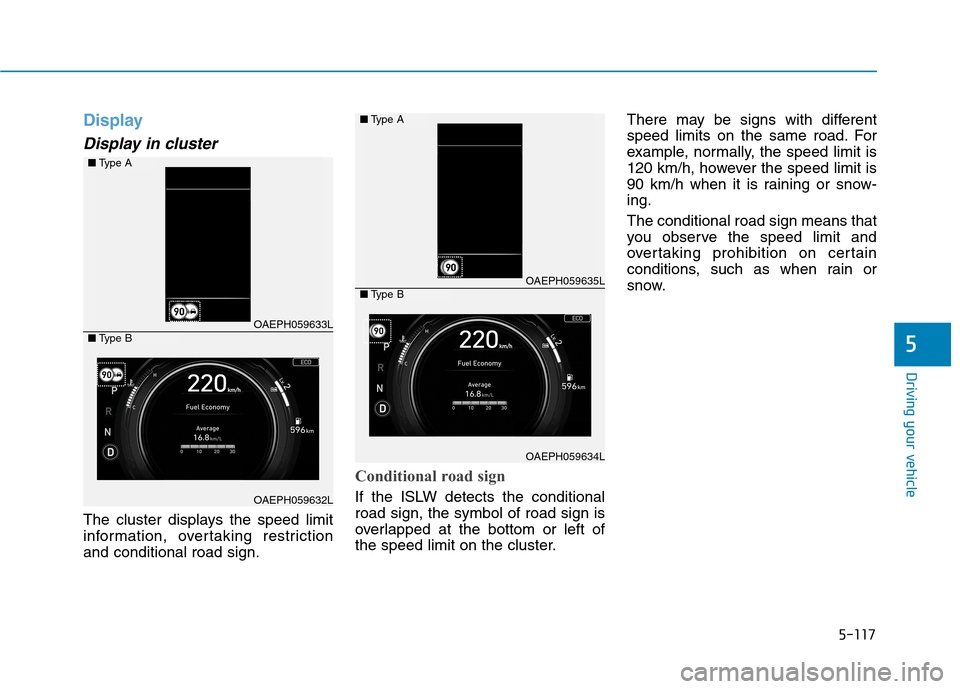

Display
Display in cluster
The cluster displays the speed limit
information, overtaking restriction
and conditional road sign.
Conditional road sign
If the ISLW detects the conditional
road sign, the symbol of road sign is
overlapped at the bottom or left of
the speed limit on the cluster.There may be signs with different
speed limits on the same road. For
example, normally, the speed limit is
120 km/h, however the speed limit is
90 km/h when it is raining or snow-
ing.
The conditional road sign means that
you observe the speed limit and
overtaking prohibition on certain
conditions, such as when rain or
snow.
■Type A
OAEPH059633L
■Type B
OAEPH059632L
■Type A
OAEPH059635L
■Type B
OAEPH059634L

5-118
Driving your vehicle

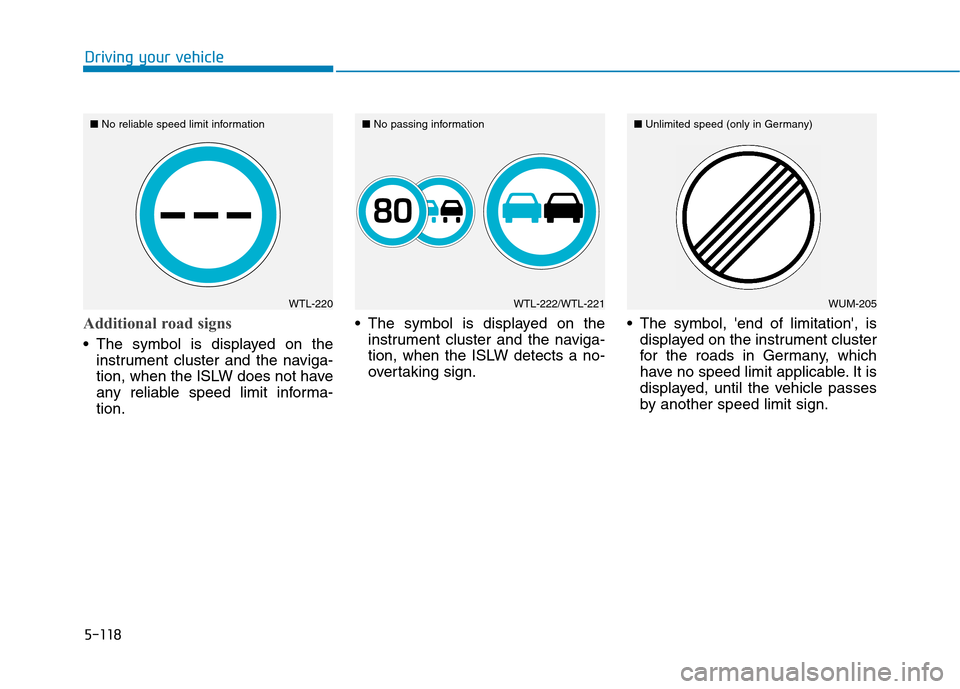

Additional road signs
The symbol is displayed on the
instrument cluster and the naviga-
tion, when the ISLW does not have
any reliable speed limit informa-
tion. The symbol is displayed on the
instrument cluster and the naviga-
tion, when the ISLW detects a no-
overtaking sign. The symbol, 'end of limitation', is
displayed on the instrument cluster
for the roads in Germany, which
have no speed limit applicable. It is
displayed, until the vehicle passes
by another speed limit sign.
WTL-222/WTL-221 ■ No passing information

WTL-220 ■ No reliable speed limit informationWUM-205 ■ Unlimited speed (only in Germany)

5-119
Driving your vehicle
5

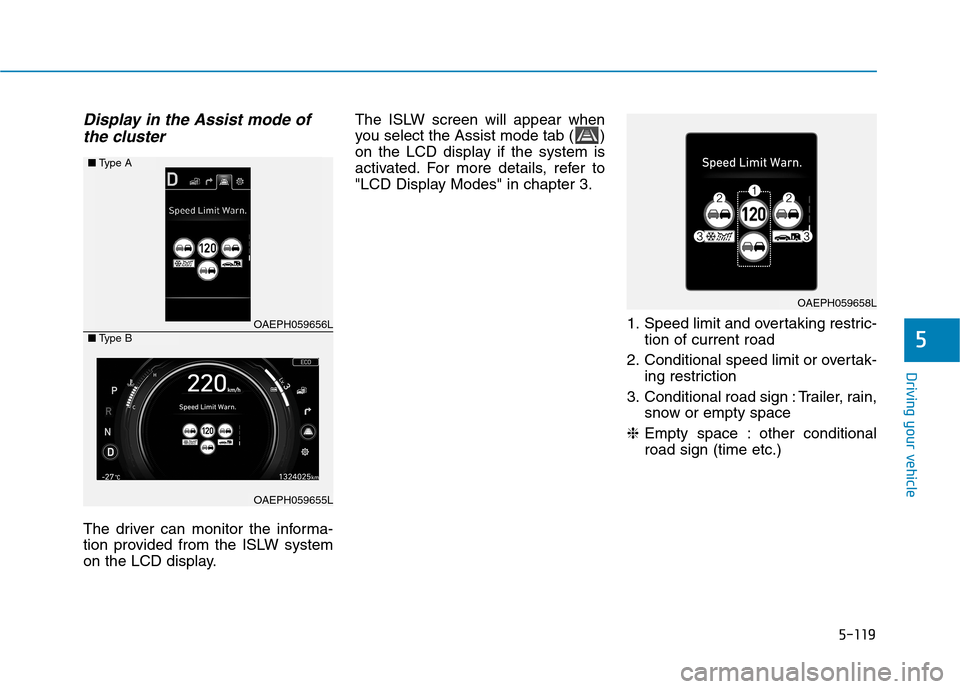

Display in the Assist mode of
the cluster
The driver can monitor the informa-
tion provided from the ISLW system
on the LCD display.The ISLW screen will appear when
you select the Assist mode tab ( )
on the LCD display if the system is
activated. For more details, refer to
"LCD Display Modes" in chapter 3.
1. Speed limit and overtaking restric-
tion of current road
2. Conditional speed limit or overtak-
ing restriction
3. Conditional road sign : Trailer, rain,
snow or empty space
❈Empty space : other conditional
road sign (time etc.)
OAEPH059658L
■Type A
OAEPH059656L
■Type B
OAEPH059655L

5-120

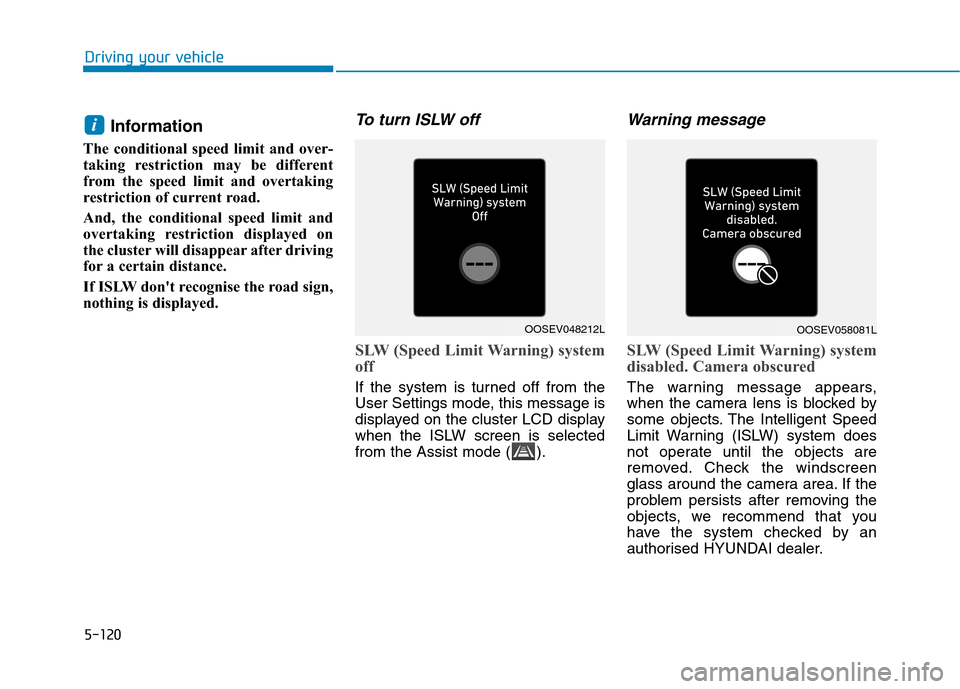

Information
The conditional speed limit and over-
taking restriction may be different
from the speed limit and overtaking
restriction of current road.
And, the conditional speed limit and
overtaking restriction displayed on
the cluster will disappear after driving
for a certain distance.
If ISLW don't recognise the road sign,
nothing is displayed.
To turn ISLW off
SLW (Speed Limit Warning) system
off
If the system is turned off from the
User Settings mode, this message is
displayed on the cluster LCD display
when the ISLW screen is selected
from the Assist mode ( ).
Warning message
SLW (Speed Limit Warning) system
disabled. Camera obscured
The warning message appears,
when the camera lens is blocked by
some objects. The Intelligent Speed
Limit Warning (ISLW) system does
not operate until the objects are
removed. Check the windscreen
glass around the camera area. If the
problem persists after removing the
objects, we recommend that you
have the system checked by an
authorised HYUNDAI dealer.
i
Driving your vehicle
OOSEV048212LOOSEV058081L

5-121
Driving your vehicle
5

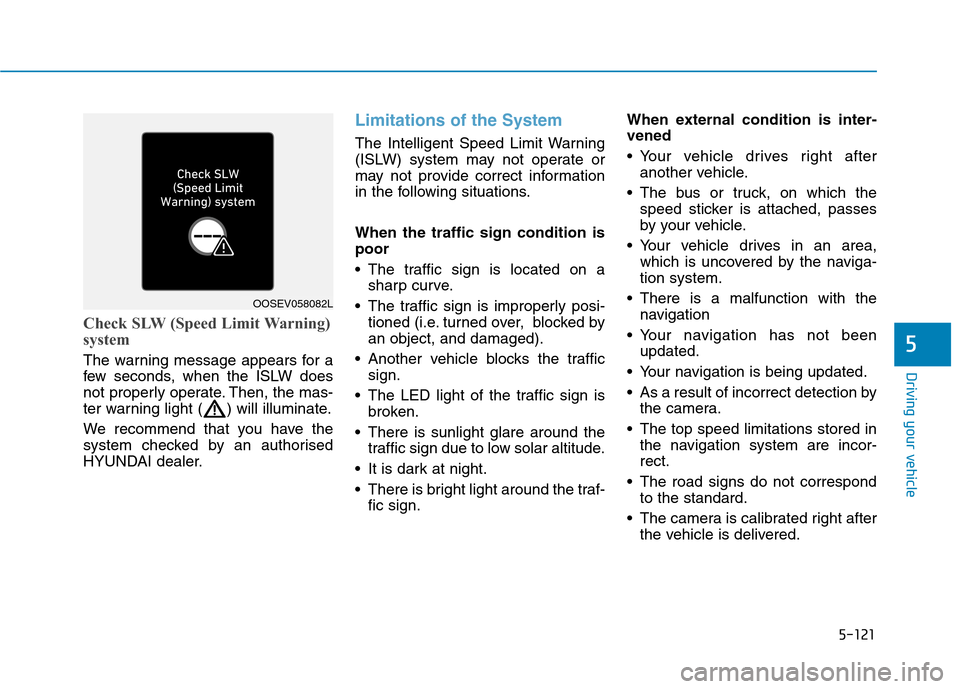

Check SLW (Speed Limit Warning)
system
The warning message appears for a
few seconds, when the ISLW does
not properly operate. Then, the mas-
ter warning light ( ) will illuminate.
We recommend that you have the
system checked by an authorised
HYUNDAI dealer.
Limitations of the System
The Intelligent Speed Limit Warning
(ISLW) system may not operate or
may not provide correct information
in the following situations.
When the traffic sign condition is
poor
The traffic sign is located on a
sharp curve.
The traffic sign is improperly posi-
tioned (i.e. turned over, blocked by
an object, and damaged).
Another vehicle blocks the traffic
sign.
The LED light of the traffic sign is
broken.
There is sunlight glare around the
traffic sign due to low solar altitude.
It is dark at night.
There is bright light around the traf-
fic sign.When external condition is inter-
vened
Your vehicle drives right after
another vehicle.
The bus or truck, on which the
speed sticker is attached, passes
by your vehicle.
Your vehicle drives in an area,
which is uncovered by the naviga-
tion system.
There is a malfunction with the
navigation
Your navigation has not been
updated.
Your navigation is being updated.
As a result of incorrect detection by
the camera.
The top speed limitations stored in
the navigation system are incor-
rect.
The road signs do not correspond
to the standard.
The camera is calibrated right after
the vehicle is delivered.
OOSEV058082L

5-122
Driving your vehicle

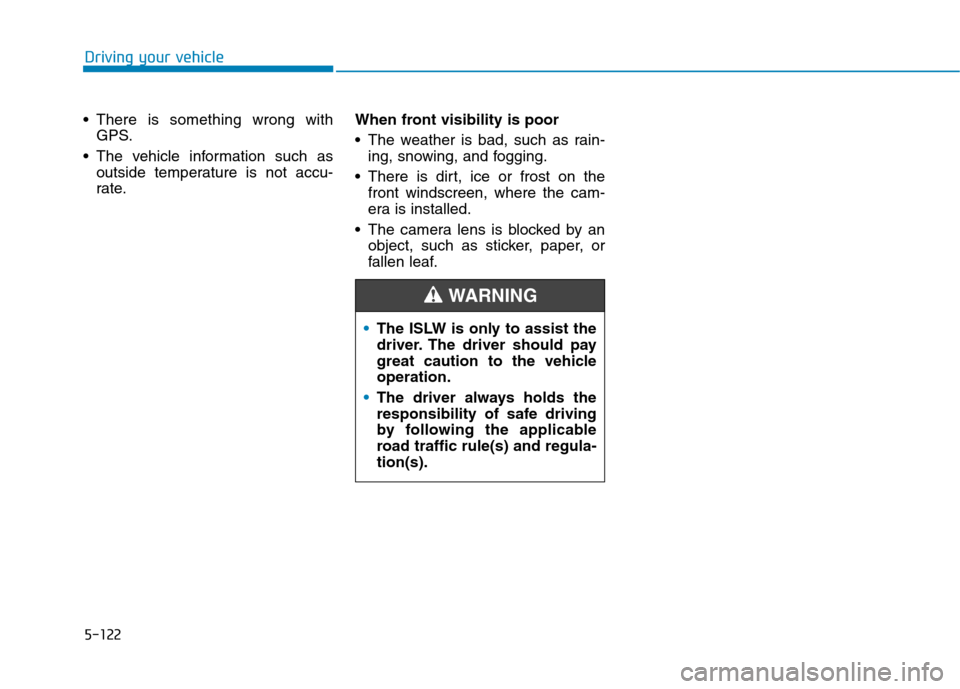

There is something wrong with
GPS.
The vehicle information such as
outside temperature is not accu-
rate.When front visibility is poor
The weather is bad, such as rain-
ing, snowing, and fogging.
There is dirt, ice or frost on the
front windscreen, where the cam-
era is installed.
The camera lens is blocked by an
object, such as sticker, paper, or
fallen leaf.
The ISLW is only to assist the
driver. The driver should pay
great caution to the vehicle
operation.
The driver always holds the
responsibility of safe driving
by following the applicable
road traffic rule(s) and regula-
tion(s).
WARNING

5-123
Driving your vehicle
5
Cruise Control operation
1. Cruise indicator
2. Set speed
The Cruise Control system allows you
to drive at speeds above 30 km/h
without depressing the accelerator
pedal.
C CR
RU
UI
IS
SE
E
C
CO
ON
NT
TR
RO
OL
L
(
(I
IF
F
E
EQ
QU
UI
IP
PP
PE
ED
D)
)

Take the following precautions:
Always set the vehicle speed
under the speed limit in your
country.
If the Cruise Control is left on,
(cruise indicator light in the
instrument cluster is illumi-
nated) the Cruise Control can
be activated unintentionally.
Keep the Cruise Control sys-
tem off (cruise indicator light
OFF) when the Cruise Control
is not in use, to avoid inadver-
tently setting a speed.
Use the Cruise Control sys-
tem only when travelling on
open highways in good
weather.
(Continued)
(Continued)
Do not use the Cruise Control
when it may be unsafe to keep
the vehicle at a constant
speed:
- When driving in heavy traffic
or when traffic conditions
make it difficult to drive at a
constant speed
- When driving on rainy, icy, or
snow-covered roads
- When driving on hilly or
windy roads
- When driving in windy areas
- When driving with limited
view(possibly due to bad
weather such as fog, snow,
rain and sandstorm)WARNING
OOSEV058038

5-124
Driving your vehicle

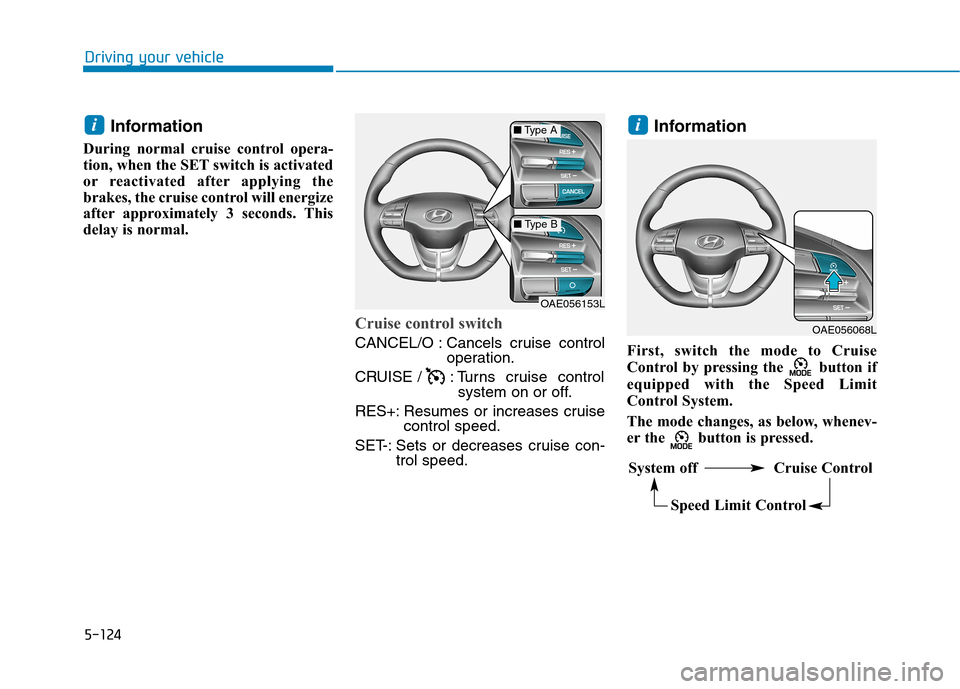

Information
During normal cruise control opera-
tion, when the SET switch is activated
or reactivated after applying the
brakes, the cruise control will energize
after approximately 3 seconds. This
delay is normal.
Cruise control switch
CANCEL/O : Cancels cruise control
operation.
CRUISE / : Turns cruise control
system on or off.
RES+: Resumes or increases cruise
control speed.
SET-: Sets or decreases cruise con-
trol speed.
Information
First, switch the mode to Cruise
Control by pressing the button if
equipped with the Speed Limit
Control System.
The mode changes, as below, whenev-
er the button is pressed.
ii
OAE056068L
OAE056153L
■Type A
■Type B
System off Cruise Control
Speed Limit Control

5-125
Driving your vehicle
5

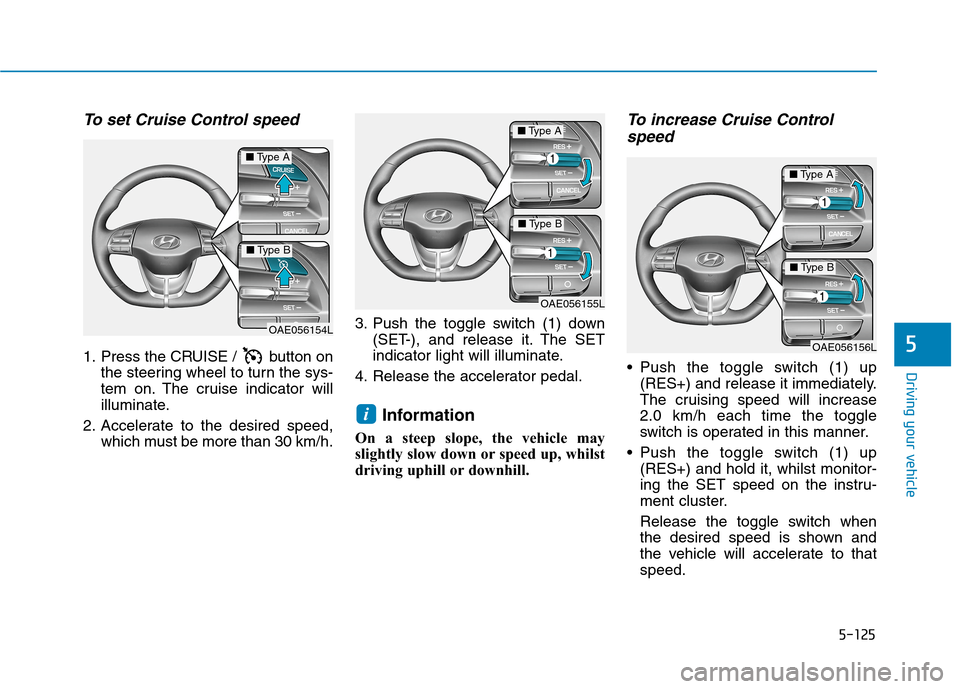

To set Cruise Control speed
1. Press the CRUISE / button on
the steering wheel to turn the sys-
tem on. The cruise indicator will
illuminate.
2. Accelerate to the desired speed,
which must be more than 30 km/h.3. Push the toggle switch (1) down
(SET-), and release it. The SET
indicator light will illuminate.
4. Release the accelerator pedal.
Information
On a steep slope, the vehicle may
slightly slow down or speed up, whilst
driving uphill or downhill.
To increase Cruise Control
speed
Push the toggle switch (1) up
(RES+) and release it immediately.
The cruising speed will increase
2.0 km/h each time the toggle
switch is operated in this manner.
Push the toggle switch (1) up
(RES+) and hold it, whilst monitor-
ing the SET speed on the instru-
ment cluster.
Release the toggle switch when
the desired speed is shown and
the vehicle will accelerate to that
speed.
i
OAE056154L
■Type A
■Type B
OAE056155L
■Type A
■Type B
OAE056156L
■Type A
■Type B

5-126
Driving your vehicle
Depress the accelerator pedal.
When the vehicle attains the
desired speed, push the toggle
switch (1) down (SET-).

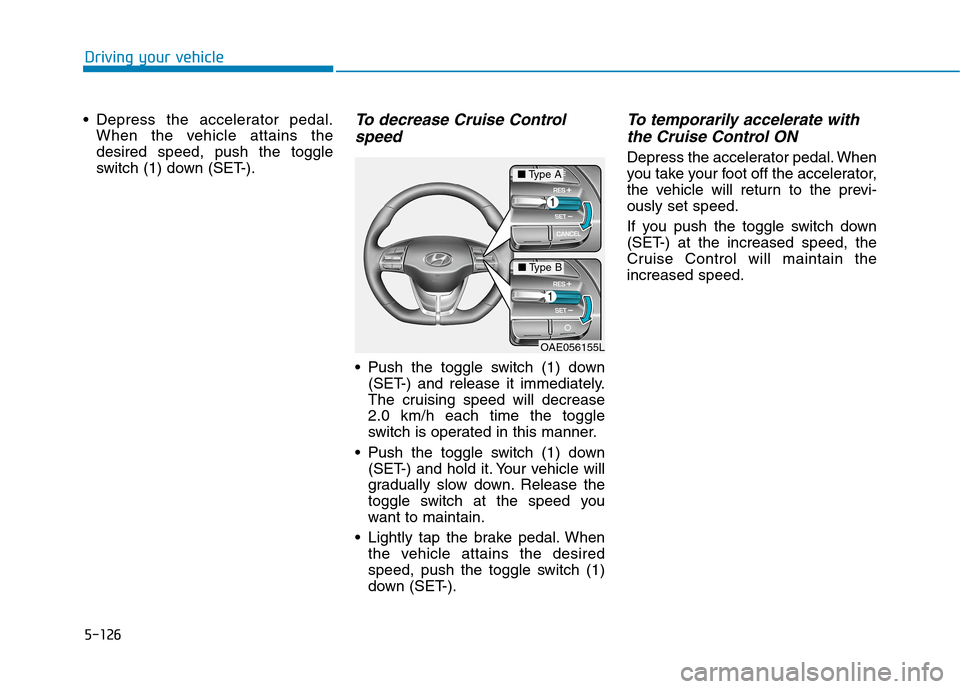

To decrease Cruise Control
speed
Push the toggle switch (1) down
(SET-) and release it immediately.
The cruising speed will decrease
2.0 km/h each time the toggle
switch is operated in this manner.
Push the toggle switch (1) down
(SET-) and hold it. Your vehicle will
gradually slow down. Release the
toggle switch at the speed you
want to maintain.
Lightly tap the brake pedal. When
the vehicle attains the desired
speed, push the toggle switch (1)
down (SET-).
To temporarily accelerate with
the Cruise Control ON
Depress the accelerator pedal. When
you take your foot off the accelerator,
the vehicle will return to the previ-
ously set speed.
If you push the toggle switch down
(SET-) at the increased speed, the
Cruise Control will maintain the
increased speed.
OAE056155L
■Type A
■Type B
