ad blue Hyundai Ioniq Hybrid 2020 Owner's Manual - RHD (UK, Australia)

H6

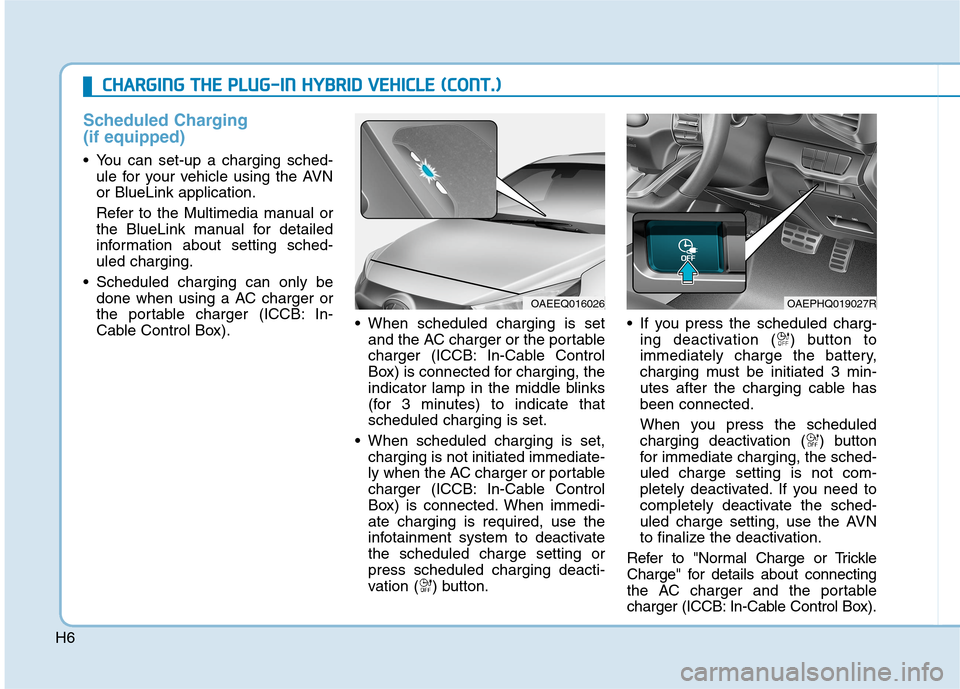

Scheduled Charging
(if equipped)
You can set-up a charging sched-
ule for your vehicle using the AVN
or BlueLink application.
Refer to the Multimedia manual or
the BlueLink manual for detailed
information about setting sched-
uled charging.
Scheduled charging can only be
done when using a AC charger or
the portable charger (ICCB: In-
Cable Control Box). When scheduled charging is set
and the AC charger or the portable
charger (ICCB: In-Cable Control
Box) is connected for charging, the
indicator lamp in the middle blinks
(for 3 minutes) to indicate that
scheduled charging is set.
When scheduled charging is set,
charging is not initiated immediate-
ly when the AC charger or portable
charger (ICCB: In-Cable Control
Box) is connected. When immedi-
ate charging is required, use the
infotainment system to deactivate
the scheduled charge setting or
press scheduled charging deacti-
vation ( ) button. If you press the scheduled charg-
ing deactivation ( ) button to
immediately charge the battery,
charging must be initiated 3 min-
utes after the charging cable has
been connected.
When you press the scheduled
charging deactivation ( ) button
for immediate charging, the sched-
uled charge setting is not com-
pletely deactivated. If you need to
completely deactivate the sched-
uled charge setting, use the AVN
to finalize the deactivation.
Refer to "Normal Charge or Trickle
Charge" for details about connecting
the AC charger and the portable
charger (ICCB: In-Cable Control Box).
C CH
HA
AR
RG
GI
IN
NG
G
T
TH
HE
E
P
PL
LU
UG
G-
-I
IN
N
H
HY
YB
BR
RI
ID
D
V
VE
EH
HI
IC
CL
LE
E
(
(C
CO
ON
NT
T.
.)
)
OAEEQ016026OAEPHQ019027R

H23

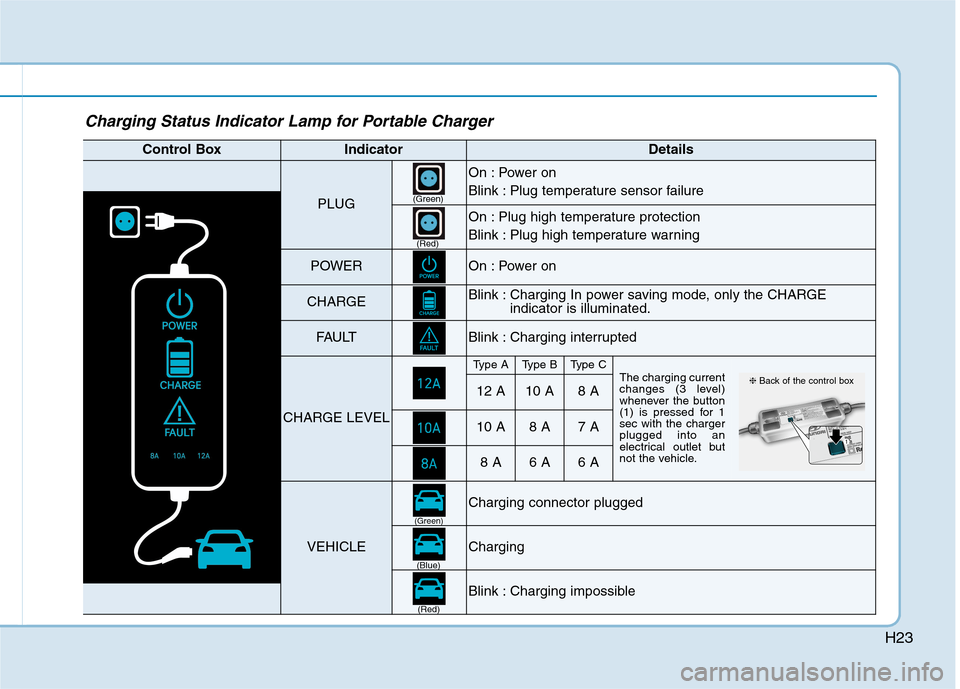

Charging Status Indicator Lamp for Portable Charger
Control BoxIndicatorDetails
PLUG
On : Power on
Blink : Plug temperature sensor failure
On : Plug high temperature protection
Blink : Plug high temperature warning
POWEROn : Power on
CHARGEBlink : Charging In power saving mode, only the CHARGE
indicator is illuminated.
FAU LTBlink : Charging interrupted
CHARGE LEVEL
Type AType BType CThe charging current
changes (3 level)
whenever the button
(1) is pressed for 1
sec with the charger
plugged into an
electrical outlet but
not the vehicle.12 A10 A8 A
10 A8 A7 A
8 A6 A6 A
VEHICLE
Charging connector plugged
Charging
Blink : Charging impossible
(Green)
(Green)
(Blue)
(Red) (Red)
❈Back of the control box

1-5
Your vehicle at a glance
1
I IN
NS
ST
TR
RU
UM
ME
EN
NT
T
P
PA
AN
NE
EL
L
O
OV
VE
ER
RV
VI
IE
EW
W
-
-
H
HY
YB
BR
RI
ID
D
V
VE
EH
HI
IC
CL
LE
E

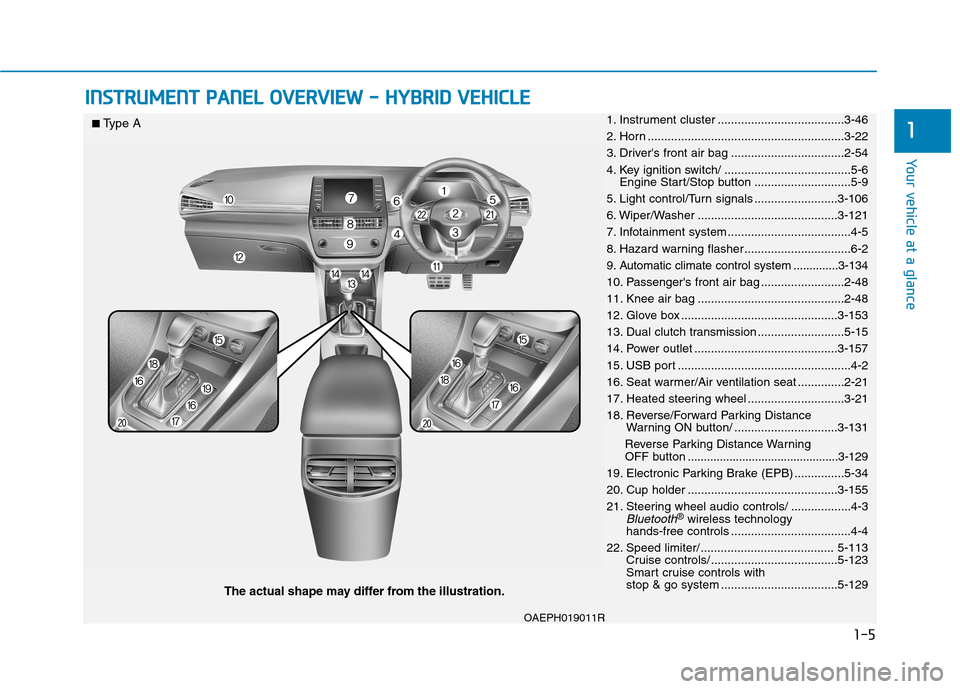

The actual shape may differ from the illustration.
1. Instrument cluster ......................................3-46
2. Horn ...........................................................3-22
3. Driver's front air bag ..................................2-54
4. Key ignition switch/ ......................................5-6
Engine Start/Stop button .............................5-9
5. Light control/Turn signals .........................3-106
6. Wiper/Washer ..........................................3-121
7. Infotainment system .....................................4-5
8. Hazard warning flasher................................6-2
9. Automatic climate control system ..............3-134
10. Passenger's front air bag .........................2-48
11. Knee air bag ............................................2-48
12. Glove box ...............................................3-153
13. Dual clutch transmission ..........................5-15
14. Power outlet ...........................................3-157
15. USB port ....................................................4-2
16. Seat warmer/Air ventilation seat ..............2-21
17. Heated steering wheel .............................3-21
18. Reverse/Forward Parking Distance
Warning ON button/ ...............................3-131
Reverse Parking Distance Warning
OFF button...............................................3-129
19. Electronic Parking Brake (EPB) ...............5-34
20. Cup holder .............................................3-155
21. Steering wheel audio controls/ ..................4-3
Bluetooth®wireless technology
hands-free controls ....................................4-4
22. Speed limiter/ ........................................ 5-113
Cruise controls/ ......................................5-123
Smart cruise controls with
stop & go system ...................................5-129
■Type A
OAEPH019011R

1-6
Your vehicle at a glance
The actual shape may differ from the illustration.
1. Instrument cluster ......................................3-46
2. Horn ...........................................................3-22
3. Driver's front air bag ..................................2-48
4. Key ignition switch/ ......................................5-6
Engine Start/Stop button .............................5-9
5. Wiper/Washer ..........................................3-106
6. Light control/Turn signals .........................3-121
7. Infotainment system .....................................4-5
8. Hazard warning flasher................................6-2
9. Automatic climate control system ..............3-134
10. Passenger's front air bag .........................2-48
11. Knee air bag ............................................2-48
12. Glove box ...............................................3-153
13. Dual clutch transmission ..........................5-15
14. Power outlet ...........................................3-157
15. USB port ....................................................4-2
16. Seat warmer/Air ventilation seat ..............2-21
17. Heated steering wheel .............................3-21
18. Reverse/Forward Parking Distance
Warning ON button/ ...............................3-131
Reverse Parking Distance Warning
OFF button...............................................3-129
19. Electronic Parking Brake (EPB) ...............5-34
20. Cup holder .............................................3-155
21. Steering wheel audio controls/ ..................4-3
Bluetooth®wireless technology
hands-free controls ....................................4-4
22. Speed limiter/ ........................................ 5-113
Cruise controls/ ......................................5-123
Smart cruise controls with
stop & go system ...................................5-129
■Type B
OAEPH019011R

1-11
Your vehicle at a glance
1
I IN
NS
ST
TR
RU
UM
ME
EN
NT
T
P
PA
AN
NE
EL
L
O
OV
VE
ER
RV
VI
IE
EW
W
-
-
P
PL
LU
UG
G-
-I
IN
N
H
HY
YB
BR
RI
ID
D
V
VE
EH
HI
IC
CL
LE
E

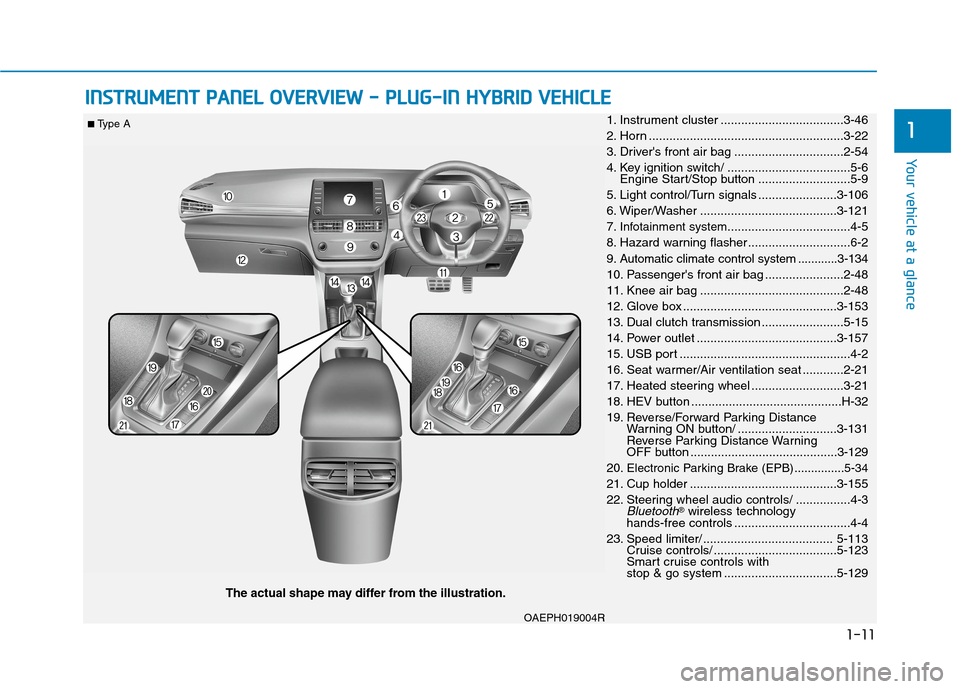

OAEPH019004R
The actual shape may differ from the illustration.
■ Type A1. Instrument cluster ....................................3-46
2. Horn .........................................................3-22
3. Driver's front air bag ................................2-54
4. Key ignition switch/ ....................................5-6
Engine Start/Stop button ...........................5-9
5. Light control/Turn signals .......................3-106
6. Wiper/Washer ........................................3-121
7.
Infotainment system....................................4-5
8. Hazard warning flasher ..............................6-2
9. Automatic climate control system ............3-134
10. Passenger's front air bag .......................2-48
11. Knee air bag ..........................................2-48
12. Glove box .............................................3-153
13. Dual clutch transmission ........................5-15
14. Power outlet .........................................3-157
15. USB port ..................................................4-2
16. Seat warmer/Air ventilation seat ............2-21
17. Heated steering wheel ...........................3-21
18. HEV button ............................................H-32
19. Reverse/Forward Parking Distance
Warning ON button/ .............................3-131
Reverse Parking Distance Warning
OFF button ...........................................3-129
20.
Electronic Parking Brake (EPB)...............5-34
21. Cup holder ...........................................3-155
22. Steering wheel audio controls/ ................4-3
Bluetooth®wireless technology
hands-free controls ..................................4-4
23. Speed limiter/ ...................................... 5-113
Cruise controls/ ....................................5-123
Smart cruise controls with
stop & go system .................................5-129

1-12
Your vehicle at a glance

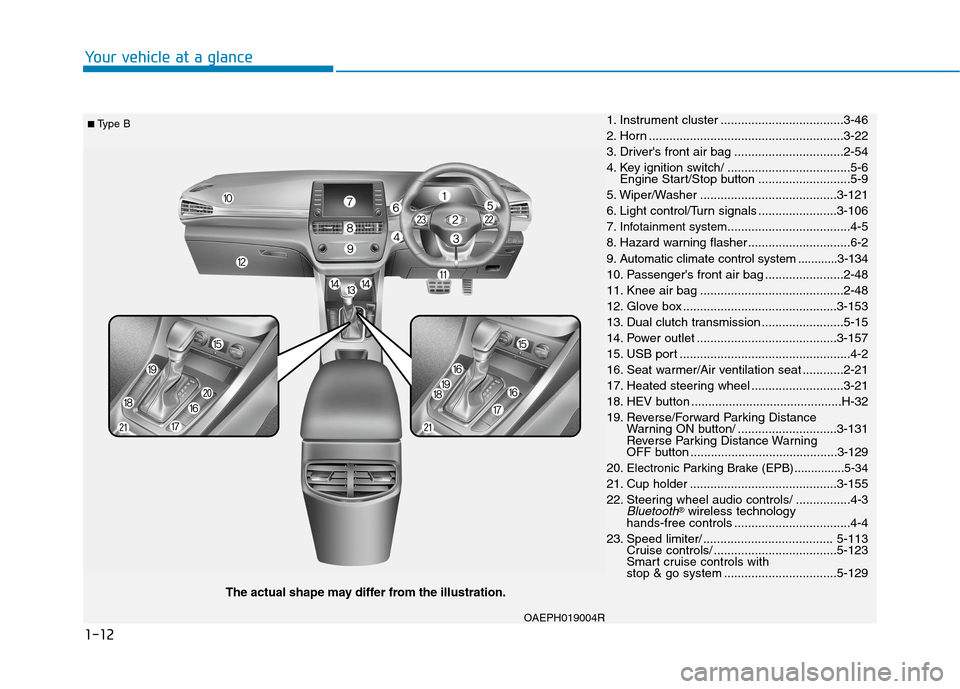

OAEPH019004R
The actual shape may differ from the illustration.
■ Type B1. Instrument cluster ....................................3-46
2. Horn .........................................................3-22
3. Driver's front air bag ................................2-54
4. Key ignition switch/ ....................................5-6
Engine Start/Stop button ...........................5-9
5. Wiper/Washer ........................................3-121
6. Light control/Turn signals .......................3-106
7.
Infotainment system....................................4-5
8. Hazard warning flasher ..............................6-2
9. Automatic climate control system ............3-134
10. Passenger's front air bag .......................2-48
11. Knee air bag ..........................................2-48
12. Glove box .............................................3-153
13. Dual clutch transmission ........................5-15
14. Power outlet .........................................3-157
15. USB port ..................................................4-2
16. Seat warmer/Air ventilation seat ............2-21
17. Heated steering wheel ...........................3-21
18. HEV button ............................................H-32
19. Reverse/Forward Parking Distance
Warning ON button/ .............................3-131
Reverse Parking Distance Warning
OFF button ...........................................3-129
20.
Electronic Parking Brake (EPB)...............5-34
21. Cup holder ...........................................3-155
22. Steering wheel audio controls/ ................4-3
Bluetooth®wireless technology
hands-free controls ..................................4-4
23. Speed limiter/ ...................................... 5-113
Cruise controls/ ....................................5-123
Smart cruise controls with
stop & go system .................................5-129

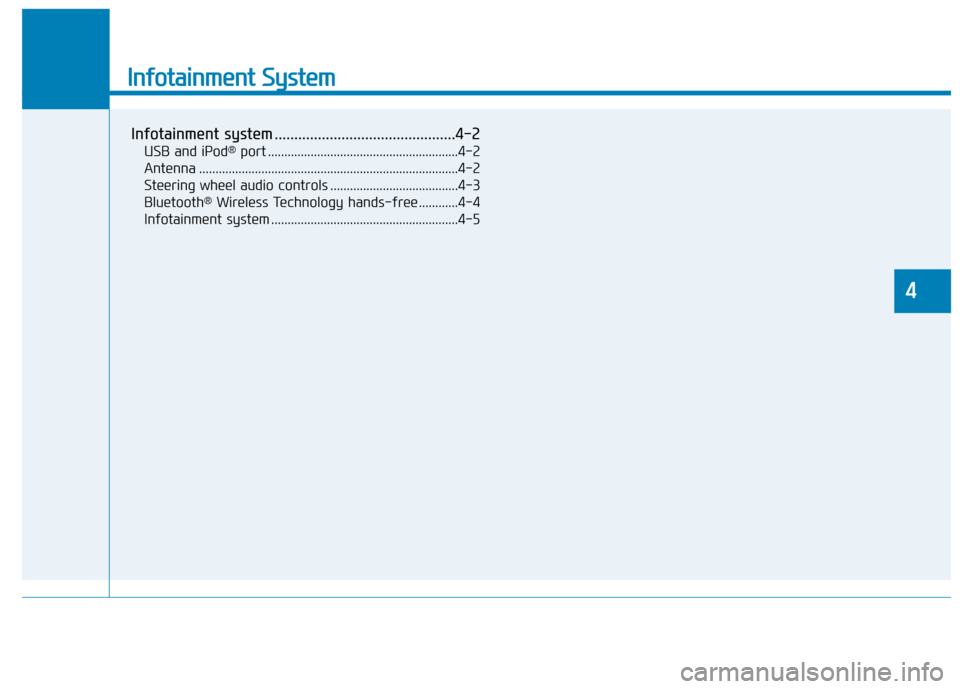

Infotainment System
Infotainment system ..............................................4-2
USB and iPod®port ..........................................................4-2
Antenna ...............................................................................4-2

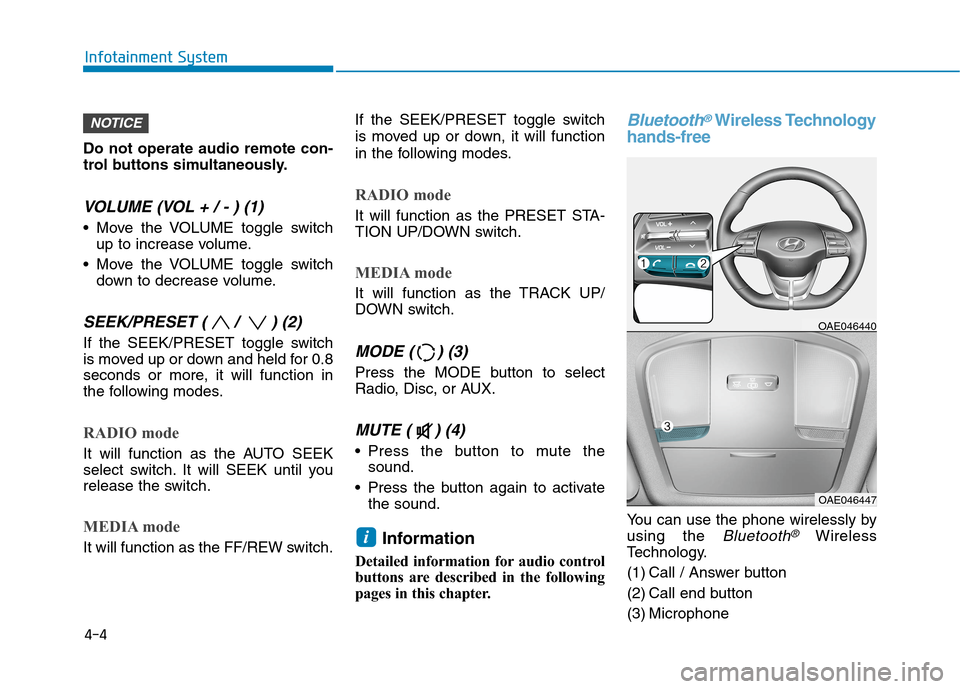

Steering wheel audio controls .......................................4-3
Bluetooth
®Wireless Technology hands-free ............4-4
Infotainment system .........................................................4-5
4

Do not operate audio remote con-
trol buttons simultaneously.
VOLUME (VOL + / - ) (1)
Move the VOLUME toggle switch
up to increase volume.
Move the VOLUME toggle switch
down to decrease volume.
SEEK/PRESET ( / ) (2)
If the SEEK/PRESET toggle switch
is moved up or down and held for 0.8
seconds or more, it will function in
the following modes.
RADIO mode
It will function as the AUTO SEEK
select switch. It will SEEK until you
release the switch.
MEDIA mode
It will function as the FF/REW switch.If the SEEK/PRESET toggle switch
is moved up or down, it will function
in the following modes.
RADIO mode
It will function as the PRESET STA-
TION UP/DOWN switch.
MEDIA mode
It will function as the TRACK UP/
DOWN switch.
MODE ( ) (3)
Press the MODE button to select
Radio, Disc, or AUX.
MUTE ( ) (4)
Press the button to mute the
sound.
Press the button again to activate
the sound.
Information
Detailed information for audio control
buttons are described in the following
pages in this chapter.
Bluetooth®Wireless Technology
hands-free
You can use the phone wirelessly by
using the
Bluetooth®Wireless
Technology.
(1) Call / Answer button
(2) Call end button
(3) Microphone
OAE046440
OAE046447
i
NOTICE
4-4
Infotainment System
