HYUNDAI IX35 2015 Owners Manual
Manufacturer: HYUNDAI, Model Year: 2015, Model line: IX35, Model: HYUNDAI IX35 2015Pages: 550, PDF Size: 9.92 MB
Page 541 of 550

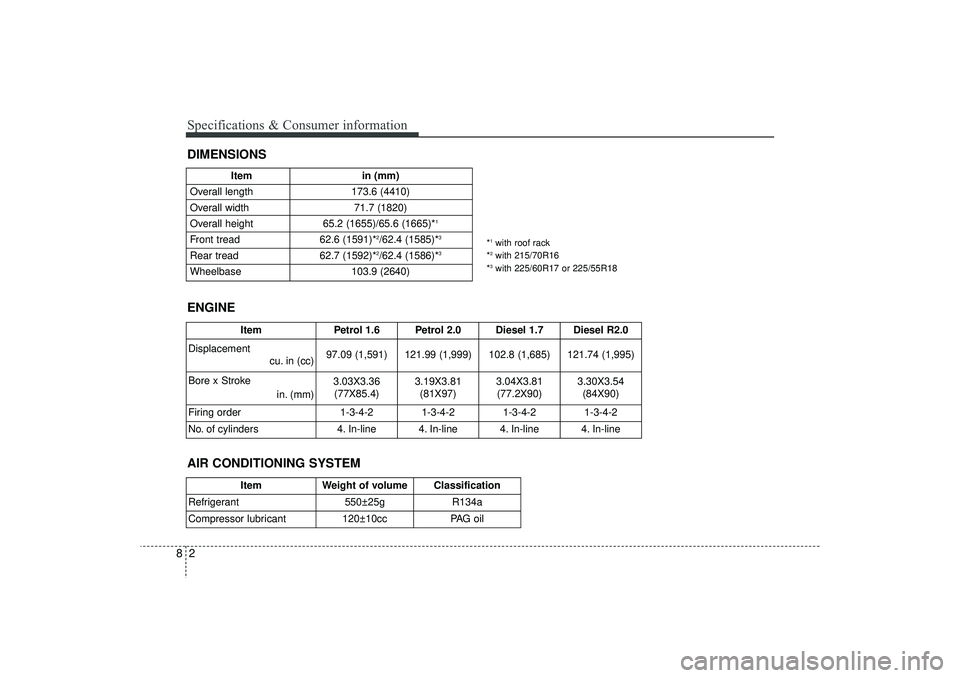

Specifications & Consumer information28DIMENSIONS
Itemin (mm)
Overall length 173.6 (4410)
Overall width 71.7 (1820)
Overall height 65.2 (1655)/65.6 (1665)*
1
Front tread62.6 (1591)*
2/62.4 (1585)*
3
Rear tread62.7 (1592)*
2/62.4 (1586)*
3
Wheelbase 103.9 (2640)
*1with roof rack
*2with 215/70R16
*3with 225/60R17 or 225/55R18
ENGINE
Item
Petrol 1.6 Petrol 2.0
Diesel 1.7
Diesel R2.0
Displacement cu. in (cc)
97.09 (1,591) 121.99 (1,999)
102.8 (1,685)
121.74 (1,995)
Bore x Stroke in. (mm)
3.03X3.36(77X85.4) 3.19X3.81
(81X97)
3.04X3.81(77.2X90)
3.30X3.54 (84X90)
Firing order
1-3-4-2 1-3-4-2
1-3-4-2
1-3-4-2
No. of cylinders
4. In-line 4. In-line
4. In-line
4. In-line
Item
Weight of volume Classification
Refrigerant
550±25g R134a
Compressor lubricant120±10cc PAG oil
AIR CONDITIONING SYSTEM
EL(FL) UK 8.QXP 3/13/2015 5:44 PM Page 2
Page 542 of 550
83
Specifications & Consumer information

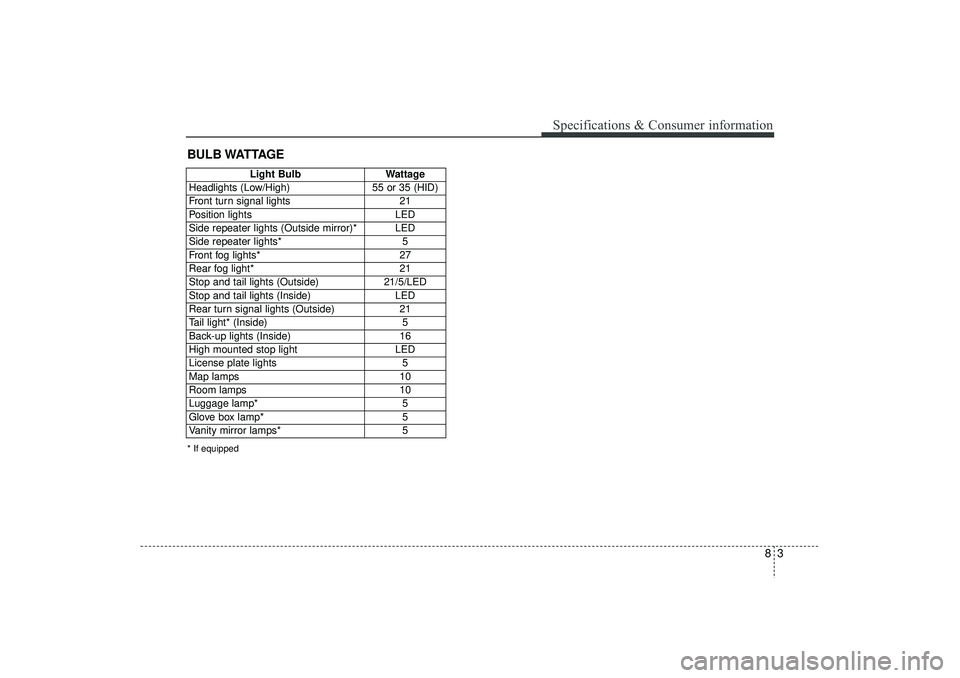

BULB WATTAGE* If equipped
Light Bulb
Wattage
Headlights (Low/High)
55 or 35 (HID)
Front turn signal lights
21
Position lights
LED
Side repeater lights (Outside mirror)*
LED
Side repeater lights*
5
Front fog lights*
27
Rear fog light*
21
Stop and tail lights (Outside)
21/5/LED
Stop and tail lights (Inside)
LED
Rear turn signal lights (Outside)
21
Tail light* (Inside)
5
Back-up lights (Inside)
16
High mounted stop light
LED
License plate lights
5
Map lamps
10
Room lamps
10
Luggage lamp*
5
Glove box lamp*
5
Vanity mirror lamps*
5
EL(FL) UK 8.QXP 3/13/2015 5:44 PM Page 3
Page 543 of 550

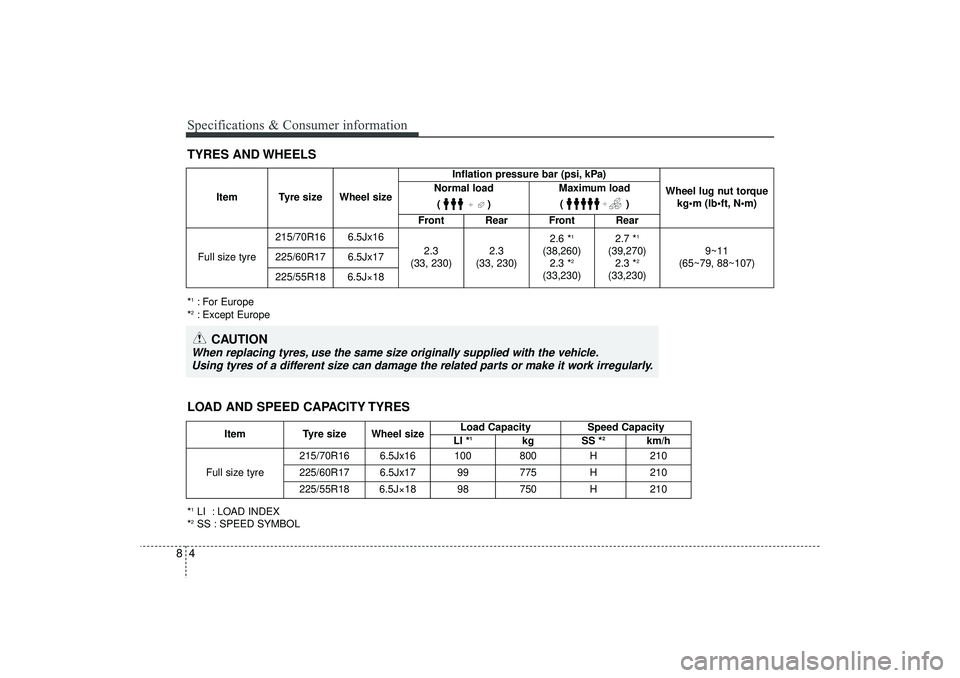

Specifications & Consumer information48TYRES AND WHEELS
CAUTION
When replacing tyres, use the same size originally supplied with the vehicle.Using tyres of a different size can damage the related parts or make it work irregularly.*1LI : LOAD INDEX
*2SS : SPEED SYMBOL Item Tyre size Wheel size
Load Capacity Speed Capacity
LI *
1
kg SS *
2
km/h
Full size tyre 215/70R16 6.5Jx16 100 800
H210
225/60R17 6.5Jx17 99 775 H210
225/55R18
6.5J×18
98
750
H
210
LOAD AND SPEED CAPACITY TYRES*1: For Europe
*2: Except Europe Item Tyre size Wheel size
Inflation pressure bar (psi, kPa)
Wheel lug nut torquekg•m (lbft, Nm)
Normal load
()
Maximum load()
Front Rear Front Rear
Full size tyre 215/70R16 6.5Jx16
2.3
(33, 230) 2.3
(33, 230) 2.6 *
1
(38,260)
2.3 *
2
(33,230) 2.7 *
1
(39,270)
2.3 *
2
(33,230) 9~11
(65~79, 88~107)
225/60R17 6.5Jx17
225/55R18 6.5J×18
EL(FL) UK 8.QXP 3/13/2015 5:44 PM Page 4
Page 544 of 550
85
Specifications & Consumer information

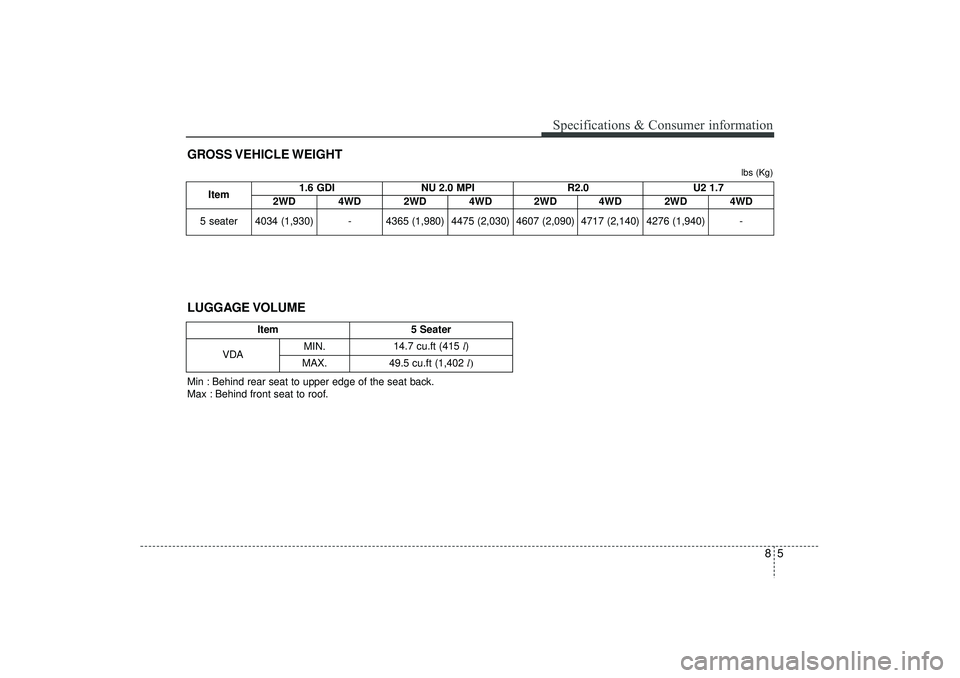

GROSS VEHICLE WEIGHT
Item1.6 GDI NU 2.0 MPI R2.0
U2 1.7
2WD 4WD 2WD 4WD 2WD
4WD
2WD 4WD
5 seater 4034 (1,930) - 4365 (1,980) 4475 (2,030) 4607 (2,090)
4717 (2,140)
4276 (1,940) -
lbs (Kg)
Min : Behind rear seat to upper edge of the seat back.
Max : Behind front seat to roof.LUGGAGE VOLUME
ltem 5 Seater
VDA MIN.
14.7 cu.ft (415 l)
MAX. 49.5 cu.ft (1,402 l)
EL(FL) UK 8.QXP 3/13/2015 5:44 PM Page 5
Page 545 of 550

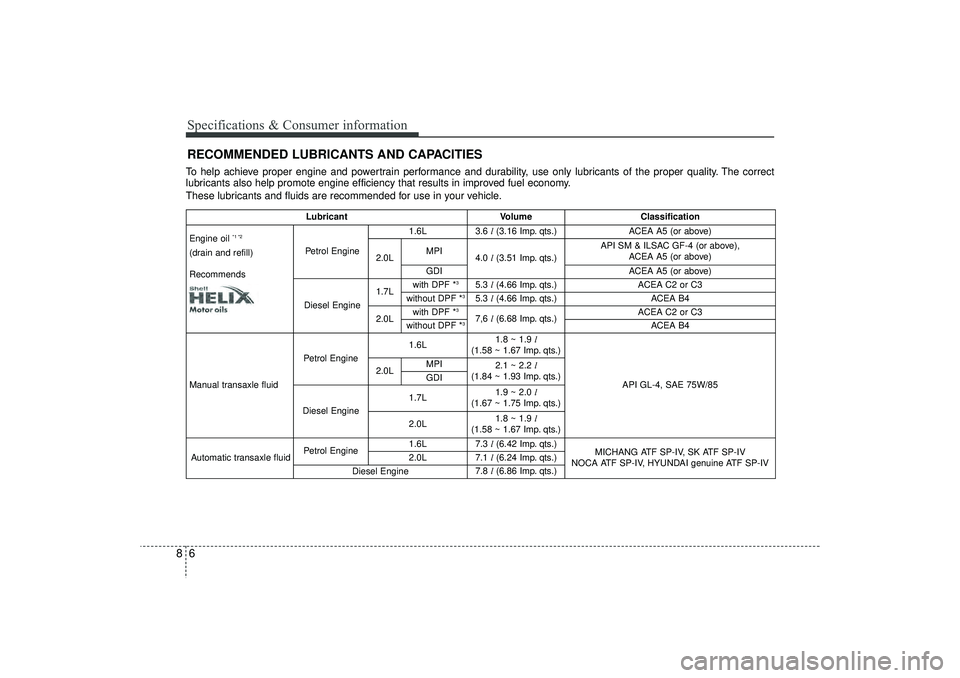

Specifications & Consumer information68To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.RECOMMENDED LUBRICANTS AND CAPACITIES
Lubricant
Volume
Classification
Engine oil
*1 *2
(drain and refill)
Recommends
Petrol Engine
1.6L
3.6 l(3.16 Imp. qts.)
ACEA A5 (or above)
2.0L
MPI
4.0 l(3.51 Imp. qts.)
API SM & ILSAC GF-4 (or above),
ACEA A5 (or above)
GDI
ACEA A5 (or above)
Diesel Engine
1.7L
with DPF *
3
5.3 l(4.66 Imp. qts.)
ACEA C2 or C3
without DPF *
3
5.3 l(4.66 Imp. qts.)
ACEA B4
2.0L
with DPF *
3
7,6 l(6.68 Imp. qts.)
ACEA C2 or C3
without DPF *
3
ACEA B4
Manual transaxle fluid
Petrol Engine
1.6L
1.8 ~ 1.9 l
(1.58 ~ 1.67 Imp. qts.)
API GL-4, SAE 75W/85
2.0L
MPI
2.1 ~ 2.2 l
(1.84 ~ 1.93 Imp. qts.)
GDI
Diesel Engine
1.7L
1.9 ~ 2.0 l
(1.67 ~ 1.75 Imp. qts.)
2.0L
1.8 ~ 1.9 l
(1.58 ~ 1.67 Imp. qts.)
Automatic transaxle fluid
Petrol Engine
1.6L
7.3 l(6.42 Imp. qts.)
MICHANG ATF SP-IV, SK ATF SP-IV
NOCA ATF SP-IV, HYUNDAI genuine ATF SP-IV
2.0L
7.1 l(6.24 Imp. qts.)
Diesel Engine
7.8 l(6.86 Imp. qts.)
EL(FL) UK 8.QXP 3/13/2015 5:44 PM Page 6
Page 546 of 550
87
Specifications & Consumer information

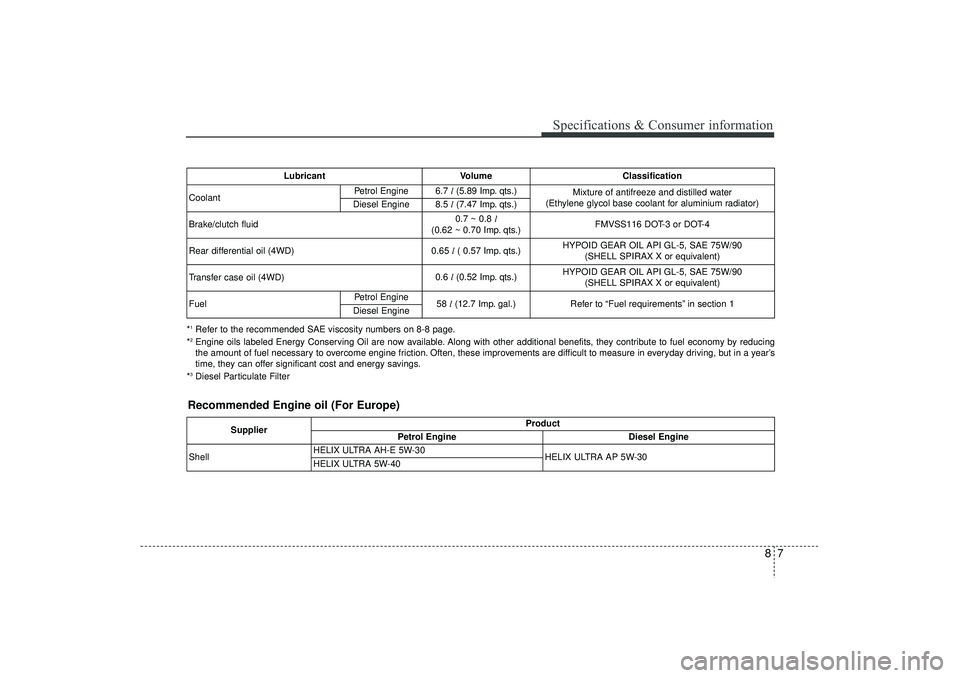

LubricantVolume Classification
Coolant
Petrol Engine
6.7 l(5.89 Imp. qts.)
Mixture of antifreeze and distilled water
(Ethylene glycol base coolant for aluminium radiator)
Diesel Engine
8.5 l(7.47 Imp. qts.)
Brake/clutch fluid
0.7 ~ 0.8 l
(0.62 ~ 0.70 Imp. qts.)
FMVSS116 DOT-3 or DOT-4
Rear differential oil (4WD) 0.65
l( 0.57 Imp. qts.) HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Transfer case oil (4WD) 0.6
l(0.52 Imp. qts.) HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Fuel Petrol Engine
58 l(12.7 Imp. gal.)
Refer to “Fuel requirements” in section 1
Diesel Engine
Recommended Engine oil (For Europe)
Supplier Product
Petrol Engine Diesel Engine
Shell HELIX ULTRA AH-E 5W-30
HELIX ULTRA AP 5W-30
HELIX ULTRA 5W-40
*1Refer to the recommended SAE viscosity numbers on 8-8 page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*3Diesel Particulate Filter
EL(FL) UK 8.QXP 3/13/2015 5:44 PM Page 7
Page 547 of 550

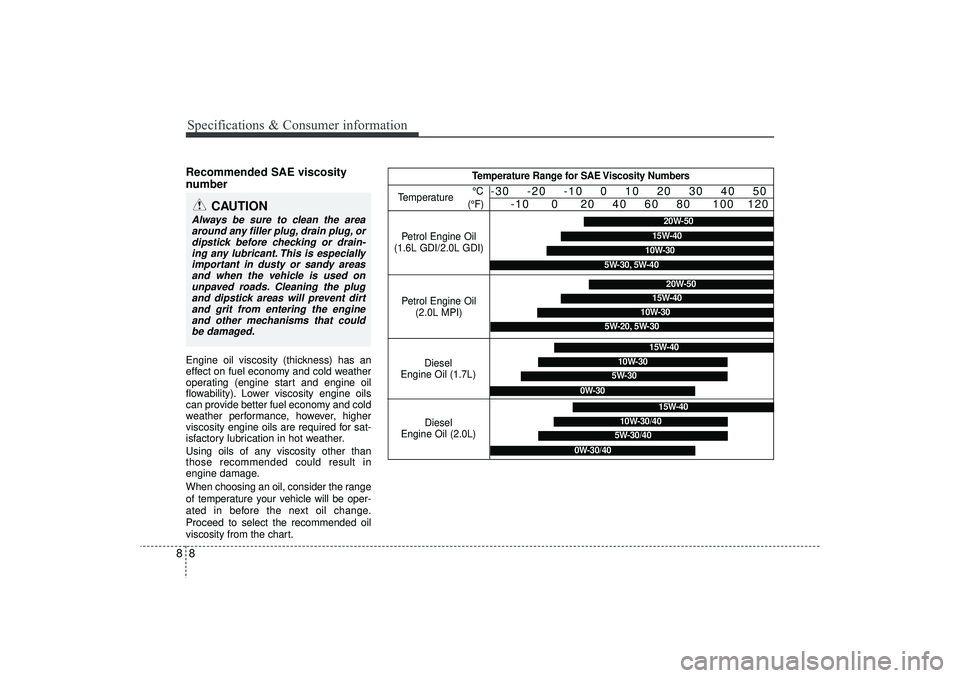

Specifications & Consumer information88Recommended SAE viscosity
number Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather.
Using oils of any viscosity other than
those recommended could result in
engine damage.
When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the areaaround any filler plug, drain plug, or dipstick before checking or drain-ing any lubricant. This is especiallyimportant in dusty or sandy areas and when the vehicle is used onunpaved roads. Cleaning the plugand dipstick areas will prevent dirtand grit from entering the engine and other mechanisms that couldbe damaged.
Temperature Range for SAE Viscosity Numbers
Temperature °C
(°F)
-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Diesel
Engine Oil (1.7L)
5W-30
15W-40
10W-30
0W-30
Diesel
Engine Oil (2.0L)
5W-30/40
15W-40
10W-30/40
0W-30/40
Petrol Engine Oil
(1.6L GDI/2.0L GDI)
20W-50
10W-3015W-40
5W-30, 5W-40
Petrol Engine Oil (2.0L MPI)
20W-50
15W-40
10W-30
5W-20, 5W-30
EL(FL) UK 8.QXP 3/13/2015 5:44 PM Page 8
Page 548 of 550
89
Specifications & Consumer information

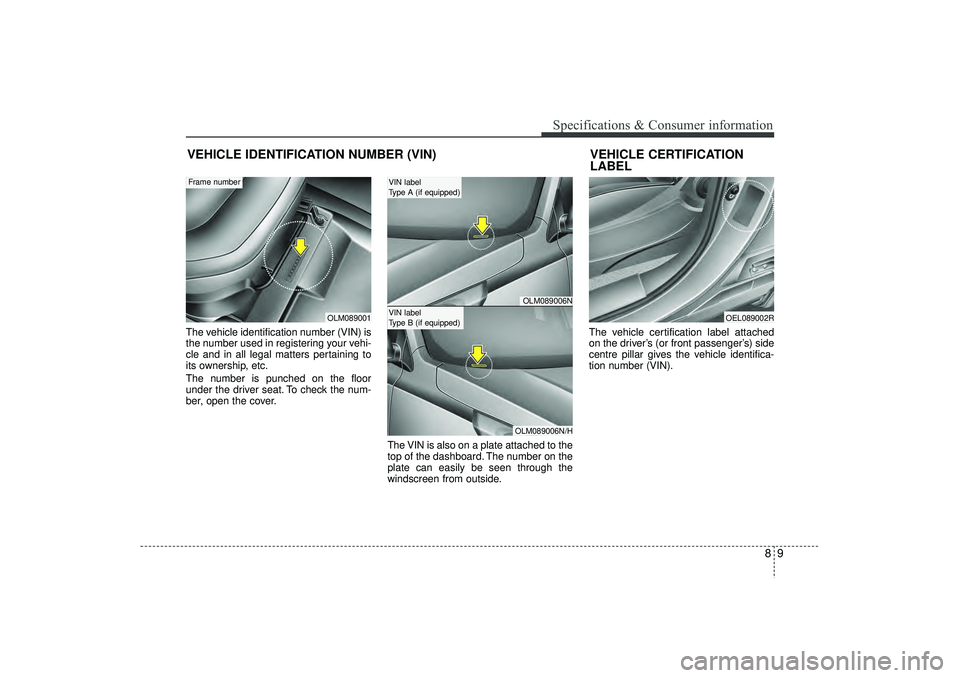

The vehicle identification number (VIN) is
the number used in registering your vehi-
cle and in all legal matters pertaining to
its ownership, etc.
The number is punched on the floor
under the driver seat. To check the num-
ber, open the cover.The VIN is also on a plate attached to the
top of the dashboard. The number on the
plate can easily be seen through the
windscreen from outside.The vehicle certification label attached
on the driver’s (or front passenger’s) side
centre pillar gives the vehicle identifica-
tion number (VIN).VEHICLE IDENTIFICATION NUMBER (VIN)
OLM089001
Frame number
VEHICLE CERTIFICATION
LABEL
OLM089006NOLM089006N/H
VIN label
Type A (if equipped)VIN label
Type B (if equipped)
OEL089002R
EL(FL) UK 8.QXP 3/13/2015 5:44 PM Page 9
Page 549 of 550
Specifications & Consumer information10

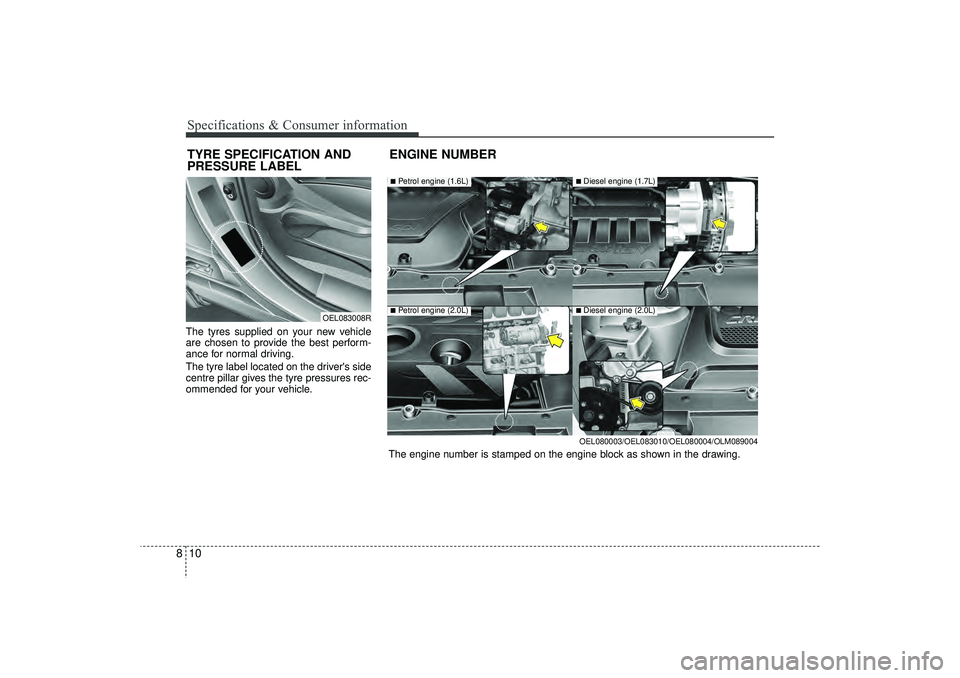

8The tyres supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tyre label located on the driver's side
centre pillar gives the tyre pressures rec-
ommended for your vehicle.TYRE SPECIFICATION AND
PRESSURE LABEL ENGINE NUMBER
The engine number is stamped on the engine block as shown in the drawing.
OEL083008R
■Petrol engine (1.6L)■Petrol engine (2.0L)
■Diesel engine (1.7L)■Diesel engine (2.0L)OEL080003/OEL083010/OEL080004/OLM089004
EL(FL) UK 8.QXP 3/13/2015 5:44 PM Page 10
Page 550 of 550
811
Specifications & Consumer information

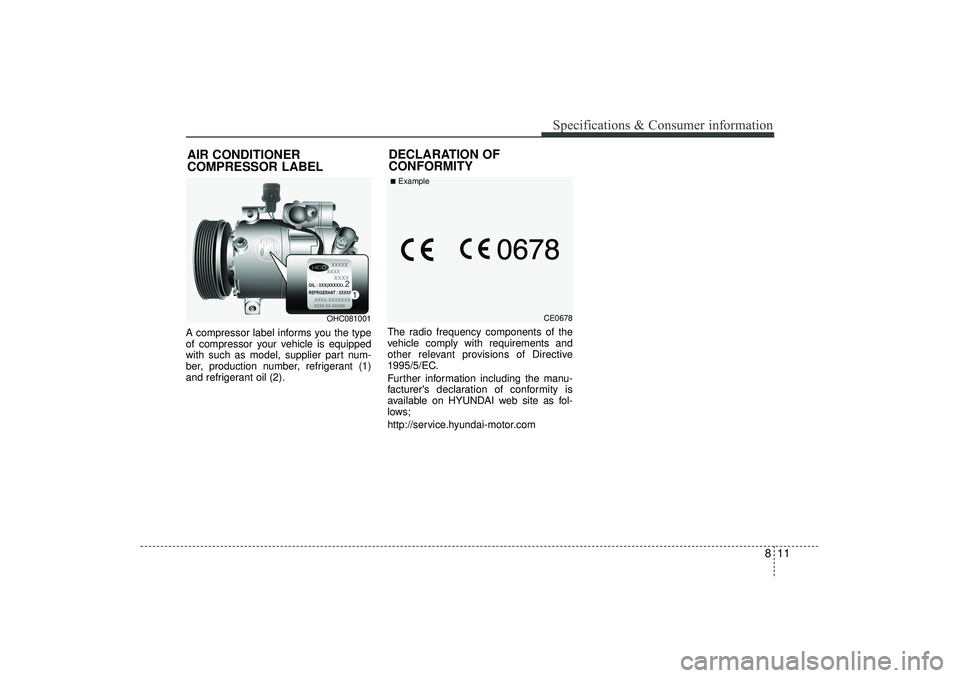

A compressor label informs you the type
of compressor your vehicle is equipped
with such as model, supplier part num-
ber, production number, refrigerant (1)
and refrigerant oil (2).The radio frequency components of the
vehicle comply with requirements and
other relevant provisions of Directive
1995/5/EC.
Further information including the manu-
facturer's declaration of conformity is
available on HYUNDAI web site as fol-
lows;
http://service.hyundai-motor.comAIR CONDITIONER
COMPRESSOR LABEL
OHC081001
DECLARATION OF
CONFORMITY
CE0678
■Example
