HYUNDAI KONA 2023 Owners Manual

Convenient Features5-102
Steering Wheel Remote Controls
OOSN051026L
The steering wheel audio control
switches are installed for your
convenience.
NOTICE
Do not operate multiple audio remote
control buttons simultaneously.
VOLUME ( + / - ) (1)

[ Move the VOLUME toggle switch up
to increase volume.

[ Move the VOLUME toggle switch
down to decrease volume.
SEEK/PRESET (/ ) (2)
If the SEEK/PRESET toggle switch is
moved up or down and held for 0.8
seconds or more, it will function in the
following modes.
RADIO mode
It will function as the AUTO SEEK select
s

witch. It will SEEK until you release the
switch.
MEDIA mode
It will function as the FF/REW switch.
If the SEEK/PRESET t

oggle switch is
moved up or down, it will function in the
following modes.
RADIO mode
It will function as the PRESET STATION
UP/DOWN s
witch.
MEDIA mode
It will function as the TRACK UP/ DOWN
s
witch.
MODE () (3)
Press the MODE button to select Radio,
Disc, or AUX.
MUTE () (4)

[ Press the button to mute the sound.

[ Press the button again to activate the
sound.
Information
Detailed information for audio control
buttons are described in the following
pages in this chapter.

05
5-103

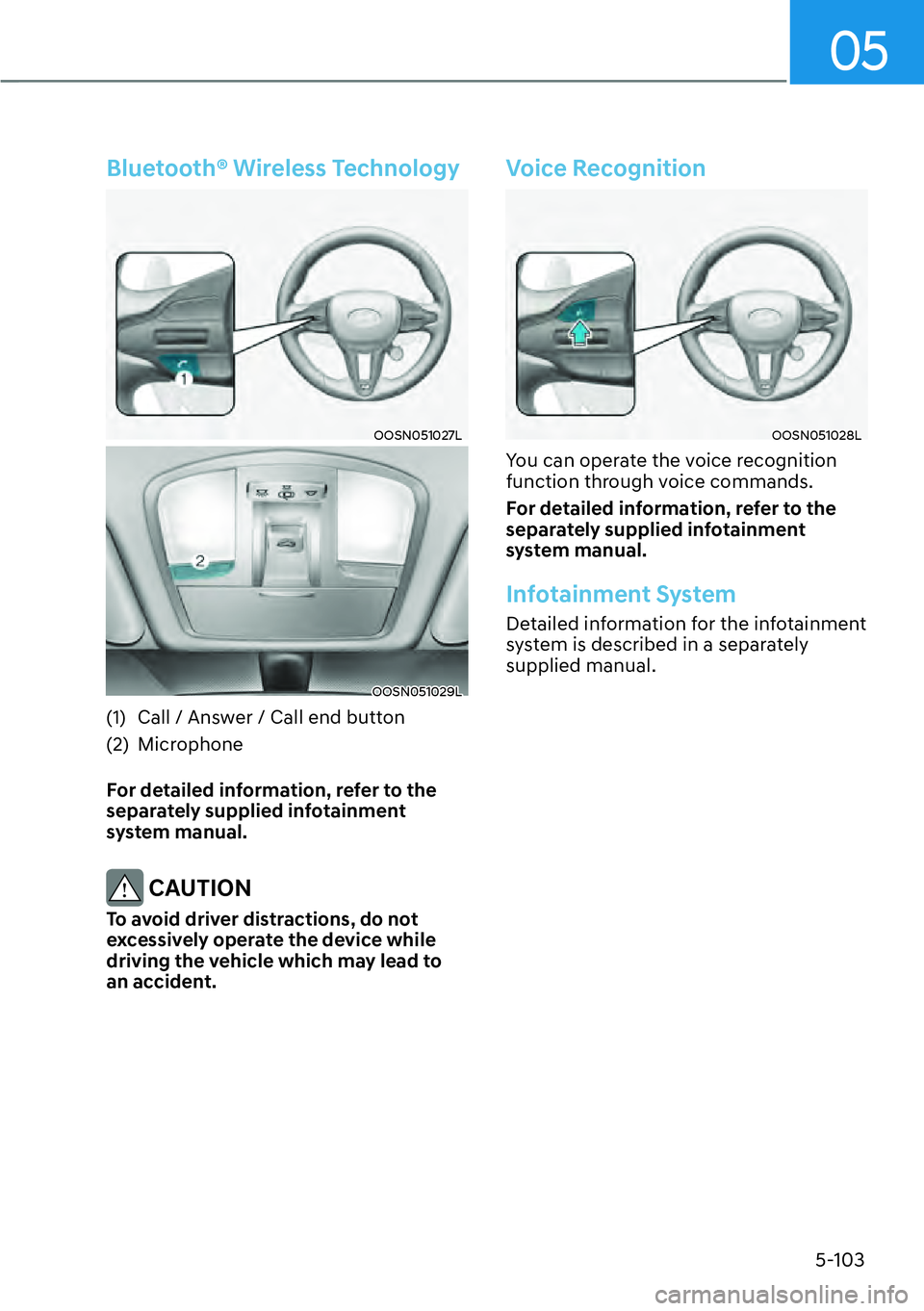

Bluetooth® Wireless Technology
OOSN051027L
OOSN051029L
(1) Call / Answer / Call end button
(2) Microphone
For detailed information, refer to the
separately supplied infotainment
system manual.
CAUTION
To avoid driver distractions, do not
excessively operate the device while
driving the vehicle which may lead to
an accident.
Voice Recognition
OOSN051028L
You can operate the voice recognition
function through voice commands.
For detailed information, refer to the
separately supplied infotainment
system manual.
Infotainment System
Detailed information for the infotainment
system is described in a separately
supplied manual.

Convenient Features5-104

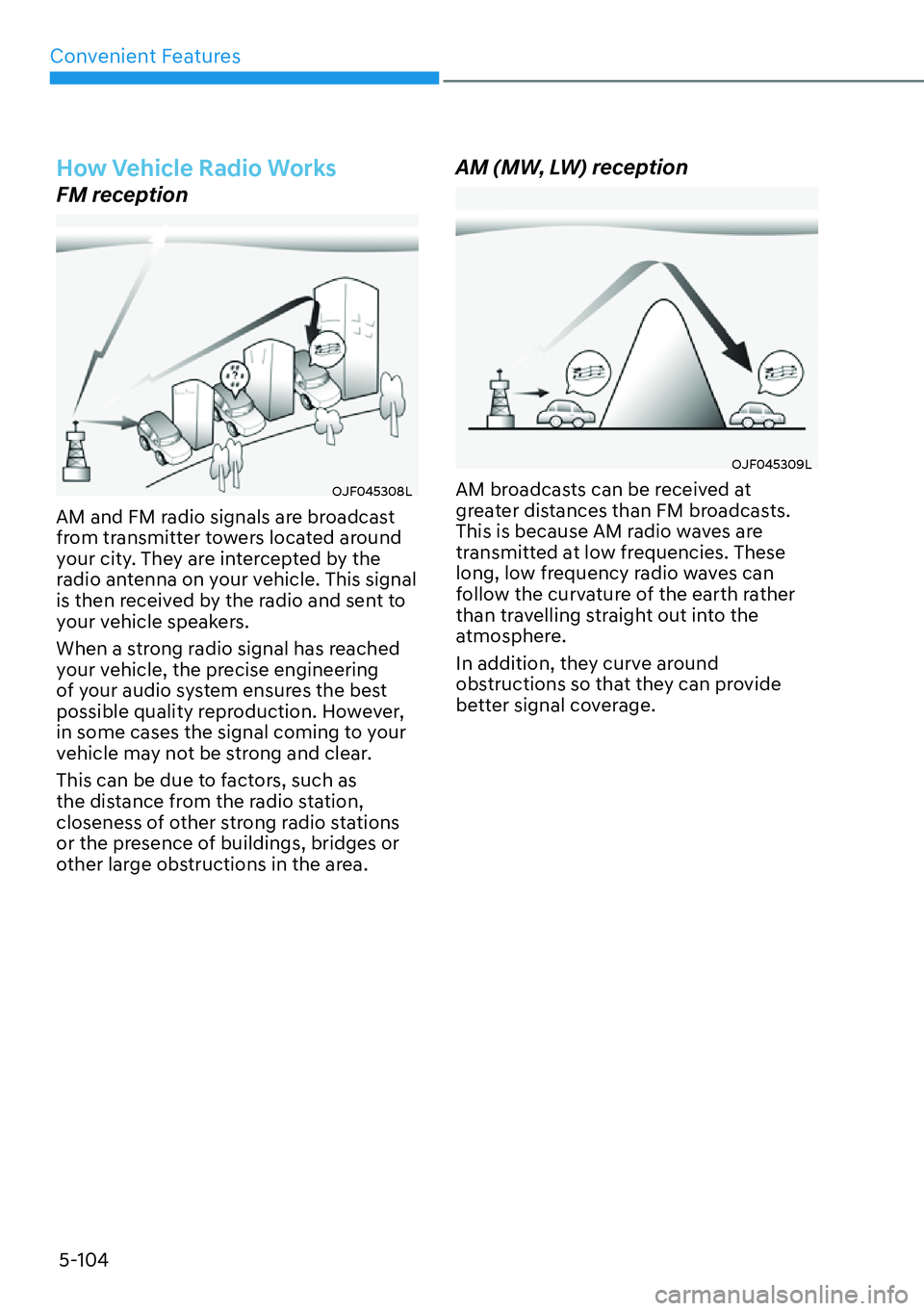

How Vehicle Radio Works
FM reception
OJF045308L
AM and FM radio signals are broadcast
from transmitter towers located around
your city. They are intercepted by the
radio antenna on your vehicle. This signal
is then received by the radio and sent to
your vehicle speakers.
When a strong radio signal has reached
your vehicle, the precise engineering
of your audio system ensures the best
possible quality reproduction. However,
in some cases the signal coming to your
vehicle may not be strong and clear.
This can be due to factors, such as
the distance from the radio station,
closeness of other strong radio stations
or the presence of buildings, bridges or
other large obstructions in the area.
AM (MW, LW) reception
OJF045309L
AM broadcasts can be received at
greater distances than FM broadcasts.
This is because AM radio waves are
transmitted at low frequencies. These
long, low frequency radio waves can
follow the curvature of the earth rather
than travelling straight out into the
atmosphere.
In addition, they curve around
obstructions so that they can provide
better signal coverage.

05
5-105
FM radio station
OJF045310L
FM broadcasts are transmitted at high
frequencies and do not bend to follow
the earth’s surface. Because of this, FM
broadcasts generally begin to fade at
short distances from the station. Also, FM
signals are easily affected by buildings,
mountains, or other obstructions. These
can result in certain listening conditions
which might lead you to believe a
problem exists with your radio.
The following conditions are normal and
do not indicate radio trouble :
JBM004

[Fading - As your vehicle moves away
from the radio station, the signal will
weaken and sound will begin to fade.
When this occurs, we suggest that you
select another stronger station.
[
Flutter/Static - Weak FM signals
or large obstructions between the
transmitter and your radio can disturb
the signal causing static or fluttering
noises to occur. Reducing the treble
level may lessen this effect until the
disturbance clears.
OJF045311L

[Station Swapping - As a FM signal
weakens, another more powerful
signal near the same frequency may
begin to play. This is because your
radio is designed to lock onto the
clearest signal. If this occurs, select
another station with a stronger signal.

[ Multi-Path Cancellation - Radio
signals being received from several
directions can cause distortion or
fluttering. This can be caused by a
direct and reflected signal from the
same station, or by signals from two
stations with close frequencies. If this
occurs, select another station until the
condition has passed.

Convenient Features5-106

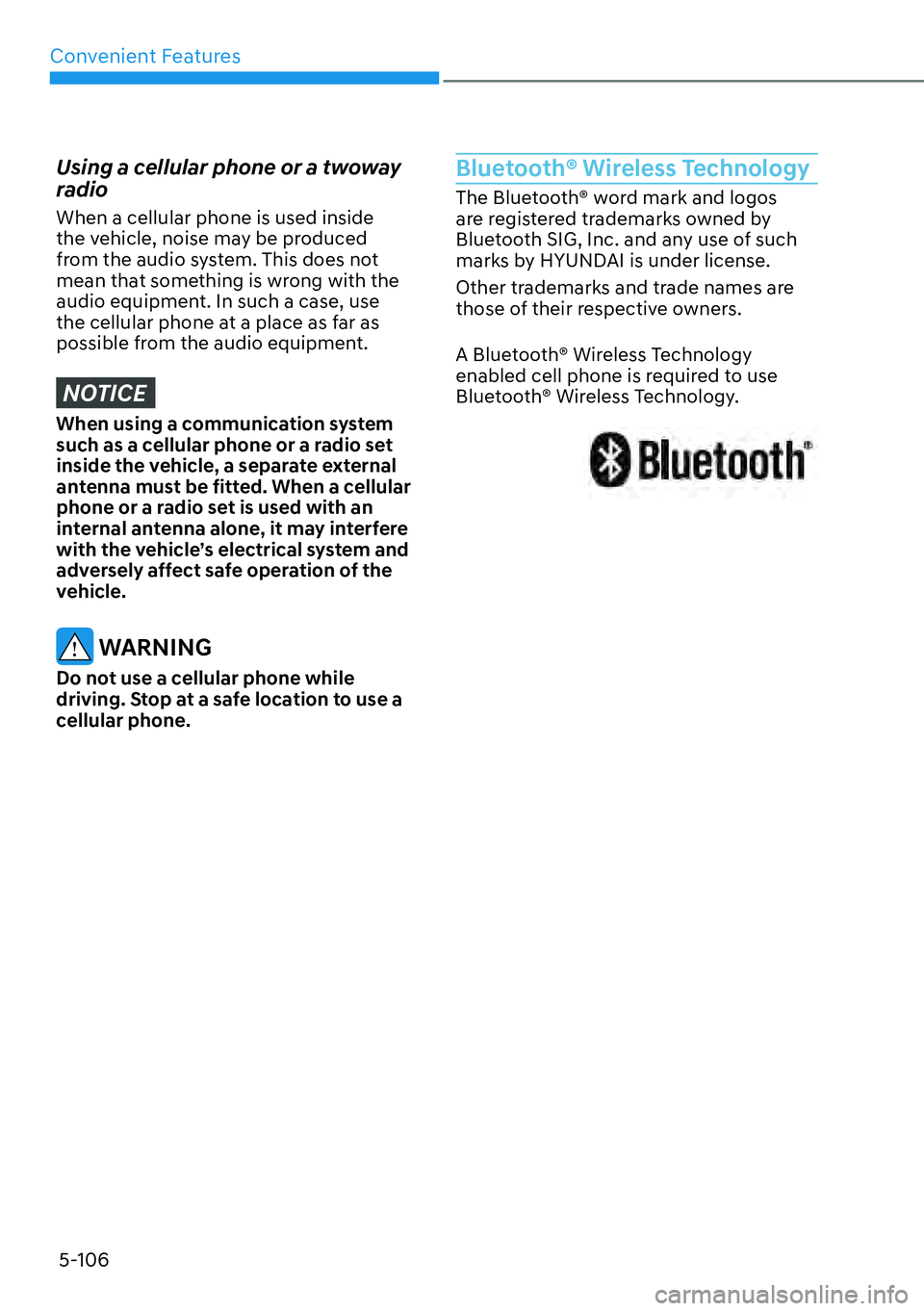

Using a cellular phone or a twoway
radio
When a cellular phone is used inside
the vehicle, noise may be produced
from the audio system. This does not
mean that something is wrong with the
audio equipment. In such a case, use
the cellular phone at a place as far as
possible from the audio equipment.
NOTICE
When using a communication system
such as a cellular phone or a radio set
inside the vehicle, a separate external
antenna must be fitted. When a cellular
phone or a radio set is used with an
internal antenna alone, it may interfere
with the vehicle’s electrical system and
adversely affect safe operation of the
vehicle.
WARNING
Do not use a cellular phone while
driving. Stop at a safe location to use a
cellular phone.
Bluetooth® Wireless Technology
The Bluetooth® word mark and logos
are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such
marks by HYUNDAI is under license.
Other trademarks and trade names are
those of their respective owners.
A Bluetooth® Wireless Technology
enabled cell phone is required to use
Bluetooth® Wireless Technology.

6
Before Driving ........................................................................\
........................... 6-4Before Entering the Vehicle ........................................................................\
................ 6-4
Before Starting ........................................................................\
.................................... 6-4
Engine Start/Stop button ........................................................................\
......... 6-5Engine Start/Stop Button Positions ........................................................................\
... 6-6
Starting the Engine ........................................................................\
.............................. 6-7
Turning Off the Engine ........................................................................\
........................ 6-8
Remote Start ........................................................................\
........................................ 6-9
Dual Clutch Transmission ........................................................................\
.......6-10Dual Clutch Transmission Operation ........................................................................\
6-10
Parking .................................................................\
........................................................6-17
Good Driving Practices ........................................................................\
..................... 6-18
Braking System ........................................................................\
........................6-19Power-Assist Brakes ........................................................................\
........................... 6-19
Disc Brakes Wear Indicator......................................................................\
.................. 6-19
High Performance Brake.......................................................................\
.................... 6-20
Parking Brake ........................................................................\
..................................... 6-20
Anti-Lock Brake System (ABS) ........................................................................\
........... 6-22
Electronic Stability Control (ESC) ........................................................................\
..... 6-23
Vehicle Stability Management (VSM) ......................................................................6-28
Hill-Start Assist Control (HAC) ........................................................................\
......... 6-30
Downhill Brake Control (DBC) ........................................................................\
......... 6-30
Good Braking Practices ................................................................\
.............................6-33
Electronic Control Suspension (ECS) ............................................................ 6-34
Electronic Limited Slip Differential ................................................................ 6-35
Warning Messages ........................................................................\
............................ 6-36
N Button ........................................................................\
.................................. 6-37N1/N2 Button Settings ........................................................................\
....................... 6-37
Drive Mode Integrated Control System ........................................................ 6-38Drive Mode ........................................................................\
........................................ 6-38
N mode ........................................................................\
.............................................. 6-40
NGS (N Grin Shift) .....................................................................\
................................ 6-42
Vehicle Characteristic ........................................................................\
....................... 6-43
6. Driving your vehicle

6
Performance Option ........................................................................\
............... 6-44Performance Option Settings ........................................................................\
........... 6-44
Launch Control ........................................................................\
.................................. 6-44
Shift Light ........................................................................\
........................................... 6-46
N Track Sense Shift ........................................................\
............................................6-47
N Power Shift ........................................................................\
..................................... 6-49
N Road Sense ........................................................................\
.................................... 6-49
Maximum Performance Driving (How to drive with Octane Number Learning) ... 6-51
Special Driving Conditions ........................................................................\
..... 6-52Hazardous Driving Conditions ................................................\
..................................6-52
Rocking the Vehicle .................................................................\
..................................6-52
Smooth Cornering ........................................................................\
..............................6-53
Driving at Night ........................................................................\
..................................6-53
Driving in the Rain ........................................................................\
..............................6-53
Driving In Flooded Areas ....................................................................\
...................... 6-54
Highway Driving ........................................................................\
................................ 6-54
Reducing the Risk of a Rollover .....................................................................\
.......... 6-54
Winter Driving ........................................................................\
......................... 6-55Snow or Icy Conditions ........................................................................\
......................6-55
Winter Precautions ........................................................................\
............................ 6-58
Vehicle Load Limit ........................................................................\
..................6-60The Loading Information Label ........................................................................\
......... 6-61
Trailer Towing ........................................................................\
.......................... 6-65

06
6-3

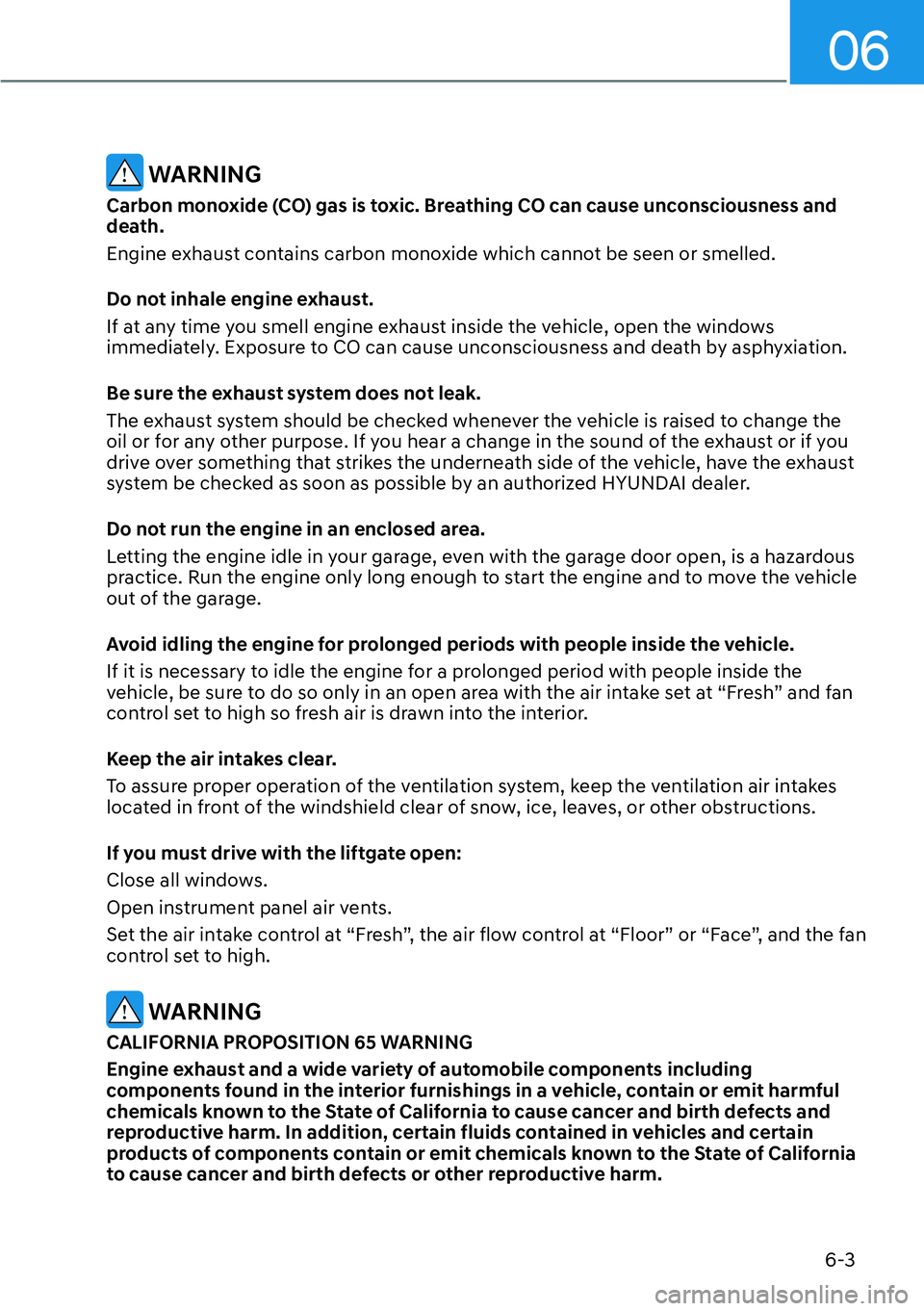

WARNING
Carbon monoxide (CO) gas is toxic. Breathing CO can cause unconsciousness and
death.
Engine exhaust contains carbon monoxide which cannot be seen or smelled.
Do not inhale engine exhaust.
If at any time you smell engine exhaust inside the vehicle, open the windows
immediately. Exposure to CO can cause unconsciousness and death by asphyxiation.
Be sure the exhaust system does not leak.
The exhaust system should be checked whenever the vehicle is raised to change the
oil or for any other purpose. If you hear a change in the sound of the exhaust or if you
drive over something that strikes the underneath side of the vehicle, have the exhaust
system be checked as soon as possible by an authorized HYUNDAI dealer.
Do not run the engine in an enclosed area.
Letting the engine idle in your garage, even with the garage door open, is a hazardous
practice. Run the engine only long enough to start the engine and to move the vehicle
out of the garage.
Avoid idling the engine for prolonged periods with people inside the vehicle.
If it is necessary to idle the engine for a prolonged period with people inside the
vehicle, be sure to do so only in an open area with the air intake set at “Fresh” and fan
control set to high so fresh air is drawn into the interior.
Keep the air intakes clear.
To assure proper operation of the ventilation system, keep the ventilation air intakes
located in front of the windshield clear of snow, ice, leaves, or other obstructions.
If you must drive with the liftgate open:
Close all windows.
Open instrument panel air vents.
Set the air intake control at “Fresh”, the air flow control at “Floor” or “Face”, and the fan
control set to high.
WARNING
CALIFORNIA PROPOSITION 65 WARNING
Engine exhaust and a wide variety of automobile components including
components found in the interior furnishings in a vehicle, contain or emit harmful
chemicals known to the State of California to cause cancer and birth defects and
reproductive harm. In addition, certain fluids contained in vehicles and certain
products of components contain or emit chemicals known to the State of California
to cause cancer and birth defects or other reproductive harm.

Driving your vehicle6-4
Before Entering the Vehicle

[ Be sure all windows, outside mirror(s),
and outside lights are clean and
unobstructed.

[ Remove frost, snow, or ice.

[ Visually check the tires for uneven
wear and damage.

[ Check under the vehicle for any sign
of leaks.

[ Be sure there are no obstacles behind
you if you intend to back up.
Before Starting

[Make sure the hood, the liftgate, and
the doors are securely closed and
locked.

[ Adjust the position of the seat and
steering wheel.

[ Adjust the inside and side view
mirrors.

[ Verify all the lights work.

[ Fasten your seat belt. Check that all
passengers have fastened their seat
belts.

[ Check the gauges and indicators
in the instrument panel and the
messages on the instrument display
when the Engine Start/Stop button is
in the ON position.

[ Check that any items you are carrying
are stored properly or fastened down
securely.
WARNING
To reduce the risk of SERIOUS INJURY or
DEATH, take the following precautions:

[ALWAYS wear your seat belt. All
passengers must be properly belted
whenever the vehicle is moving.
For more information, refer to “Seat
Belts” section in chapter 3.

[ Always drive defensively. Assume
other drivers or pedestrians may be
careless and make mistakes.

[ Stay focused on the task of driving.
Driver distraction can cause
accidents.

[ Leave plenty of space between you
and the vehicle in front of you.
WARNING
NEVER drink or take drugs and drive.
Drinking or taking drugs and driving
is dangerous and may result in an
accident and SERIOUS INJURY or
DEATH.
Drunk driving is the number one
contributor to the highway death
toll each year. Even a small amount
of alcohol will affect your reflexes,
perceptions and judgment. Just
one drink can reduce your ability to
respond to changing conditions and
emergencies and your reaction time
gets worse with each additional drink.
Driving while under the influence
of drugs is as dangerous or more
dangerous than driving under the
influence of alcohol.
You are much more likely to have a
serious accident if you drink or take
drugs and drive. If you are drinking or
taking drugs, don’t drive. Do not ride
with a driver who has been drinking
or taking drugs. Choose a designated
driver or call a taxi.
BEFORE DRIVING

06
6-5
ENGINE START/STOP BUTTON
OOS057001
Whenever the front door is opened, the
Engine Start/Stop button will illuminate
and will go off 30 seconds after the door
is closed.
WARNING
To turn the vehicle off in an emergency:
Press and hold the Engine Start/Stop
button for more than two seconds OR
Rapidly press and release the Engine
Start/Stop button three times (within
three seconds).
If the vehicle is still moving, you can
restart the vehicle without depressing
the brake pedal by pressing the Engine
Start/Stop button with the gear in the N
(Neutral) position.
WARNING

[NEVER press the Engine Start/Stop
button while the vehicle is in motion
except in an emergency. This will
result in the vehicle turning off and
loss of power assist for the steering
and brake systems. This may lead
to loss of directional control and
braking function, which could cause
an accident.

[ Before leaving the driver’s seat,
always make sure the gear is in the
P (Park) position, set the parking
brake, press the Engine Start/Stop
button to the OFF position, and take
the Smart Key with you. Unexpected
vehicle movement may occur if these
precautions are not followed.

[ NEVER reach through the steering
wheel for the Engine Start/Stop
button or any other control while the
vehicle is in motion. The presence
of your hand or arm in this area
may cause a loss of vehicle control
resulting in an accident.
